  1. What is the Chip Power? Brian Maynard SU HEP GROUP 2-17-2010

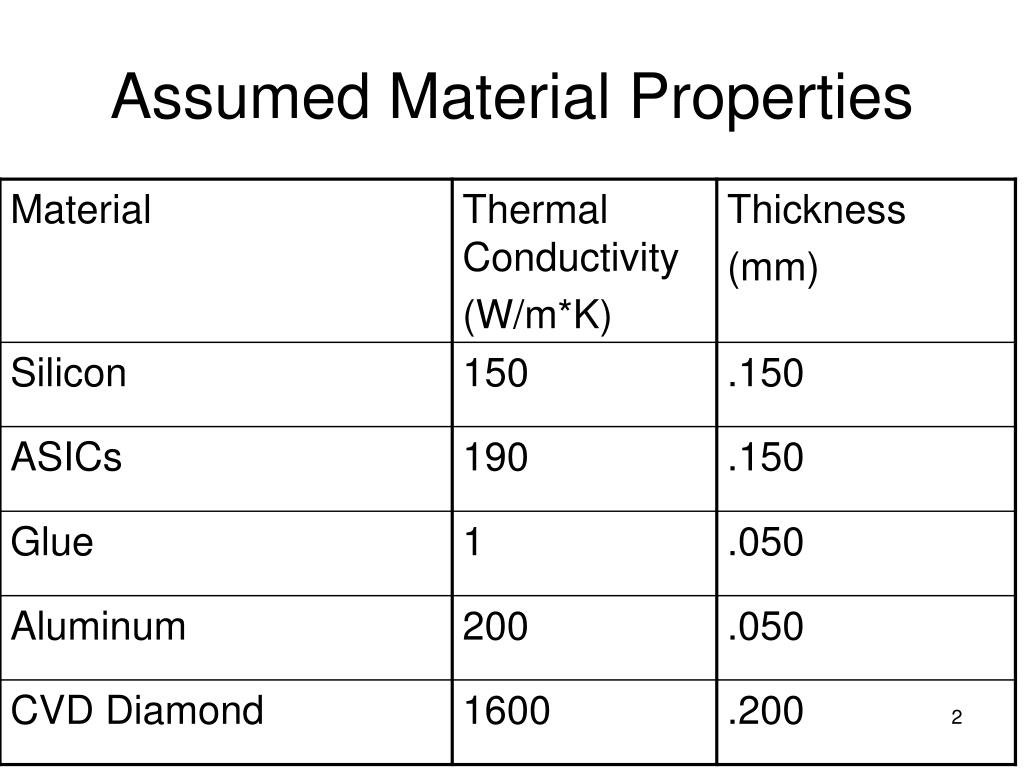

  2. Assumed Material Properties

  3. 3 13 15 45 2 15

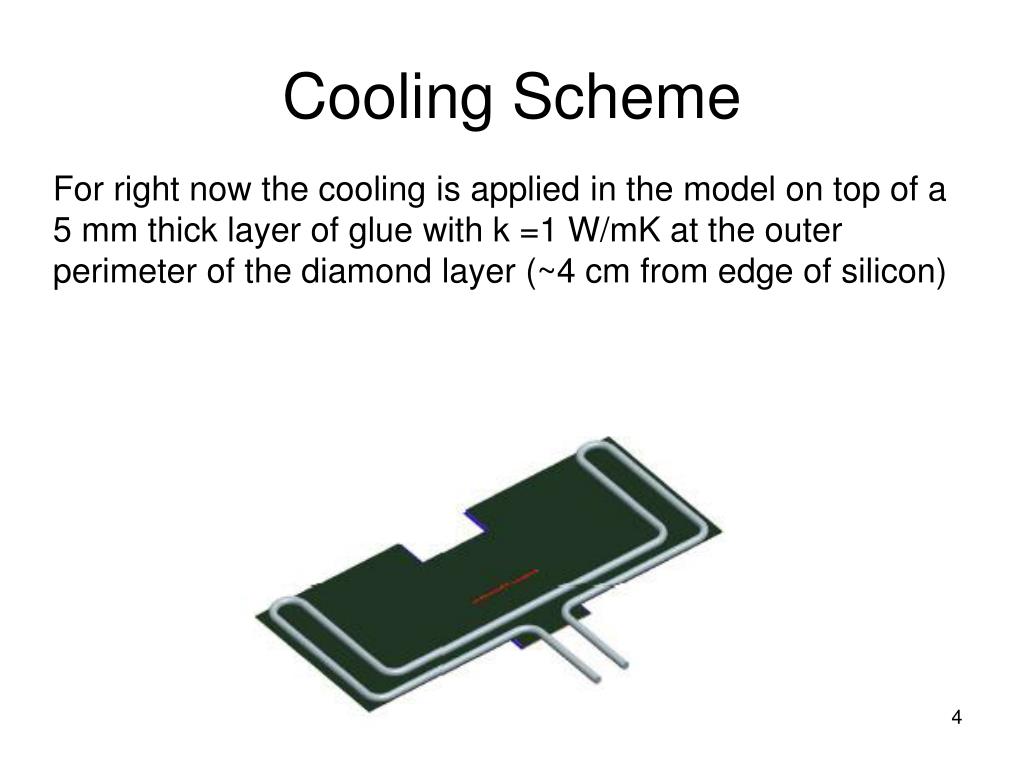

  4. Cooling Scheme For right now the cooling is applied in the model on top of a 5 mm thick layer of glue with k =1 W/mK at the outer perimeter of the diamond layer (~4 cm from edge of silicon)

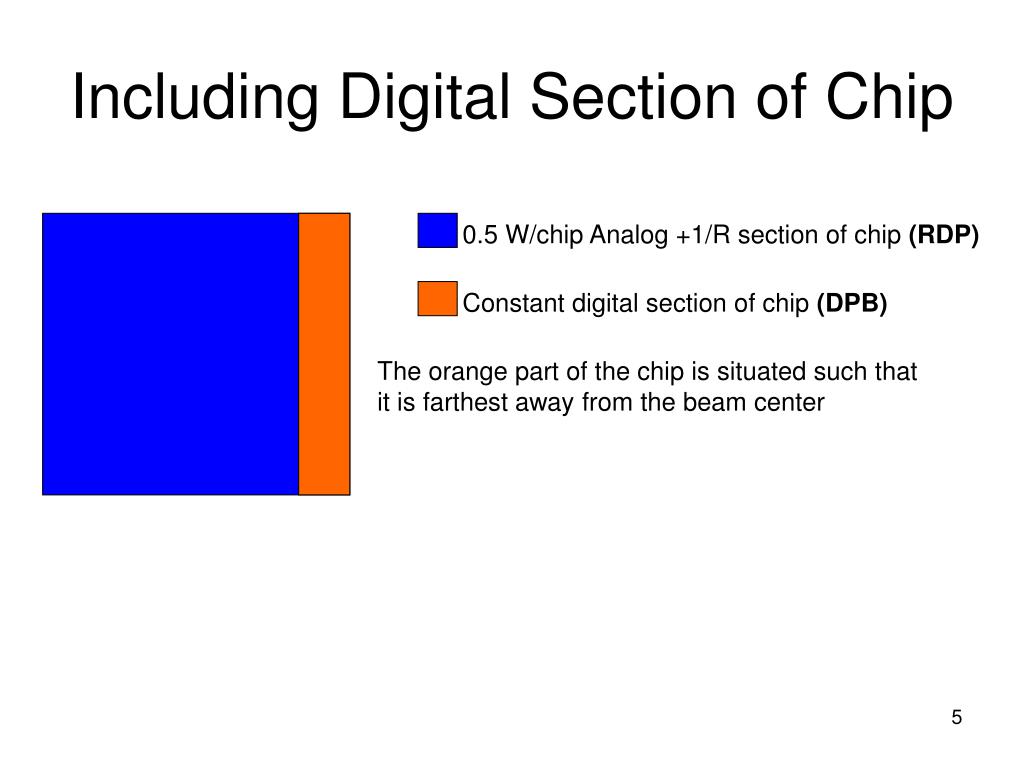

  5. Including Digital Section of Chip 0.5 W/chip Analog +1/R section of chip (RDP) Constant digital section of chip (DPB) The orange part of the chip is situated such that it is farthest away from the beam center

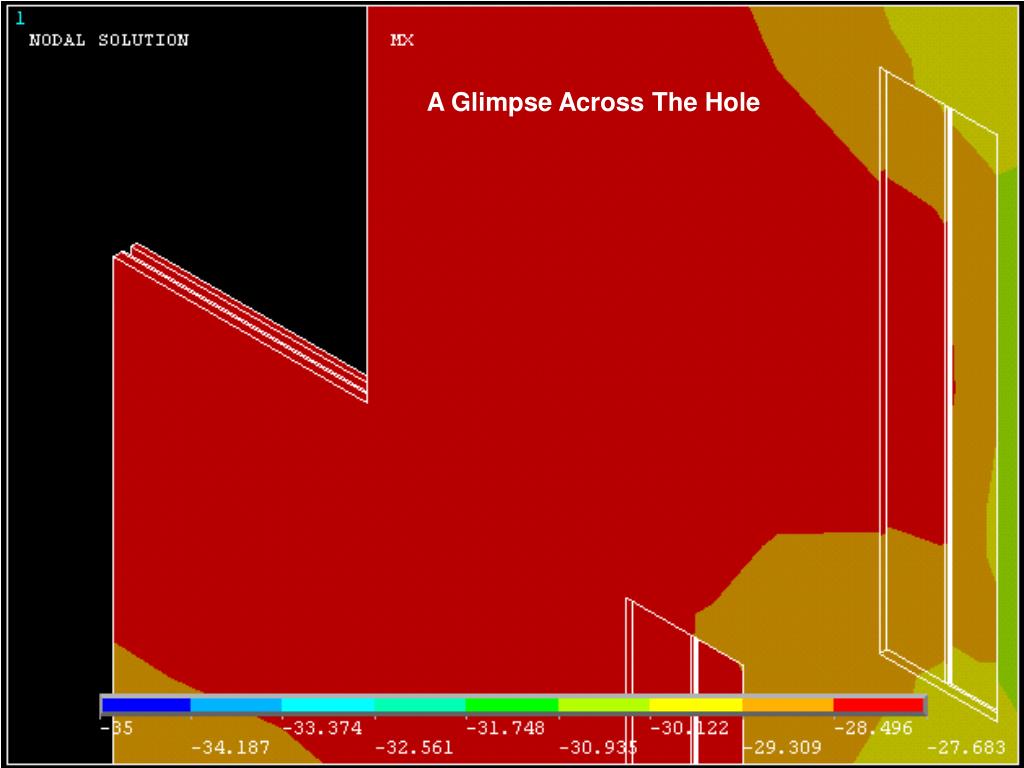

  6. A Glimpse Across The Hole

  7. SummaryCooling at -35C Cooling applied from sides at 1.0cm from Silicon and from back at 1.5cm
