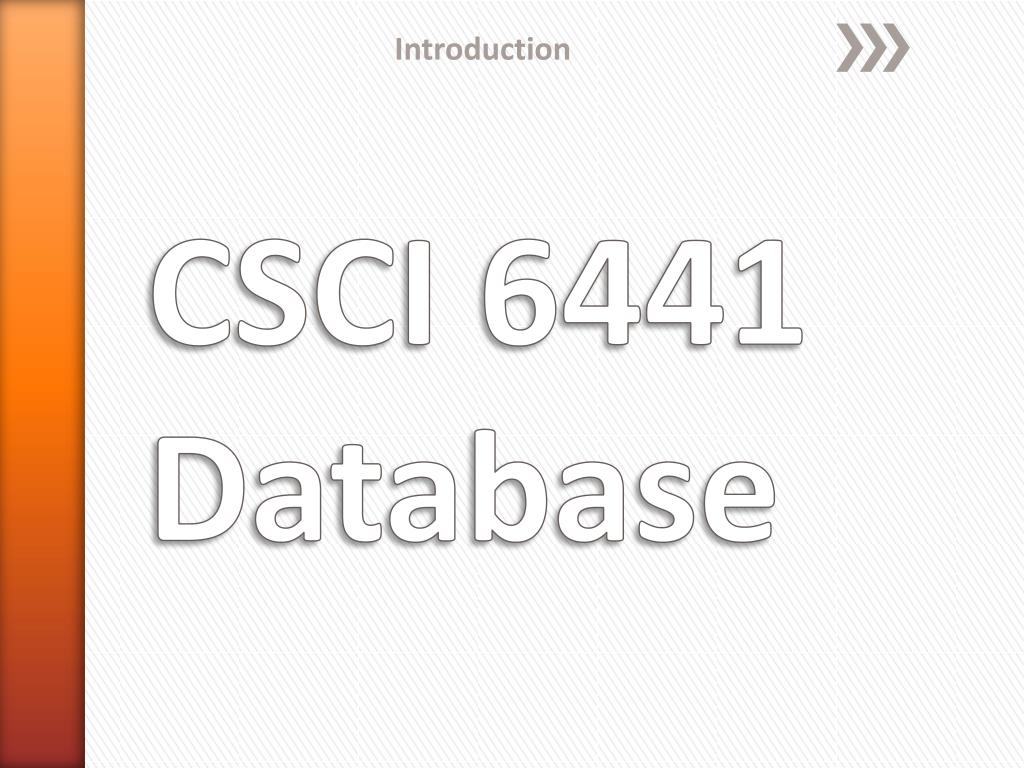

  1. Introduction CSCI 6441Database

  2. Misunderstood topics • Normalization • Database design • Performance • SQL • Advanced topics • Time in databases • Translucency • Performance • Realistic experience • Realistic team size • Accountability • Emerging requirements • Current Developments • Big data • NOSQL • Cloud Computing Next: 6442

  3. Early applications: • Programs wrote information into files on disk • Programs included lots of information about the files • Where they were stored • Type of storage • Exact format of each record • Changing programs is, in general, very hard • Programming is exacting work • Testing takes lots of time • People change jobs • Early programs were very hard to change • If data moved, programs had to change • If data changed, programs had to change • Events tend to force changes in data Why?

  4. It was discovered that many programs fit a paradigm: • They stored some data • Then later they changed it • Although hard problems of changing structure of data remained • Many useful applications could be built on this notion of a “stored data base” • Data base systems were developed to help manage the data • They provided uniform backup, recovery • Later, they even made changing the data easier A Discovery

  5. Earlier database systems: hierarchies, networks as data models • Data could be moved around easily • Relationships represented as physical connections • Structure of relationship imbedded in applications • When structure changed, programs had to change • Relational: independent table as data model • Relationships “represented” by equal values of data • Structure of relationships invisible to applications • Relationships change as data value change • Much greater ease of change Relational Principles

  6. Why “Relational”?

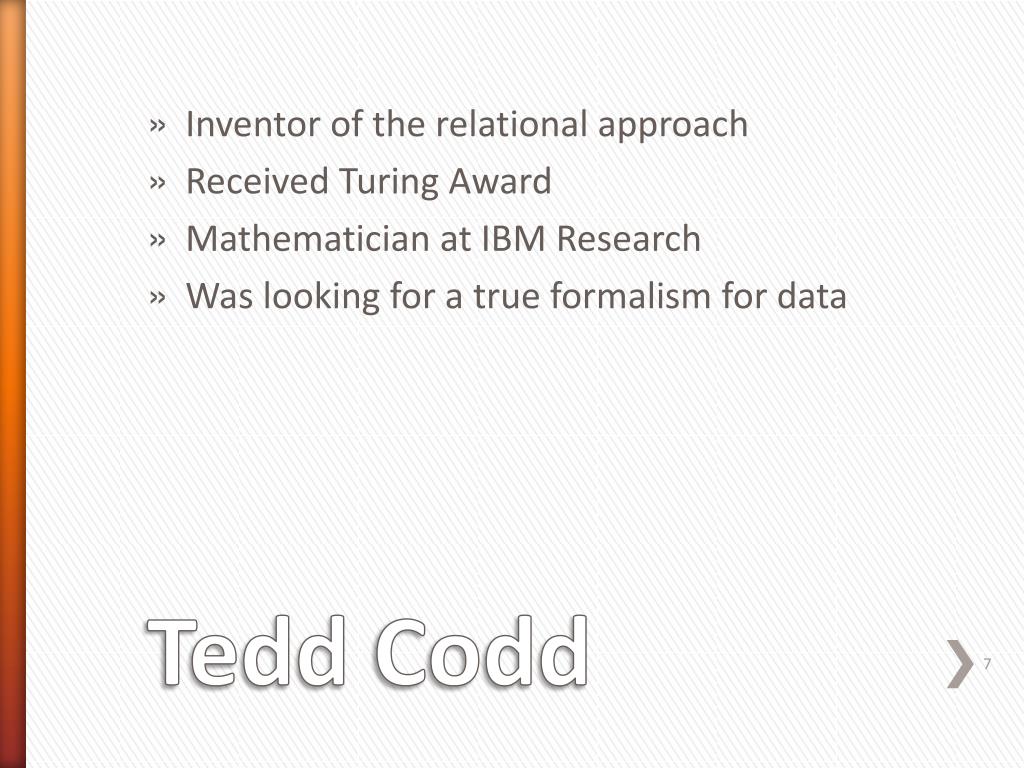

  7. Inventor of the relational approach • Received Turing Award • Mathematician at IBM Research • Was looking for a true formalism for data TeddCodd

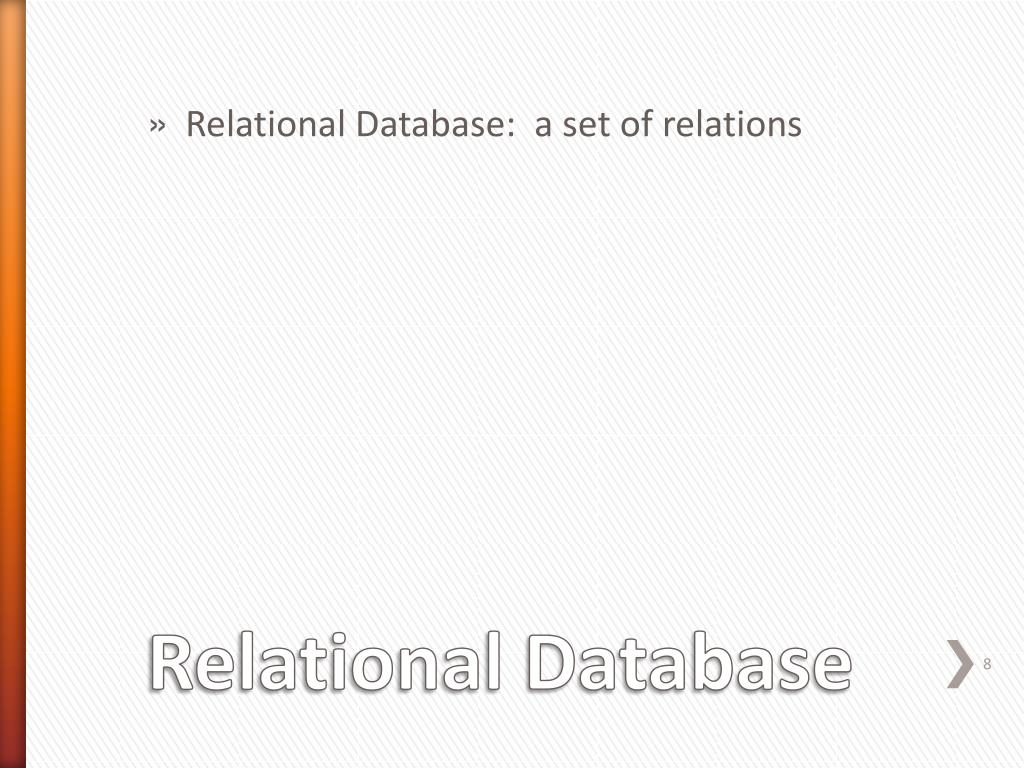

  8. Relational Database: a set of relations Relational Database

  9. Relation: a set of ordered pairs • Ordered pair: a pair of values, such that interchanging the two values changes the meaning • That is, <a,b>=<b,a> iff a=b and b=a • Specifying a relation by enumeration: R={<a,b>,<c,d>,<e,f>} • This is a relation consisting of three ordered pairs. Relation

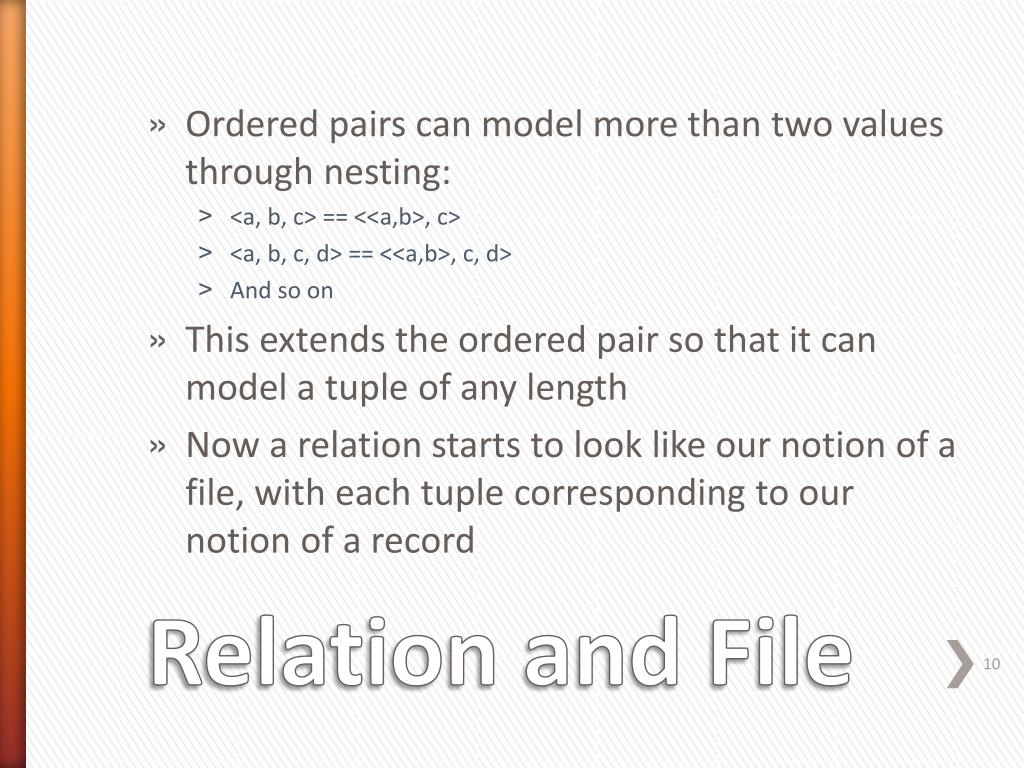

  10. Ordered pairs can model more than two values through nesting: • <a, b, c> == <<a,b>, c> • <a, b, c, d> == <<a,b>, c, d> • And so on • This extends the ordered pair so that it can model a tuple of any length • Now a relation starts to look like our notion of a file, with each tuple corresponding to our notion of a record Relation and File

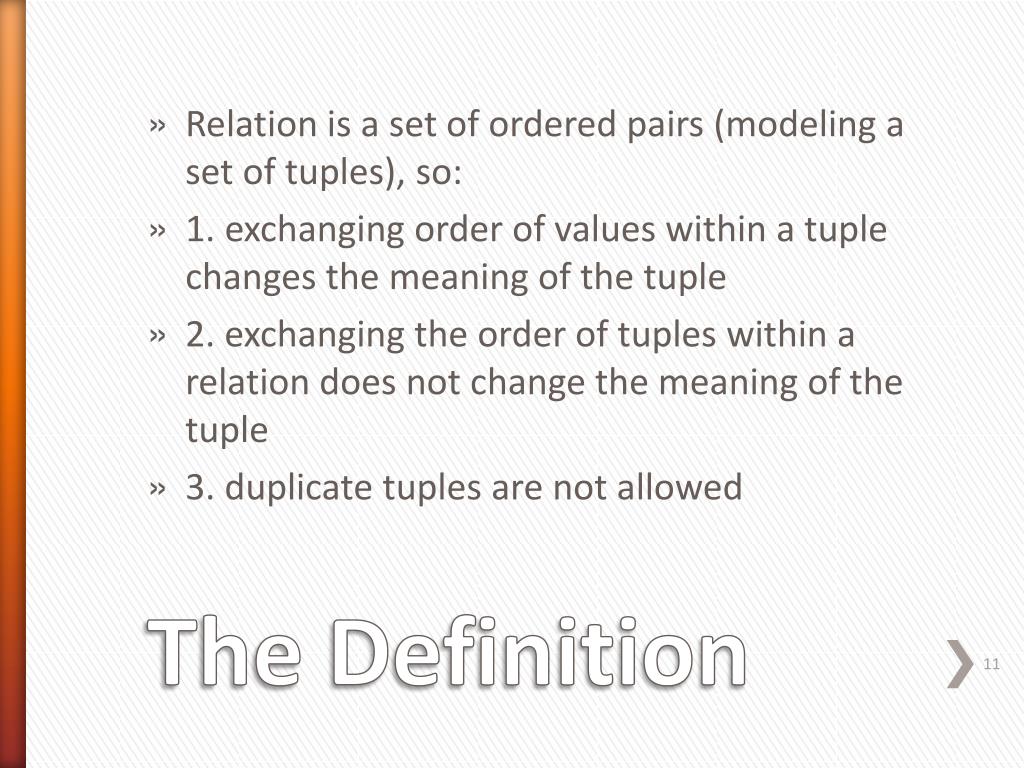

  11. Relation is a set of ordered pairs (modeling a set of tuples), so: • 1. exchanging order of values within a tuple changes the meaning of the tuple • 2. exchanging the order of tuples within a relation does not change the meaning of the tuple • 3. duplicate tuples are not allowed The Definition

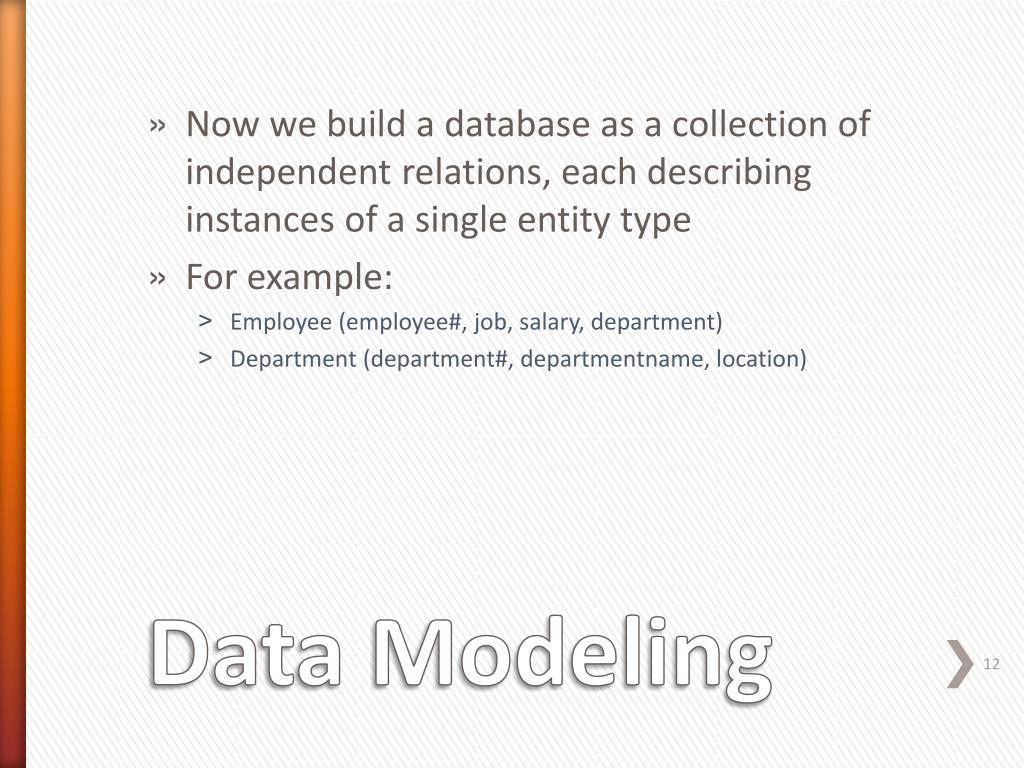

  12. Now we build a database as a collection of independent relations, each describing instances of a single entity type • For example: • Employee (employee#, job, salary, department) • Department (department#, departmentname, location) Data Modeling

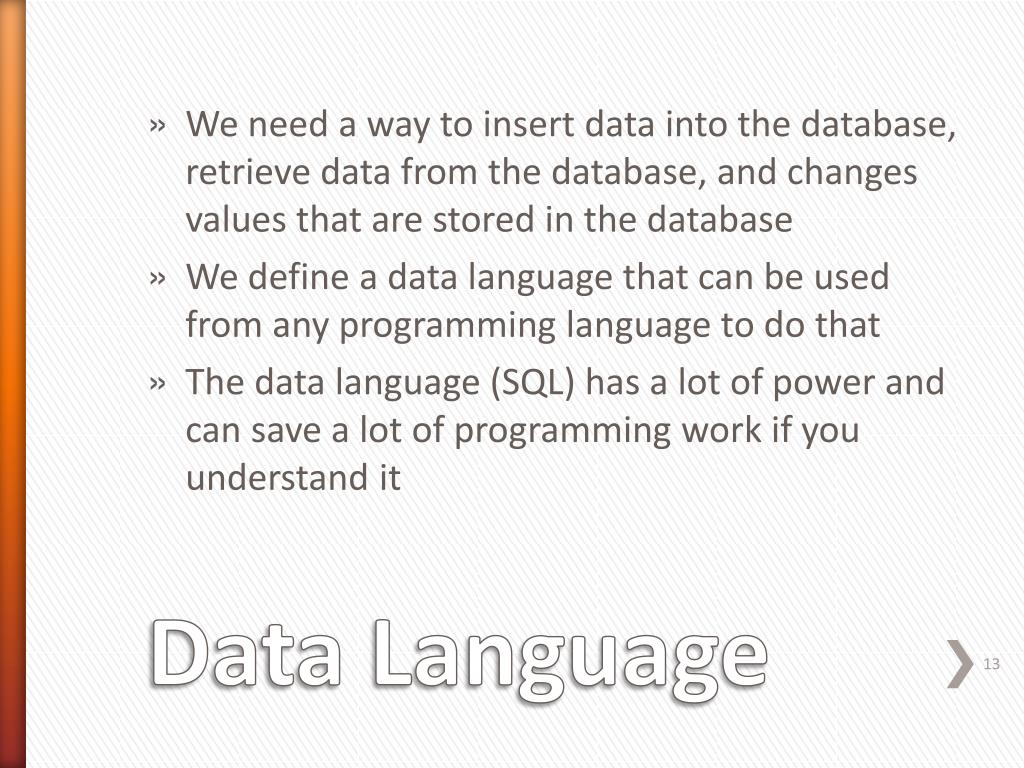

  13. We need a way to insert data into the database, retrieve data from the database, and changes values that are stored in the database • We define a data language that can be used from any programming language to do that • The data language (SQL) has a lot of power and can save a lot of programming work if you understand it Data Language

  14. Now we’ll talk about course mechanics Mechanics
