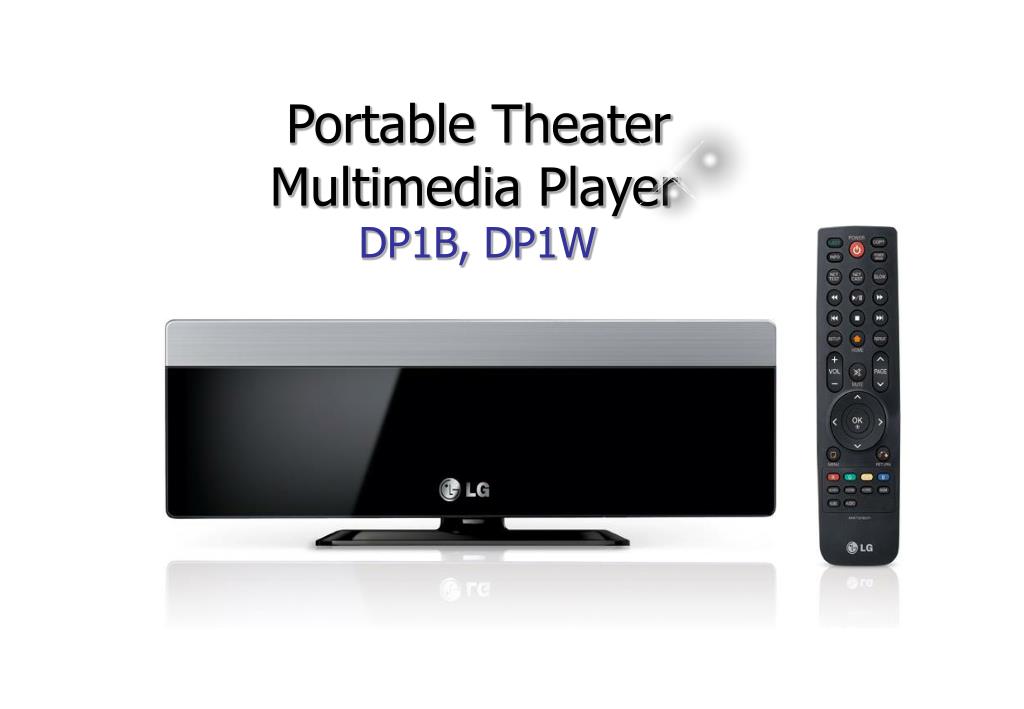

  1. Portable Theater Multimedia Player DP1B, DP1W

  2. Contents • Model Information • Hardware • Supported Codec • Network • Storage • Features • Key Sales Point • Remote Control • Package Design • MarCom material

  3. 1. Model Information Competitive Advantages WD TV Live Xtreamer DP1 Harmonious design & benefits Stylish Design Easy Linking Highest Quality TV look standing design provides additional beauty to your LCD TV. Convenient connections with multimedia storages. No more messy cables. Full HD 1080P for video, DTS and Dolby 5.1 Channel for audio 2/17

  4. DP1 Basic DP1 Wi-Fi 1. Model Information DP1BPBC.CES2STD EAN: 8808992990178 Portable Theater Multimedia Player DP1 DP1WPBC.CES2STD EAN: 8808992990161 2/17

  5. 2 USB Ports A/V Output Composite (Phone jack) Ethernet Reset Key HDMI out DC 12V/2A Optical Output (Digital Audio) Stand 2. Hardware • *Accessory ( Package Included ) • Composite AV cable • Remote control with 2 AAA batteries • AC adapter • SCART adapter ( EU only ) • Quick guide • CD *External optical drive is not supported (DVD/BD ROM/Writer, etc) 3/17

  6. 3. Supported Codec • *Codec Condition • This product may not support file formats other than the formats specified above • Dolby / DTS : 2ch(Down-mix), 5.1ch(Pass-through)‏ • Not Support WMV1/2 • OGG : Audio file only, sample rate 32K(Q0) ~ 192K(Q2)‏ • LPCM : Video file only • flv : only support H.264 video codec • BD iso : only support VC1, MPEG2, H.264 video codec (Ripping file only playable) 4/17

  7. <PC> Internt Service 4. Network • Access to Wired/Wireless network is possible. • Wired network is built into the basic model DP1B and for wireless network the USB dongle needs to be purchased separately. • The Network model DP1W provides both wired/wireless network (wireless module is built-in). • When connected to the network drive you can search for downloaded files from the PC and play them directly. • DP1 supports YouTube UCC flashes, Picasa for pictures, and Weather information service. <Wireless> <Wired> <Wireless> + *USB Dongle for Wireless network with DP1B Linksys : WUSB600N-vr2 (RT3572 controller) Belkin : F6D4050 5/17

  8. 2 USB Ports Portable HDD Desktop HDD USB Card Reader 5. Storage • Supports two USB 2.0 Hosts to connect two different USB devices simultaneously, and also to allow copy function between the two devices 6/17

  9. 6. Features . Designed to harmonize with LCD TV (Product, stand) . Portable Compact size . Full HD Display with HDMI (1080p) . Supports 24Hz cinema mode . Supports DTS / Dolby AC3 5.1ch . Plays various movie, music and image files . Convenient thumbnail when viewing pictures and supports BGM . Wired/Wireless network support (Built-in Wireless Network) . Access to internet contents (YouTube, Picasa, Weather) . Supports 2 USB hosts and USB device file copy function . Built-in touch button in case of Remote Control Loss . Easy Step by Step GUI . Easy to use color remote control 7/17

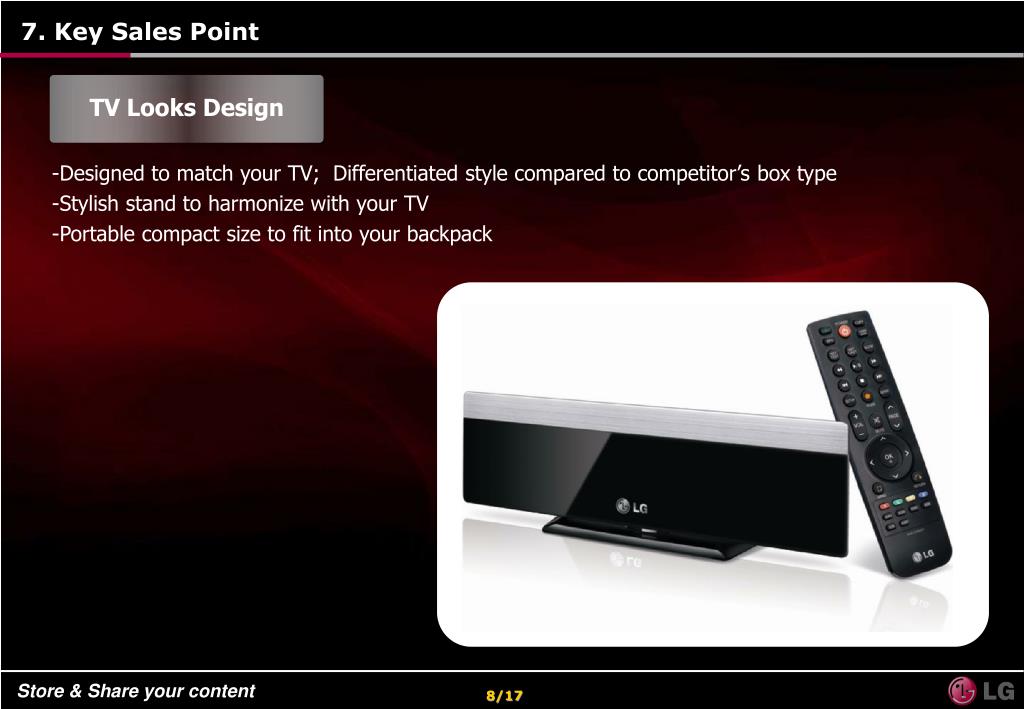

  10. TV Looks Design 7. Key Sales Point • Designed to match your TV; Differentiated style compared to competitor’s box type • Stylish stand to harmonize with your TV • Portable compact size to fit into your backpack 8/17

  11. Touch Control Key 7. Key Sales Point • Unique Touch control key in case remote control is not in hand Down Up Left Right OK Menu Back On/Off 9/17

  12. Full HD with HDMI 7. Key Sales Point • Supports Full HD 1920×1080p Resolution contents for live and clear high quality • *HDMI cable not included <SD> <Full HD> 10/17

  13. 24Hz Cinema Mode 7. Key Sales Point • Supports the all new 1080p/24Hz Cinema mode (Film mode) function for theater-like quality • 24Hz Cinema mode function allows for the same 24 frame image play as the original movie • The mode is played with HDMI connection <Normal> <Cinema Mode> 11/17

  14. DTS / Dolby AC3 7. Key Sales Point • Connect to your home theater and enjoy DTS and Dolby 5.1 channel or automatically converse 5.1 channel sound to 2.0 channel with down mix function to enjoy your contents on TV or normal stereo audio Optical or RCA 12/17

  15. Thumbnail 7. Key Sales Point • Thumbnail function for convenient picture search • Set BGM ( Background Music ) • Three disparate types of Thumbnail mode to provide optimized view of various contents Large Scale Medium Scale Small Scale 13/17

  16. GUI Icon SEARCH ZOOM ROTATE PICTURE SUBTITLE AUDIO 7. Key Sales Point • Easy to use step by step directions even without a manual • Convenient operational environment to allow for one function per screen • Hot key on remote control is added for quick operation after product usage has been familiarized with by the user • -Convenient single button to bring up function menu • -Color Key Guide for easy usage *Language: English, Korean, Arabic, Chinese, Simplified-Chinese, Dutch, French, German, Greek, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Turkish *Color Depth: 32bit 14/17

  17. 8. Remote Control 15/17

  18. DP1 Basic 9. Package Design 16/17

  19. DP1 Wi-Fi 9. Package Design 17/17

  20. 10. MarCom material X/Mini- banner Design not fixed yet Display rack 17/17

  21. 10. MarCom material Design not fixed yet Leaflet 17/17

  22. 10. MarCom material Design not fixed yet Leaflet 17/17

  23. 10. MarCom material Design not fixed yet Leaflet 17/17

  24. Thank you ! End of Document
