ATM

ATM. characteristics From an application-level API to the physical layer CBR, VBR, ABR and UBR Cell: 5 + 48 bytes Virtual circuits: virtual channel identifier (VCI) No retransmission on a link-by-link basis Congestion control only within the ATM ABR Run over any physical layer.

ugo
Télécharger la présentation

ATM

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

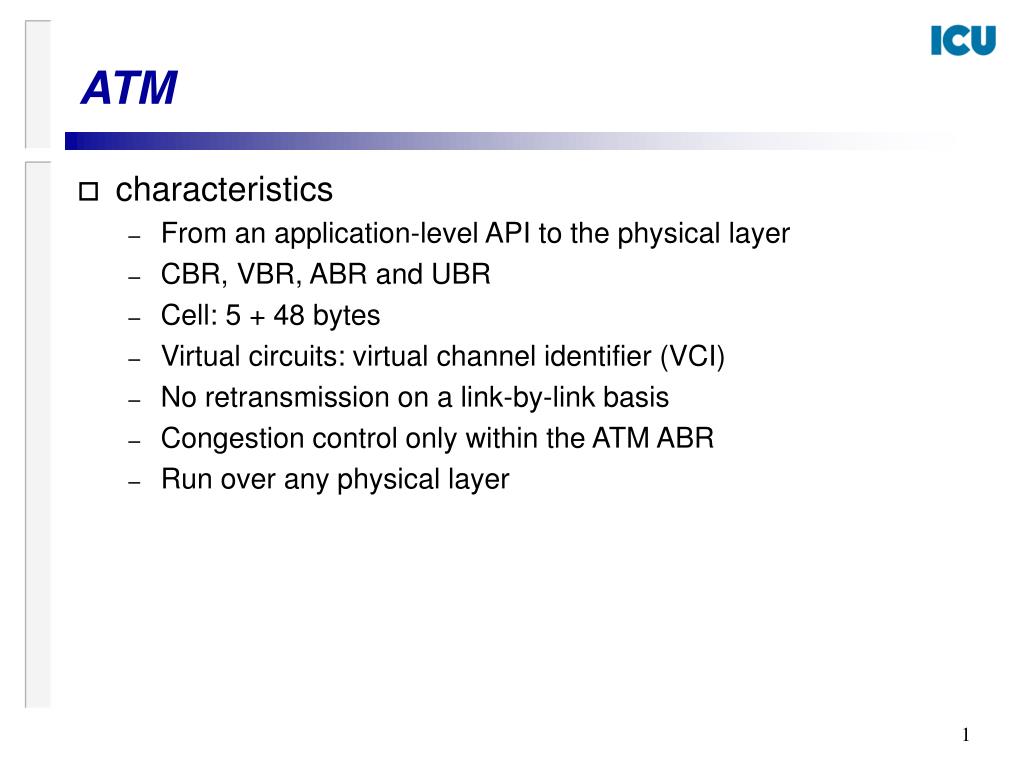

  1. ATM • characteristics • From an application-level API to the physical layer • CBR, VBR, ABR and UBR • Cell: 5 + 48 bytes • Virtual circuits: virtual channel identifier (VCI) • No retransmission on a link-by-link basis • Congestion control only within the ATM ABR • Run over any physical layer

  2. Fig 5.44 and 5.45

  3. Fig 5.47

  4. IP over ATM • Dynamic vs Permanent virtual channel • pp. 503-504 • Fig 5.52

  5. Myungchul Kim mckim@icu.ac.kr Ch 6. Multimedia Networking

  6. Networked multimedia applications: timing and tolerance of data loss • Delay-sensitive and loss-tolerant • Streaming stored audio and video • Stored media • Streaming: avoids having to download the entire file before beginning playout, Realplayer, QuickTime and Media Player • Continuous playout • Streaming live audio and video • Not stored, not fast-forward • Use the IP multicast

  7. Real-time interactive audio and video • Real-time • Interactive • Internet phone • For voice, 150 msec, 150-400 msec, 400 msec • Hurdles for multimedia • End-to-end delay for a packet • Variation of packet delay • Packet loss • Supporting multimedia better in Internet • Reservation approach • Laissez-faire approach: ISP, CDN, multicast overlay networks • Differentiation approach

  8. Audio and video compression • 1024 pixels * 1024 pixels with each pixel encoded into 24 bits => 3 Mbyte • 7 Min over a 64 kbps link • If the image is compressed at 10:1, • Audio compression • 8000 samples per second -> quantization with 256 values (8bits)-> 64,000 bits/second • Pulse code modulation • GSM, G.729, MPEG 1 layer 3(MP3),… • Video compression • MPEG 1, 2, 4, H.261

  9. Streaming stored audio and video • Real-time streaming protocol (RTSP) • User interactivity • RealPlayer and Media Player • Decompression, jitter removal, and correction • Fig 6.2

  10. Fig 6.3

  11. RTSP • Control the playback of continuous media • No related with compression schemes, encapsulation in packets, transportation, buffering • Out-of-band protocol • Over either TCP or UDP • Pause/resume, playback, fast-forward, and rewind

  12. Fig 6.5

  13. Internet phone • Every 20 msec over UDP • Packet loss, end-to-end delay, and packet jitter • Removing jitter at the receiver for audio • With a sequence number, a timestamp or • delaying playout at the receiver

  14. Fig 6.6
