  1. Wireless Interface Options for 1451 Presented at Sensors Expo San Jose, CA May 20, 2002 Mike Moore Steve Smith Oak Ridge National Laboratory

  2. Presentation Sections • Key Goals of Standard • Other Standards That Can be Leveraged • IEEE 802 IT Architecture • Various PHY components • Variety of Nodes • Sensor, Network, Repeater, etc.

  3. Key Elements of Sensor Standard • TEDS (Transducer Electronic Data Sheet) • Synchronization of Data Sampling • Unique Identification of Transducer • Accessibility to Networks (e.g. Internet) • Plug-and-Play Sensor Connections

  4. Candidate 1451 MAC/PHYFrom Other Wireless Standards • Use IEEE 802 Family As a Model • Use TEDS features from IEEE 1451.x (esp. .3) • Look at PHY options from other standards • IEEE 802.15.1 • IEEE 802.15.4 • RTLS, others • Use Unique ID functionality based on the MIT AutoID’s ePC program.

  5. Candidate 1451 MAC/PHY From Other Wireless Standards OFDM =Orthogonal Frequency Division Multiplex FHSS = Frequency Hopping Spread-Spectrum DSSS = Direct-Sequence Spread-Spectrum

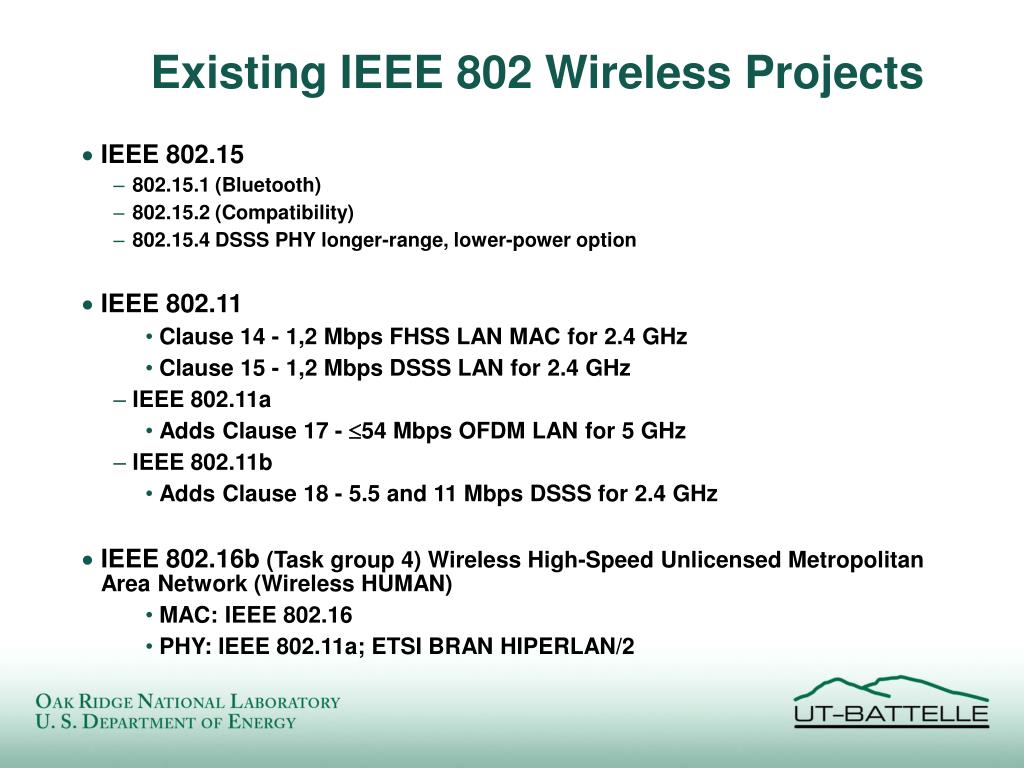

  6. Existing IEEE 802 Wireless Projects • IEEE 802.15 • 802.15.1 (Bluetooth) • 802.15.2 (Compatibility) • 802.15.4 DSSS PHY longer-range, lower-power option • IEEE 802.11 • Clause 14 - 1,2 Mbps FHSS LAN MAC for 2.4 GHz • Clause 15 - 1,2 Mbps DSSS LAN for 2.4 GHz • IEEE 802.11a • Adds Clause 17 - £54 Mbps OFDM LAN for 5 GHz • IEEE 802.11b • Adds Clause 18 - 5.5 and 11 Mbps DSSS for 2.4 GHz • IEEE 802.16b (Task group 4) Wireless High-Speed Unlicensed Metropolitan Area Network (Wireless HUMAN) • MAC: IEEE 802.16 • PHY: IEEE 802.11a; ETSI BRAN HIPERLAN/2

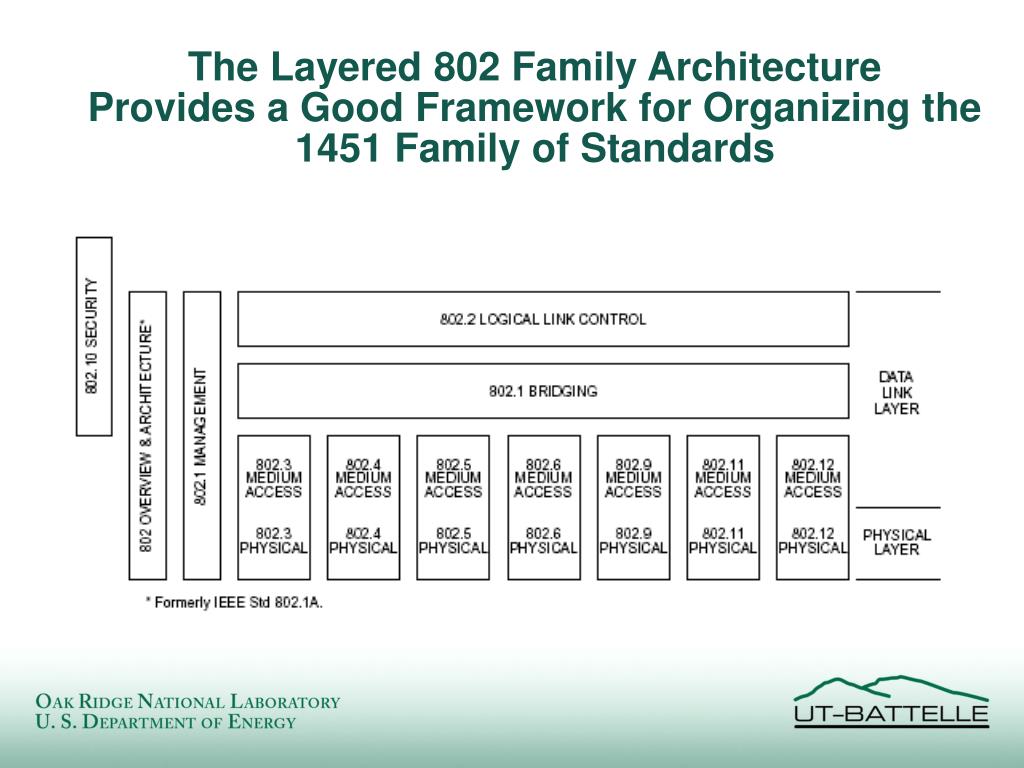

  7. The Layered 802 Family ArchitectureProvides a Good Framework for Organizing the 1451 Family of Standards

  8. IEEE P1451.5 Should Accommodate the Rapidly Changing Wireless Arena App Layer 1451.1 Object Model Data Link Layer 1451.5 Tblock MAC/ Wire- less 1451.4 Tblock MAC/ MMI 1451.3 Tblock MAC/ HPNA 1451.2 Tblock MAC/ TII 1451 PHY 1451.5a (802.15.1) 1451.5b (802.15.4) RTLS Other

  9. Real-Time Locating System (RTLS) user community is seeking a generally similar solution to IEEE P1451.5 Replies to “What user need(s) does RTLS solve?” ·One air interface · Wireless telemetry · Global license-free frequency (e.g., FCC Part 15) · Non-interfering / non-susceptible to interference from wireless LANs · X, y, and possibly z axis · Battery-life (if required) (standard test methods) · Resolution (standard test methods) · Range (standard test methods) · Safety (intrinsic) · Security (authentication, non-repudiation, encryption, authorization) · No additional wireless infrastructures to manage · Refresh rate · Tag density · Data standards for common interface between components and host systems output data stream From: Minutes NCITS T20 RTLS 21 August 2001 Bolded/Underlined Items May Overlap with P1451.5

  10. MITs AutoID Program Provides World-wide Unique ID Functionality in the Form of an Electronic Product Code (ePC). • Use the ePC (electronic version of the UPC; having 64 or 96-bits) for the TBC, TBIM and transducer UUID's [additional TEDS, compact TEDS and metaTEDS could still be stored on the devices if desired]. • An NCAP F-block would send the ePC to the object name server (ONS -- analogous to DNS) which returns a URL for detailed information on the device. • TEDS and additional information could be available at the referenced URL all described using PML which uses the same format and structure as the eXtensible Markup Language (XML). • Software (The SAVANT by MIT) will be available later this year to implement ePC/ONS/PML transactions.

  11. 1451.5 Wireless Work Leverages Other 1451 Projects • Smart Transducer Object Model from 1451.1 • Basic TEDS Concept from 1451.2 • Synch and XML TEDS from P1451.3 • Compact TEDS and Transducer Interface from P1451.4

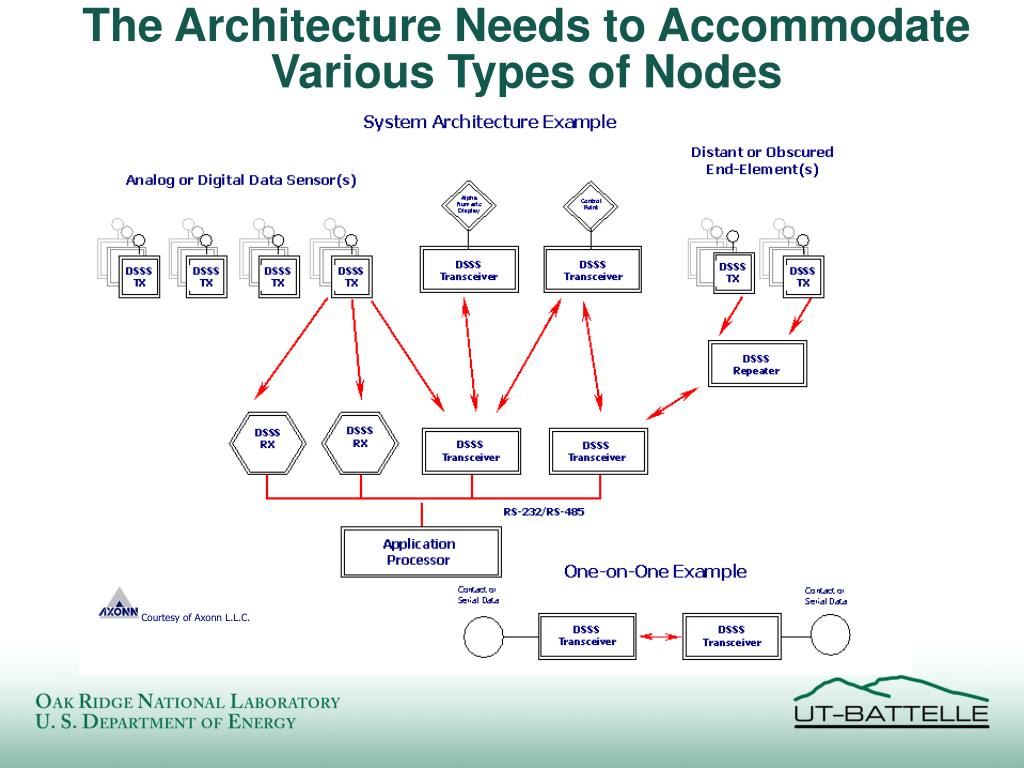

  12. The Architecture Needs to Accommodate Various Types of Nodes Courtesy of Axonn L.L.C.

  13. P1451.5 SG Is Considering SeveralTypes of System Nodes • Transducer Nodes • Bidirectional (Synchronous) • Transmit-Only (Asynchronous) • Mobility Capable • Network Nodes • Bidirectional • Receive-Only • Mobility-Capable • Repeater Node • Compute Node • Display Node

  14. Path Ahead for Future Growth A Well-Planned Architecture for 1451.5 Enables the Quick Incorporation of... • Emerging Wireless Technologies • Data Security (as described in IEEE 1363) • Mobile Ad-Hoc Networking • Other Useful Features

  15. Conclusion A New Wireless Transducer Interface, IEEE P1451.5, is currently being studied that will ideally ... • Efficiently Leverage Sensor Networking Capabilities From the Other IEEE 1451 Projects • Include Multiple Robust MAC/PHY Combinations • Use the IEEE 802 Family-of-Standards Approach as a Model • Have a Layered Architecture • Enabling Rapid Ramp-Up Utilizing Existing Products • Enabling Flexible Future Growth
