  1. Work and machines Making jobs easier

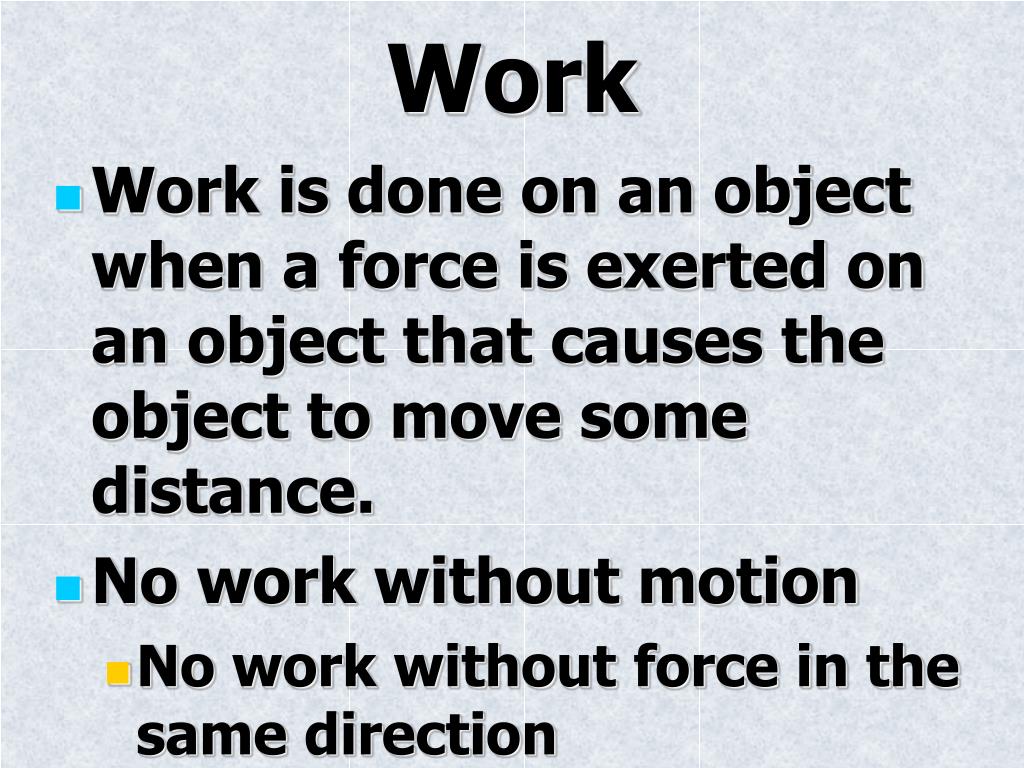

  2. Work • Work is done on an object when a force is exerted on an object that causes the object to move some distance. • No work without motion • No work without force in the same direction

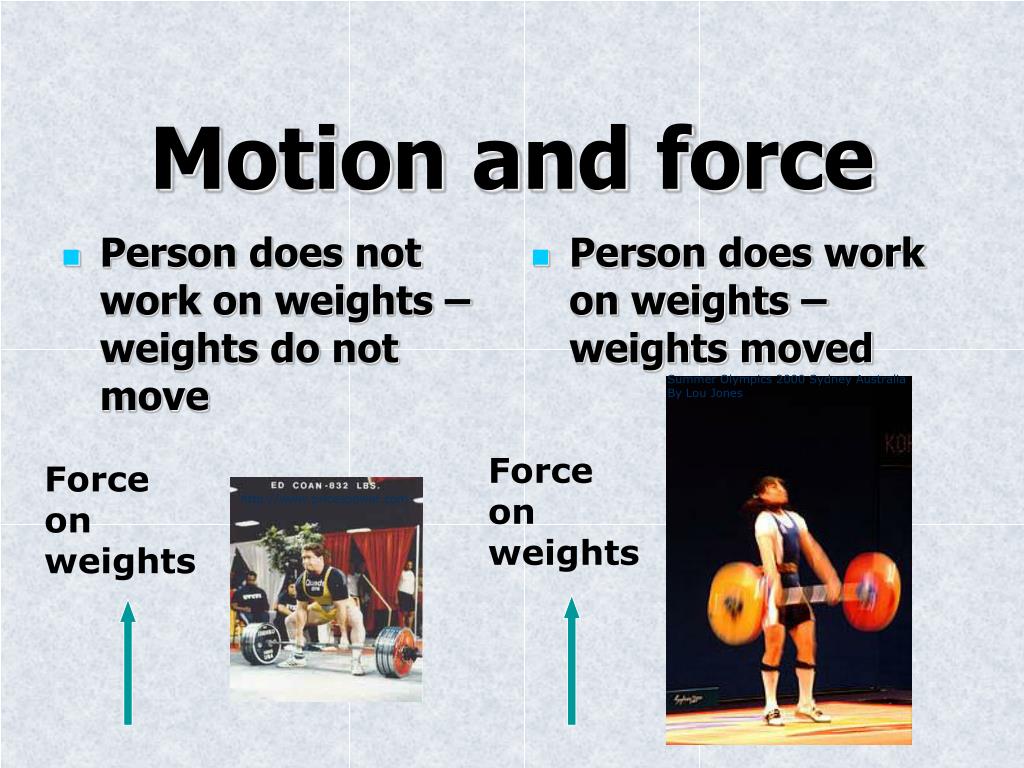

  3. Person does not work on weights – weights do not move Person does work on weights – weights moved Force on weights Force on weights Motion and force Summer Olympics 2000 Sydney Australia By Lou Jones http://www.pricespower.com

  4. Horse does not work on the rider – force not in same direction Horse does work on the cart - force and motion in the same direction Direction and force Force on person Force on cart motion motion

  5. Calculating Work • Work = Force X Distance • Force units = Newton, N • Distance units = meter, m • Work units = Joule, J • J = N*m

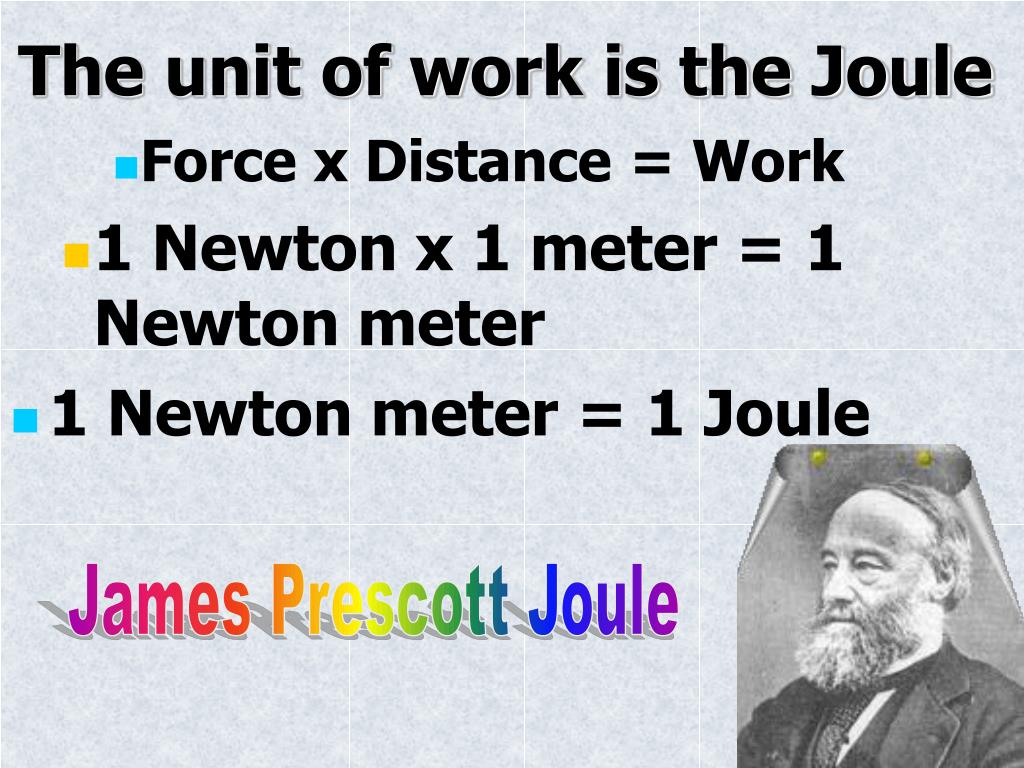

  6. The unit of work is the Joule • Force x Distance = Work • 1 Newton x 1 meter = 1 Newton meter • 1 Newton meter = 1 Joule James Prescott Joule

  7. Example 1: • A high jumper weighs 700 newtons. What work does the jumper perform in jumping over a bar 2.0 meters high? • Answer: W = F x d • W = 700N x 2.0 m • = 1400 nm • = 1400 Joules

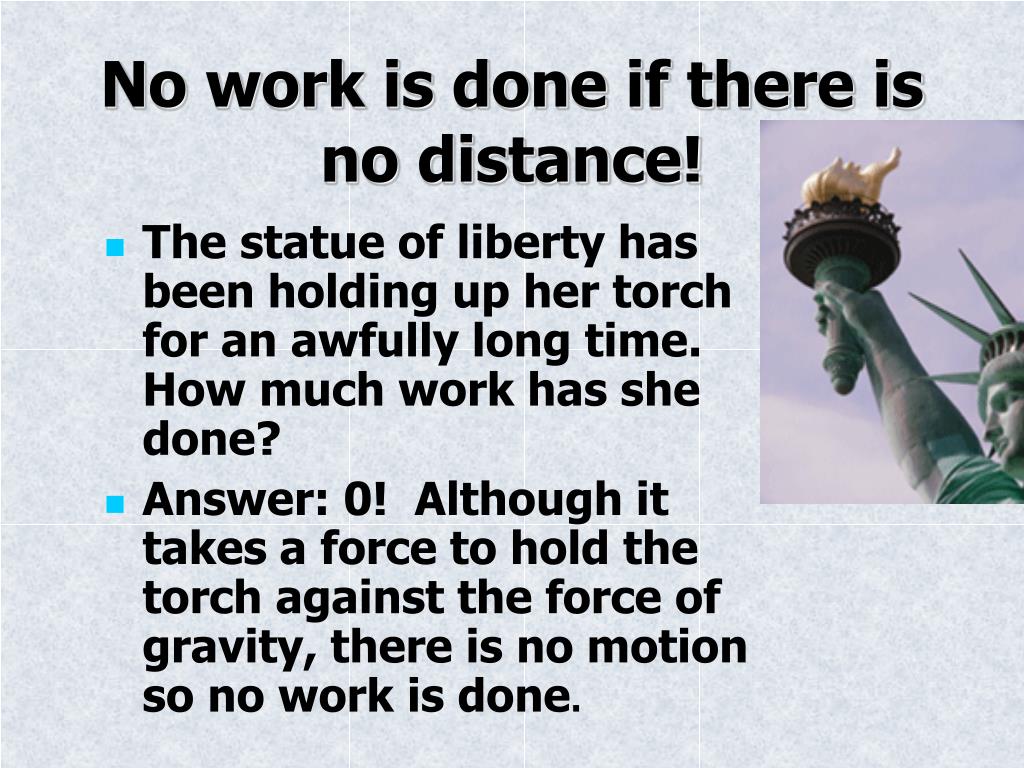

  8. No work is done if there is no distance! • The statue of liberty has been holding up her torch for an awfully long time. How much work has she done? • Answer: 0! Although it takes a force to hold the torch against the force of gravity, there is no motion so no work is done.

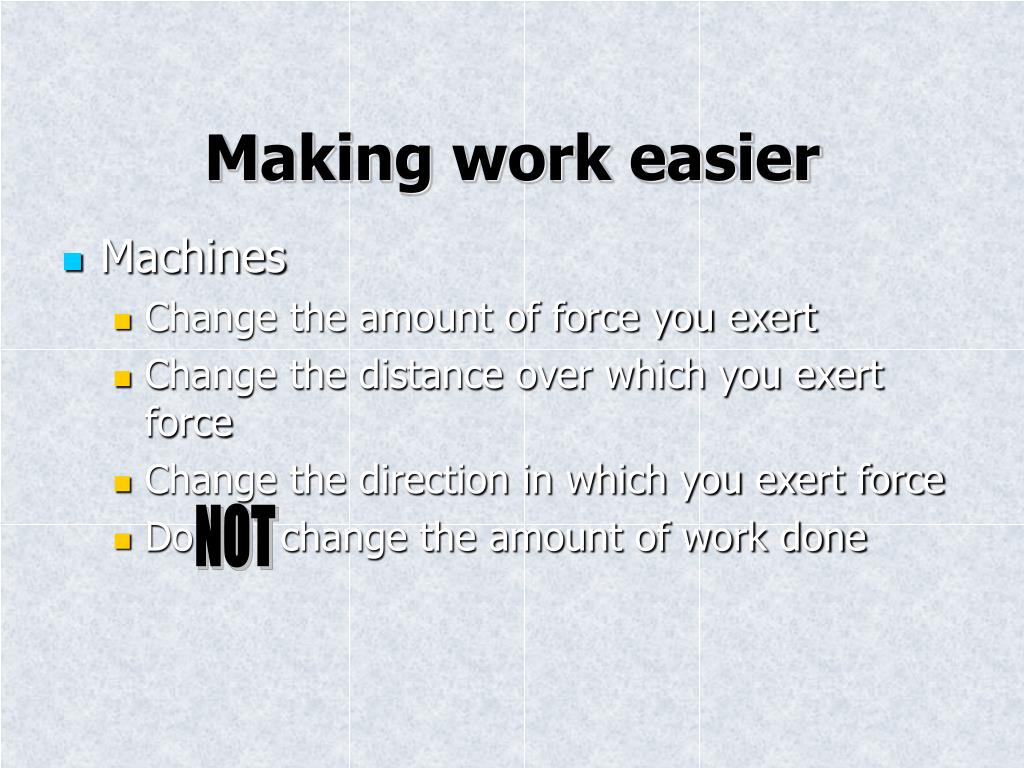

  9. Making work easier • Machines • Change the amount of force you exert • Change the distance over which you exert force • Change the direction in which you exert force • Do change the amount of work done NOT

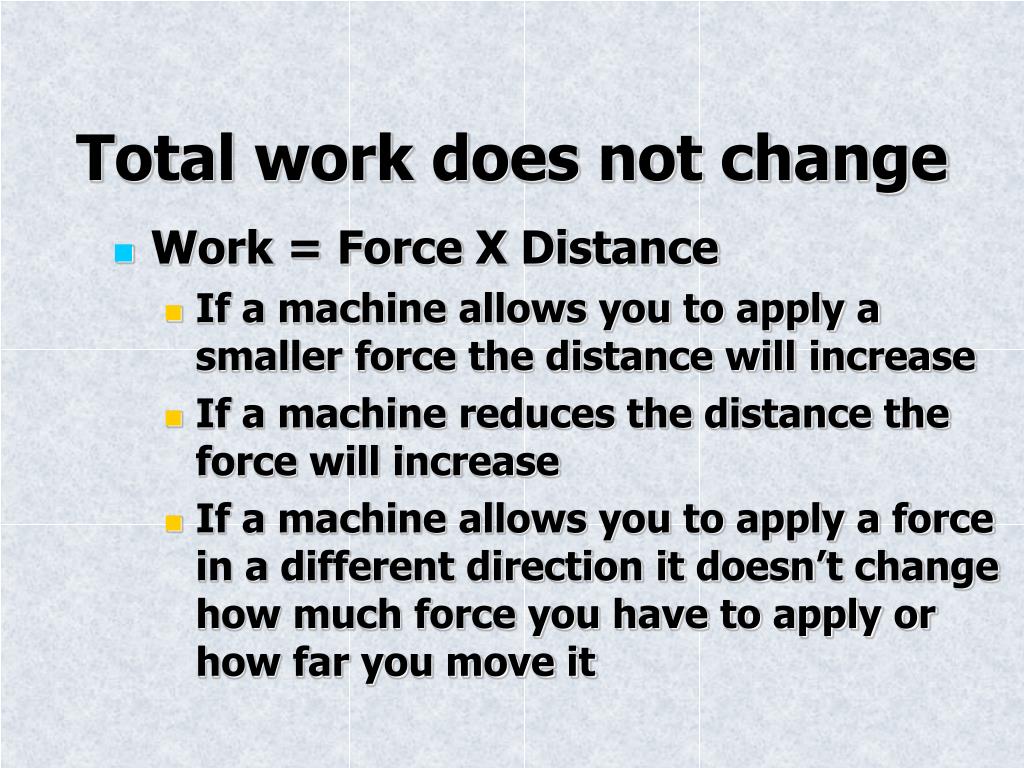

  10. Total work does not change • Work = Force X Distance • If a machine allows you to apply a smaller force the distance will increase • If a machine reduces the distance the force will increase • If a machine allows you to apply a force in a different direction it doesn’t change how much force you have to apply or how far you move it

  11. Mechanical advantage • The number of times a force exerted on a machine is multiplied by the machine • Mechanical ad. = Output force Input force • If M.A. > 1 machine increases force needed but distance decreases • If M.A. < 1 machine reduces force needed but distance increases

  12. Efficiency • Efficiency compares the output work to the input work (%) • Cannot be greater than 100% • Efficiency usually < 100% • Friction

  13. Types of simple machines • Inclined plane • Wedge • Screw • Lever • Wheel and axle • pulley Image taken from: http://www.daniel-wright.district103.k12.il.us/ccheifetz/physics.html

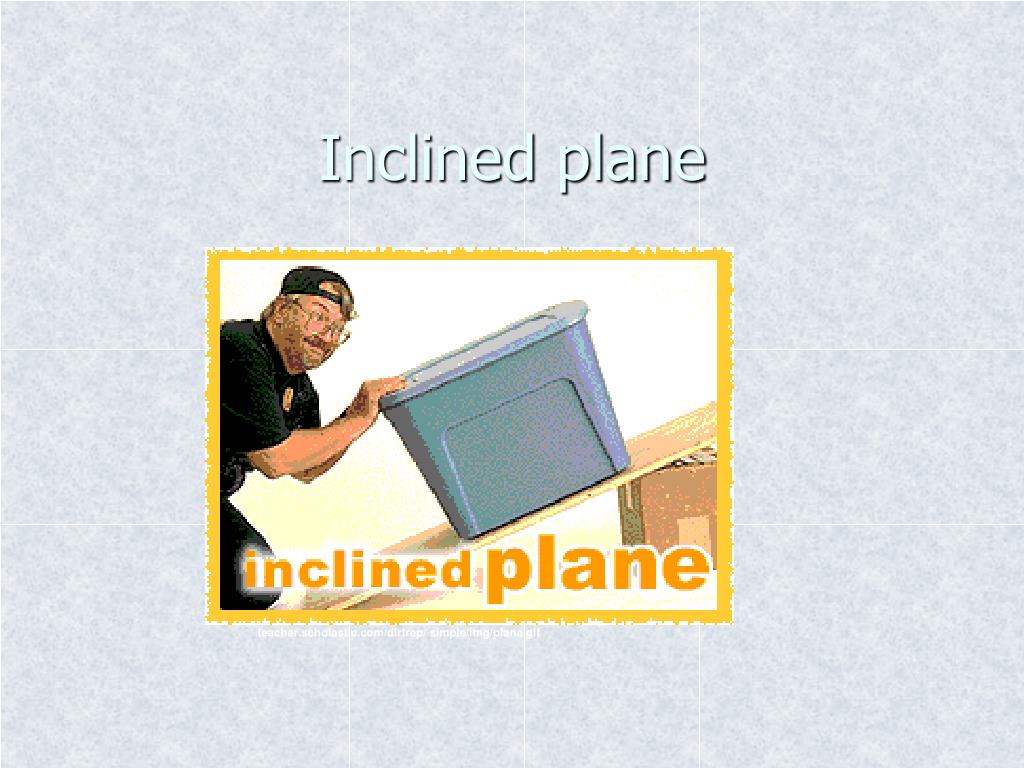

  14. Inclined plane teacher.scholastic.com/dirtrep/ simple/img/plane.gif

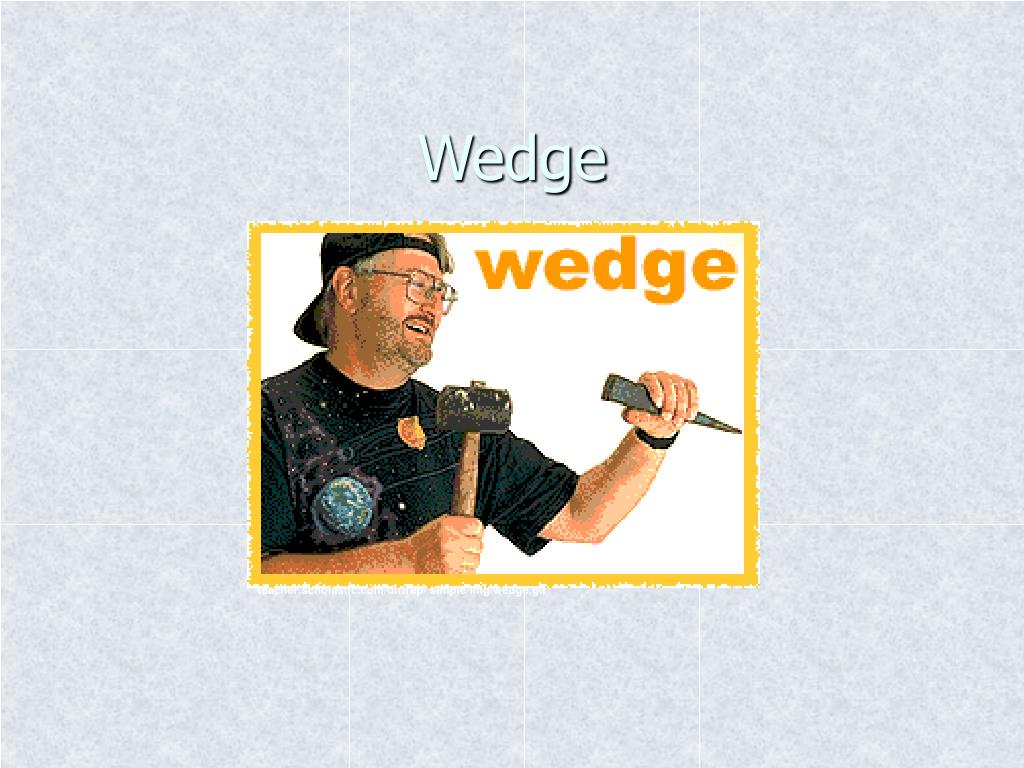

  15. Wedge teacher.scholastic.com/dirtrep/ simple/img/wedge.gif

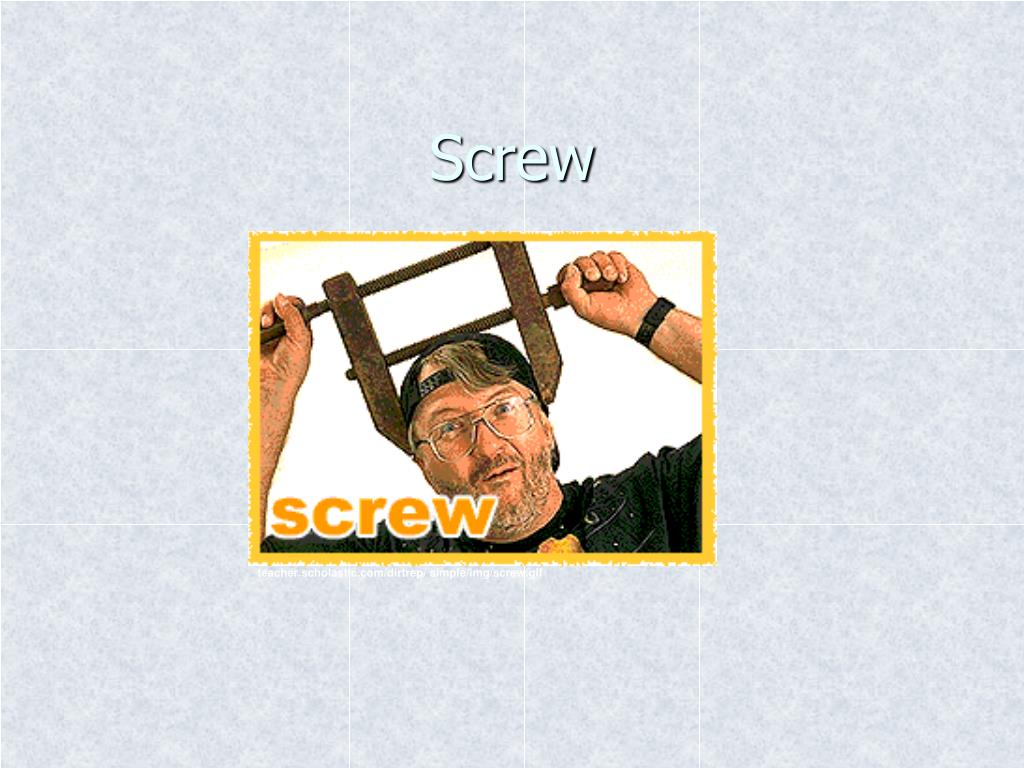

  16. Screw teacher.scholastic.com/dirtrep/ simple/img/screw.gif

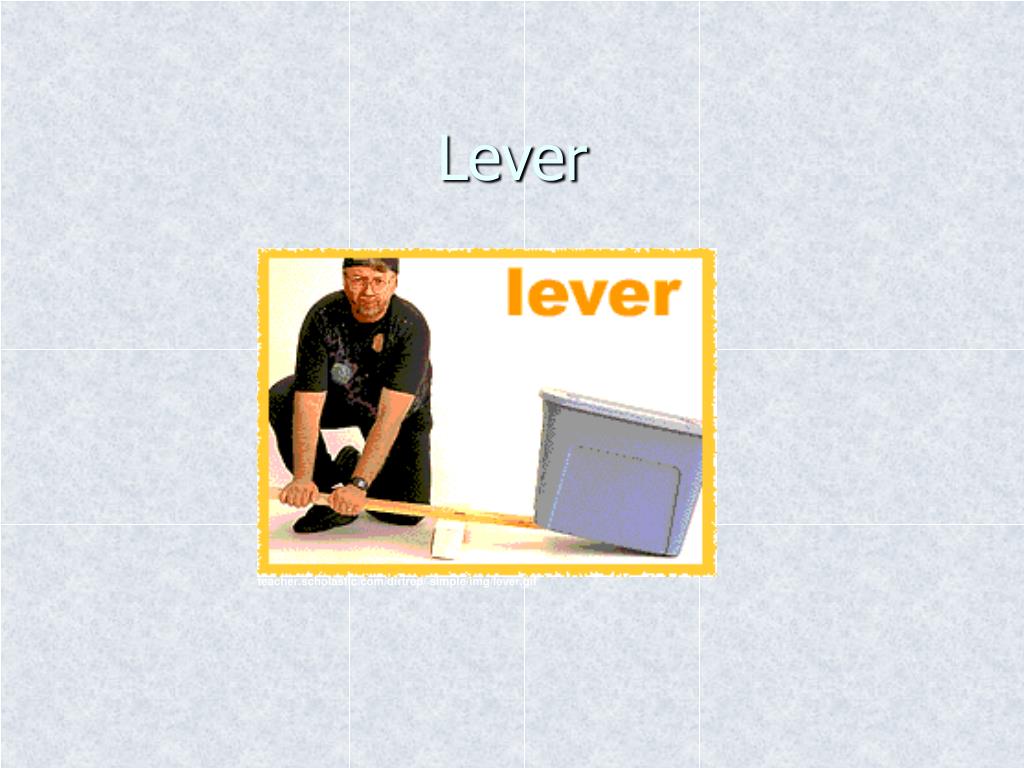

  17. Lever teacher.scholastic.com/dirtrep/ simple/img/lever.gif

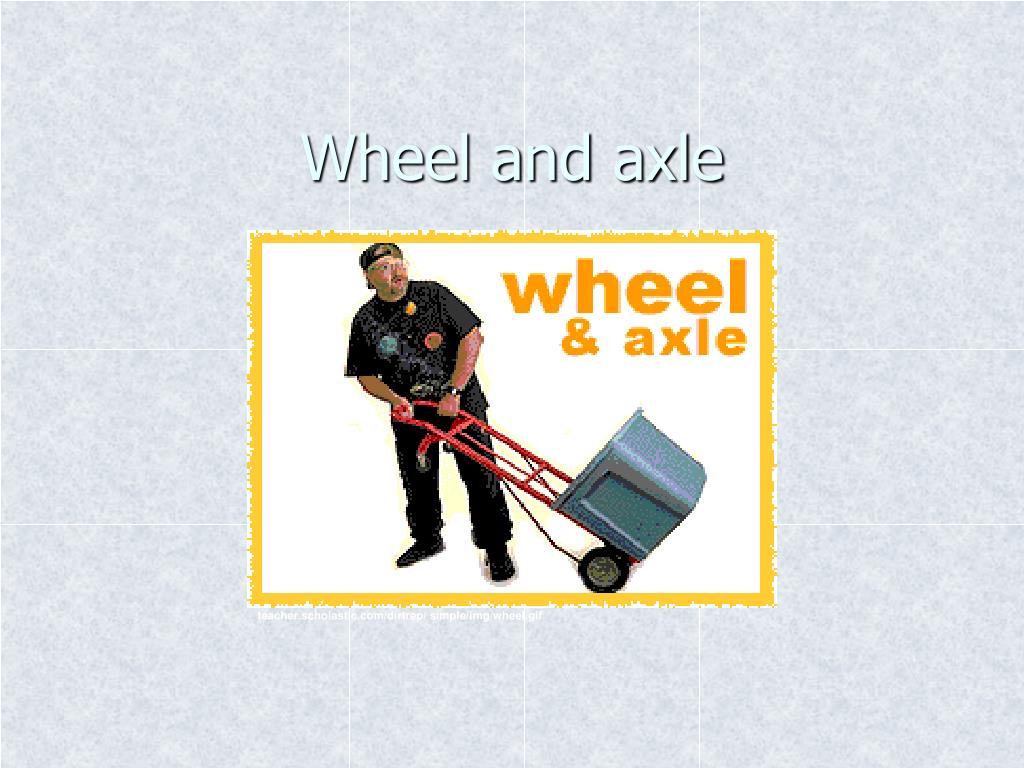

  18. Wheel and axle teacher.scholastic.com/dirtrep/ simple/img/wheel.gif

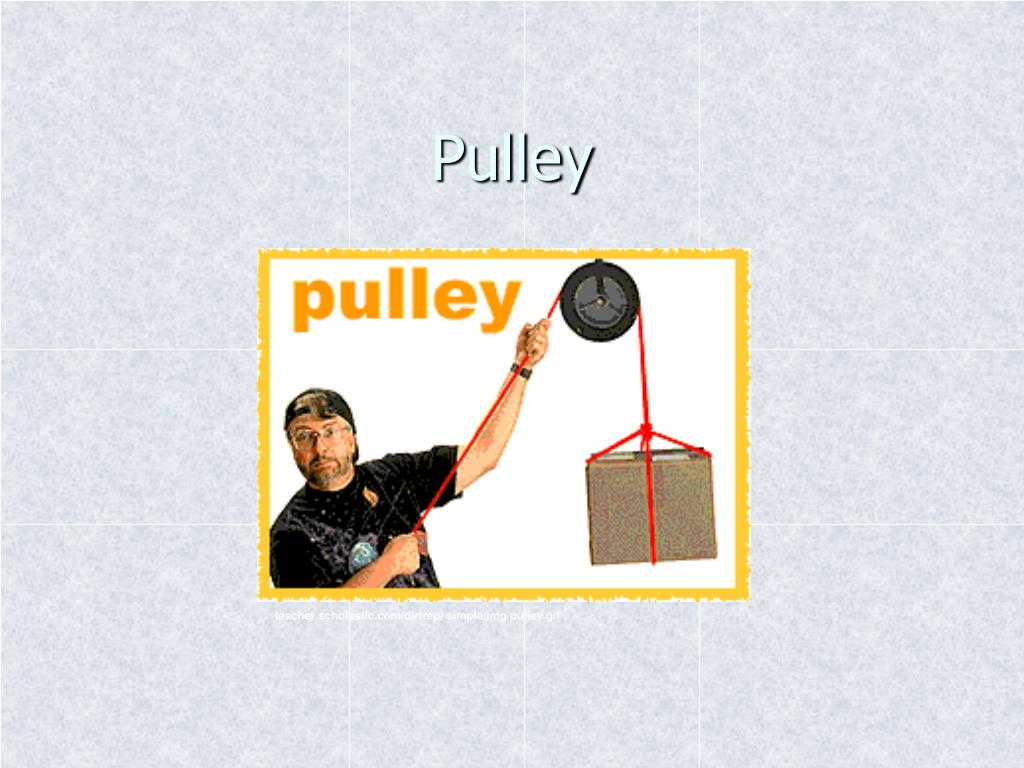

  19. Pulley teacher.scholastic.com/dirtrep/ simple/img/pulley.gif
