Thevenin’s theorem, Norton’s theorem and Superposition theorem for AC Circuits

Thevenin’s theorem, Norton’s theorem and Superposition theorem for AC Circuits. 3/2/09. Problem10-60(b). 1. Find TEC at terminals c-d. TEC: Thevenin Equivalent Circuit. Problem10-60(b). (i) To obtain VTH. + Voc -. V oc =V TH. Problem10-60(b). Nodal equations:. Problem10-60(b).

vachel
Télécharger la présentation

Thevenin’s theorem, Norton’s theorem and Superposition theorem for AC Circuits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

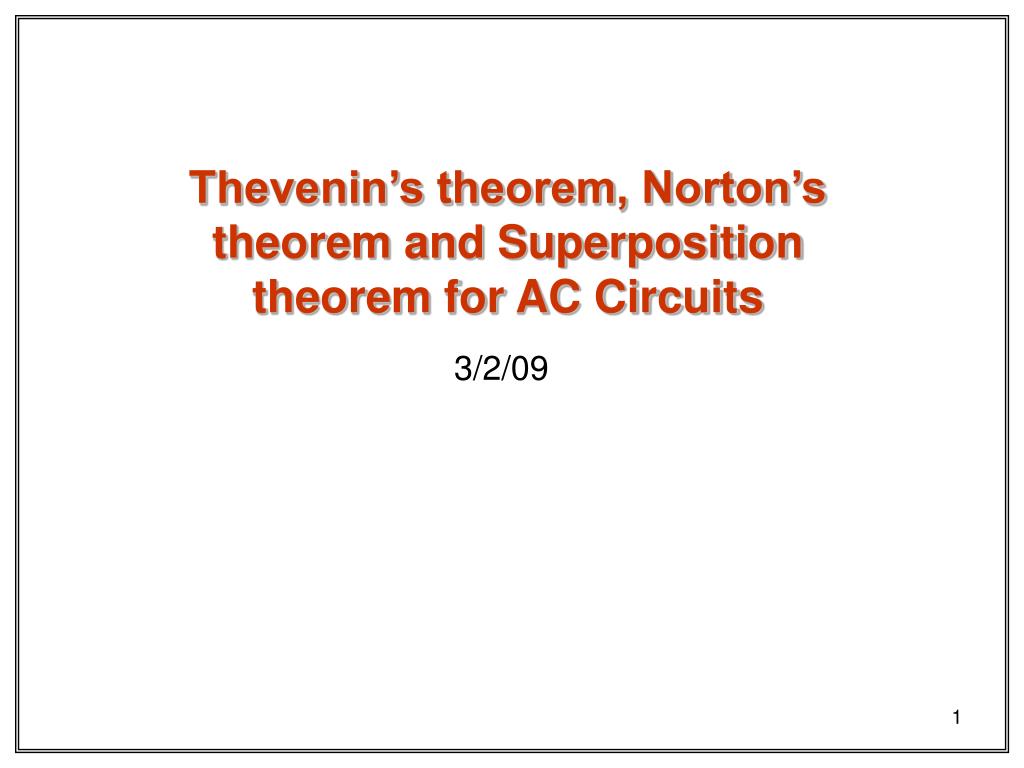

  1. Thevenin’s theorem, Norton’s theorem and Superposition theorem for AC Circuits 3/2/09

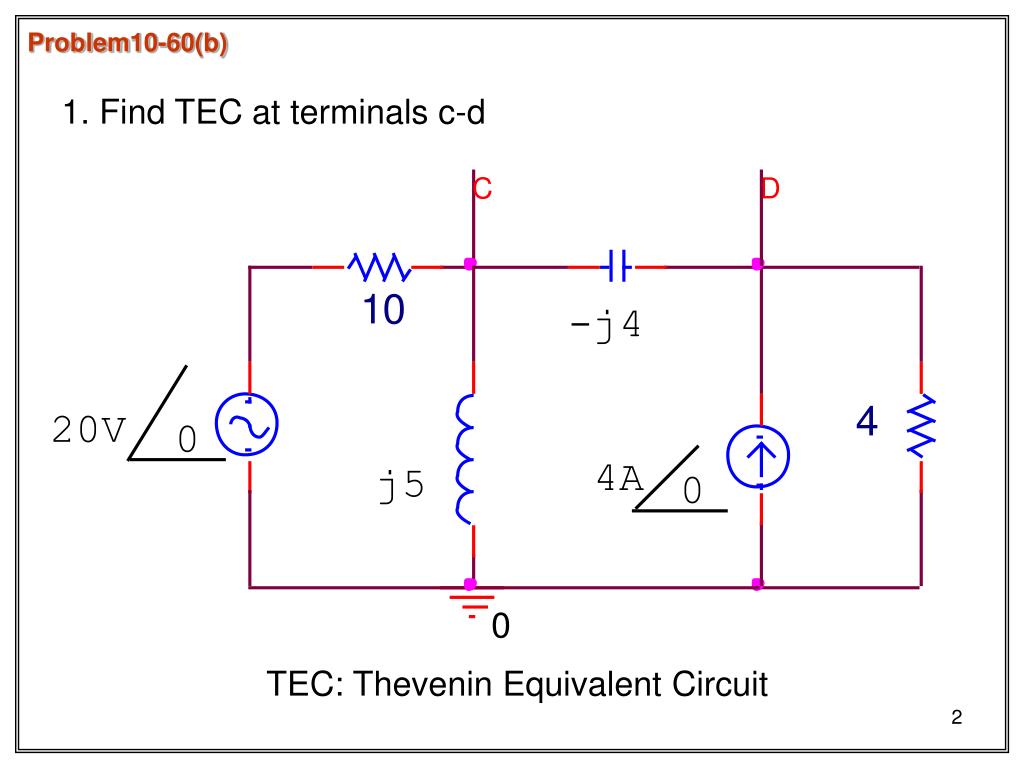

  2. Problem10-60(b) 1. Find TEC at terminals c-d TEC: Thevenin Equivalent Circuit

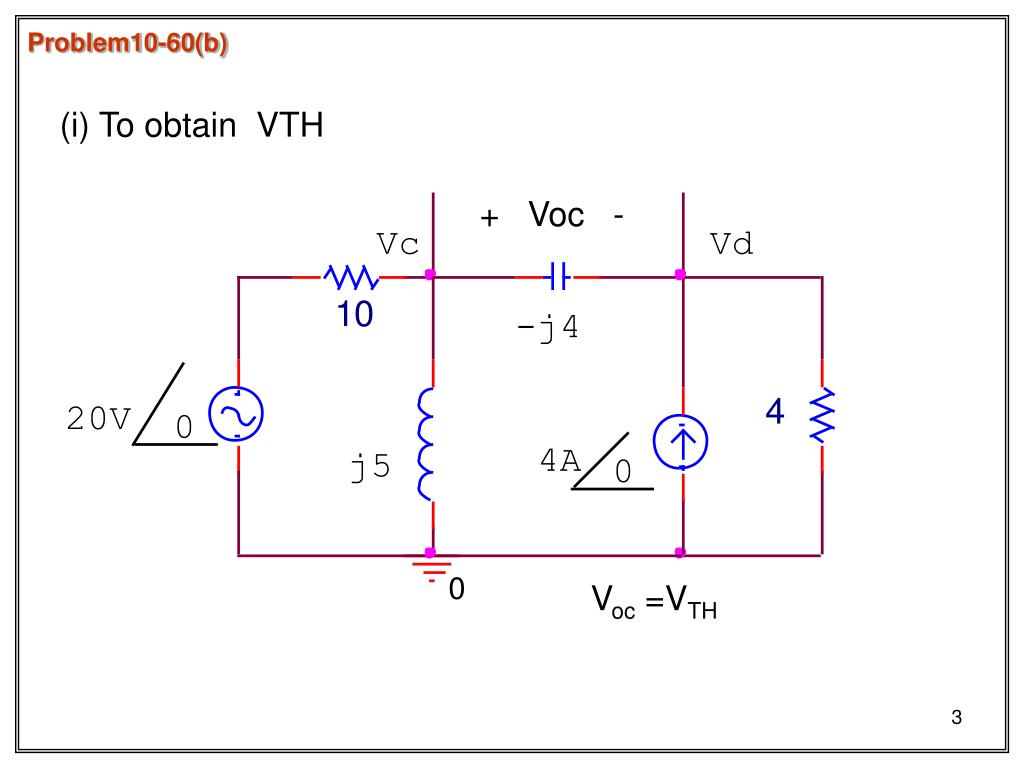

  3. Problem10-60(b) (i) To obtain VTH + Voc - Voc =VTH

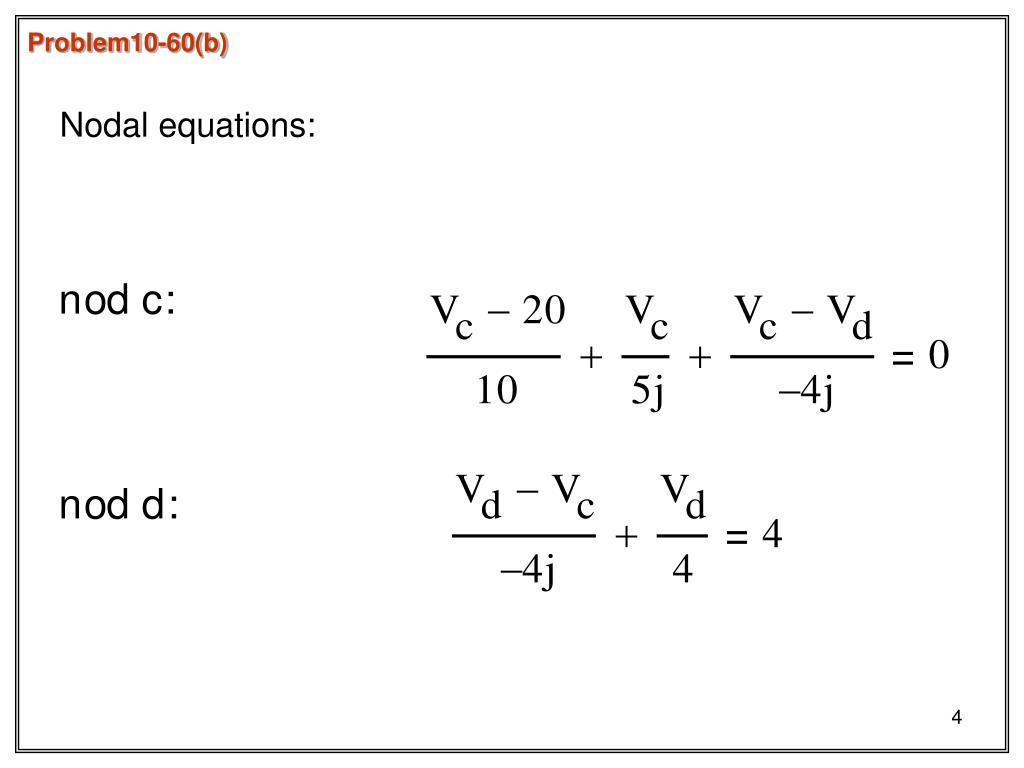

  4. Problem10-60(b) Nodal equations:

  5. Problem10-60(b)

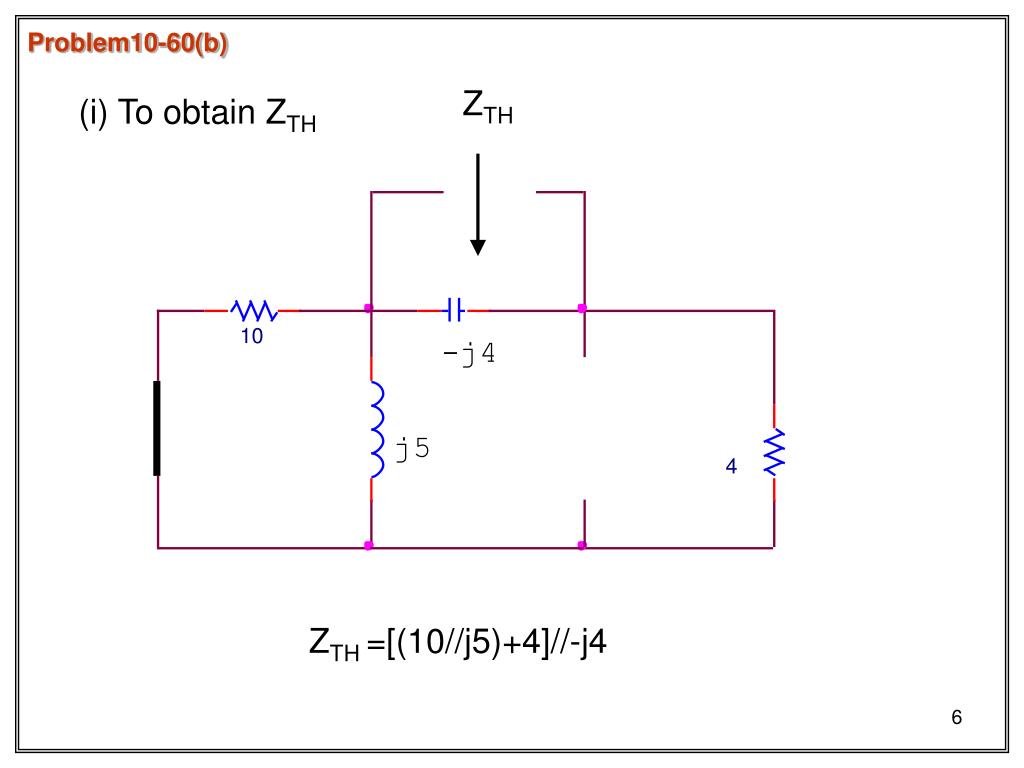

  6. ZTH Problem10-60(b) (i) To obtain ZTH ZTH =[(10//j5)+4]//-j4

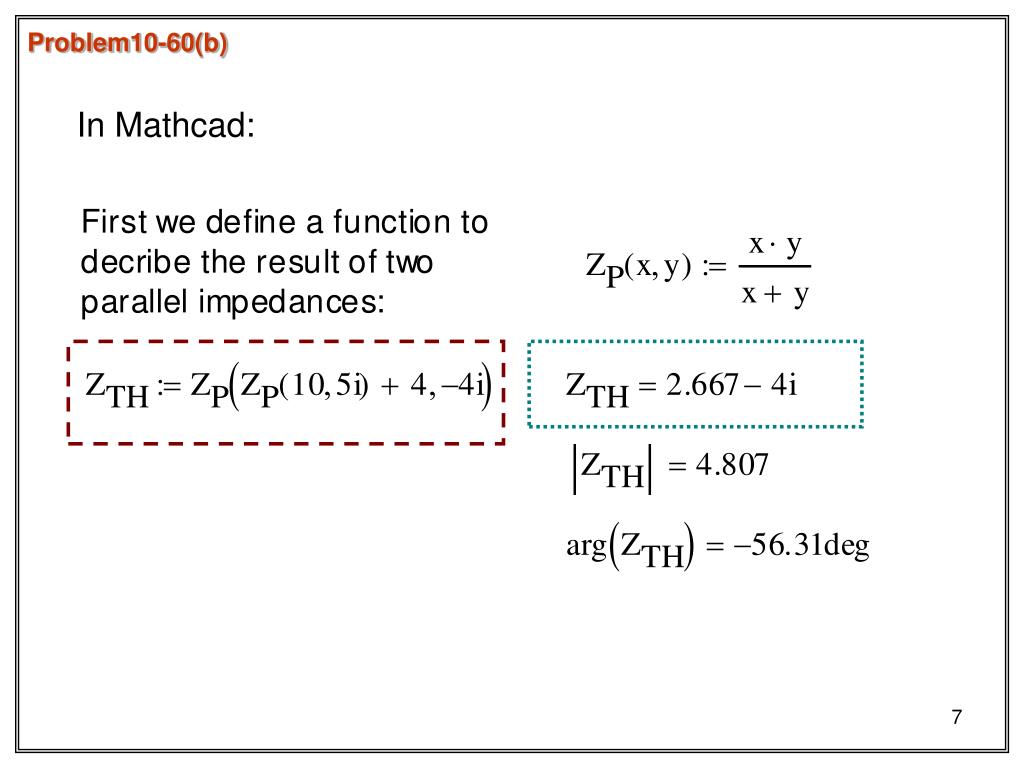

  7. Problem10-60(b) In Mathcad:

  8. + - Problem10-60(b) (iii) Using TEC to find Vo Let ZL = 10+j10 + Vo - ZTH VTH ZL Let’s assume,

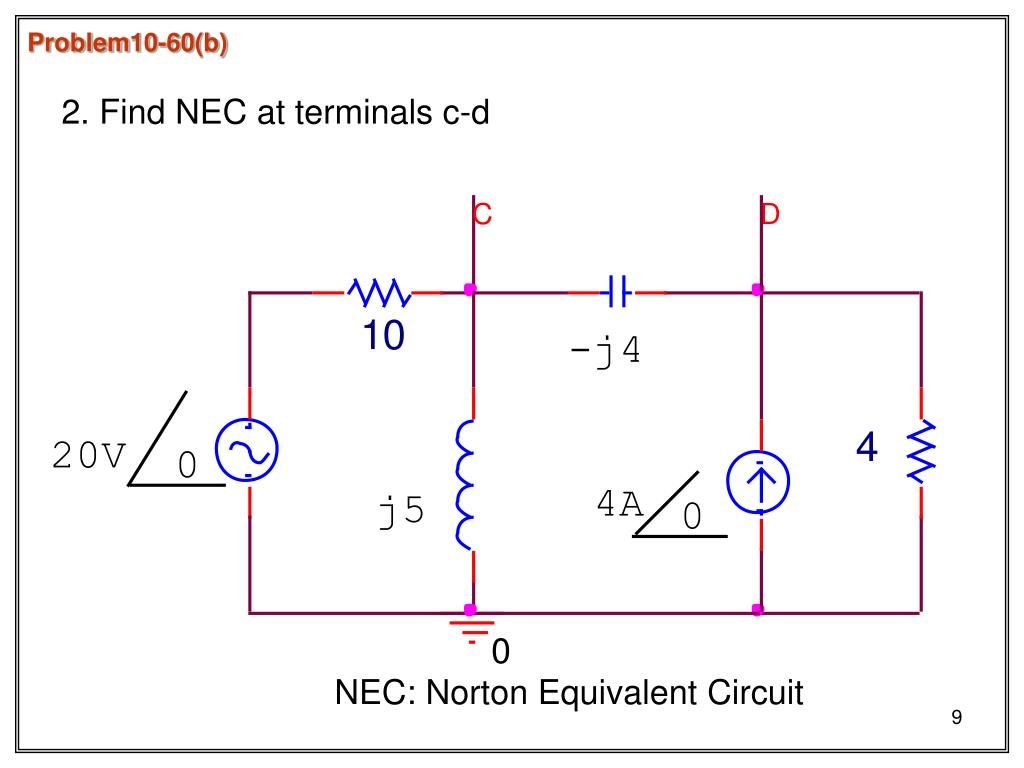

  9. Problem10-60(b) 2. Find NEC at terminals c-d NEC: Norton Equivalent Circuit

  10. IN V1 Problem10-60(b) (i) To obtain IN

  11. Problem10-60(b) (i) To obtain IN

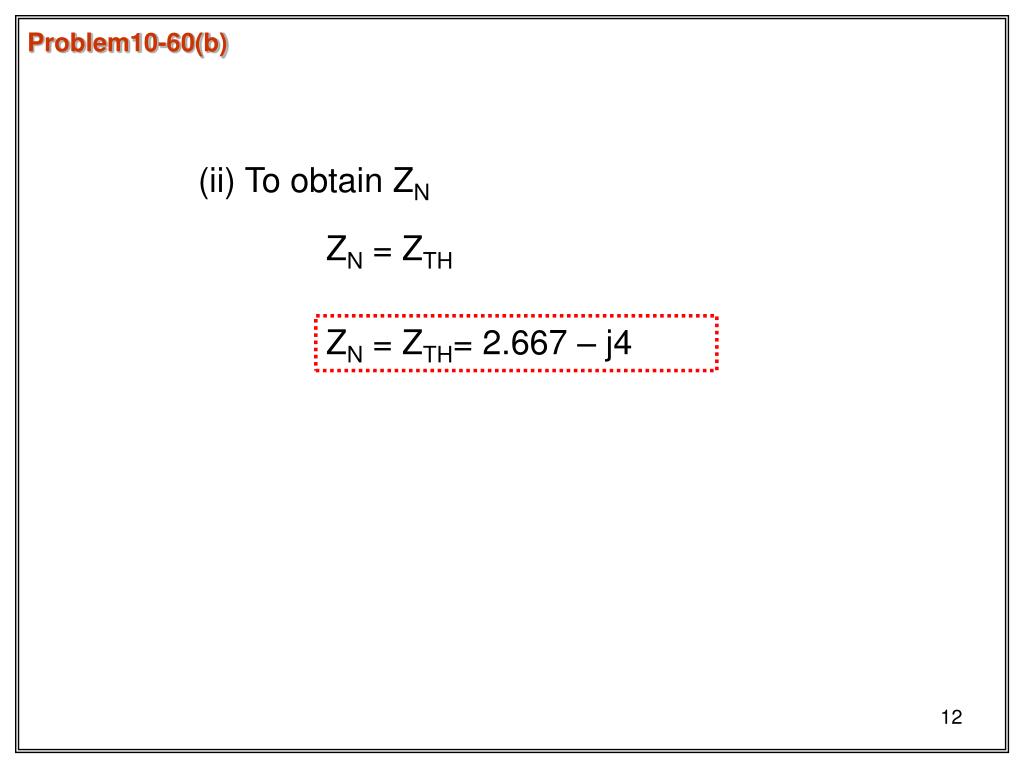

  12. Problem10-60(b) (ii) To obtain ZN ZN = ZTH ZN = ZTH= 2.667 – j4

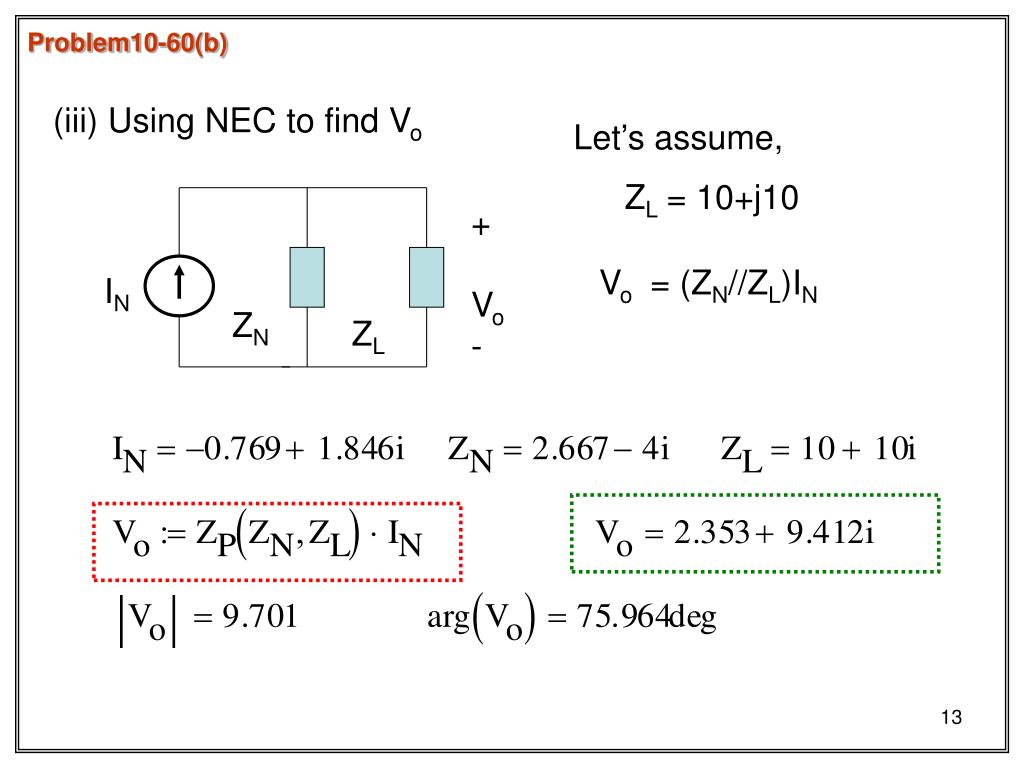

  13. Vo = (ZN//ZL)IN Problem10-60(b) (iii) Using NEC to find Vo Let’s assume, ZL = 10+j10 + Vo - IN ZN ZL

  14. Problem10-60(b) 3. Find Vo using superposition theorem

  15. Problem10-60(b) (i) 4A acting alone

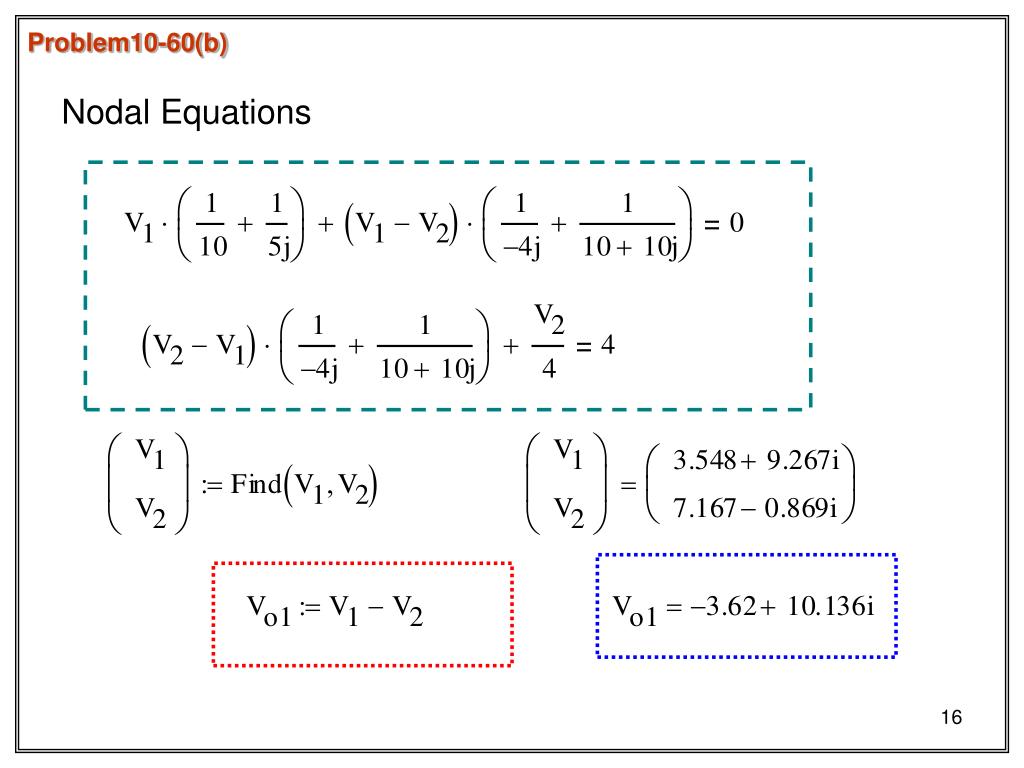

  16. Problem10-60(b) Nodal Equations

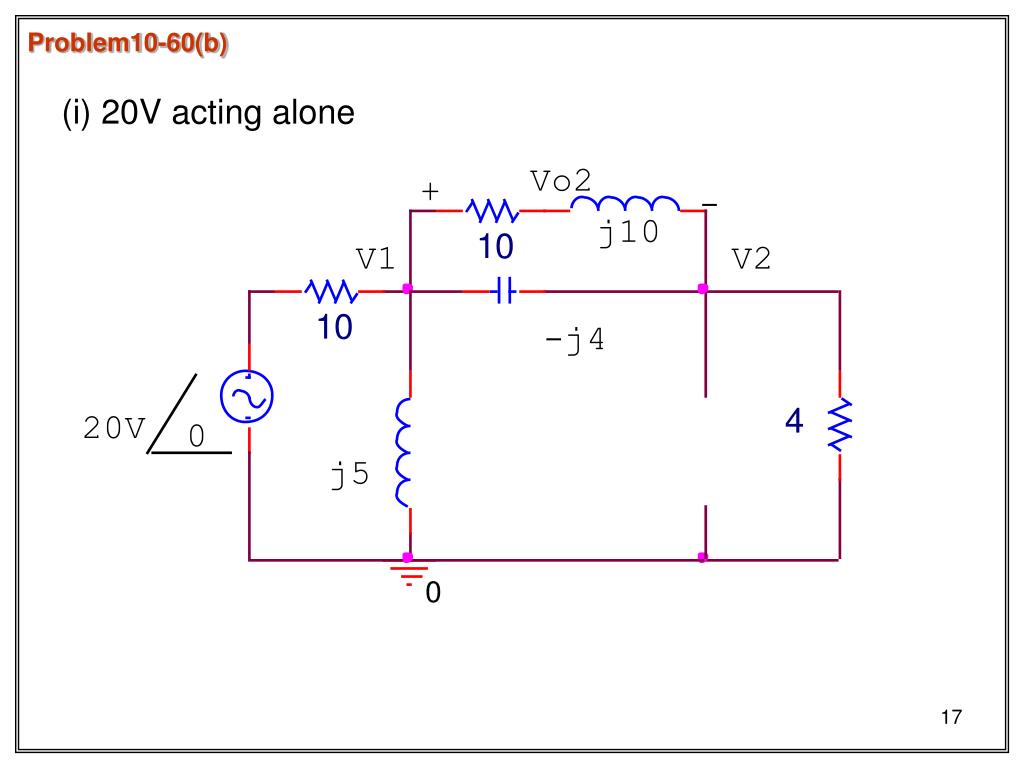

  17. Problem10-60(b) (i) 20V acting alone

  18. Nodal Equations

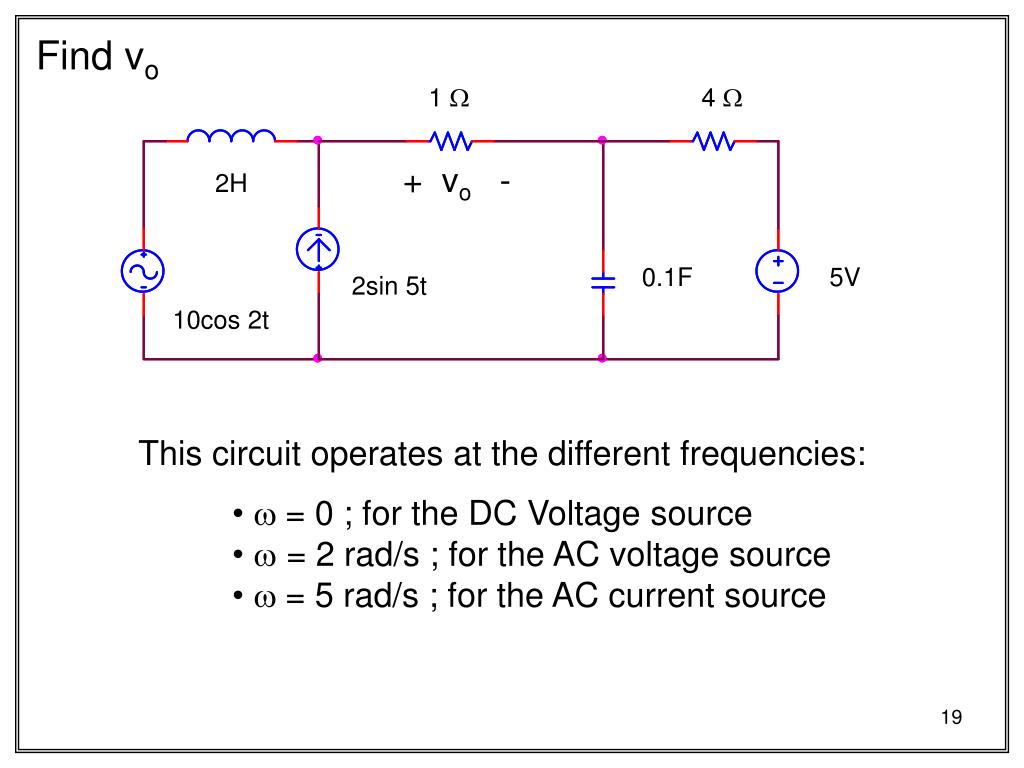

  19. 1 W 4 W + vo - 2H 0.1F 5V 2sin 5t 10cos 2t This circuit operates at the different frequencies: • w = 0 ; for the DC Voltage source • w = 2 rad/s ; for the AC voltage source • w = 5 rad/s ; for the AC current source Find vo

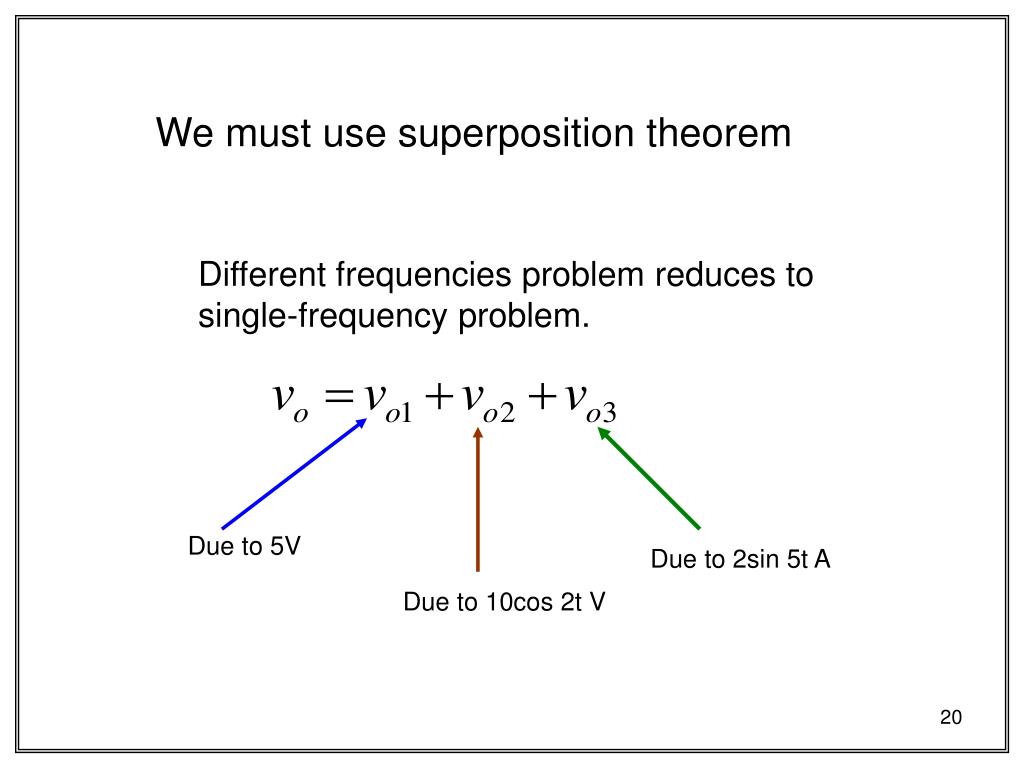

  20. Due to 5V Due to 2sin 5t A Due to 10cos 2t V We must use superposition theorem Different frequencies problem reduces to single-frequency problem.

  21. 1W 4 W + vo1 - 5 V jwL = 0 ; Short-circuited w = 0 ; 1/jwC = infinity ; Open-circuited (i) 5V (w = 0) acting alone

  22. (ii) 10V (w = 2 rad/s) acting alone Convert time-domain quantities to phasor quantities:

  23. j4 W 1 W + vo2 - 4 W -j5 W 100 In time domain: V02(t)=2.498cos(2t-30.79) (ii) 10V (w = 2 rad/s) acting alone

  24. (iii) 2A (w = 5 rad/s) acting alone Convert time-domain quantities to phasor quantities

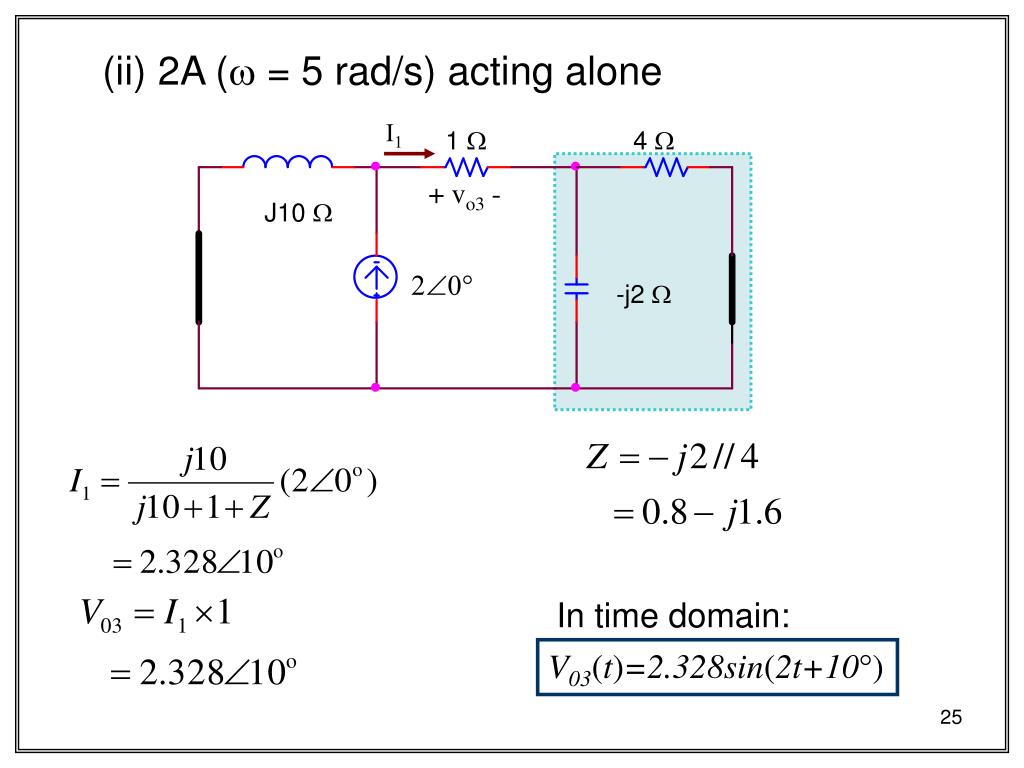

  25. I1 1 W 4 W + vo3 - J10 W 20 -j2 W In time domain: V03(t)=2.328sin(2t+10) (ii) 2A (w = 5 rad/s) acting alone

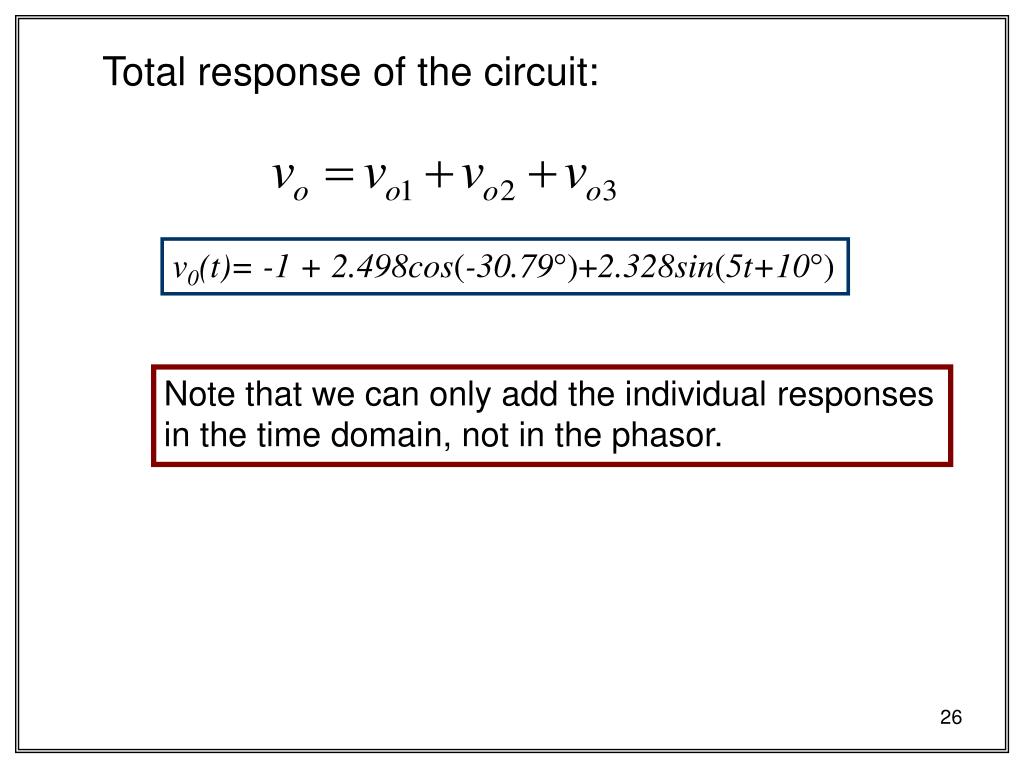

  26. Total response of the circuit: v0(t)= -1 + 2.498cos(-30.79)+2.328sin(5t+10) Note that we can only add the individual responses in the time domain, not in the phasor.

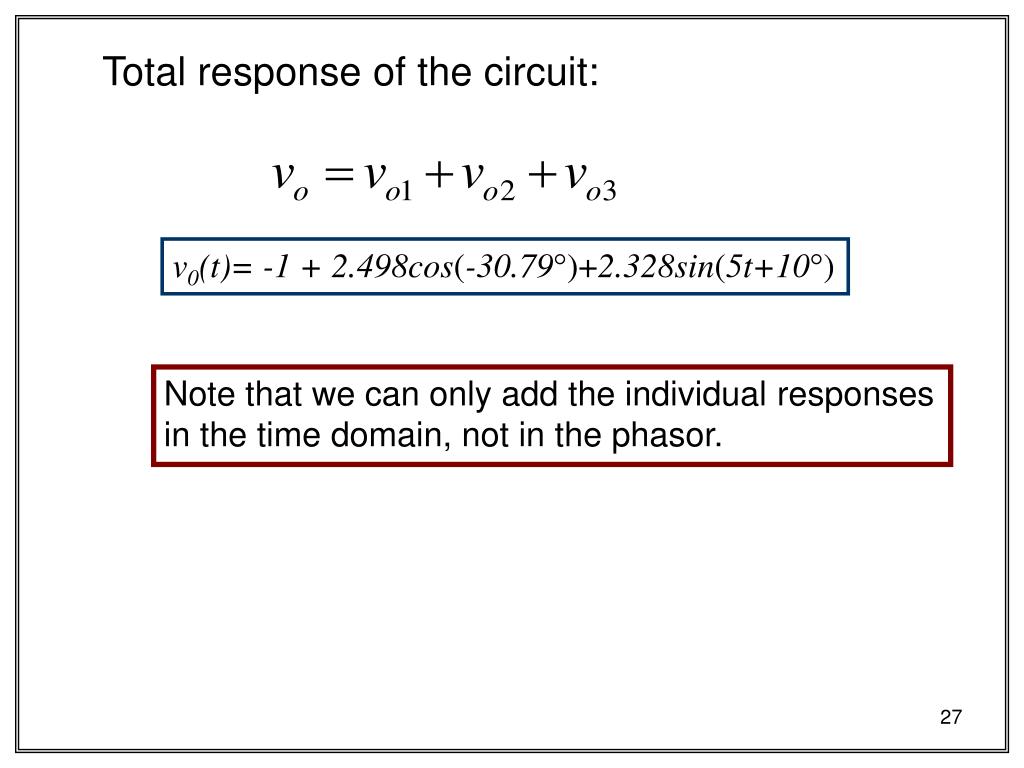

  27. Total response of the circuit: v0(t)= -1 + 2.498cos(-30.79)+2.328sin(5t+10) Note that we can only add the individual responses in the time domain, not in the phasor.

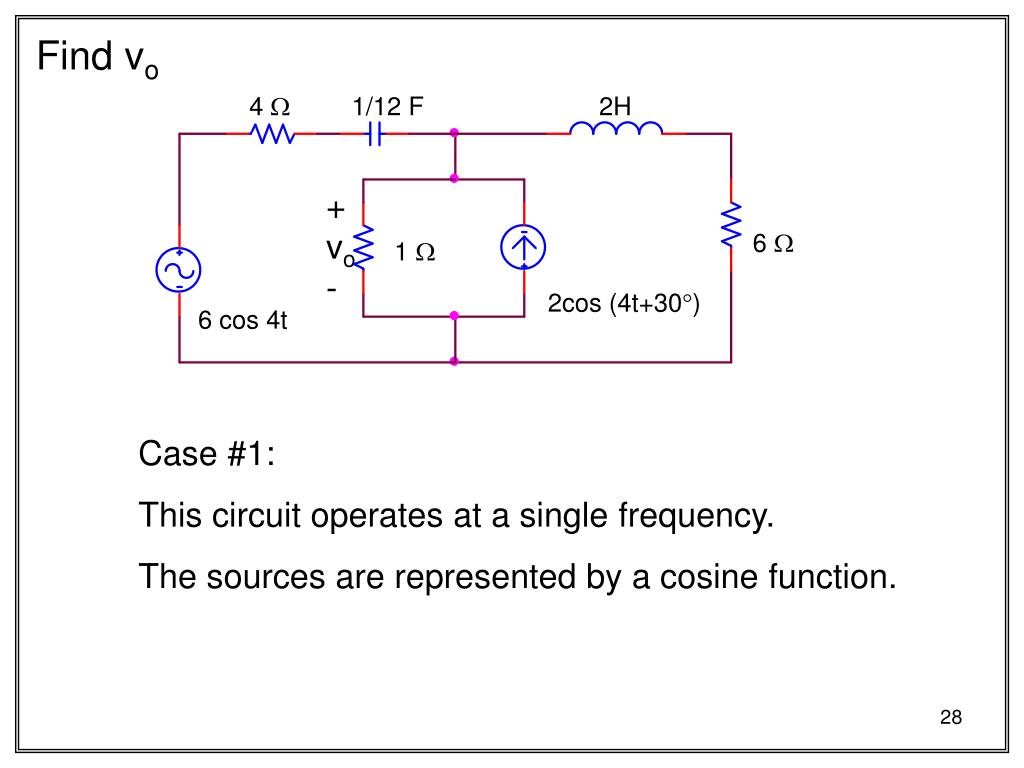

  28. Find vo 4 W 1/12 F 2H + vo - 6 W 1 W 2cos (4t+30) 6 cos 4t Case #1: This circuit operates at a single frequency. The sources are represented by a cosine function.

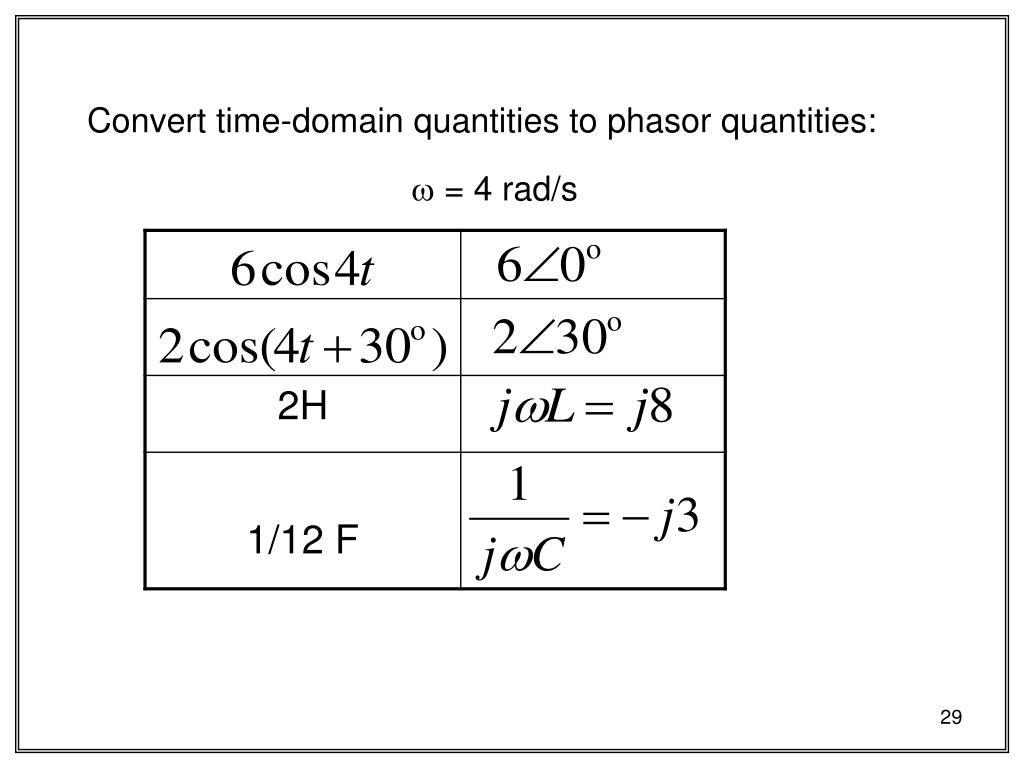

  29. Convert time-domain quantities to phasor quantities: w = 4 rad/s

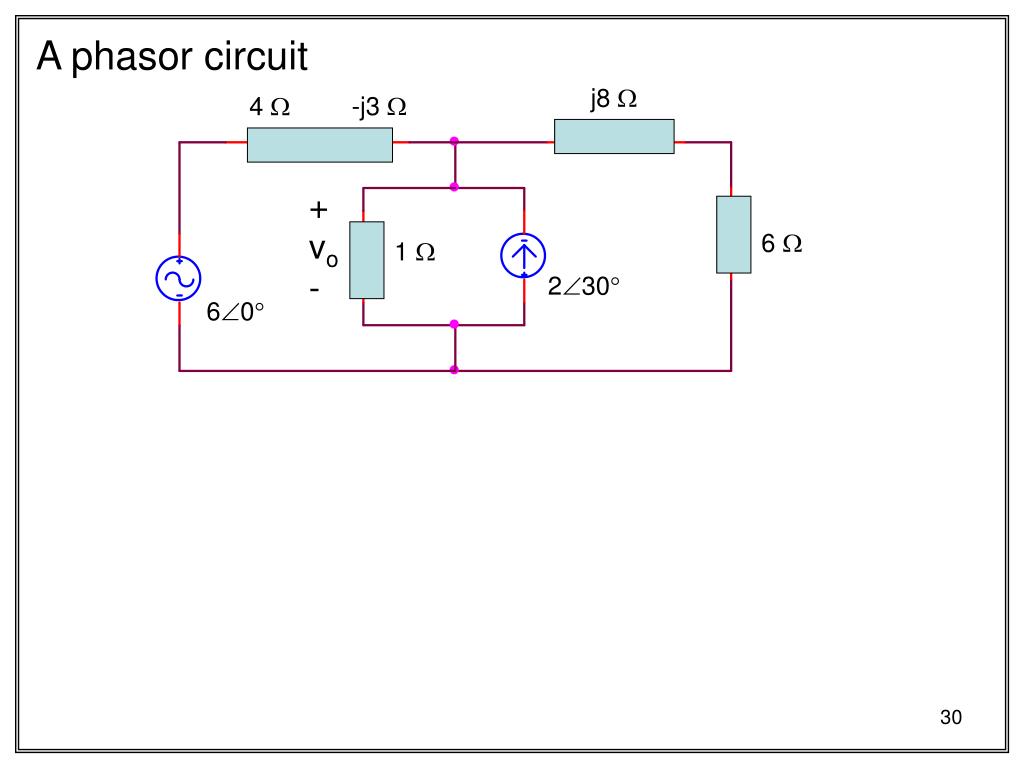

  30. j8 W -j3 W 4 W + vo - 6 W 1 W 230 60 A phasor circuit

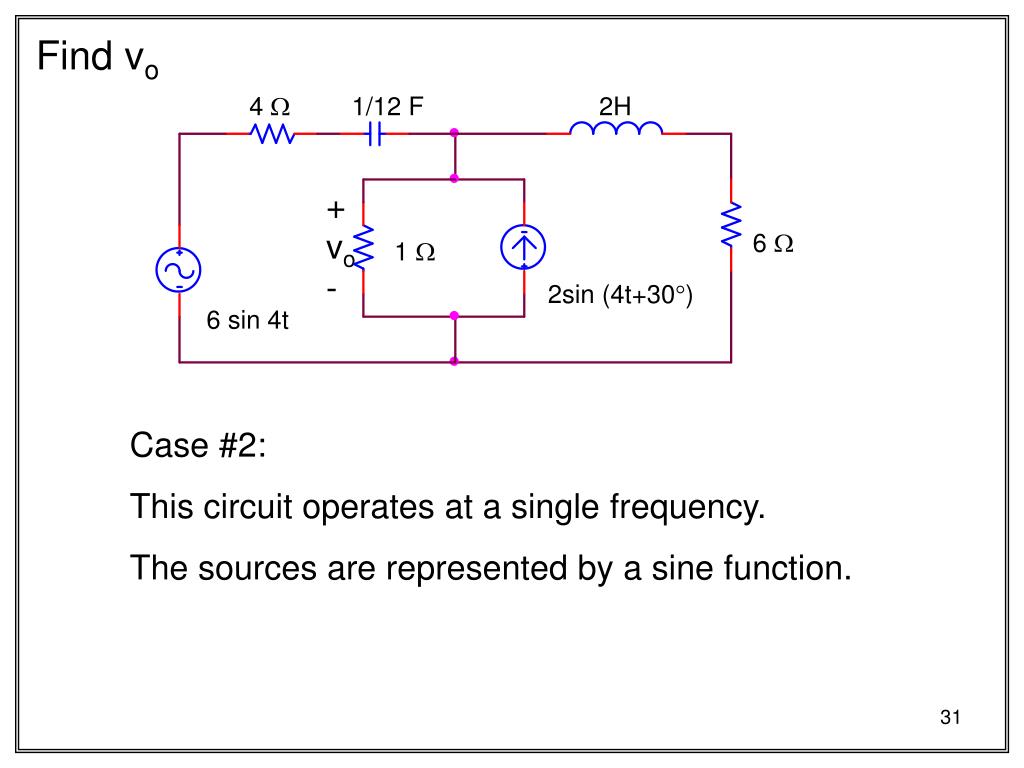

  31. Find vo 4 W 1/12 F 2H + vo - 6 W 1 W 2sin (4t+30) 6 sin 4t Case #2: This circuit operates at a single frequency. The sources are represented by a sine function.

  32. Convert time-domain quantities to phasor quantities: w = 4 rad/s We use the sine function as the reference for the phasor.

  33. j8 W -j3 W 4 W + vo - 6 W 1 W 230 60 A phasor circuit

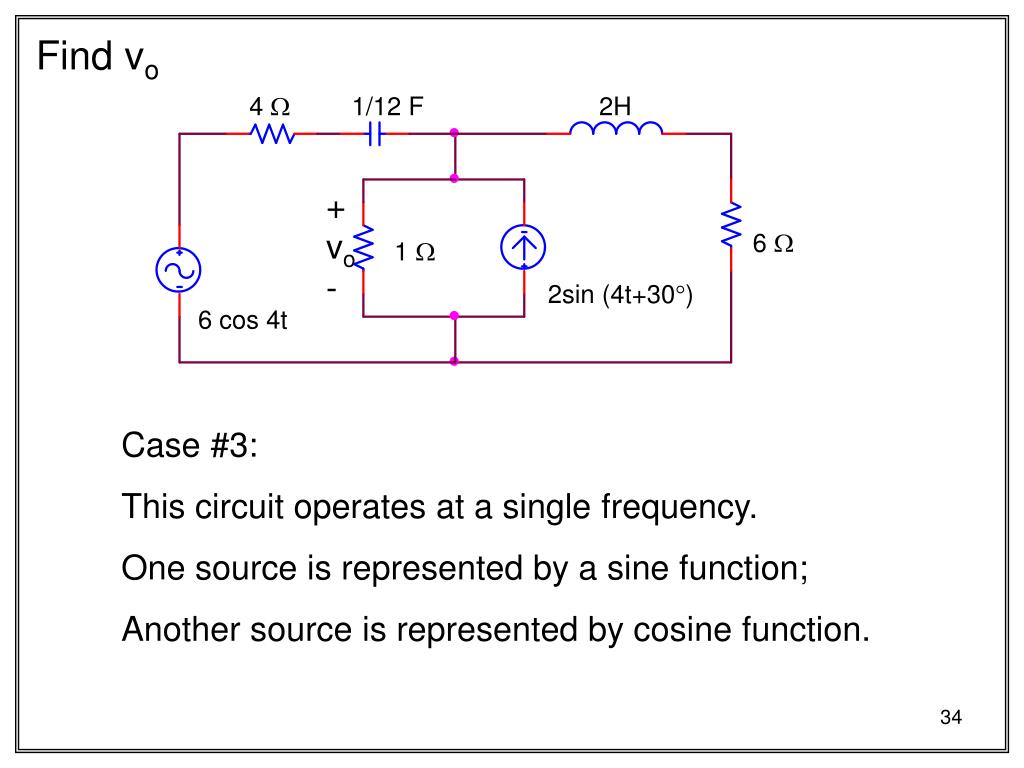

  34. Find vo 4 W 1/12 F 2H + vo - 6 W 1 W 2sin (4t+30) 6 cos 4t Case #3: This circuit operates at a single frequency. One source is represented by a sine function; Another source is represented by cosine function.

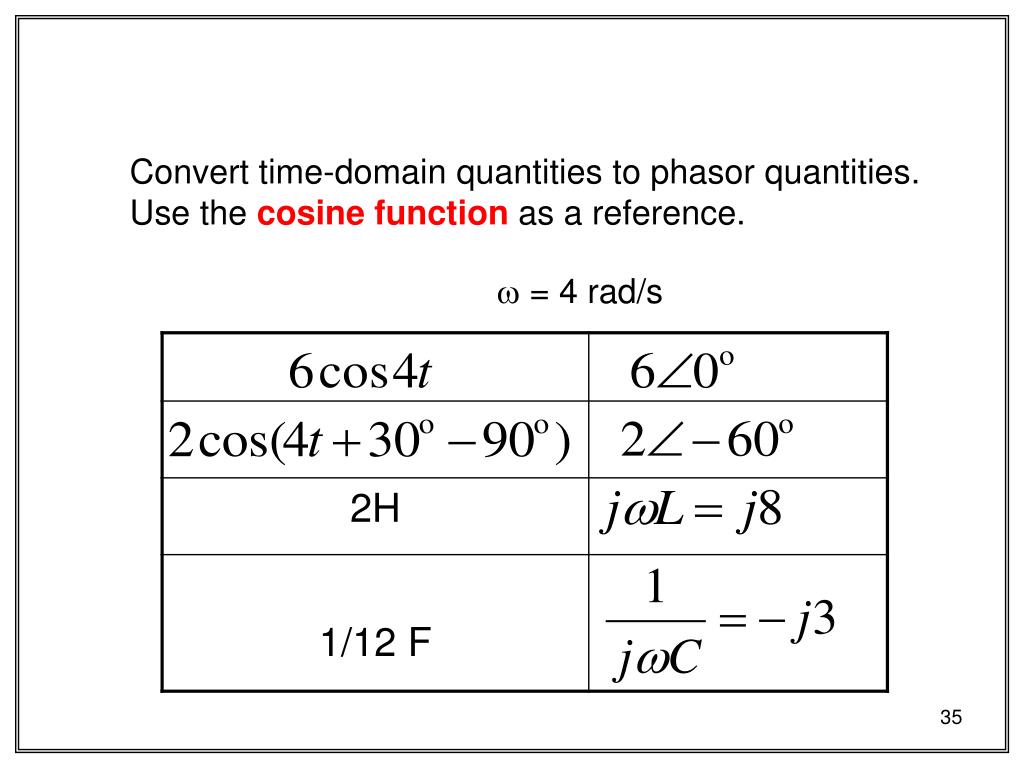

  35. Convert time-domain quantities to phasor quantities. Use the cosine function as a reference. w = 4 rad/s

  36. OR Convert time-domain quantities to phasor quantities. Use the sine function as a reference. w = 4 rad/s
