  1. AIP Magnet PS and Controls Upgrade BSY Controls Cost Estimate Kristi Luchini

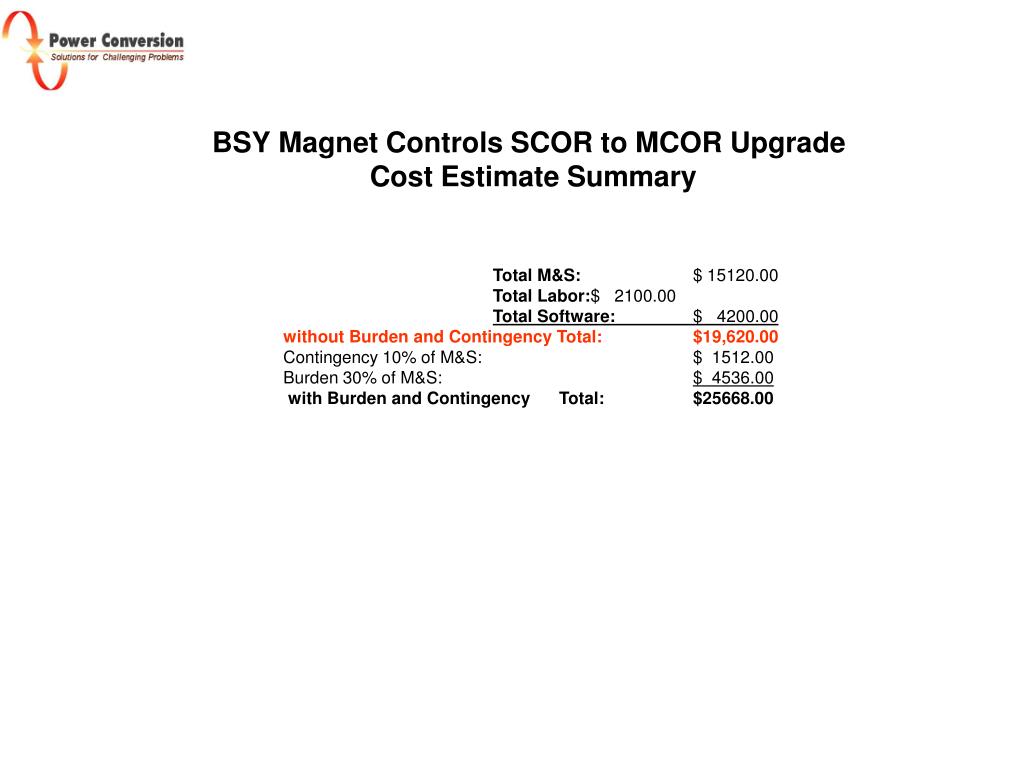

  2. BSY Magnet Controls SCOR to MCOR Upgrade Cost Estimate Summary • Total M&S: $ 15120.00 • Total Labor: $ 2100.00 • Total Software: $ 4200.00 • without Burden and Contingency Total: $19,620.00 • Contingency 10% of M&S: $ 1512.00 • Burden 30% of M&S: $ 4536.00 • with Burden and Contingency Total: $25668.00

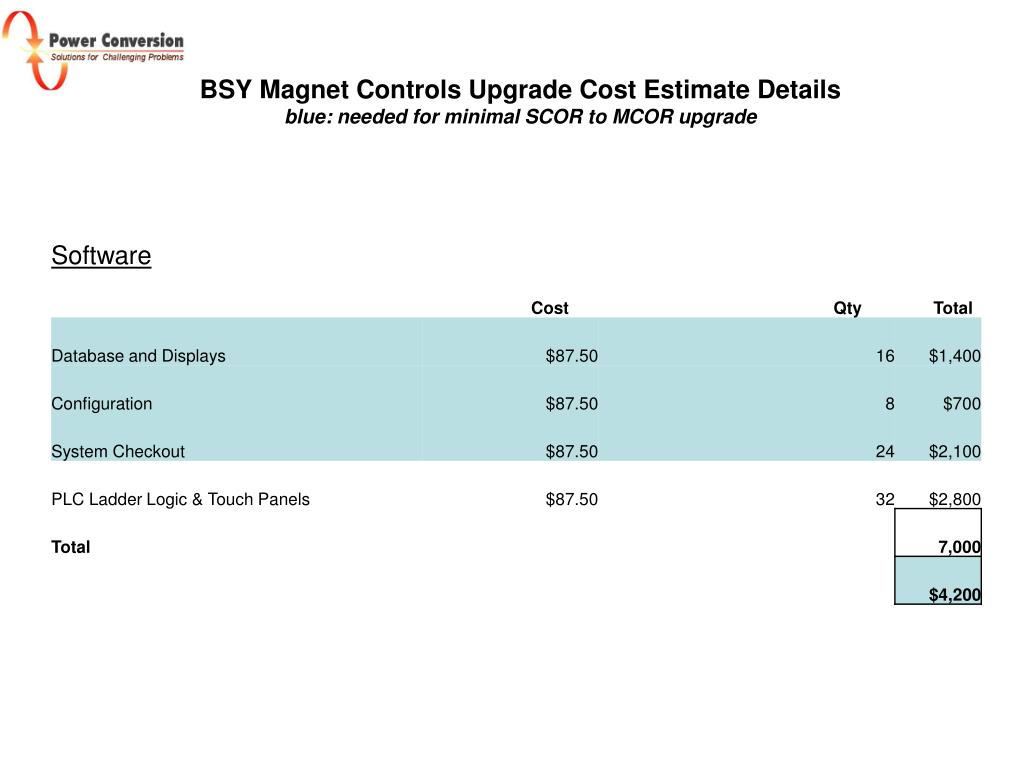

  3. BSY Magnet Controls Upgrade Cost Estimate Detailsblue: needed for minimal SCOR to MCOR upgrade

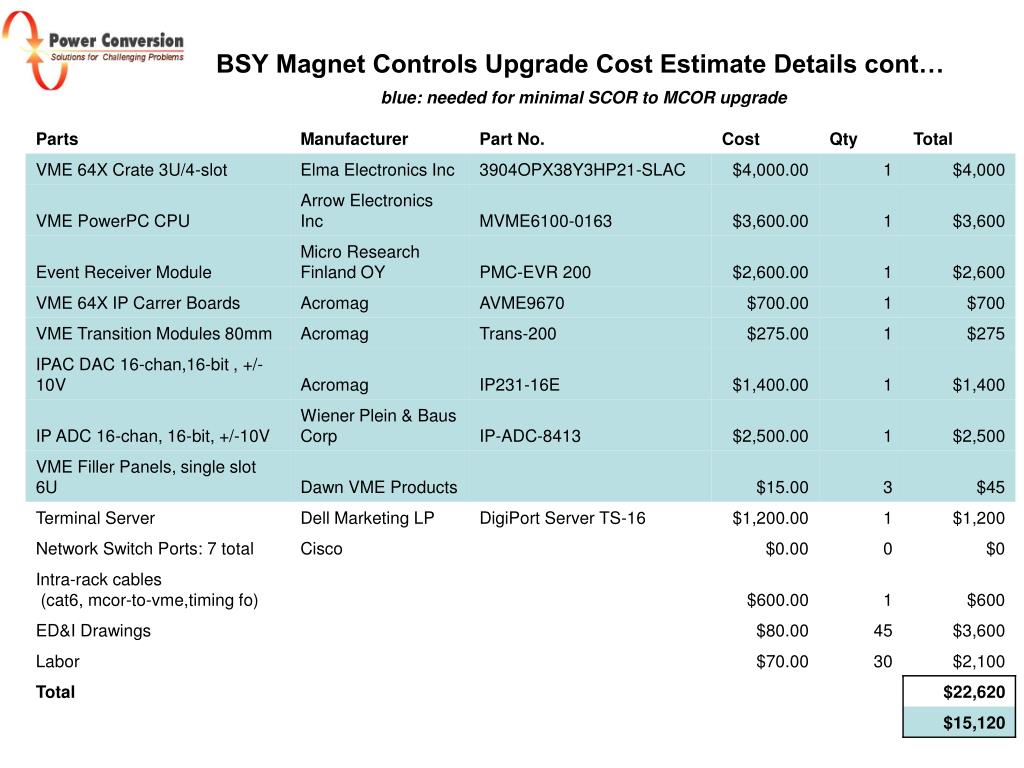

  4. BSY Magnet Controls Upgrade Cost Estimate Details cont…blue: needed for minimal SCOR to MCOR upgrade

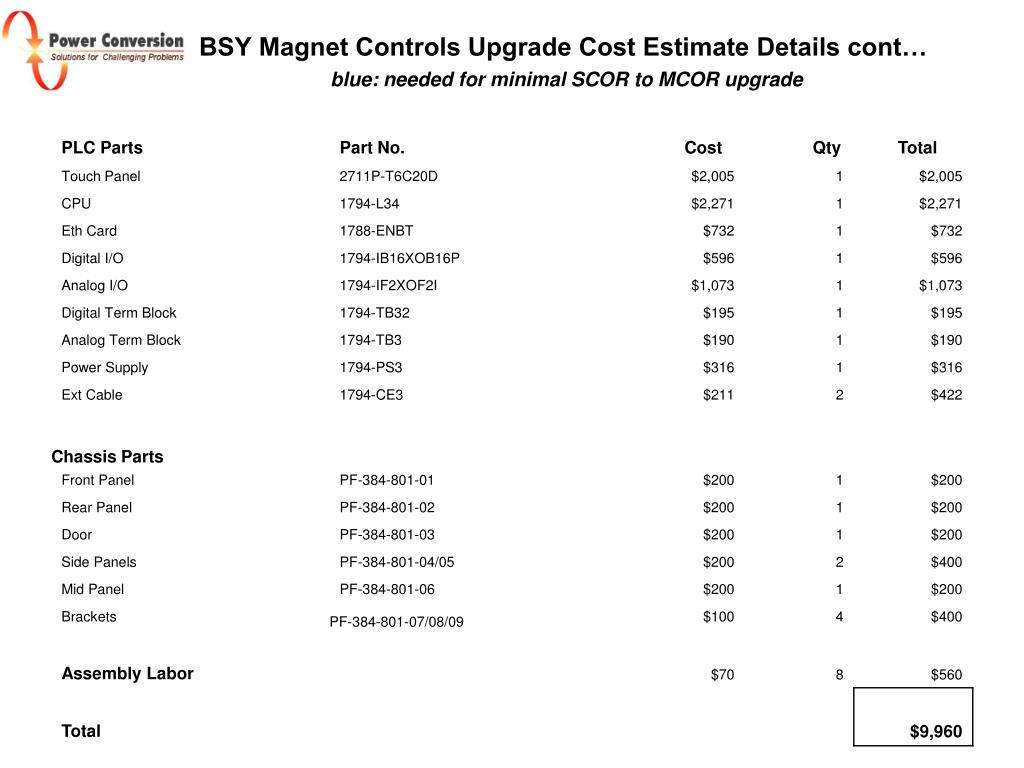

  5. BSY Magnet Controls Upgrade Cost Estimate Details cont…blue: needed for minimal SCOR to MCOR upgrade

  6. Network Block Diagram For BSY Upgrade Ethernet NetworkSwitch swh-b136-nw01 crate PLC ca fbck Terminal Server ts-b136-nw02 EPICS IOC Timing EPSC (Q50Q1-3) EPSC (50B1-2) EPSC (52AGF1-2 MCOR Bulk MCOR Upgrade

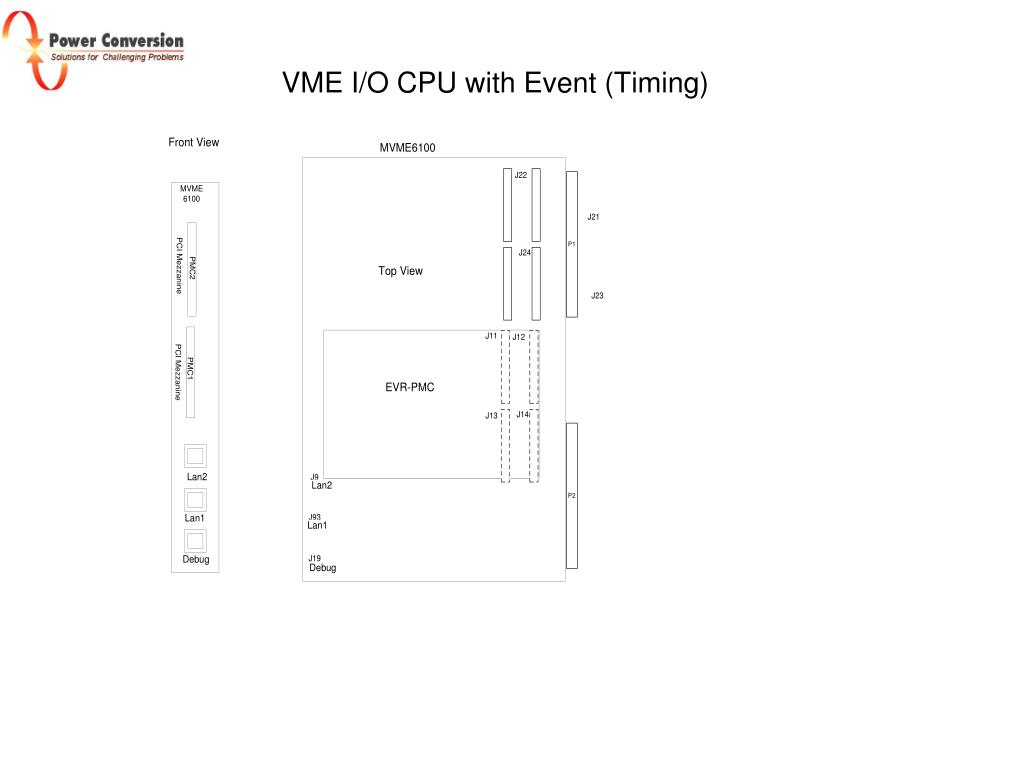

  7. VME I/O CPU with Event (Timing)

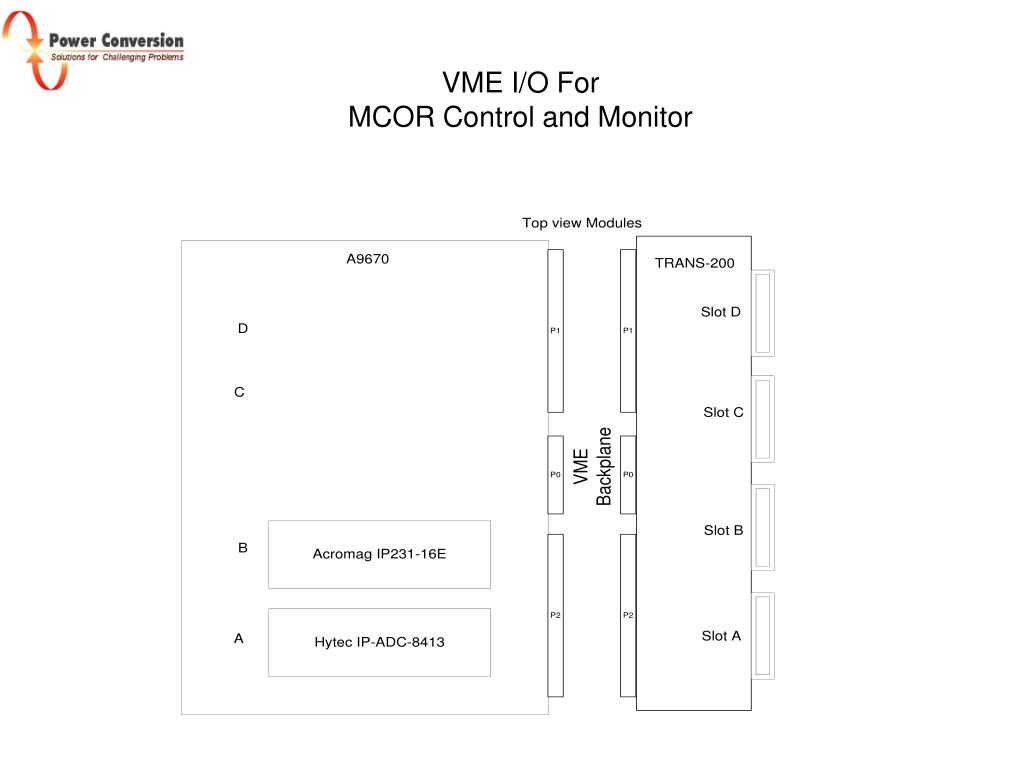

  8. VME I/O For MCOR Control and Monitor

  9. 4 3 2 Port D Port C Port B Port A Trans 200 1 Slot VME Crate and I/O Front View Rear View 4 3 2 AVME9670 1 MVME 6100 Debug Lan 1 Lan 2 M C E V P R Slot
