Advanced LumiSheet Lamp LSL50-UM1260FT: Optimal LED Lighting Solution

val avatar
val
3 diapositives · 191 Views · Oct 22, 2014

The LSL50-UM1260FT LumiSheet Lamp series revolutionizes lighting by providing an excellent alternative to 2×2, 1×4, and 2×4 recessed fluorescent troffers. It features a patented optical system paired with high-brightness LEDs, ensuring highly uniform, low glare, and shadowing lighting for enhanced visual comfort. With a shallow height of under 3 inches, it's perfect for ceilings with low depth. Boasting lumen outputs of up to 5,000lm, an efficacy of up to 100lm/W, and a 5-year warranty, it balances performance and longevity with reduced maintenance costs.

#advanced lumisheet lamp lsl50-um1260ft: optimal led lighting solution #advanced lumisheet lamp lsl50-um1260ft: optimal led lighting solution ppt #powerpoint #presentation
Advanced LumiSheet Lamp LSL50-UM1260FT: Optimal LED Lighting Solution - slide 1
01 / 3Advanced LumiSheet Lamp LSL50-UM1260FT: Optimal LED Lighting Solution
1 / 17

Télécharger la présentation

Advanced LumiSheet Lamp LSL50-UM1260FT: Optimal LED Lighting Solution
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

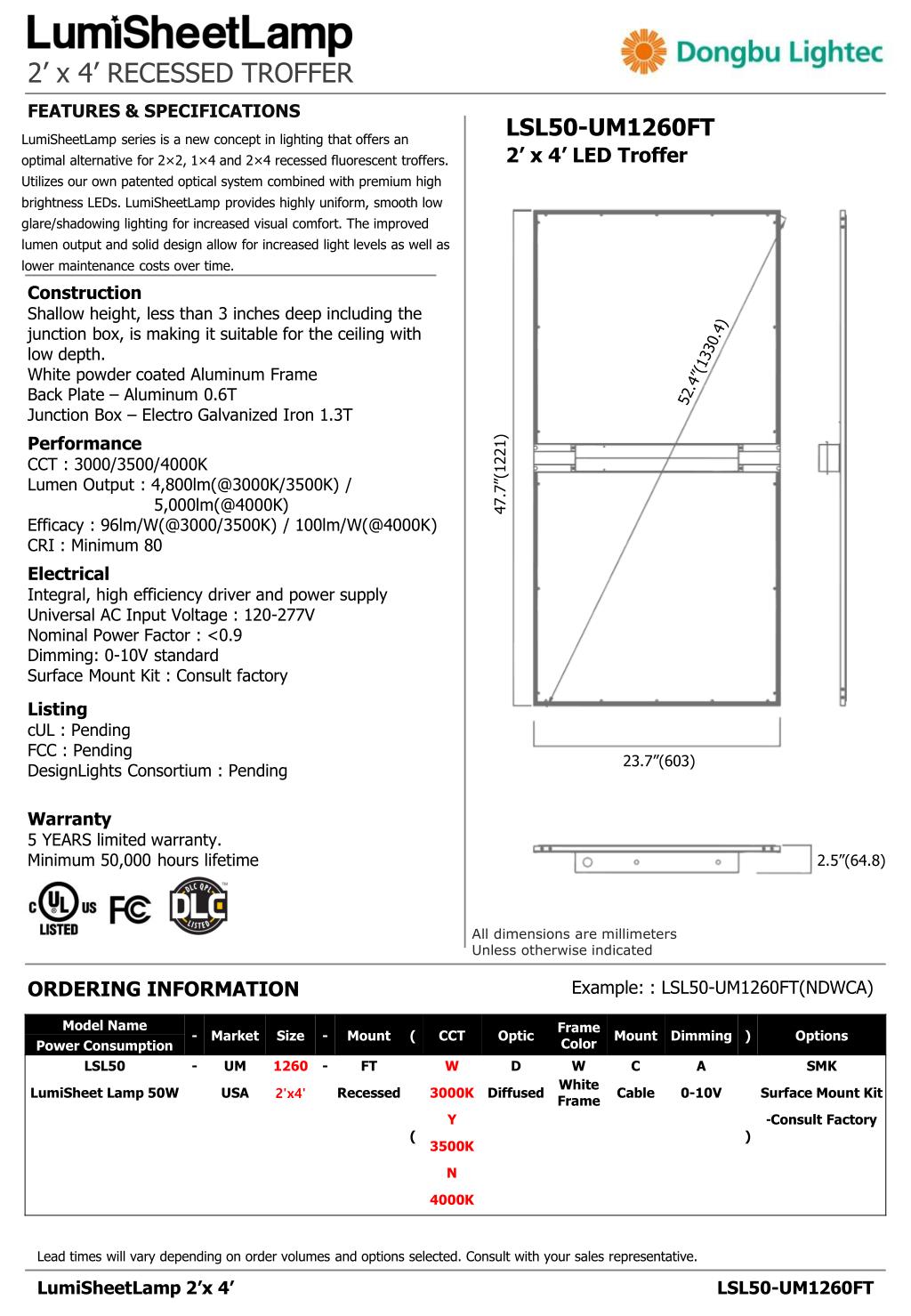

  1. FEATURES & SPECIFICATIONS LSL50-UM1260FT LumiSheetLampseries is a new concept in lighting that offers an optimal alternative for 2×2, 1×4 and 2×4 recessed fluorescent troffers. Utilizes our own patented optical system combined with premium high brightness LEDs. LumiSheetLamp provides highly uniform, smooth low glare/shadowing lighting for increased visual comfort. The improved lumen output and solid design allow for increased light levels as well as lower maintenance costs over time. 2’ x 4’ LED Troffer Construction Shallow height, less than 3 inches deep including the junction box, is making it suitable for the ceiling with low depth. White powder coated Aluminum Frame Back Plate – Aluminum 0.6T Junction Box – Electro Galvanized Iron 1.3T 52.4”(1330.4) Performance CCT : 3000/3500/4000K Lumen Output : 4,800lm(@3000K/3500K) / 5,000lm(@4000K) Efficacy : 96lm/W(@3000/3500K) / 100lm/W(@4000K) CRI : Minimum 80 47.7”(1221) Electrical Integral, high efficiency driver and power supply Universal AC Input Voltage : 120-277V Nominal Power Factor : <0.9 Dimming: 0-10V standard Surface Mount Kit : Consult factory Listing cUL : Pending FCC : Pending DesignLights Consortium : Pending 23.7”(603) Warranty 5 YEARS limited warranty. Minimum 50,000 hours lifetime 2.5”(64.8) All dimensions are millimeters Unless otherwise indicated ORDERING INFORMATION Example: : LSL50-UM1260FT(NDWCA) Lead times will vary depending on order volumes and options selected. Consult with your sales representative.

  2. PHOTOMETRICS LSL50-UM1260FT(WDWCA), 4,800 delivered lumens, tested by DongbuLightec’s Lap in accordance to IESNA LM-79 ZONAL LUMEN SUMMARY LSL50-UM1260FT(YDWCA), 4,800 delivered lumens, tested by DongbuLightec’s Lap in accordance to IESNA LM-79 ZONAL LUMEN SUMMARY

  3. PHOTOMETRICS LSL50-UM1260FT(NDWCA), 5,000 delivered lumens, tested by DongbuLightec’s Lap in accordance to IESNA LM-79 ZONAL LUMEN SUMMARY Product Image
