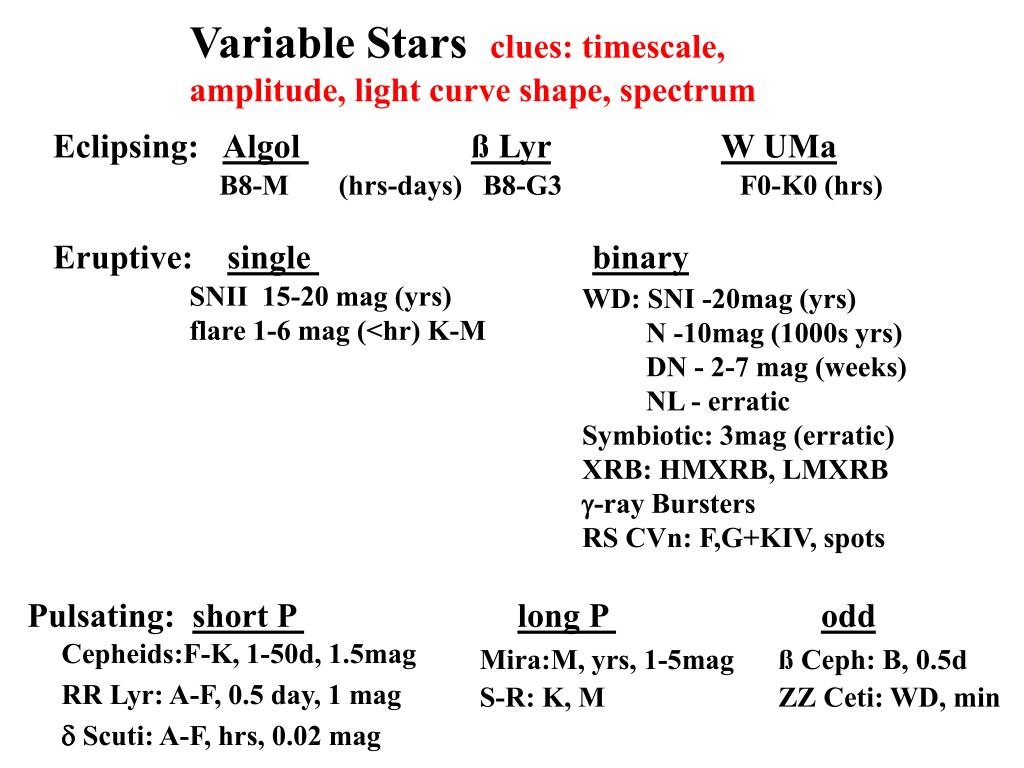

  1. Variable Stars clues: timescale, amplitude, light curve shape, spectrum Eclipsing: Algol ß LyrW UMa B8-M (hrs-days) B8-G3 F0-K0 (hrs) Eruptive: single binary SNII 15-20 mag (yrs) flare 1-6 mag (<hr) K-M WD: SNI -20mag (yrs) N -10mag (1000s yrs) DN - 2-7 mag (weeks) NL - erratic Symbiotic: 3mag (erratic) XRB: HMXRB, LMXRB -ray Bursters RS CVn: F,G+KIV, spots Pulsating: short P long P odd Cepheids:F-K, 1-50d, 1.5mag RR Lyr: A-F, 0.5 day, 1 mag  Scuti: A-F, hrs, 0.02 mag Mira:M, yrs, 1-5mag S-R: K, M ß Ceph: B, 0.5d ZZ Ceti: WD, min

  2. Cataclysmic Variables white dwarf primary with a low mass (G-M) secondary, orbital periods of 67 min-2 days Nova: TNR, high mass WD, outbursts 8-15 mag every few thousand yrs, ~20/yr in MW Dwarf nova: disk instability, outbursts 2-7 mag every week-30 yrs Novalike: high, low states on timescales of months, high accretion AM CVn: 2 white dwarfs, orbital periods of 10-45 min

  3. Disk Polar IntermediatePolar

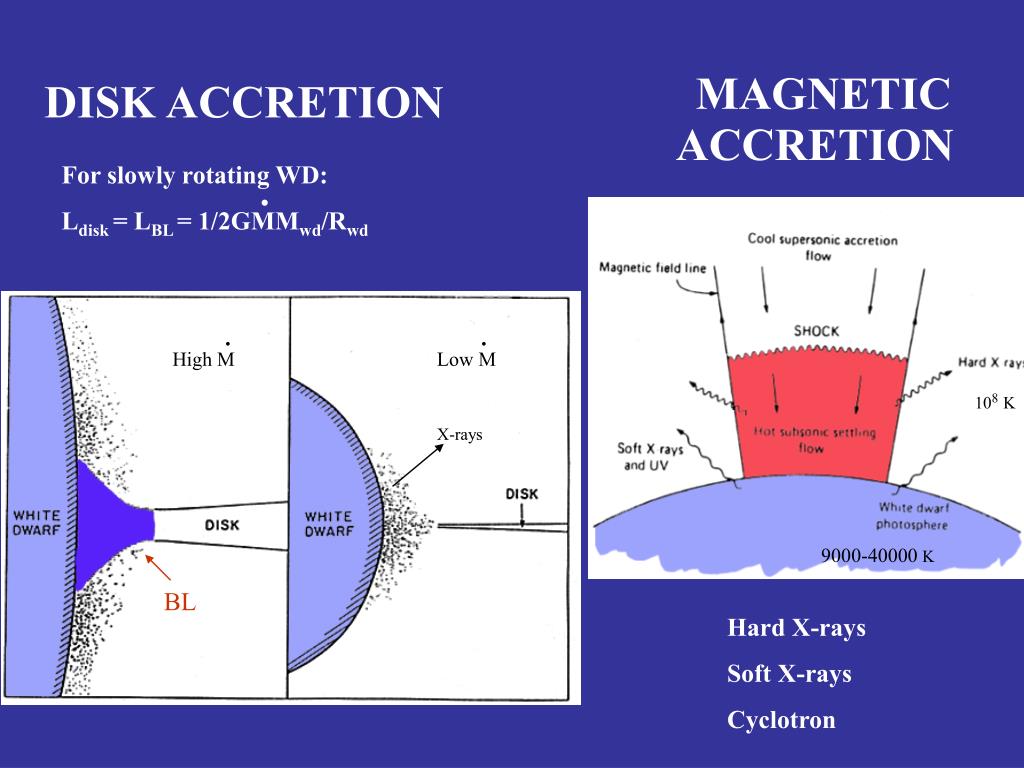

  4. MAGNETIC DISKACCRETION ACCRETION . For slowly rotating WD: Ldisk = LBL = 1/2GMMwd/Rwd . . High M Low M 108K X-rays 9000-40000 K BL Hard X-rays Soft X-rays Cyclotron

  5. -WD accretes until thick degenerate envelope leads to TNR -10-6 to 10-4 solar masses ejected (dust can form) -Envelope returns to quasi-static equil (nuclear burning) -Envelopoe gradually ejected by winds, phot recedes, T increases and peak radiaiton in soft X-ray -Constant bol phase lasts until envelope exhausted (1-100 yrs)

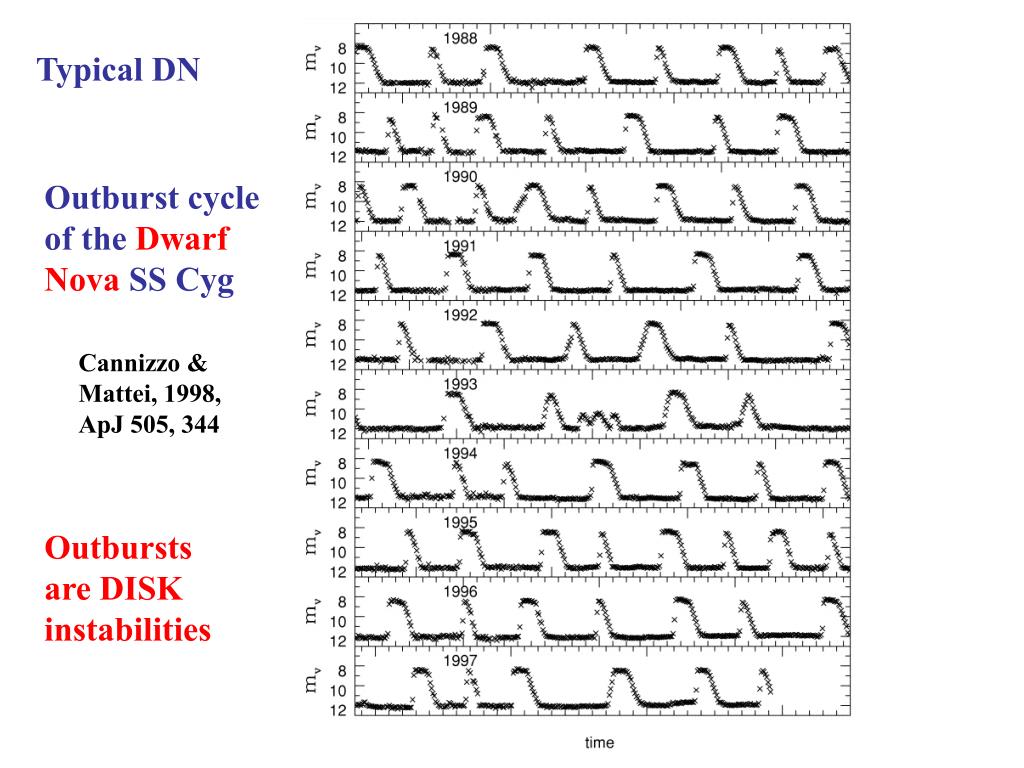

  6. Typical DN Outburst cycle of the Dwarf Nova SS Cyg Cannizzo & Mattei, 1998, ApJ 505, 344 Outbursts are DISK instabilities

  7. Typical CV spectra in DR1 CVs in EDR in Szkody et al. 2002, AJ, 123, 430

  8. Symbiotic stars Late type RG + WD + high excitation emission lines Possible progenitors of Type Ia SN?

  9. RS CVn star (convection + high rotation gives spots) K0III

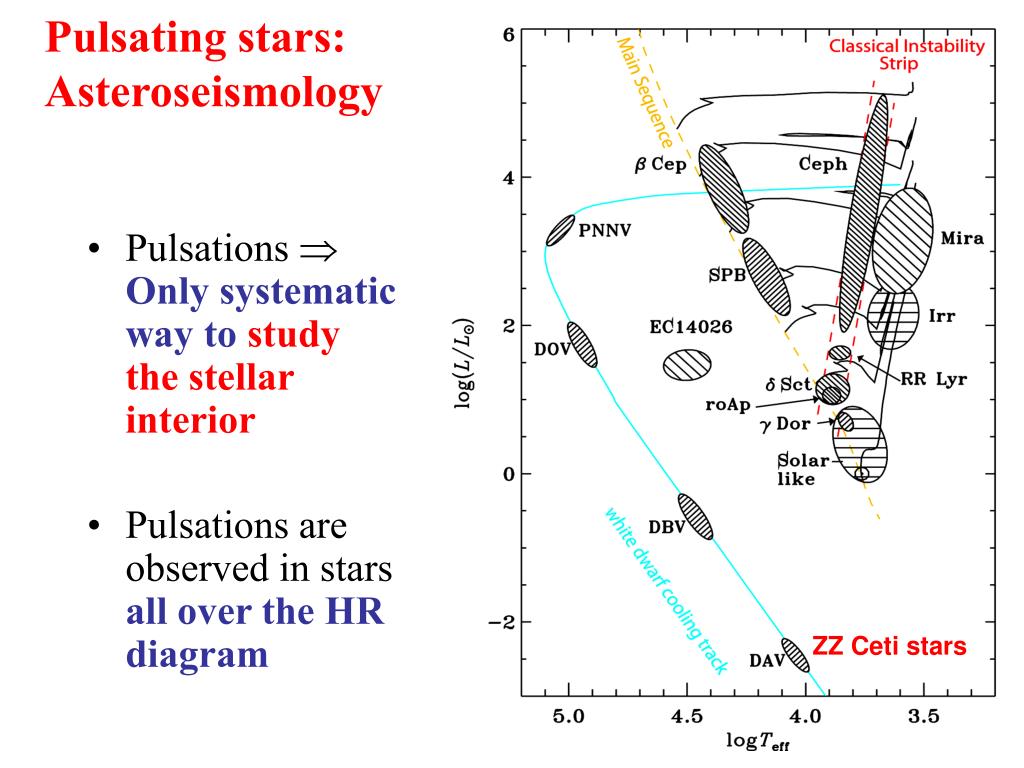

  10. Pulsating stars:Asteroseismology • Pulsations  Only systematic way tostudy the stellar interior • Pulsations are observed in starsall over the HR diagram ZZ Ceti stars

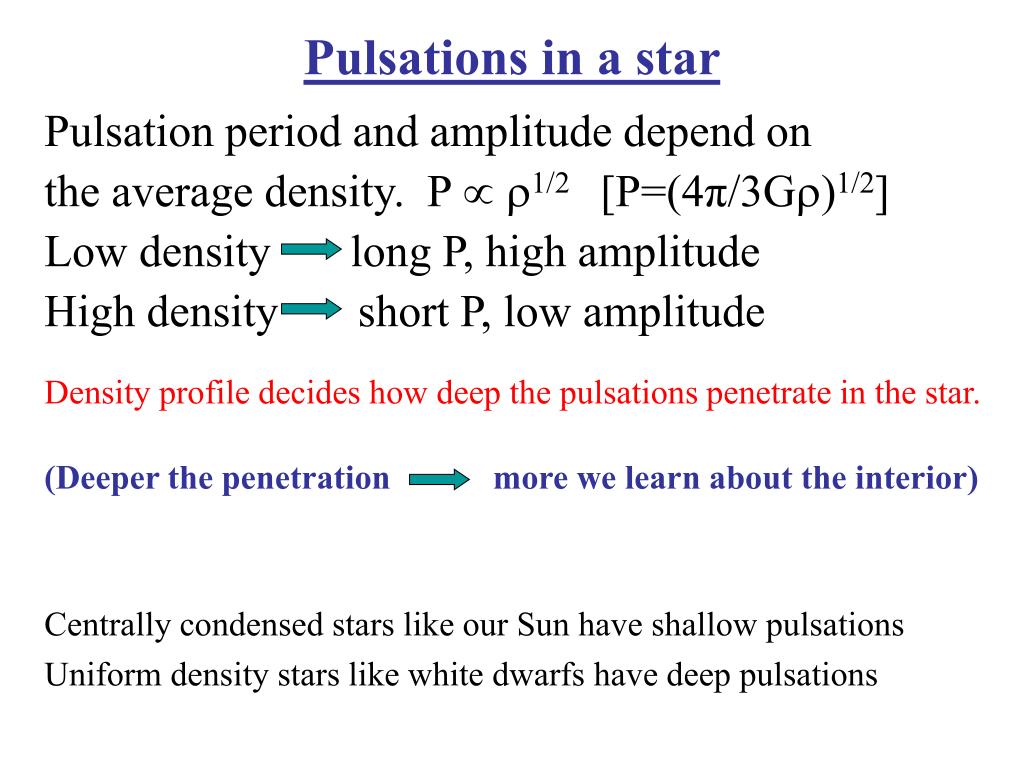

  11. Pulsations in a star Pulsation period and amplitude depend on the average density. P  1/2 [P=(4π/3G)1/2] Low density long P, high amplitude High density short P, low amplitude Density profile decides how deep the pulsations penetrate in the star. (Deeper the penetration more we learn about the interior) Centrally condensed stars like our Sun have shallow pulsations Uniform density stars like white dwarfs have deep pulsations

  12. Cepheids and RR Lyrae Radial pulsators RR Lyrae: A giants, Mv = 0.5, P<1 day Cepheids: F-G SG, P-L relation, P ~ 2-60 days, HeII ionization zone pulsation mechanism

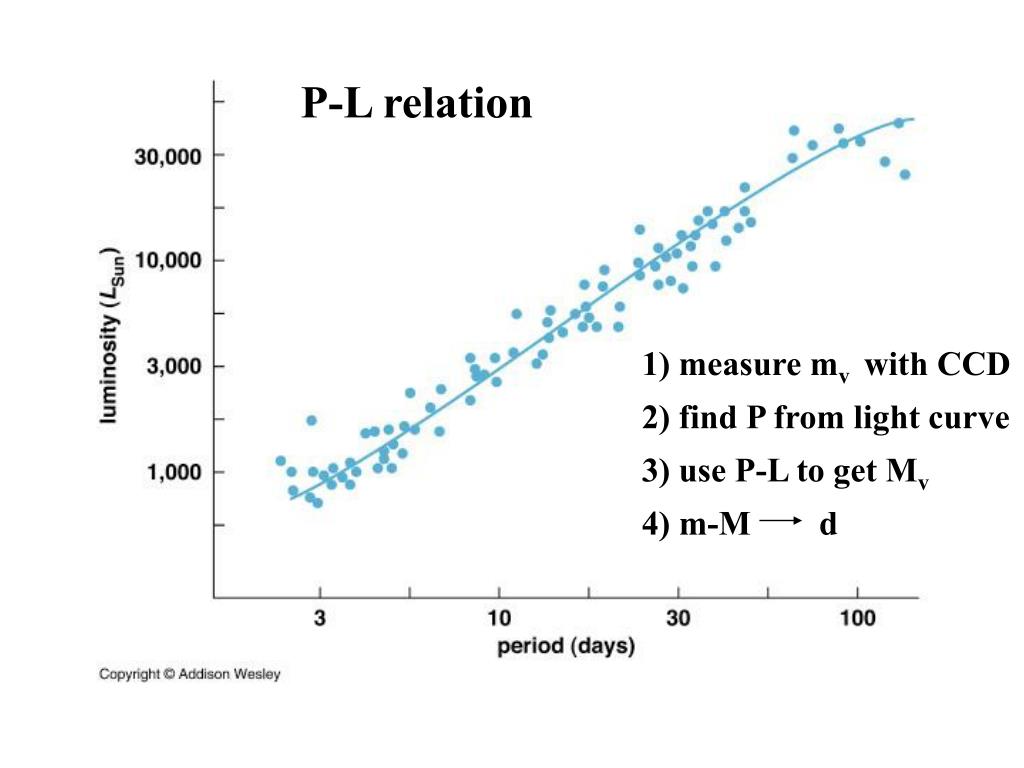

  13. P-L relation 1) measure mv with CCD 2) find P from light curve 3) use P-L to get Mv 4) m-M d

  14. White dwarfs show non-radial g-modes on account of their high gravity Periods of 100s to 1000s • These modes are characterized by quantum numbers (k,l,m) similar to atomic orbitals Spherical gravitational potential  Spherical electrostatic potential l determines the number of borders between hot and cool zones on the surface m is the number of borders that pass through the pole of the rotation axis k determines the number of times the pulsation wiggles from the center to the surface

  15. Two flavors of ZZ Ceti stars (DAVs) cool Teff = 11000K P ~ 1000s Larger amp, more modes, unstable amps hot Teff = 12000K P ~ 200s Less modes, more stability

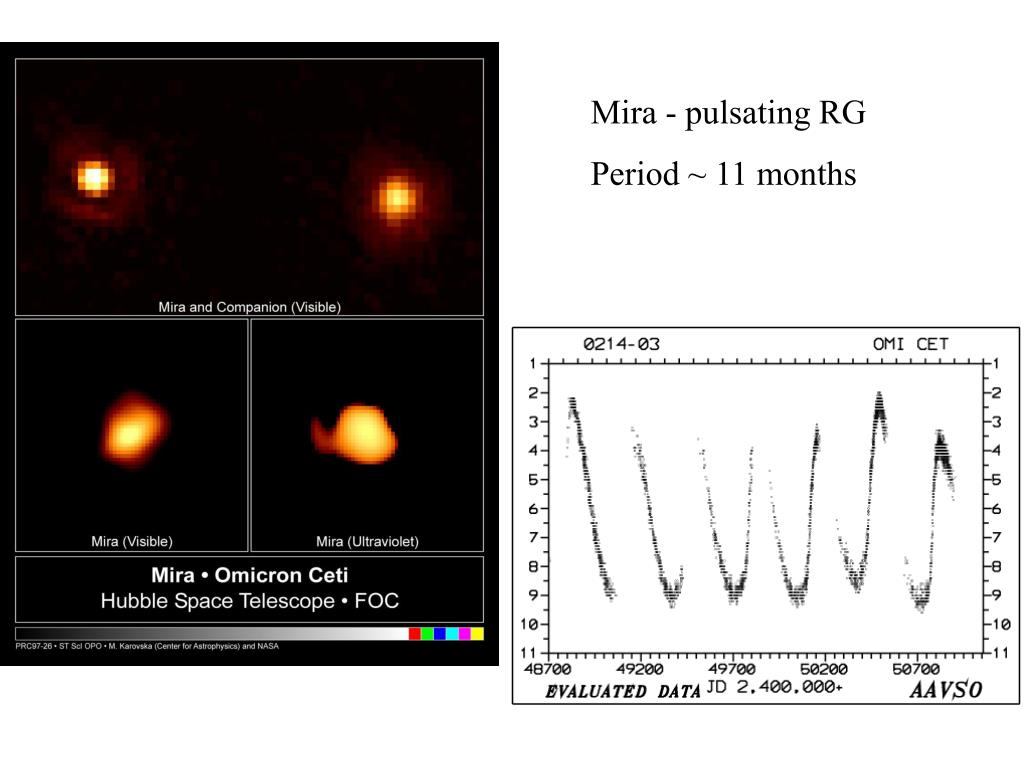

  16. Mira - pulsating RG Period ~ 11 months

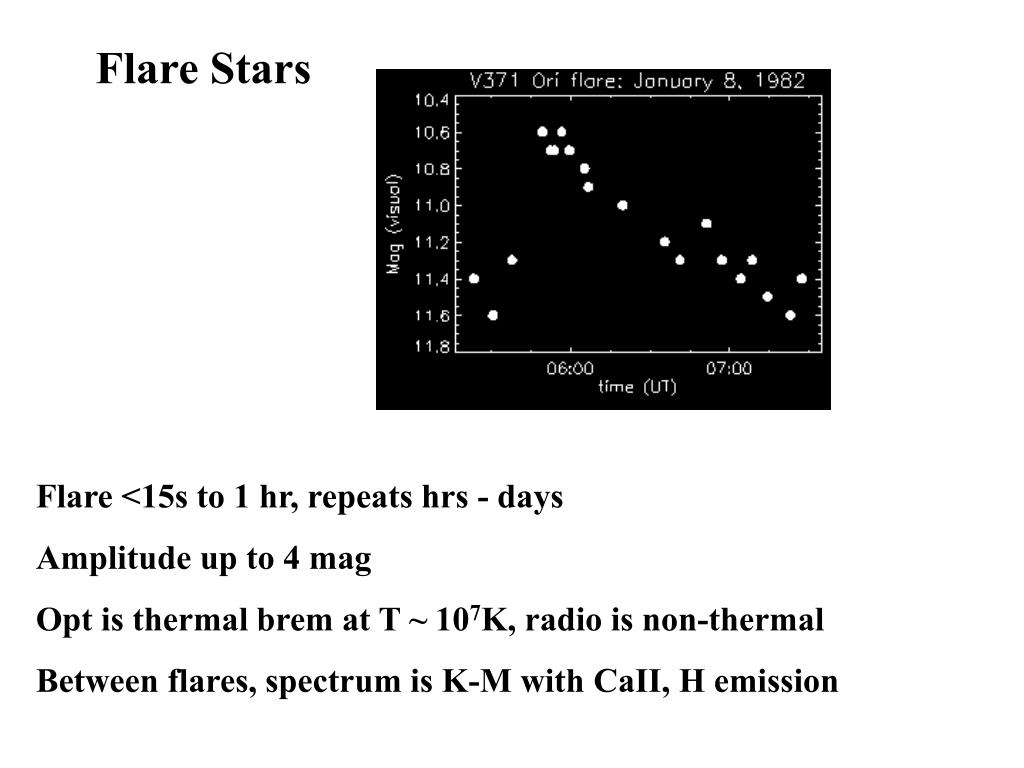

  17. Flare Stars Flare <15s to 1 hr, repeats hrs - days Amplitude up to 4 mag Opt is thermal brem at T ~ 107K, radio is non-thermal Between flares, spectrum is K-M with CaII, H emission

  18. Variable Stars clues: timescale, amplitude, light curve shape, spectrum Eclipsing: Algol ß LyrW UMa B8-M (hrs-days) B8-G3 F0-K0 (hrs) Eruptive: single binary SNII 15-20 mag (yrs) flare 1-6 mag (<hr) K-M WD: SNI -20mag (yrs) N -10mag (1000s yrs) DN - 2-7 mag (weeks) NL - erratic Symbiotic: 3mag (erratic) XRB: HMXRB, LMXRB -ray Bursters RS CVn: F,G+KIV, spots Pulsating: short P long P odd Cepheids:F-K, 1-50d, 1.5mag RR Lyr: A-F, 0.5 day, 1 mag  Scuti: A-F, hrs, 0.02 mag Mira:M, yrs, 1-5mag S-R: K, M ß Ceph: B, 0.5d ZZ Ceti: WD, min

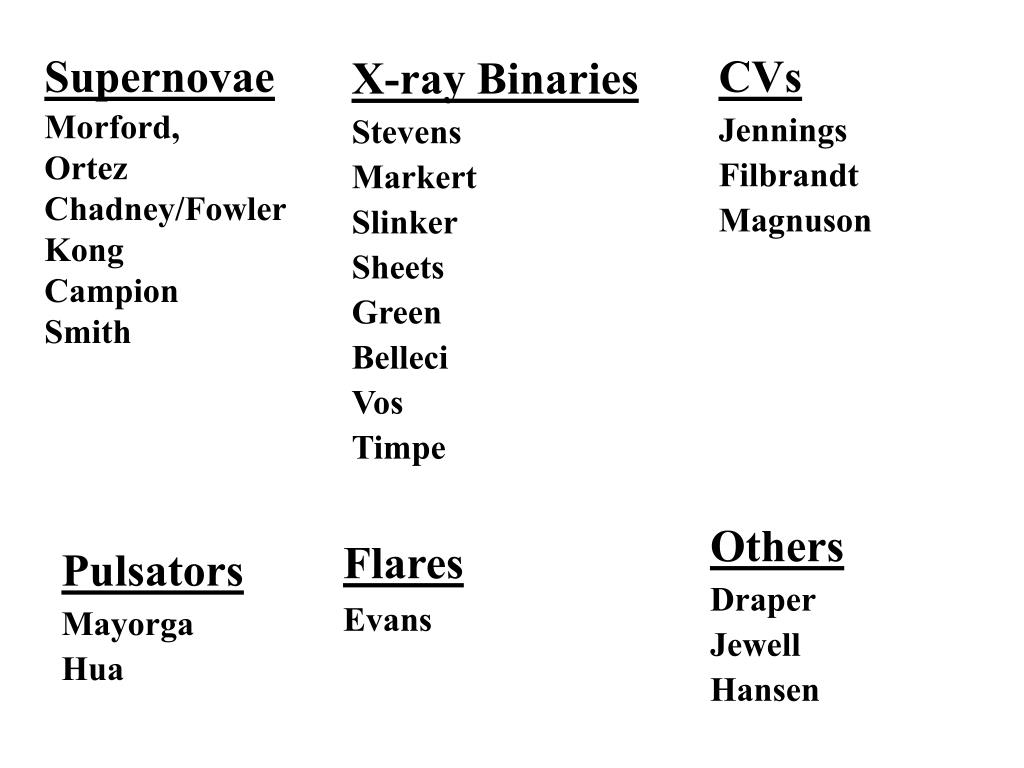

  19. Supernovae Morford, Ortez Chadney/Fowler Kong Campion Smith CVs Jennings Filbrandt Magnuson X-ray Binaries Stevens Markert Slinker Sheets Green Belleci Vos Timpe Others Draper Jewell Hansen Flares Evans Pulsators Mayorga Hua
