  1. IBM Tivoli Monitoring v6.1ITM 6.1 Integration ITM 5.1.2 IBM Software Group Services for Tivoli

  2. Agenda • Introduction • Why integrate ITM 5.x with ITM 6.1? • Architectural Overview • Installation and Deployment • Agent basics • Adding support for Custom RM • Workspace Views for RM health and data • Integration of RM collected metric data with TDW 2.1

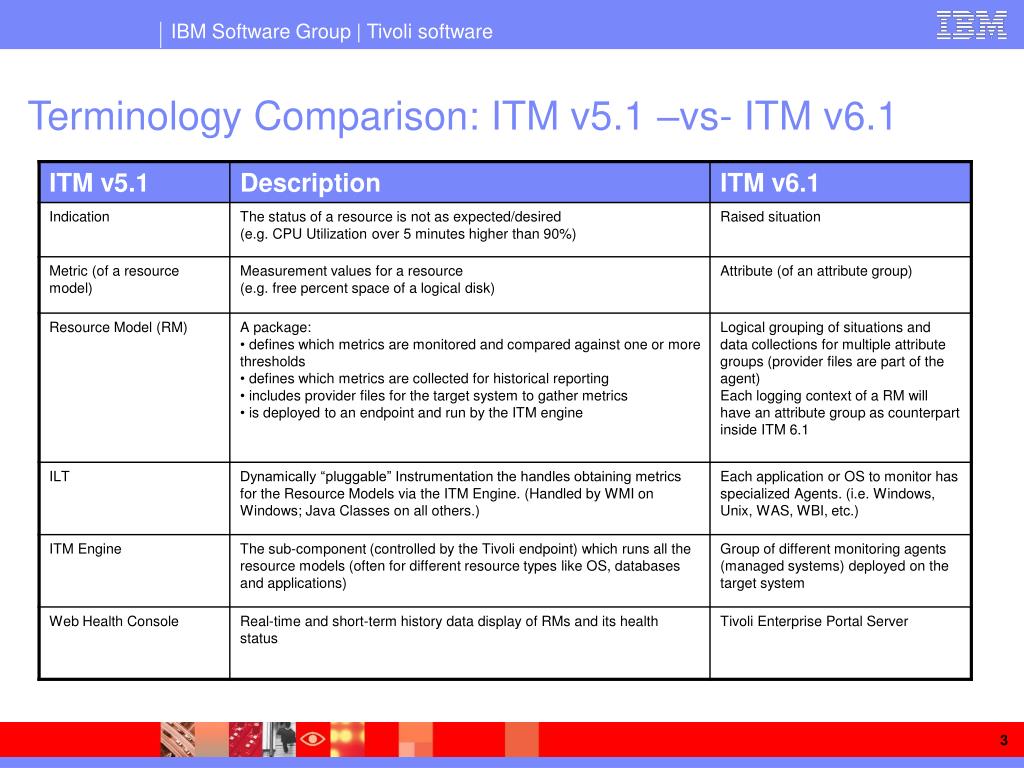

  3. Terminology Comparison: ITM v5.1 –vs- ITM v6.1

  4. Why integrate ITM 5.x with ITM 6.1 (TEPS)? • New 6.1 Portal GUI capabilities allow a more complete and user-friendly interface for the performance and availability data • Integration of multiple GUIs (ITM 5, OMEGAMON/ITM6, Omegamon Z, TEC and TDW Data) • Reduced number of end-user clients to be installed and run in parallel • Quick links sometimes available • Meaningful views and workspaces for recent and long-term historical data • Trending with the Data Warehouse • Forensic data for problem reconstruction • Simplified schema for easier manipulation and extraction of data

  5. Why integrate ITM 5.x with ITM 6.1 (TDW)? • TDW 2.1 also stores instance data which improves enormously the problem diagnosis capabilities inside the portal • Some customers are accessing the local ITM engine DB directly for that reason • Easy and granular pruning and aggregation mechanism can be leveraged • Metric data from custom resource models can be included into the warehouse much more easily • Who has written a custom ETL for TDW 1.x? Congratulation! • Free of Charge for ITM 5 customers

  6. Agenda • Introduction • Why integrate ITM 5.x with ITM 6.1? • Architectural Overview • Installation and Deployment • Agent basics • Adding support for Custom RM • Workspace Views for RM health and data • Integration of RM collected metric data with TDW 2.1

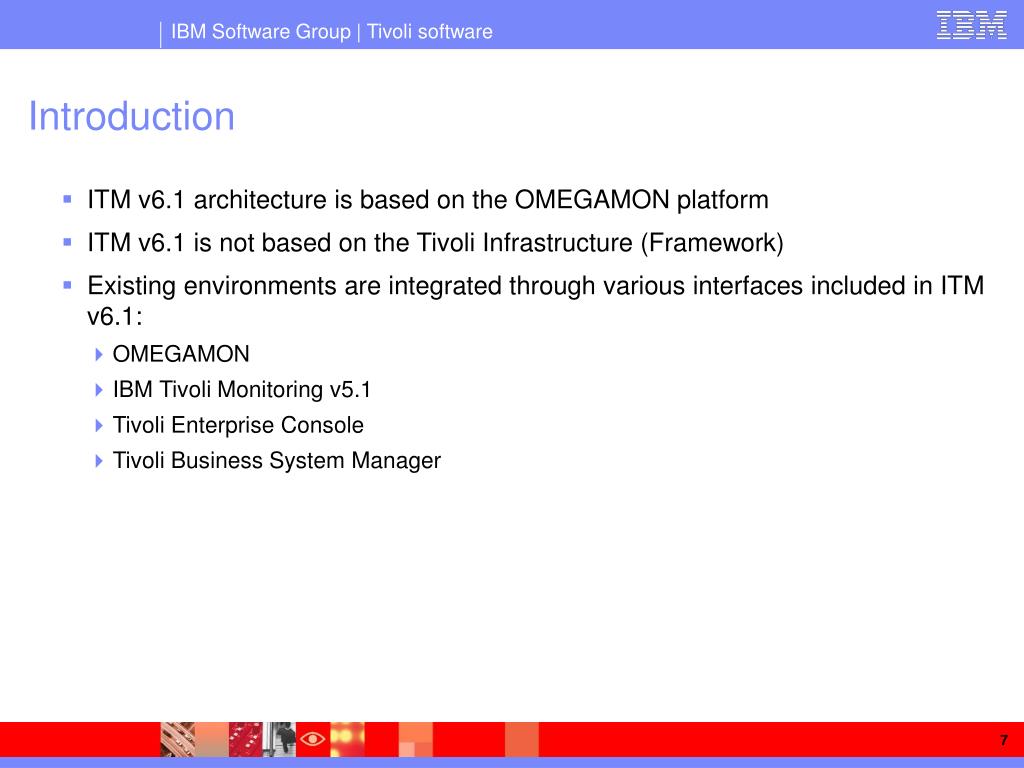

  7. Introduction • ITM v6.1 architecture is based on the OMEGAMON platform • ITM v6.1 is not based on the Tivoli Infrastructure (Framework) • Existing environments are integrated through various interfaces included in ITM v6.1: • OMEGAMON • IBM Tivoli Monitoring v5.1 • Tivoli Enterprise Console • Tivoli Business System Manager

  8. Components: Top Down • Tivoli Enterprise Portal Server (TEPS) • Tivoli Enterprise Portal client (TEP) • Installable client or Internet Explorer v6 browser • User interface management • RDBMS to support configuration data (TEPS DB) • TEC & Browser integration for enhanced capabilities • Tivoli Data Warehouse (TDW) • Actually a schema installed to a supported database (DB2, MS SQL, Oracle) • Warehouse Proxy Agent • Handles aggregation and loading of data into the TDW • Summarization & Pruning Agent • Processes data in the TDW for summarizing & pruning. • Tivoli Enterprise Monitoring Server (TEMS) • Situations • Heartbeat with Agents • Data collection and loading to the Warehouse Proxy • Agents • Various Agent for monitoring requirements (OS, WAS, DB2, etc.) • Integration Agent (for ITM v5.1 engine) • Optional components (not shown) • Failover TEMS • Remote TEMS: For load balancing number of Agents

  9. Architecture: ITM v5.1 Integration with ITM v6.1

  10. Integration Agent (IA) - What it is and what’s not? • Has two primary roles to perform towards ITM 6.1: • Displays RM health status and indications (like wdmlseng) • Displays real-time RM metrics and logs data for historical usage • Is focused on data collection – for example start and stop of resource models via the agent or TEPS is not possible • It does NOT take events of the ITM engine into account • Behaves like any other ITM 6.1 agent • Heartbeating • Collect data for real time visualization (TEPS requests for RM health/indications and RM views) • Record the data for warehousing (stored locally or on the TEMS) – if enabled • Official Name:IBM Tivoli Monitoring 5.x Endpoint Agent Sometimes also called ITM 5.x endpoint agent

  11. XML stream Local pipe Send monitoring data FP6 ITM 5.x Endpoint Agent ITM v5 Engine Architecture - ITM v5 Integration with ITM v6.1

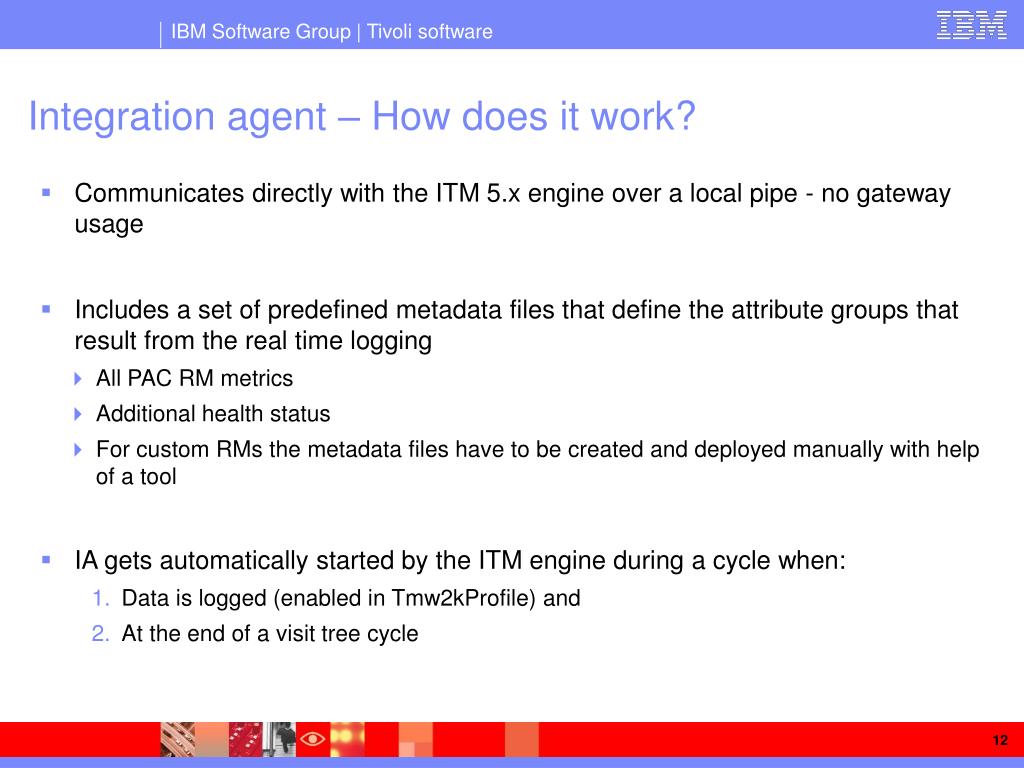

  12. Integration agent – How does it work? • Communicates directly with the ITM 5.x engine over a local pipe - no gateway usage • Includes a set of predefined metadata files that define the attribute groups that result from the real time logging • All PAC RM metrics • Additional health status • For custom RMs the metadata files have to be created and deployed manually with help of a tool • IA gets automatically started by the ITM engine during a cycle when: • Data is logged (enabled in Tmw2kProfile) and • At the end of a visit tree cycle

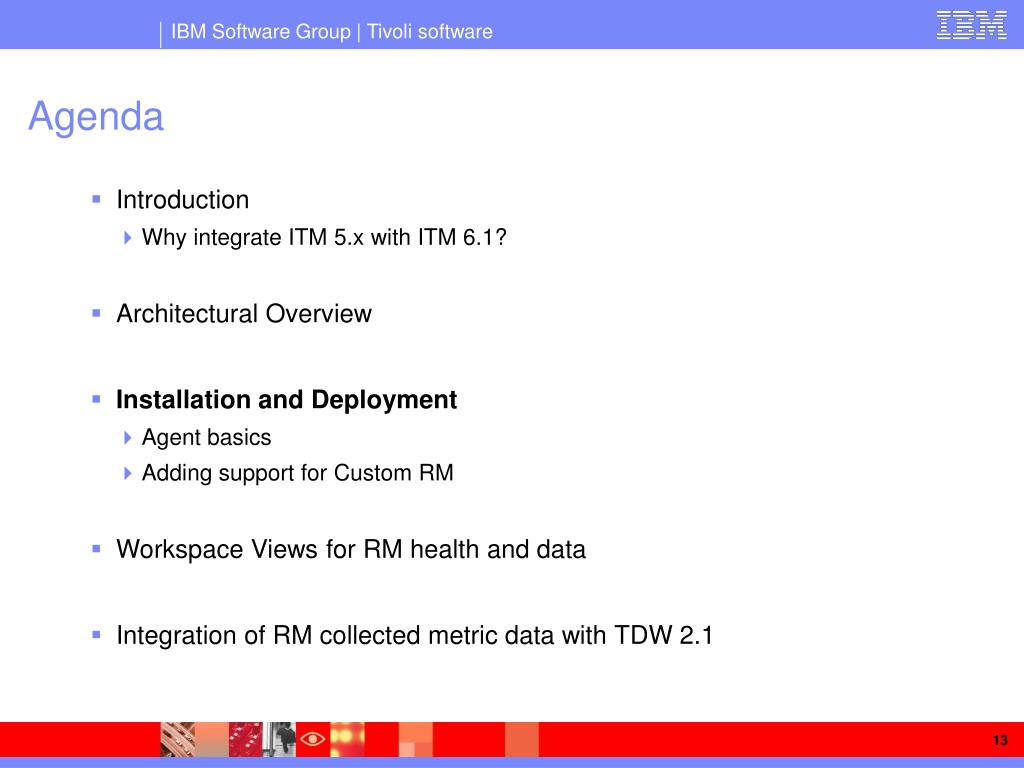

  13. Agenda • Introduction • Why integrate ITM 5.x with ITM 6.1? • Architectural Overview • Installation and Deployment • Agent basics • Adding support for Custom RM • Workspace Views for RM health and data • Integration of RM collected metric data with TDW 2.1

  14. Product Prerequisites & Installation • ITM 5.x Endpoint • ITM 5.1.2 Fixpack 6 • ITM 5.1.1 Component Services Fixpack 2 / ITM 5.1.3 Component Services • Supported endpoint platforms • AIX 5.1 and higher, Solaris 2.8 and higher, (32/64bit) • HP/UX 11.11 and higher (32/64bit) • On Intel: SLES 8 and higher, Red Hat 2.1 and higher (32bit only) • On Z: SLES 8 and higher, Red Hat 3 and higher (32/64bit) • Windows XP, 2000 and 2003 (32bit only) • Installation of “TEMA for ITM v5.1“ via winstall or Tivoli Desktop • To be installed on all Gateways serving ITM v5.x Endpoints • ITM 6.1 prerequisites: “TEMA for ITM v5.1“ has to be chosen for seeding during ITM 6.1 installation

  15. Agent distribution and base configuration • Done via command witm61agt • Distributes the necessary files to endpoints • Binary code (can be omitted for re-configuration) • Metadata files for the known resource models (atr and xml files) • Specifies TEMS server address and port the IA should talk to • Server log files are located under %DBDIR%\KTM\logs or rather $DBDIR/KTM/logs • File names will look liketrace_witm61agt____<no>__p<pid>.log • Numbered <no> consecutively and with the <pid> of command

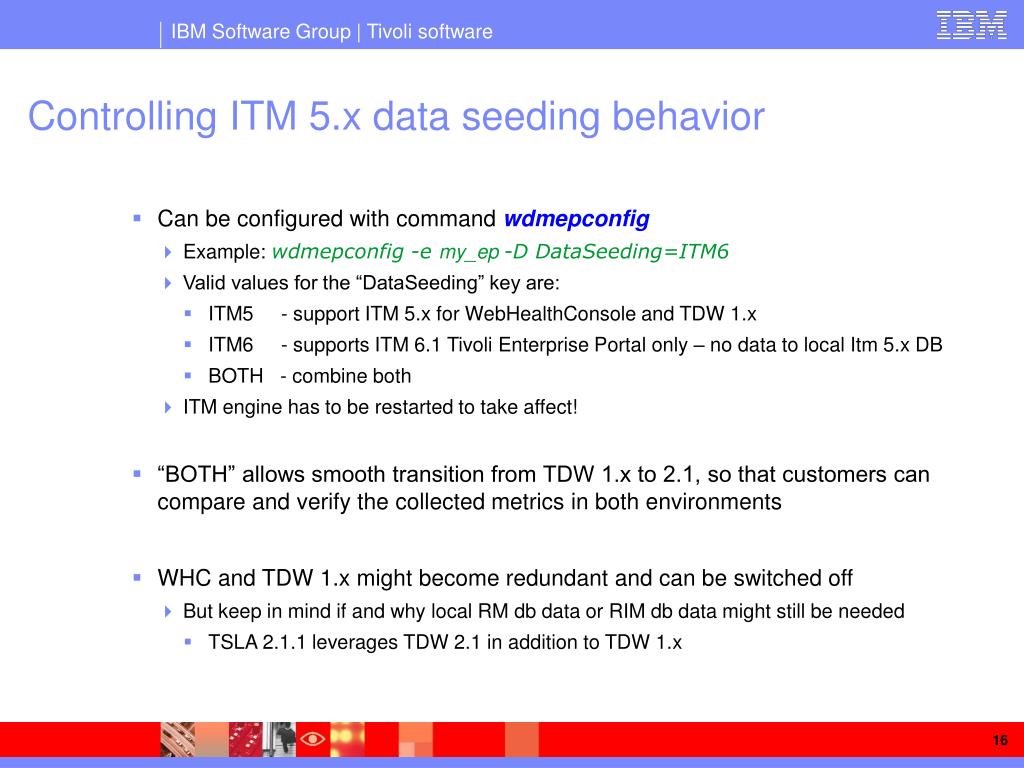

  16. Controlling ITM 5.x data seeding behavior • Can be configured with command wdmepconfig • Example: wdmepconfig -e my_ep -D DataSeeding=ITM6 • Valid values for the “DataSeeding” key are: • ITM5 - support ITM 5.x for WebHealthConsole and TDW 1.x • ITM6 - supports ITM 6.1 Tivoli Enterprise Portal only – no data to local Itm 5.x DB • BOTH - combine both • ITM engine has to be restarted to take affect! • “BOTH” allows smooth transition from TDW 1.x to 2.1, so that customers can compare and verify the collected metrics in both environments • WHC and TDW 1.x might become redundant and can be switched off • But keep in mind if and why local RM db data or RIM db data might still be needed • TSLA 2.1.1 leverages TDW 2.1 in addition to TDW 1.x

  17. Sample step-by-step approach • Install ITM 6.1 including the seeding of the integration agent • Install ITM 5.x prerequisites in TME environment • Install integration agent in TME environment • Deploy integration agents to endpoints • Define and configure the data collection behavior (ITM5, ITM6, both) • Start using TEP in parallel for real-time analysis as well as short and long-term reporting • If satisfying, stop ITM 5.x data collection and rollup for WHC and TDW 1.x by • Switching off the Tmw2kProfile settings “TDW logging” BUT “Enable data logging” has to remain switched on • Changing the DataSeeding for the ITM engine to “ITM6” only • Turning off the wdmcollect upload

  18. Stopping and deleting integration agent • ITM 5.x environment • Configure DataSeeding = ITM5 • Recycle ITM engine • Remove integration agent files from the agent via • witm61agt –r • ITM 6.1 environment • Remove managed systems for this agent from the “managed system workspace” • Managed Systems are getting status offline • <host>:KTM • <host>:AMW • <host>:TM • Context menu of the agents does NOT include “remove” option

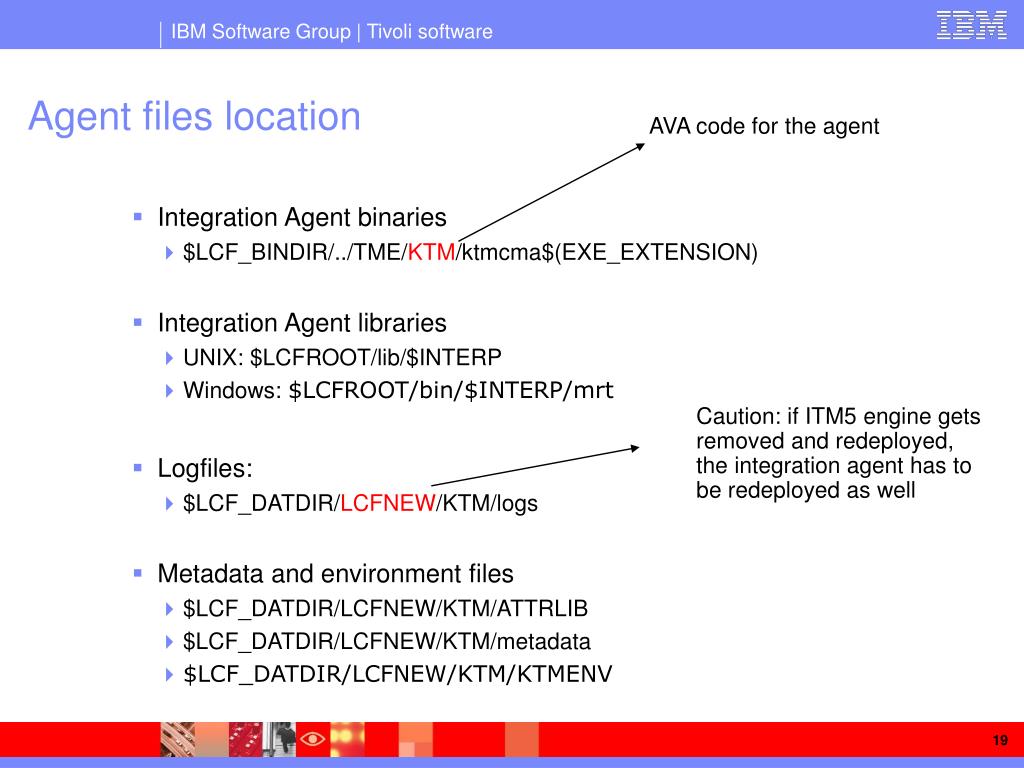

  19. Agent files location AVA code for the agent • Integration Agent binaries • $LCF_BINDIR/../TME/KTM/ktmcma$(EXE_EXTENSION) • Integration Agent libraries • UNIX: $LCFROOT/lib/$INTERP • Windows: $LCFROOT/bin/$INTERP/mrt • Logfiles: • $LCF_DATDIR/LCFNEW/KTM/logs • Metadata and environment files • $LCF_DATDIR/LCFNEW/KTM/ATTRLIB • $LCF_DATDIR/LCFNEW/KTM/metadata • $LCF_DATDIR/LCFNEW/KTM/KTMENV Caution: if ITM5 engine gets removed and redeployed, the integration agent has to be redeployed as well

  20. Custom Resource Model Integration • For unknown RMs sample description files will be created on the endpoint under %LCF_DATDIR%/LCFNEW/KTM/metadata • <Category>_<RMname>_<Context>_<Resource>.xml.sample • Describes the data in xml format • “ktm-seedgen.jar” creates the metadata files from the sample files. • Catalog and attribute files for TEMS, TEPS and Integration agent • SQL script files for the TEPS database • TEMS and TEPS have to be • Re-seeded with the new metadata files • Recycled to take effect

  21. Custom Resource Model Integration • TME command witm61metadatais used to manage metadata files • Add or remove metadata files and attribute files to/from the dependency sets and distributes them to the gateways which have the Integration Agent installed. • List the current metadata dependency sets • Caution: remove only files from the dependency not from the EP • TME command“witm61agt” has to be used to re-distribute the new dependencies to the endpoints • After recycling the ITM v5.1 engine the new category will be shown on the TEPS

  22. Agenda • Introduction • Why integrate ITM 5.x with ITM 6.1? • Architectural Overview • Installation and Deployment • Agent basics • Adding support for Custom RM • Workspace Views for RM health and data • Integration of RM collected metric data with TDW 2.1

  23. Workspace views • Views are installed as seed information like for any other OS agent • To be chosen during ITM 6.1 installation • Resource Model Health Workspace • Displays status and health of RMs • Display details for a RM including historical trend and indication instances • Display “real-time“ RM metrics • Resource Model Workspaces • For some RM categories there are `pretty´ RM views predefined • DB/2, Oracle, Windows, Unix - Linux, Solaris and WebSphere AS • Plain table format for others which can be adjusted accordingly • Agent Message Workspace • Display errors reported by the integration agent Linked together for easy drill-down

  24. RM Health Workspace - Resource Model Overview Resource Model Overview - shows the health trend of the resource models Clicking on the link, it takes you to the metrics (event data) for that indication instance.

  25. RM Health Workspace - Resource Model Details Resource Model Details - shows the health trend of the resource model and any indication that is active (if health < 100). Clicking on the link, it takes you to the metrics (event data) for that indication instance.

  26. RM Health Workspace - Indication Metrics Indication Metrics - shows the resource model details, the indication instance that was selected and the metrics for that indication instance.

  27. RM WorkSpace– Unix Network Traffic

  28. RM Workspace – Unix Process

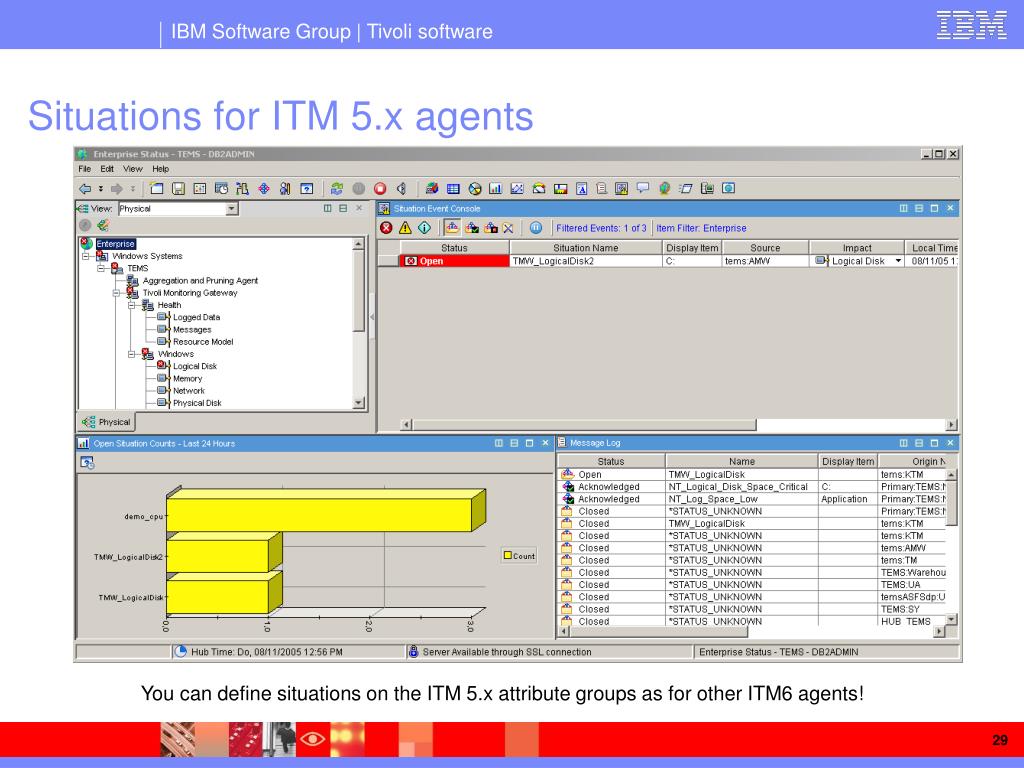

  29. Situations for ITM 5.x agents You can define situations on the ITM 5.x attribute groups as for other ITM6 agents!

  30. Agenda • Introduction • Why integrate ITM 5.x with ITM 6.1? • Architectural Overview • Installation and Deployment • Agent basics • Adding support for Custom RM • Workspace Views for RM health and data • Integration of RM collected metric data with TDW 2.1

  31. Historical data collection • Possible for any attribute group of a PAC (ITM RM category) • Example: Product=PAC-Windows Attribute group=AMW_TMW_LogicalDisk_PercentSpace • Collection Interval: 5,15,30 or 60 minutes • This might be slower than the RM collection interval, so graphs will have to set the “sample time” as the axis attribute in order to display each “real” recording time. • Collection location: “local” or “TEMS” • Instance data is collected by default • Summarization interval: hourly, daily, weekly, monthly, quarterly or yearly • Pruning settings for each summarization interval and for instance data • Warehouse upload interval: 1 hour, daily or off

  32. Historical ITM 5.x Data (TMW_Processor)

  33. Notice • There is no ITM 6.1 TEP authentication bridge to authenticate TME user and adhere to the defined TME authorization views • To limit access the TEP logical navigation trees (scopes) for an user have to be defined via the standard TEPS means • no modify rights should be assigned since it disregards theses scopes! • Currently the integration agent only supports the IP.PIPE protocol, SNA and SSL are not yet available • For environments with IP.SPIPE defined, add the IP.PIPE protocol for the TEMS server and the Warehouse proxy to assure the connection for integration agents at least • The integration agent cannot be deployed and controlled (start/stop) by means of the ITM 6.1 infrastructure • This is completely handled by TME and ITM 5.x mechanisms • Currently the RM status not equal to “running” are not shown in the workspaces • Planned to be included in the ITM 5.1 FP 6. • ITM6 Data collection interval might happen in shorter cycles than the ITM5 data collection interval • Graph styles have to be changed to display “Sample Time” instead of “Recording Time”

  34. End of Unit.
