  1. Fluorescent Detection using Optical Fibers with Cardiac Myocytes Paul Clark Martin Garcia Chris Gorga John Ling III Giordano Lo Regio

  2. Thesis • Device that is more cost efficient. • Incorporate optical fibers into an existing BioMEMS device • The optical fiber or fibers will detect the fluorescence of calcium in contractile cardiac myocyte cells • This design can potentially be used to measure fluorescence of any ion of interest

  3. Questions • Optical Fibers • What is the minimum fiber diameter to produce accurate and differentiable results? • Will a single fiber setup work? • How successfully can we integrate an optical fiber into our PDMS device? • How adaptable this device will be for other ions?

  4. Background • Completed micro fluidic device already known to successfully hold cardiac myocytes. • Online detection of calcium using chemical analysis • Already have large scale design of this process using inverted microscope and multiple cell cultures. • Fura-2 dye specification • Pre-designed Photo Multiplier Tube (PMT).

  5. Objectives • Modify micro fluidic device to accept optical fiber. • Change consistency of PDMS • Find correct positioning to achieve maximum output signal • Integrate small scale fiber optics with PMT • Adjust to smaller signal • Increase sensitivity • Design LabView module to analyze, graph, and store input signal

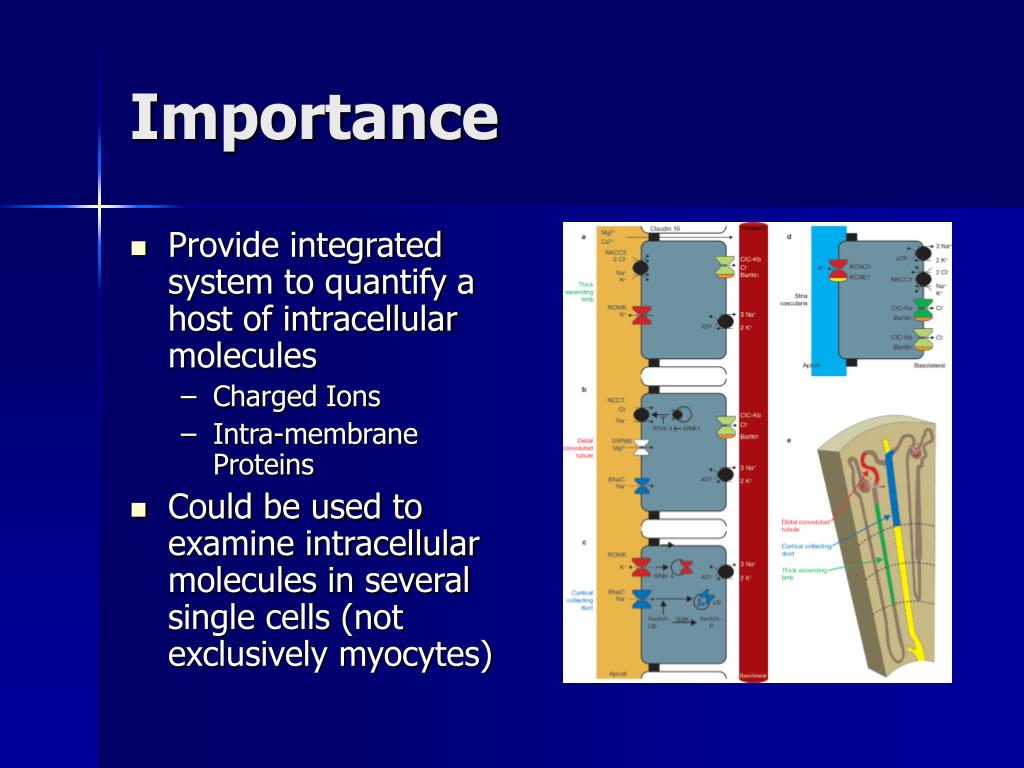

  6. Importance • Provide integrated system to quantify a host of intracellular molecules • Charged Ions • Intra-membrane Proteins • Could be used to examine intracellular molecules in several single cells (not exclusively myocytes)

  7. Social/Economic Impact • Compact device marketed to academic research institutions • Alleviate start up costs for smaller institutions • More time and money devoted to experiment rather than device development • Focus on study of cell and its physiology

  8. Status • Optics of the PMT box are being studied • Magnitude of the signal • Signal amplification into Labview for data aquisition • Will allow for the addition of the chopper • Gives specific excitation frequency (kHz) • A master for the PDMS micro-fluidic device has been designed • Waiting on mask to be cast • Outlined next 3 weeks

  9. Photomask Specifications • Channels (3) are 200 microns wide • Dictated by fiber size • Channels are spaced 100 microns apart • Optical fibers to be incorporated are 250, 150, 100, and 50 microns in diameter

  10. Mask Design Optical Fibers

  11. Master Fabrication • SU-8 is spun onto a silicon substrate • SU-8 2025 is used • Master is spun for 30sec at 1750rpsec • Gives desired thickness of 50 microns • Master is then cured

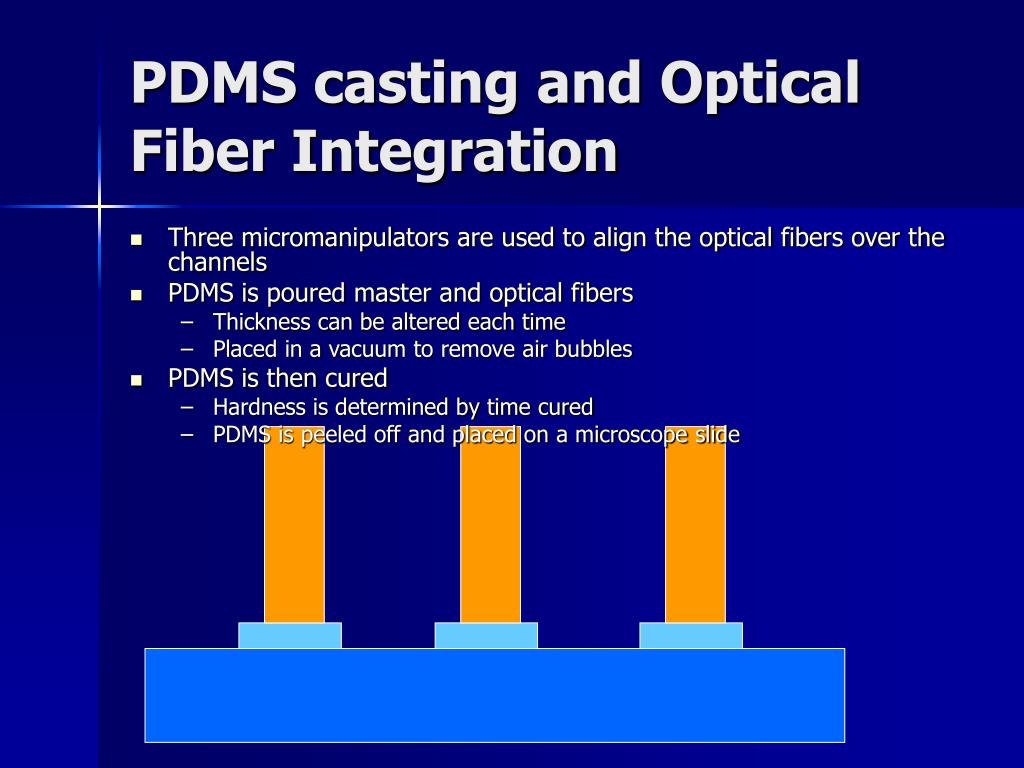

  12. PDMS casting and Optical Fiber Integration • Three micromanipulators are used to align the optical fibers over the channels • PDMS is poured master and optical fibers • Thickness can be altered each time • Placed in a vacuum to remove air bubbles • PDMS is then cured • Hardness is determined by time cured • PDMS is peeled off and placed on a microscope slide

  13. Conclusions • Separately the two parts are not difficult to design • Initial designs for both have been agreed upon • MEMS fabrication is very simple and easily repeatable • Difficulty is in the integration of the optical fibers with acceptable output signal magnitude • Sensitivity is highly correlated to fiber size • Want to use smallest fiber possible • In the near future… • Fabrication of master • Casting of initial PDMS device integrated with optical fibers • Begin testing just fluorescent die in channels • If successful begin to plan for used of smaller fibers and possibly smaller channels (width)
