rtspd. Quicktime. RTSP media server. RTSP. sipconf. Telephone. RTSP clients. SIP conference server. sipum. Telephone switch. SIP/RTSP Unified messaging. Web based configuration. sipd. T1/E1 RTP/SIP. SIP proxy, redirect server. SQL database.

vanya
Télécharger la présentation

e*phone

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

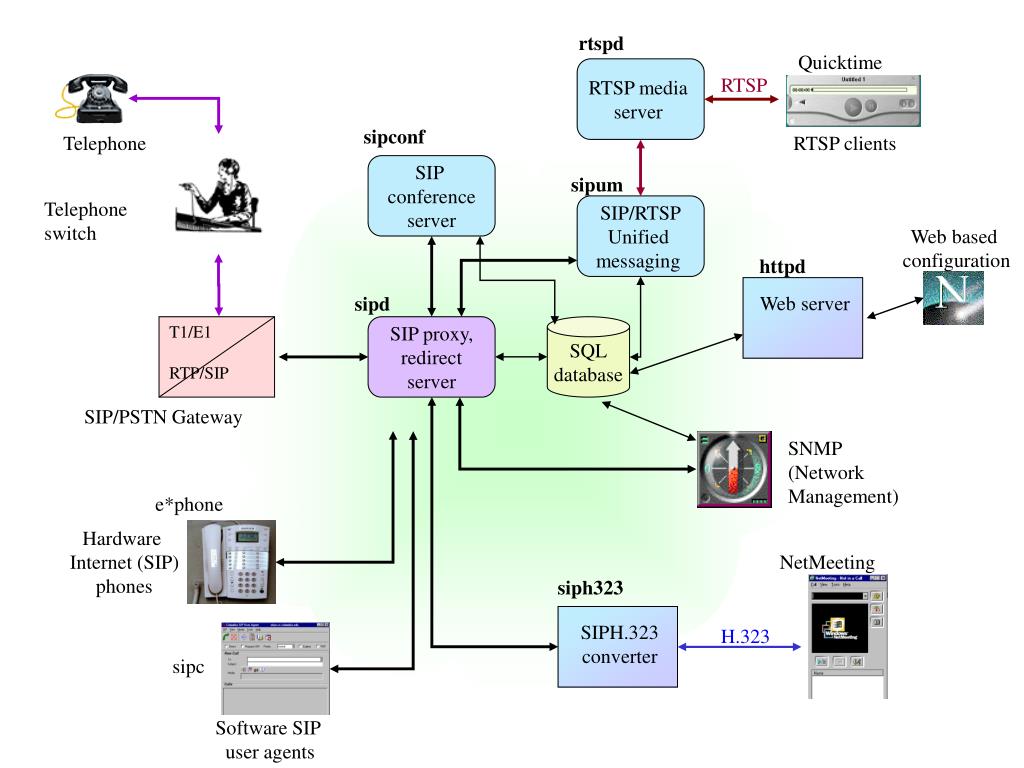

  1. rtspd Quicktime RTSP media server RTSP sipconf Telephone RTSP clients SIP conference server sipum Telephone switch SIP/RTSP Unified messaging Web based configuration sipd T1/E1 RTP/SIP SIP proxy, redirect server SQL database SIP/PSTN Gateway SNMP (Network Management) e*phone Hardware Internet (SIP) phones SIPH.323 converter Web server NetMeeting siph323 H.323 sipc Software SIP user agents httpd

  2. Demo Scenario • Web interface • SIP-phone to SIP-phone • SIP-phone to PSTN phone • PSTN phone to SIP phone • Device control using SIP • Voice mail service (unified messaging) • Multi-party conferencing • Network management (SNMP) • SIP-H.323 translation

  3. Web based configuration Call Bob sipd SIP proxy, redirect server SQL database e*phone Hardware Internet (SIP) phones sipc Web server Software SIP user agents Example Call • Bob signs up for the service from the web as “bob@cs.columbia.edu” • sipd canonicalizes the destination to sip:bob@cs.columbia.edu • He registers from multiple phones • sipd rings both e*phone and sipc • Alice tries to reach Bob • INVITE sip:Bob.Wilson@cs.columbia.edu • Bob accepts the call from sipc and starts talking cs.columbia.edu

  4. PBX Gateway PSTN Internal T1/CAS (Ext:7130-7139) External T1/CAS Call 9397134 Call 7134 Ethernet 1 2 4 5 3 Regular phone (internal) SIP server SQL database sipd sipc Bob’s phone 7134 => bob PSTN to IP Call • DID - direct and simple • No-DID - dial extension, supports more users

  5. PBX Gateway (10.0.2.3) PSTN External T1/CAS Internal T1/CAS Call 5551212 Call 85551212 Ethernet 4 5 2 3 1 5551212 Bob calls 5551212 Regular phone (internal, 7054) SIP server SQL database sipd sipc Use sip:85551212@10.0.2.3 IP to PSTN Call
