Presentation Transcript

  1. Old Mars Mars is further away, we see a smaller image so we need much better telescopes

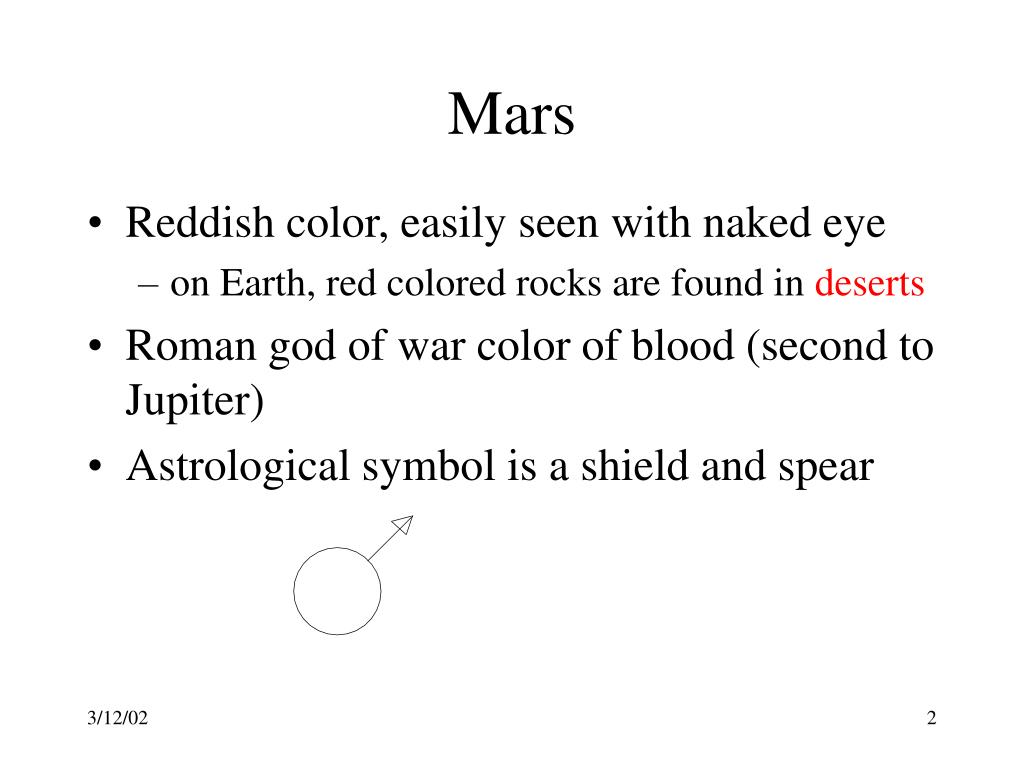

  2. Mars • Reddish color, easily seen with naked eye • on Earth, red colored rocks are found in deserts • Roman god of war color of blood (second to Jupiter) • Astrological symbol is a shield and spear

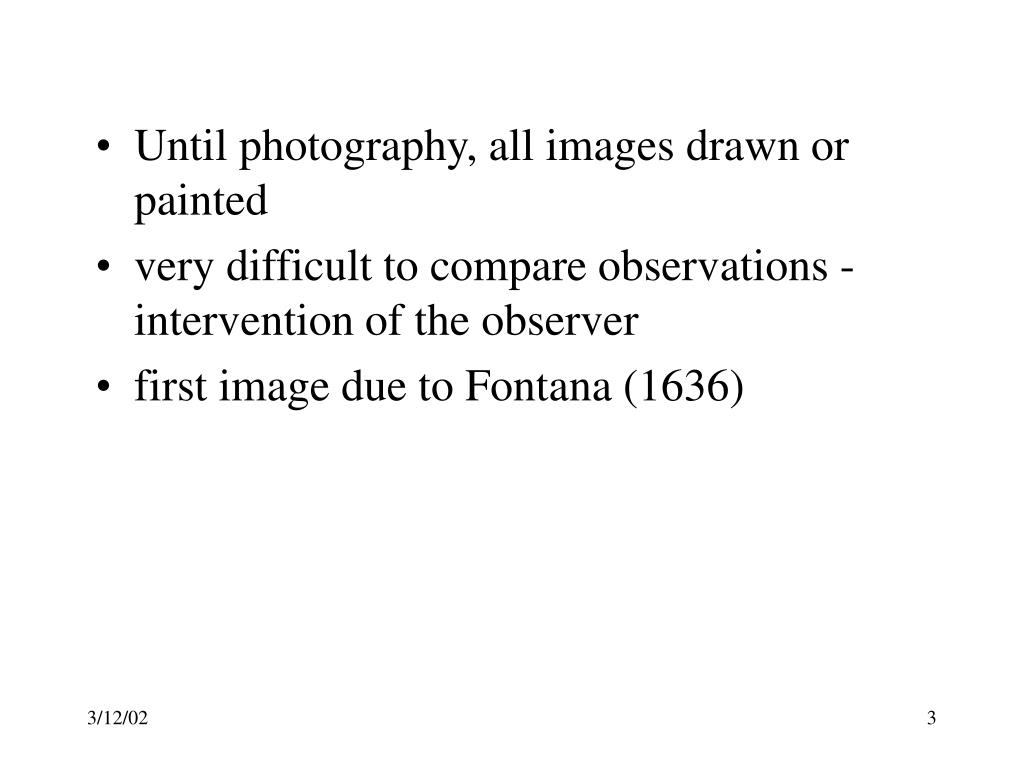

  3. Until photography, all images drawn or painted • very difficult to compare observations - intervention of the observer • first image due to Fontana (1636)

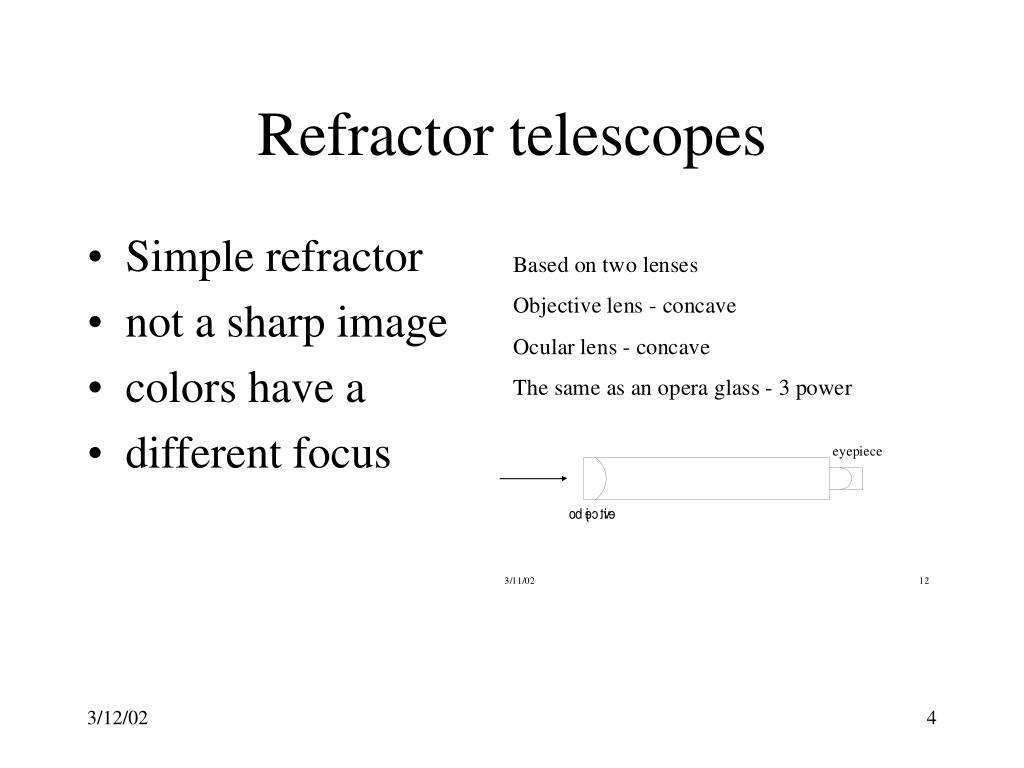

  4. Refractor telescopes • Simple refractor • not a sharp image • colors have a • different focus

  5. First accurate drawing - Huygens 1659 • first showing of polar caps Huygens 1672 • Mars was seem to have dark and light areas • Dark – water (oceans, seas, bays lakes) • Bright – continents (reddish color)

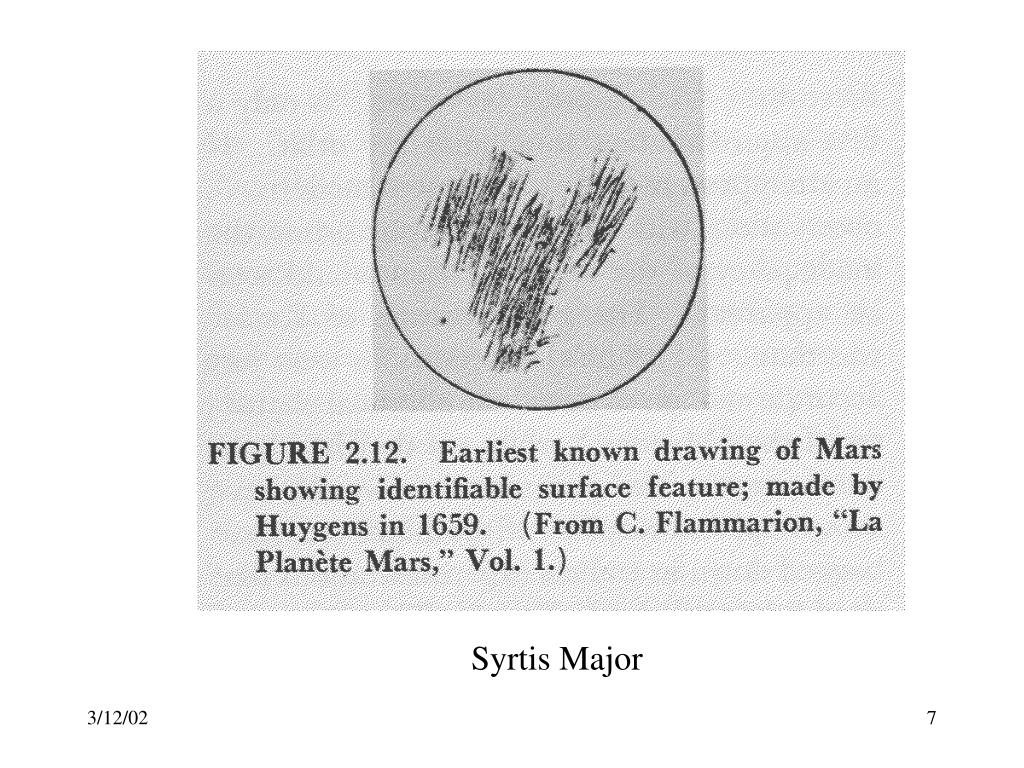

  6. Syrtis Major

  7. 1672

  8. Herschel 1777-1784 • observed tilt to be ~30 degrees (like Earth) • therefore, 4 seasons (like Earth) • concluded that the inhabitants would enjoy a life similar to that on Earth

  9. Big improvement • Invention of the achromatic objective lens • Chester Hall, 1729 • Two different kinds of glass in the objective

  10. Problems with glass • 1799 • Swiss, Pierre Louis Guinand • cast high quality lenses as large as 6” • worked with Joseph von Fraunhofer, a German optician who did the grinding and polishing • later lenses were much larger

  11. Applications of new telescopes • Heinrick Mädler - school teacher (seminary), amateur astronomer • met Wilhelm Beer - banker and amateur astronomer • looked at Mars (map in 1830) • did not name features • mapped Moon 1834-1836

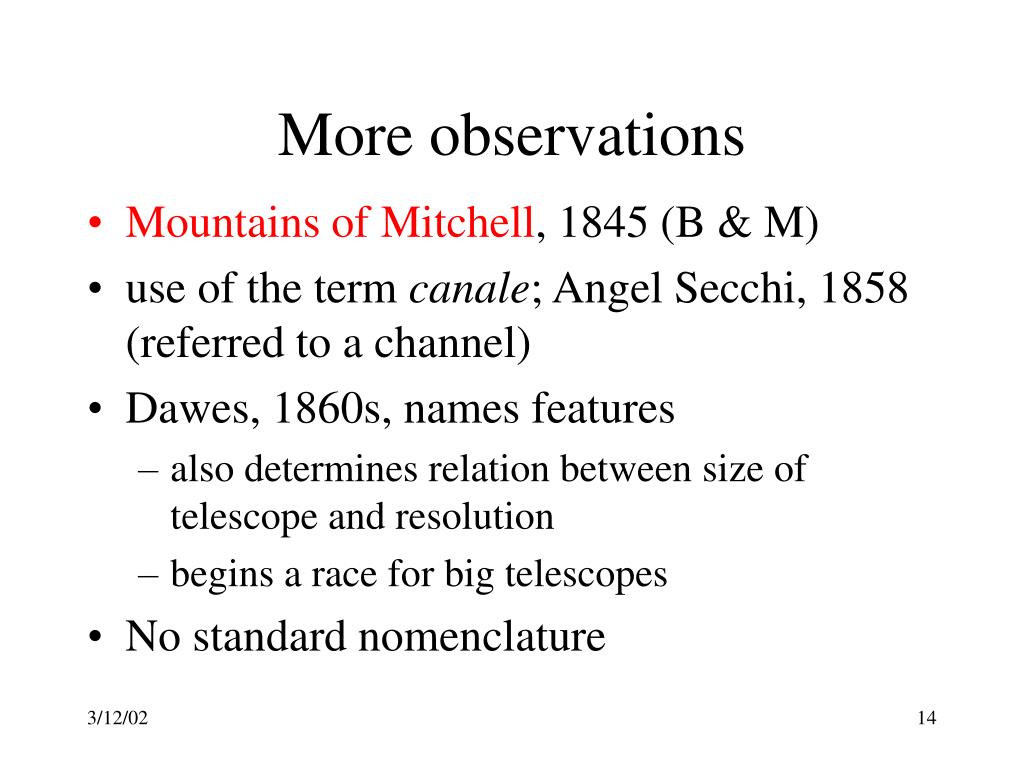

  12. More observations • Mountains of Mitchell, 1845 (B & M) • use of the term canale; Angel Secchi, 1858 (referred to a channel) • Dawes, 1860s, names features • also determines relation between size of telescope and resolution • begins a race for big telescopes • No standard nomenclature

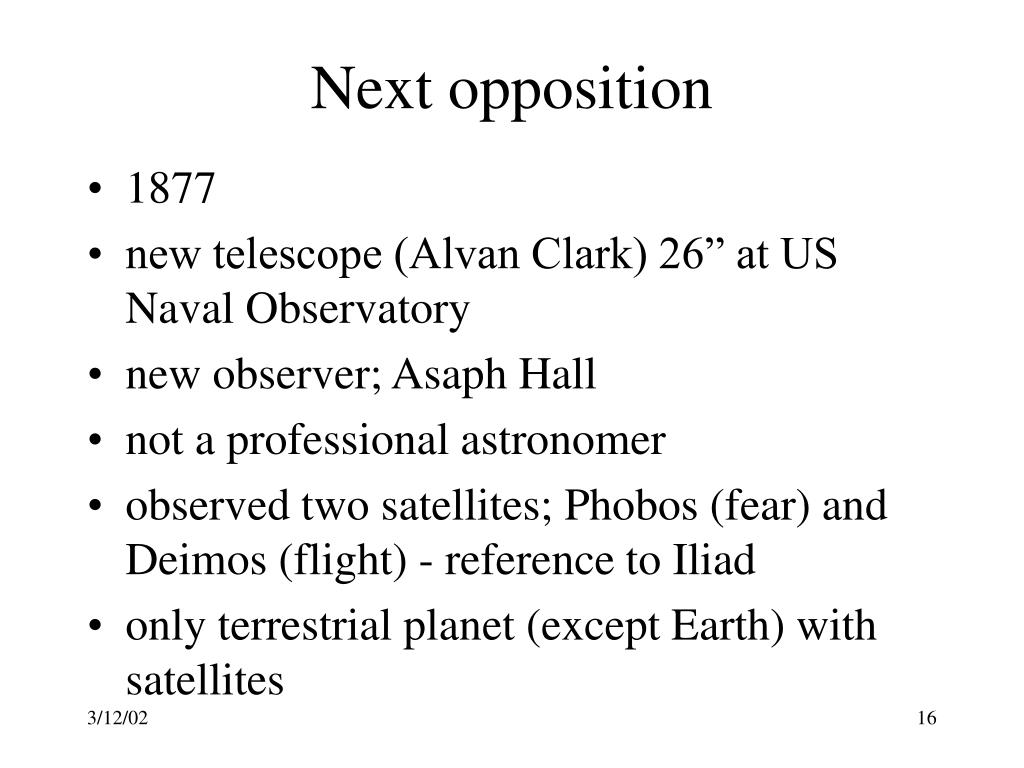

  13. Next opposition • 1877 • new telescope (Alvan Clark) 26” at US Naval Observatory • new observer; Asaph Hall • not a professional astronomer • observed two satellites; Phobos (fear) and Deimos (flight) - reference to Iliad • only terrestrial planet (except Earth) with satellites

  14. At the same opposition • Giovanni Schiaparelli • accurate measurements of lat. & long. of features • introduced a nomenclature that stuck (1877) • showed long, straight, narrow dark makings • called them canali, again meaning channels • got translated into canals,artificial

  15. New features • Schiaparelli - observed gemination, a splitting of canals • canals had to be several miles wide to be seen • must have been vegetation on the banks of the canals • showed dark areas where canals crossed

  16. Names • Light areas - terrestrial or imaginary lands • Arabia, Hellas, Syria, Amazonis • dark areas - bodies of water • seas - Tyrrhenum mare • bays - Sabaeus sinus • gulfs - Golfo sabeo • lakes - Solis lacus

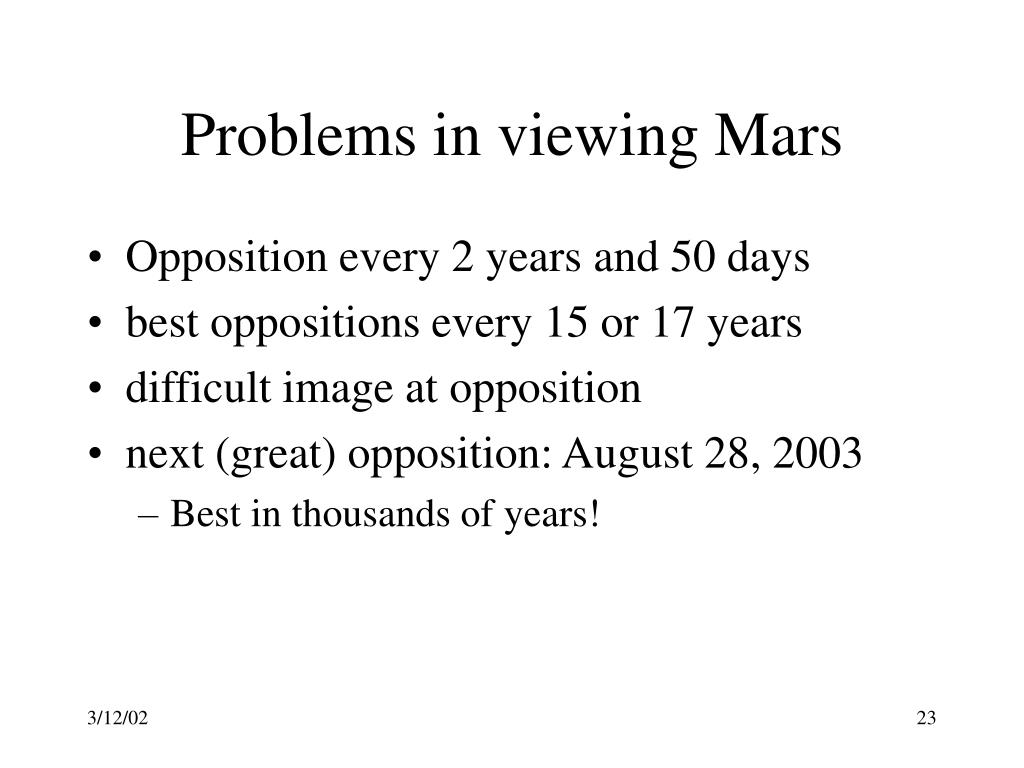

  17. Problems in viewing Mars • Opposition every 2 years and 50 days • best oppositions every 15 or 17 years • difficult image at opposition • next (great) opposition: August 28, 2003 • Best in thousands of years!

  18. New player • Percival Lowell 1855-1916 • an amateur but a serious one • was convinced that the canals were artificial • constructed to irrigate deserts (red color) • view of Mars as a planet drying out • Dark areas were not seas but marshes • Wave of darkening (primary evidence)

  19. If there is water on Mars • Dark areas, light areas (yes) • clouds (yes) • storms (yes) • reflection of Sun on water (no) • Reflected light not polarized (no) • but suppose the dark areas are vegetation • polar caps (yes) • red color (yes)

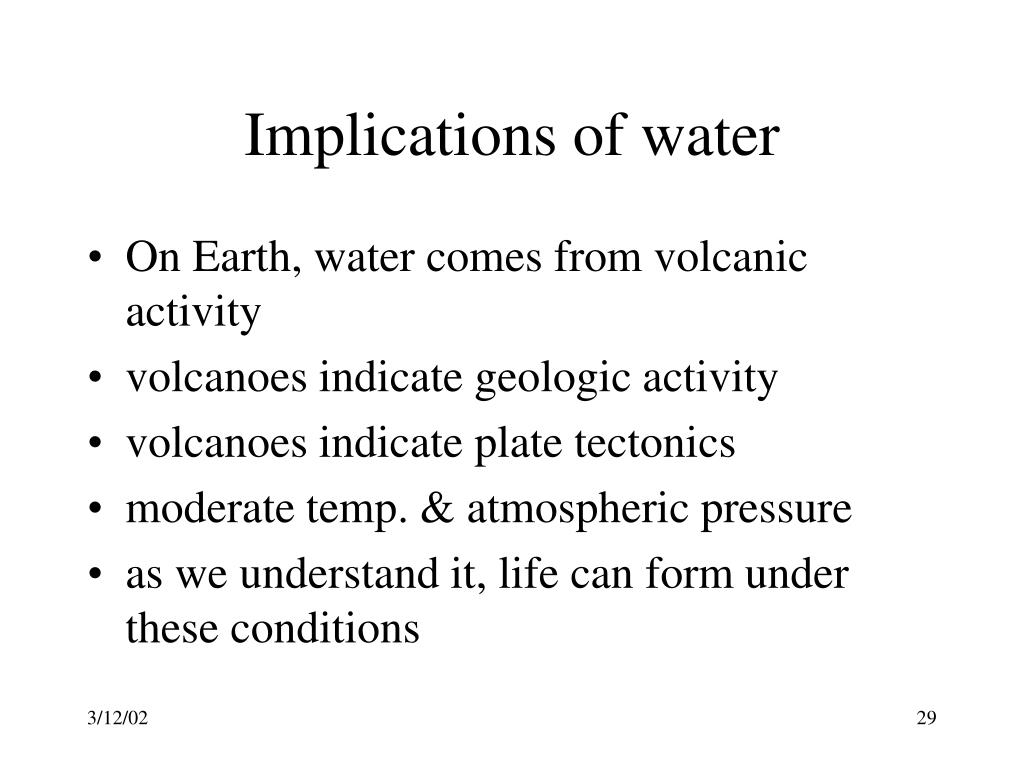

  20. Implications of water • On Earth, water comes from volcanic activity • volcanoes indicate geologic activity • volcanoes indicate plate tectonics • moderate temp. & atmospheric pressure • as we understand it, life can form under these conditions

  21. General conclusions, 1877 • Moderate climate • water available • large desert areas • planet losing water • an ideal place for life • sentient organisms living there

  22. Requirements for life • Moderate temperatures (between 0 and 100 C) • free water • an atmosphere • does not have to be oxygen
