  1. Convex Programming Brookes Vision Reading Group

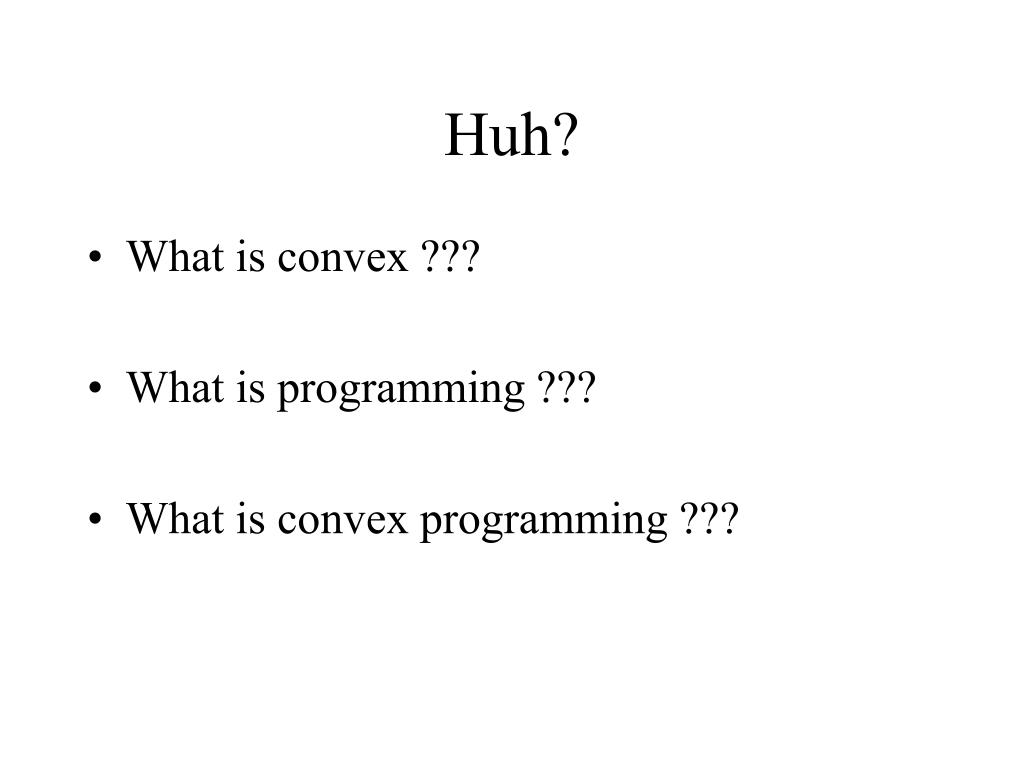

  2. Huh? • What is convex ??? • What is programming ??? • What is convex programming ???

  3. Huh? • What is convex ??? • What is programming ??? • What is convex programming ???

  4. Convex Function f(t x + (1-t) y) <= t f(x) + (1-t) f(y)

  5. Convex Function Is a linear function convex ???

  6. Convex Set Region above a convex function is a convex set.

  7. Convex Set Is the set of all positive semidefinite matrices convex??

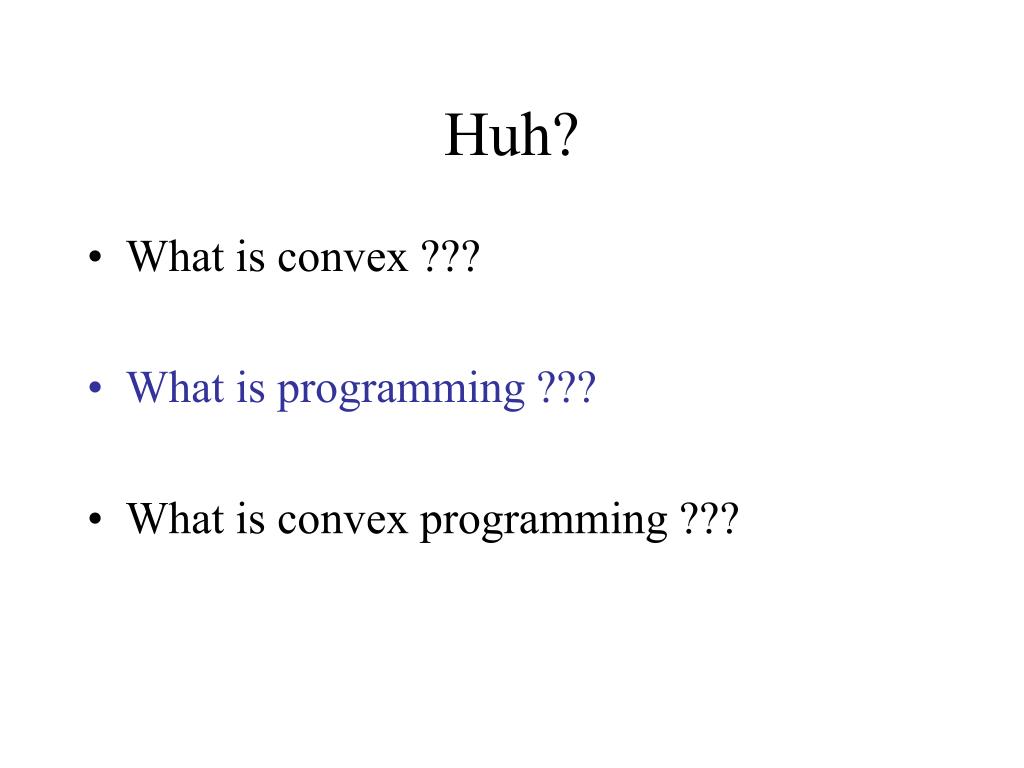

  8. Huh? • What is convex ??? • What is programming ??? • What is convex programming ???

  9. Objective function Example Constraints Programming • Objective function to be minimized/maximized. • Constraints to be satisfied.

  10. Example Optimal solution Vertices Objective function Feasible region

  11. Huh? • What is convex ??? • What is programming ??? • What is convex programming ???

  12. Convex Programming • Convex optimization function • Convex feasible region • Why is it so important ??? • Global optimum can be found in polynomial time. • Many practical problems are convex • Non-convex problems can be relaxed to convex ones.

  13. Convex Programming • Convex optimization function • Convex feasible region • Examples ??? • Linear Programming • Refer to Vladimir/Pushmeet’s reading group • Second Order Cone Programming • What ??? • Semidefinite Programming • All this sounds Greek and Latin !!!!

  14. Outline • Convex Optimization • Second Order Cone Programming (SOCP) • Semidefinite Programming (SDP) • Non-convex optimization • SDP relaxations • SOCP relaxations • Optimization Algorithms • Interior Point Method for SOCP • Interior Point Method for SDP 2 out of 3 is not bad !!!

  15. Outline • Convex Optimization • Second Order Cone Programming (SOCP) • Semidefinite Programming (SDP) • Non-convex optimization • SDP relaxations • SOCP relaxations • Optimization Algorithms • Interior Point Method for SOCP • Interior Point Method for SDP

  16. Second Order Cone • || u || < t • u - vector of dimension ‘d-1’ • t - scalar • Cone lies in ‘d’ dimensions • Second Order Cone defines a convex set • Example: Second Order Cone in 3D x2 + y2 <= z2

  17. Hmmm ICE CREAM !! x2 + y2 <= z2

  18. Linear Objective Function Affine mapping of SOC Second Order Cone Programming Minimize fTx Subject to || Ai x+ bi || <= ciT x + di i = 1, … , L Constraints are SOC of ni dimensions Feasible regions are intersections of conic regions

  19. Example

  20. Why SOCP ?? • A more general convex problem than LP • LP  SOCP • Fast algorithms for finding global optimum • LP - O(n3) • SOCP - O(L1/2) iterations of O(n2∑ni) • Many standard problems are SOCP-able

  21. SOCP-able Problems • Convex quadratically constrained quadratic programming • Sum of norms • Maximum of norms • Problems with hyperbolic constraints

  22. SOCP-able Problems • Convex quadratically constrained quadratic programming • Sum of norms • Maximum of norms • Problems with hyperbolic constraints

  23. QCQP Minimize xT P0 x + 2 q0T x + r0 Subject to xT Pi x + 2 qiT x + ri Pi >= 0 || P01/2 x + P0-1/2 x ||2 + r0 -q0TP0-1p0

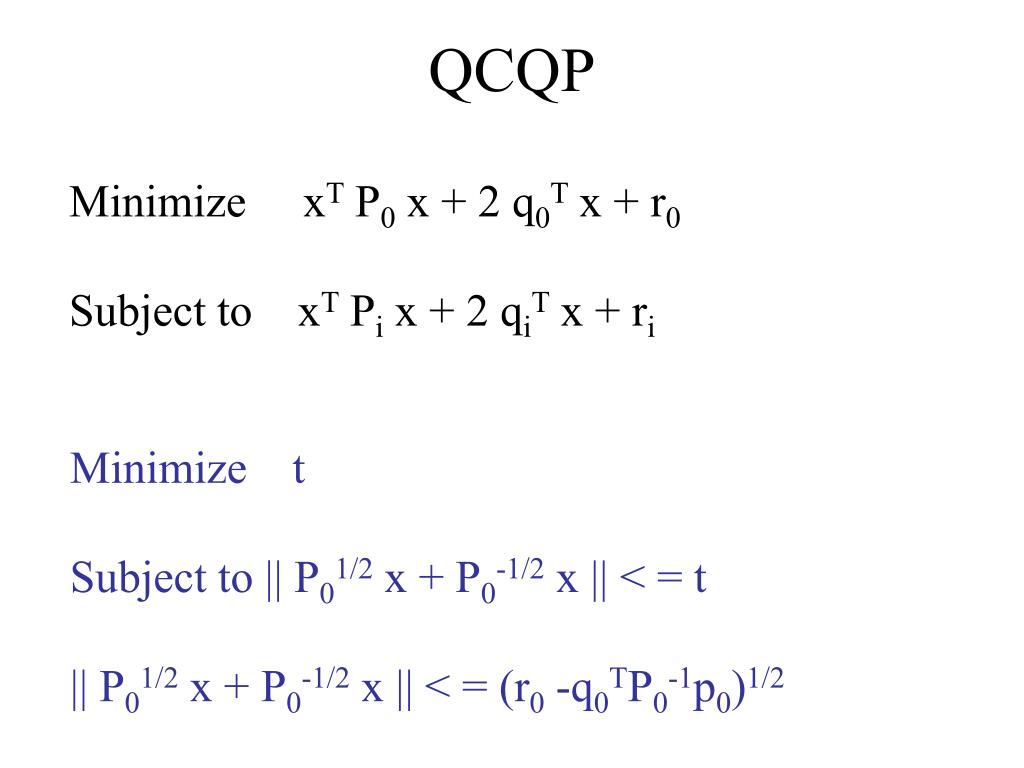

  24. QCQP Minimize xT P0 x + 2 q0T x + r0 Subject to xT Pi x + 2 qiT x + ri Minimize t Subject to || P01/2 x + P0-1/2 x || < = t || P01/2 x + P0-1/2 x || < = (r0 -q0TP0-1p0)1/2

  25. SOCP-able Problems • Convex quadratically constrained quadratic programming • Sum of norms • Maximum of norms • Problems with hyperbolic constraints

  26. Sum of Norms Minimize  || Fi x + gi || Minimize  ti Subject to || Fi x + gi || <= ti Special Case: L-1 norm minimization

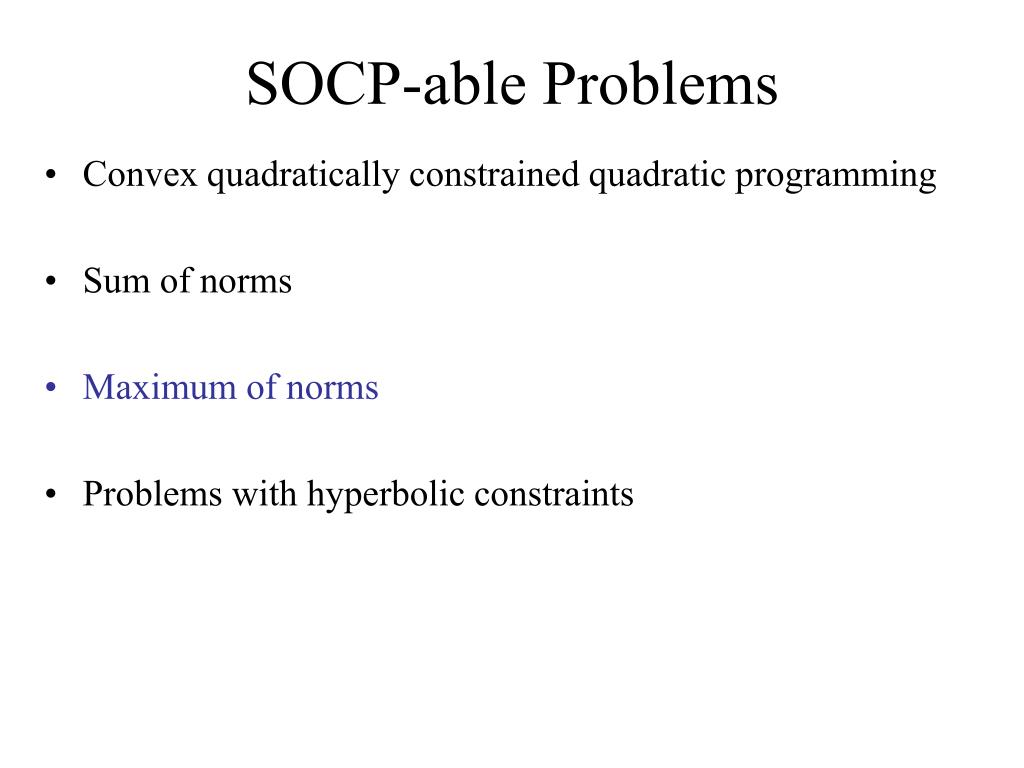

  27. SOCP-able Problems • Convex quadratically constrained quadratic programming • Sum of norms • Maximum of norms • Problems with hyperbolic constraints

  28. Maximum of Norms Minimize max || Fi x + gi || Minimize t Subject to || Fi x + gi || <= t Special Case: L-inf norm minimization

  29. You weren’t expecting a question, were you ??

  30. SOCP-able Problems • Convex quadratically constrained quadratic programming • Sum of norms • Maximum of norms • Problems with hyperbolic constraints

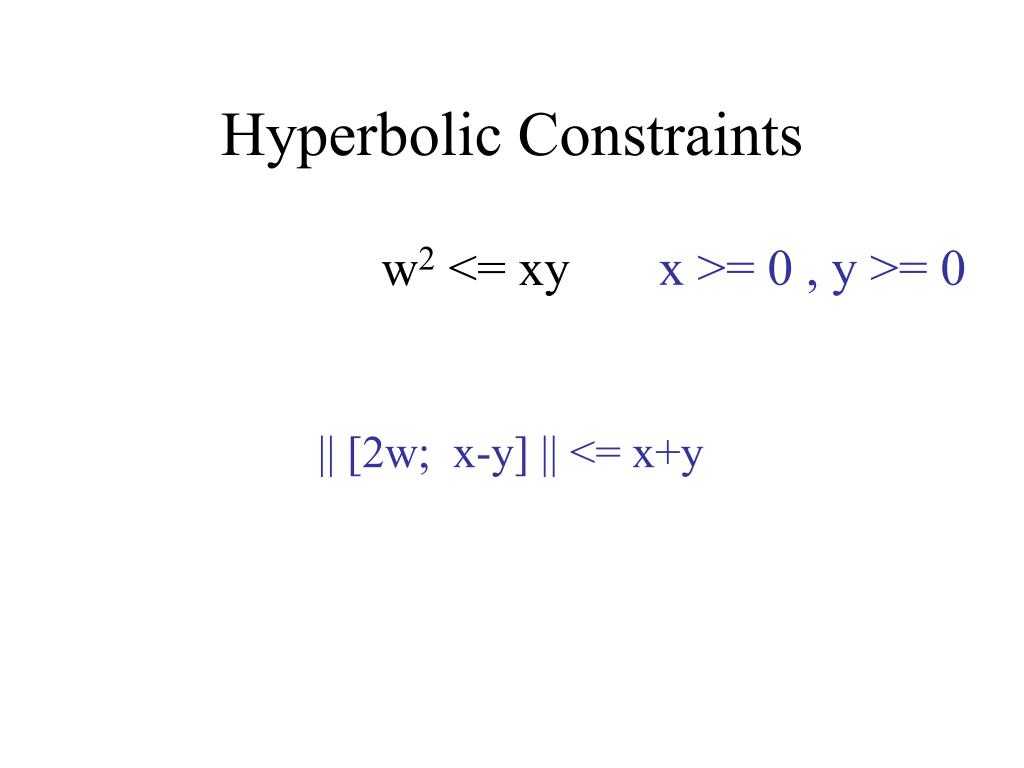

  31. Hyperbolic Constraints x >= 0 , y >= 0 w2 <= xy || [2w; x-y] || <= x+y

  32. Let’s see if everyone was awake !

  33. Outline • Convex Optimization • Second Order Cone Programming (SOCP) • Semidefinite Programming (SDP) • Non-convex optimization • SDP relaxations • SOCP relaxations • Optimization Algorithms • Interior Point Method for SOCP • Interior Point Method for SDP

  34. Linear Objective Function Linear Constraints Semidefinite Programming Minimize C  X Subject to Ai X = bi X >= 0 Linear Programming on Semidefinite Matrices

  35. Why SDP ?? • A more general convex problem than SOCP • LP  SOCP  SDP • Generality comes at a cost though • SOCP - O(L1/2) iterations of O(n2∑ni) • SDP - O((∑ni)1/2) iterations of O(n2∑ni2) • Many standard problems are SDP-able

  36. SDP-able Problems • Minimizing the maximum eigenvalue • Class separation with ellipsoids

  37. SDP-able Problems • Minimizing the maximum eigenvalue • Class separation with ellipsoids

  38. Minimizing the Maximum Eigenvalue Matrix M(z) To find vector z* such that max is minimized. Let max(M(z)) <= n max(M(z)-nI) <= 0 min(nI - M(z)) >= 0 nI - M(z) >= 0

  39. Minimizing the Maximum Eigenvalue Matrix M(z) To find vector z* such that max is minimized. Max -n nI - M(z) >= 0

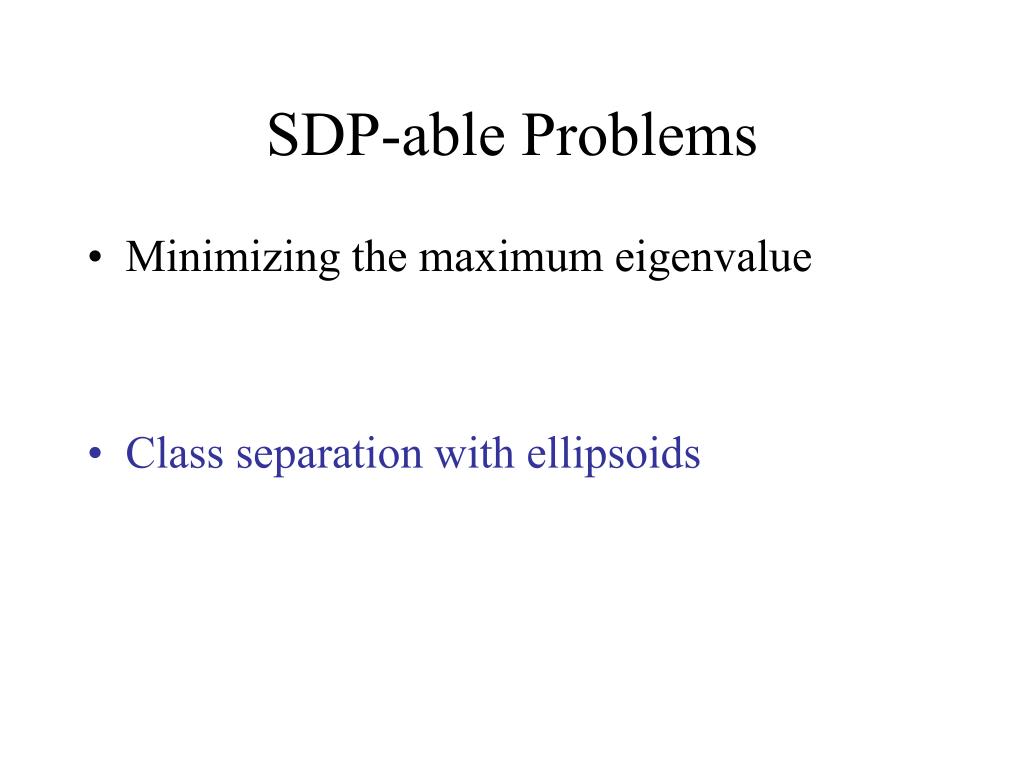

  40. SDP-able Problems • Minimizing the maximum eigenvalue • Class separation with ellipsoids

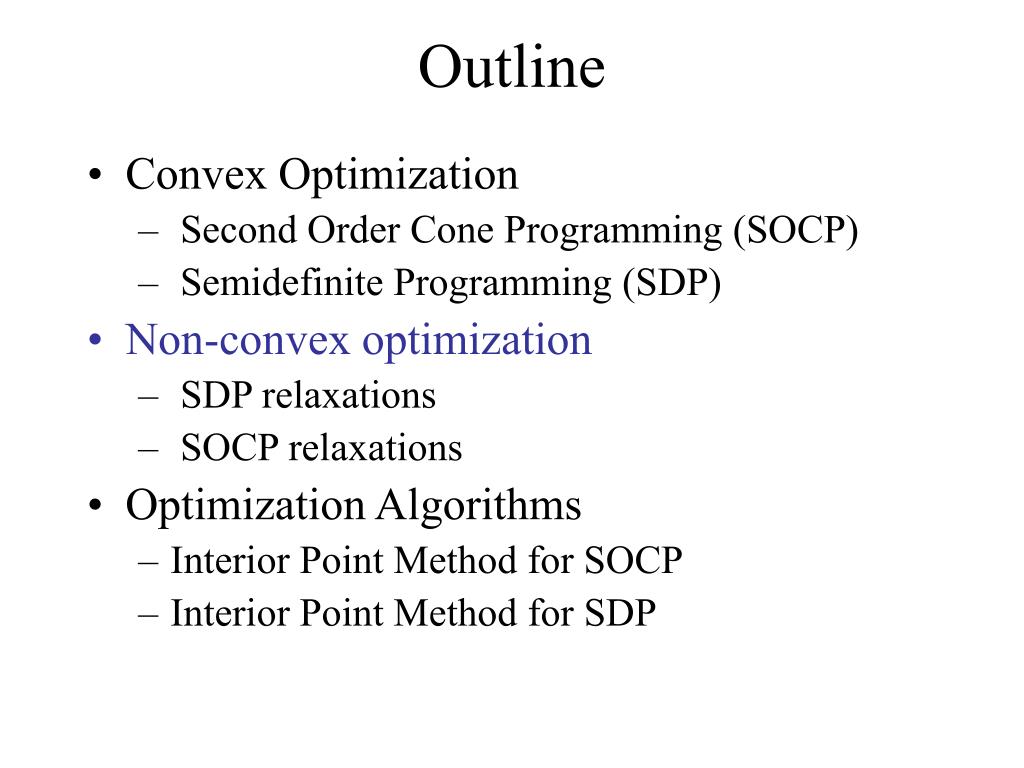

  41. Outline • Convex Optimization • Second Order Cone Programming (SOCP) • Semidefinite Programming (SDP) • Non-convex optimization • SDP relaxations • SOCP relaxations • Optimization Algorithms • Interior Point Method for SOCP • Interior Point Method for SDP

  42. Non-Convex Problems Minimize xTQ0x + 2q0Tx + r0 Subject to xTQix + 2qiTx + ri < = 0 Qi >= 0 => Convex Non-Convex Quadratic Programming Problem !!! Redefine x in homogenous coordinates. y = (1; x)

  43. Let’s solve this now !!! Non-Convex Problems Minimize xTQ0x + 2q0Tx + r0 Subject to xTQix + 2qiTx + ri < = 0 Minimize yTM0y Subject to yTMiy < = 0 Mi = [ ri qiT; qi Qi]

  44. Non-Convex Problems • Problem is NP-hard. • Let’s relax the problem to make it convex. • Pray !!!

  45. Outline • Convex Optimization • Second Order Cone Programming (SOCP) • Semidefinite Programming (SDP) • Non-convex optimization • SDP relaxations • SOCP relaxations • Optimization Algorithms • Interior Point Method for SOCP • Interior Point Method for SDP

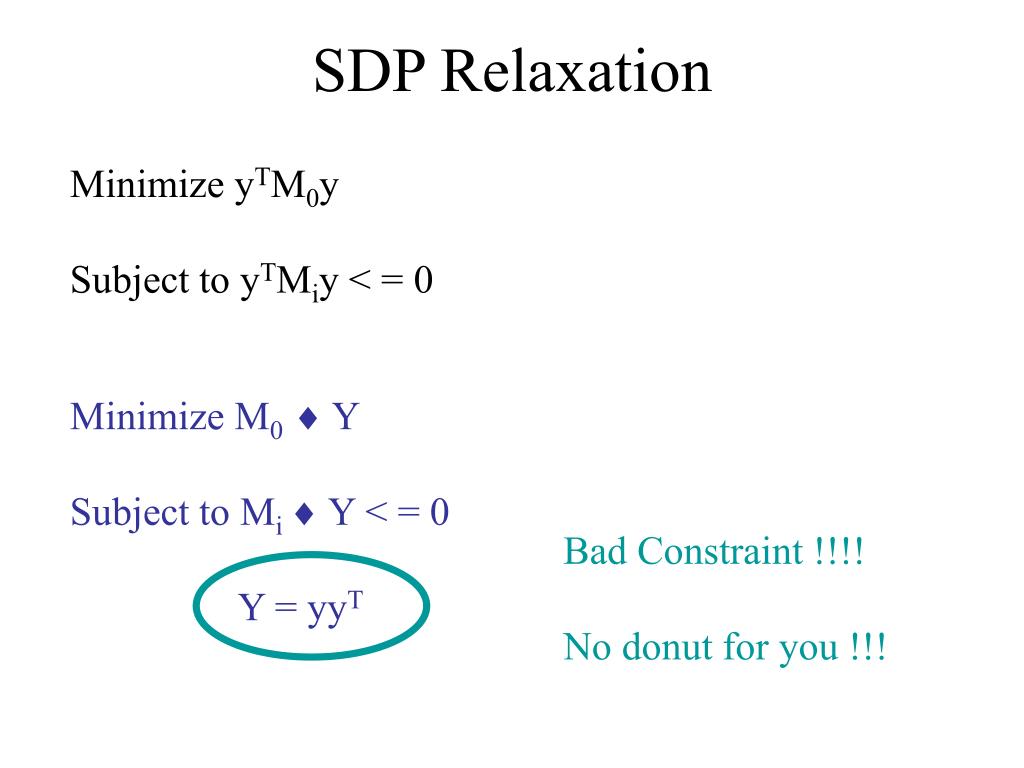

  46. Bad Constraint !!!! No donut for you !!! SDP Relaxation Minimize yTM0y Subject to yTMiy < = 0 Minimize M0 Y Subject to Mi  Y < = 0 Y = yyT

  47. SDP Problem SDP Relaxation Minimize yTM0y Subject to yTMiy < = 0 Minimize M0 Y Subject to Mi  Y < = 0 Y >= 0 Nothing left to do …. but Pray Note that we have squared the number of variables.

  48. Example - Max Cut • Graph: G=(V,E) • Maximum-Cut
