1 / 4

a) Convex

Example : An object 3 cm high is placed 20 cm from (a) a convex and (b) a concave spherical mirror, each of 10 cm focal length. Determine the position and nature of the image in each case. a) Convex. S = 20 cm h o = 3 cm f = -10 cm. behind mirror (virtual image). (image is upright).

walt
Télécharger la présentation

a) Convex

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Example: An object 3 cm high is placed 20 cm from (a) a convex and (b) a concave spherical mirror, each of 10 cm focal length. Determine the position and nature of the image in each case. a) Convex S = 20 cm ho = 3 cm f = -10 cm behind mirror (virtual image) (image is upright) (image is upright) b) Concave S = 20 cm ho = 3 cm f = 10 cm in front of mirror (real image) (image is inverted)

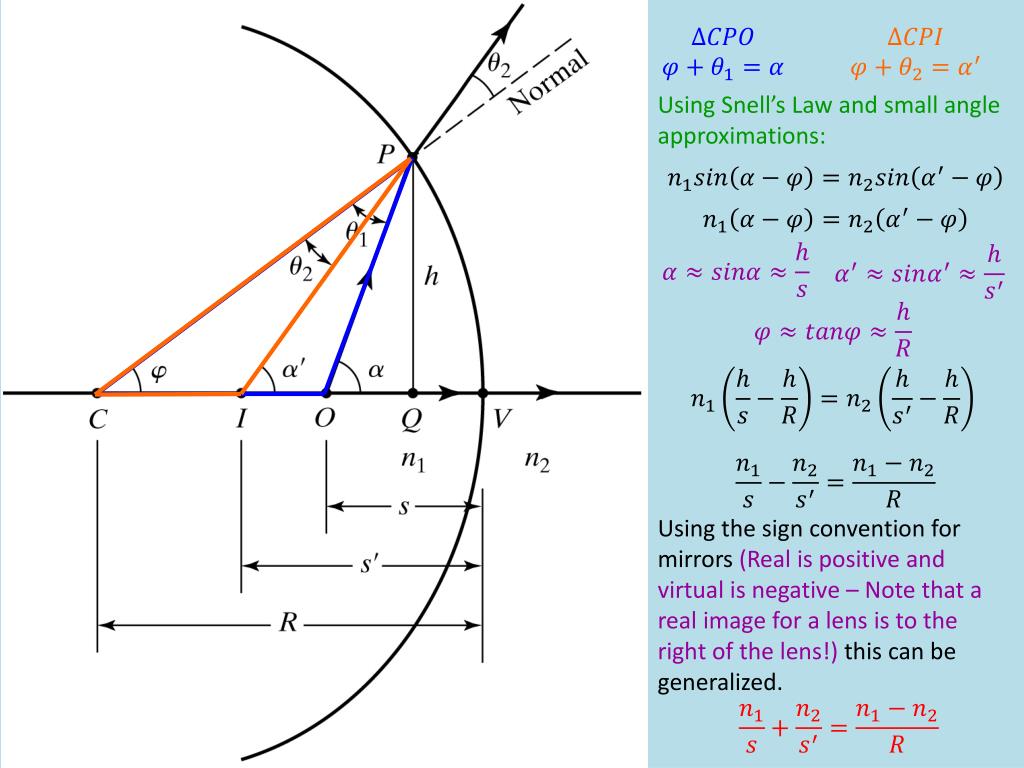

  2. Using Snell’s Law and small angle approximations: Using the sign convention for mirrors (Real is positive and virtual is negative – Note that a real image for a lens is to the right of the lens!) this can be generalized.

  3. We can also look at the magnification: Using small angle approximation: This can be generalized using the sign convention for mirrors:

  4. Example: A real object is positioned in air, 30 cm from a convex spherical surface of radius 5 cm. To the right of the interface, the refractive index is that of water (1.33). a) Determine the location, size, orientation and type of image. Assume the medium extends very far to the right of the interface. b) Repeat for the situation where the medium is 10 cm thick (at the center) and is bounded on the far side by a concave interface of radius 5 cm.
