EEM calculations in FRED

This document outlines the components and configurations used for numerical simulations in applied molecular spectroscopy. Key elements include a fiber tip source, off-axis parabolic mirrors, quartz prisms, and achromats. The use of Newport optics and Esco products offers precision in spectral content across various wavelengths. Detailed simulation variables such as throughput, spectral resolution, and signal-to-background ratio are analyzed to optimize system performance. Insights into prism displacement and alignment of achromats are also discussed, emphasizing the importance of design fundamentals in spectrograph development.

vaughan-johns
Télécharger la présentation

EEM calculations in FRED

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. EEM calculations in FRED Mikkel Brydegaard Applied Molecular Spectroscopy & Remote SensingAtomic Physics, LTH

  2. Project

  3. Components • Fiber tip source • Off axis parabolic mirror • Quartz prism • Achromat • Sample window • Chassis

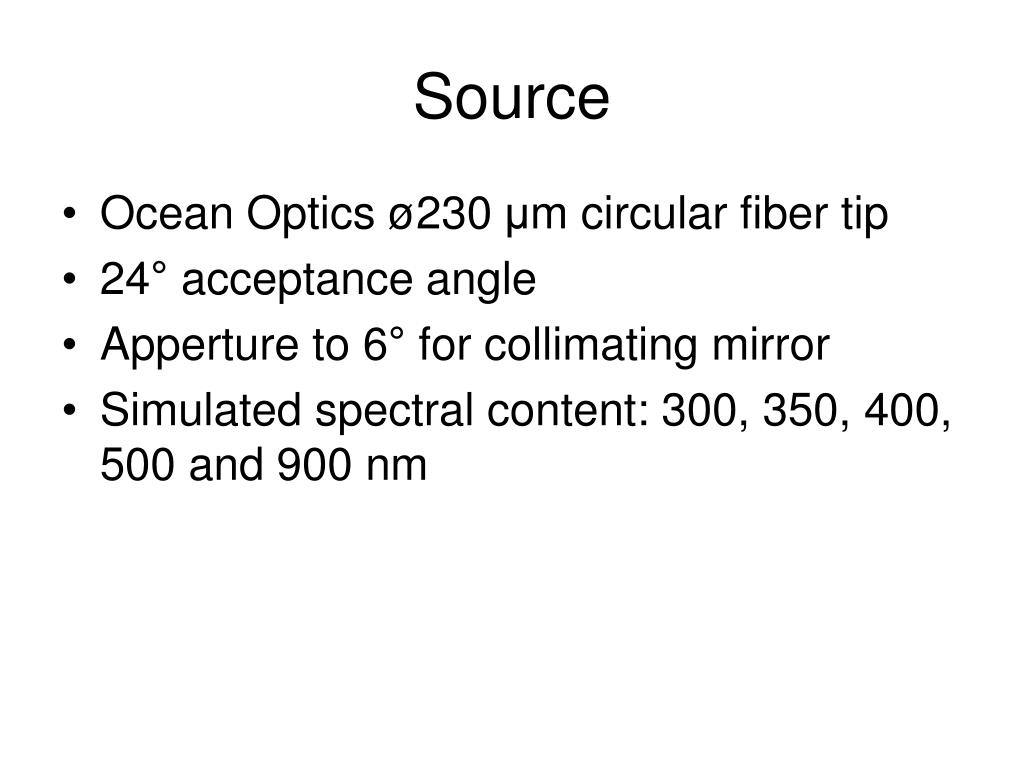

  4. Source • Ocean Optics ø230 μm circular fiber tip • 24° acceptance angle • Apperture to 6° for collimating mirror • Simulated spectral content: 300, 350, 400, 500 and 900 nm

  5. Collimating mirror • Newport. Off-Axis Replicated Parabolic Mirror, 1.500 in. Dia, 4.000 in. EFL, Protected Aluminum Coating

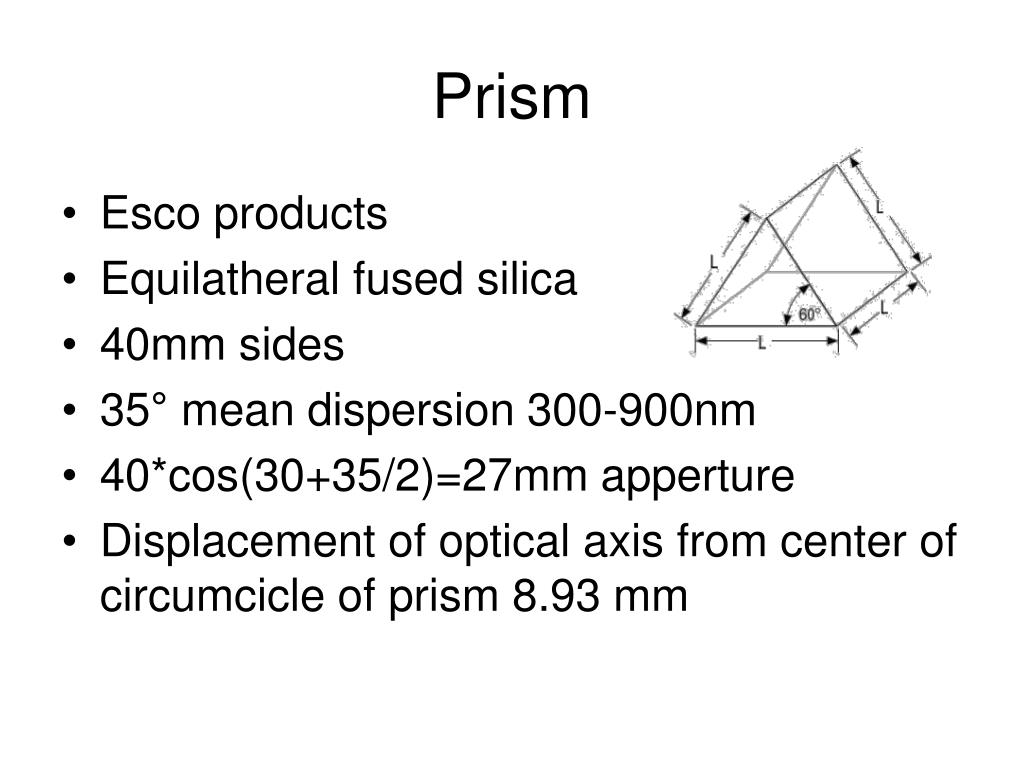

  6. Prism • Esco products • Equilatheral fused silica • 40mm sides • 35° mean dispersion 300-900nm • 40*cos(30+35/2)=27mm apperture • Displacement of optical axis from center of circumcicle of prism 8.93 mm

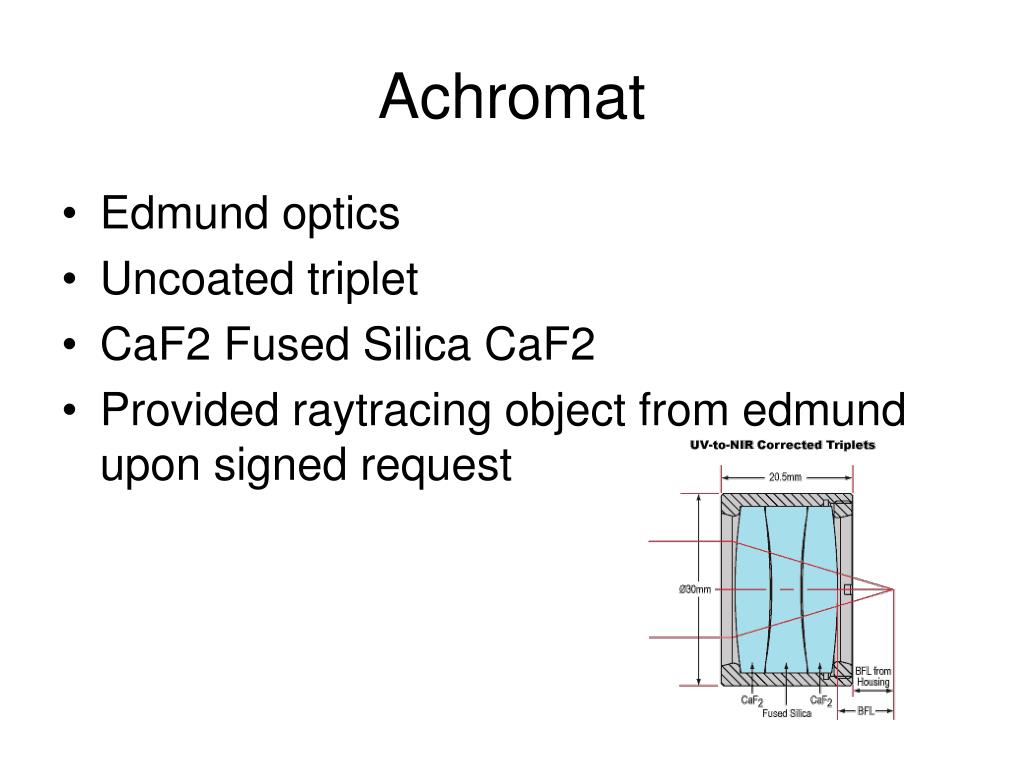

  7. Achromat • Edmund optics • Uncoated triplet • CaF2 Fused Silica CaF2 • Provided raytracing object from edmund upon signed request

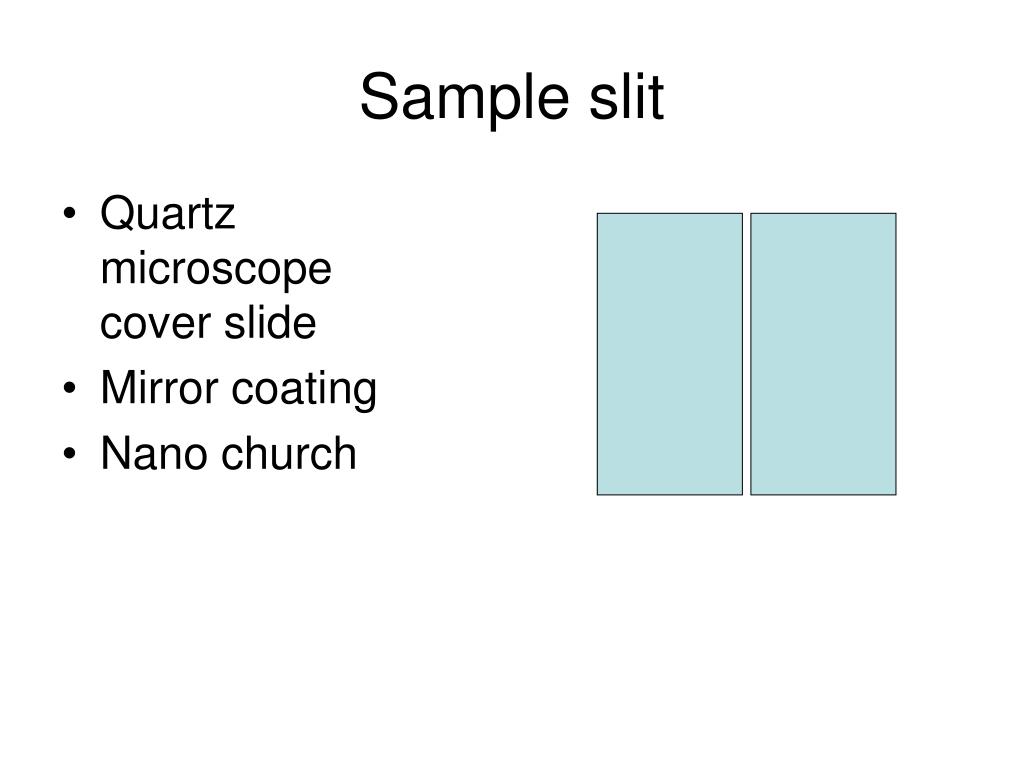

  8. Sample slit • Quartz microscope cover slide • Mirror coating • Nano church

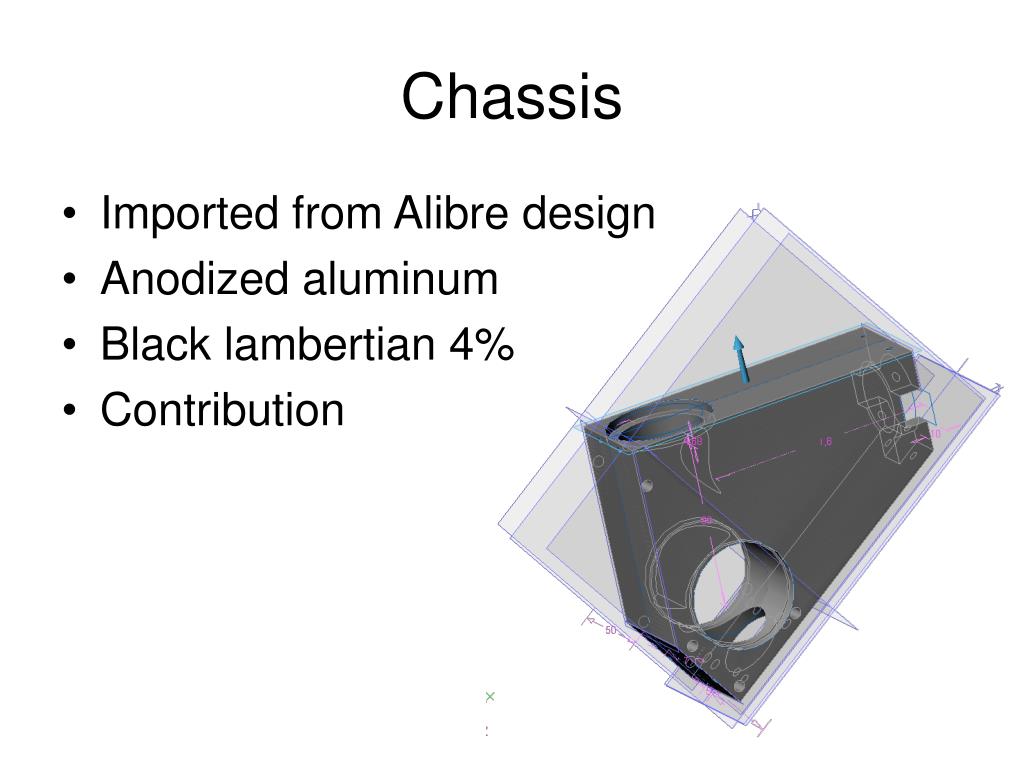

  9. Chassis • Imported from Alibre design • Anodized aluminum • Black lambertian 4% • Contribution

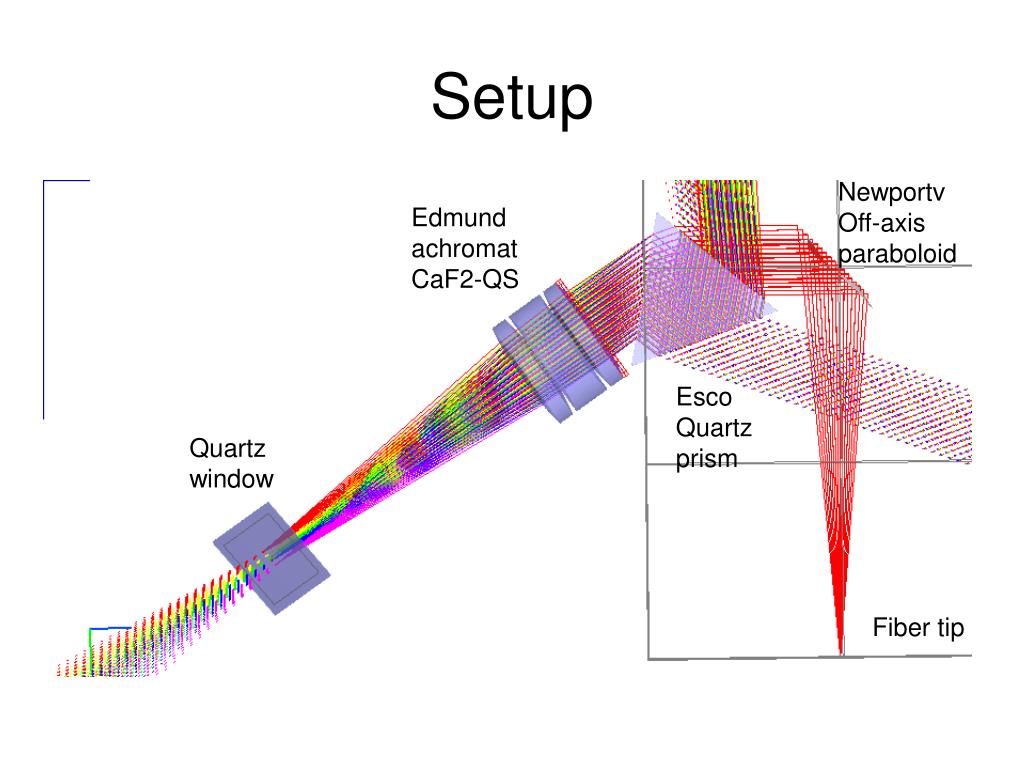

  10. Setup Newportv Off-axis paraboloid Edmund achromatCaF2-QS EscoQuartzprism Quartzwindow Fiber tip

  11. Properties of interest Simulation variables • Throughput • Spectral resolution • Signal to background • Ray numbers • Allow reflections • Allow surface scatters

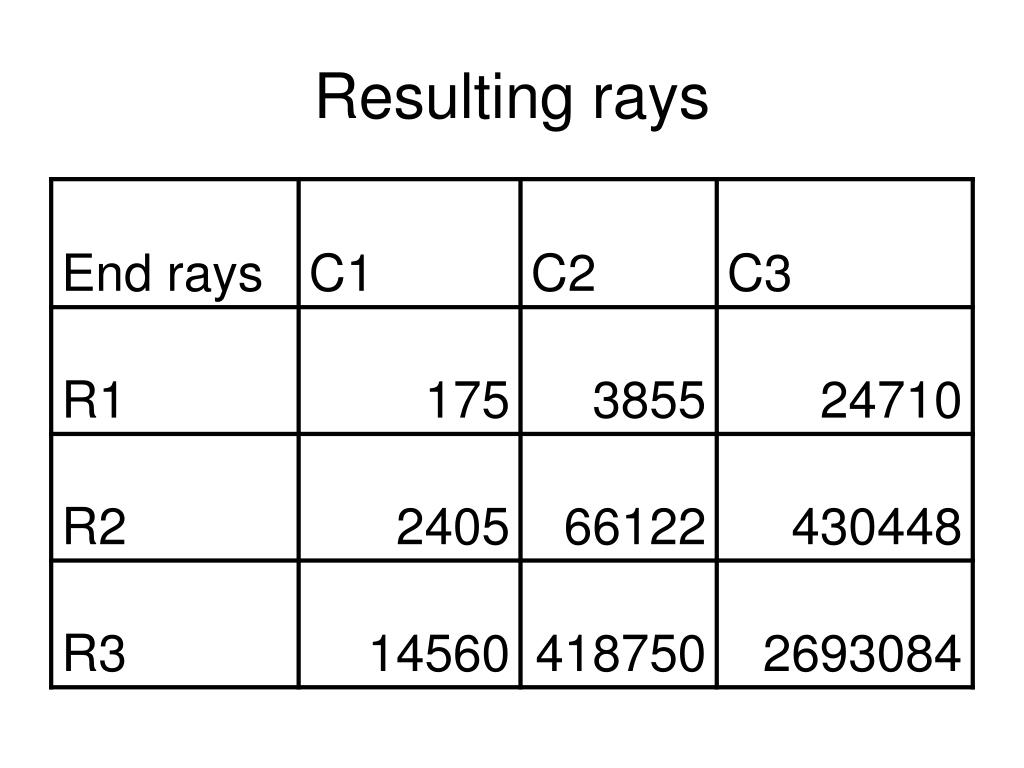

  12. Resulting rays

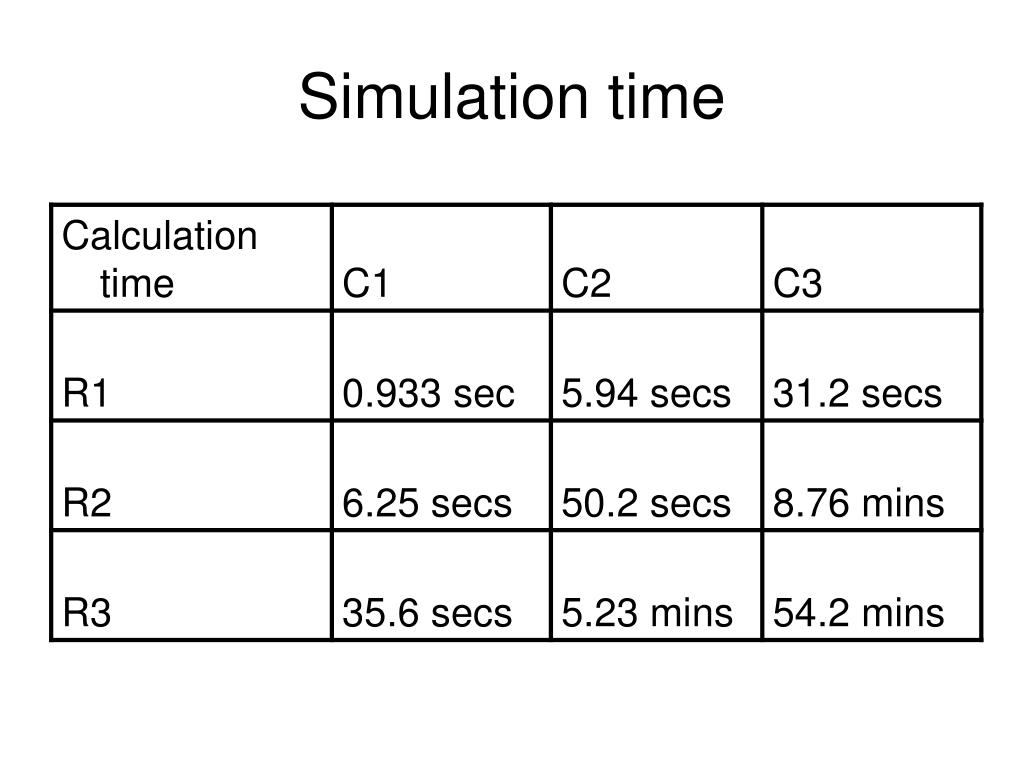

  13. Simulation time

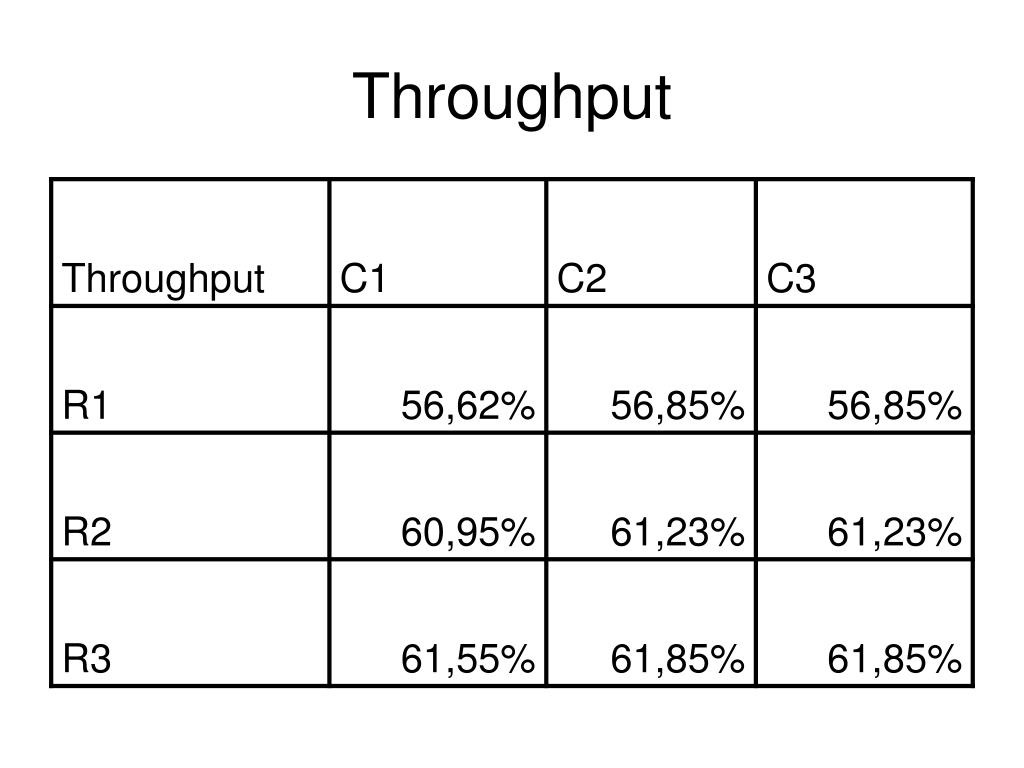

  14. Throughput

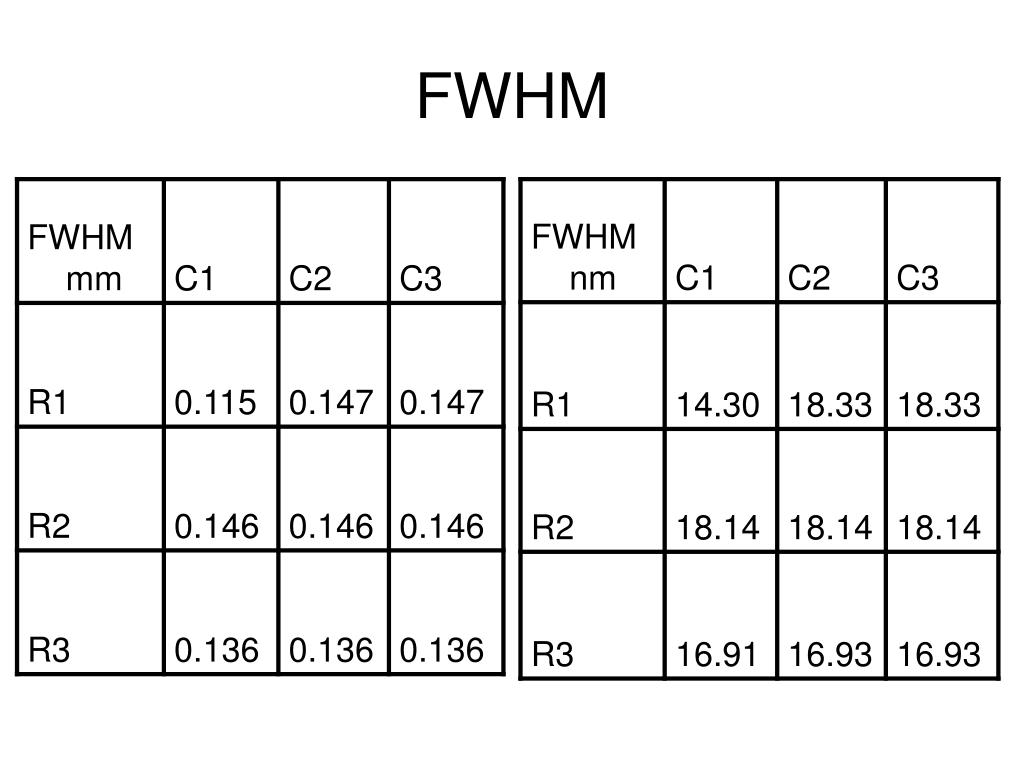

  15. FWHM

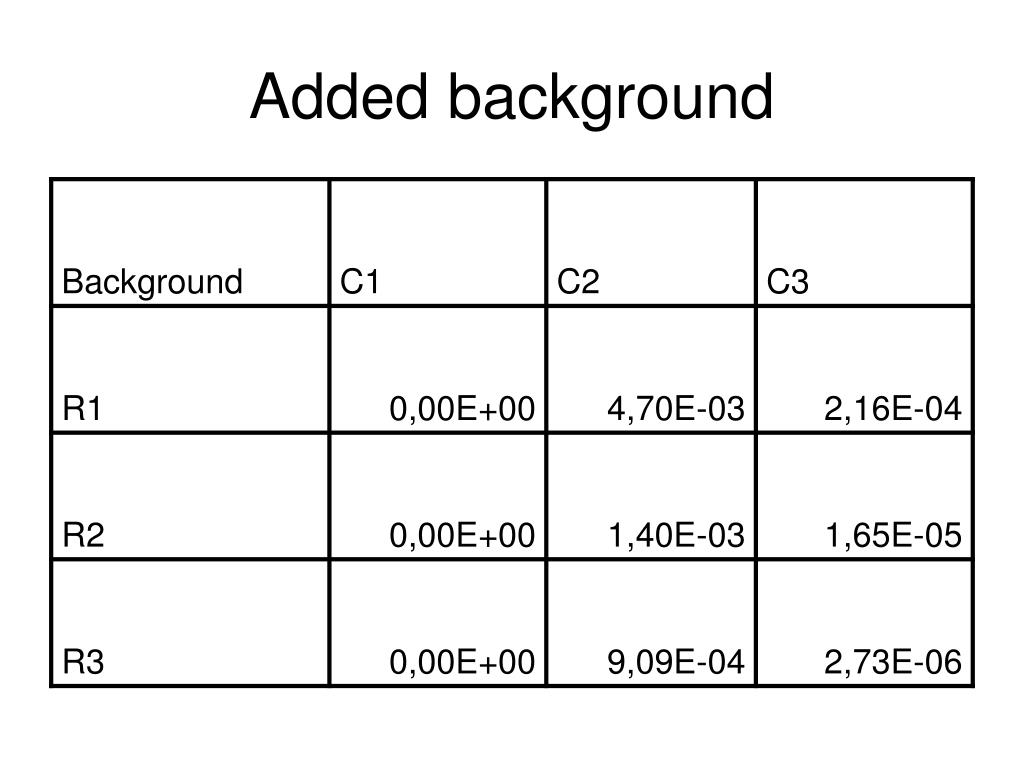

  16. Added background

  17. Signal and back ground contributions 1E-3 3.5E0 3E-6

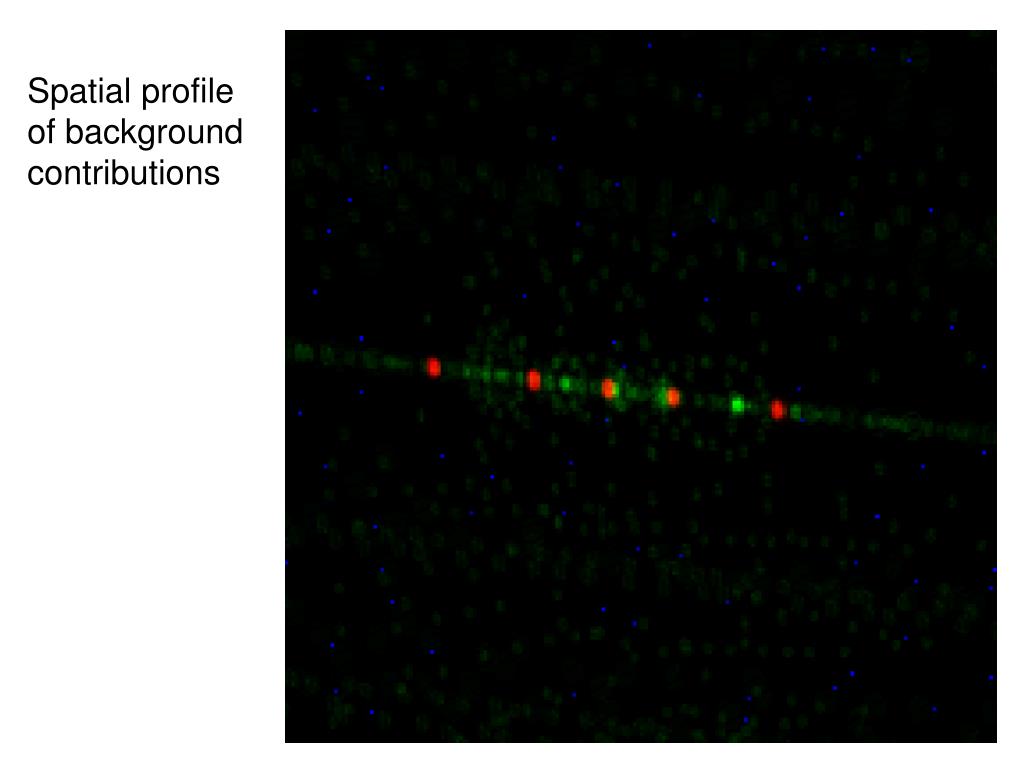

  18. Spatial profile of background contributions
