  1. Discovering Collocation Patterns:from Visual Words to Visual Phrases Junsong Yuan, Ying Wu and Ming Yang CVPR’07

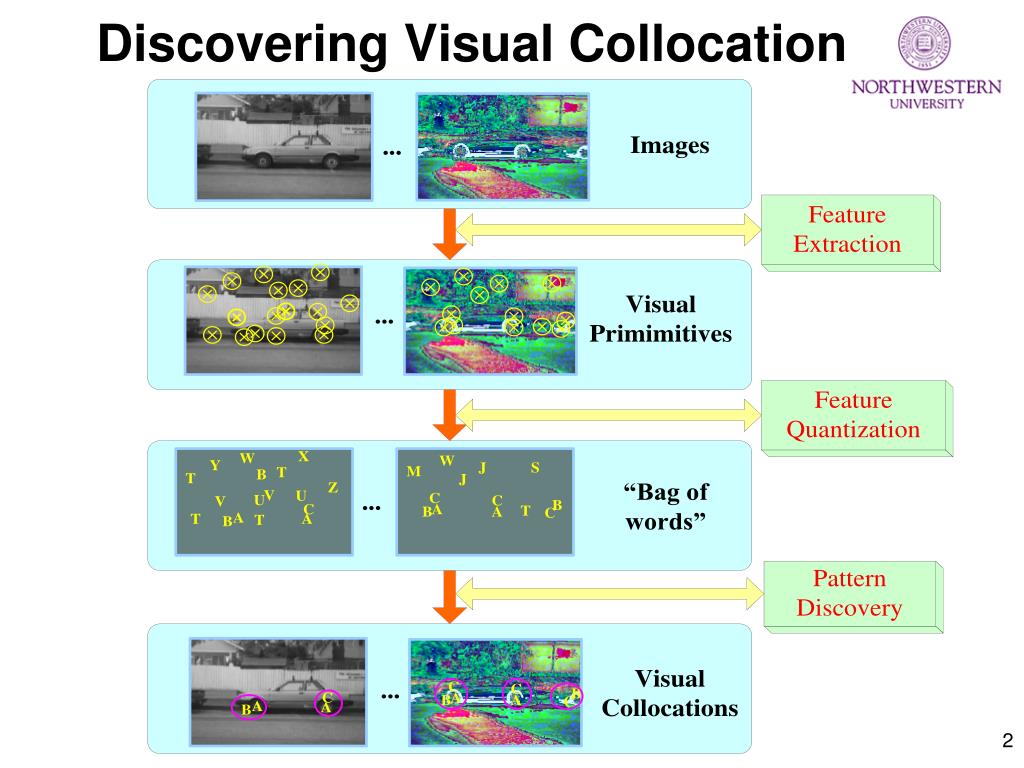

  2. Discovering Visual Collocation

  3. An exciting idea: detour • Related Work: J. Sivic et al. CVPR04, B. C. Russellet al. CVPR06, G. Wang et al. CVPR06, T. Quack et al. CIVR06, S. C. Zhu et al. IJCV05, …

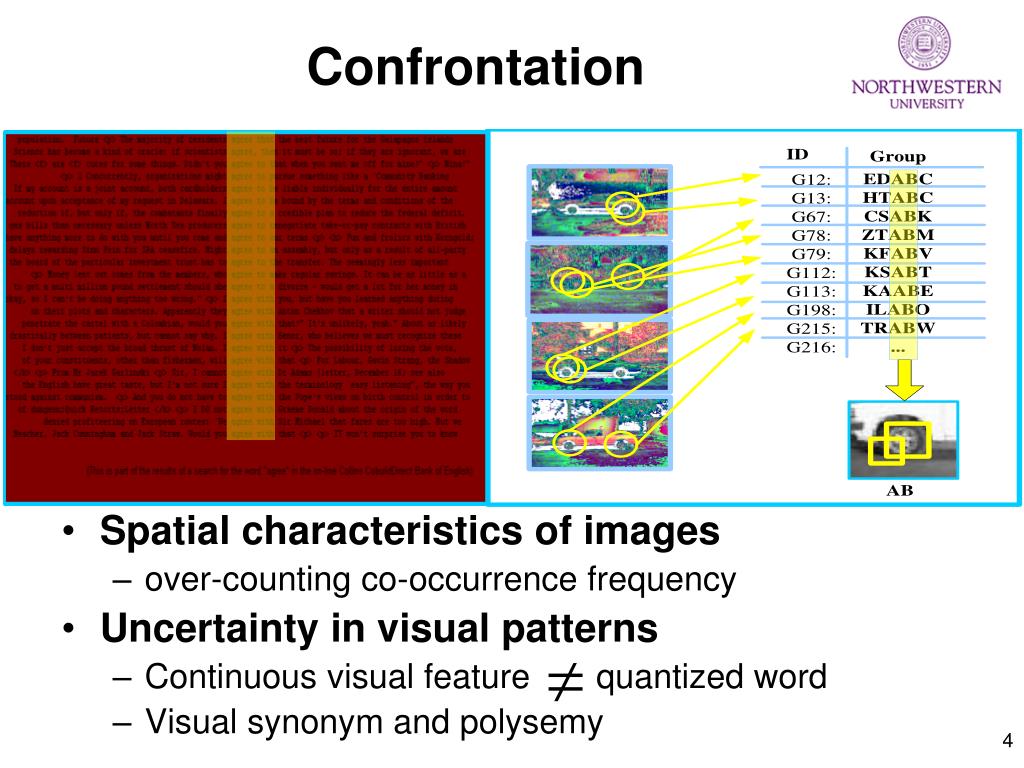

  4. Confrontation • Spatial characteristics of images • over-counting co-occurrence frequency • Uncertainty in visual patterns • Continuous visual feature quantized word • Visual synonym and polysemy

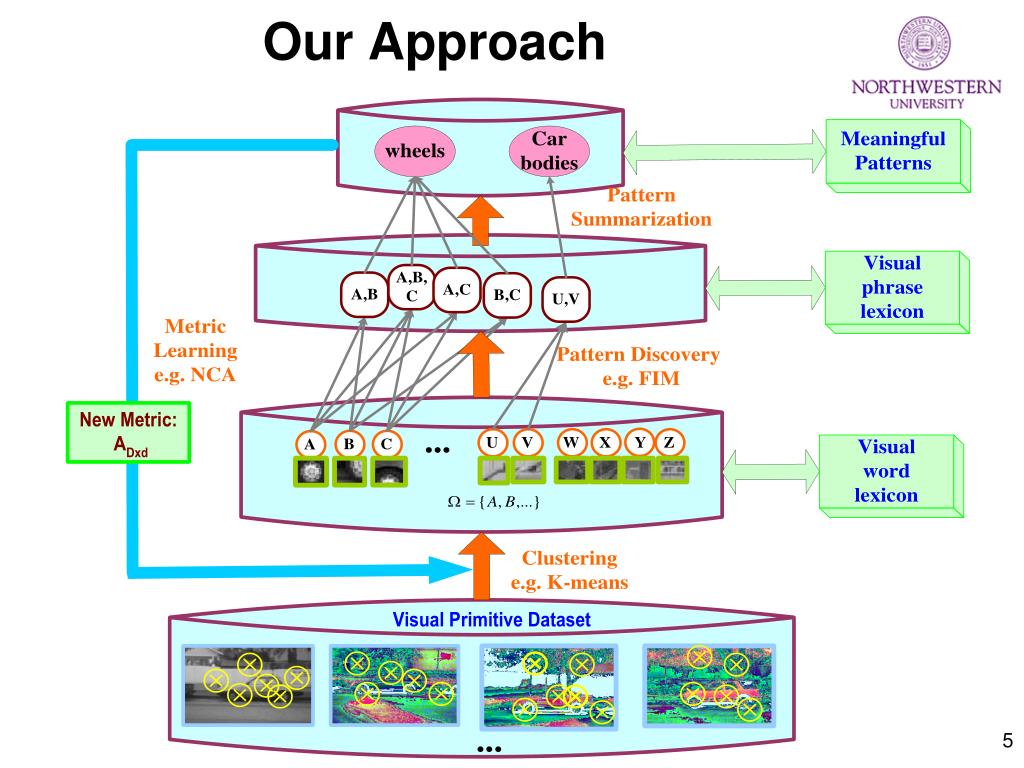

  5. Our Approach

  6. Selecting visual phrases • Visual collocations may occur by chance • Selecting phrases by a likelihood ratio test: • H0: occurrence of phrase P is randomly generated • H1: phrase P is generated by a hidden pattern • Prior: • Likelihood: • Check if words are co-located together by chance or statistically meaningful

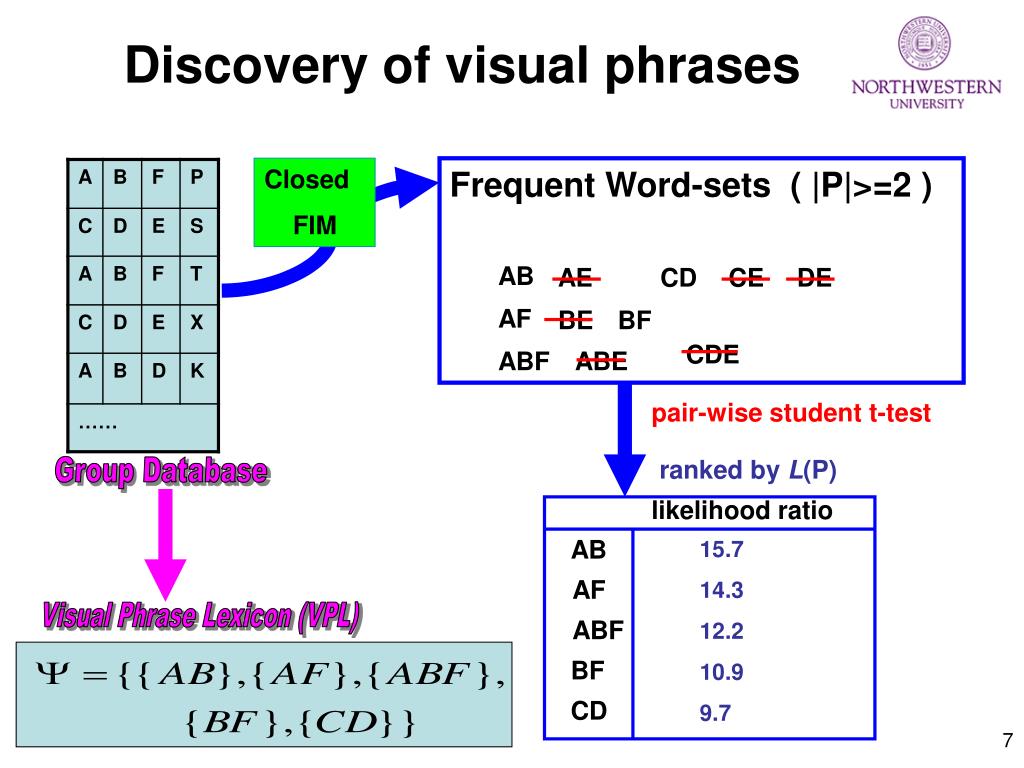

  7. Discovery of visual phrases Closed FIM Frequent Word-sets ( |P|>=2 ) AB AE CD CE DE AF BE BF CDE ABF ABE pair-wise student t-test ranked by L(P) Group Database likelihood ratio AB 15.7 14.3 12.2 10.9 9.7 AF Visual Phrase Lexicon (VPL) ABF BF CD

  8. Frequent Itemset Mining (FIM) • If an itemset is frequent  then all of its subsets must also be frequent

  9. Phrase Summarization • Measuring the similarity between visual phrases by KL-divergence Yan et al., SIGKDD 05 • Clustering visual phrases by Normalized-cut

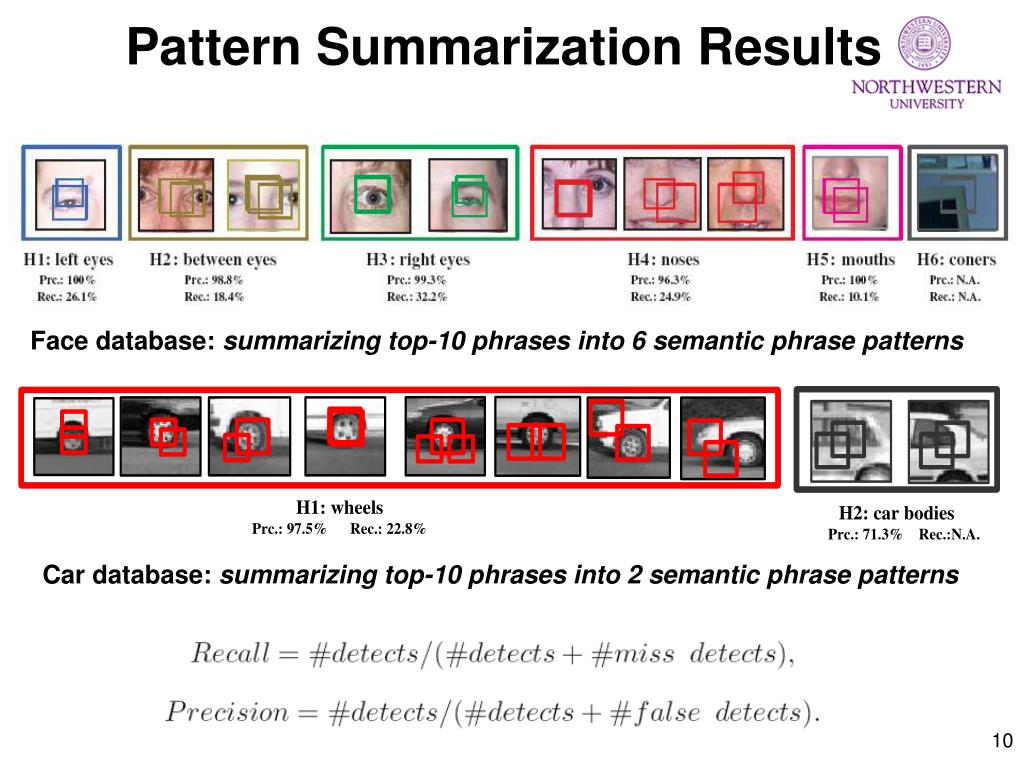

  10. Pattern Summarization Results Face database: summarizing top-10 phrases into 6 semantic phrase patterns Car database: summarizing top-10 phrases into 2 semantic phrase patterns

  11. Partition of visual word lexicon • Metric learning method: • Neighborhood component analysis (NCA). Goldberger, et al., NIPS05 • improve the leave-one-out performance of the nearest neighbor classifier

  12. Evaluation • K-NN spatial group: K=5 • Two image category database: car (123 images) and face (435 images) • Precision of visual phrase lexicon • the percentage of visual phrases Pi ∈ Ψ that are located in the foreground object • Precision of background word lexicon • the percentage of background words Wi ∈ Ω−that are located in the background • Percentage of images that are retrieved:

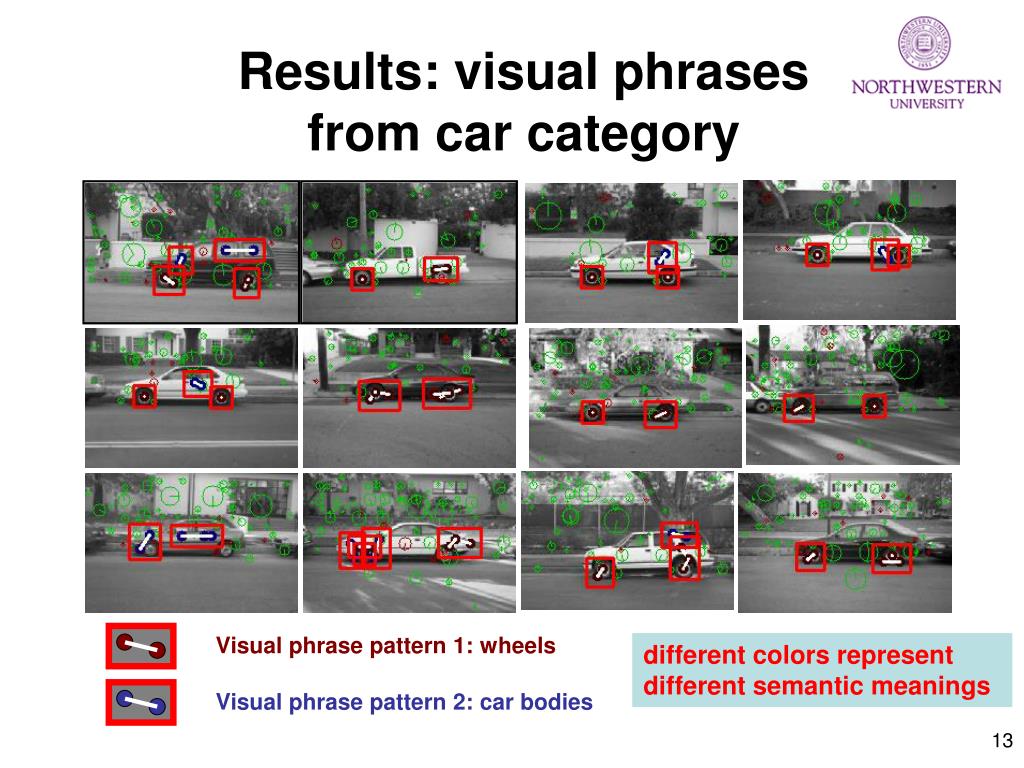

  13. Results: visual phrases from car category Visual phrase pattern 1: wheels different colors represent different semantic meanings Visual phrase pattern 2: car bodies

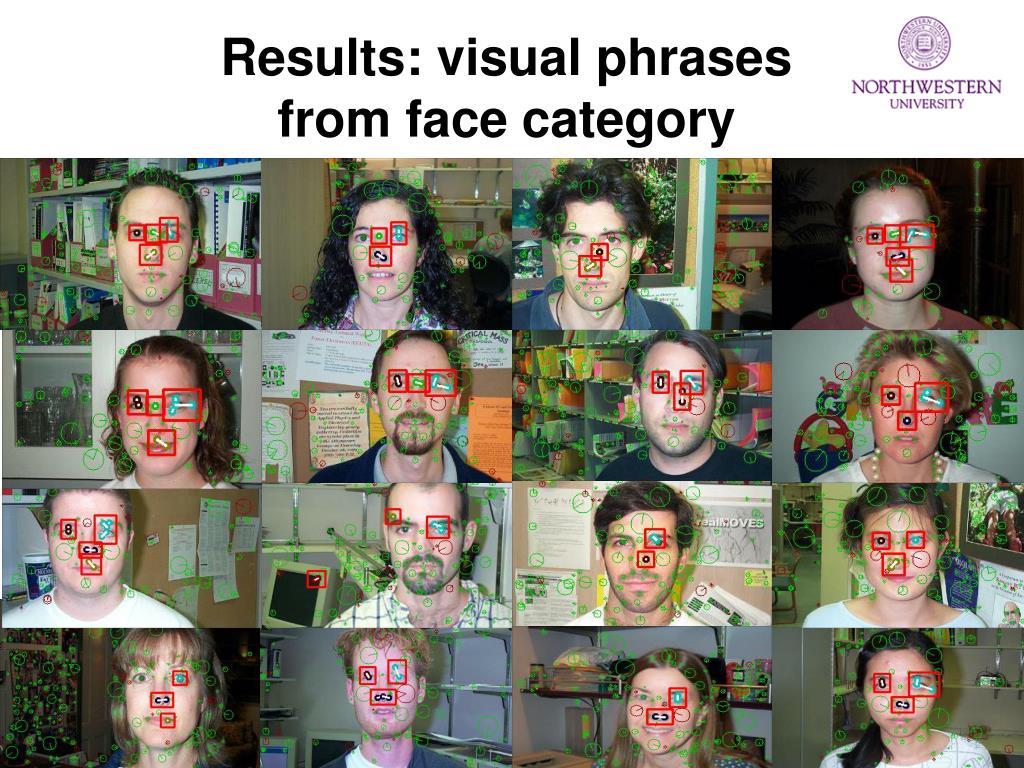

  14. Results: visual phrases from face category

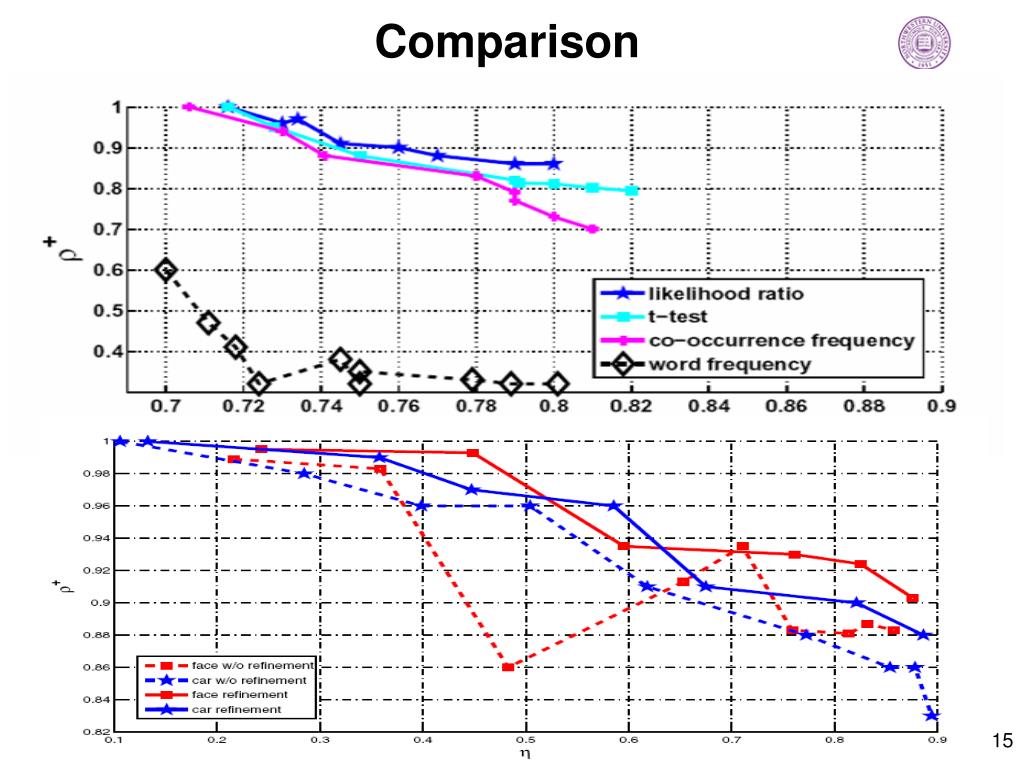

  15. Comparison
