INTERPENETRATIONS AND DEVELOPMENTS

DESCRIPTION

INTERPENETRATIONS AND DEVELOPMENTS. Hoppers (Containers) and transition pieces Gr 12 LO3: AS 3.1; 3.2; 3.5; 3.7 & LO4: AS 4.1; 4.2; 4.3. Complete the views. Divide the circle in 12, label the points. Draw the seam line. Draw the fold lines. Construct the true length of d10.

1 / 12

Télécharger la présentation

INTERPENETRATIONS AND DEVELOPMENTS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. INTERPENETRATIONS AND DEVELOPMENTS Hoppers (Containers) and transition pieces Gr 12 LO3: AS 3.1; 3.2; 3.5; 3.7 & LO4: AS 4.1; 4.2; 4.3

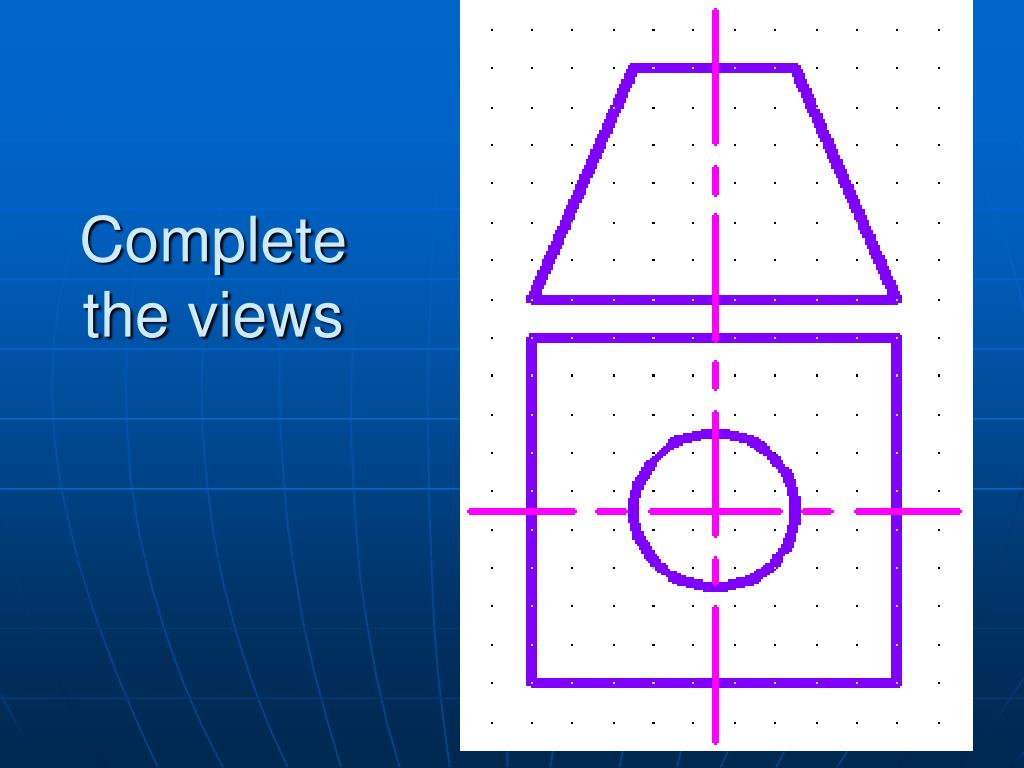

  2. Complete the views

  3. Divide the circle in 12, label the points.

  4. Draw the seam line

  5. Draw the fold lines

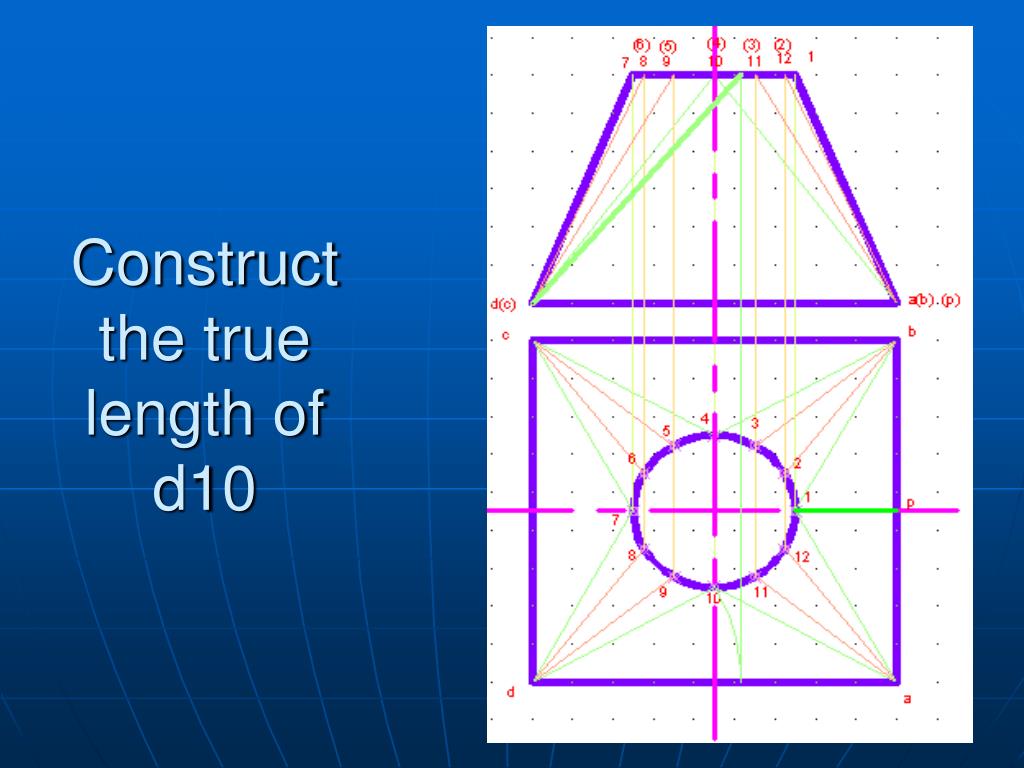

  6. Construct the true length of d10

  7. Construct the true length of d9

  8. Start the development by constructing the triangle cd7 using the true length

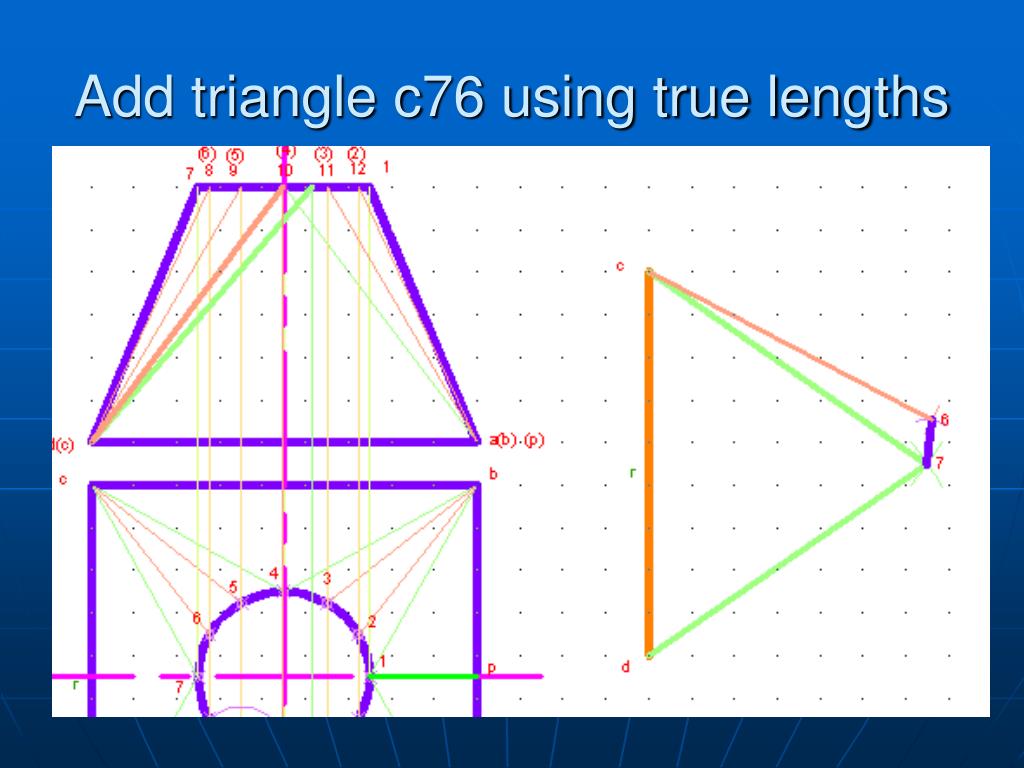

  9. Add triangle c76 using true lengths

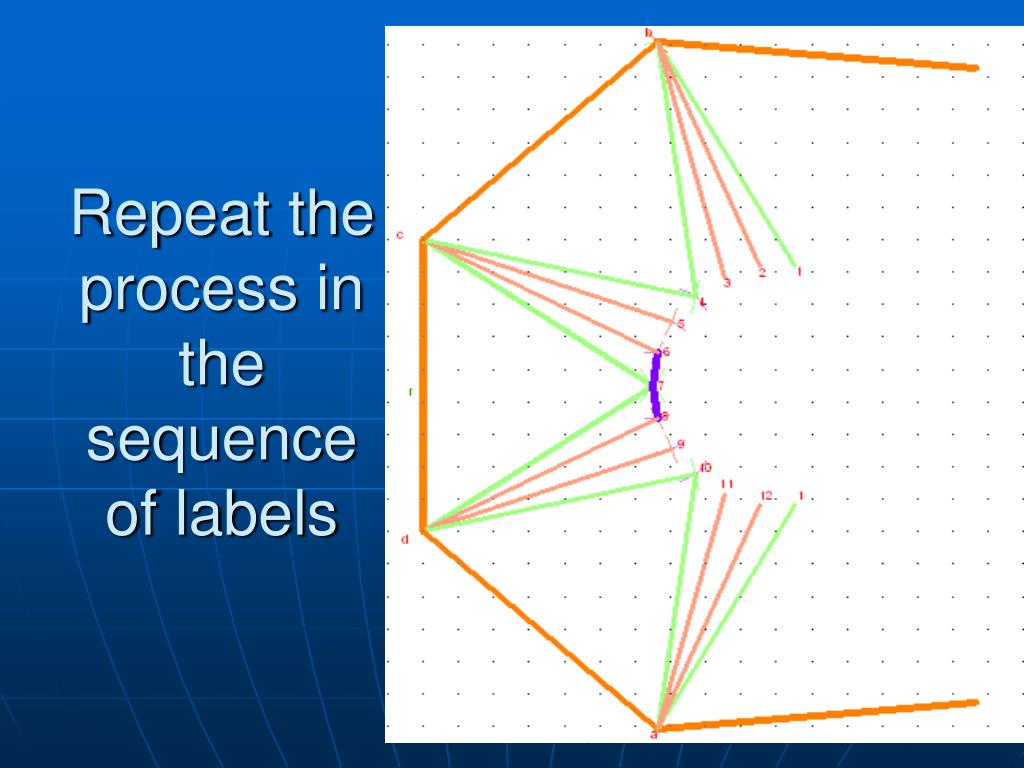

  10. Repeat the process in the sequence of labels

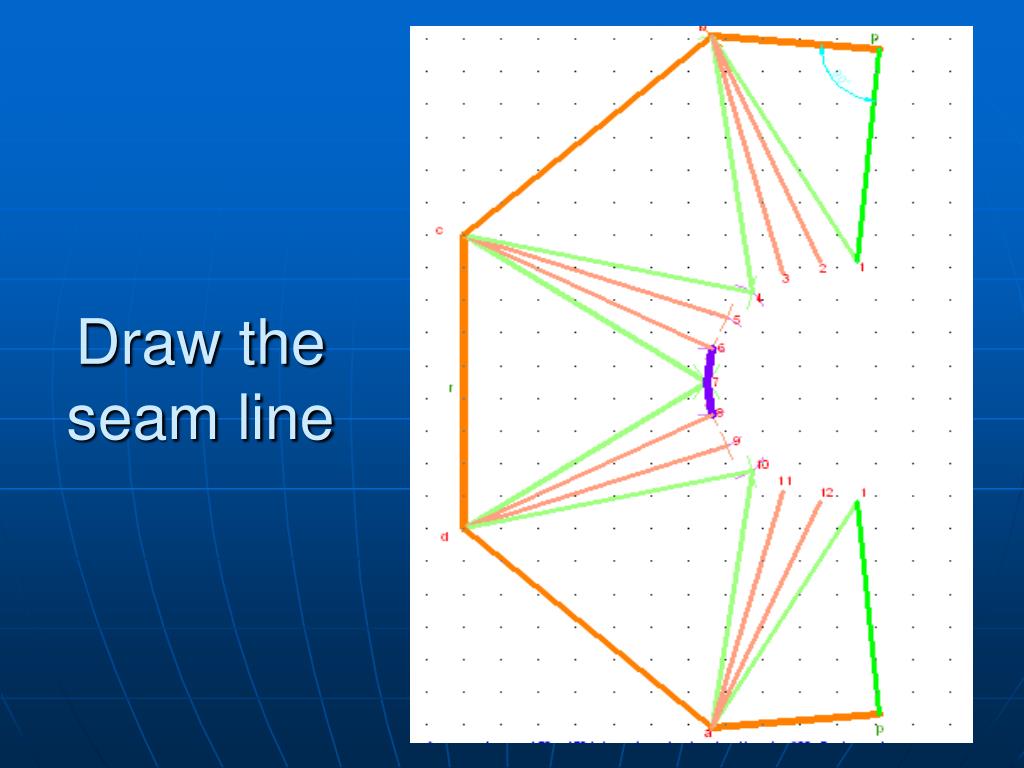

  11. Draw the seam line

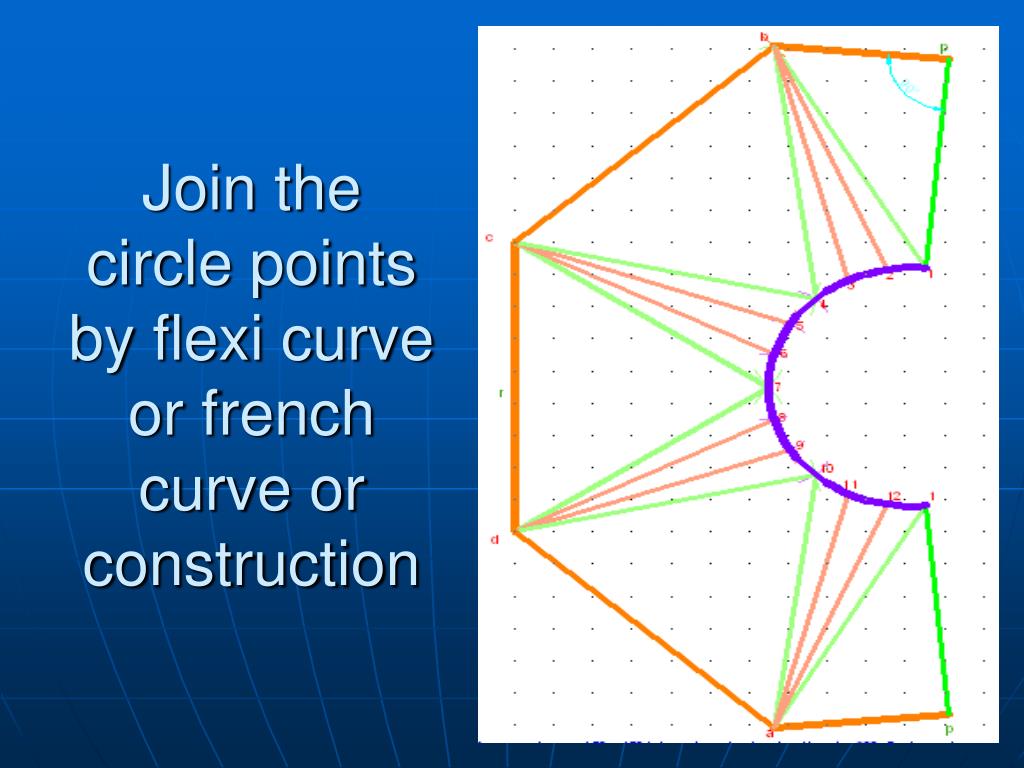

  12. Join the circle points by flexi curve or french curve or construction
