  1. NAT Implementation for the NetFPGA Platform Omar Choudary and David Miller University of Cambridge Computer Laboratory

  2. Outline • Hardware • Design • TCAM memory: LPM and NAT • Performance • Software • Functionality • Advanced Feature: NAT • Hardware • Software • NAT Demo • Case 1: client-server transfer crossing two nf-test machines • Case 2: ttcp performance test Slide 2 NAT implementation for the NetFPGA  (Omar Choudary; David Miller)

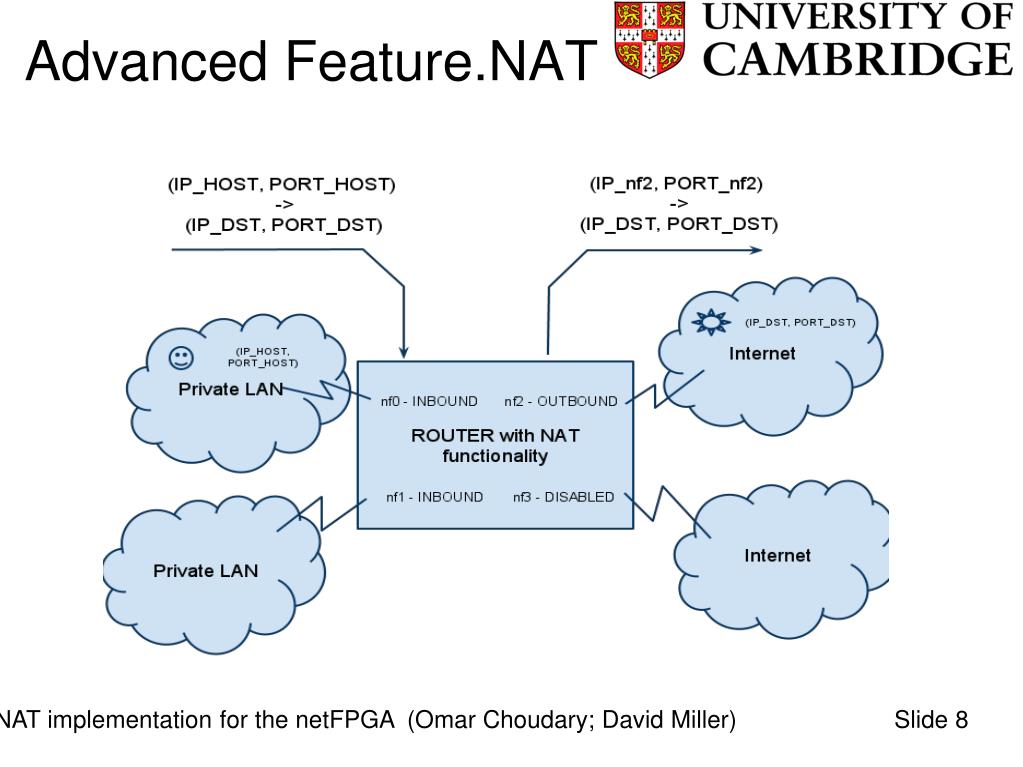

  3. Advanced Feature.NAT NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 8

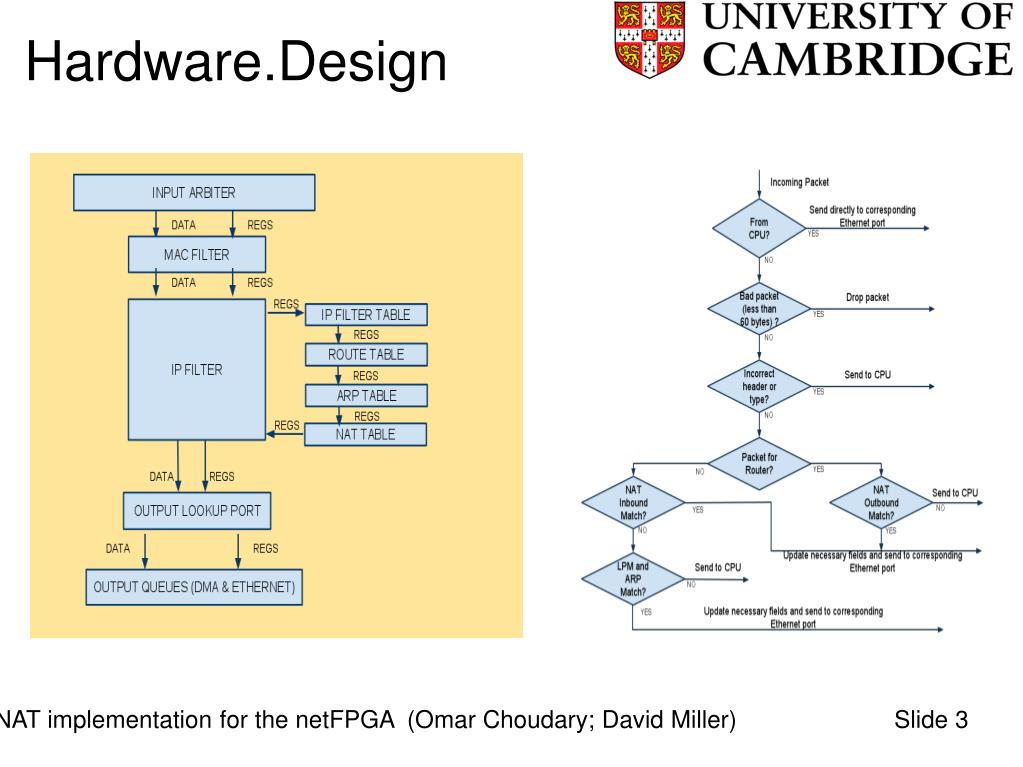

  4. Hardware.Design NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 3

  5. NAT.Hardware • Tables to store NAT translations • 2 CAMs + 2 RAMs • 1 RAM for update counter (to solve TCP State issue) • Registers for software communication • Synchronisation with LPM and Routing functionality NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 9

  6. Hardware.Performance • TTCP (Test TCP, sourcing data from Linux OS) • 976Mbps = 122 MB/s  • Limited by the OS and NF2 framework • Router_perf (sourcing data directly from the FPGA):  • 2909 Mbps = 363MB/s for 64-byte packet size • 3751 Mbps = 469MB/s for 1500-byte packet size  • Limited by the NF2 framework NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 6

  7. Software.Functionality • Process packets sent by the Hardware to the CPU • Send and receive ICMP and ARP packets • Implement and run the OSPF protocol • Insert and update entries into the hardware tables: IP filter, ARP, ROUTE, NAT| • Implement the CLI NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 7

  8. NAT.Software • Create entries in the NAT table when TCP/UDP packet arrives on INBOUND interfaces • Checks the hardware counter on each entry to delete unused entries • Handles incorrect UDP/TCP packets (possibly due to incorrect header checksum) • Implements DHCP server to automatically provide hosts connected to INBOUND interfaces with IP addresses NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 10

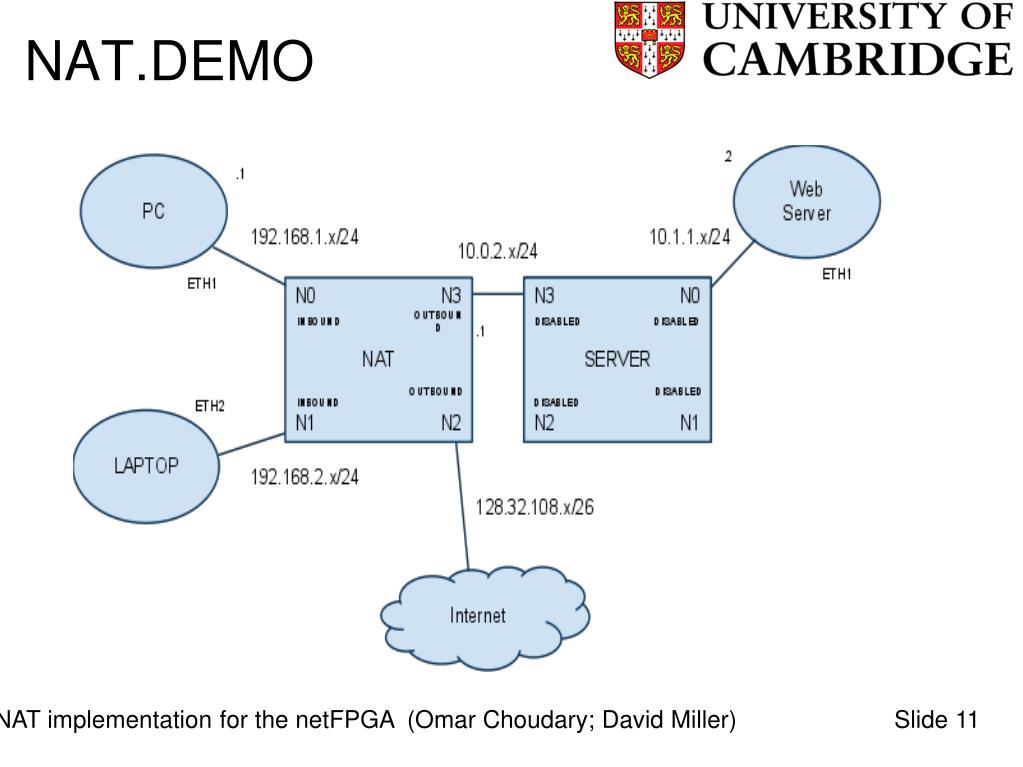

  9. NAT.DEMO NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 11

  10. CASE 1: HTTP Transfer NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 12

  11. CASE 2: TTCP Test NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 13

  12. Questions NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 16

  13. Problems Encountered • NF2 framework limitations -> issues with out_rdy signal • Bad hardware design • Hidden hardware bugs; hard to debug using chipscope • NetFPGA ports are only Gigabit-capable; not possible to plug in a laptop Fast-Ethernet-only capable • Problems when dealing with slow devices; either web server or our software making problems NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 17

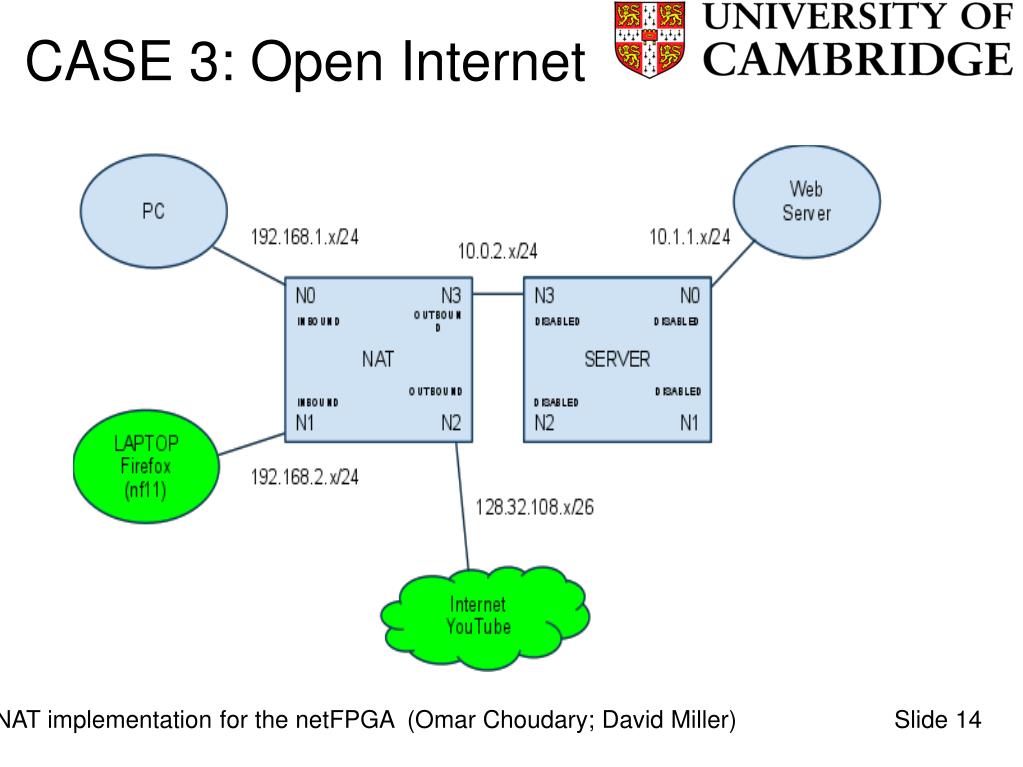

  14. CASE 3: Open Internet NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 14

  15. CASE 4: Speed Test NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 15

  16. Hardware.TCAM • Fastest LPM hardware solution • Based on a Ternary CAM => Each bit in the CAM memory contains 3 states: 0, 1 and X (don't care) • My implementation uses 2 CAMs for each bit of the 32 composing an IP address => 64 Block RAMs NAT implementation for the netFPGA  (Omar Choudary; David Miller) Slide 5
