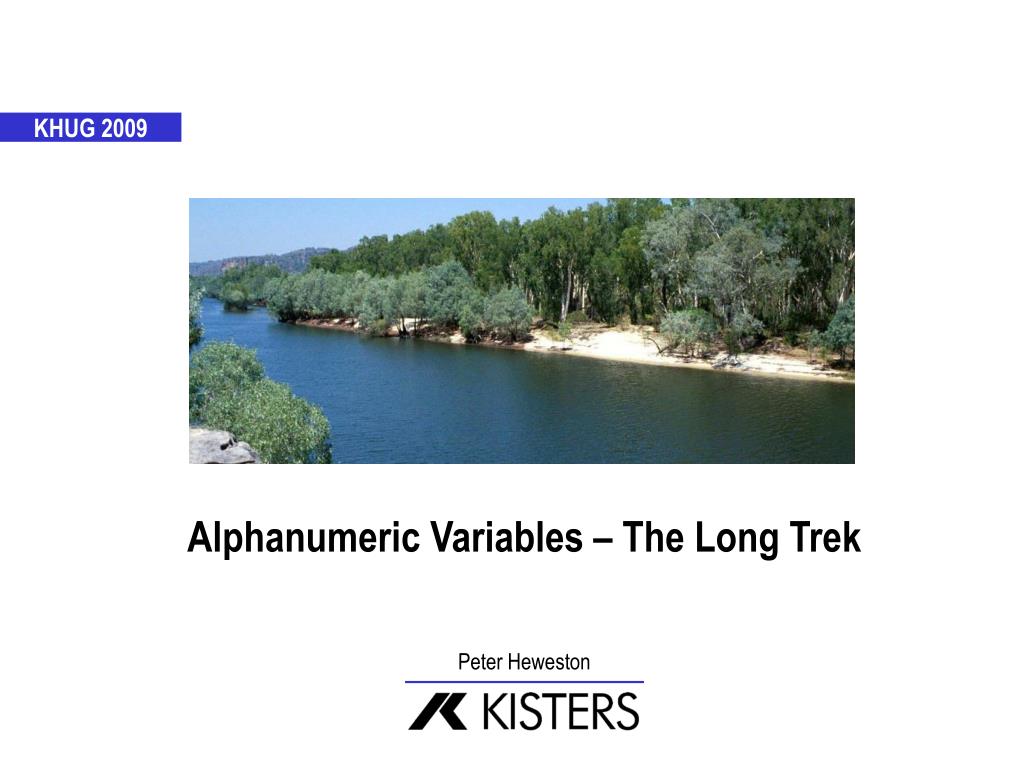

  1. Alphanumeric Variables – The Long Trek KHUG 2009 Peter Heweston

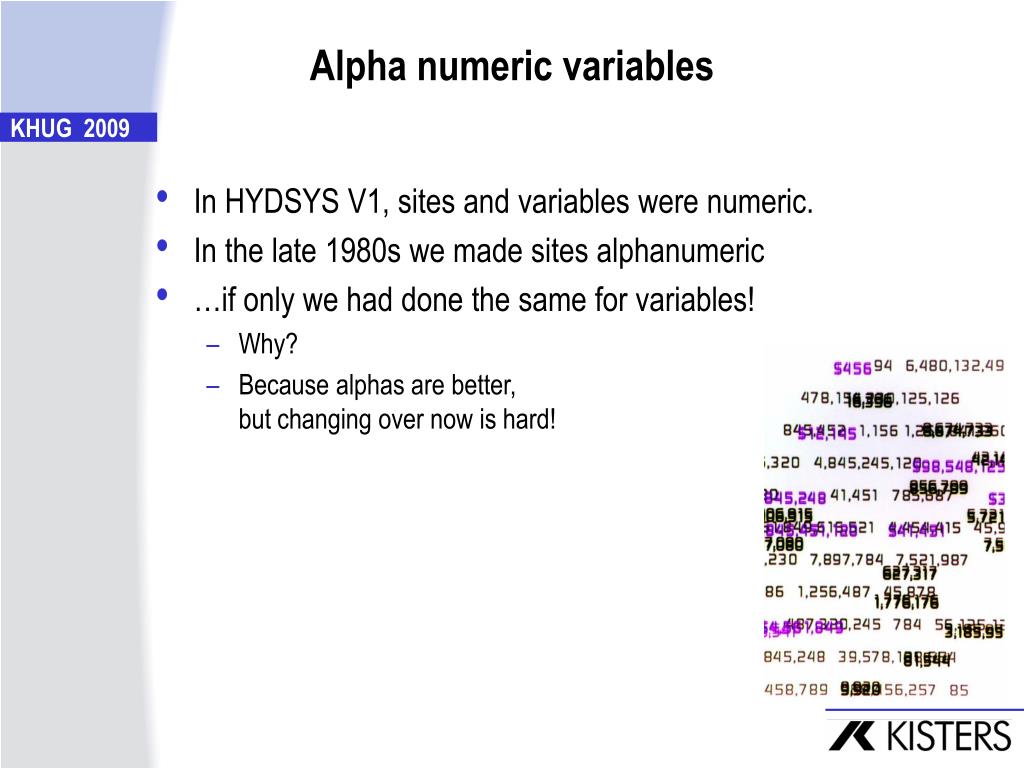

  2. Alpha numeric variables • In HYDSYS V1, sites and variables were numeric. • In the late 1980s we made sites alphanumeric • …if only we had done the same for variables! • Why? • Because alphas are better, but changing over now is hard!

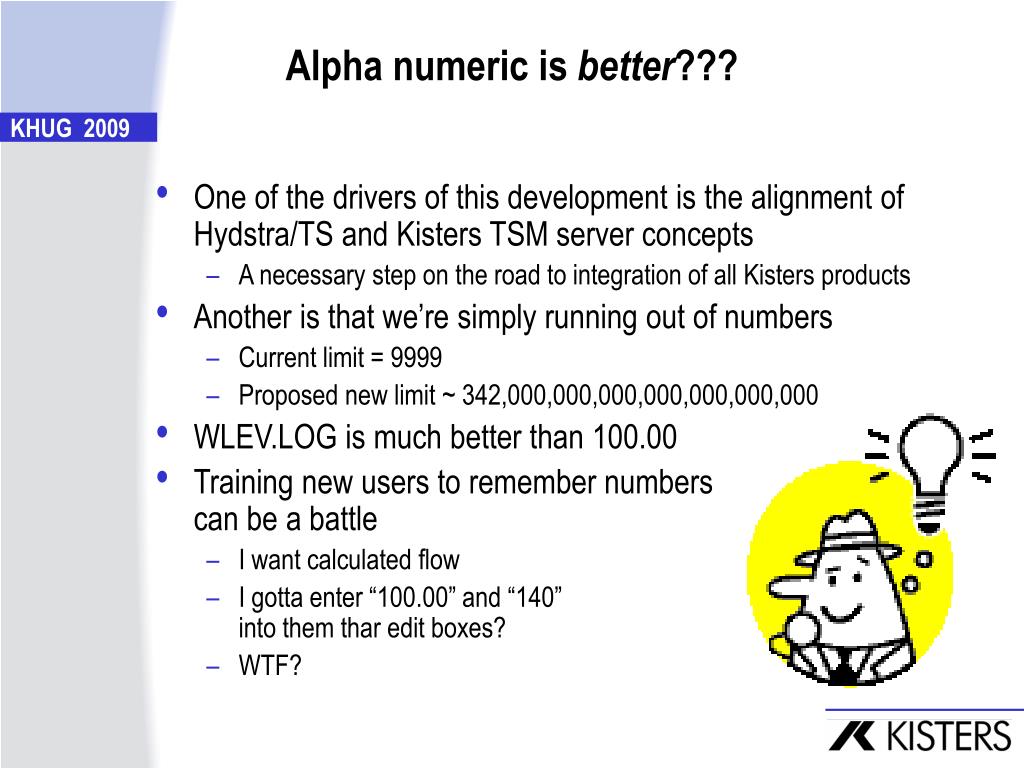

  3. Alpha numeric is better??? • One of the drivers of this development is the alignment of Hydstra/TS and Kisters TSM server concepts • A necessary step on the road to integration of all Kisters products • Another is that we’re simply running out of numbers • Current limit = 9999 • Proposed new limit ~ 342,000,000,000,000,000,000,000 • WLEV.LOG is much better than 100.00 • Training new users to remember numbers can be a battle • I want calculated flow • I gotta enter “100.00” and “140” into them thar edit boxes? • WTF?

  4. … but change is hard! • Every DB table that has a variable column • Every TS file has the variables coded inside it (won’t be able to exchange new TS files with clients running older versions) • Oodles of INI files… • A plethora of batch files, Perl scripts… • Some loggers are designed with numeric variables in mind… • Hydstra always allows for variable mapping • Some clients have upstream and downstream systemsthat share the same variable IDs… • Shouldn't rely on same variables • HYTRAN provides for mapping

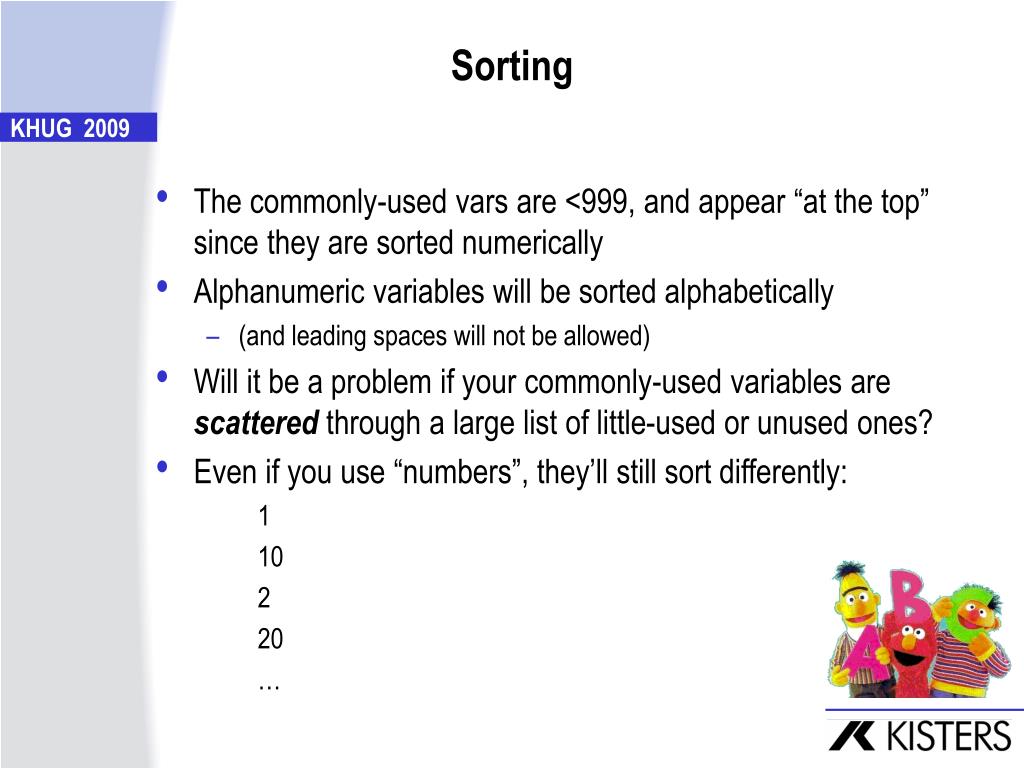

  5. Sorting • The commonly-used vars are <999, and appear “at the top” since they are sorted numerically • Alphanumeric variables will be sorted alphabetically • (and leading spaces will not be allowed) • Will it be a problem if your commonly-used variables are scattered through a large list of little-used or unused ones? • Even if you use “numbers”, they’ll still sort differently: 1 10 2 20 …

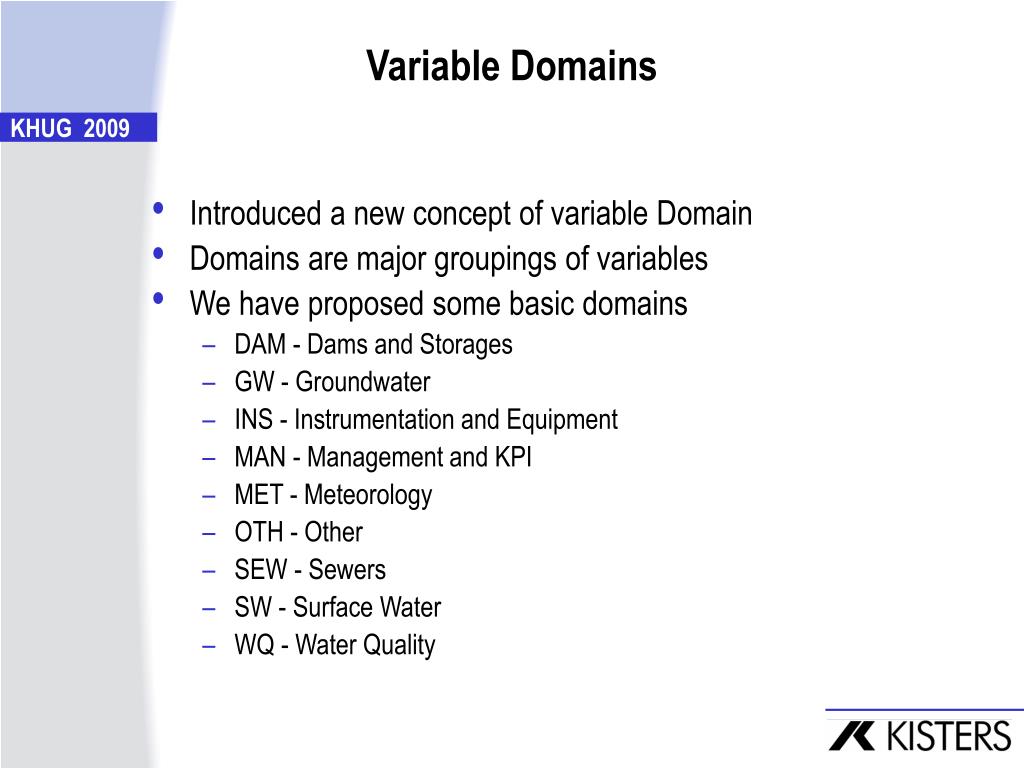

  6. Variable Domains • Introduced a new concept of variable Domain • Domains are major groupings of variables • We have proposed some basic domains • DAM - Dams and Storages • GW - Groundwater • INS - Instrumentation and Equipment • MAN - Management and KPI • MET - Meteorology • OTH - Other • SEW - Sewers • SW - Surface Water • WQ - Water Quality

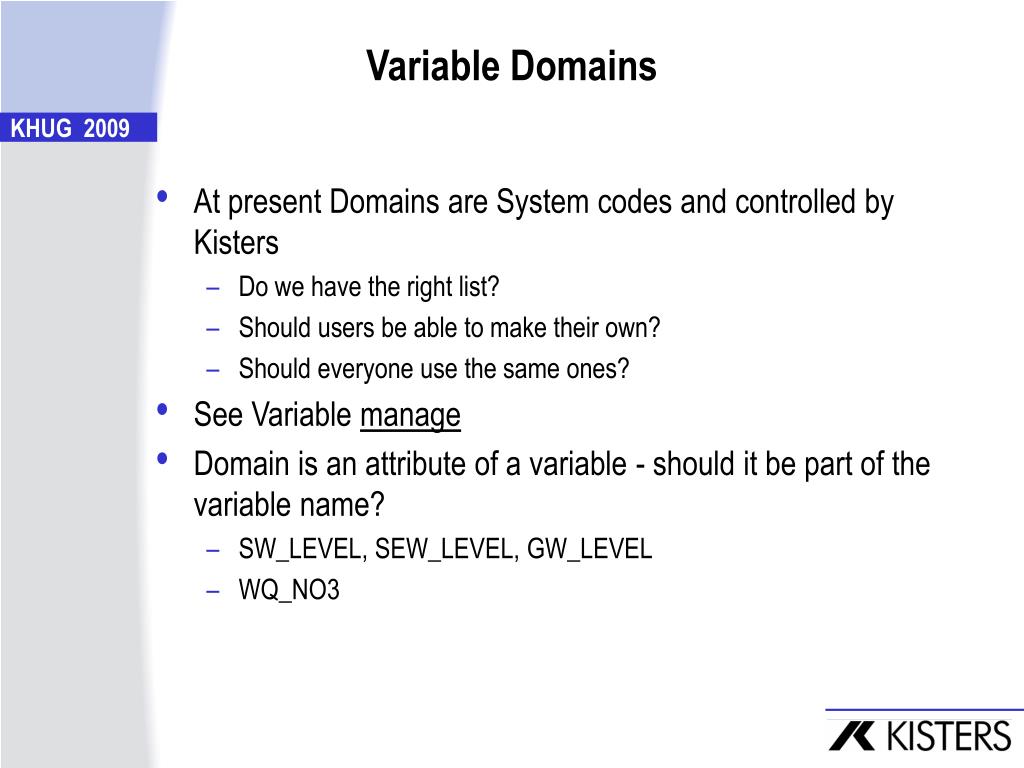

  7. Variable Domains • At present Domains are System codes and controlled by Kisters • Do we have the right list? • Should users be able to make their own? • Should everyone use the same ones? • See Variable manage • Domain is an attribute of a variable - should it be part of the variable name? • SW_LEVEL, SEW_LEVEL, GW_LEVEL • WQ_NO3

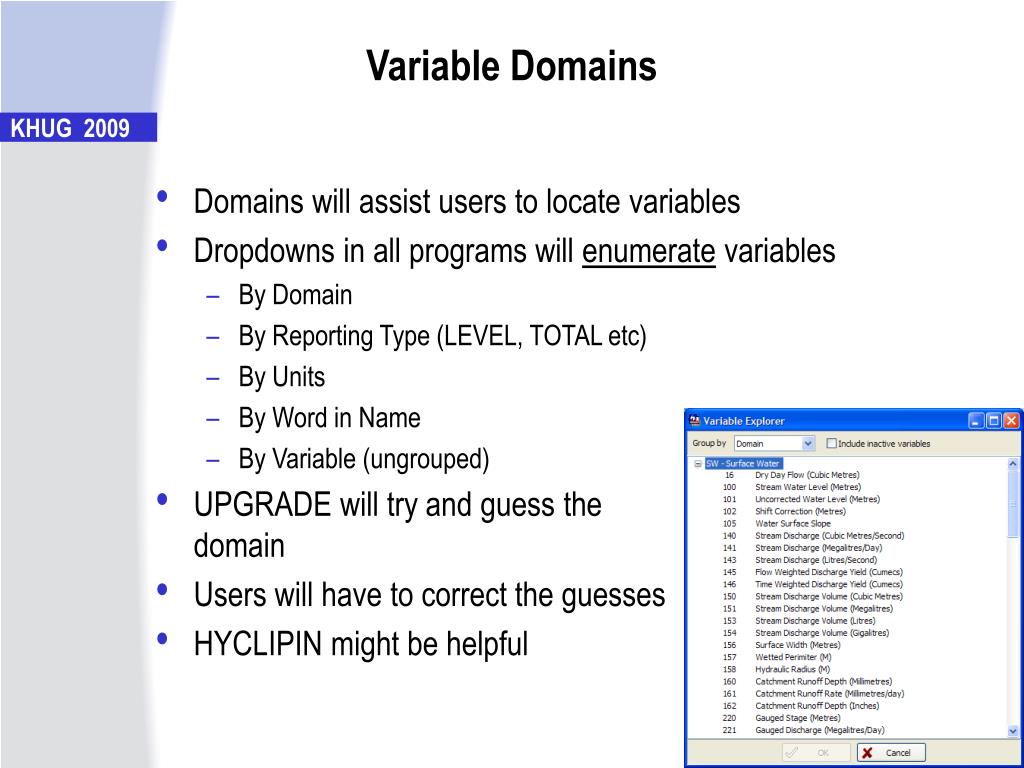

  8. Variable Domains • Domains will assist users to locate variables • Dropdowns in all programs will enumerate variables • By Domain • By Reporting Type (LEVEL, TOTAL etc) • By Units • By Word in Name • By Variable (ungrouped) • UPGRADE will try and guess the domain • Users will have to correct the guesses • HYCLIPIN might be helpful

  9. Subvars are not simple • Under the existing system, .00 is the “default” subvar. • If you leave it off (ie 100) it is assumed to be 100.00 • But “100” sometimes means “variable without subvar” or “variable with whatever subvar” (eg VarTo) • If we switch to alphas – what then? • Default subvar (.AAA? hyconfig?) • Omitted from reports • See it in HYDMWB, tables etc • Subvars are not consistent • 100.01 - meaning depends on location • Consult VARSUB to find out

  10. We’ve done some of the work already (in V9) • Internally, we’ve gotten rid of all code that assumes that a variable is a number. • We’ve also identified areas which may cause problems – internally to the system • The CHAIN variable conversion method was one benefit to come from this preparatory work

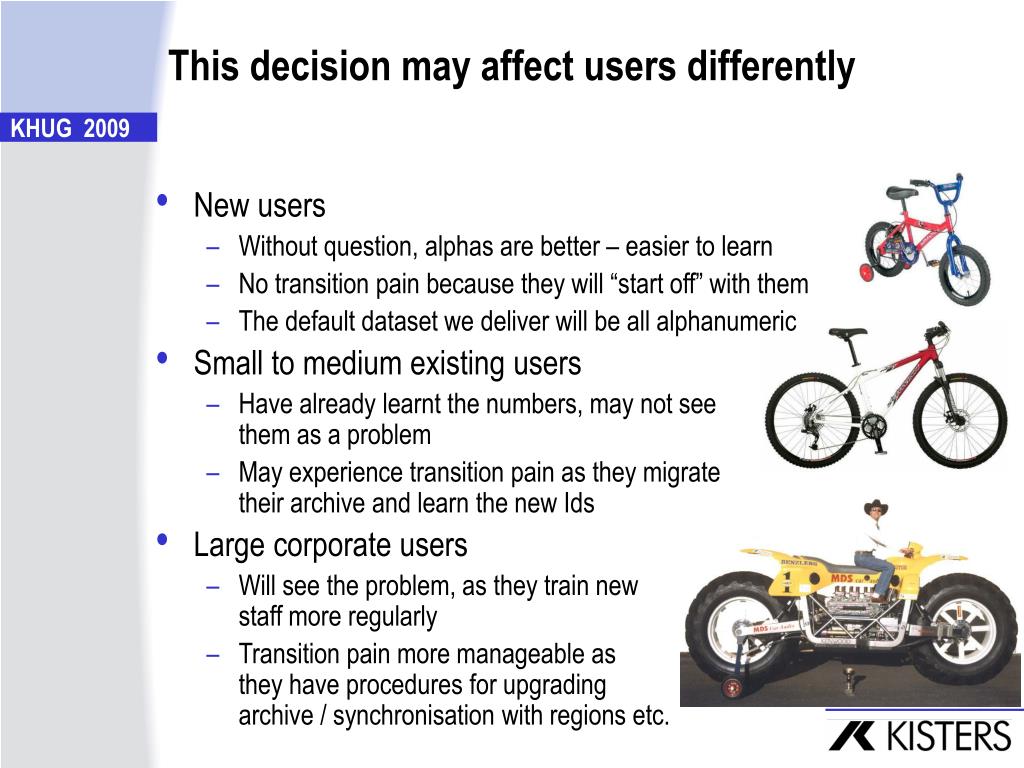

  11. This decision may affect users differently • New users • Without question, alphas are better – easier to learn • No transition pain because they will “start off” with them • The default dataset we deliver will be all alphanumeric • Small to medium existing users • Have already learnt the numbers, may not see them as a problem • May experience transition pain as they migrate their archive and learn the new Ids • Large corporate users • Will see the problem, as they train new staff more regularly • Transition pain more manageable as they have procedures for upgrading archive / synchronisation with regions etc.

  12. The two-phased approach: Phase 1 • Hydstra/TS V10The Big Preparation • Alphanumeric fields added to VARIABLE, VARSUB and WQVAR • Over the lifetime of V10 (“at your leisure”), you fill these with new values to replace the numbers • Powerful reporting tools to help you get it right • You only change the variables you want to change • Opportunity for cooperation with other agencies…

  13. The two-phased approach: Phase 1 • Opportunity for cooperation with other agencies… • Federal Variable Naming Act of 2009?

  14. The two-phased approach: Phase 2 • Hydstra/TS V11The Big Commitment • UPGRADE applies all the changes you have indicated • TS files will be incompatible with V10(&V9) • All tables will have alphanumeric fields for variables • Likewise for edits in parameter screens,dialogs etc. • Some scripts & INI files may be modified automatically, but many will require manual attention

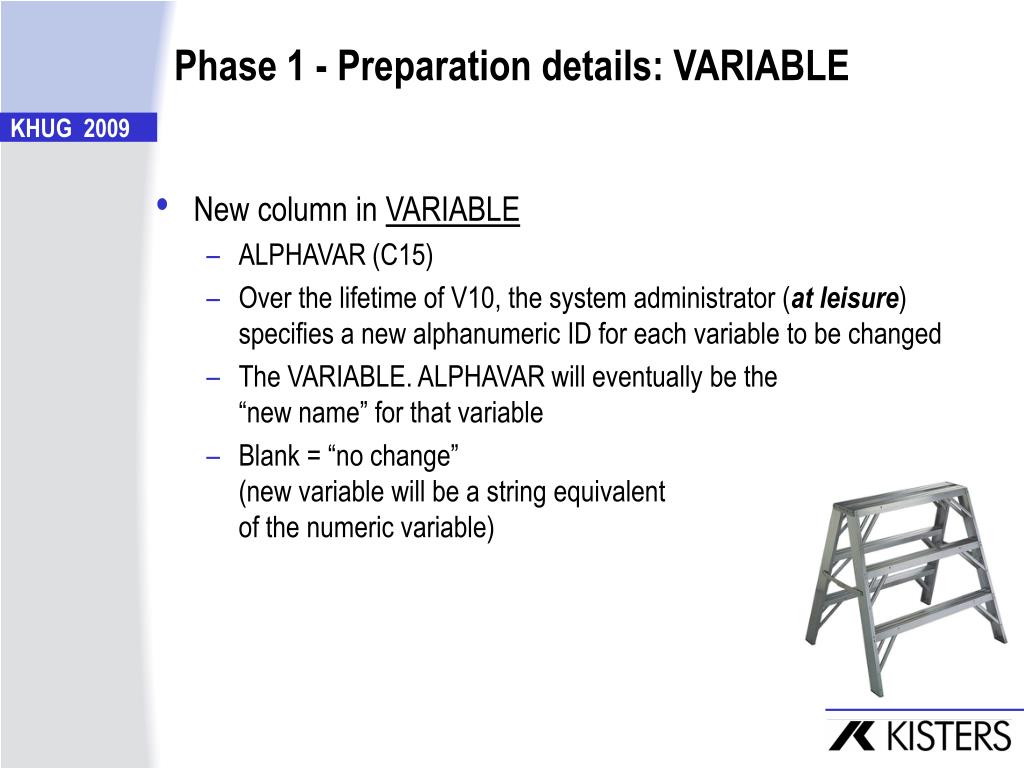

  15. Phase 1 - Preparation details: VARIABLE • New column in VARIABLE • ALPHAVAR (C15) • Over the lifetime of V10, the system administrator (at leisure) specifies a new alphanumeric ID for each variable to be changed • The VARIABLE. ALPHAVAR will eventually be the “new name” for that variable • Blank = “no change” (new variable will be a string equivalent of the numeric variable)

  16. Phase 1 - Preparation details: VARTRACE • New table: VARTRACE • Will replace VARSUB in V11 • NB: does not have site and variable in the key • Initial contents: • “PRIMARY” • A collection of mnemonics: “LOG”, “DAILY”, “UPSTR”, “10M” etc. • “00” through “99”, with description "Unassigned" • NB: COMPRESSTS and MAXGAP (from VARSUB) do not exist in this table, as there is no provision for site- or variable- control • They will go to another new table (TSCONTROL) to be introduced in Phase #2 (V11)

  17. Phase 1 - Preparation details: VARSUB • New column in VARSUB • VARTRACE (C8) • Specify the new VarTrace to use instead of a subvar • Blank = “no change” (new vartrace will be string equivalent of subvar) • Value must exist in the VARTRACE table

  18. Phase 1 - Preparation details: WQVAR • Currently (V9), WQVAR is problematic: • Overrides NAME and SHORTNAME from VARIABLE • Can have different overrides for same variable (different subvars) • This must change. In V10 we will introduce some rules, which you must comply with before upgrading to V11. • Columns which must not vary within variable: • NAME (will be removed in V11) • SHORTNAME (will be removed in V11) • ELECCHARGE • MOLAREQUIV • Columns which may vary within variable: • ACCURACY, COMMENT, MAXIMUM, MINIMUM, CASREF

  19. Phase 1 - Preparation details: WQVAR (contd.) • In V11, WQVAR will have a lesser role than at present • NAME and SHORTNAME will be withdrawn. The names from VARIABLE will apply • Rather than overriding values in VARIABLE, it will extend VARIABLE, providing additional WQ-related information • This is similar to the way the STATION table extends the SITE table, providing additional gauging-station-related information

  20. Phase 1 - Preparation details: HYVARCHK • All this looks like a lot of hard work • HYVARCHK will assist you in this job • It will provide an extensive report on all issues relating to managing the transition to alphanumeric variables • It will also be used to give a “stamp of approval” that everything is in order, so the V11 upgrade (the big commitment) cannot proceed if anything is amiss.

  21. Phase 1 - Preparation details: HYVARCHK (contd.) • HYVARHK will report on: • Variable holdings: which variables are actually used in the system • TS data (archive & work) • Ratings, Shifts • VARCON (including “intermediate” variables) • Although many VARCON entries may not actively be being used • TTABHED (time tables) • Gaugings, Gaugings measurements • Logger processing (xxxCHAN) • WQ data (archive & public work areas) • GW measurements • (and other tables with variable references)

  22. Phase 1 - Preparation details: HYVARCHK (contd.) • HYVARCHK will also report on: • VARIABLE collision detection: • No two VARIABLE.ALPHAVAR values can be the same • VARTRACE ambiguity / merging report: • Report entries in VARSUB that map to the same VARTRACE entry • This is for informative purposes only: we would encourage it in many places • WQVAR “pre-mapping” conformance report: • No WQVAR entries with the same variable may have different names, accuracies, electric charges or molar equivalents • WQVAR “pre-mapping” report: • For EACH WQVAR variable to be "pre-mapped", list its WQ archive holdings • VARIABLE mapping report: • For EACH variable that is to be renamed, list complete holdings

  23. Phase 2 – Commitment details • In Hydstra/TS V11 – the Upgrade: • All variables through out the system (table columns & TS file codes) are made alpha • They are replaced with the corresponding value from the VARIABLE.ALPHAVAR column. • The ALPHAVAR column is dropped from the VARIABLE table. • All “subvars” through out the system (table columns & TS file codes) are replaced with the corresponding value from the VARSUB.VARTRACE column. • VARSUB table withdrawn, we now use VARTRACE and TSCONTROL instead. • We stop talking about “subvar”, and start calling it “trace”

  24. Phase 2 – Commitment details (Cont.) • New table: TSCONTROL • Some settings of the old VARSUB table must be able to vary by site and/or variable. • COMPRESS • MAXGAP • VARTRACE has no site or variable in the key, so we can’t have them there. • TSCONTROL will be created and populated during the V11 upgrade, from values in SUBVAR

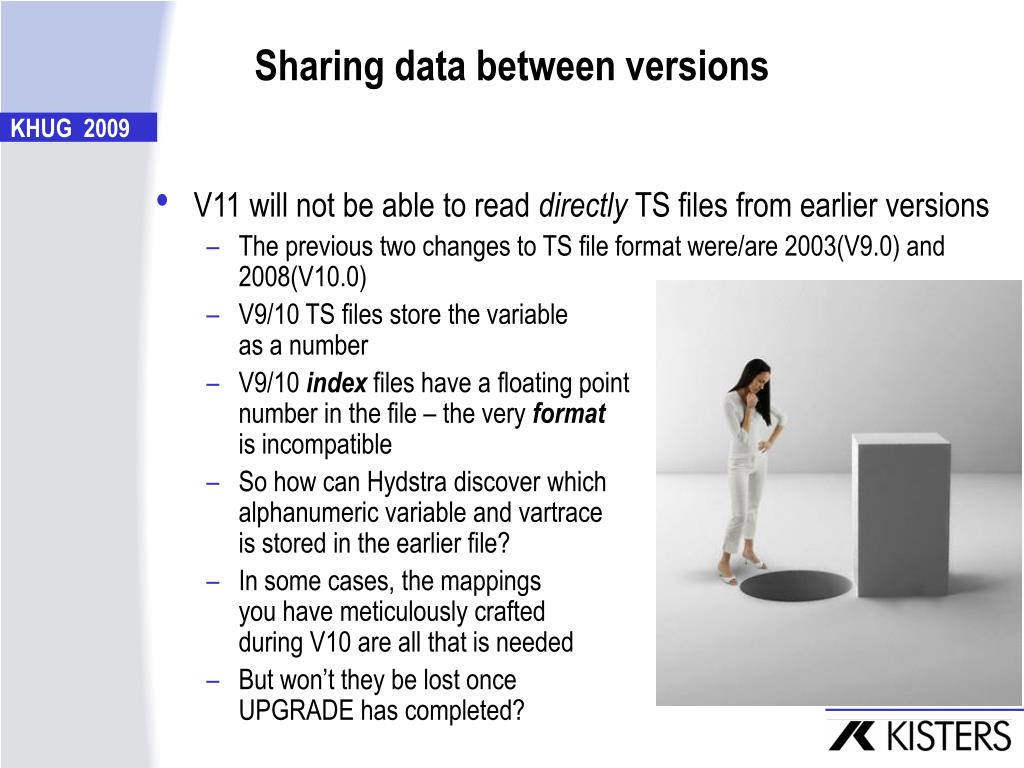

  25. Sharing data between versions • V11 will not be able to read directly TS files from earlier versions • The previous two changes to TS file format were/are 2003(V9.0) and 2008(V10.0) • V9/10 TS files store the variable as a number • V9/10 index files have a floating point number in the file – the very formatis incompatible • So how can Hydstra discover which alphanumeric variable and vartrace is stored in the earlier file? • In some cases, the mappingsyou have meticulously craftedduring V10 are all that is needed • But won’t they be lost once UPGRADE has completed?

  26. Sharing data between versions (contd.) • ALPHAVAR.INI to the rescue * • The mappings from numeric variables and subvars will be preserved in an INI file called ALPHAVAR.INI. • This INI file will have named sections, one of which will be [Default] • When any Hydstra application reads a V9 or earlier TS file, it will attempt to use the [Default] mapping in ALPHAVAR.INI. • To assist you reading earlier files fromother organisations, you can createother mapping sections in ALPHAVAR.INI • This system will also allow HYIMPEXP to upgrade data from earlier versions • There will be a new command in HYFILERthat will let you upgrade a TS file usinga nominated mapping section * … or should that be .XML? ... or TRANSLAT and HYTRAN?

  27. Variable Naming Standards • Do we care about national uniformity in variable naming? • At least the major variables could be named the same everywhere • Guidelines will be published on how to name variables • Possible Australian working group on variables? • Kisters? • AHA? • BOM? • ... • Same in US?

  28. Variable Names • Variable names need to include an indication of units • Should they include DOMAIN? • Should they include Unitcode? • 100 -> SW_LEV_M • 100 -> LEVEL_M • 140 -> SW_FLOW_CUMC • 140 -> FLOW_CUMC • Use Unitcode on non-default? • 100 -> LEVEL • 140 -> FLOW • 141 -> FLOW_MLD

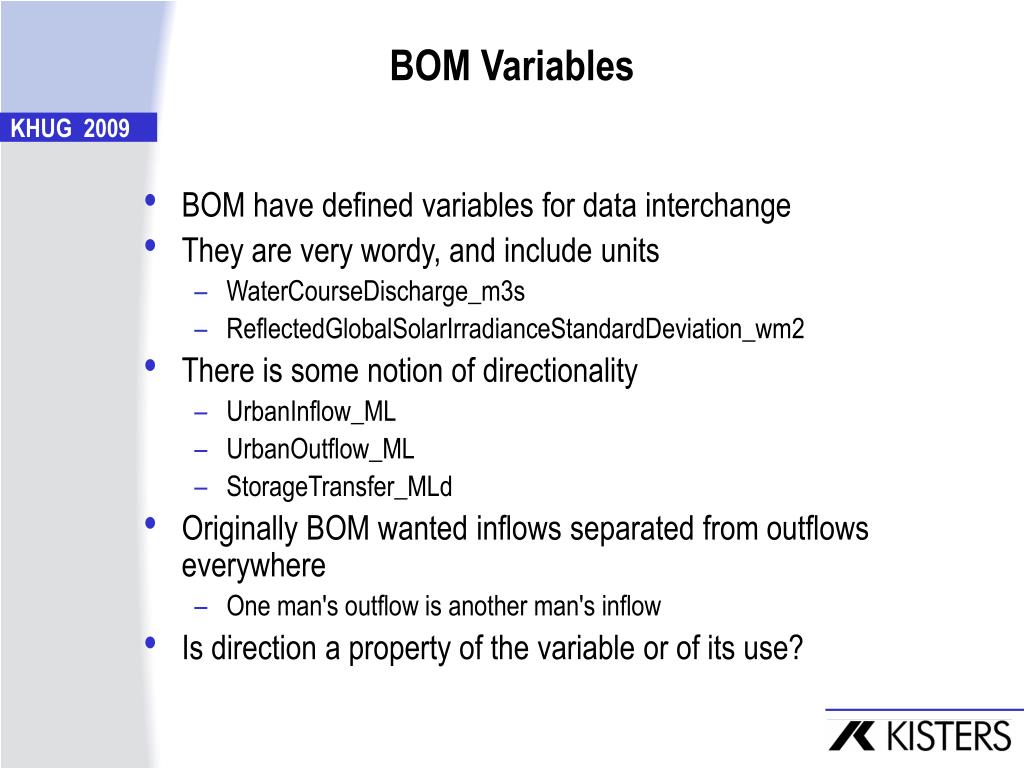

  29. BOM Variables • BOM have defined variables for data interchange • They are very wordy, and include units • WaterCourseDischarge_m3s • ReflectedGlobalSolarIrradianceStandardDeviation_wm2 • There is some notion of directionality • UrbanInflow_ML • UrbanOutflow_ML • StorageTransfer_MLd • Originally BOM wanted inflows separated from outflows everywhere • One man's outflow is another man's inflow • Is direction a property of the variable or of its use?

  30. Variable Names • Do we distinguish between the location of a variable and what it measures? • Stream flow • Sewer flow • Spillway flow • Channel flow • In Hydstra sometimes YES since the variable conversion system may require different pathways • Stream flow uses rating • Sewer flow uses velocity/depth • etc

  31. Variable Names • Do we care HOW something is measured? • Flow from rating • Direct measured ultrasonic • Direct measured magflow • Flow from slope/roughness? • We suggest that subvars are better suited to distinguishing HOW as a general rule

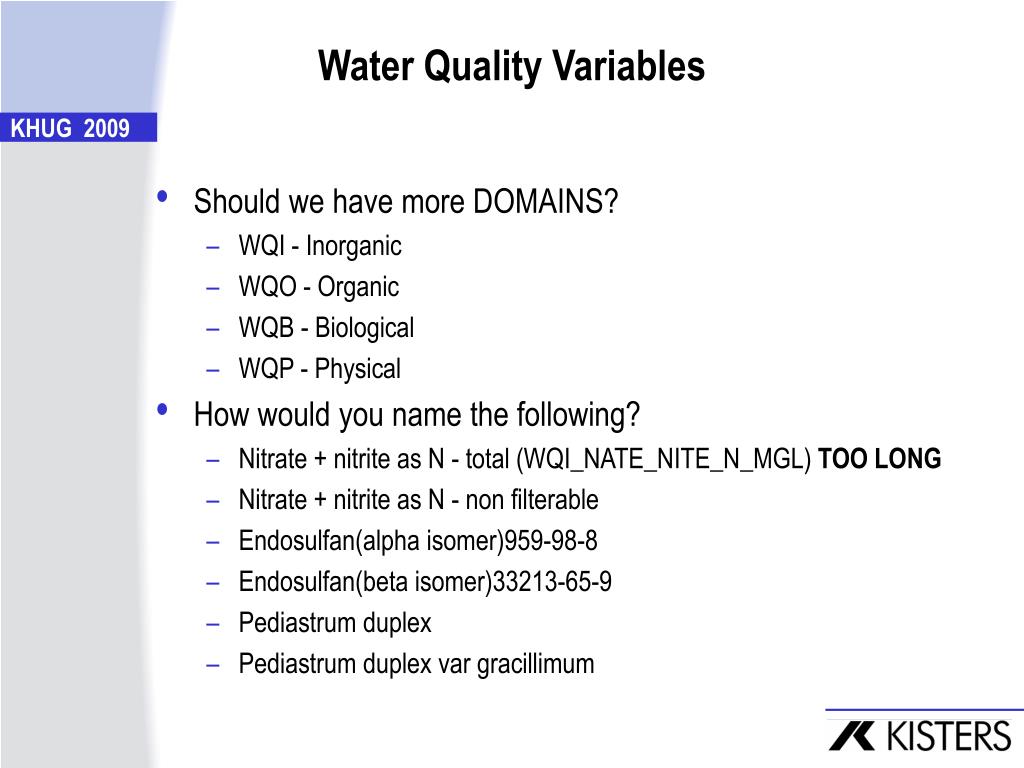

  32. Water Quality Variables • Should we have more DOMAINS? • WQI - Inorganic • WQO - Organic • WQB - Biological • WQP - Physical • How would you name the following? • Nitrate + nitrite as N - total (WQI_NATE_NITE_N_MGL) TOO LONG • Nitrate + nitrite as N - non filterable • Endosulfan(alpha isomer)959-98-8 • Endosulfan(beta isomer)33213-65-9 • Pediastrum duplex • Pediastrum duplex var gracillimum

  33. Water Quality Vars • Nitrate as N • Nitrite as N • Nitrate + nitrite as N - total • Free Ammonia as N • Ammonia as N - total • Kjeldahl Nitrogen • Total Nitrogen • Albuminoid Nitrogen • Organic Nitrogen • Inorganic Nitrogen • Detrital Nitrogen • Nitrate + nitrite as N - soluble • Nitrate + nitrite as N - non filterable

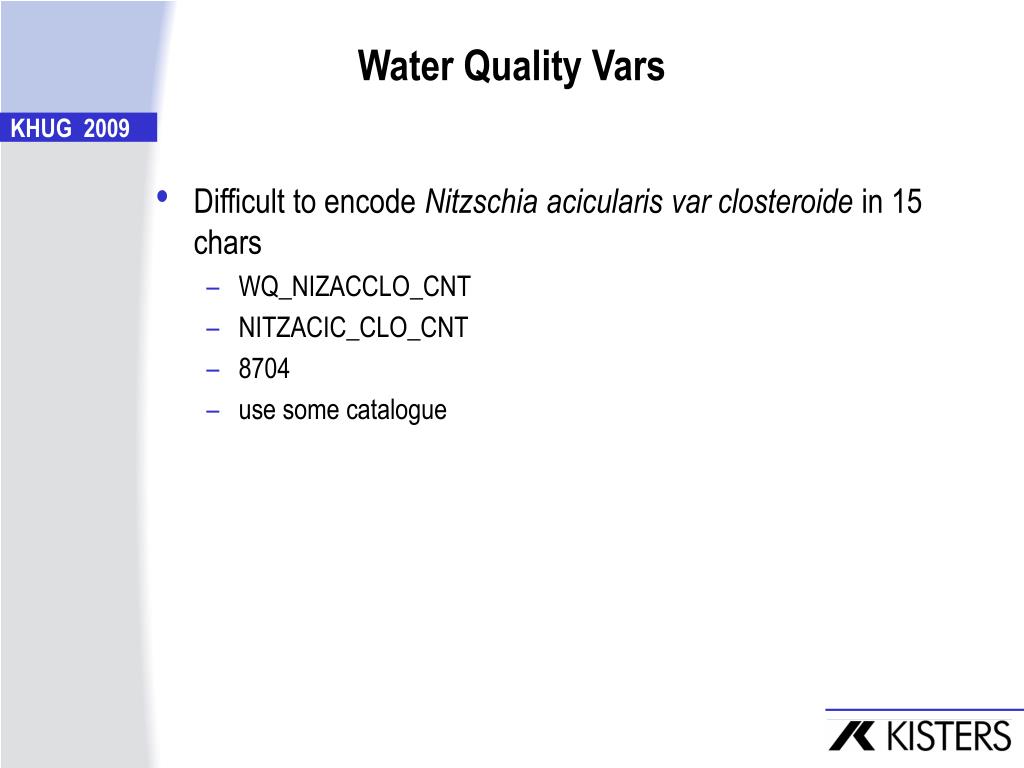

  34. Water Quality Vars • Difficult to encode Nitzschia acicularis var closteroide in 15 chars • WQ_NIZACCLO_CNT • NITZACIC_CLO_CNT • 8704 • use some catalogue

  35. Water Quality Variables • Water Quality variables • Try to keep mnemonics? • There are a large number, some differ very subtly • Sulphate as SO4Sulphate as SSulphite as SO3Sulphite as SSulphide as S • Elements: use common name or symbol? • LEAD or PB • Use CAS registry number instead? • Sulphate = 14808-79-8 • ACX number? • (Available Chemicals eXchange) • System from CambridgeSoft • Sulphate = X1013850-6

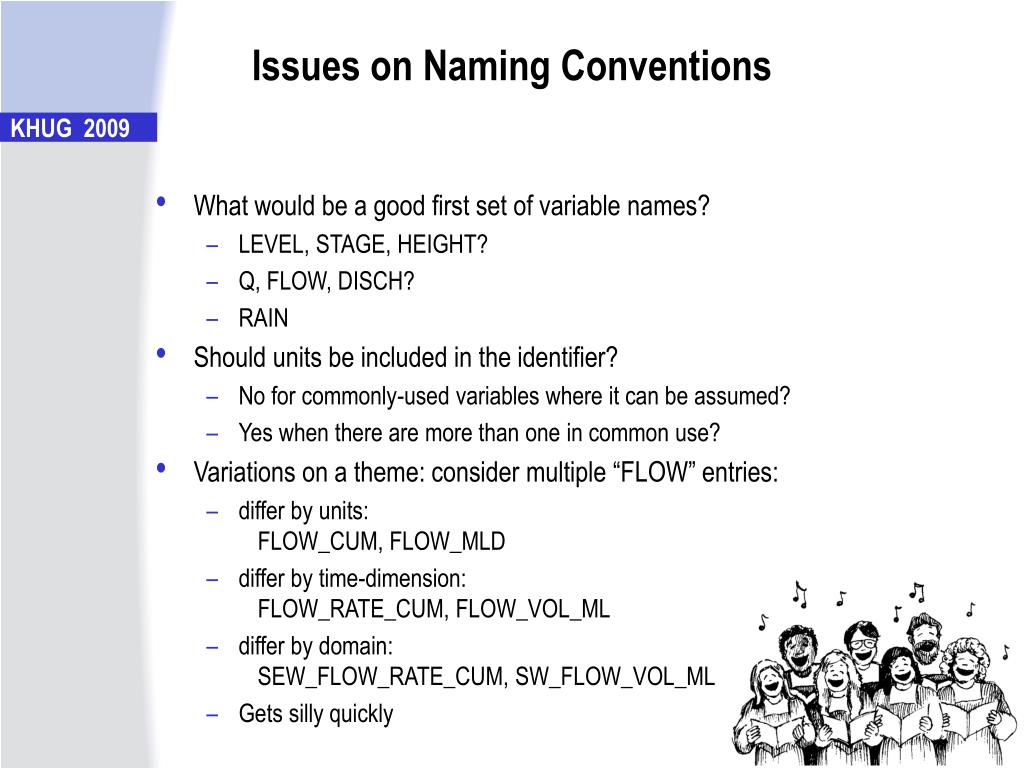

  36. Issues on Naming Conventions • What would be a good first set of variable names? • LEVEL, STAGE, HEIGHT? • Q, FLOW, DISCH? • RAIN • Should units be included in the identifier? • No for commonly-used variables where it can be assumed? • Yes when there are more than one in common use? • Variations on a theme: consider multiple “FLOW” entries: • differ by units: FLOW_CUM, FLOW_MLD • differ by time-dimension: FLOW_RATE_CUM, FLOW_VOL_ML • differ by domain: SEW_FLOW_RATE_CUM, SW_FLOW_VOL_ML • Gets silly quickly

  37. Biologicals • Biologicals are a challenge • A few indexing projects have been proposed • Based on the idea of taking the first two characters of each token of the taxonomic tree • A lot of work would be required, even if a definitive list could be obtained…

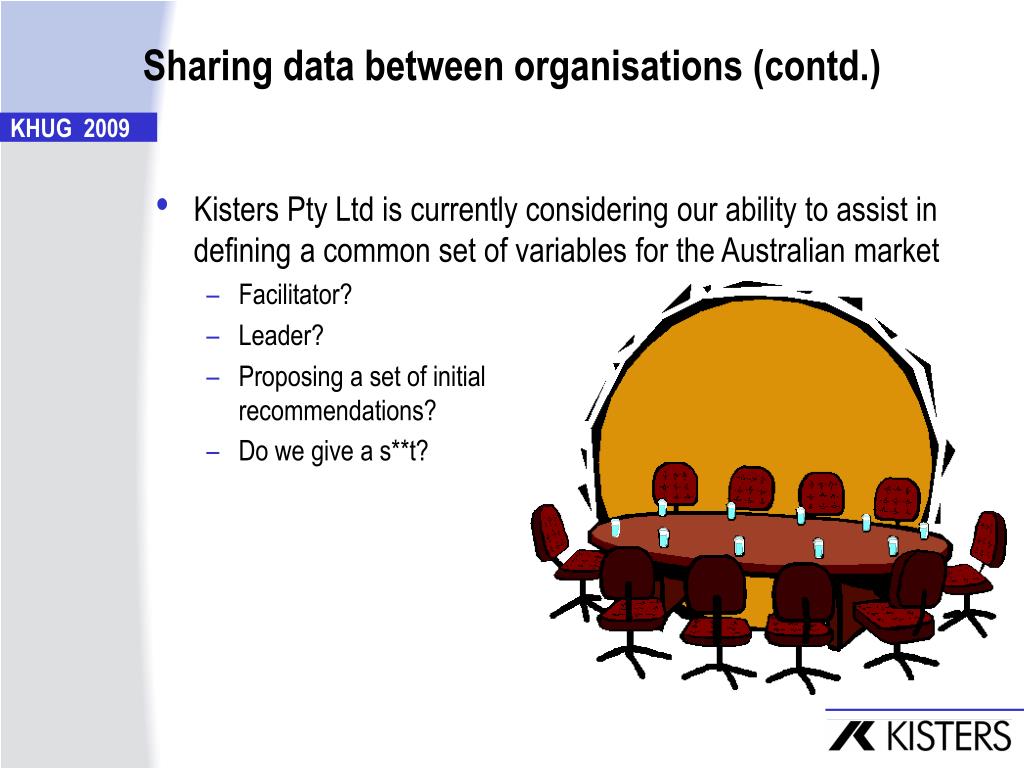

  38. Sharing data between organisations (contd.) • Kisters Pty Ltd is currently considering our ability to assist in defining a common set of variables for the Australian market • Facilitator? • Leader? • Proposing a set of initial recommendations? • Do we give a s**t?

  39. Where To Now? • It's up to you!

  40. Alphanumeric Variables – The Long Trek KHUG 2009 Peter Heweston
