  1. Improved Flexibility & Economics by Transitioning from Satellite to Submarine Wayne Walters Director Market Development ECI Telecom Steve Battick Head of Carrier Services Digicel

  2. Satellite Network • Hub & spoke topology • E1 links to Miami • Independent of incumbent • Makes sense for emerging carrier Miami Guadeloupe Dominica Martinique St. Lucia Barbados St. Vincent Grenada Trinidad

  3. Intra-Island Traffic No satellite capacity required Intra-Island Inter-Island Rest of World

  4. Rest of the World Traffic Satellite link to tandem switch point Intra-Island Inter-Island Rest of World

  5. Island to Island Traffic Consumes twice satellite capacity Intra-Island Inter-Island Rest of World

  6. Network Expansion • Increased satellite capacity • Expensive • Add SDH radio link • Leverage satellite infrastructure • Lower cost alternative to satellite • Increases burden on satellite link for rest of world traffic • Add leased E1s via submarine • Expensive • Relieves some island to island traffic issues • Increases burden on satellite link for rest of world traffic Miami Guadeloupe Dominica Martinique St. Lucia Barbados St. Vincent Grenada Trinidad

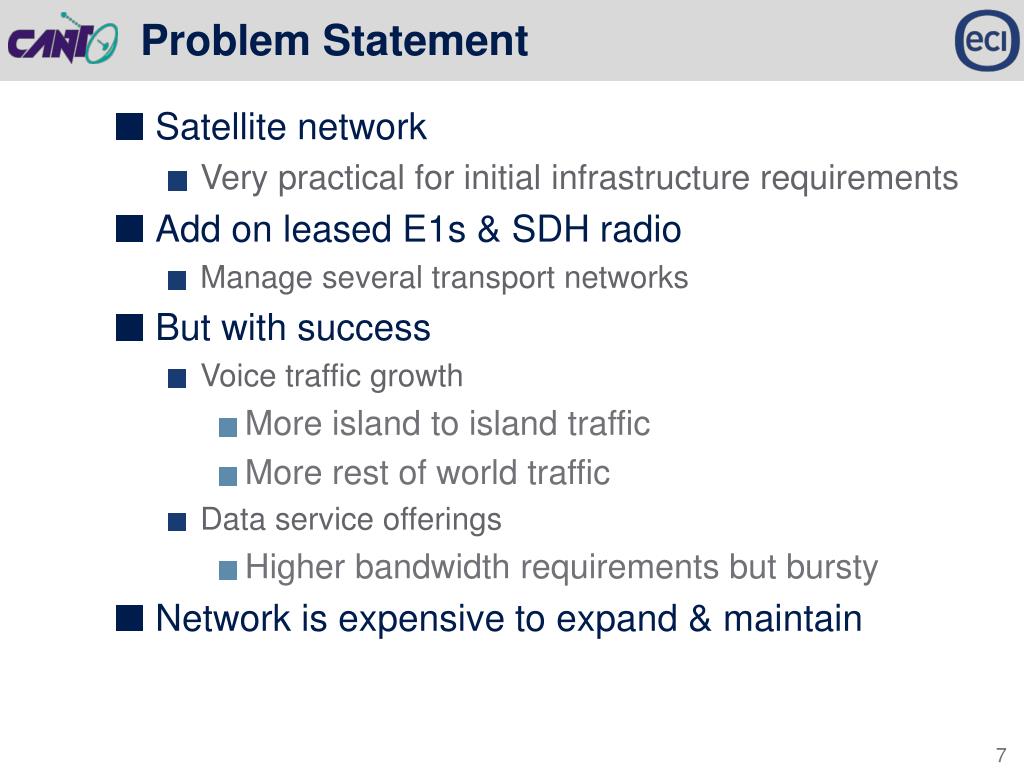

  7. Problem Statement • Satellite network • Very practical for initial infrastructure requirements • Add on leased E1s & SDH radio • Manage several transport networks • But with success • Voice traffic growth • More island to island traffic • More rest of world traffic • Data service offerings • Higher bandwidth requirements but bursty • Network is expensive to expand & maintain

  8. Submarine Cable Network • Linear network • Flexible connectivity • Reuse of bandwidth • Indefeasible Rights of Use (IRUs) • Lease costs  Capital investment • Increased capacity • STM4 capacity (252 E1s) • Versus N x E1s • Increased flexibility • MSPP provides E1 grooming • Improved data support • Dual hubs • Miami & New York • Improved reliability New York Miami Guadeloupe Dominica Martinique St. Lucia Barbados St. Vincent Grenada Trinidad

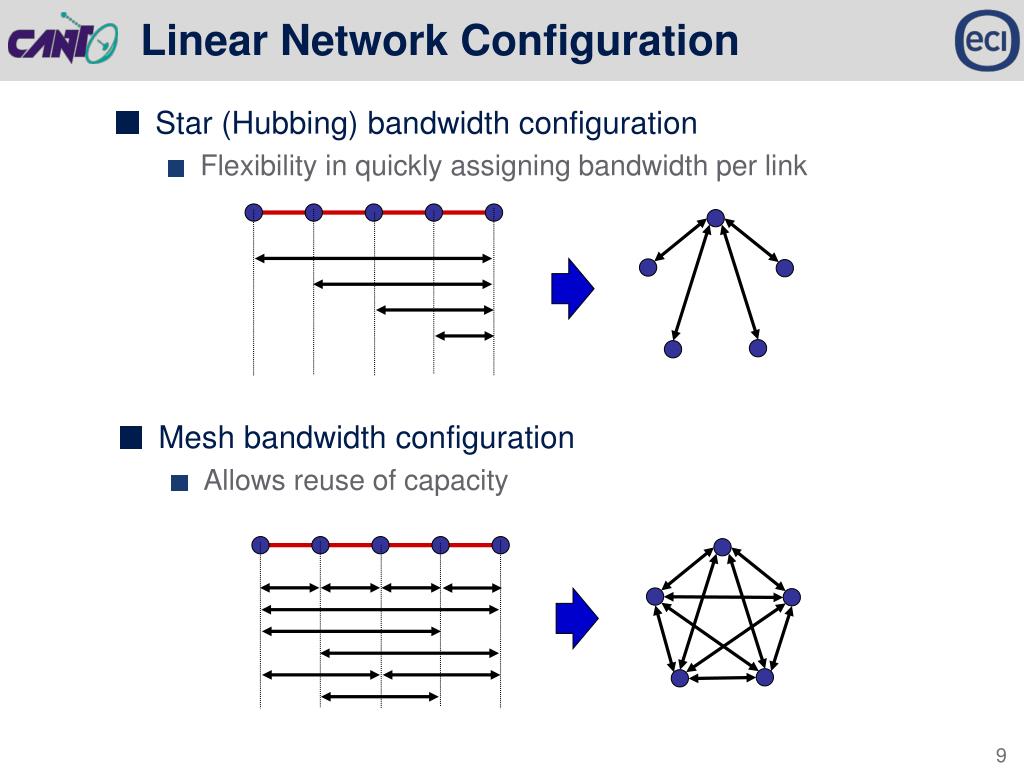

  9. Linear Network Configuration • Star (Hubbing) bandwidth configuration • Flexibility in quickly assigning bandwidth per link • Mesh bandwidth configuration • Allows reuse of capacity

  10. MSPP VC12 DCX MSPP VC12 DCX MSPP VC12 DCX MSPP VC12 DCX Flexible Submarine Network Cable Landing Cable Landing Cable Landing Cable Landing Cable Landing • Submarine cable operator provides STM1 grooming • Addition of MSPP allows STM1, VC4, & VC12 grooming • Dynamic control of bandwidth via MSPP • Shift bandwidth with traffic demands STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM4 STM4 STM4 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 MSPP VC12 DCX E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1

  11. MSPP VC12 DCX MSPP VC12 DCX MSPP VC12 DCX MSPP VC12 DCX Configured for Star Connectivity Cable Landing Cable Landing Cable Landing Cable Landing Cable Landing STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM4 STM4 STM4 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 MSPP VC12 DCX E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1

  12. MSPP VC12 DCX MSPP VC12 DCX MSPP VC12 DCX MSPP VC12 DCX Configured for Mesh Connectivity Cable Landing Cable Landing Cable Landing Cable Landing Cable Landing STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM4 STM4 STM4 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 MSPP VC12 DCX E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1

  13. MSPP VC12 DCX MSPP VC12 DCX MSPP VC12 DCX MSPP VC12 DCX Adjust Connectivity Bandwidth Cable Landing Cable Landing Cable Landing Cable Landing Cable Landing STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM4 STM4 STM4 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 MSPP VC12 DCX E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1 E1, DS3, STM1

  14. MSPP VC12 DCX EoS MSPP VC12 DCX EoS MSPP VC12 DCX EoS MSPP VC12 DCX EoS Improved Data Transport Cable Landing Cable Landing Cable Landing Cable Landing Cable Landing • Ethernet over SDH – GFP, VCAT, LCAS • Transport rate limited Ethernet • Provides feedback on buffering • Use to interconnect routers / switches • Enables data aggregation • Enables local switching STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM4 STM4 STM4 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 MSPP VC12 DCX EoS 10/100/1G 10/100/1G 10/100/1G 10/100/1G 10/100/1G

  15. MSPP VC12 DCX Layer 2 MSPP VC12 DCX Layer 2 MSPP VC12 DCX Layer 2 MSPP VC12 DCX Layer 2 Integrated Data Aggregation Cable Landing Cable Landing Cable Landing Cable Landing Cable Landing STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM1 DCX STM4 STM4 STM4 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 STM4 1+1 MSPP VC12 DCX Layer 2 10/100/1G 10/100/1G 10/100/1G 10/100/1G 10/100/1G • Integrated Layer 2 switching • MEF based services: E-Line, E-LAN, E-Tree • QoS  guaranteed delivery, best effort, latency, etc. • Provides data aggregation • Provides local switching

  16. Summary • Submarine cable based foundation • Leveraging IRUs on submarine systems • Shift leasing costs to capital costs • Connectivity agility with MSPP • Flexible management of bandwidth • Able to shift bandwidth to traffic needs • Improved data transport • Integrated Layer 2 switching • Data aggregation & switching • Positive ROI in just a few years

  17. Expanding with More to Come New York Miami Guadeloupe Dominica Jamaica Martinique St. Lucia Barbados St. Vincent Grenada Trinidad

  18. Thank You Wayne Walters wayne.walters@ecitele.com www.ecitele.com
