  1. Contributors: W. Xu, M. Halpin, and S. Ranade Organized by Task Force on Harmonics Modeling & Simulation Adapted and Presented by Paulo F Ribeiro AMSC May 28-29, 2008 Chapter 7:Test Systems for Harmonics Modeling and Simulation

  2. Chapter 7: Test systems for harmonics modeling and simulation Outline • Utility transmission system • Utility distribution system • Industrial distribution system • Commercial distribution system

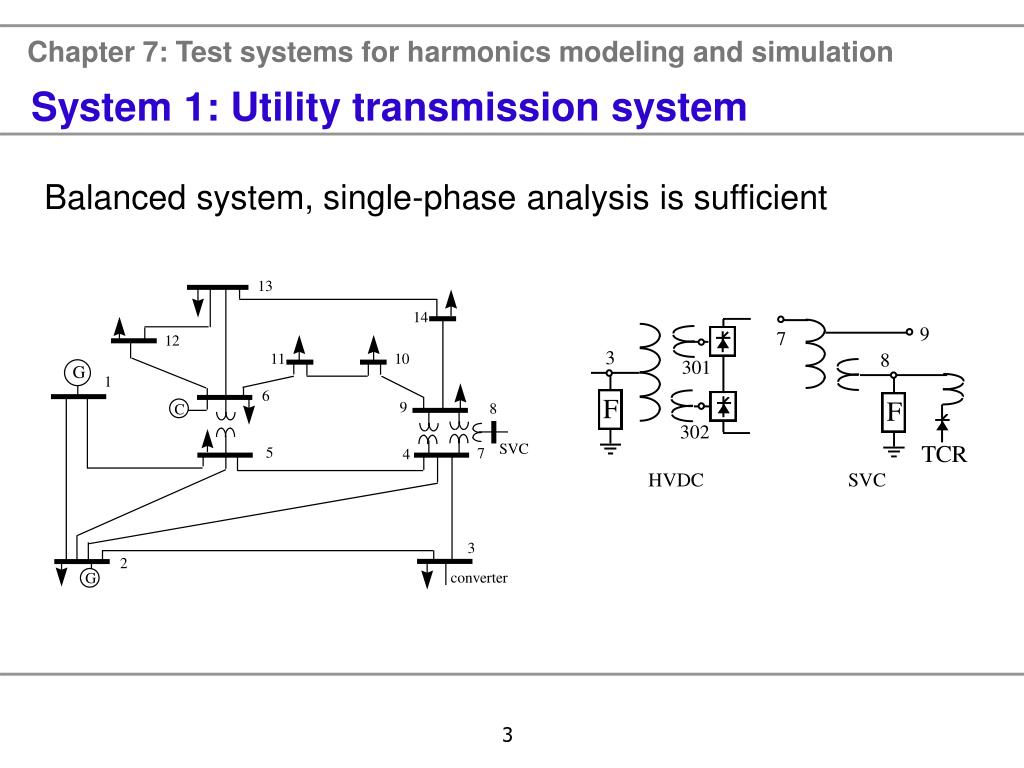

  3. Chapter 7: Test systems for harmonics modeling and simulation System 1: Utility transmission system Balanced system, single-phase analysis is sufficient

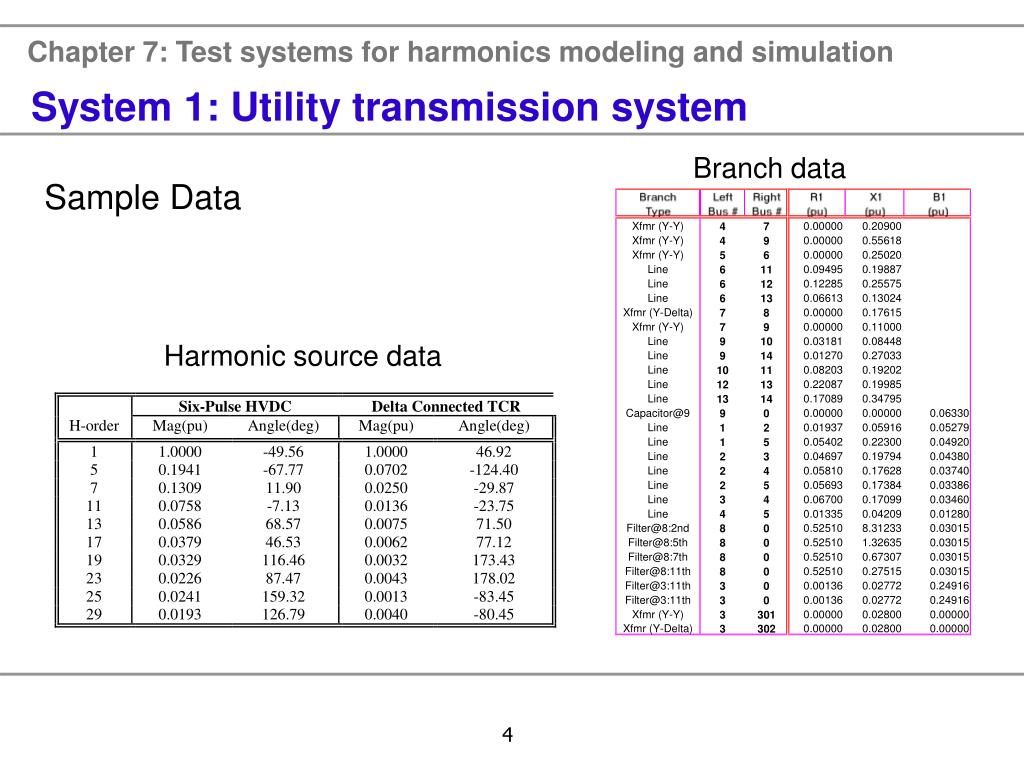

  4. Chapter 7: Test systems for harmonics modeling and simulation System 1: Utility transmission system Branch data Sample Data Harmonic source data

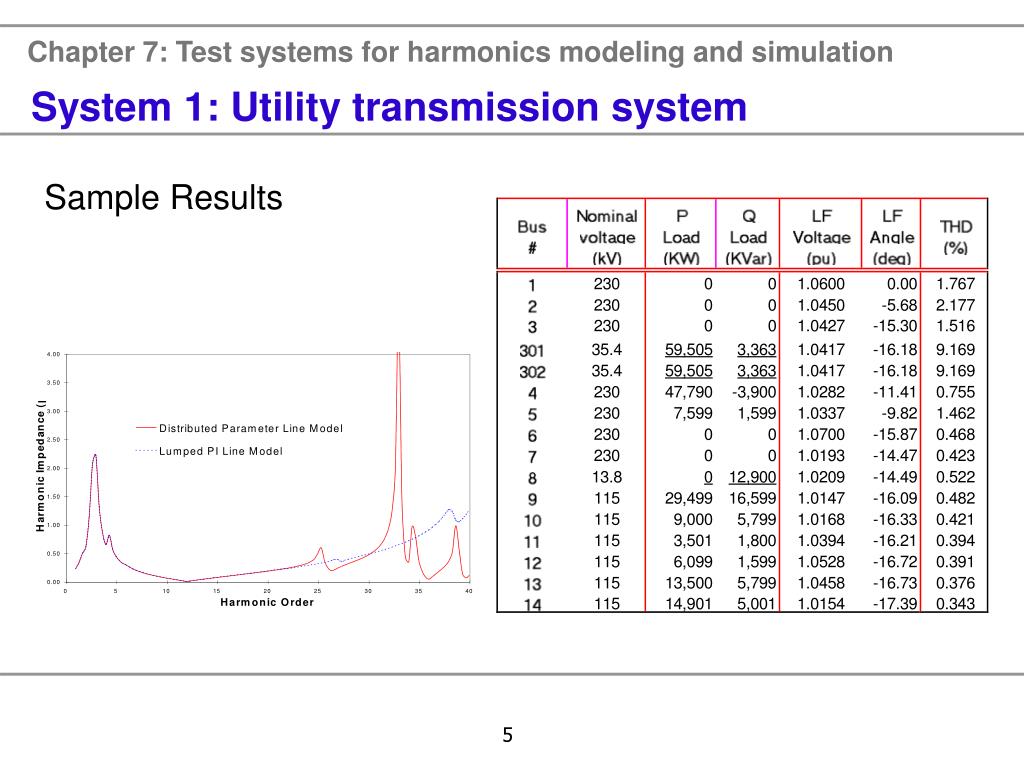

  5. Chapter 7: Test systems for harmonics modeling and simulation System 1: Utility transmission system Sample Results

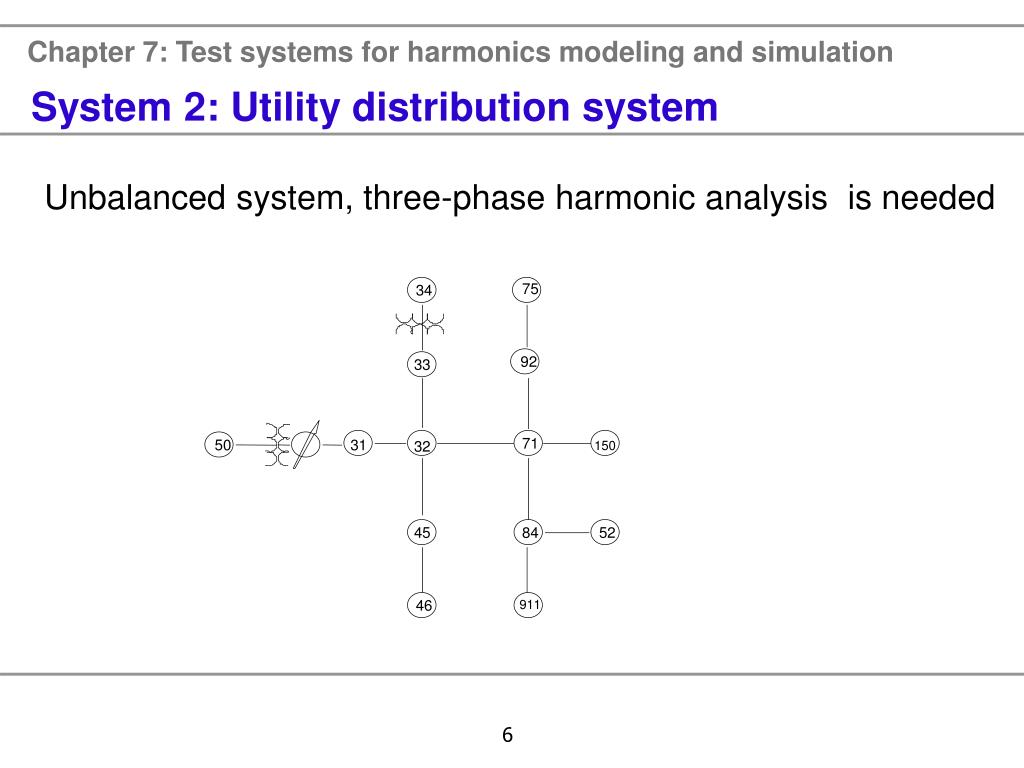

  6. Chapter 7: Test systems for harmonics modeling and simulation System 2: Utility distribution system Unbalanced system, three-phase harmonic analysis is needed

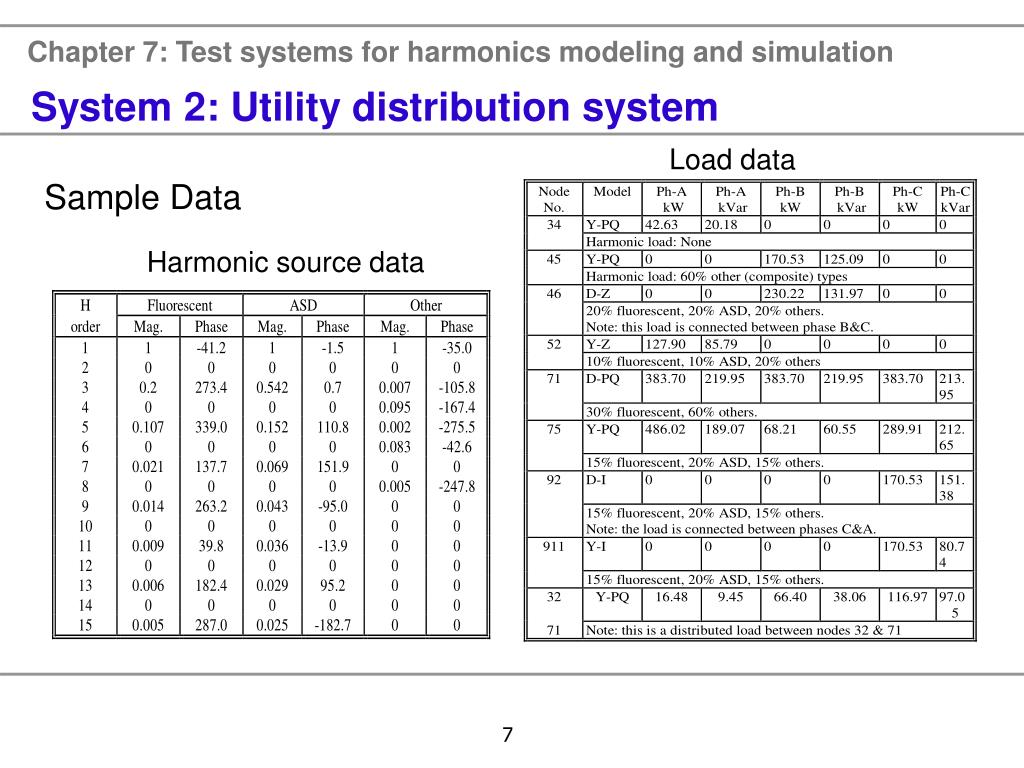

  7. Chapter 7: Test systems for harmonics modeling and simulation System 2: Utility distribution system Load data Sample Data Harmonic source data

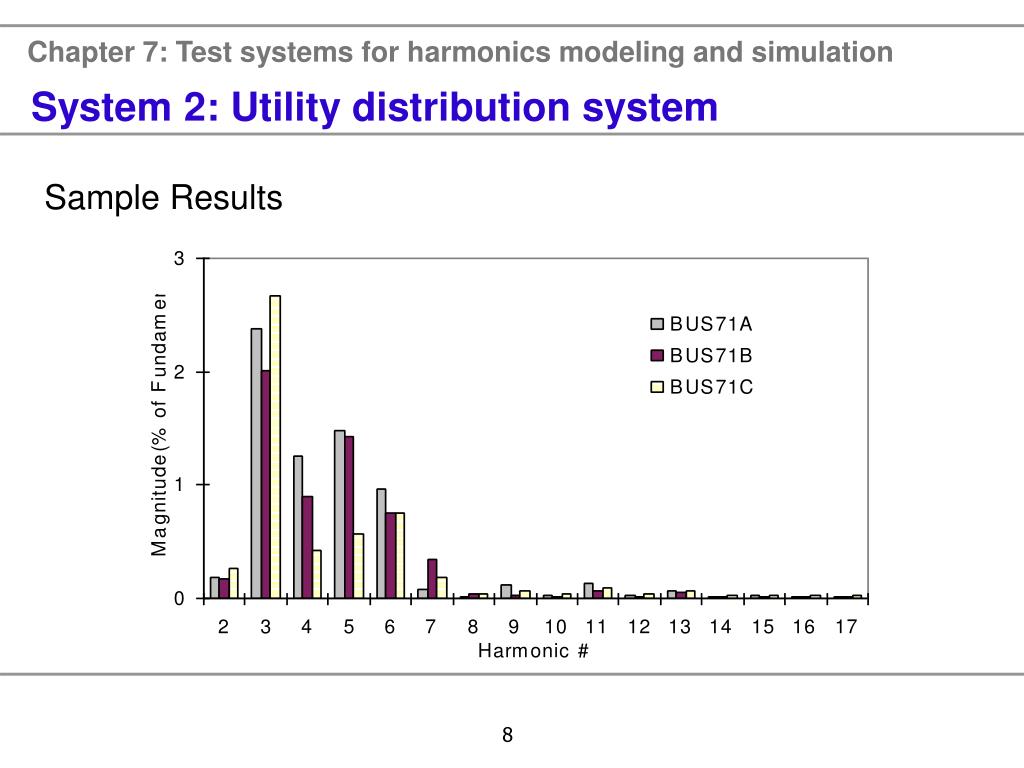

  8. Chapter 7: Test systems for harmonics modeling and simulation System 2: Utility distribution system Sample Results

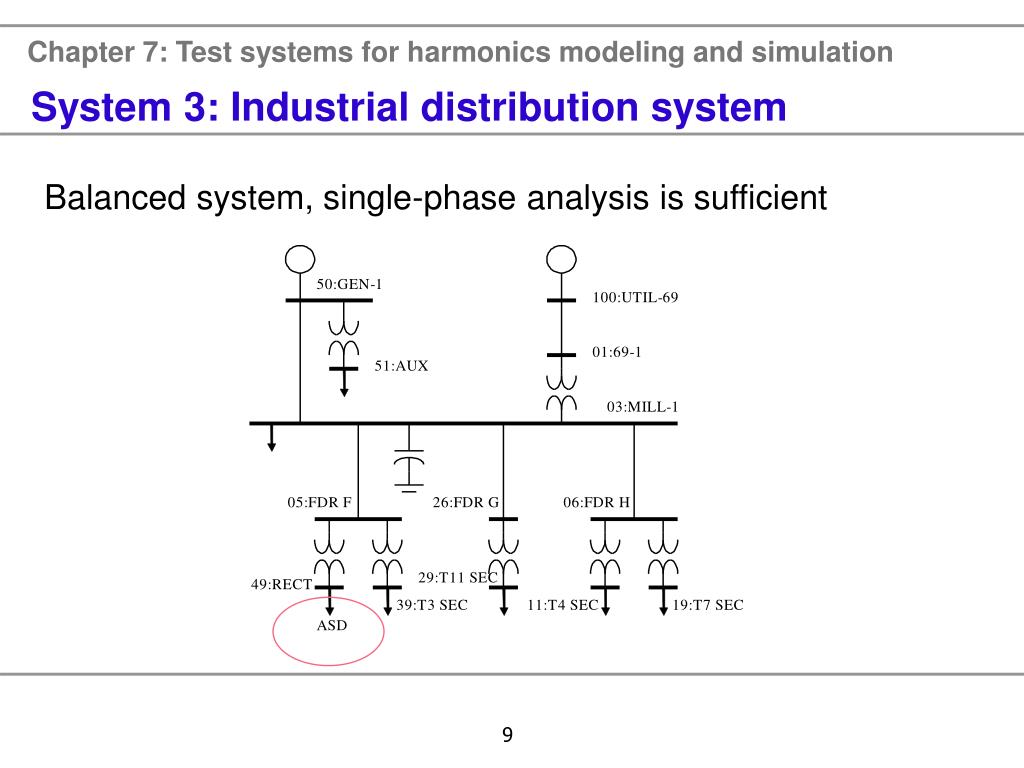

  9. Chapter 7: Test systems for harmonics modeling and simulation System 3: Industrial distribution system Balanced system, single-phase analysis is sufficient

  10. Chapter 7: Test systems for harmonics modeling and simulation System 3: Industrial distribution system Sample Data Branch data Harmonic source data

  11. Chapter 7: Test systems for harmonics modeling and simulation System 3: Industrial distribution system Sample Results

  12. Chapter 7: Test systems for harmonics modeling and simulation System 4: Commercial distribution system Unbalanced system, three-phase harmonic analysis is needed

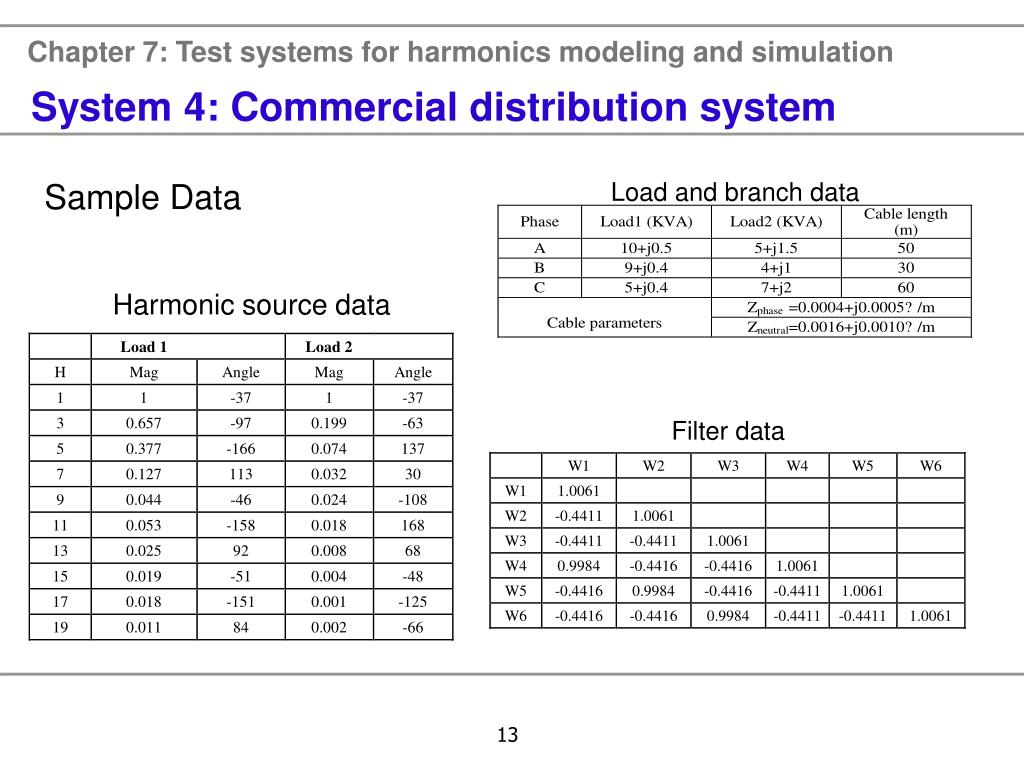

  13. Chapter 7: Test systems for harmonics modeling and simulation System 4: Commercial distribution system Sample Data Load and branch data Harmonic source data Filter data

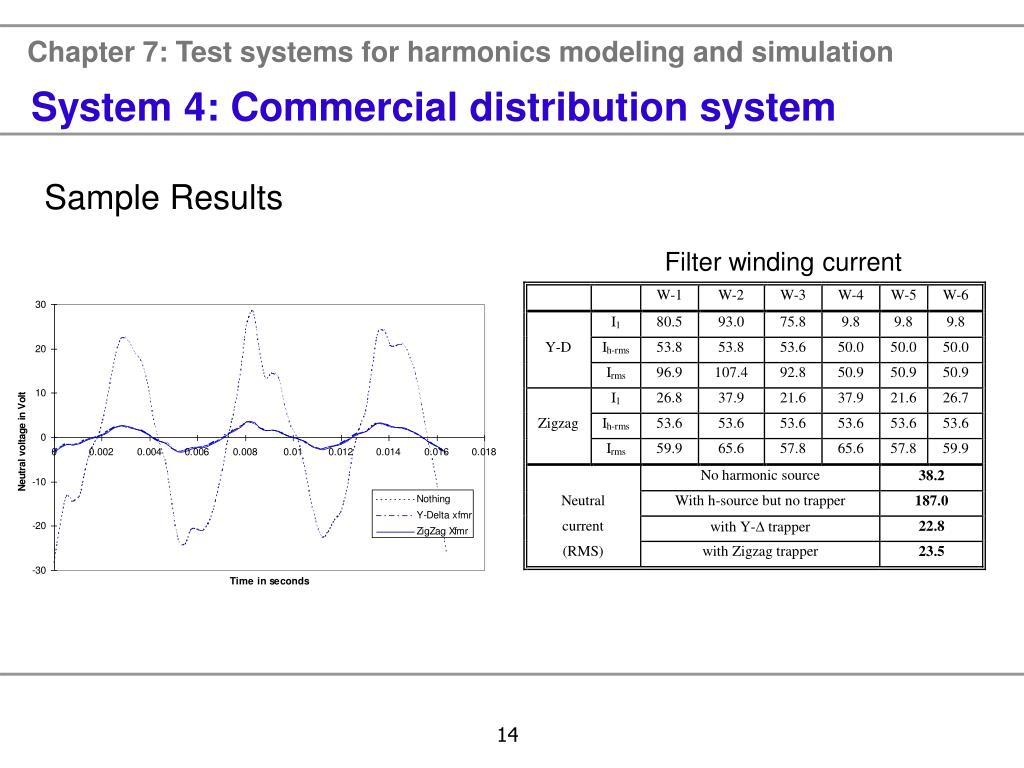

  14. Chapter 7: Test systems for harmonics modeling and simulation System 4: Commercial distribution system Sample Results Filter winding current

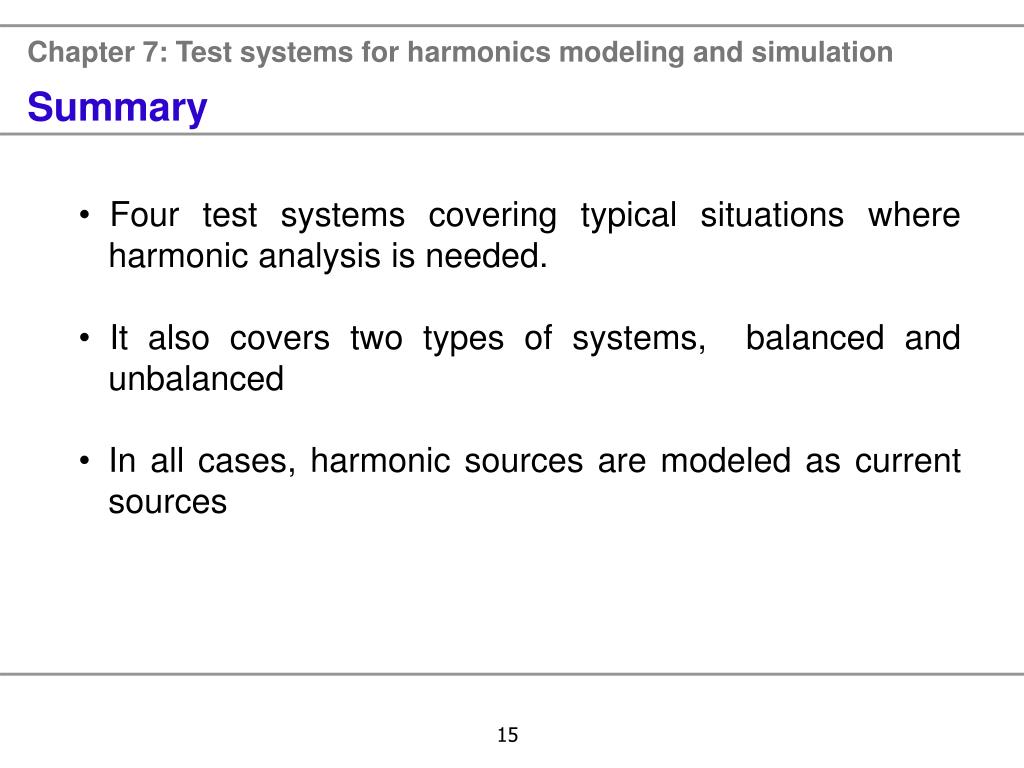

  15. Chapter 7: Test systems for harmonics modeling and simulation Summary • Four test systems covering typical situations where harmonic analysis is needed. • It also covers two types of systems, balanced and unbalanced • In all cases, harmonic sources are modeled as current sources
