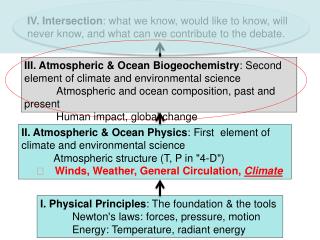

IV. Intersection : what we know, would like to know, will never know, and what can we contribute to the debate. III. Atmospheric & Ocean Biogeochemistry : Second element of climate and environmental science Atmospheric and ocean composition, past and present Human impact, global change.

vevina
Télécharger la présentation

I. Physical Principles : The foundation & the tools Newton's laws: forces, pressure, motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. IV. Intersection: what we know, would like to know, will never know, and what can we contribute to the debate. III. Atmospheric & Ocean Biogeochemistry: Second element of climate and environmental science Atmospheric and ocean composition, past and present Human impact, global change II. Atmospheric & Ocean Physics: First element of climate and environmental science Atmospheric structure (T, P in "4-D")  Winds, Weather, General Circulation, Climate I. Physical Principles: The foundation & the tools Newton's laws: forces, pressure, motion Energy: Temperature, radiant energy

  2. BioGEOCHEMICAL CYCLES Most abundant elements: oxygen (in solid earth!), iron (core), silicon (mantle), hydrogen (oceans), nitrogen, carbon, sulfur… The elemental composition of the Earth has remained essentially unchanged over its 4.5 Gyr history Extraterrestrial inputs (e.g., from meteorites, cometary material) have been relatively unimportant Escape to space has been restricted by gravity Biogeochemical cyclingof these elements between the different reservoirs of the Earth system determines the composition of the Earth’s atmosphere and oceans, and the evolution of life THE EARTH: ASSEMBLAGE OF ATOMS OF THE 92 NATURAL ELEMENTS

  3. BIOGEOCHEMICAL CYCLING OF ELEMENTS:examples of major processes Physical exchange, redox chemistry, biochemistry are involved Surface reservoirs

  4. HISTORY OF EARTH’S ATMOSPHERE N2 CO2 H2O O2 O2 reaches current levels; life invades continents oceans form CO2 dissolves Life forms in oceans Onset of photosynthesis Outgassing 4.5 Gy B.P 4 Gy B.P. 0.4 Gy B.P. 3.5 Gy B.P. present

  5. Source: EARLY EARTH Oxygen for heavy-metal fans: Lyons TW, Reinhard CT NATURE Volume: 461 Issue: 7261 Pages: 179-181 SEP 10 2009

  6. COMPARING THE ATMOSPHERES OF EARTH, VENUS, AND MARS Venus Earth Mars Radius (km) 6100 6400 3400 Surface pressure (atm) Mass (1024 kg) 91 4.87 1 5.98 0.007 0.64 CO2 (mol/mol) 0.96 3x10-4 0.95 N2 (mol/mol) 3.4x10-2 0.78 2.7x10-2 O2 (mol/mol) 6.9x10-5 0.21 1.3x10-3 H2O (atm, mol/mol) 3x10-3 1x10-2 3x10-4 H2O (total, bars) 0.3 400 2 x 10-6

  7. Atmospheric Composition (average)1 ppm= 1x10-6red = increased by human activity Gas Mole fraction Nitrogen (N2) 0.78 Oxygen (O2) 0.21 Water (H2O) 0.04 to < 5x10-3; 4x10-6 -strat Argon (Ar) 0.0093 Carbon Dioxide (CO2) 385 370x10-6 (date: 2009 2000)‏ Neon (Ne) 18.2x10-6 Ozone (O3) ¶ 0.02x10-6 to 10x10 –6 Helium (He) 5.2x10-6 Methane (CH4) 1.7x10-6 Krypton (Kr) 1.1x10-6 Hydrogen (H2) 0.55x10-6 Nitrous Oxide (N2O) 0.32x10-6 Carbon Monoxide (CO) 0.03x10-6 to 0.3x10-6 Chlorofluorocarbons 3.0x10-9 Carbonyl Sulfide (COS) 0.1x10-9 ¶ Ozone has increased in the troposphere, but decreased in the stratosphere.

  8. Notice: • atmospheric increase is ~50% of fossil fuel emissions • significant interannual variability Arrows indicate El Nino events

  9. NOAA Greenhouse Gas records

  10. Ultra-simplified ("toy") model for atmospheric concentrations of CO2, CH4 and other gases: A) mass balance B) Inputs or Production ("P"), controlled by biogeochemical processes C) Removal or Loss ("L"), at a rate proportional to the amount that is present in the atmosphere (1st order or linear process, for example: dissolving CO2 in the ocean, reacting CH4 with atmospheric hydroxyl radical. 1/L = "Lifetime"). Quantity: C gas concentration in the atmosphere (Gtons C, or ppm; 1 ppm =2.1 Gtons C globally)

  11. Ultra-simplified ("toy") model for atmospheric concentrations of CO2, CH4 and other gases: A) mass balance B) Inputs or Production ("P"), controlled by biogeochemical processes C) Removal or Loss ("L"), at a rate proportional to the amount that is present in the atmosphere (1st order or linear process, for example: dissolving CO2 in the ocean, reacting CH4 with atmospheric hydroxyl radical).1/L = "Lifetime". Quantity: C gas concentration in the atmosphere (Gtons C, or ppm; 1 ppm =2.1 Gtons C globally) The mass balance equation: Rate of change in the atmosphere = P - L C (units: Gtons/yr)

  12. Impulse Approach Steady State Results from a "Toy Model" of human-caused CO2 change Accumulation Airborne Fraction

  13. How is the composition of Earth's atmosphere controlled by geochemical and biological processes ?

  14. FAST OXYGEN CYCLE: ATMOSPHERE-BIOSPHERE Source of O2: photosynthesis nCO2 + nH2O -> (CH2O)n + nO2 Sink: respiration/decay (CH2O)n + nO2 -> nCO2 + nH2O PO2 ~120 Pg/yr LO2 ~ PO2 CO2 O2 lifetime: 10,000 years Photosynthesis less respiration O2 orgC orgC decay litter

  15. …however, abundance of organic carbon in biosphere/soil/ocean reservoirs is too small to control atmospheric O2 levels 2.1 Pg C in CO2 = 1 ppm in atm. PO2 ~ 120 Pg/yr

  16. SLOW OXYGEN CYCLE: ATMOSPHERE-LITHOSPHERE O2 lifetime: 3 million years O2: 1.2x106 Pg O CO2 O2 Photosynthesis decay runoff Fe2O3 H2SO4 weathering CO2 O2 orgC FeS2 OCEAN CONTINENT orgC Uplift burial CO2 orgC: 1x107 Pg C FeS2: 5x106 Pg S microbes FeS2 orgC SEDIMENTS Compression subduction

  17. Antarctic Ice Core Data CO2 varies over geologic time, within the range 190 – 280 ppm for the last 420,000 years. The variations correlate with climate: cold  low CO2 . Is CO2 driving climate or vice versa? The heavier temperature lines 160,000 BP to present reflect more data points, not necessarily greater variability. Source: Climate and Atmospheric History of the past 420,000 years from the Vostok Ice Core, Antarctica, by Petit J.R., Jouzel J., Raynaud D., Barkov N.I., Barnola J.M., Basile I., Bender M., Chappellaz J., Davis J. Delaygue G., Delmotte M. Kotlyakov V.M., Legrand M., Lipenkov V.M., Lorius C., Pépin L., Ritz C., Saltzman E., Stievenard M., Nature, 3 June 1999.

  18. 6 8 PgC/yr GLOBAL PREINDUSTRIAL CARBON CYCLE Inventories in Pg C Flows in Pg C a-1 The carbon cycle can be viewed as a set of "reservoirs" or compartments, each characterizing a form of C (e.g. trees; rocks containing calcium carbonate [limestone]). The cycle of C globally is then represented as a set of transfer rates between compartments. The total amount of carbon in the atmosphere + ocean + rocks that exchange with the atmosphere/ocean is fixed by very long-term geophysical processes. Human intervention may be regarded as manipulation of the rates of transfer between important reservoirs.

  19. 7800 in 2005! 8200 in 2007! 6500 1990 Global Fuel Use 1980 1970 3800 History of consumption of fossil fuels. Emissions have increased by more than 2X since 1970. There rise in the last 5 years has been really dramatic. But there has not been a corresponding rise in the annual increment of CO2. In 1970 ~75% of the emitted CO2 stayed in the atmosphere, but only ~40% in 2000. 1960 1950 Year

  20. Carbon Cycle on Land, Organisms in ocean • Photosynthesis: CO2 + H2O + light => "H2CO" + O2 • Respiration: "H2CO" + O2 => CO2 + H2O + energy Very small fraction of organic matter is stored, on average. Inorganic Carbon Cycle in the ocean • Dissolution/evasion

  21. Composition of Sea Water Charge balance in the ocean: [HCO3-] + 2[CO32-] = [Na+] + [K+] + 2[Mg2+] + 2[Ca2+] - [Cl-] – 2[SO42-] – [Br-] The alkalinity [Alk] ≈ [HCO3-] + 2[CO32-] = 2.3x10-3M (2.3 mmol/kg) "alkalinity" defines Σ' Zi [i] : response of H+ and OH- to addition of CO2

  22. Alkalinity [alk] = Σi Z+[i+] - Σi Z-[i-] = [HCO3-] + 2 [CO3=] [alk] is a re-arrangement of the charge balance equation. It cannot change when adding or removing an uncharged species like CO2. [alk] = 2 x 10-3 M -- only 1 in 1000 of total ions! ( 1 out of 600 Eq/L of negative ions)

  23. CO2(g) CO2.H2O CO2.H2O HCO3- + H+ ATMOSPHERE UPTAKE OF CO2 BY THE OCEANS KH = 3x10-2 M atm-1 OCEAN K1 = 9x10-7 M Ocean pH = 8.2 pK1 K2 = 7x10-10 M HCO3- CO32- + H+ pK2 CO2.H2O HCO3- CO32-

  24. Equilibrium calculation for [Alk] = 2.3x10-3 M CaCO3 Ca2+ + CO32- 100 200 300 400 500 CO2(g) + CO32 + H2O 2HCO3- pCO2 , ppm LIMIT ON OCEAN UPTAKE OF CO2:CONSERVATION OF ALKALINITY Charge balance in the ocean: [HCO3-] + 2[CO32-] = [Na+] + [K+] + 2[Mg2+] + 2[Ca2+] - [Cl-] – 2[SO42-] – [Br-] The alkalinity [Alk] ≈ [HCO3-] + 2[CO32-] = 2.3x10-3M is the excess base relative to the CO2-H2O system It is conserved upon addition of CO2 • uptake of CO2 is limited by the existing supply of CO32-: Increasing Alk requires dissolution of sediments: 2.1 2.0 [CO2.H2O]+[HCO3-] +[CO32-], 10-3M 1.9 1.8 [HCO3-], 10-3M 1.6 1.4 4 [CO32-], 10-4 M 3 2 8.6 Ocean pH 8.4 8.2 …which takes place over a time scale of thousands of years

  25. EQUILIBRIUM PARTITIONING OF CO2BETWEEN ATMOSPHERE AND GLOBAL OCEAN Equilibrium for present-day ocean: • only 3% of total inorganic carbon is currently in the atmosphere But CO2(g) k [ [H+] k [ F k … positive feedback to increasing CO2 Pose problem differently: how does a CO2additiondN partition between the atmosphere and ocean at equilibrium? [ 28% of added CO2 remains in atmosphere!

  26. FURTHER LIMITATION OF CO2 UPTAKE: SLOW OCEAN TURNOVER (~ 200 years)‏ Uptake by oceanic mixed layer only (VOC= 3.6x1016 m3) would givef = 0.94 (94% of added CO2 remains in atmosphere)‏ Inventories in 1015 m3 water Flows in 1015 m3 yr-1

  27. Global CO2 cycle

  28. Observed uptake of fossil fuel CO2 by the oceans compare to ~300 moles CO3=

  29. Global CO2 cycle

  30. NET UPTAKE OF CO2 BY TERRESTRIAL BIOSPHERE(1.4 Pg C yr-1 in the 1990s; IPCC [2001])is a small residual of large atm-bio exchange Gross primary production (GPP): GPP = CO2 uptake by photosynthesis = 120 PgC yr-1 Net primary production (NPP): NPP = GPP – “autotrophic” respiration by green plants = 60 PgC yr-1 Net ecosystem production (NEP): NEP = NPP – “heterotrophic” respiration by decomposers = 10 PgC yr-1 Net biome production (NBP)‏ NBP = NEP – fires/erosion/harvesting = 1.4 PgC yr-1 CO2 + H2O  "H2CO" + O2Photosynthesis and Respiration Atmospheric CO2 observations show that the net uptake is at northern midlatitudes but cannot resolve American vs. Eurasian contributions

  31. CYCLING OF CARBON WITH TERRESTRIAL BIOSPHERE Inventories in PgC Flows in PgC yr-1 Relatively small reservoirs  Short time scales net uptake from reforestation is transitory. ..unless resources are managed to preserve organic matter

  32. Global CO2 budget (PgC yr-1 ) 1980 – 1990 1990 –2000 Fossil Fuel+ cement 5.3 Deforestation 1-2 Total 6.3 - 7.3 Atmospheric accumulation 3.2 Ocean uptake 2.1 "Missing Sink" 1-2 Total 6.3 - 7.3 6.5 .5-1 7-7.5 Sources 3.2 1.5-2 1.8-2.8 7-7.5 Sinks 2.1 Pg C = 1 ppm atmospheric CO2[source: Cias et al., Science 269, 1098, (1995)]

  33. EVIDENCE FOR LAND UPTAKE OF CO2 FROM TRENDS IN O2,1990-2000

  34. Carbon-Climate Futures Vegetation matters! Different models project dramatically different futures using different ecosystem models. ~ 2º K in 2100 Coupled simulations of climate and the carbon cycle

  35. 7800 in 2005! 8200 in 2007! 6500 1990 Global Fuel Use 1980 1970 3800 History of consumption of fossil fuels. Emissions have increased by more than 2X since 1970. There rise in the last 5 years has been really dramatic. But there has not been a corresponding rise in the annual increment of CO2. In 1970 ~75% of the emitted CO2 stayed in the atmosphere, but only ~40% in 2000. 1960 1950 Year

  36. 2007

  37. US fossil fuel use The US is was the largest consumer of fossil fuels until recently. Per capita use is very high, ~5 tons C per person per year. This rate has not changed much in 50 years. 109 metric tons of C / yr 0 .5 1. 1.5 (source: CDIAC –Trends –updated)‏

  38. Metric tons C per person US per capita fossil fuel use

  39. US and World Per Capita Fossil Fuel Use since 1950 Why don't we see a big upswing due to the emergence of economies in China and India ?
