1. Box & Whisker Plots SDAP 1.3 (Understand the meaning of, and be able to compute the minimum, the lower quartile, the median, the upper quartile, and the maximum of a data set).

2. S. Blake3 points A. Bynum16 points K. Bryant33 points T. Murphy0 points A. Goudelock7 points Heat vs. Lakers 3/4/12

3. ThirdQuartile16 First Quartile3 Maximum Value33 MinimumValue0 Median7 Heat vs. Lakers 3/4/12

4. A box-and-whisker plot • can be useful for handling many data values • allow people to explore data and to draw informal conclusions when two or more variables are present • show only certain statistics rather than all the data • Think back on the Lakers… did the box-and-whisker plot show rebounds? Fouls? Free throws? What is a box & whisker plot?

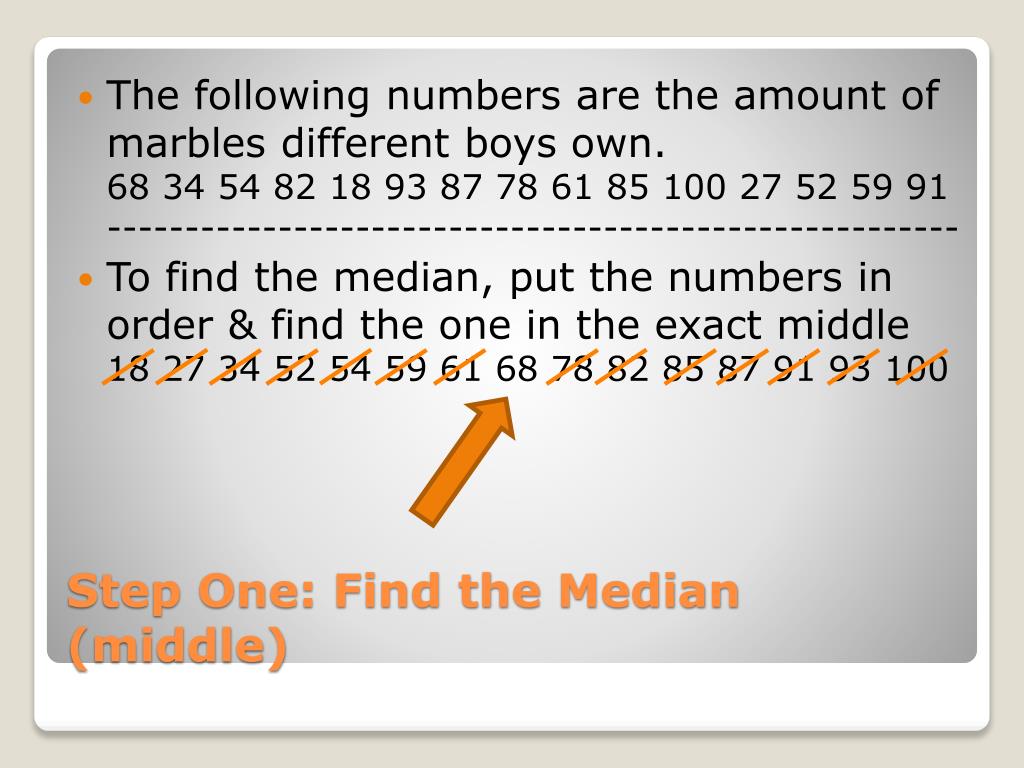

5. The following numbers are the amount of marbles different boys own.68 34 54 82 18 93 87 78 61 85 100 27 52 59 91------------------------------------------------------- • To find the median, put the numbers in order & find the one in the exact middle18 27 34 52 54 59 61 68 78 82 85 87 91 93 100 Step One: Find the Median (middle)

6. Focus only on the values to the left of the median: 18 27 34 52 54 59 61 • Now we need to find the median of these numbers • Since they’re already in order it’s easy to see the median of the values less than the median is 52 • This value is called the “Lower Quartile” • Think ahead: Using your knowledge of prefixes and suffixes, what does ‘quartile’ mean and how will knowing this help us design our box-and-whisker plot? Step Two: The Lower Quartile

7. Now consider only the values to the right of the median: 78 82 85 87 91 93 100 • You should have noticed the median of this set of numbers is 87 • This value is called the “Upper Quartile” Step Three: The Lower Quartile

8. What happens if you’re finding the median in an ordered set with an even number of values? • You must first take the average of the two middle numbers. • For example: 3, 5, 7, and 10.Add the two middle numbers 5 + 7 = 12Divide your answer by the number of values added 12 / 2 = 66 is the average and yourmedian for this set. Wait a minute… Too easy right?

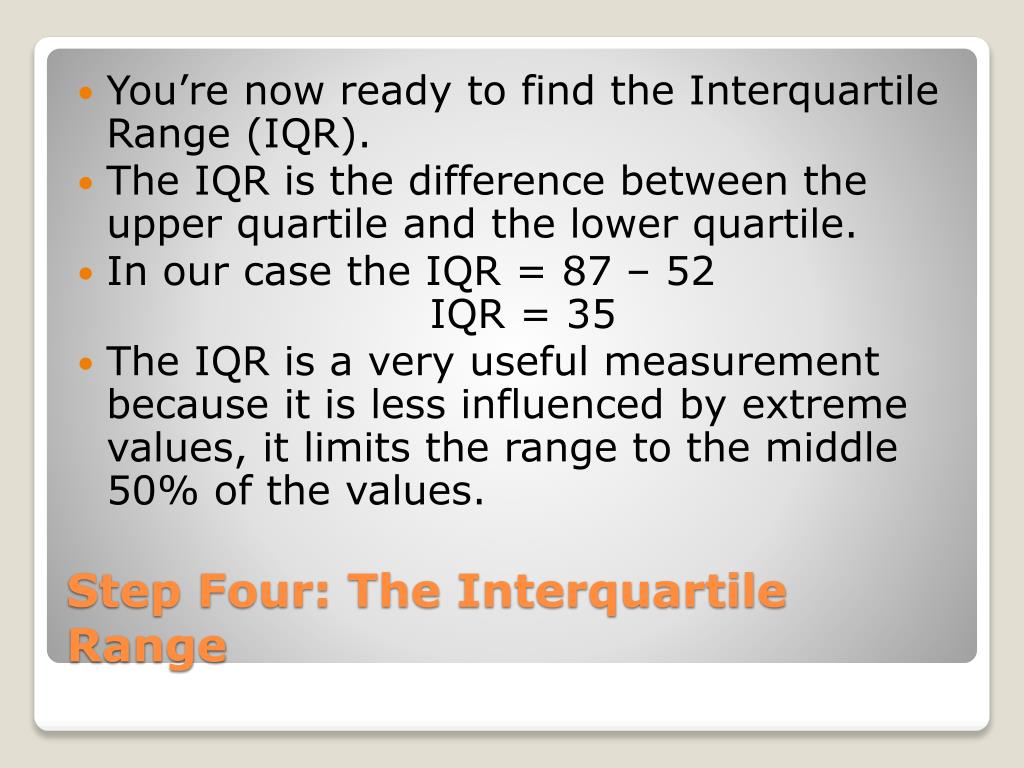

9. You’re now ready to find the Interquartile Range (IQR). • The IQR is the difference between the upper quartile and the lower quartile. • In our case the IQR = 87 – 52 IQR = 35 • The IQR is a very useful measurement because it is less influenced by extreme values, it limits the range to the middle 50% of the values. Step Four: The Interquartile Range

10. X Step Five: Draw Your Graph

11. Now you try!

12. What is the median of the set of data below?34, 22, 18, 32, 26, 56, 49, 40, 34, 41, 12 34 #1

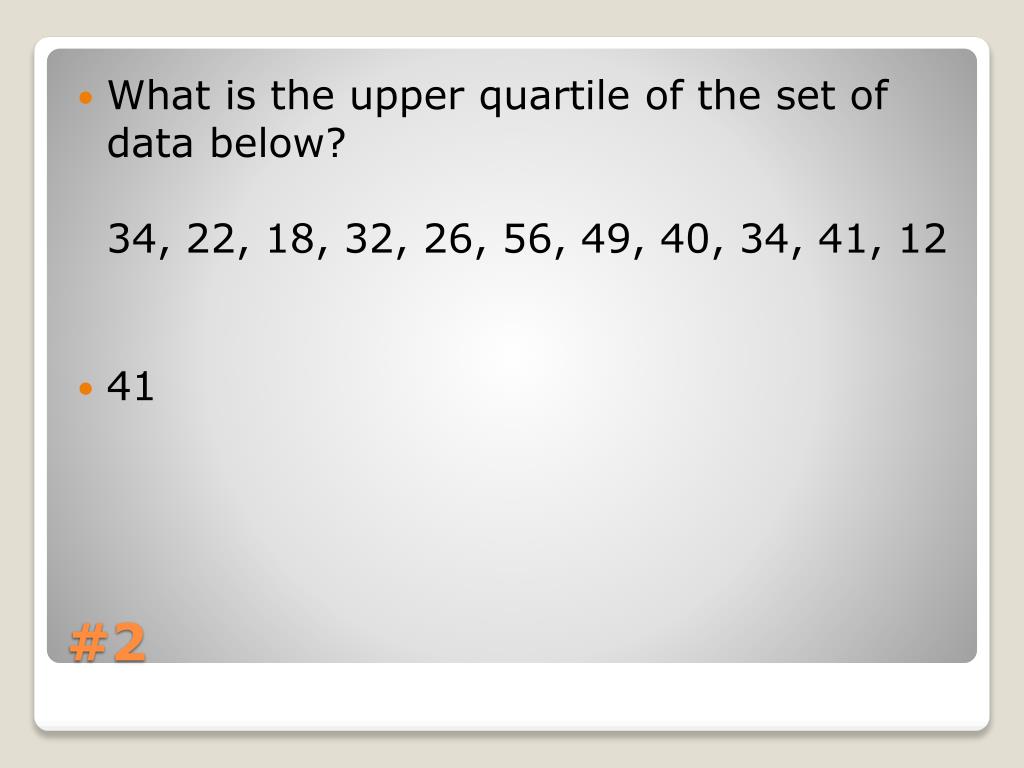

13. What is the upper quartile of the set of data below?34, 22, 18, 32, 26, 56, 49, 40, 34, 41, 12 41 #2
