Classification of Discrete Event Simulation Models and Output Data: Creating a Sufficient Model Set.

1. Classification of Discrete Event Simulation Models and Output Data:Creating a Sufficient Model Set. Katy Hoad (kathryn.hoad@wbs.ac.uk) Stewart Robinson, Ruth Davies, Mark Elder www.wbs.ac.uk/go/autosimoa Funded by EPSRC and SIMUL8 Corporation

2. AIM: Provide a representative and sufficient set of models / data output for use in discrete event simulation research.

3. MODEL CLASSIFICATION Creating A Standard Set of Models/Outputs Outline: • Motivation • Identification of model/output characteristics • Creation of a classification system

4. Simulation model Output data Analyser Warm-up analysis Obtain more output data Use replications or long-run? Replications analysis Run-length analysis Recommendation possible? Recommend- ation Motivation • Want to create an automated Analyser to advise user on: • Warm-up length • Run-length • Number of replications

5. Motivation • Needed to test output analysis methods to find the most effective methods and… • …test created algorithms for effectiveness and robustness. • Required a set of models / output data that sufficiently covered the different types of possible models/output. • Could not find a general set in the public domain.

6. Identification of model/output characteristics How do you define a sufficient and representative set of models/output? AIM To define a set of characteristics that classify/describe a model and its output. • Searched the literature. • Collected and studied ‘real’ models/output.

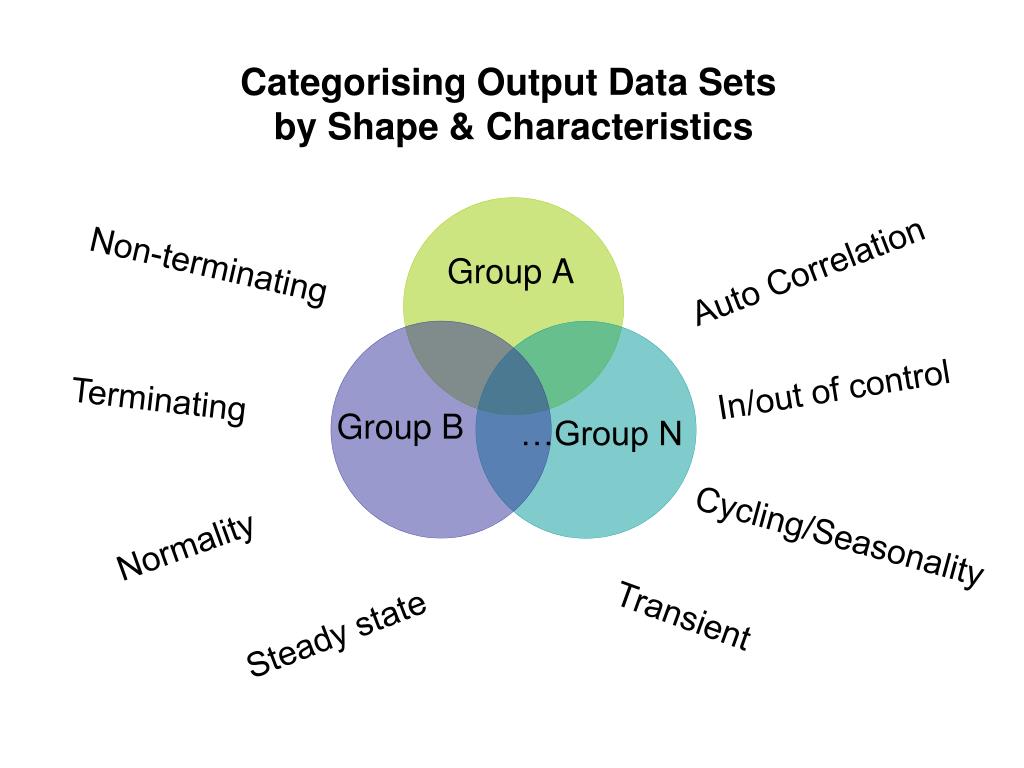

7. Auto Correlation Non-terminating In/out of control Terminating Group B Normality Cycling/Seasonality Steady state Transient

8. 2 main categories or groups: • Transient (including out-of-control trend) • Steady-state (including steady-state cycle) 9 other characteristics of models / output were chosen to categorize the models / output within these two main groups.

9. Output data characteristics • Model characteristics • Deterministic or Stochastic (random) • Significant pre-determined model changes (by time) • Dynamic internal changes i.e. ‘feed-back’ • Empty-to-empty pattern • Initial transient (warm-up) • Out of control trend ρ≥1 • Cycle • Auto-correlation • Statistical distribution

10. Looked at over 50real models- defined as discrete event simulation models of real existing / future systems: For example: • Justification of selection of model output: • Picked most likely output result for each model, using already programmed results collection when feasible.

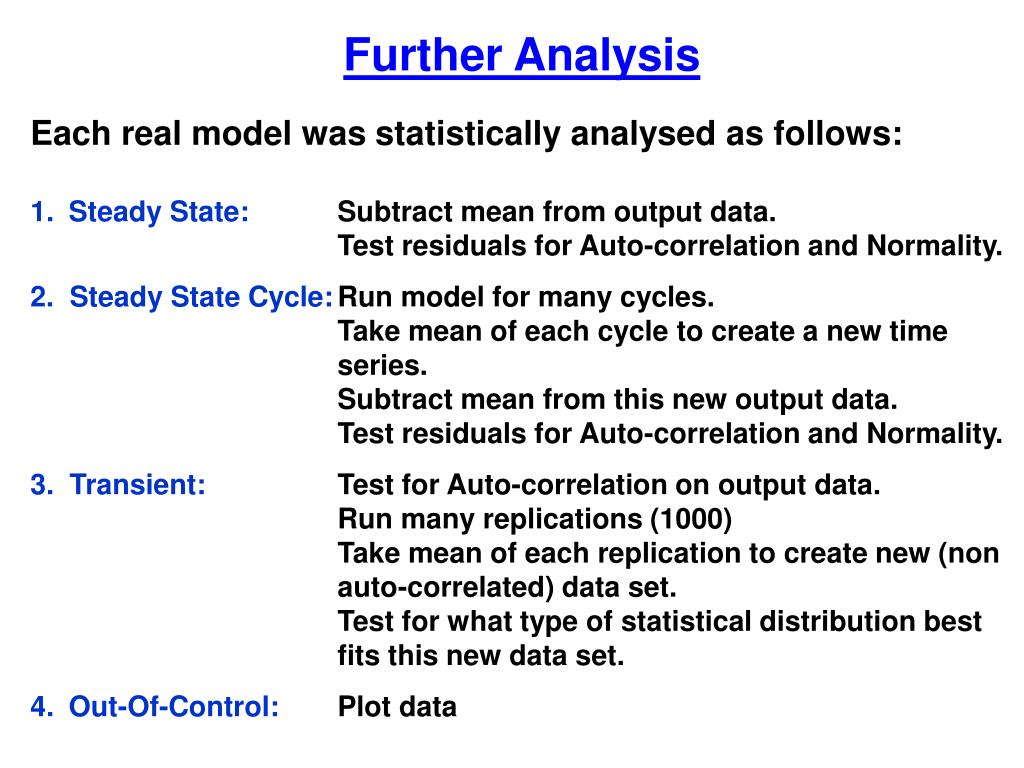

11. Further Analysis • Each real model was statistically analysed as follows: • Steady State: Subtract mean from output data. • Test residuals for Auto-correlation and Normality. • 2. Steady State Cycle: Run model for many cycles. • Take mean of each cycle to create a new time series. • Subtract mean from this new output data. • Test residuals for Auto-correlation and Normality. • 3.Transient: Test for Auto-correlation on output data. • Run many replications (1000) • Take mean of each replication to create new (non auto-correlated) data set. • Test for what type of statistical distribution best fits this new data set. • Out-Of-Control: Plot data

12. Analysis Results Steady State data: • Autocorrelation: AR(1), AR(2), some AR(3+), some ARMA(n,n) & some with no auto-correlation. • Distributions: Normal and non-normal. Transient data: • AR(1), AR(2), some AR(3+), some ARMA(n,n) & some with no autocorrelation. • Distributions found to be a ‘good’ fit to the various transient data output: Normal, Beta, Pearson5, LogNormal, Weibull, Gamma, Pearson6, Erlang, Chi squared, Bi-modal distribution

13. Classification Tables • MODEL SUMMARY_Steady State.xls • MODEL SUMMARY_Transient.xls • AIM: Collect ‘real’ models to cover range of classifications of models. (On-going process) Create artificial models to cover range of classifications of output data.

14. Sample of Artificial Models from literature: steady state outputs with or without a warm-up period. • Cash et al 1992: AR(1); M/M/1; Markov Chain. • Robinson 2007: AR(1); M/M/1. • Goldsman et al. 1994: AR(1); M/M/1. • White, Cobb & Spratt 2000: AR(2). • Ockerman & Goldsman: Random Walk; AR(1); MA(1). 1997 • Kelton & Law 1983: M/M/1 (FIFO); M/M/1 (LIFO); M/M/1(SIRO); M/M/1 (initialized with 10 customers); E4/M/1; M/H2/1; M/M/2; M/M/4; M/M/1/M/1/M/1. • Hsieh et al 2004: M/M/1/199; M/G/1/199; M/M/1/19; Number-in-stock process single item inventory management system.

15. 3 main methods for creating artificial models / output data sets: 1. Create simplesimulation models where theoretical value of some output / response is known. • E.g. Model: M/M/1. Output: mean waiting time. 2. Create simple simulation models where the value of some output / response is estimated but model characteristics can be controlled. • E.g. Model: Single item inventory management system. Output: Number-in-stock. • 3. Create data sets from known equations, which closely resemble real model output, with known value for some specific output / response. • E.g. AR(1) with Normal(0,1) errors. Output: mean

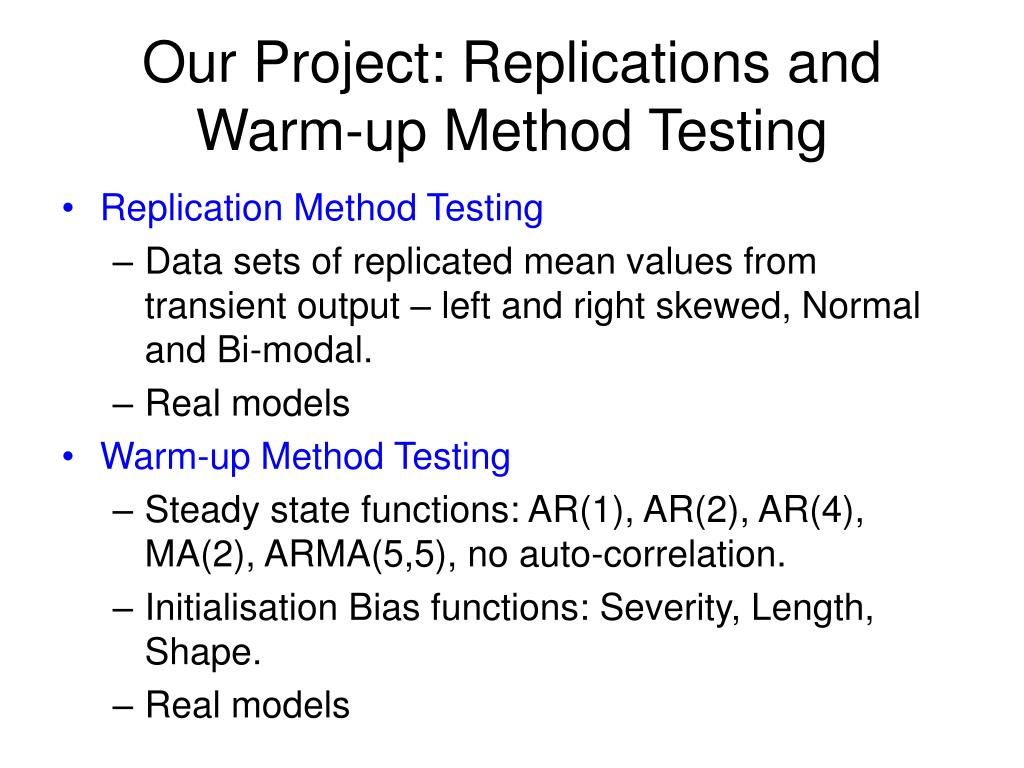

16. Our Project: Replications and Warm-up Method Testing • Replication MethodTesting • Data sets of replicated mean values from transient output – left and right skewed, Normal and Bi-modal. • Real models • Warm-up Method Testing • Steady state functions: AR(1), AR(2), AR(4), MA(2), ARMA(5,5), no auto-correlation. • Initialisation Bias functions: Severity, Length, Shape. • Real models

17. SUMMARY • Produced a classification of model and output data types for the purpose of aiding research into simulation output analysis. • Currently using artificial models that broadly cover each output type in the classification tables in our research into output analysis methods. www.wbs.ac.uk/go/autosimoa

18. DISCUSSION: • YOUR COMMENTS APPRECIATED • Using our chosen classification criteria, we have classified a complete set of possible models / output: But are these criteria sufficient? • Main model/output types missing from our collection: • Transient with warm-up. • Deterministic transient. • Cycle with warm-up • Are these missing model criteria feasible? ?

19. Thank you for listening. ACKNOWLEDGMENTSThis work is part of the Automating Simulation Output Analysis (AutoSimOA) project that is funded by the UK (EPSRC) Engineering and Physical Sciences Research Council (EP/D033640/1). The work is being carried out in collaboration with SIMUL8 Corporation, who are also providing sponsorship for the project. Stewart Robinson, Katy Hoad, Ruth Davies INFORMS November 2007 www.wbs.ac.uk/go/autosimoa
