1 / 15

1 Motor Car-bot

1 Motor Car-bot. You need the following LEGO Parts. 2 - 24-tooth Spur Gears 1 - 8-tooth Spur Gear. 1 Wire. 1 Motor. 4 Tires 4 Hubs. 1 LEGO RCX. 2 - 1x4 Beams. 1 - 1x2 w/Axel hole. 2- 10-stud Axels. 2 - 1x16 Beams. 4 - 2x6 Plates. 2 Full Bushings. Step 1 - Pieces Needed. Step 1a.

vine
Télécharger la présentation

1 Motor Car-bot

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 1 Motor Car-bot

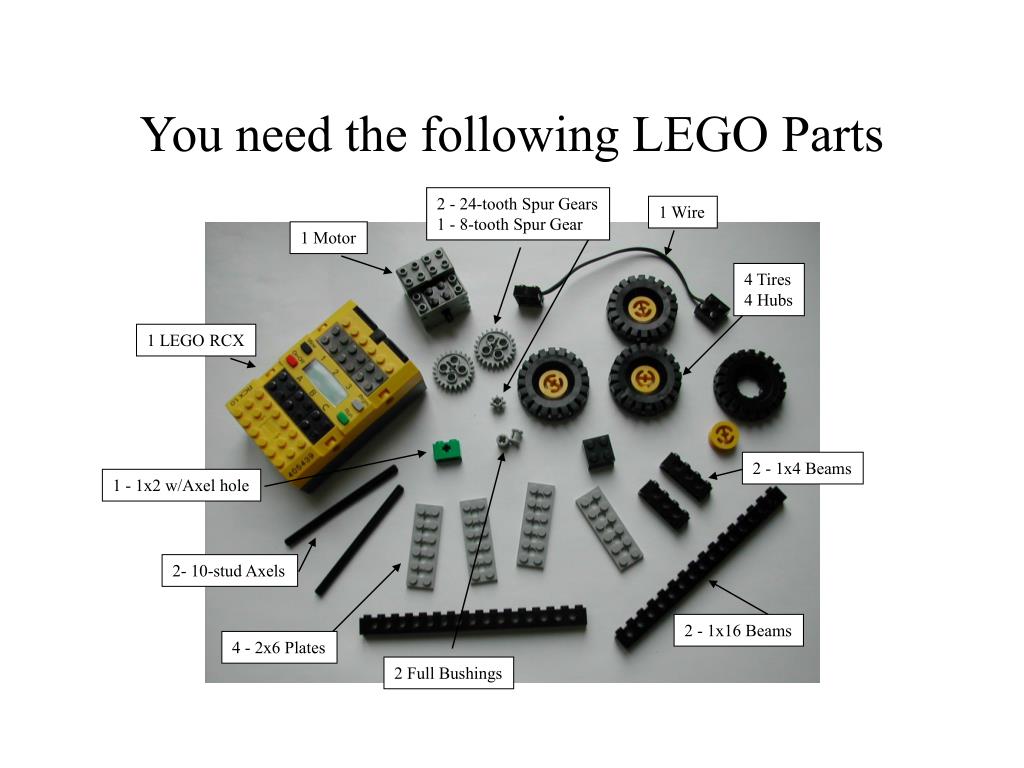

  2. You need the following LEGO Parts 2 - 24-tooth Spur Gears 1 - 8-tooth Spur Gear 1 Wire 1 Motor 4 Tires 4 Hubs 1 LEGO RCX 2 - 1x4 Beams 1 - 1x2 w/Axel hole 2- 10-stud Axels 2 - 1x16 Beams 4 - 2x6 Plates 2 Full Bushings

  3. Step 1 - Pieces Needed

  4. Step 1a Attach the 3 2x6 plates to the back side of the 1x16 beams

  5. Step 1b Attach the 1x2 with axel hole to one 2x6 plate and attach the 2 1x4 beams to the two 2x6 plates

  6. Step 2 - Pieces Needed

  7. Step 2 Attach the motor to the 2 1x4 beams Attach the 8-tooth gear to the motor Put 1 10-stud axel through the second hole of the 1x16 beam Attach a 24-tooth gear to each end of the 10-stud axel

  8. Step 3 - Pieces Needed

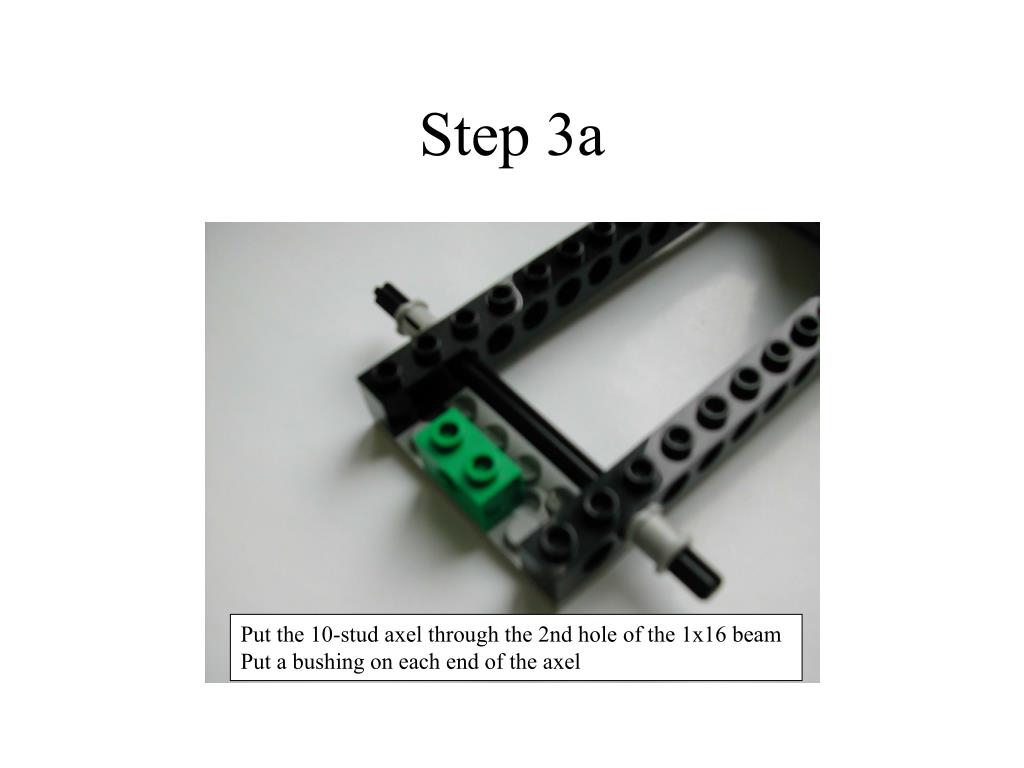

  9. Step 3a Put the 10-stud axel through the 2nd hole of the 1x16 beam Put a bushing on each end of the axel

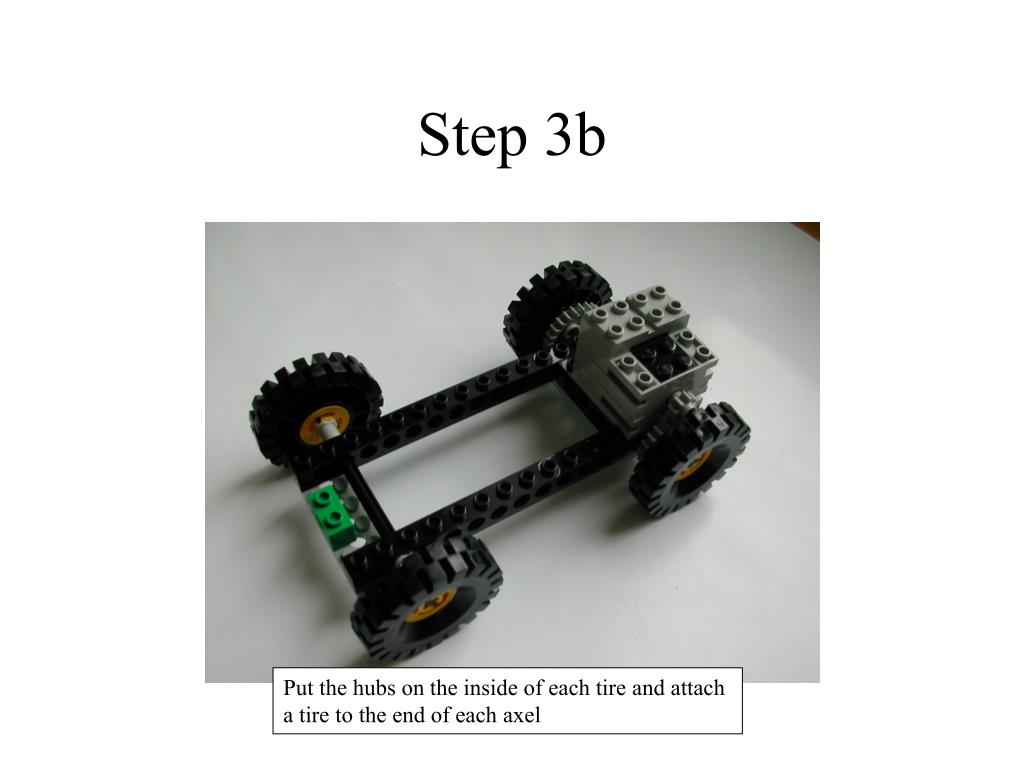

  10. Step 3b Put the hubs on the inside of each tire and attach a tire to the end of each axel

  11. Step 4 - Pieces Needed

  12. Step 4a Attach the RCX to the 1x16 beams

  13. Step 4b Attach one end of the wire to Port A and the other end to to the motor

  14. Step 4c Attach the 2x2 brick to the top of the wire on the motor

  15. Step 4d Attach the 2x6 plate to the RCX and the top of the motor

More Related
