  1. DAQ Electronics Developments and Technology Transfer at IFIN-HH Sorin Martoiu IFIN-HH (DFPE)

  2. Product of the RD51 Collaboration for the Development of Micro-Pattern Gas Detectors Technologies General purpose multi-channel readout solution for a wide range of detector types, detector complexities, and different experimental environments. Scalable - size Only point-to-point links. No busses Star topology Scalable - application Allows the use of different front-ends Can integrate different sub-detectors DAQ in the same system Cost effective Use of cost effective components from high-volume markets Scalable Readout System HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest

  3. HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest L. Ropelewski, RD51 Collab. Meeting, Stony Brook 2012

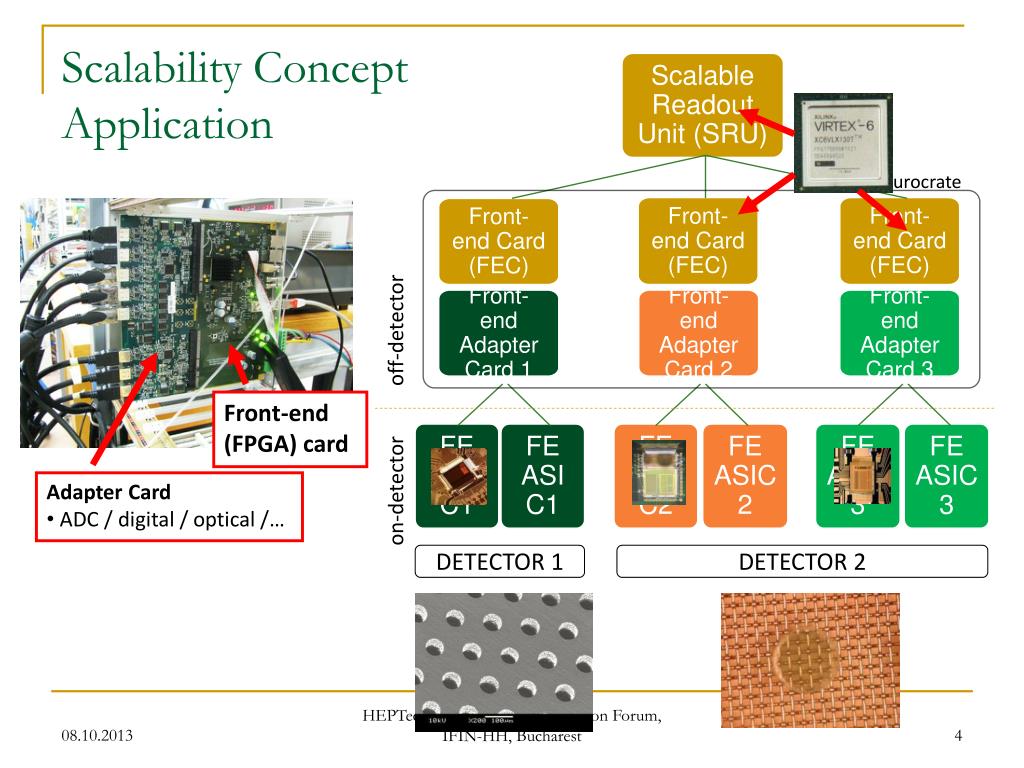

  4. Scalability ConceptApplication Eurocrate Scalable Readout Unit (SRU) off-detector Front-end Card (FEC) Front-end Card (FEC) Front-end Card (FEC) Front-end (FPGA) card Front-end Adapter Card 1 Front-end Adapter Card 2 Front-end Adapter Card 3 on-detector • Adapter Card • ADC / digital / optical /… DETECTOR 1 DETECTOR 2 FE ASIC1 FE ASIC1 FE ASIC2 FE ASIC 2 FE ASIC 3 FE ASIC 3 HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest

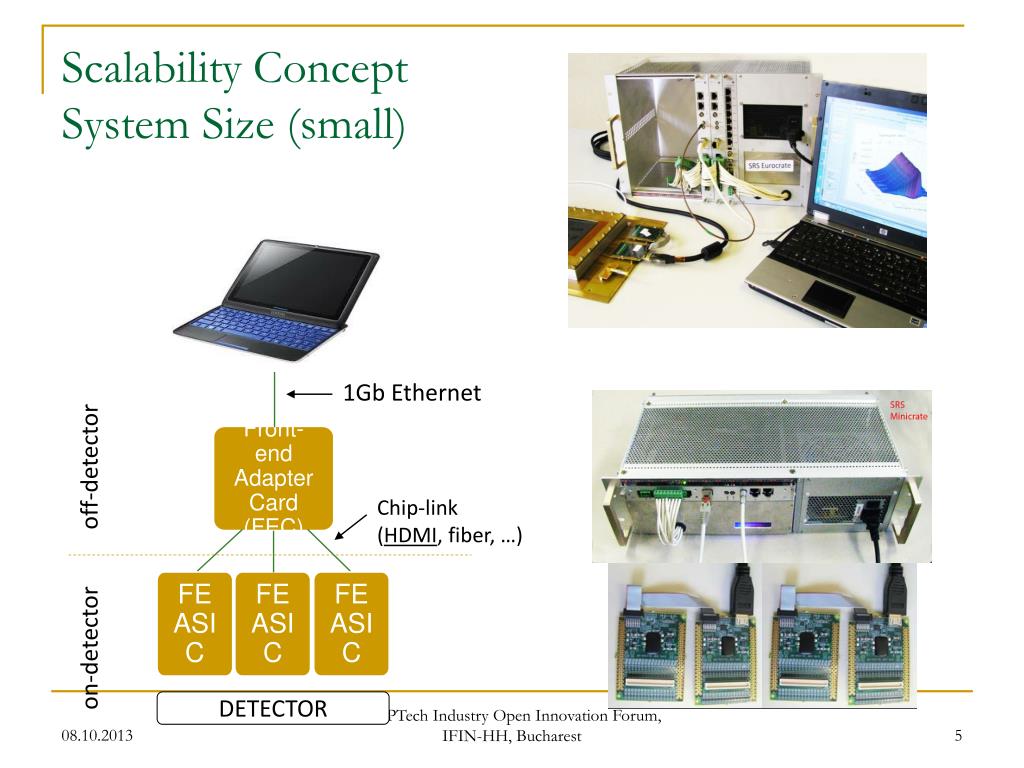

  5. Scalability ConceptSystem Size (small) 1Gb Ethernet Front-end Adapter Card (FEC) off-detector Chip-link (HDMI, fiber, …) FE ASIC FE ASIC FE ASIC on-detector DETECTOR HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest

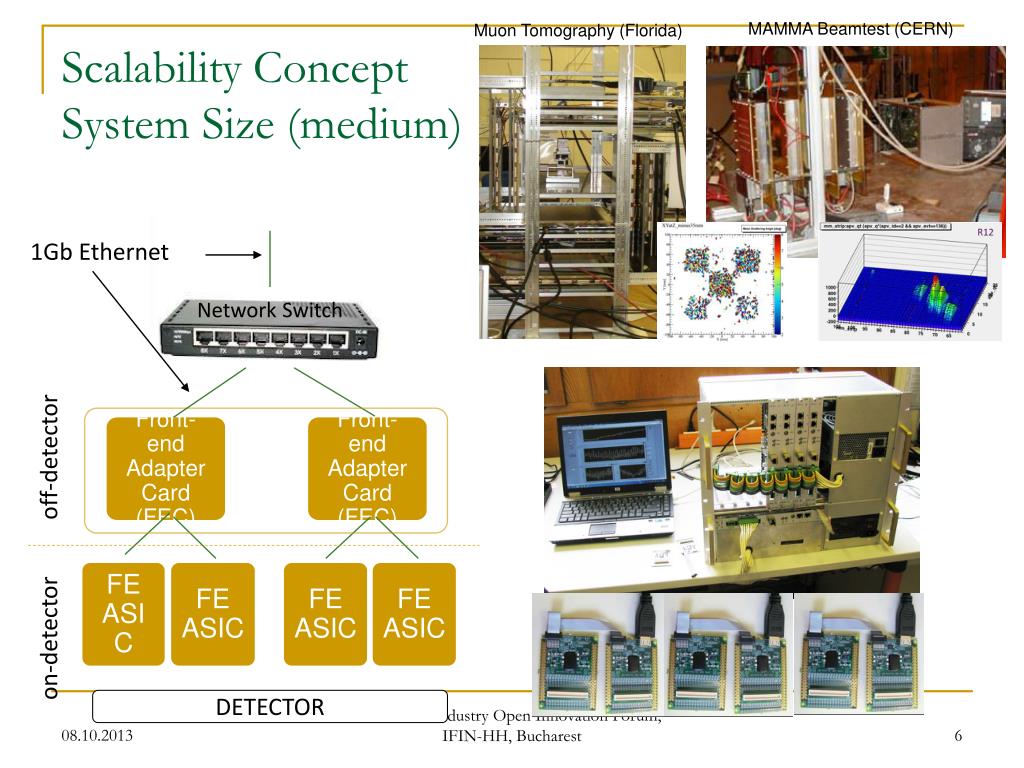

  6. Scalability ConceptSystem Size (medium) 1Gb Ethernet Network Switch Front-end Adapter Card (FEC) Front-end Adapter Card (FEC) off-detector FE ASIC FE ASIC FE ASIC FE ASIC on-detector DETECTOR MAMMA Beamtest (CERN) Muon Tomography (Florida) HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest

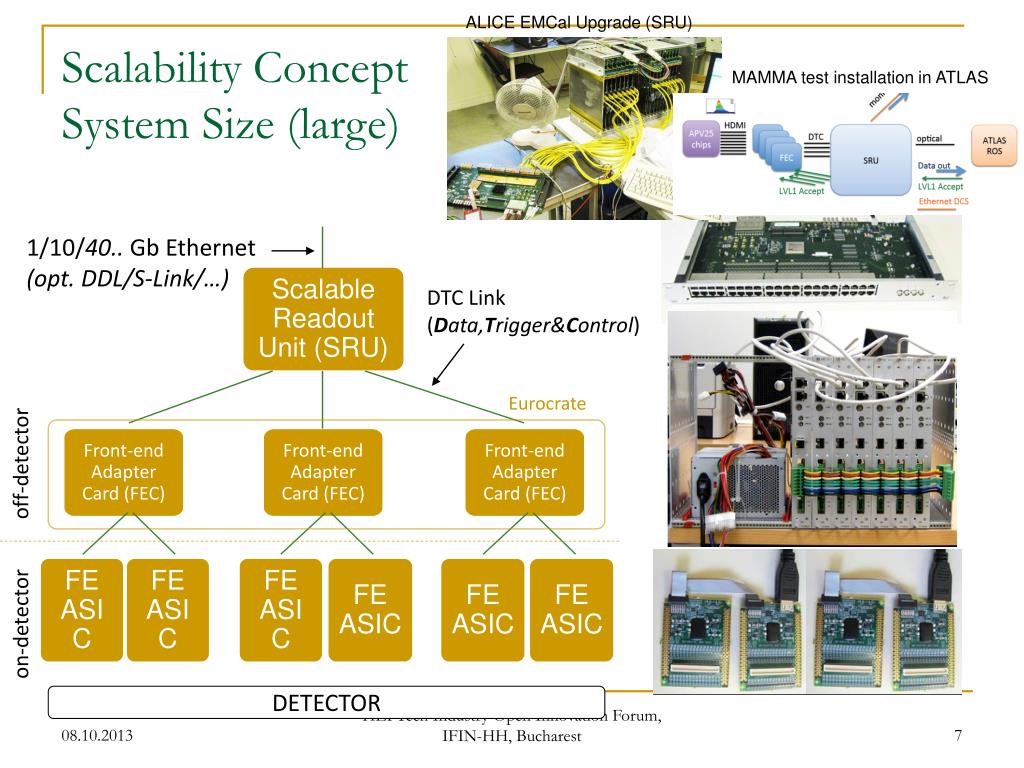

  7. Scalability ConceptSystem Size (large) 1/10/40.. Gb Ethernet (opt. DDL/S-Link/…) DTC Link (Data,Trigger&Control) Eurocrate off-detector on-detector DETECTOR ALICE EMCal Upgrade (SRU) MAMMA test installation in ATLAS Scalable Readout Unit (SRU) Front-end Adapter Card (FEC) Front-end Adapter Card (FEC) Front-end Adapter Card (FEC) FE ASIC FE ASIC FE ASIC FE ASIC FE ASIC FE ASIC HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest

  8. Geophysical Muon Tomography (France) Applications MAMMA ATLAS Small Wheel Upgrade NEXT double-beta decay experiment (Spain) HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest

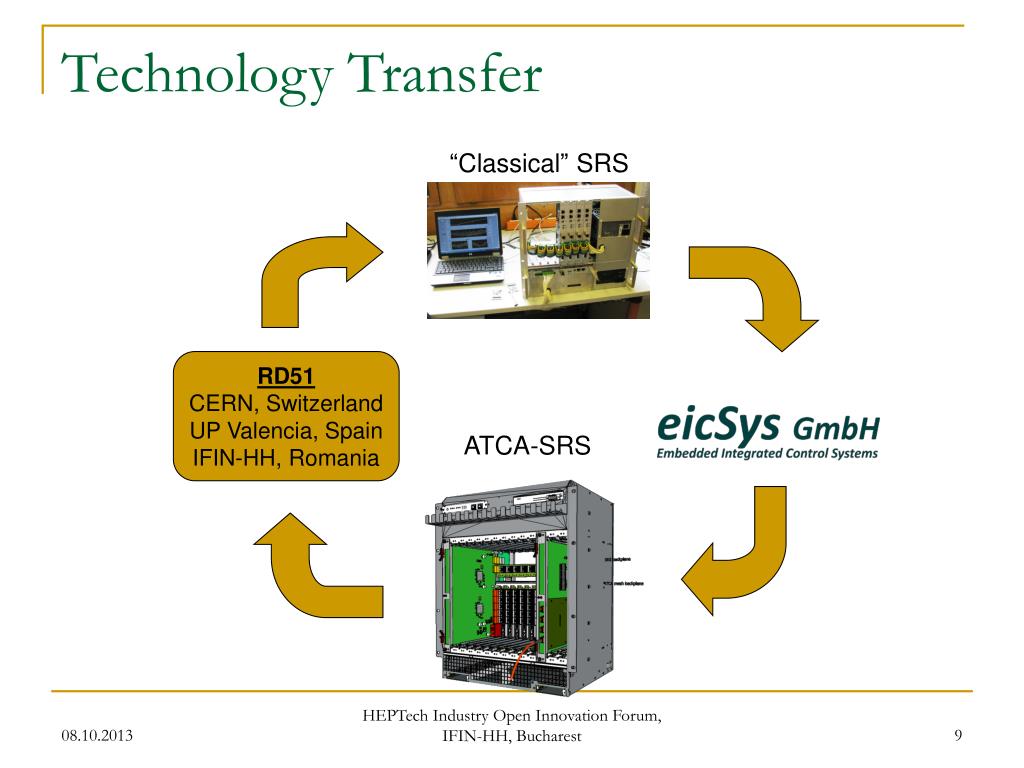

  9. “Classical” SRS ATCA-SRS Technology Transfer RD51 CERN, Switzerland UP Valencia, Spain IFIN-HH, Romania HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest

  10. Technology Transfer Research Medical Applications NEXT ATLAS NSW Upgrade Industry HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest

  11. Thank you HEPTech Industry Open Innovation Forum, IFIN-HH, Bucharest
