Regents Physics

Regents Physics. Chapters 17/18 Circuits Series Circuits. The Series Circuit. click. Summary 1. The sum of the potential drops equals the potential rise of the source. 2. The current is the same everywhere in the series circuit

violet
Télécharger la présentation

Regents Physics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Regents Physics • Chapters 17/18 Circuits • Series Circuits

  2. The Series Circuit click Summary 1. The sum of the potential drops equals the potential rise of the source. 2. The current is the same everywhere in the series circuit 3. The total resistance of the circuit (also called effective resistance) is equal to the sum of the individual resistances

  3. Series Circuit and Ohm’s Law

  4. How it looks on your Reference Tables What do these formulas tell us?

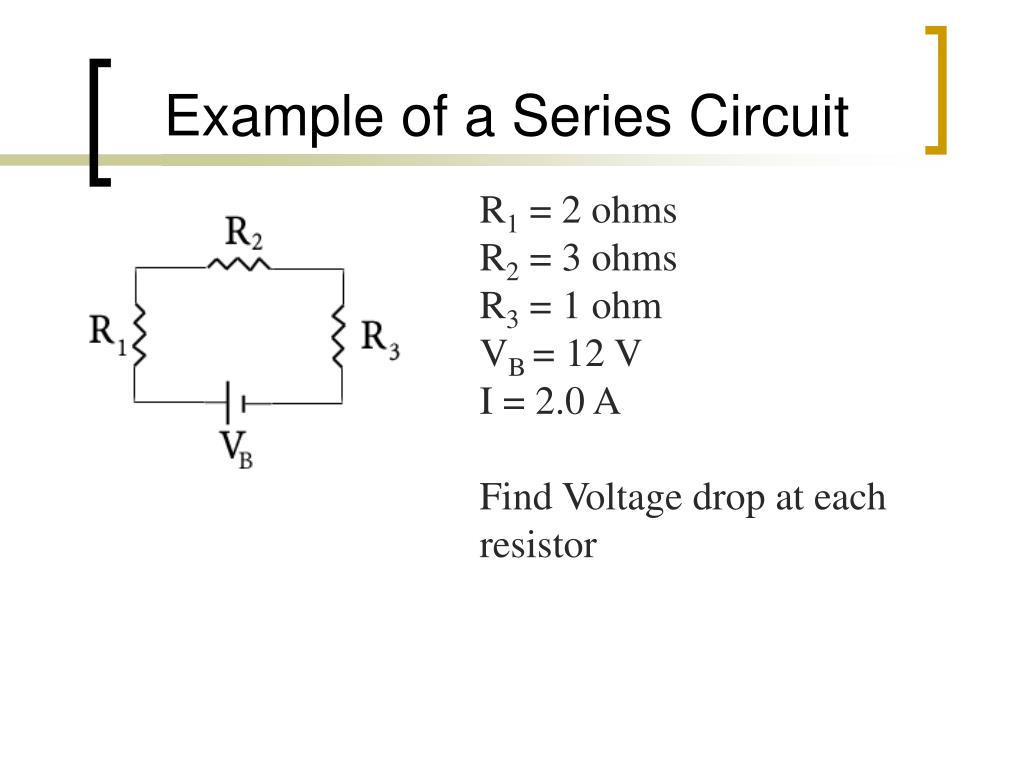

  5. Example of a Series Circuit R1 = 2 ohms R2 = 3 ohms R3 = 1 ohm VB = 12 V I = 2.0 A Find Voltage drop at each resistor

  6. How Do We draw Circuits? • A series circuit contains • (1) 9 V cell and 5  (1) resistor. • A voltmeter measures the voltage drop across the resistor. • An ammeter measures the current flowing in the circuit. • Draw the Circuit • Calculate the current in the circuit • What is the voltage drop across the resistor?

  7. Series Circuits problem #2 • A series circuit contains a 12 V battery with 5 and 3 resistors in series. • Draw the circuit • What is the voltage drop across the resistors? • What is the current flowing in the circuit?
