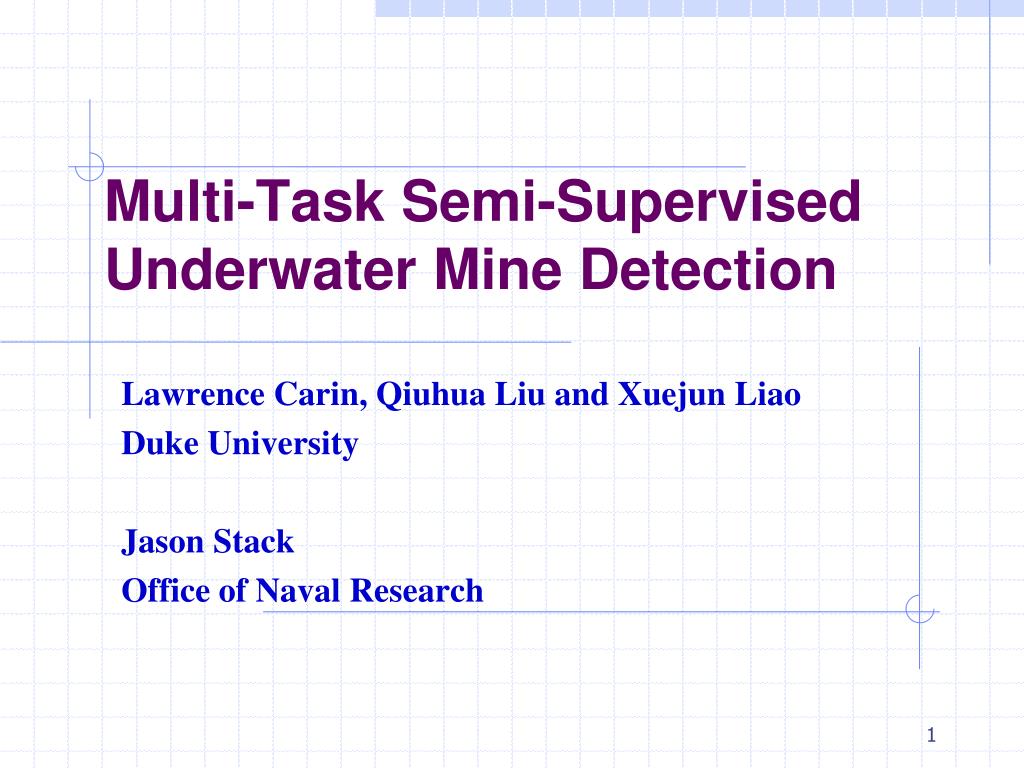

  1. Multi-Task Semi-Supervised Underwater Mine Detection Lawrence Carin, Qiuhua Liu and Xuejun Liao Duke University Jason Stack Office of Naval Research

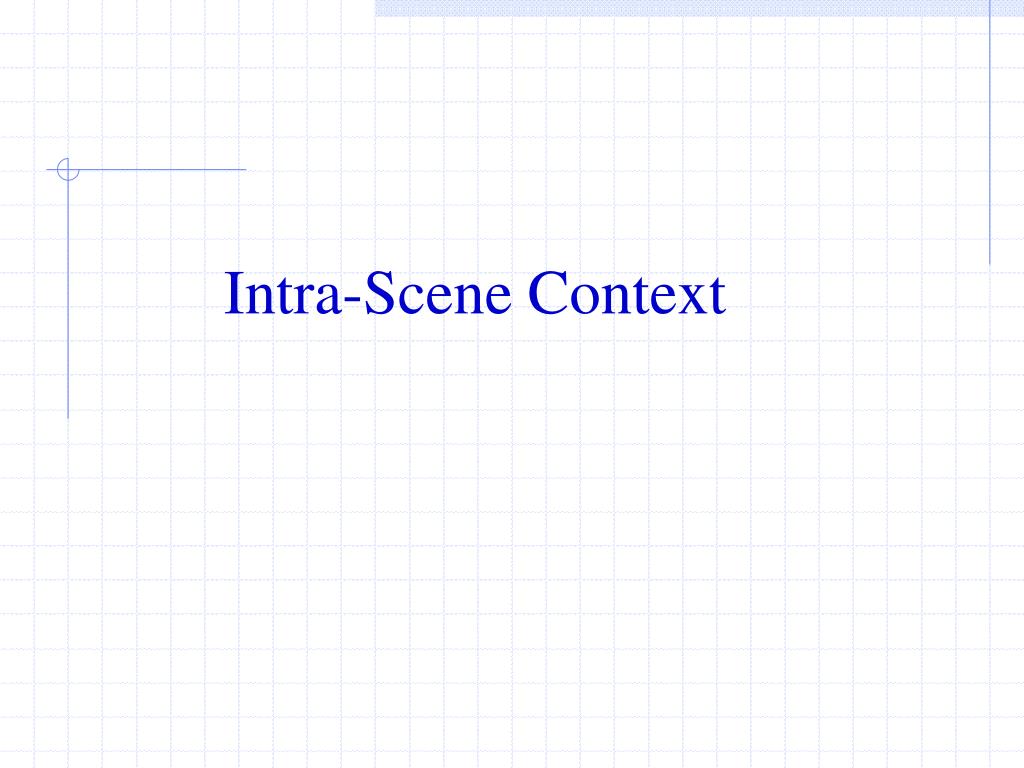

  2. Intra-Scene Context

  3. Individual Signatures Processed by Supervised Classifiers What Analyst Processes Message: Analyst Places Classification of Any Given Item Within Context of All Items in the Scene Supervised Classifier Classifies Each Item in Isolation

  4. Decision surface based on labeled data (supervised) Decision surface based on labeled & Unlabeled data (semi-supervised)

  5. Inter-Scene Context

  6. Message • Humans are very good at exploiting context, both within a • given scene and across multiple scenes • Intra-scene context: semi-supervised learning • Inter-scene context: multi-task and transfer learning • A major focus of machine learning these days

  7. Data Manifold Representation Based on Markov Random Walks Given X={x1, …,xN}, first construct a graph G=(X,W), with the affinity matrix W, where the (i, j)-th element of W is defined by a Gaussian kernel: we consider a Markov transition matrix A, which defines a Markov random walk, where the (i, j)-th element: gives the probability of walking from xito xj by a single step. The one-step Markov random work provides a local similarity measure between data points.

  8. Semi-Supervised Multitask Learning(1/2) • Semi-supervised MTL: Given M partially labeled data manifolds, each defining a classification task, we propose a unified sharing structure to learn the M classifiers simultaneously. • The Sharing Prior: We consider MPNBCclassifiers, parameterized by The M classifiers are not independent but coupled by a joint prior distribution:

  9. Baseline prior Balance parameter Prior transferred from previous tasks Semi-Supervised Multitask Learning(2/2) With • The normal distributions indicates the meta-knowledge indicating how the present task should be learned, based on the experience with a previous task. • When there are no previous tasks, only the baseline prior is used by setting m=1 =>PNBC. • Sharing tasks to have similar , not exactly the same(advantages over the Dirac delta function used in previous MTL work).

  10. Thanks
