  1. Lecture 39 Spatial Coherence and Holography Honors talks this evening….

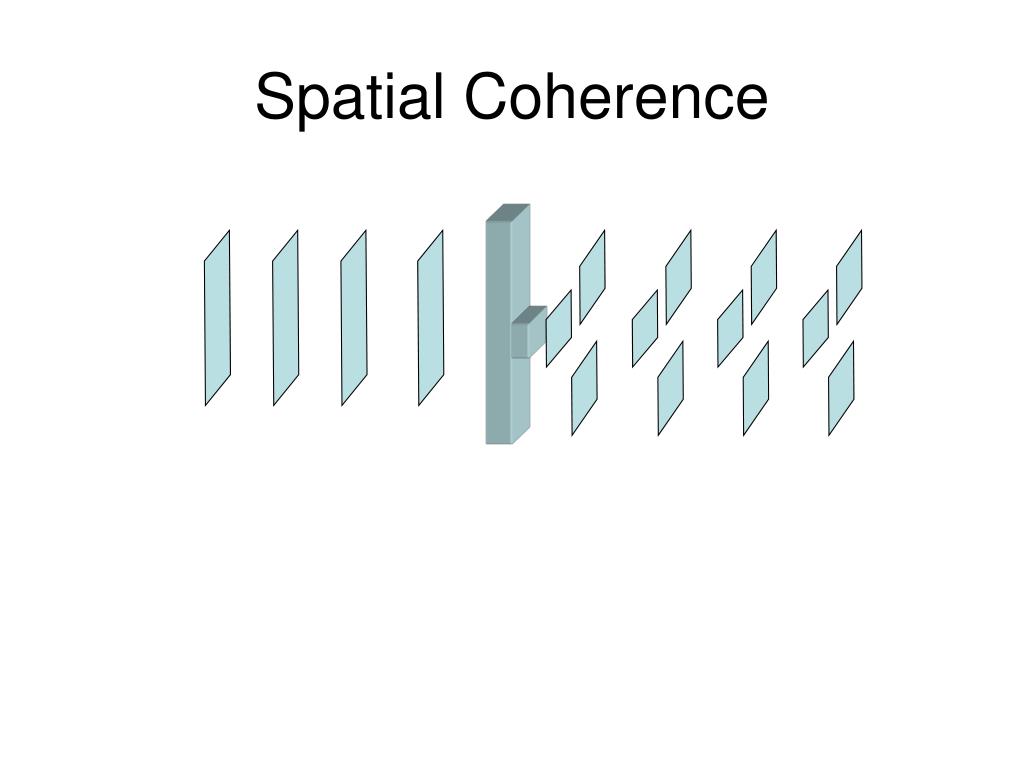

  2. Spatial Coherence

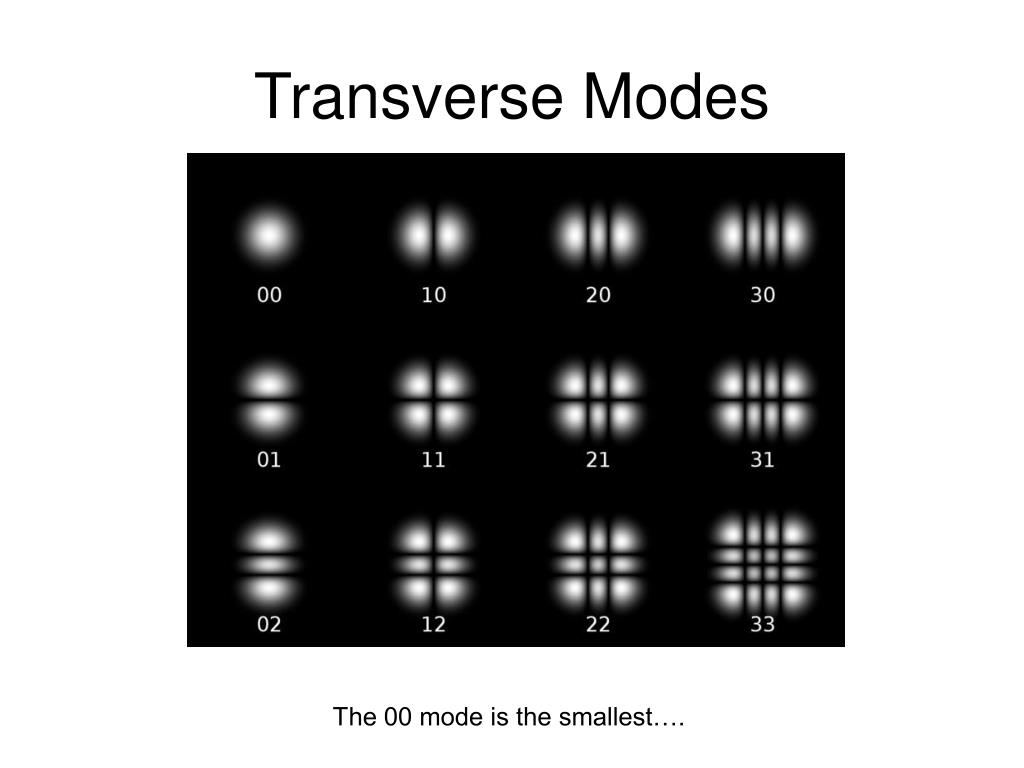

  3. Transverse Modes The 00 mode is the smallest….

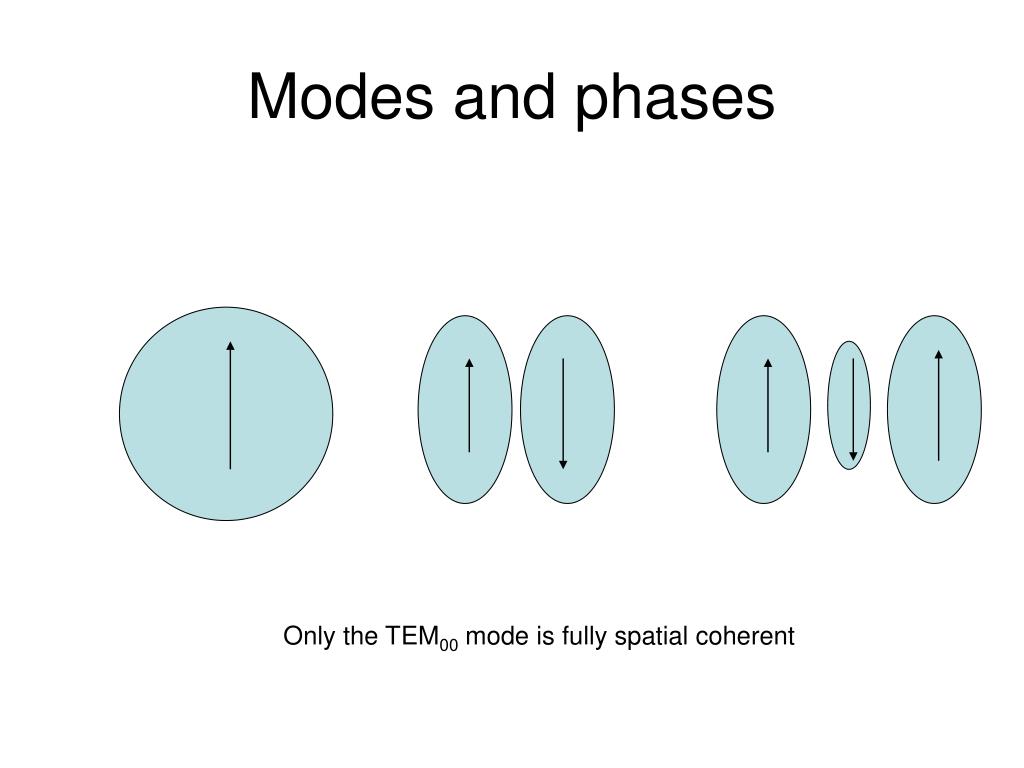

  4. Modes and phases Only the TEM00 mode is fully spatial coherent

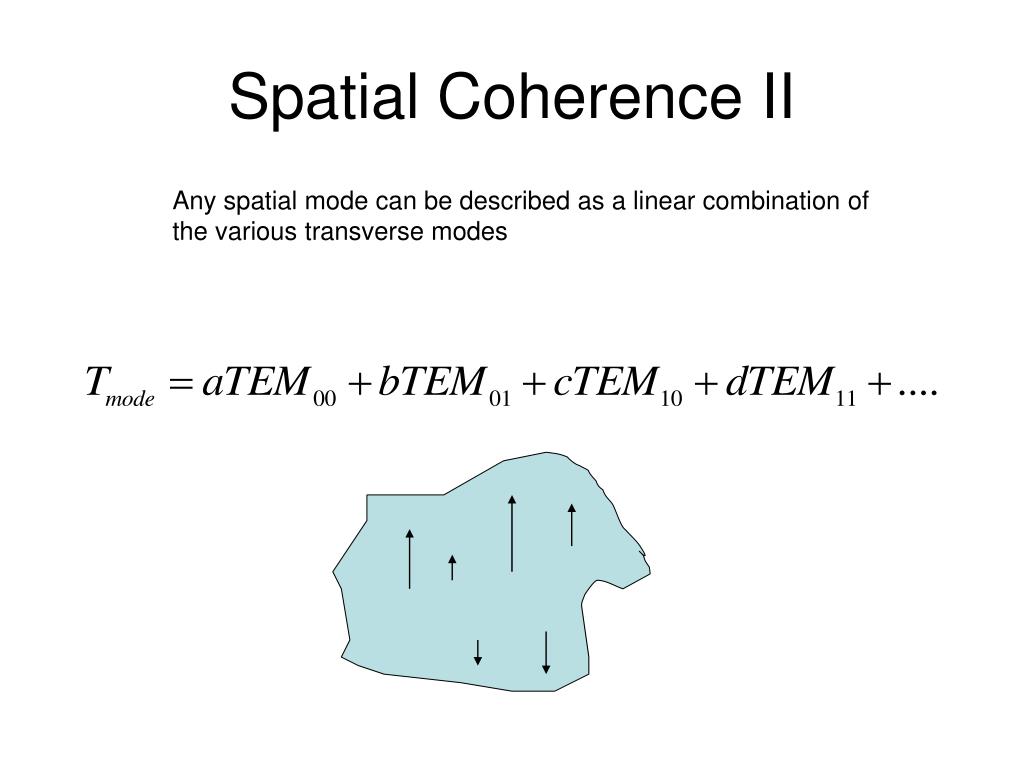

  5. Spatial Coherence II Any spatial mode can be described as a linear combination of the various transverse modes

  6. Spatial Mode Filtering Slit only wide enough to allow 00 mode To propagate….

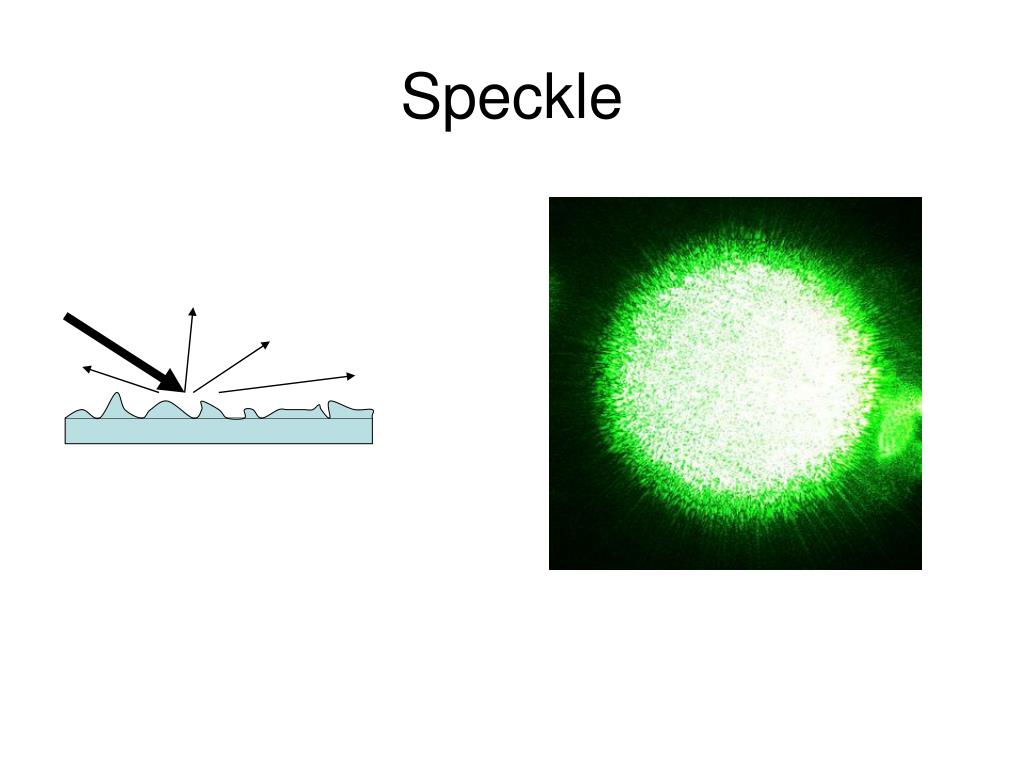

  7. Speckle

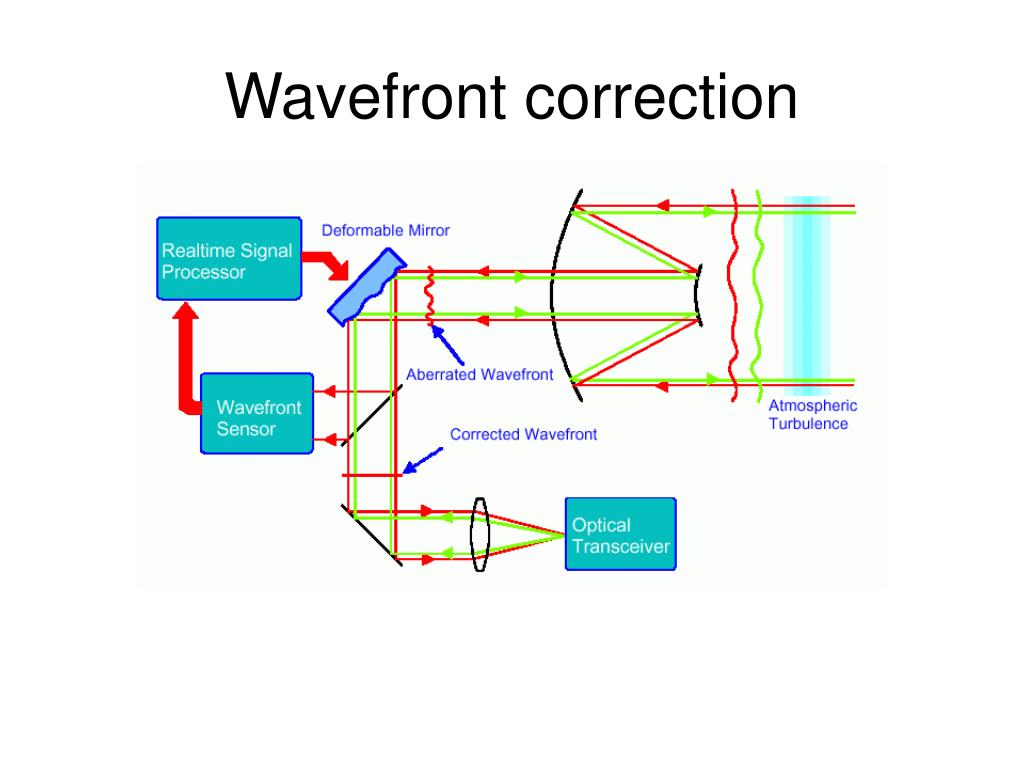

  8. Wavefront correction

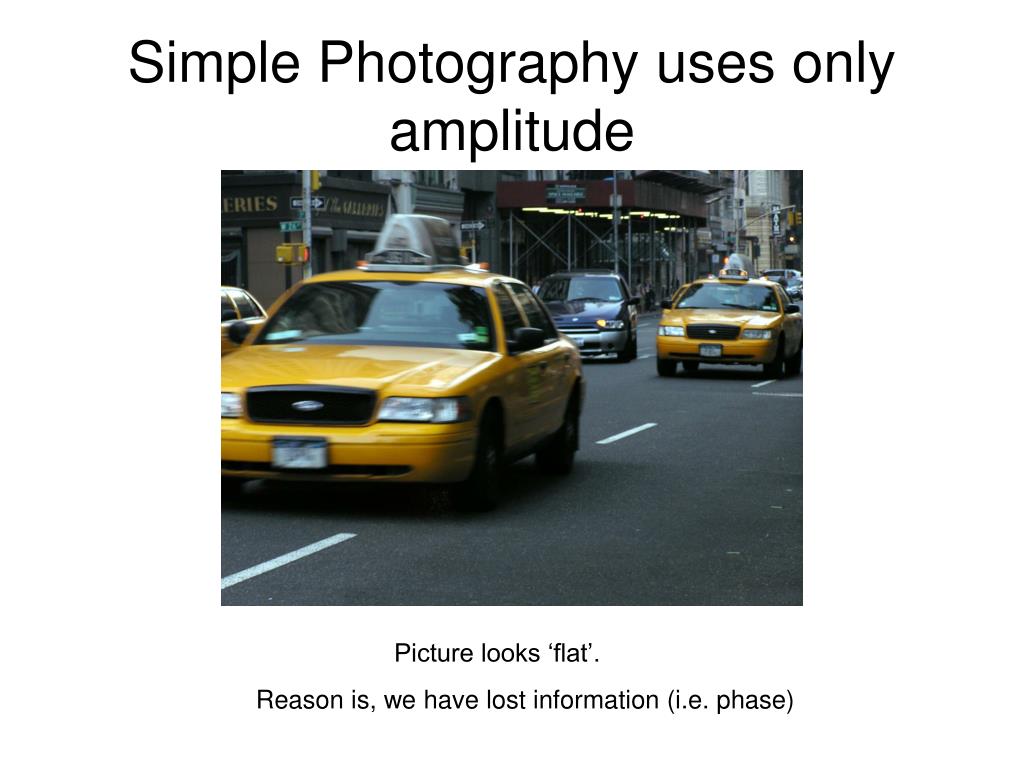

  9. Simple Photography uses only amplitude Picture looks ‘flat’. Reason is, we have lost information (i.e. phase)

  10. Two beam interference

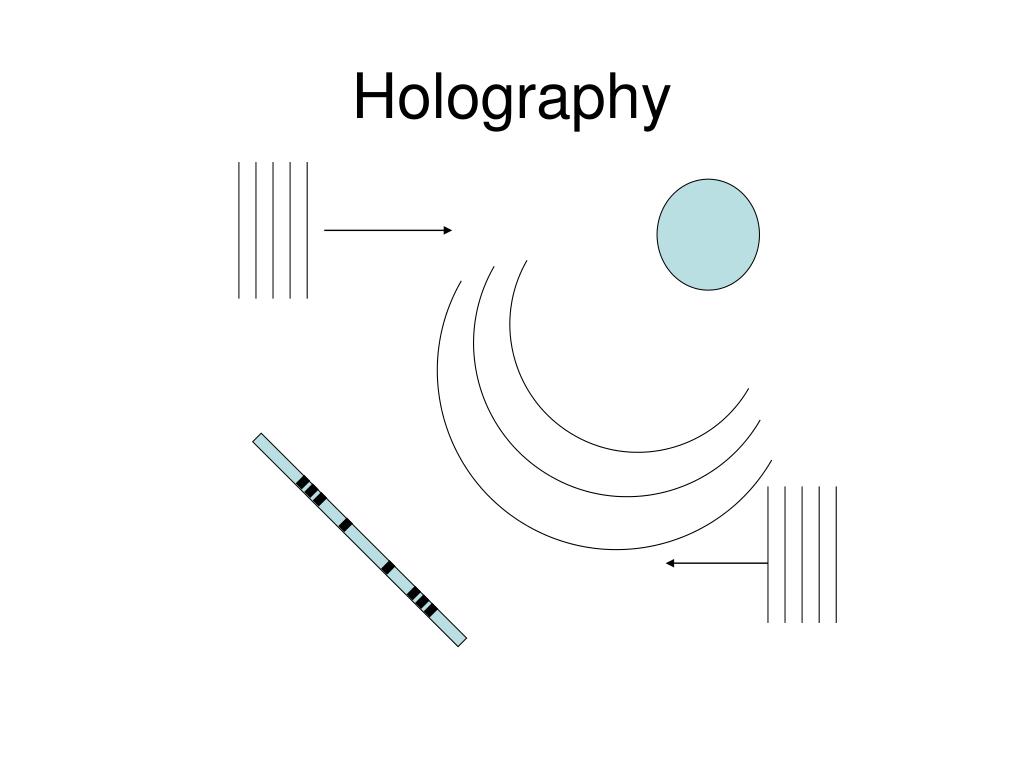

  11. Holography

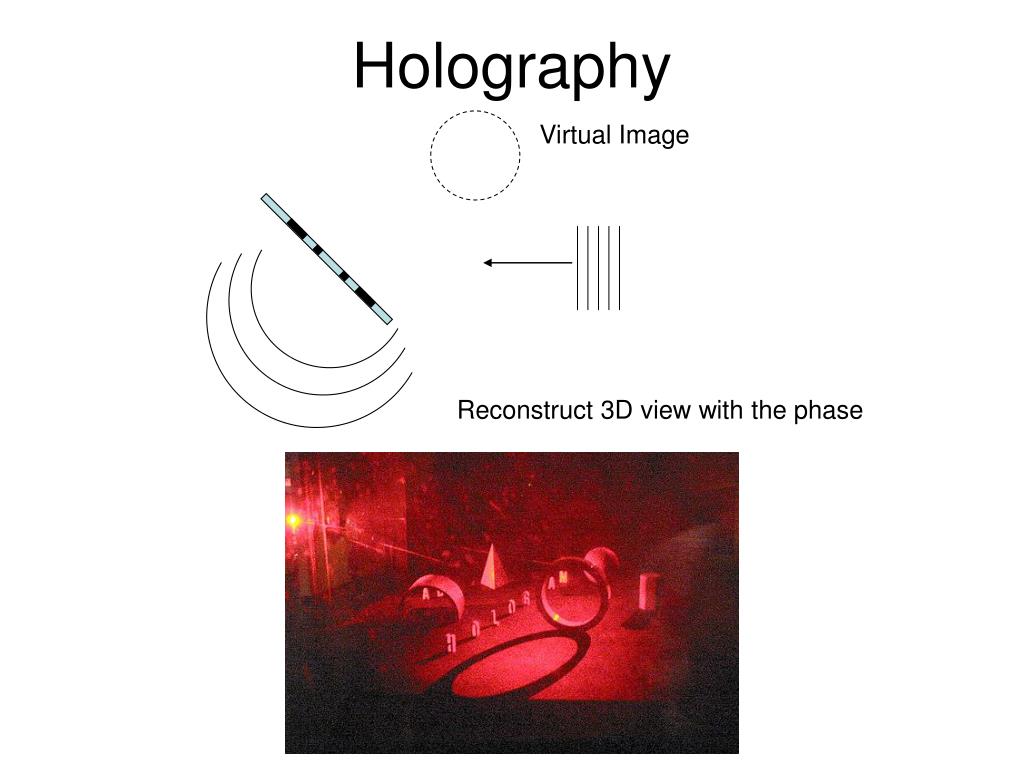

  12. Virtual Image Reconstruct 3D view with the phase Holography

  13. Zone Plates revisited 2D Fourier transform Equals a small spot

  14. Phase contrast imaging 3D view of red blood cell…
