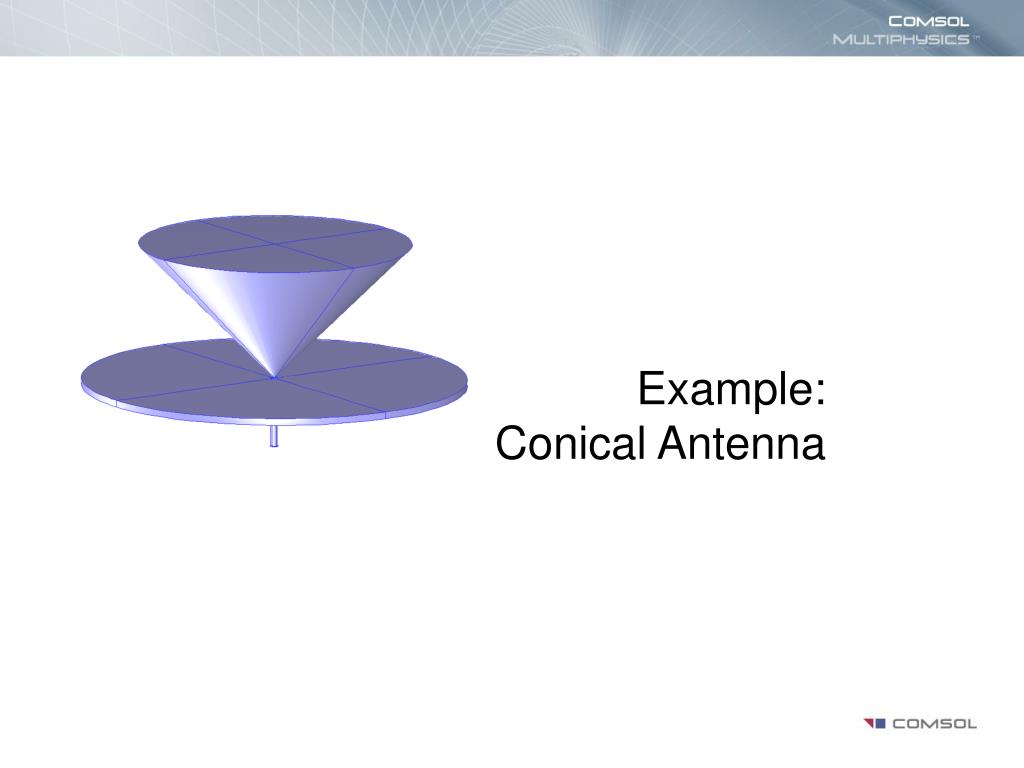

  1. Example:Conical Antenna

  2. Conical Antenna Antenna Engineering • Antennas are used to couple guided electromagnetic energy to waves in free space. • Antenna engineering design involves minimizing reflection losses and obtaining desired directional properties for a wide range of frequencies. • antenna impedance • radiation pattern • frequency analysis • Modeling can be extremely useful as it reduces the need for building prototypes and performing measurements.

  3. Conical Antenna - geometry and parameters Antenna Ground plane teflon, er=2.07 metal Coaxial feed air Antenna parameters coaxial feed: rinner = 1.5 mm router = 4.916 mm Z = 50 W 0.4 m 0.2 m 0.1 m 0.282 m

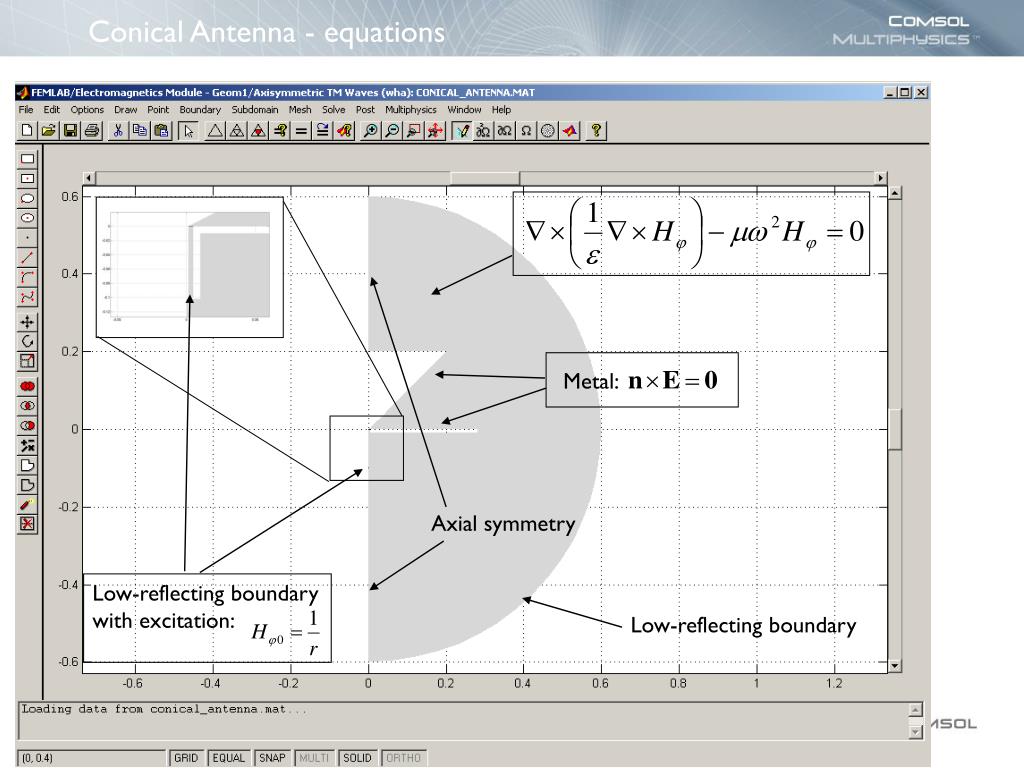

  4. Conical Antenna - equations Metal: Axial symmetry Low-reflecting boundary with excitation: Low-reflecting boundary

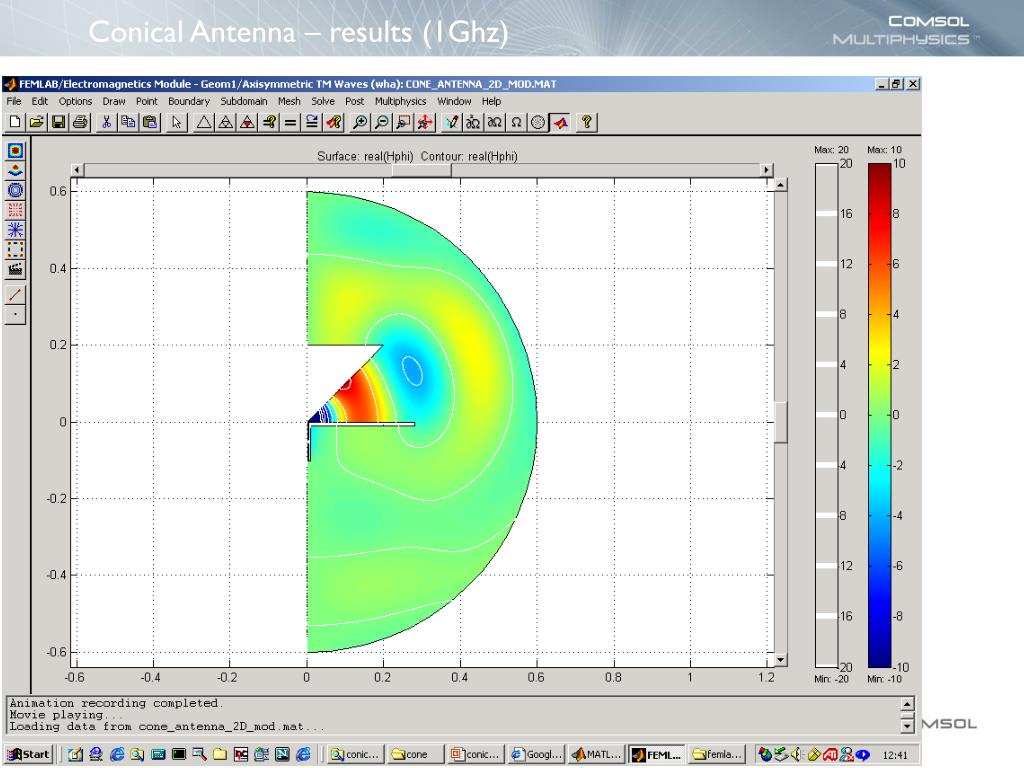

  5. Conical Antenna – results (1Ghz)

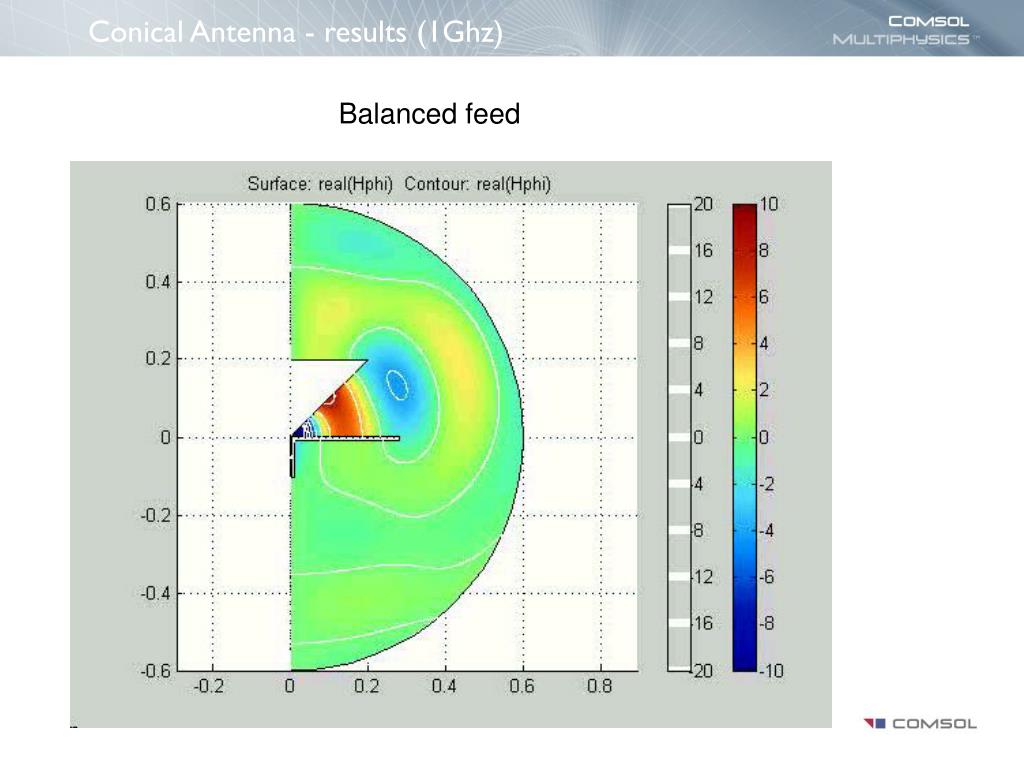

  6. Conical Antenna - results (1Ghz) Balanced feed

  7. Conical Antenna - results (1Ghz) Unbalanced feed

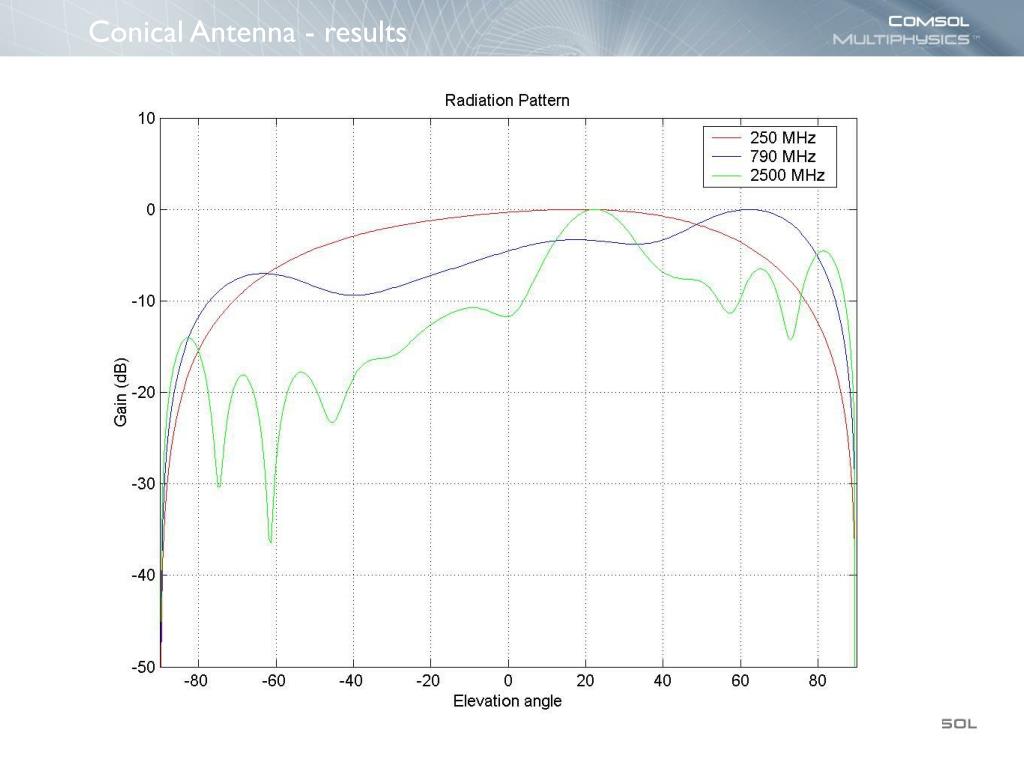

  8. Conical Antenna - results

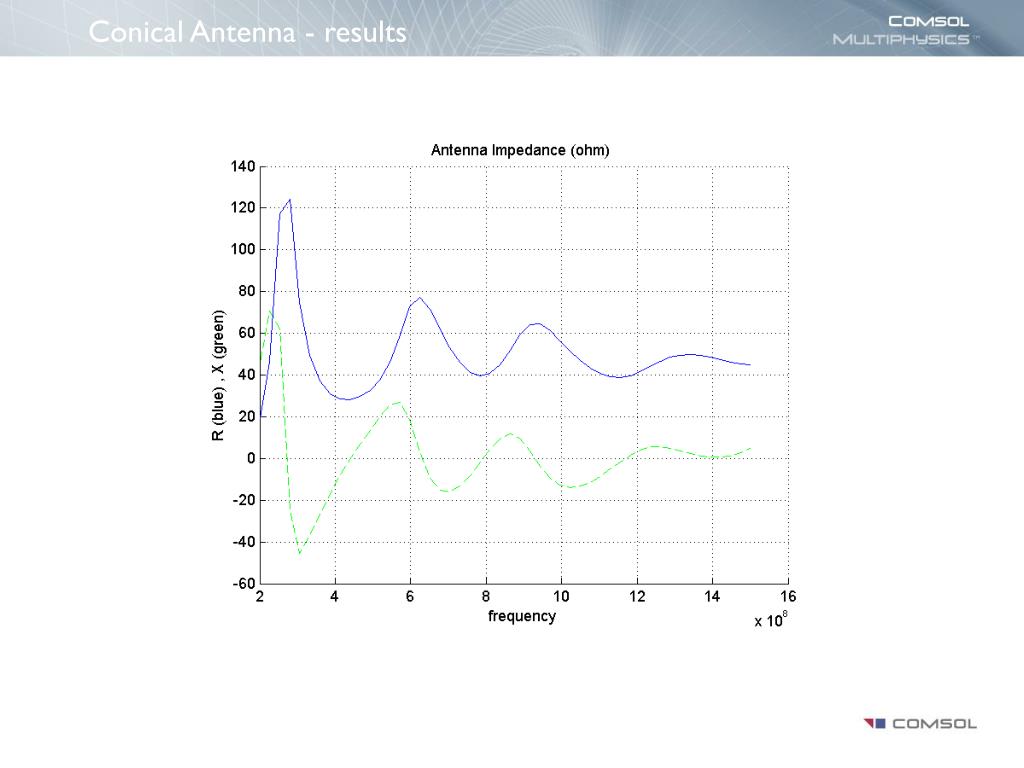

  9. Conical Antenna - results

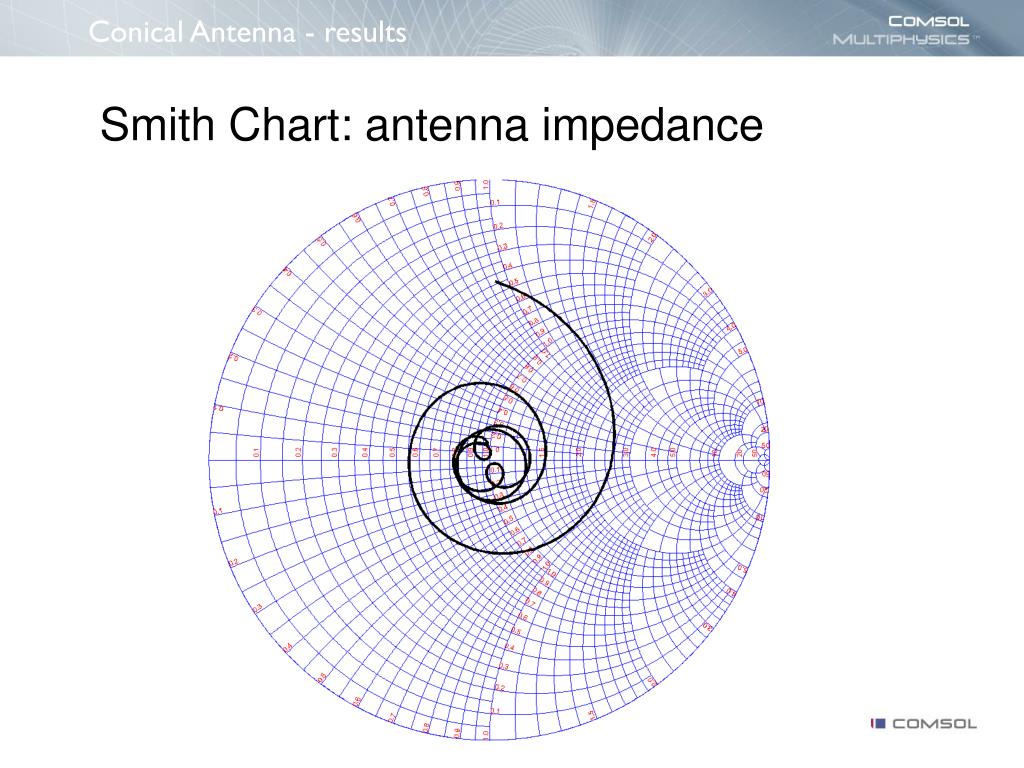

  10. Conical Antenna - results Smith Chart: antenna impedance
