  1. CHARACTERISTICS OF ACTIVE COMPONENTS BASIC COMPETENCE : Explain The Characteristics Of Active Components And Passive Electronics By. SETYO SMK MUH.3 YOGYA

  2. OBJECTIVE STUDENTS UNDERSTAND THE CHARACTERISTICS OF THE COMPONENTS ACTIVE STUDENTS UNDERSTAND THE WORKING VOLTAGE OF THE COMPONENTS ACTIVE TeknologidanRekayasa By. SETYO SMK MUH.3 YOGYA

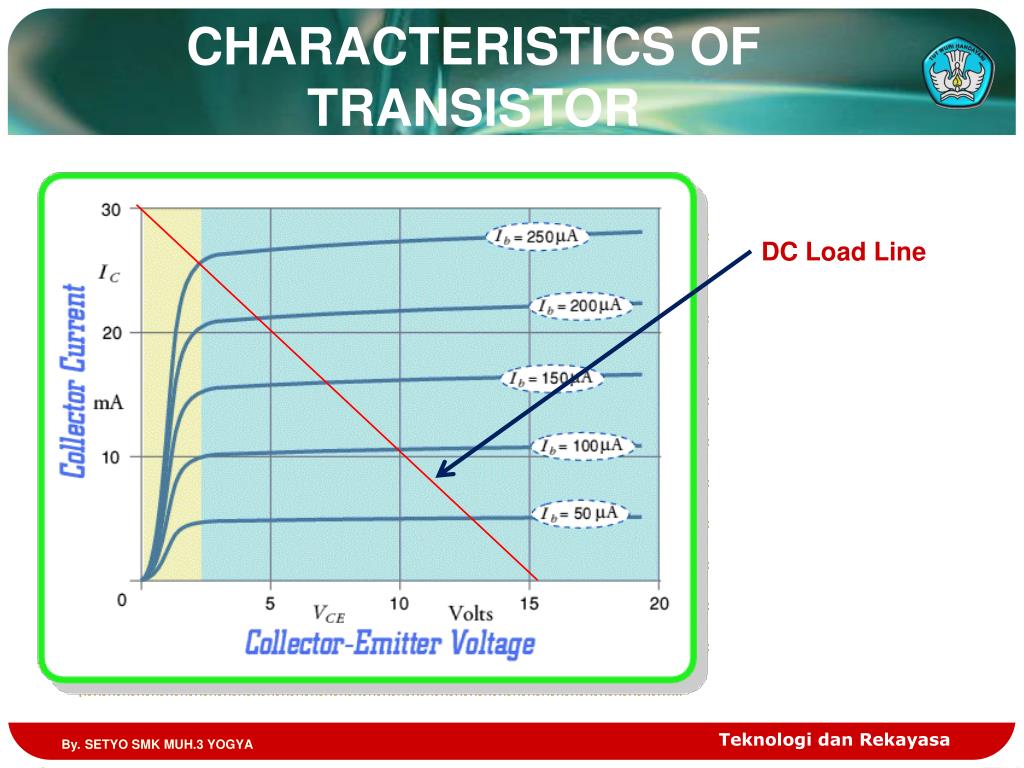

  3. CHARACTERISTICS OF TRANSISTOR DC Load Line Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

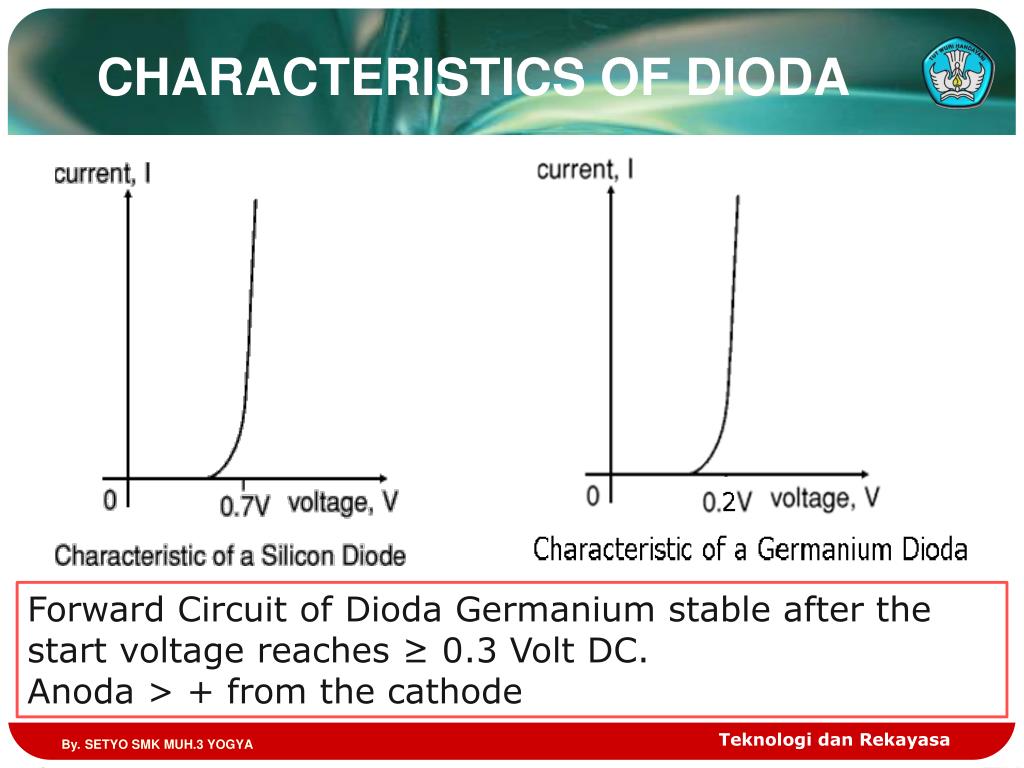

  4. CHARACTERISTICS OF DIODA Forward Circuit of Dioda Germanium stable after the start voltage reaches ≥ 0.3 Volt DC. Anoda > + from the cathode Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  5. CHARACTERISTICS OF LDR Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

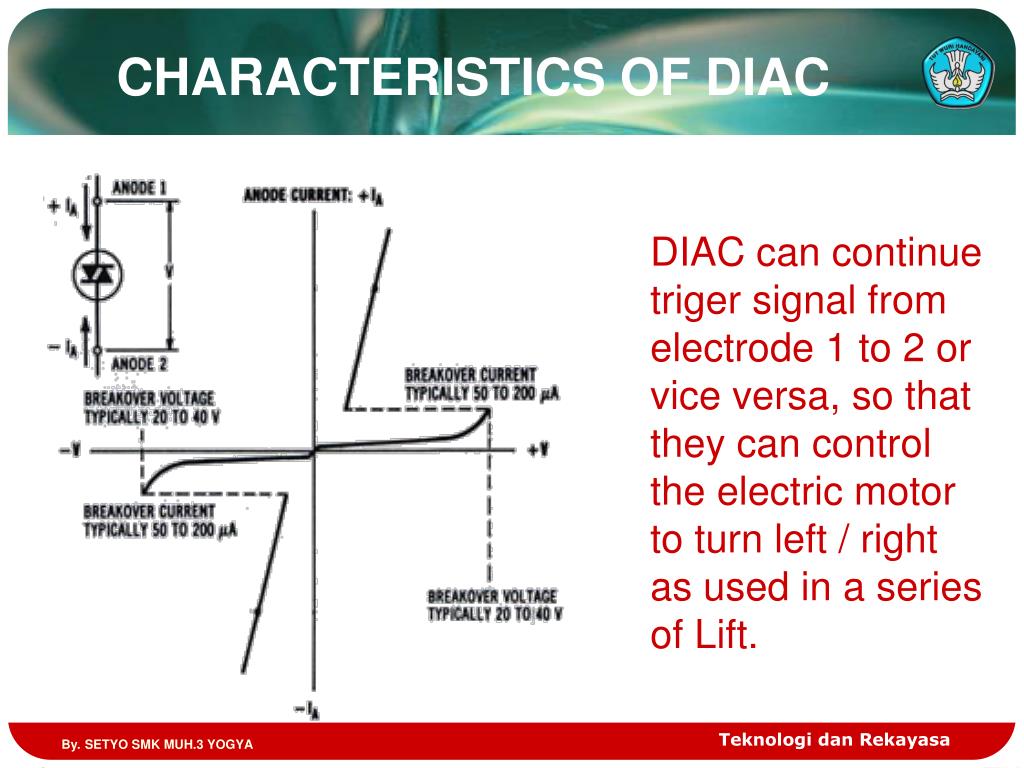

  6. CHARACTERISTICS OF DIAC DIAC can continue triger signal from electrode 1 to 2 or vice versa, so that they can control the electric motor to turn left / right as used in a series of Lift. Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

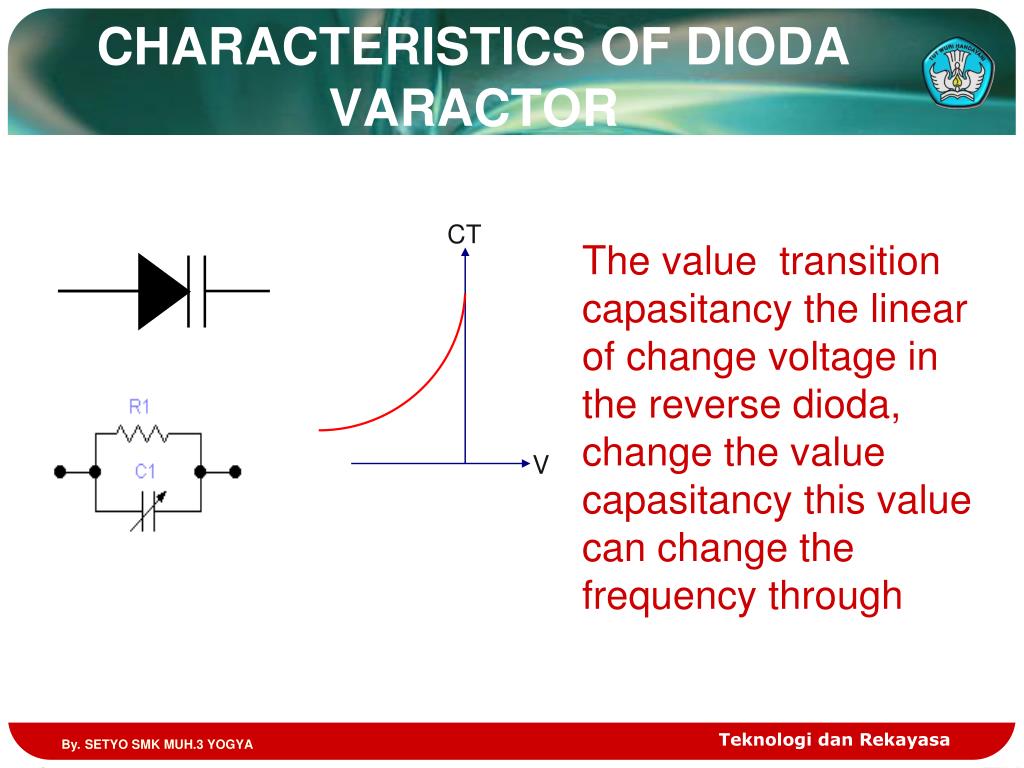

  7. CHARACTERISTICS OF DIODA VARACTOR The value transition capasitancy the linear of change voltage in the reverse dioda, change the value capasitancy this value can change the frequency through CT V Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

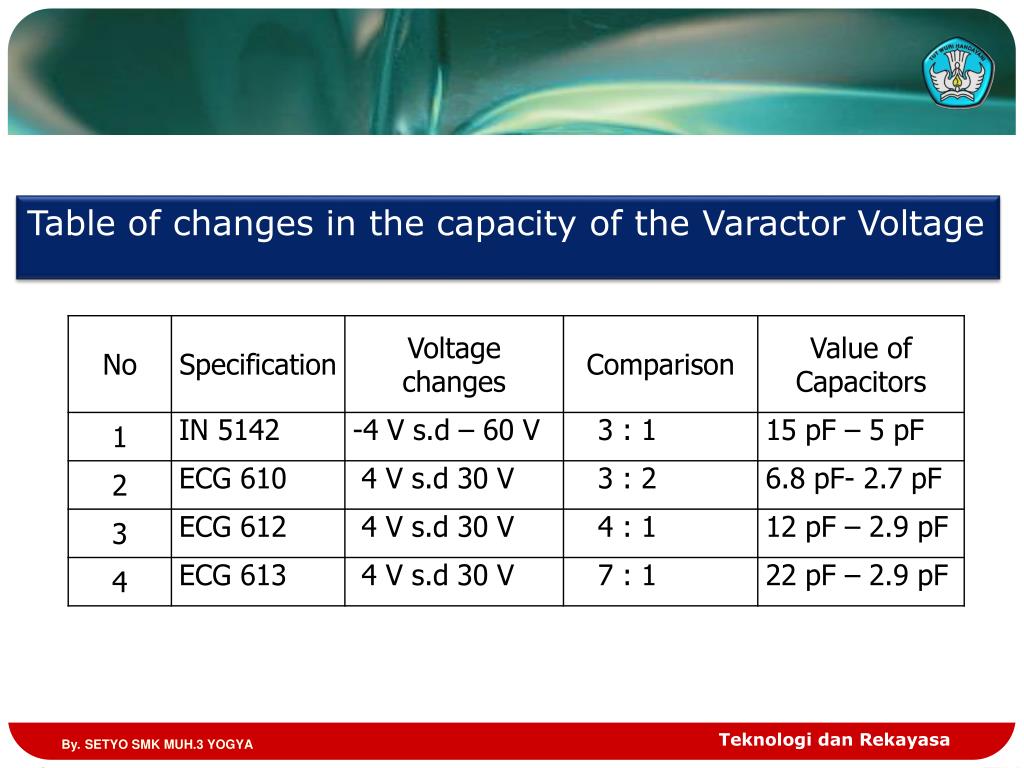

  8. Table of changes in the capacity of the Varactor Voltage Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

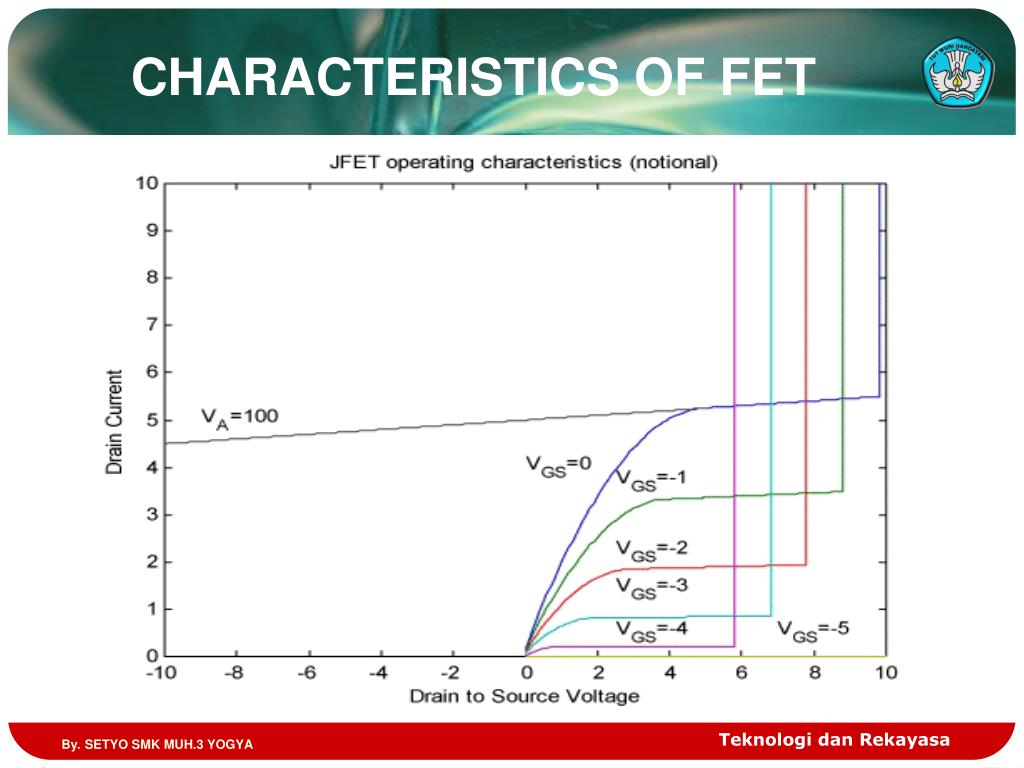

  9. CHARACTERISTICS OF FET Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

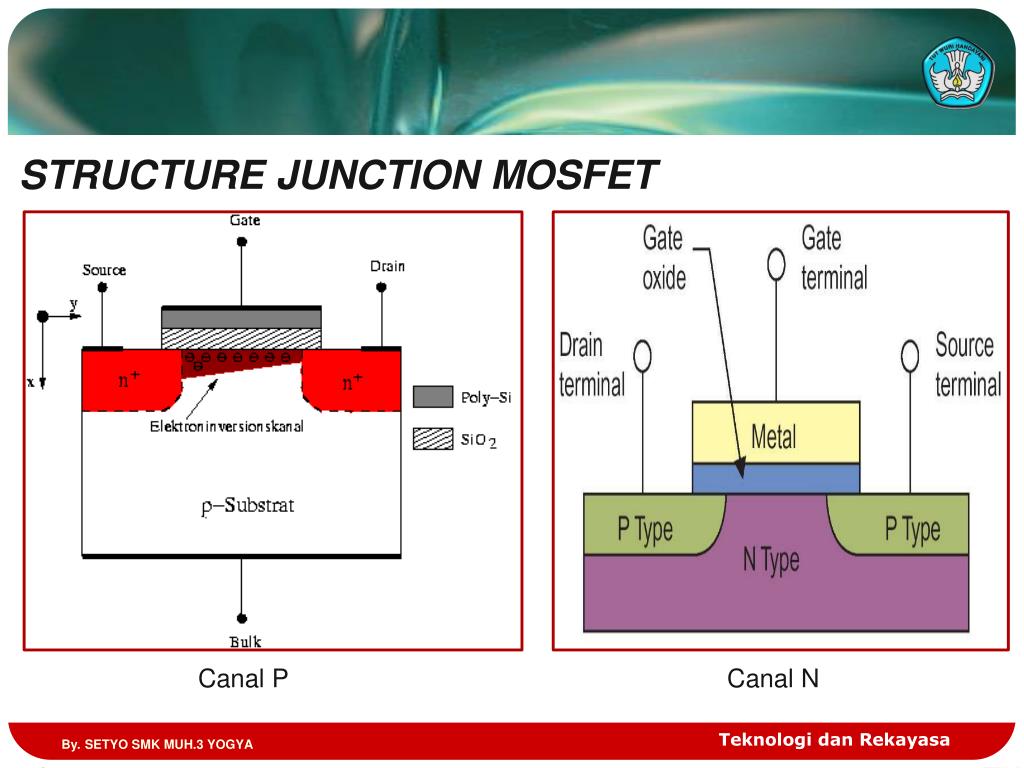

  10. STRUCTURE JUNCTION MOSFET Canal P Canal N Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA

  11. THE END THANKS Teknologi dan Rekayasa By. SETYO SMK MUH.3 YOGYA
