  1. Land Navigation Identify Terrain Features & Determine Distance

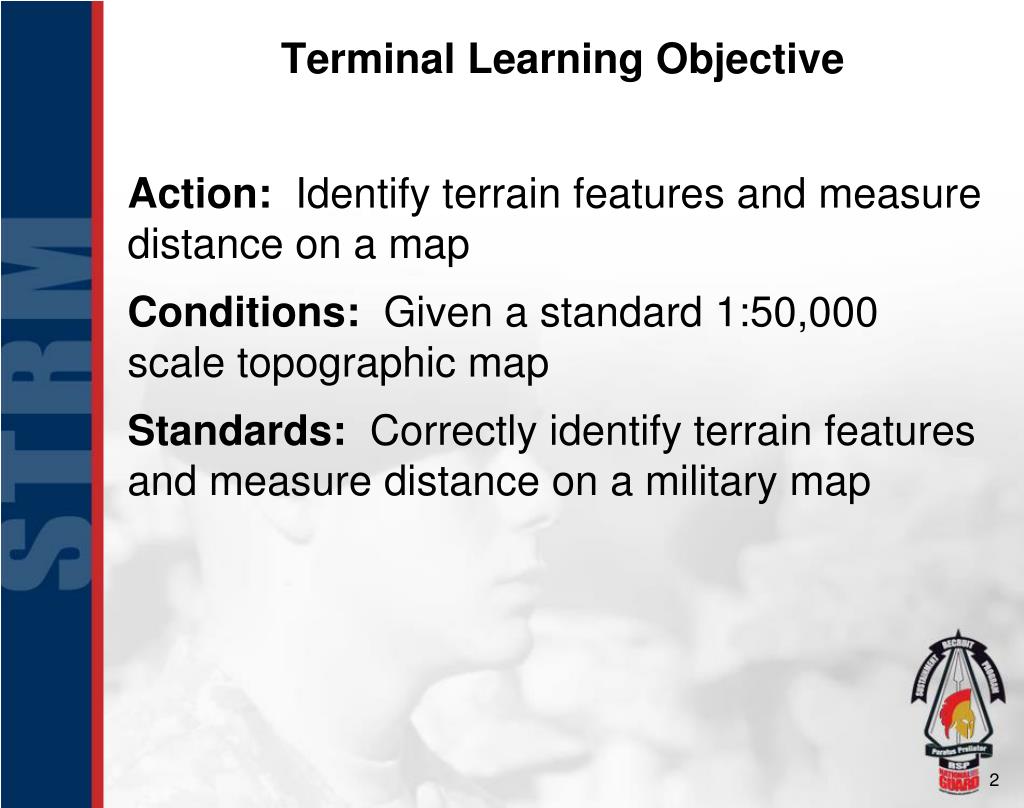

  2. Terminal Learning Objective Action: Identify terrain features and measure distance on a map Conditions: Given a standard 1:50,000 scale topographic map Standards: Correctly identify terrain features and measure distance on a military map

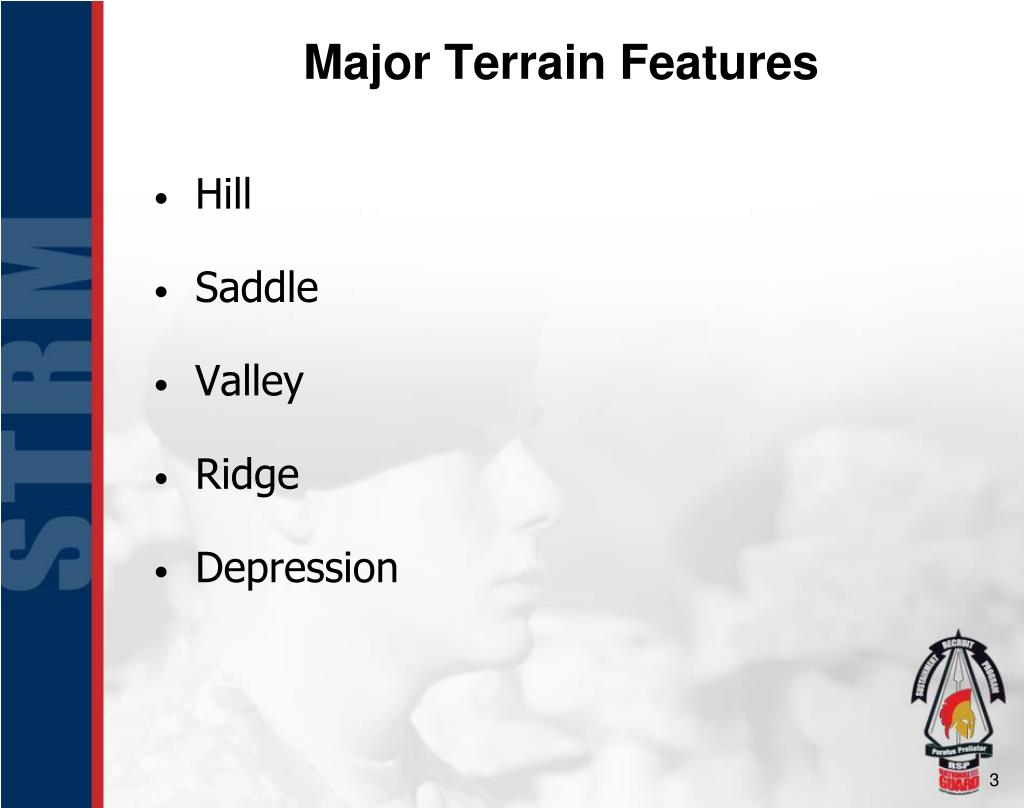

  3. Major Terrain Features • Hill • Saddle • Valley • Ridge • Depression

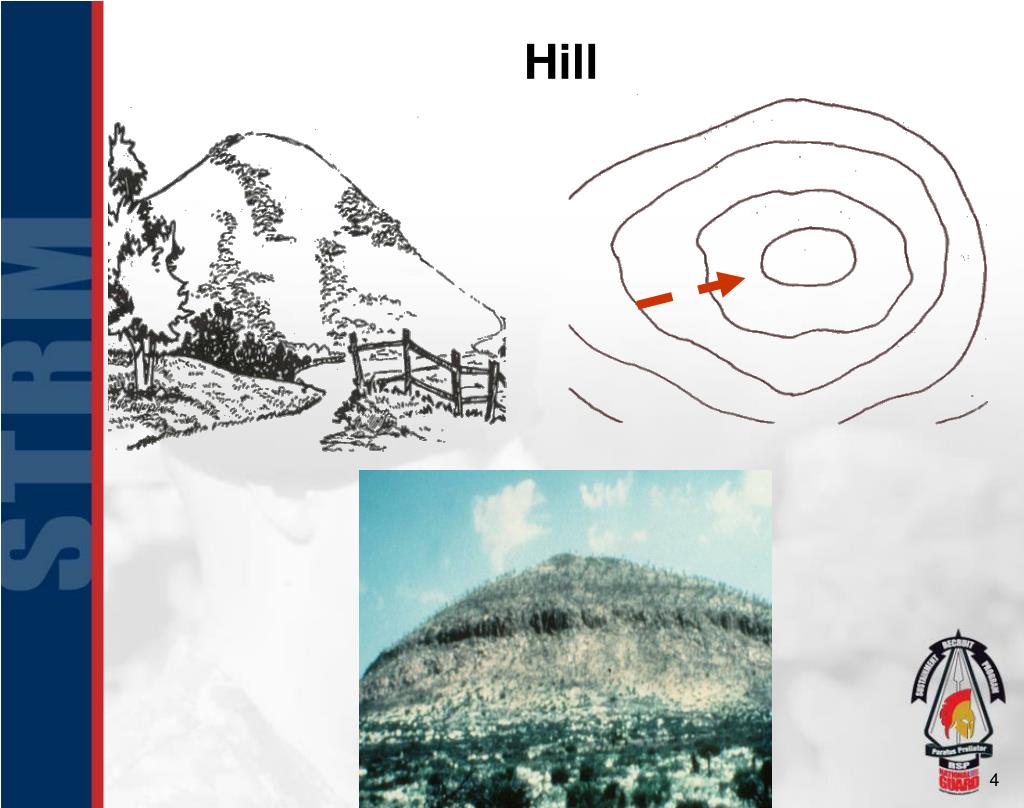

  4. Hill

  5. Saddle

  6. Valley

  7. Ridge

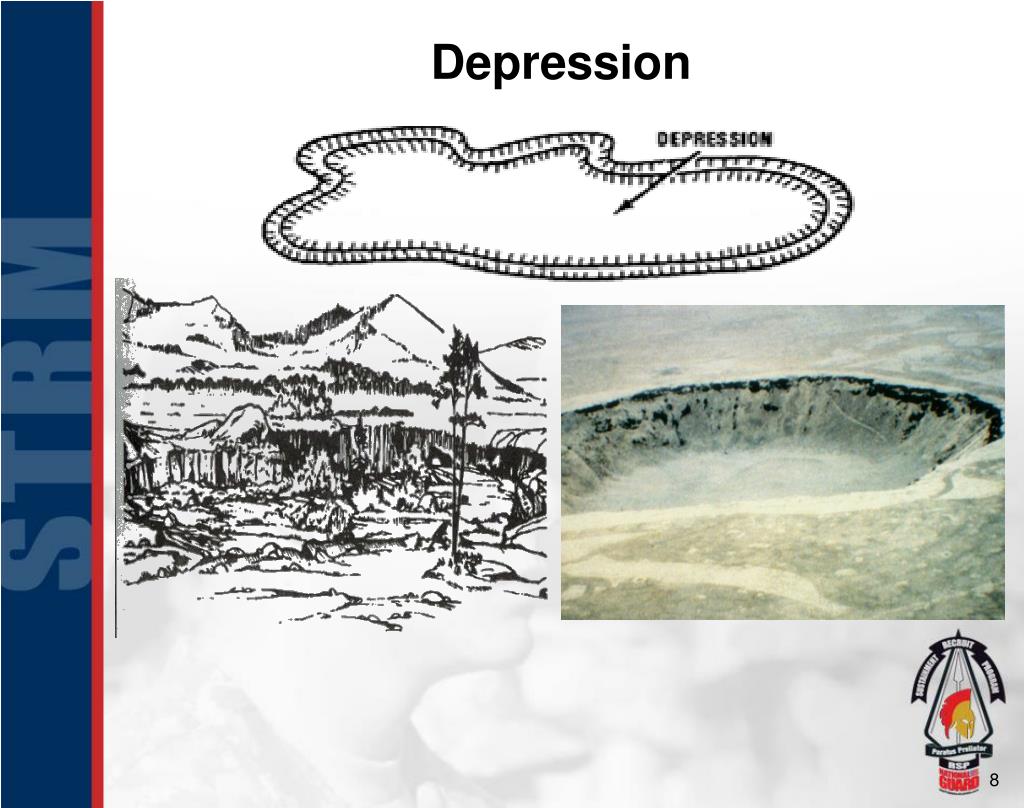

  8. Depression

  9. Minor Terrain Features • Draw • Spur • Cliff

  10. Draw Contour Lines form a U or a Vpointing to high ground

  11. Spur Contour Lines form a U or a Vpointing to low ground

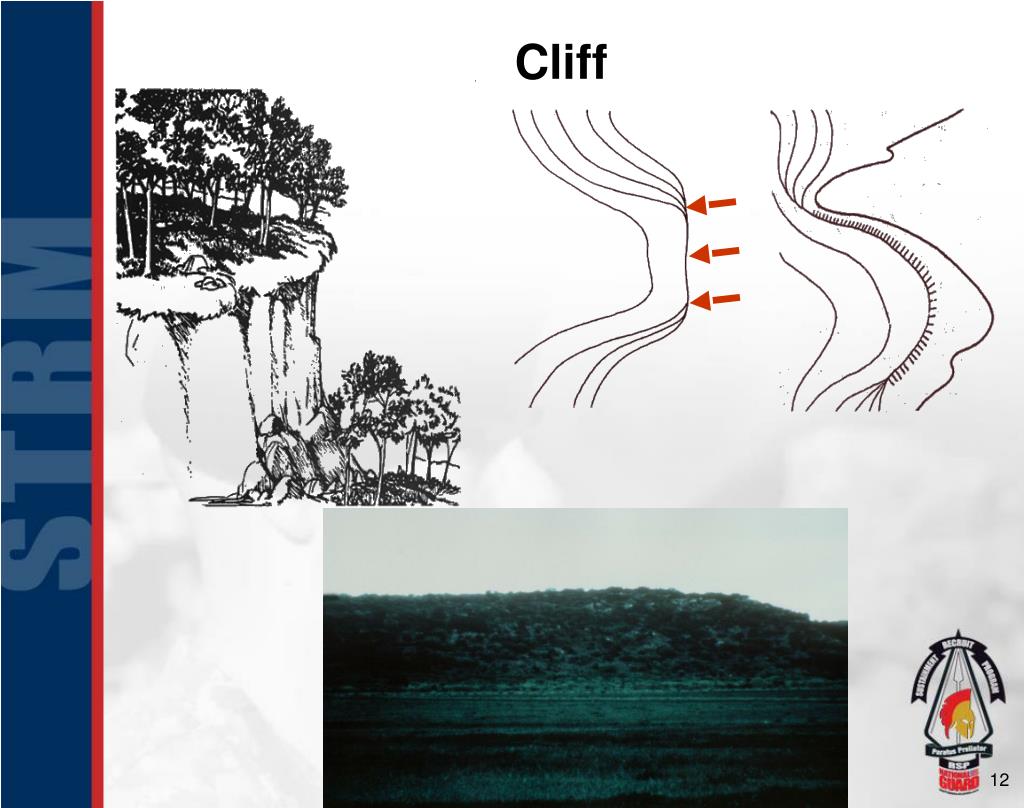

  12. Cliff

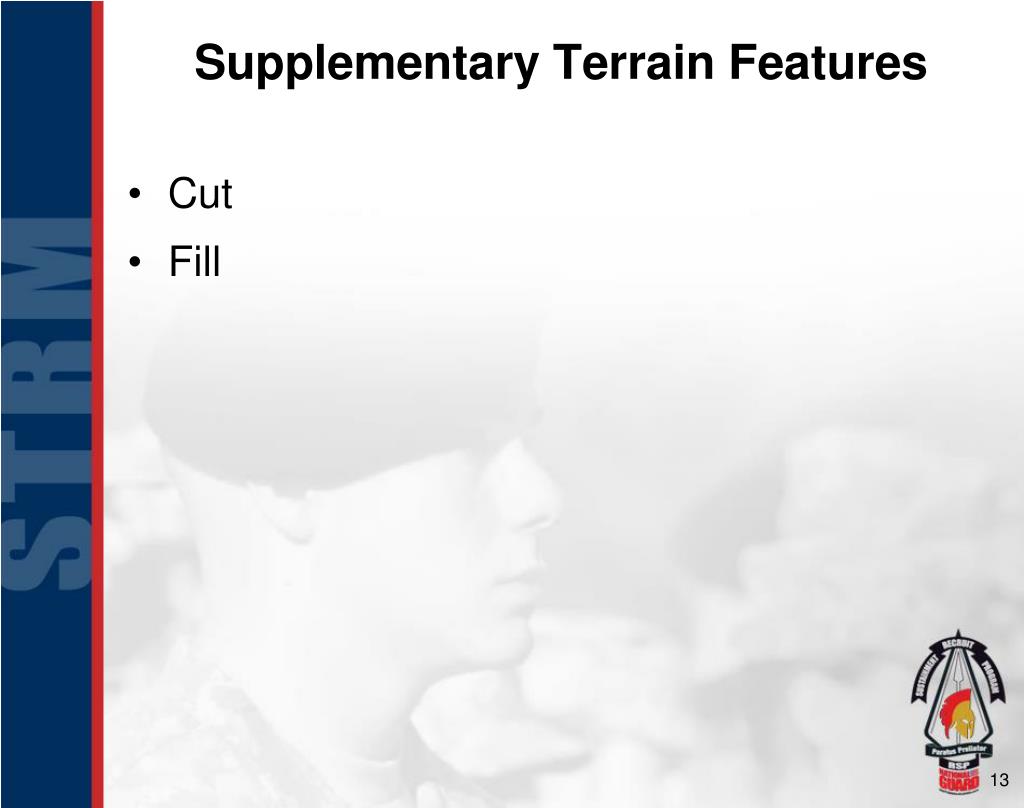

  13. Supplementary Terrain Features • Cut • Fill

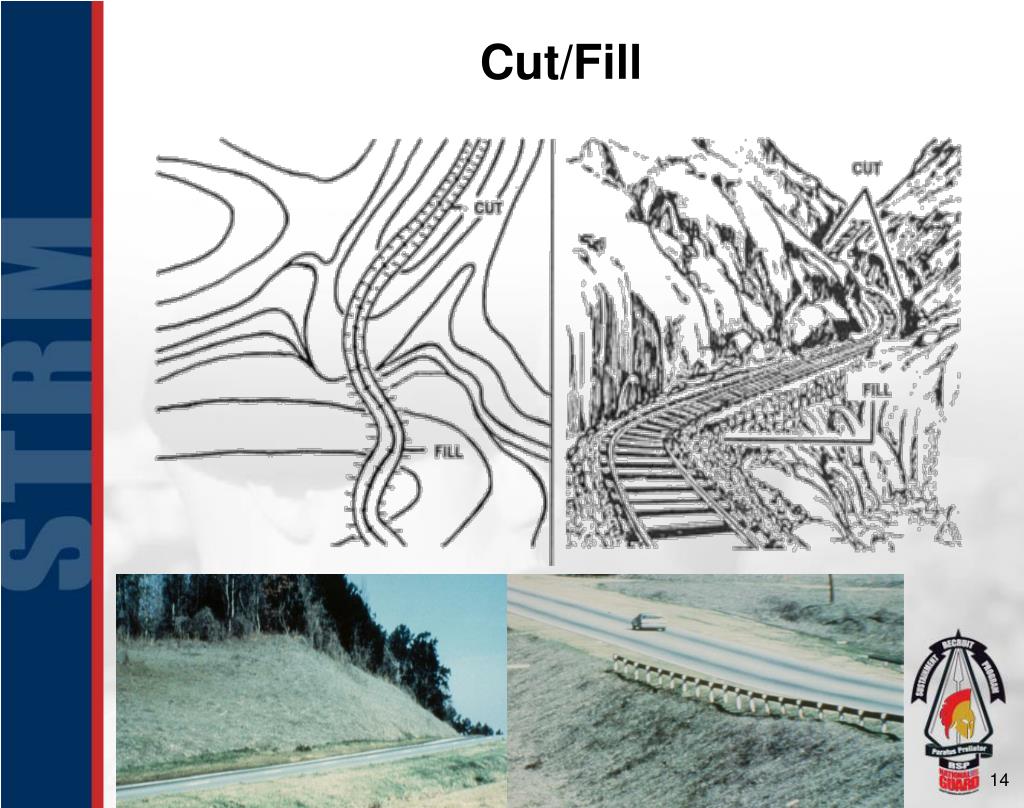

  14. Cut/Fill

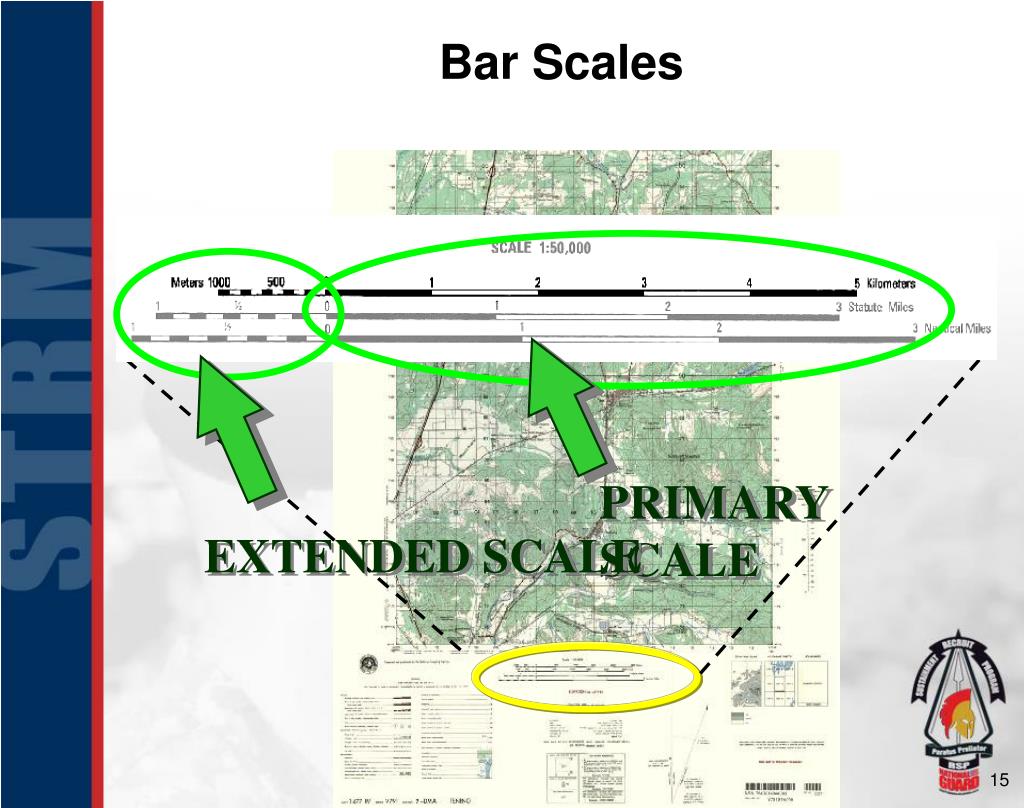

  15. Bar Scales PRIMARY SCALE EXTENDED SCALE

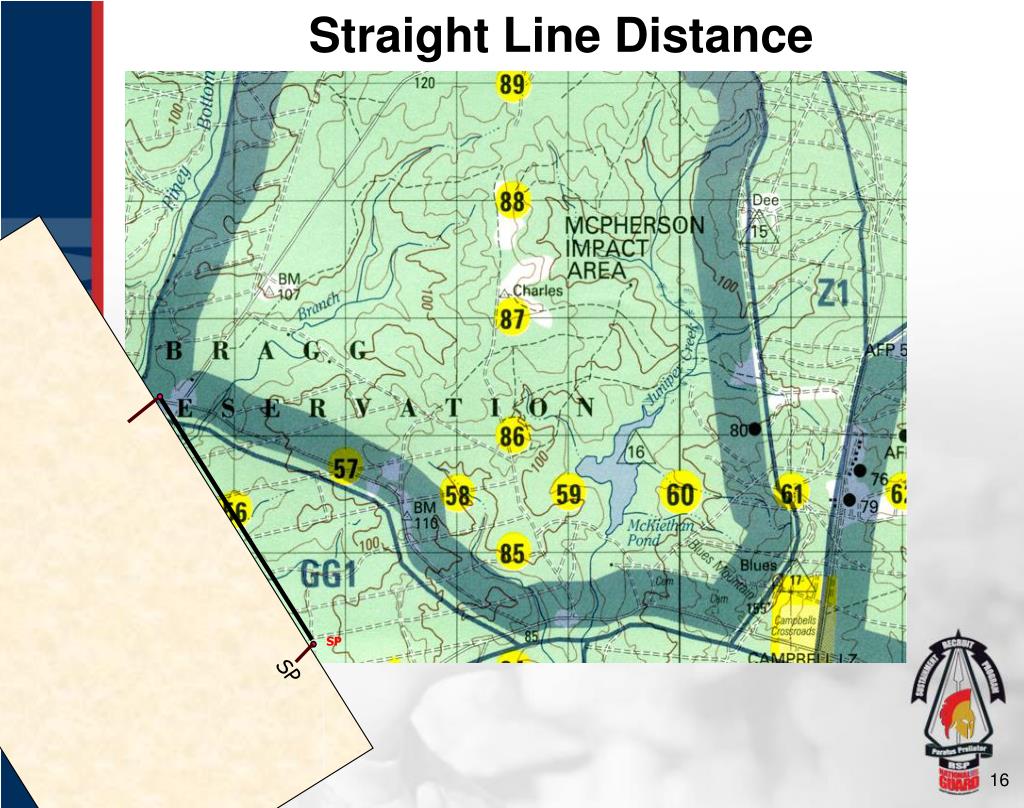

  16. Straight Line Distance SP SP

  17. SP Straight Line Distance (con’t) 2300 METERS

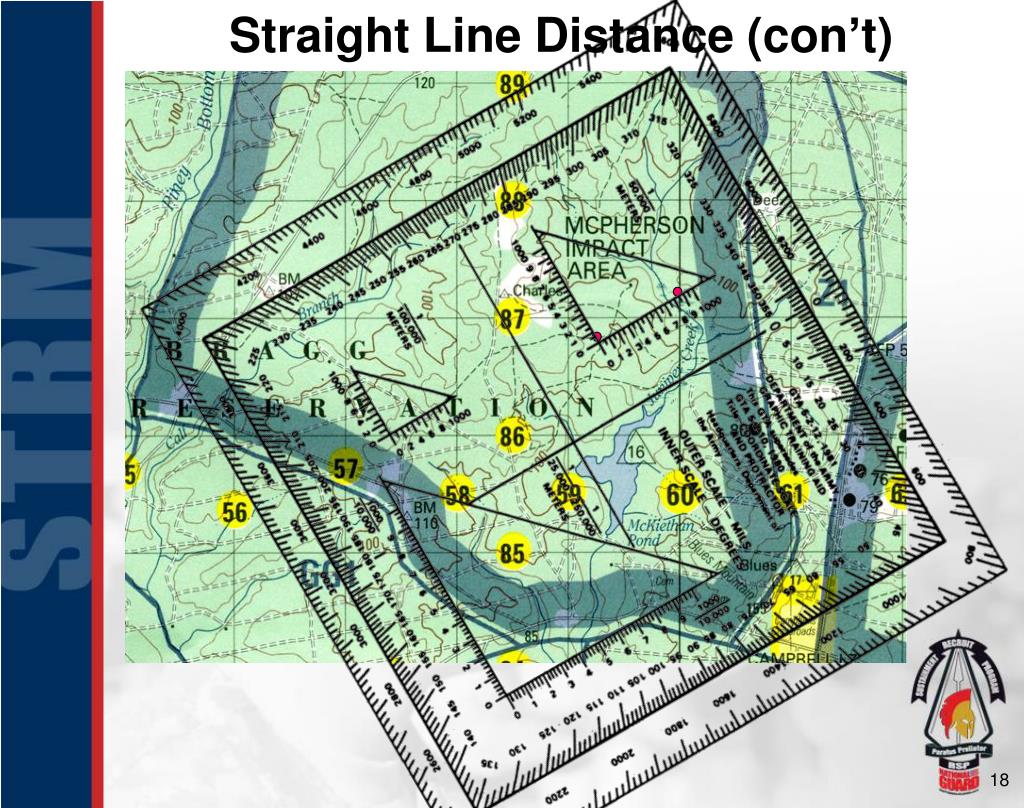

  18. Straight Line Distance (con’t)

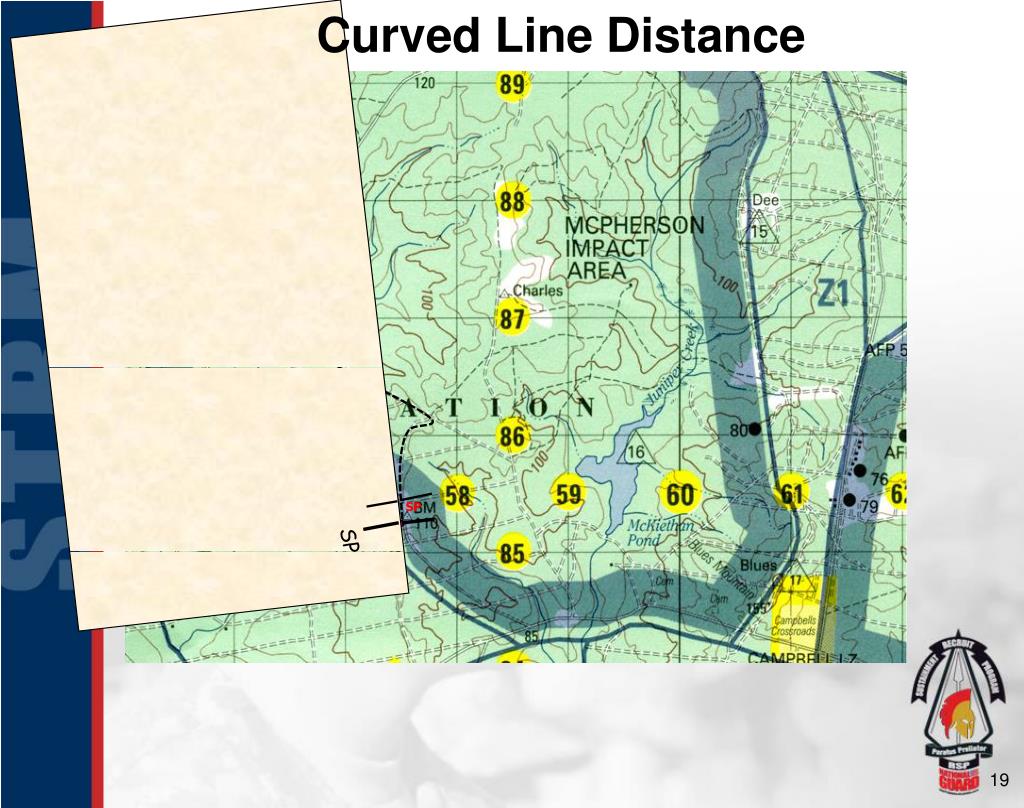

  19. Curved Line Distance SP SP

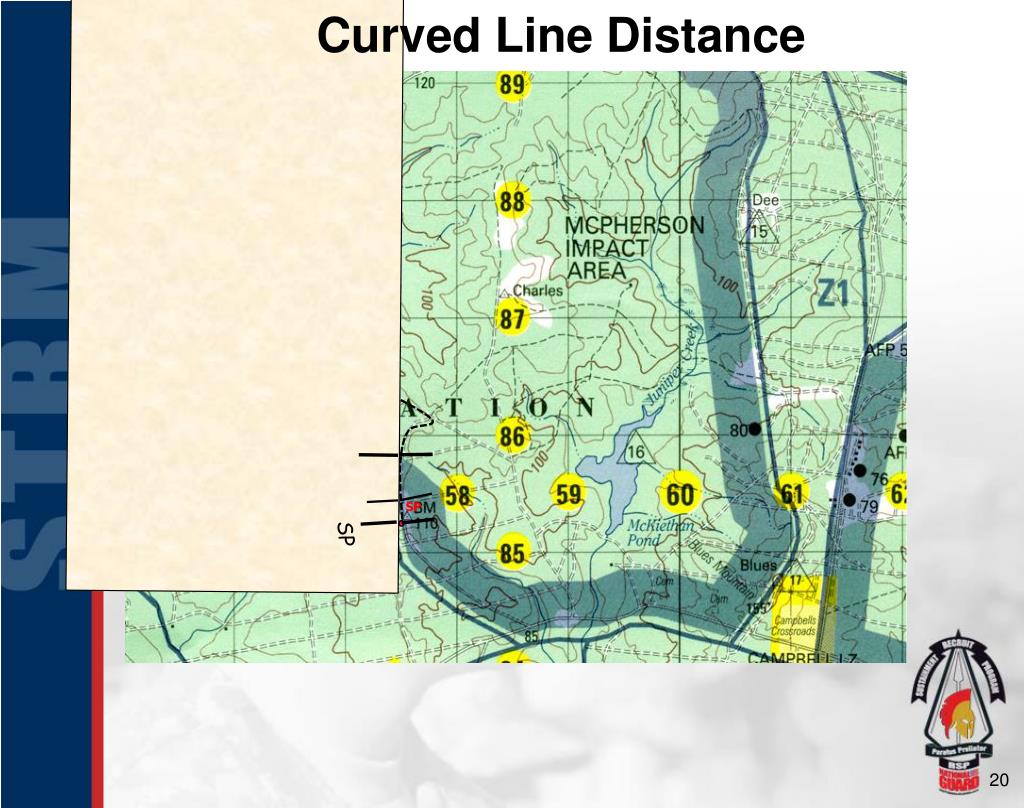

  20. Curved Line Distance SP SP

  21. Curved Line Distance SP SP

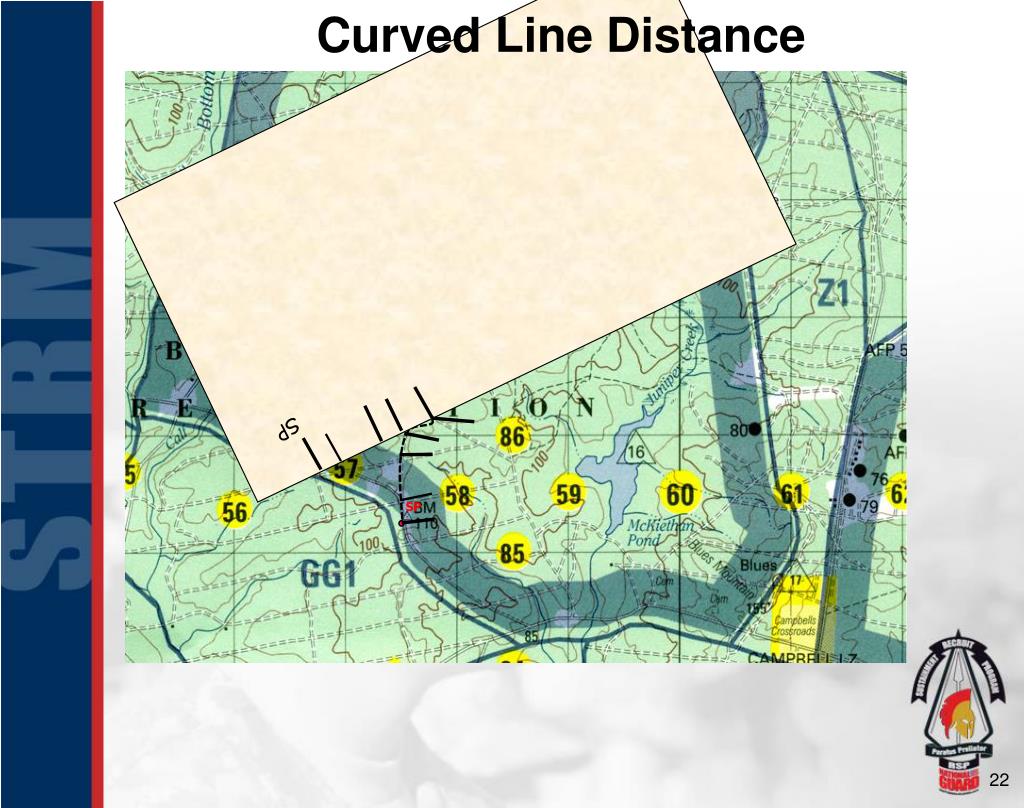

  22. Curved Line Distance SP SP

  23. Curved Line Distance SP SP

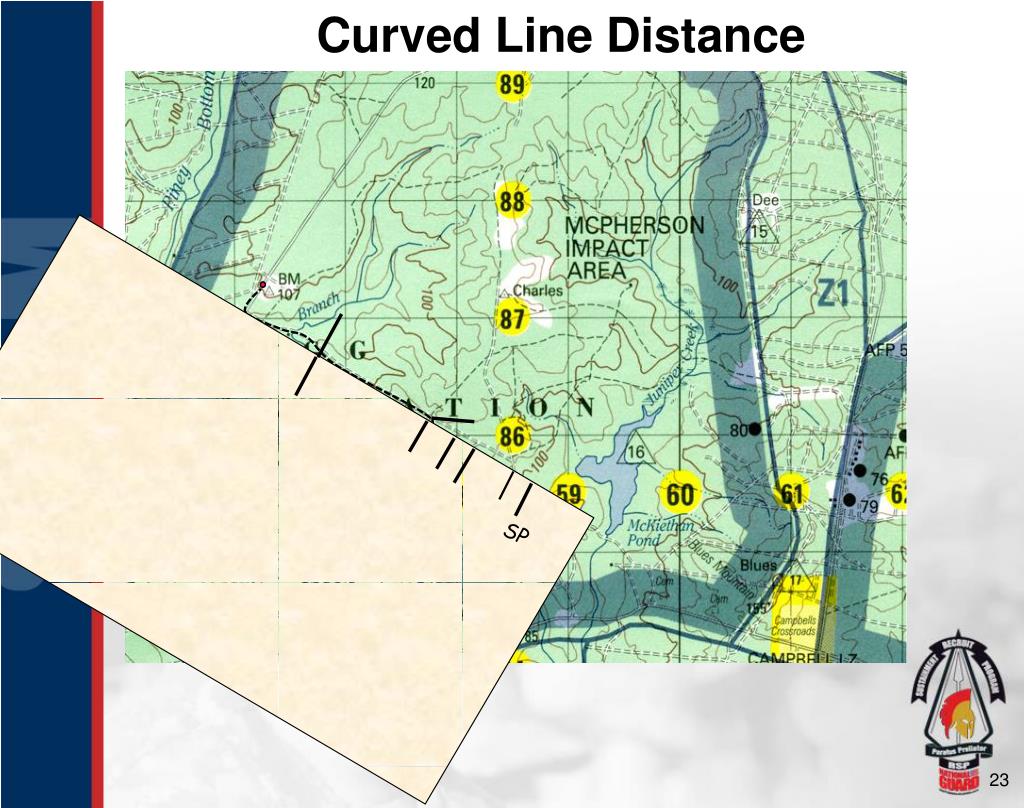

  24. Curved Line Distance SP SP

  25. Curved Line Distance SP SP

  26. Curved Line Distance SP SP

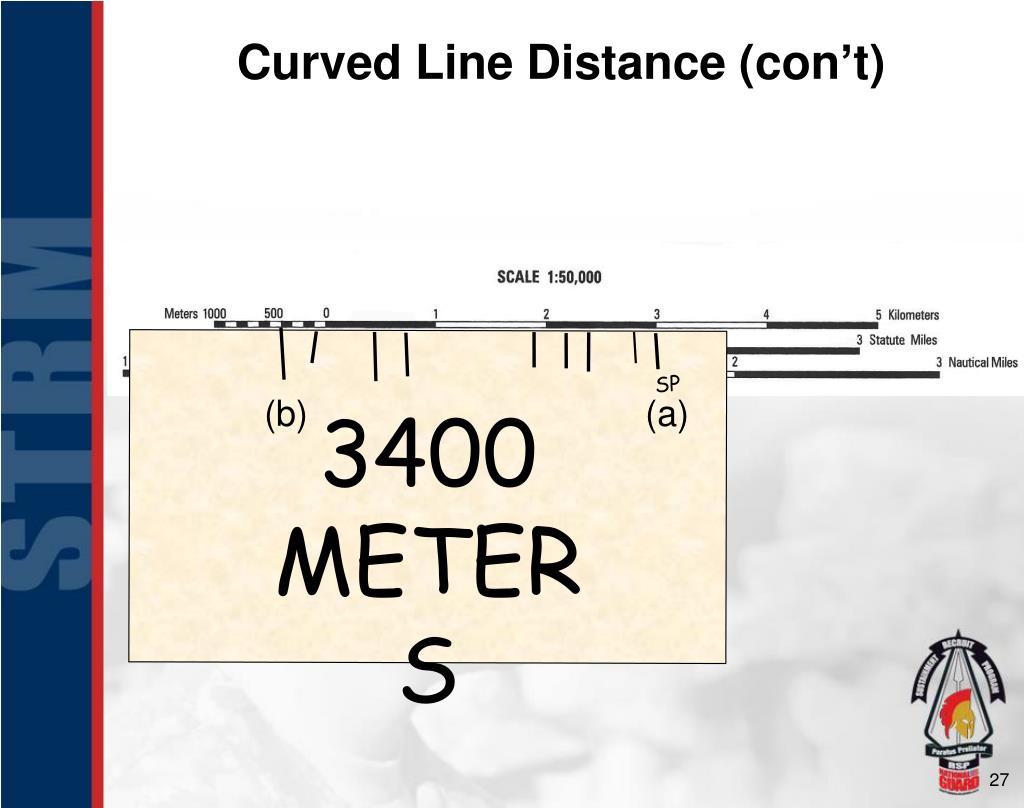

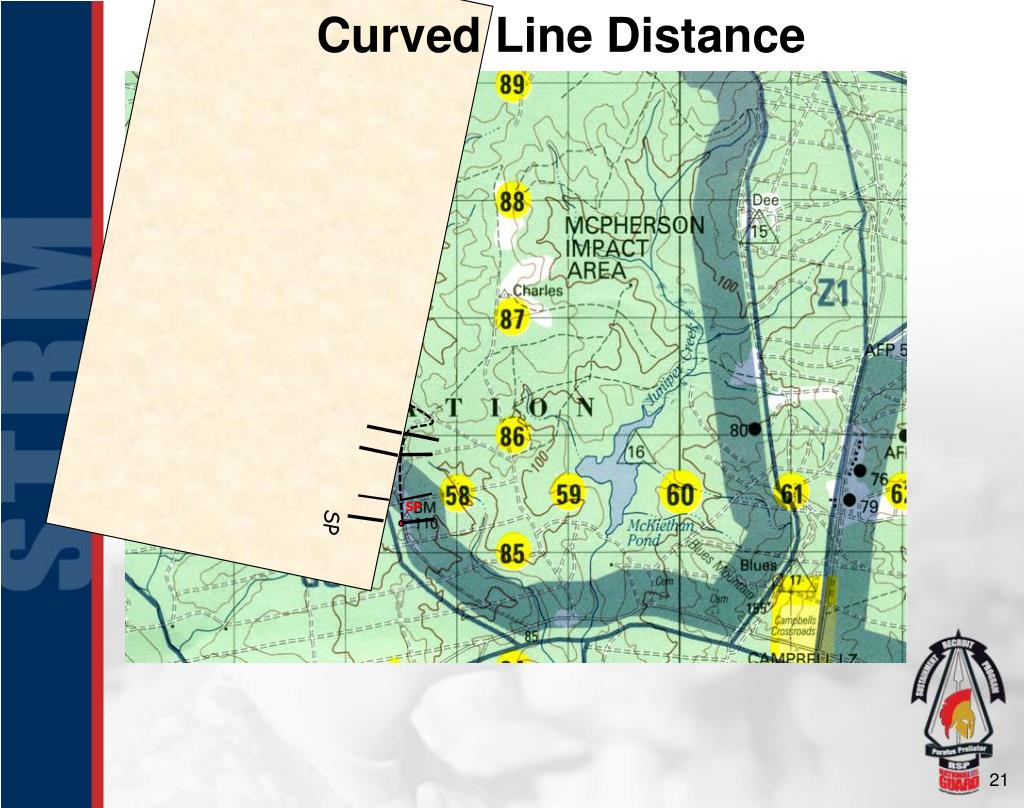

  27. Curved Line Distance (con’t) (b) (a) 3400 METERS SP

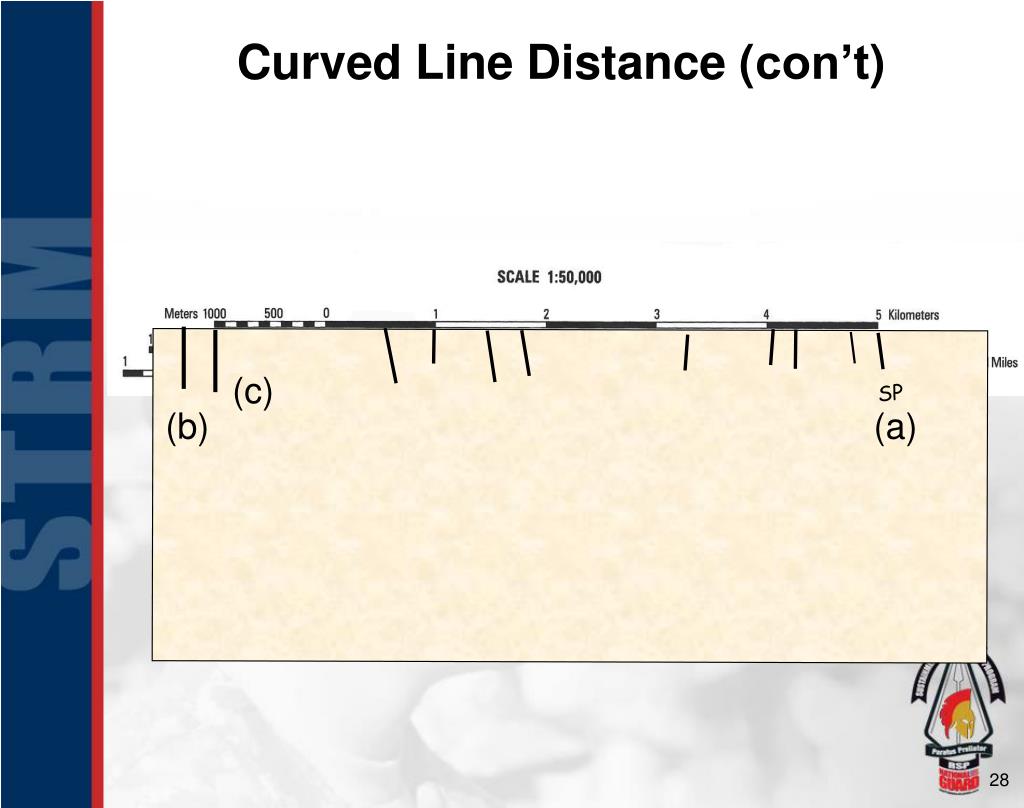

  28. Curved Line Distance (con’t) (c) (b) (a) SP

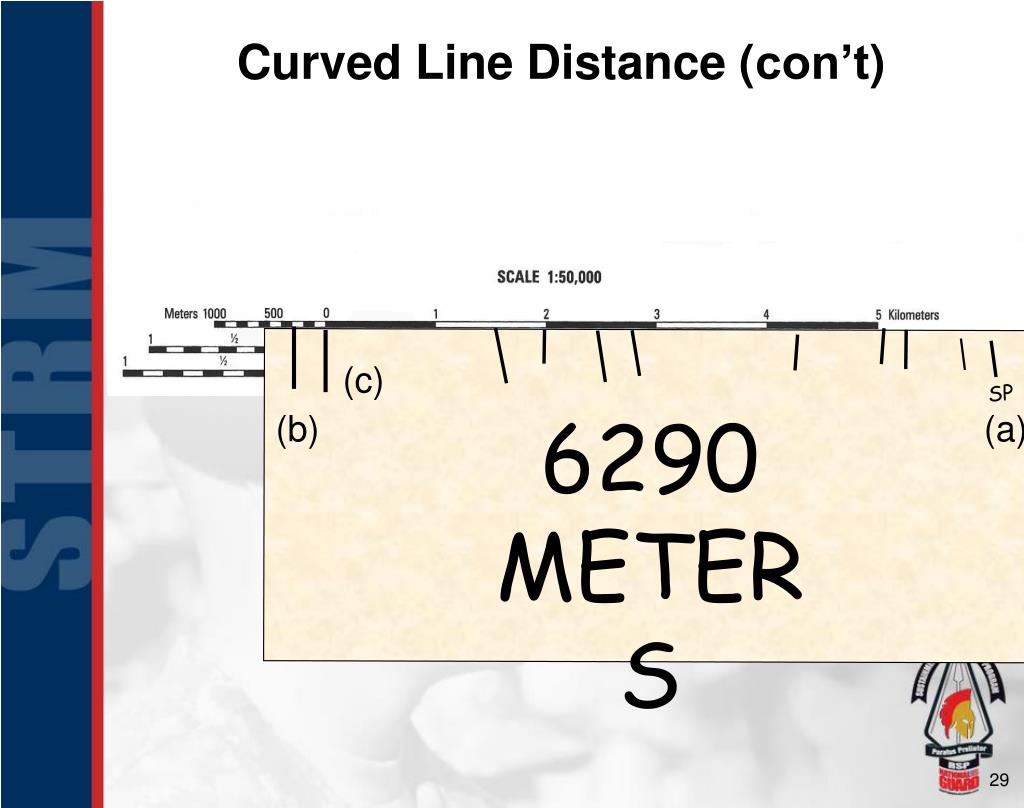

  29. Curved Line Distance (con’t) (c) SP 6290 METERS (b) (a)

  30. Terminal Learning Objective Action: Identify terrain features and measure distance on a map Conditions: Given a standard 1:50,000 scale topographic map Standards: Correctly identify terrain features and measure distance on a military map
