  1. Guntis Bārzdiņš Artūrs Lavrenovs Web servers

  2. What web servers do?

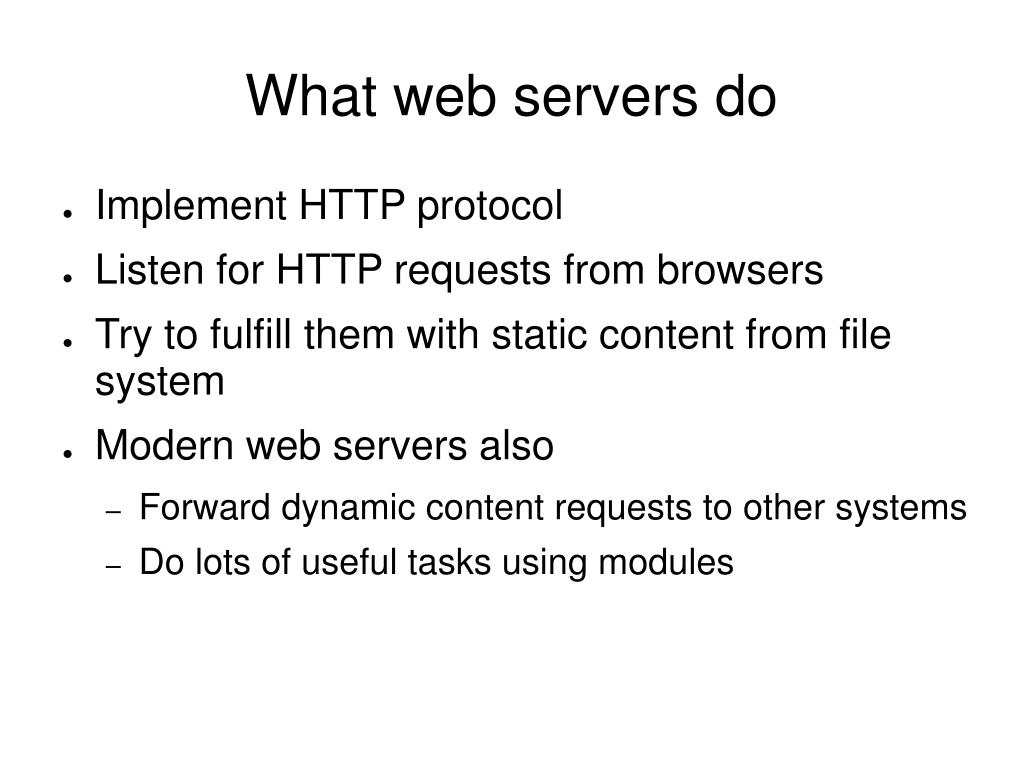

  3. What web servers do • Implement HTTP protocol • Listen for HTTP requests from browsers • Try to fulfill them with static content from file system • Modern web servers also • Forward dynamic content requests to other systems • Do lots of useful tasks using modules

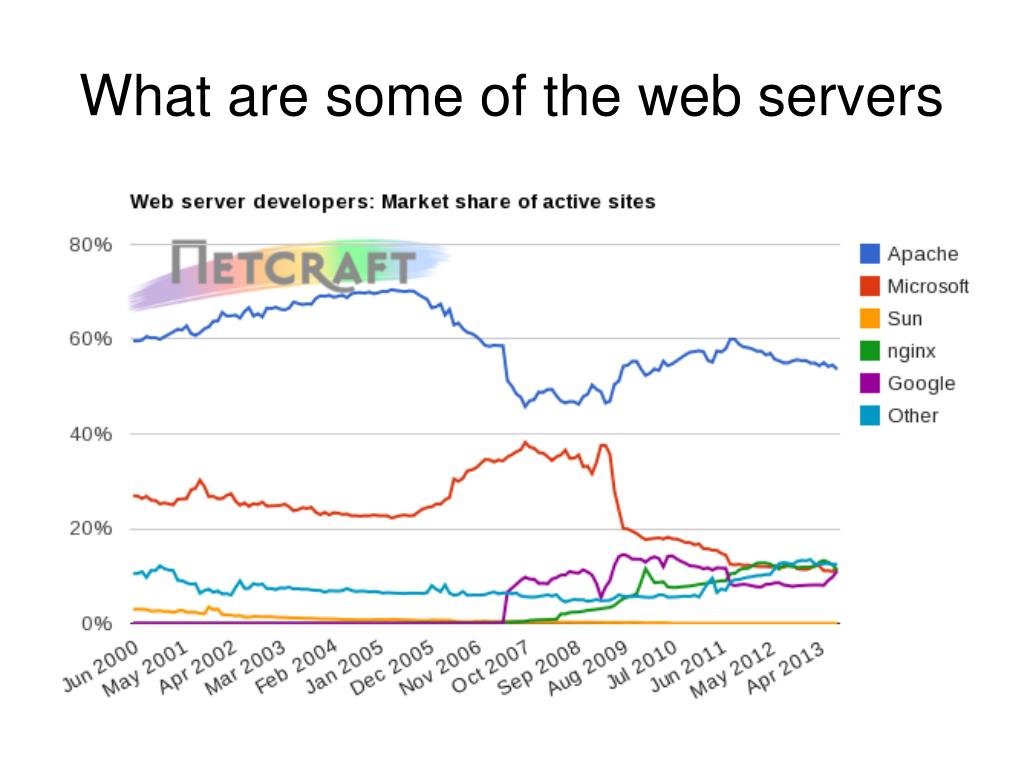

  4. What are some of the web servers

  5. C10K problem • Dan Kegel, 1999 • Web servers should handle ten thousand clients simultaneously • Operating system kernel limitations • Operating system provided functionality • Web server design flaws

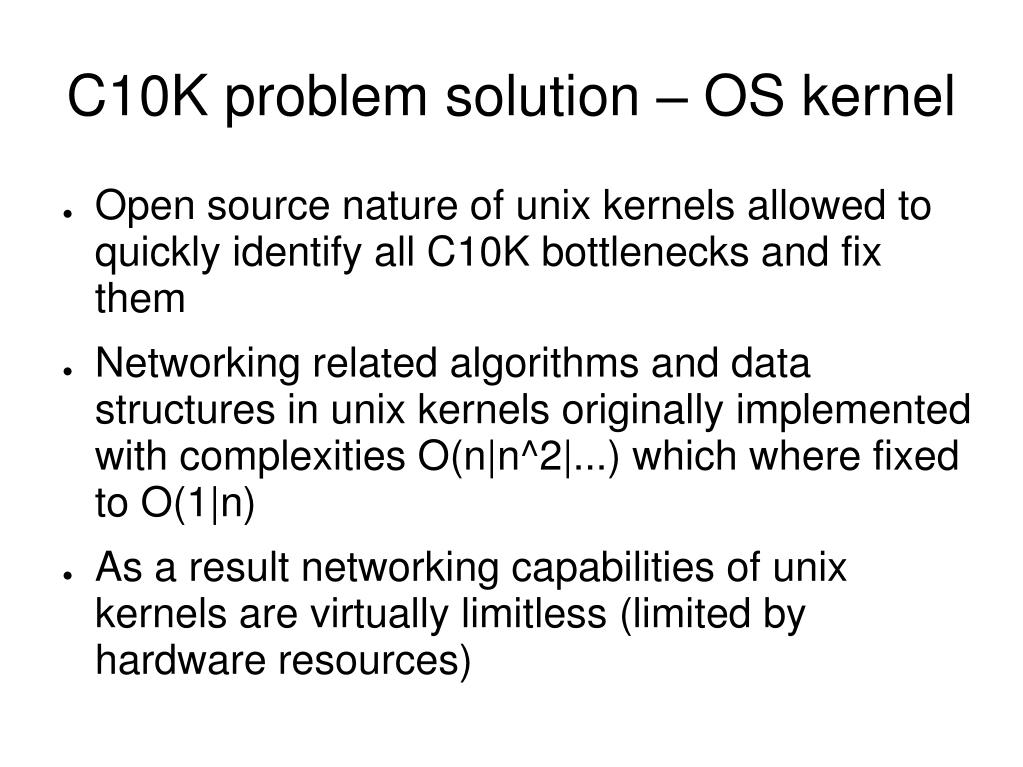

  6. C10K problem solution – OS kernel • Open source nature of unix kernels allowed to quickly identify all C10K bottlenecks and fix them • Networking related algorithms and data structures in unix kernels originally implemented with complexities O(n|n^2|...) which where fixed to O(1|n) • As a result networking capabilities of unix kernels are virtually limitless (limited by hardware resources)

  7. C10K - OS functionality • Implemented new scalable I/O event notification mechanisms (epoll – Linux, kqueue - *BSD) • Better performance than traditional poll/select • Can receive all pending event using one system call • AIO - The POSIX asynchronous I/O (AIO) interface allows applications to initiate one or more I/O operations that are performed asynchronously (i.e., in the background). The application can elect to be notified of completion of the I/O operation in a variety of ways: by delivery of a signal, by instantiation of a thread, or no notification at all.

  8. C10K – web server design • Non-blocking I/O for networking and disk • Don't block waiting on action completion, serve other requests and wait for notifications about I/O completion • Many threads • Use all available CPU cores to achieve maximum concurrency, avoid locking data structures • Each thread serves many requests • Don't create thread per request, reuse threads, while some non-blocking action completes process other requests

  9. C10M problem – Next decade • 10 million concurrent connections per server • Current unix kernels can't handle that • Application thread locks in kernel • Hardware drivers (NIC) • Memory management • Solution: new generation of high load unix kernels • 1 main application per server • Minimize system call ammount • Minimize kernel work

  10. Dynamic content

  11. Dynamic content • Web servers can't create dynamic content themselves • We need application created in some programming language • We need some method how web server can communicate with application • CGI • Apache modules • FastCGI, SCGI, ... • WSGI, PSGI, JSGI, ...

  12. CGI - Common Gateway Interface • Oldest method of getting dynamic content from web servers • For each browser request web server defines set of environment variables derived from request and server configuration • Web server starts application in prepared environment • Send POST data as standard input (if any) • Waits for standard output from executed file and returns it to browser

  13. CGI application • Can be ANY script or binary file executable in UNIX • No libraries required • Use request information from environment variables • Or ignore it completely if not needed • Process standard input if needed • Output additional HTTP headers and then generated document body in standard output

  14. CGI enivronment variables • REQUEST_METHOD: name of HTTP method • PATH_INFO: path suffix, if appended to URL after program name and a slash • PATH_TRANSLATED: corresponding full path as supposed by server, if PATH_INFO is present • SCRIPT_NAME: relative path to the program, like /cgi-bin/script.cgi • QUERY_STRING: the part of URL after ? character. The query string may be composed of *name=value pairs separated with ampersands (such as var1=val1&var2=val2...) when used to submit form data transferred via GET method as defined by HTML application/x-www-form-urlencoded • REMOTE_HOST: host name of the client, unset if server did not perform such lookup • REMOTE_ADDR: IP address of the client (dot-decimal) • Variables passed by user agent (HTTP_ACCEPT, HTTP_ACCEPT_LANGUAGE, HTTP_USER_AGENT, HTTP_COOKIE and possibly others) contain values of corresponding HTTP headers • Only few more

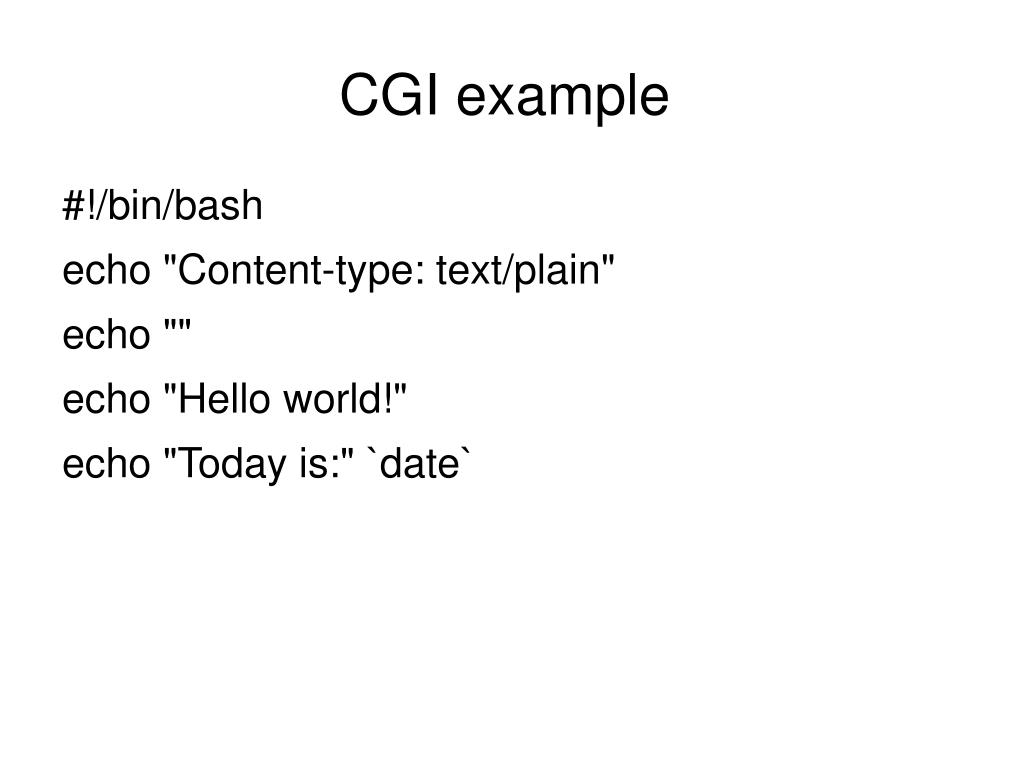

  15. CGI example #!/bin/bash echo "Content-type: text/plain" echo "" echo "Hello world!" echo "Today is:" `date`

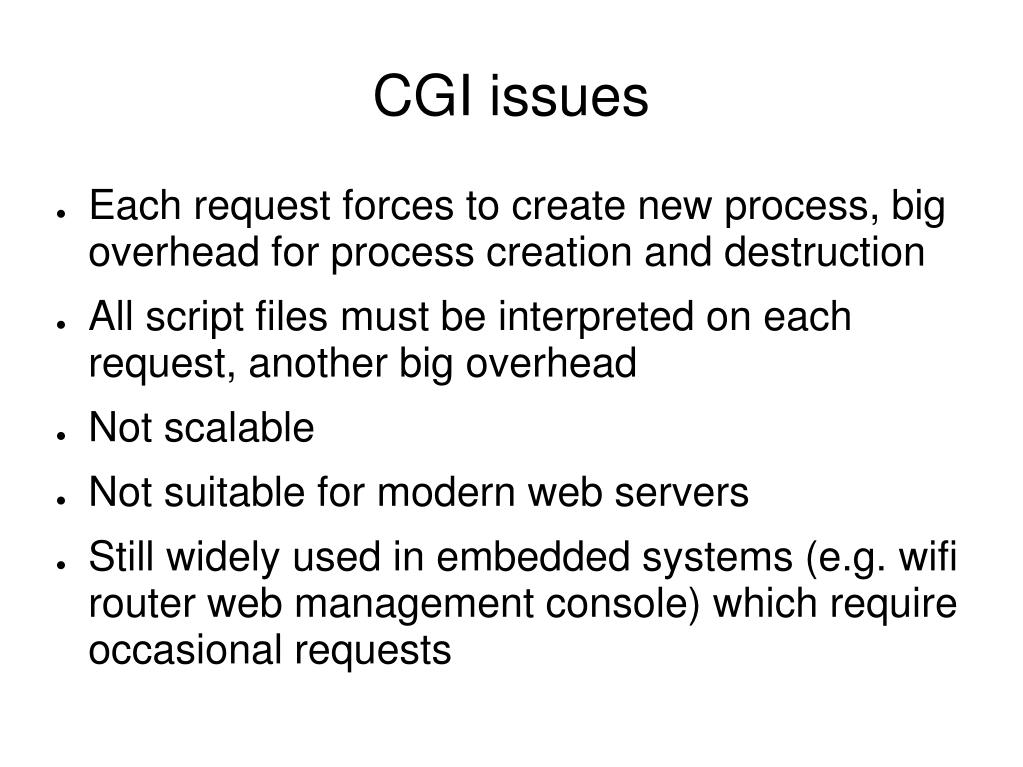

  16. CGI issues • Each request forces to create new process, big overhead for process creation and destruction • All script files must be interpreted on each request, another big overhead • Not scalable • Not suitable for modern web servers • Still widely used in embedded systems (e.g. wifi router web management console) which require occasional requests

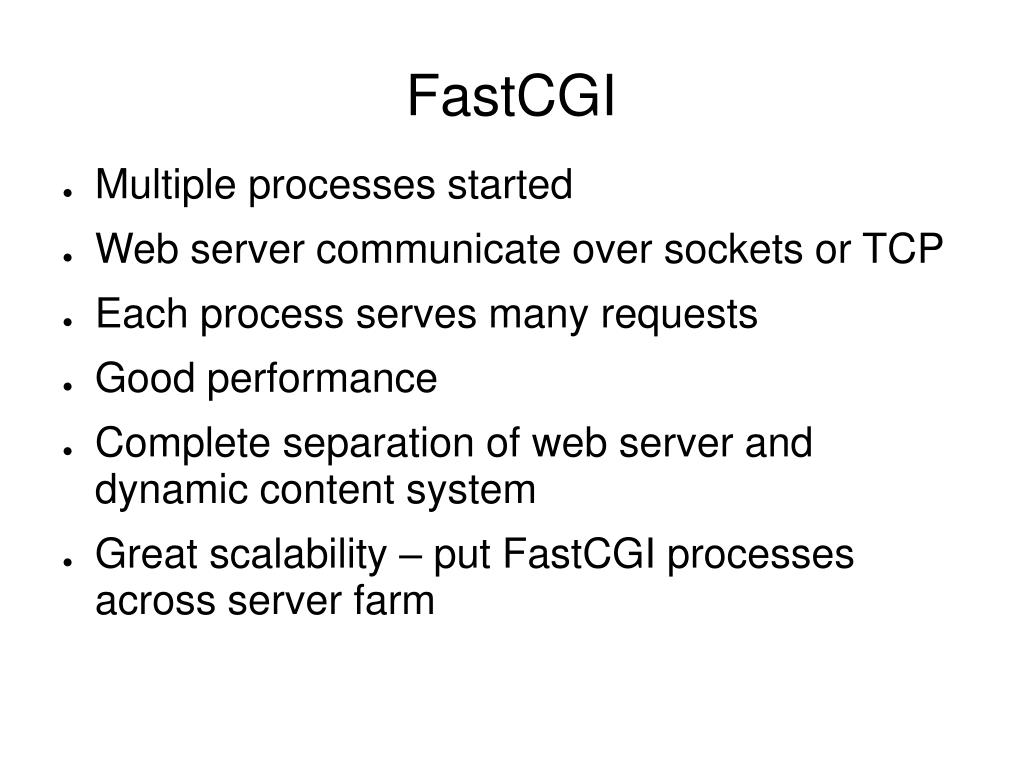

  17. FastCGI • Multiple processes started • Web server communicate over sockets or TCP • Each process serves many requests • Good performance • Complete separation of web server and dynamic content system • Great scalability – put FastCGI processes across server farm

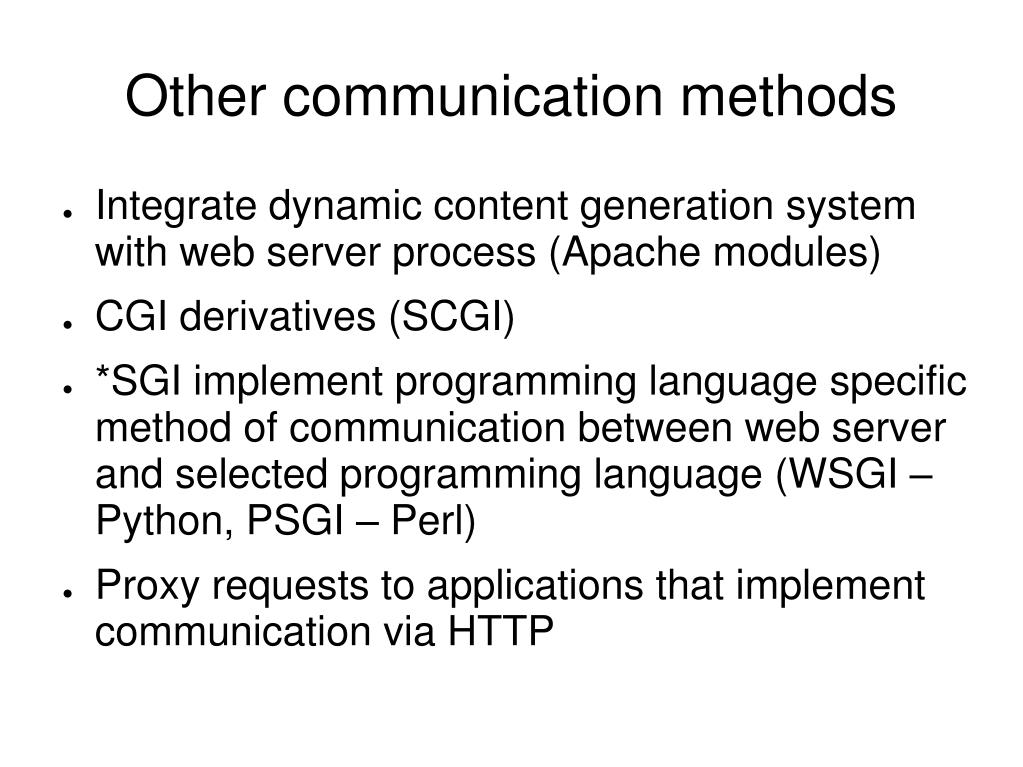

  18. Other communication methods • Integrate dynamic content generation system with web server process (Apache modules) • CGI derivatives (SCGI) • *SGI implement programming language specific method of communication between web server and selected programming language (WSGI – Python, PSGI – Perl) • Proxy requests to applications that implement communication via HTTP

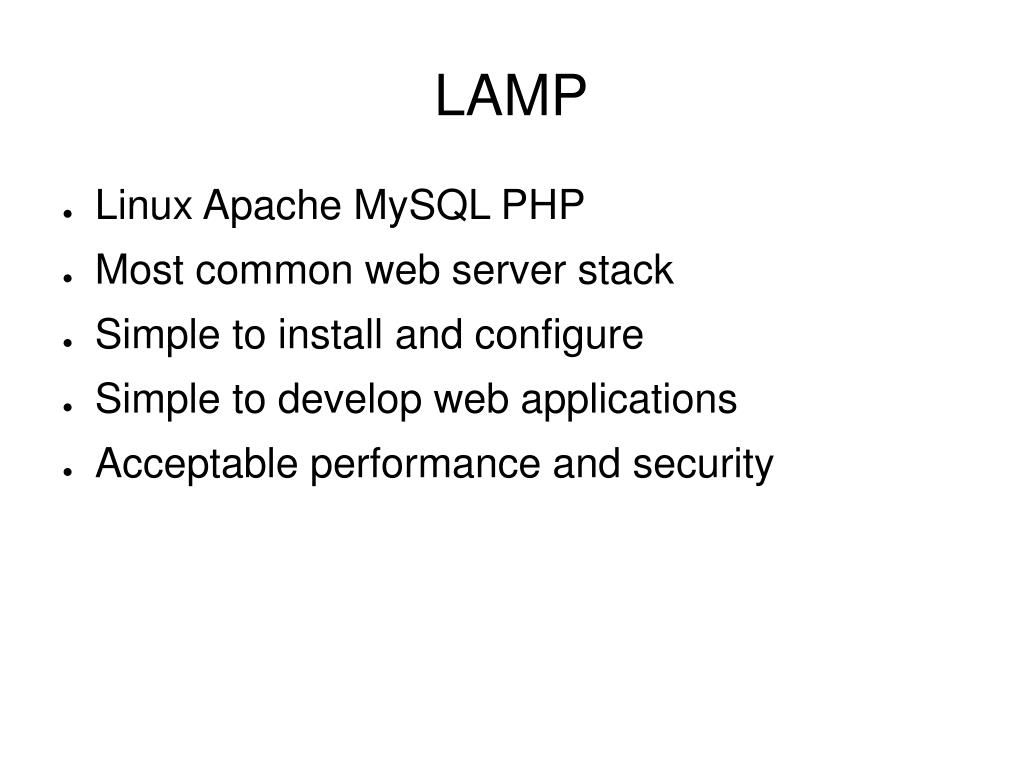

  19. LAMP • Linux Apache MySQL PHP • Most common web server stack • Simple to install and configure • Simple to develop web applications • Acceptable performance and security

  20. Apache • One of the oldest web servers • Still actively developed • Most popular web server today and in recorded web server history • Highly configurable and extensible using modules • All in one solution • Runs on many OS, most often on unix servers

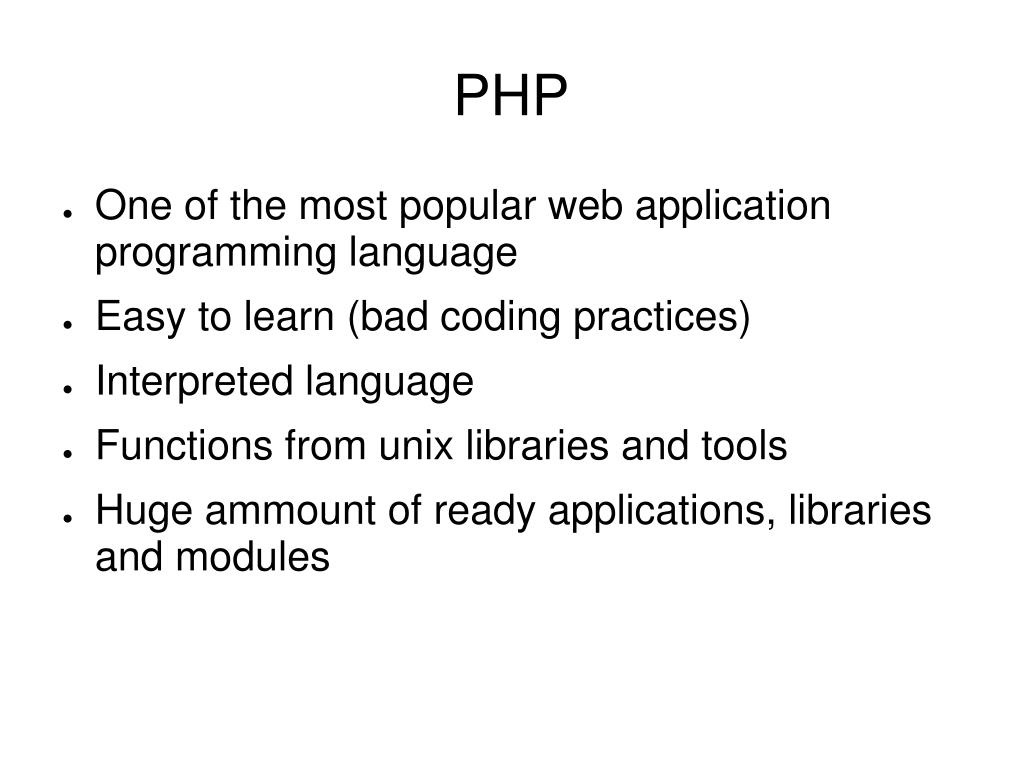

  21. PHP • One of the most popular web application programming language • Easy to learn (bad coding practices) • Interpreted language • Functions from unix libraries and tools • Huge ammount of ready applications, libraries and modules

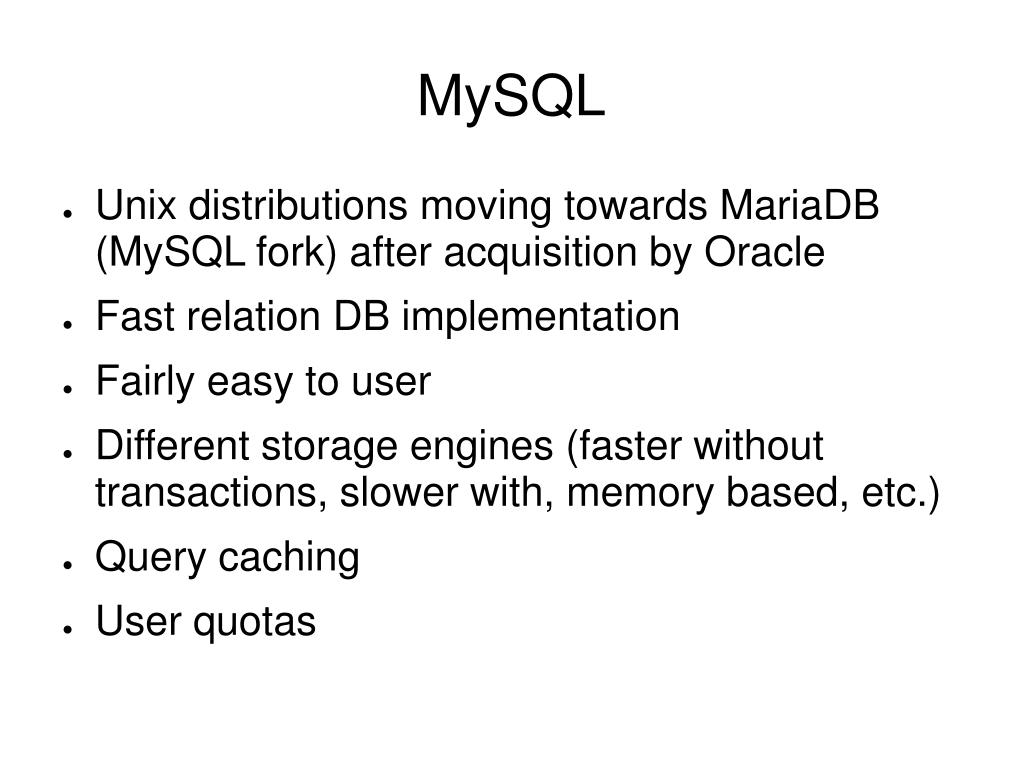

  22. MySQL • Unix distributions moving towards MariaDB (MySQL fork) after acquisition by Oracle • Fast relation DB implementation • Fairly easy to user • Different storage engines (faster without transactions, slower with, memory based, etc.) • Query caching • User quotas

  23. Historicalinstallation • Acquire source files for all required software (Apache MySQL PHP) • Acquire all dependencies and install them • Configure make files via ./configure • Compile everything • Configure each piece of software so it works with other • Use it

  24. Modern installation • Use OS package manager • root@server# apt-get install libapache2-mod-php5 apache2 php5 mysql-server • Use it

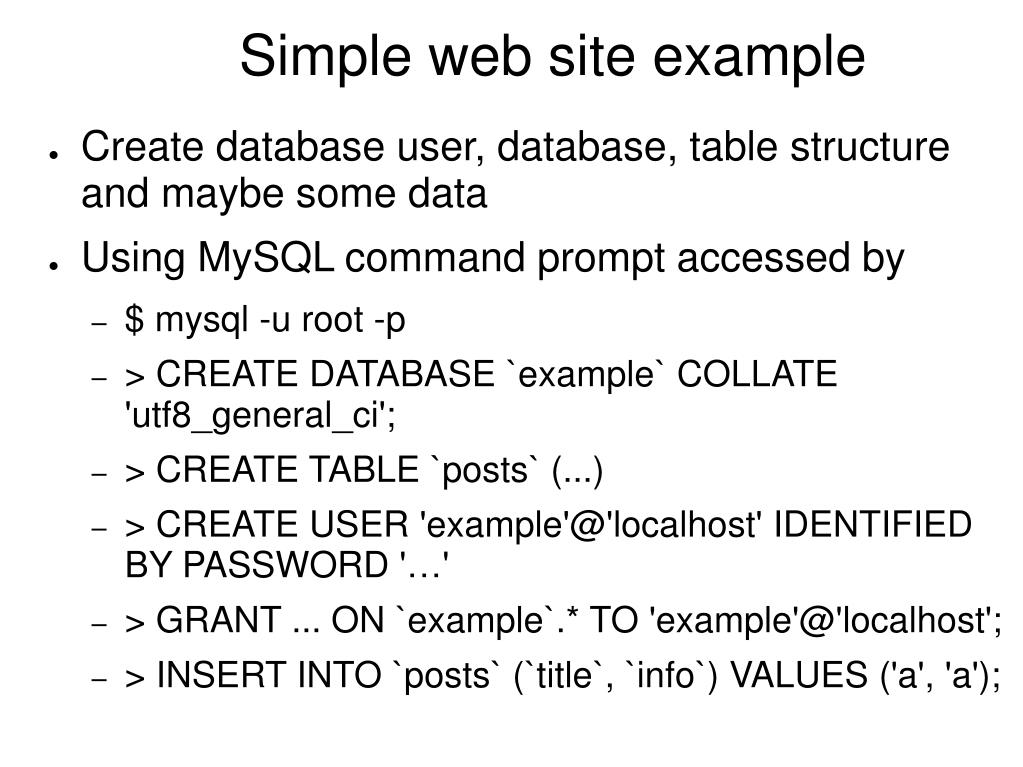

  25. Simple web site example • Create database user, database, table structure and maybe some data • Using MySQL command prompt accessed by • $ mysql -u root -p • > CREATE DATABASE `example` COLLATE 'utf8_general_ci'; • > CREATE TABLE `posts` (...) • > CREATE USER 'example'@'localhost' IDENTIFIED BY PASSWORD '…' • > GRANT ... ON `example`.* TO 'example'@'localhost'; • > INSERT INTO `posts` (`title`, `info`) VALUES ('a', 'a');

  26. Simple web site example II • Or be lazy and use some web interface like phpMyAdmin or Adminer • Download single file adminer.php • Drop it into /var/www • Navigate your browser to http://localhost/adminer.php • Do all the tasks in browser without really knowing SQL

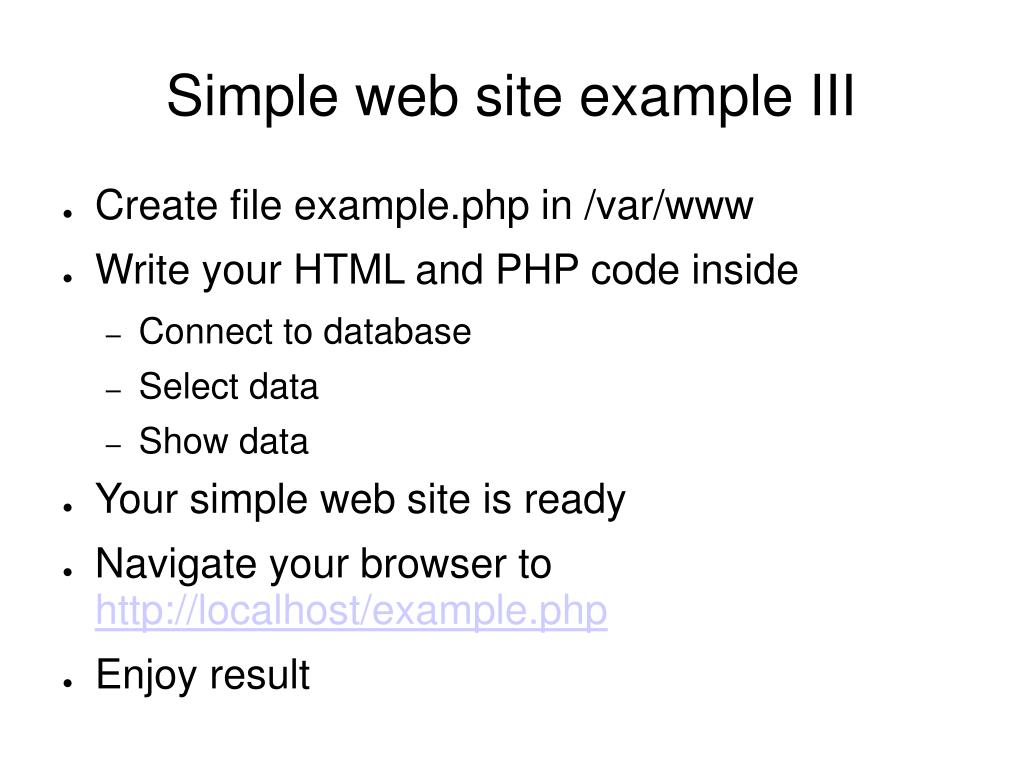

  27. Simple web site example III • Create file example.php in /var/www • Write your HTML and PHP code inside • Connect to database • Select data • Show data • Your simple web site is ready • Navigate your browser to http://localhost/example.php • Enjoy result

  28. Simple web site example - Source

  29. Simple web site example - Result • From http://localhost/example.php

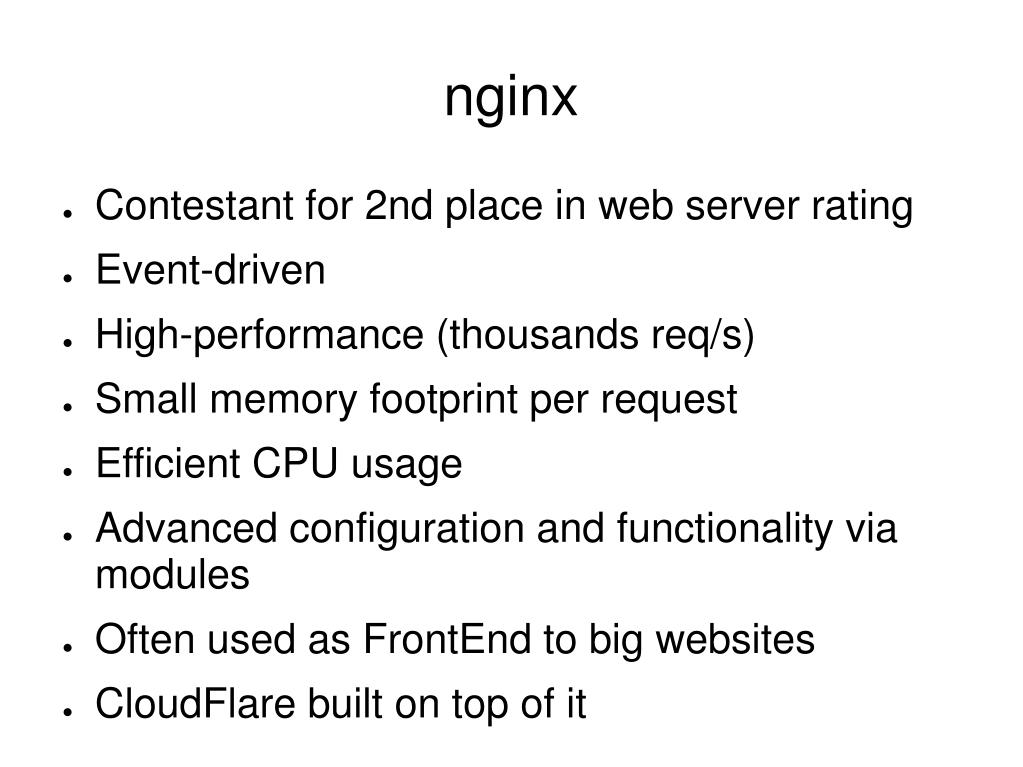

  30. nginx • Contestant for 2nd place in web server rating • Event-driven • High-performance (thousands req/s) • Small memory footprint per request • Efficient CPU usage • Advanced configuration and functionality via modules • Often used as FrontEnd to big websites • CloudFlare built on top of it

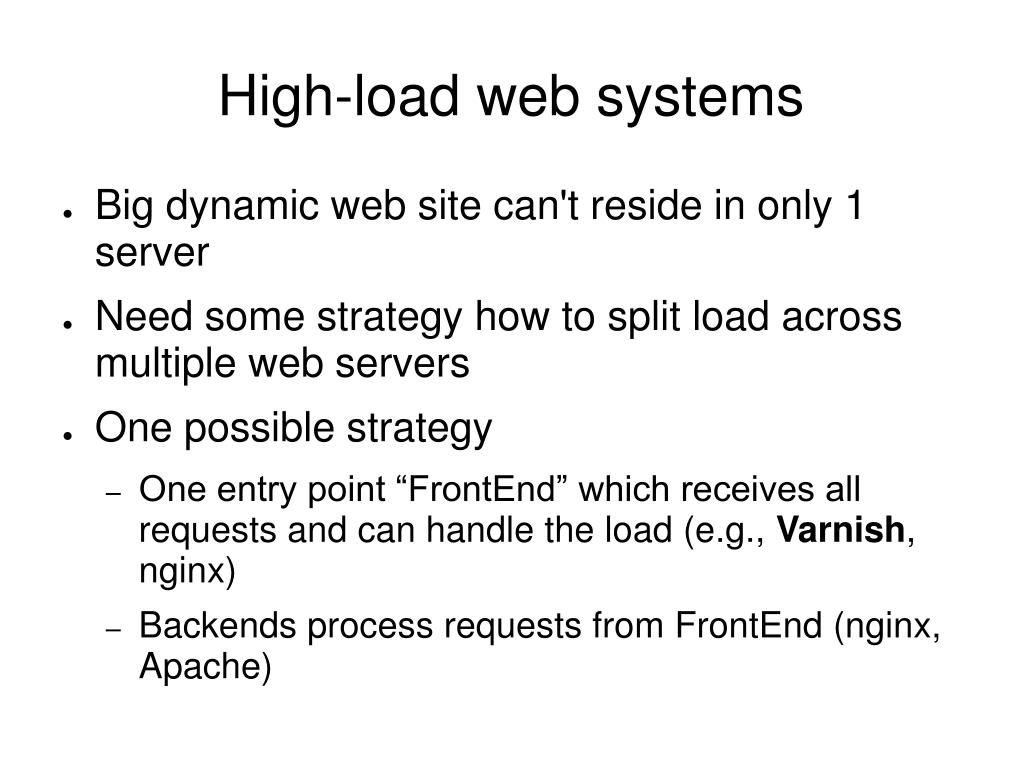

  31. High-load web systems • Big dynamic web site can't reside in only 1 server • Need some strategy how to split load across multiple web servers • One possible strategy • One entry point “FrontEnd” which receives all requests and can handle the load (e.g., Varnish, nginx) • Backends process requests from FrontEnd (nginx, Apache)

  32. Kas ir Varnish? • Starpniekserveris (proxy server) • Reversais • Kešojošais • Programmējams • Slodzes dalītājs (load balancer) • Dinamiskā satura ģenerētājs • Rīki – žurnalēšanas, atkļūdošanas, monitorēšānas

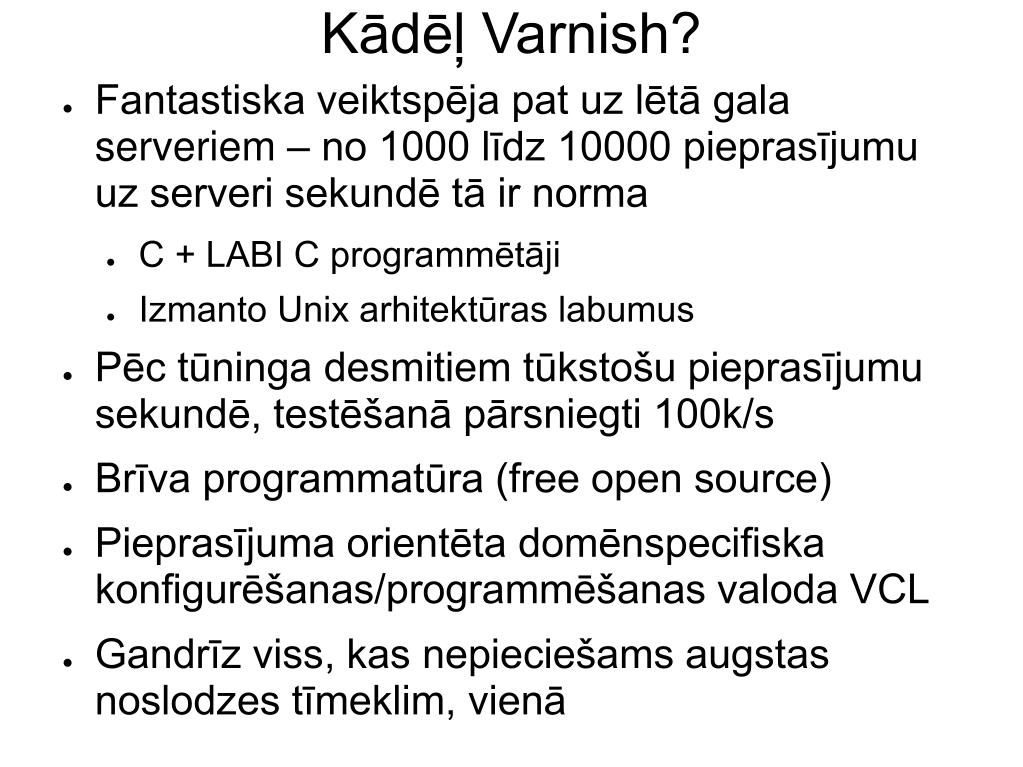

  33. Kādēļ Varnish? • Fantastiska veiktspēja pat uz lētā gala serveriem – no 1000 līdz 10000 pieprasījumu uz serveri sekundē tā ir norma • C + LABI C programmētāji • Izmanto Unix arhitektūras labumus • Pēc tūninga desmitiem tūkstošu pieprasījumu sekundē, testēšanā pārsniegti 100k/s • Brīva programmatūra (free open source) • Pieprasījuma orientēta domēnspecifiska konfigurēšanas/programmēšanas valoda VCL • Gandrīz viss, kas nepieciešams augstas noslodzes tīmeklim, vienā

  34. Kešošana • Jebkura dinamiskas tīmekļa lapas ģenerēšana ir ļoti lēna - atkarībā no vides simtiem vai tūkstošiem reižu lēnāka nekā statiska satura atgriešana • Lētā gala serveris var ģenerēt pāris simtus šādu dinamisku lapu sekundē • Jebkurš izstrādes ietvars padara dinamiskas lapas ģenerēšanu vēl desmitiem vai simtiem reižu lēnāks (it īpaši Java EE, Zend Framework) • Jau tikai daži desmiti pieprasījumi sekundē • Rupja matemātika 100x100=10 000 reižu lēnāk kā statiska lapa

  35. Kešošana II • Ideja – būtu ideāli atgriezt dinamisku saturu ar veiktspēju līdzīgu statiskām lapām • Mēs varam saglabāt tās lapas, kas ir vienādas lietotājam un būtiski nemainās noteiktā laika posmā • Cietā diska izmantošana lēna, labā prakse izmantot tikai RAM vai servera SSD visa kešotā satura glabāšanai • Katram konkrētam gadījumam jāveido kešošanas stratēģija, kas var būt ļoti subjektīva

  36. Varnish kešošana • Pēc pieprasījuma adreses (pilnas vai regulāras izteiksmes) var noteikt, kurus pieprasījumus kešot, cik ilgi konkrētu elementu kešot vai nekešot – standarta kešošanas pieeja praktiski visur • Lietotāji – Facebook, Twitter, WikiLeaks, ThePirateBay • Izstrādāts Norvēģijā • Reklamējas, ka var paātrināt lapas atgriešanu no 300 līdz tūkstošiem reižu, t.i., tikai aptuveni līdz 10 reizēm lēnāk nekā statisks saturs • Ātra salīdzinoši ar citām kešošanas pieejām

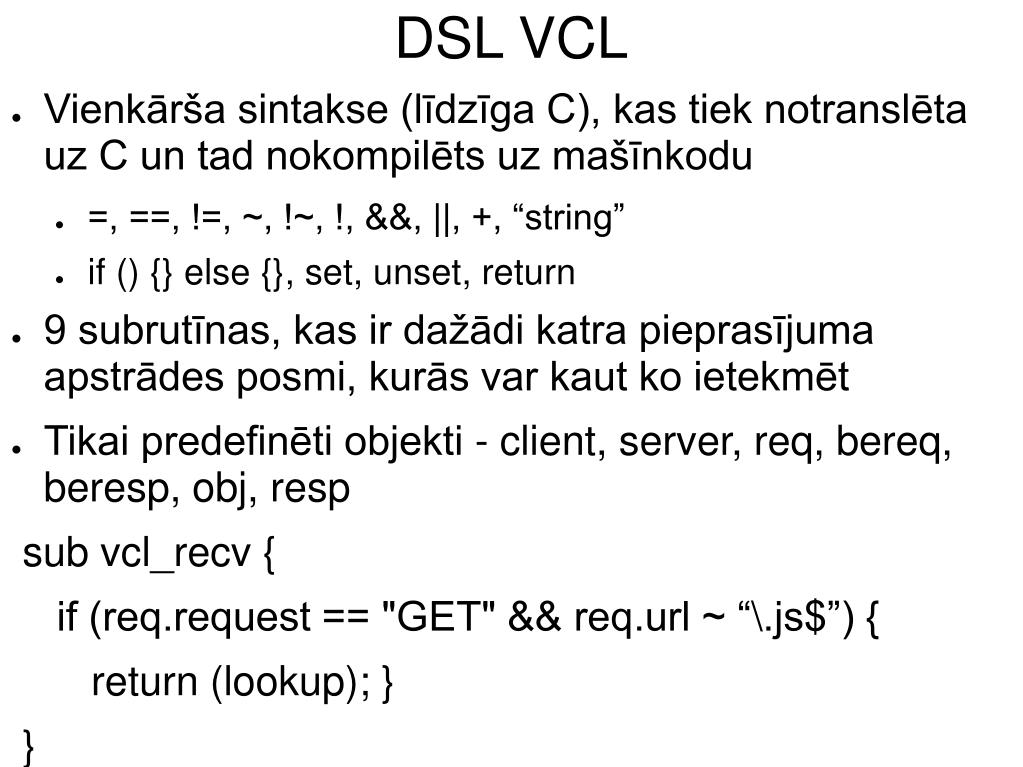

  37. DSL VCL • Vienkārša sintakse (līdzīga C), kas tiek notranslēta uz C un tad nokompilēts uz mašīnkodu • =, ==, !=, ~, !~, !, &&, ||, +, “string” • if () {} else {}, set, unset, return • 9 subrutīnas, kas ir dažādi katra pieprasījuma apstrādes posmi, kurās var kaut ko ietekmēt • Tikai predefinēti objekti - client, server, req, bereq, beresp, obj, resp sub vcl_recv { if (req.request == "GET" && req.url ~ “\.js$”) { return (lookup); } }

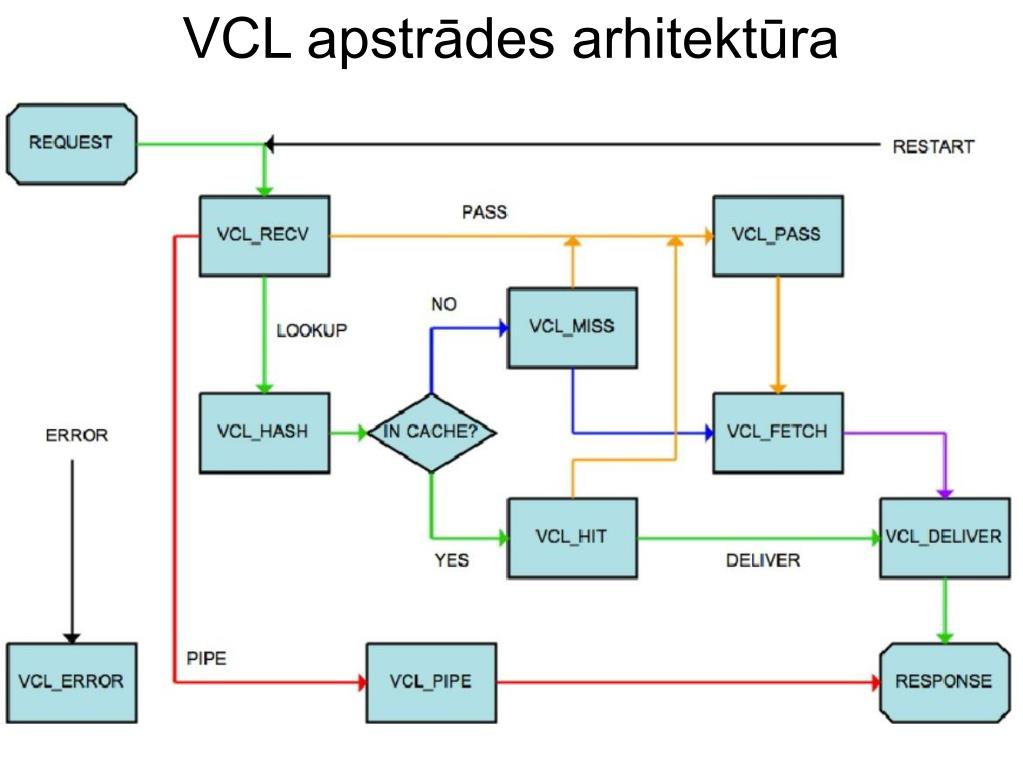

  38. VCL apstrādes arhitektūra

  39. Integrēšana • Fiksētais kešošanas laiks var nebūt optimāls • Saturs var mainīties biežāk par uzstādīto laiku - lietotāji dabū vecu informāciju • Retāk – serveri veic nevajadzīgu darbu • Risinājums – jāpaziņo serverim, ka saturs ir jāatjaunina acl purge { "192.168.0.0"/24; } sub vcl_recv { if (req.request == "PURGE" ) { if (!client.ip ~ purge) { error 405 "Not allowed."; } return (lookup); } } sub vcl_hit { if (req.request == "PURGE") { purge; error 200 "Purged."; } }

  40. Dinamiskā satura ģenerēšana ESI • Bieži vien tīmekļa lapas sastāv no blokiem, kuru mainība ir dažāda • Vai arī ir neliels informācijas bloks, kas atbilst katram lietotājam (piemēram, “Sveiks, Jānis Bērziņš | Tev ir [0] jauns ziņas”) • Mēs to varam ielādēt pēc lapas ielādes, izmantojot JSON vai arī ģenerēt saturu uz Varnish <TABLE><TR><esi:include src=”sveiks.html”/></TR> <TR><TD><esi:include src=”index.html”/></TD> <TD><esi:include src=”article.html”/></TD></TR> </TABLE> • Varnish parsē <esi> birkas un saliek elementus kopā, visi elementi konfigurēti un kešoti kā neatkarīgi

  41. Slodzes dalīšana • Vienu adresi var apstrādāt vairāki ar bakendi • Dažādus url var apstrādāt dažādi bakendi • Monitorēšana • Beigto serveru atslēgšana (restart, upgrade, repair) • Atdzīvojušos serveru pieslēgšana atpakaļ (arī jauni) • Faktiski nozīmē, ka var lietot kaudzi LĒTU desktop grade dzelžu dinamiskā satura ģenerēšanai • Ja pievienojam vēl vienu frontend, tad iegūstam augstu, bet lētu bojājumpiecietība (fault tolerance) • Ja izmantojam NoSQL vai kā savādāk iegūstam replicētu datubāzi, tad nav nepieciešami dārgi serveri vispār

  42. $ curl -I www.delfi.lv HTTP/1.1 200 OK X-Fe-Node: nuffy Content-type: text/html; charset=utf-8 Server: lighttpd/1.4.31 (PLD Linux) Content-Length: 159097 Date: Wed, 07 Nov 2012 20:20:58 GMT X-Varnish: 734492112 734450241 Age: 58 Via: 1.1 varnish Connection: keep-alive Varnish lietojums Latvijā $ curl -I www.tvnet.lv • HTTP/1.1 200 OK • Server: Apache • Last-Modified: Wed, 07 Nov 2012 20:09:08 GMT • Expires: Wed, 07 Nov 2012 20:10:08 GMT • Cache-Control: max-age=60 • Vary: Accept-Encoding • Content-Type: text/html; charset=UTF-8 • Content-Length: 185924 • Date: Wed, 07 Nov 2012 20:10:15 GMT • X-Varnish: 2025605055 2025545136 • Age: 67 • Via: 1.1 varnish • Connection: keep-alive

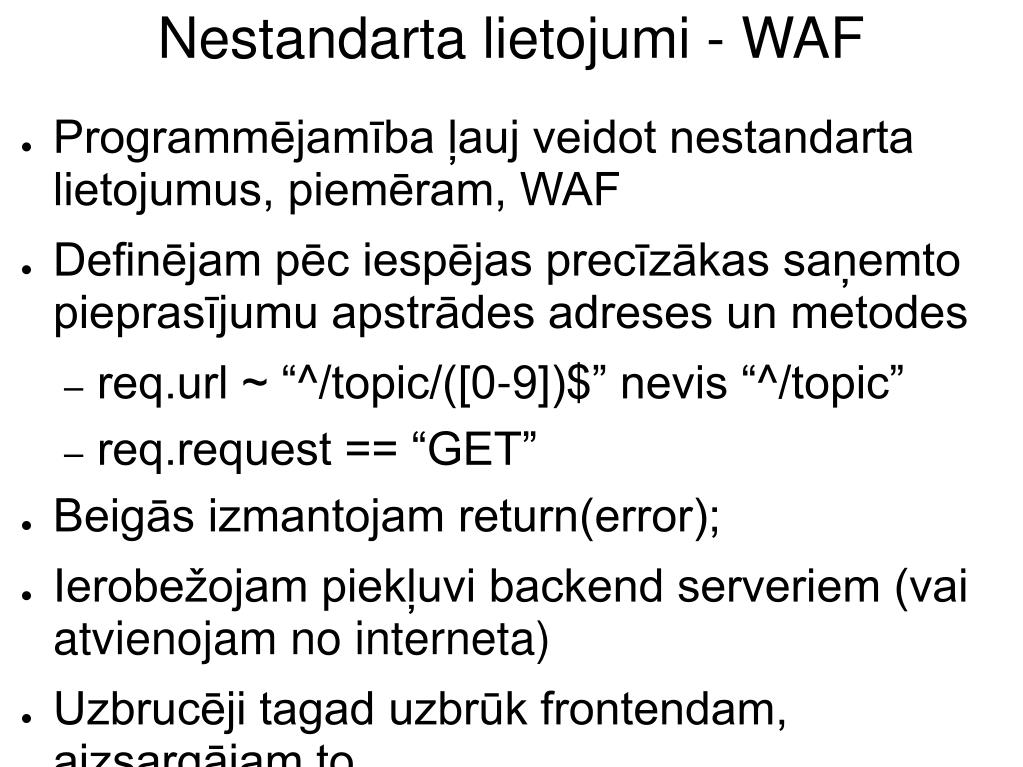

  43. Nestandarta lietojumi - WAF • Programmējamība ļauj veidot nestandarta lietojumus, piemēram, WAF • Definējam pēc iespējas precīzākas saņemto pieprasījumu apstrādes adreses un metodes • req.url ~ “^/topic/([0-9])$” nevis “^/topic” • req.request == “GET” • Beigās izmantojam return(error); • Ierobežojam piekļuvi backend serveriem (vai atvienojam no interneta) • Uzbrucēji tagad uzbrūk frontendam, aizsargājam to • Nepalīdz pret loģiskām (un daudzām citām) ievainojamībām

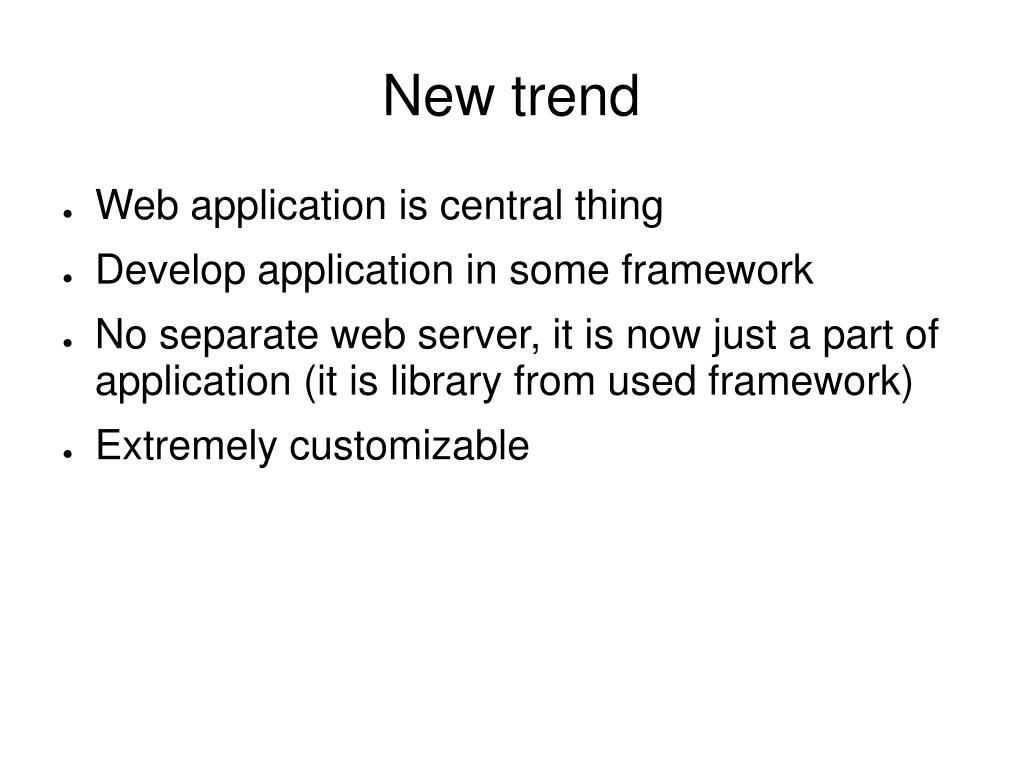

  44. New trend • Web application is central thing • Develop application in some framework • No separate web server, it is now just a part of application (it is library from used framework) • Extremely customizable

  45. Standarta tīmekļa izstrādes risinājums ir HTTP serveris un kāda klasiska dinamiskā satura ģenerējošā sistēma (PHP, ASP, Python u.c.), pastāv problēmas: Ilglaicīgie pieprasījumi un pastāvīgie savienojumi Vienlaicīgi apkalpojamo klientu skaits Savietojamība ar citām tehnoloģijām Nākotnes attīstības iespējas Situācija šobrīd

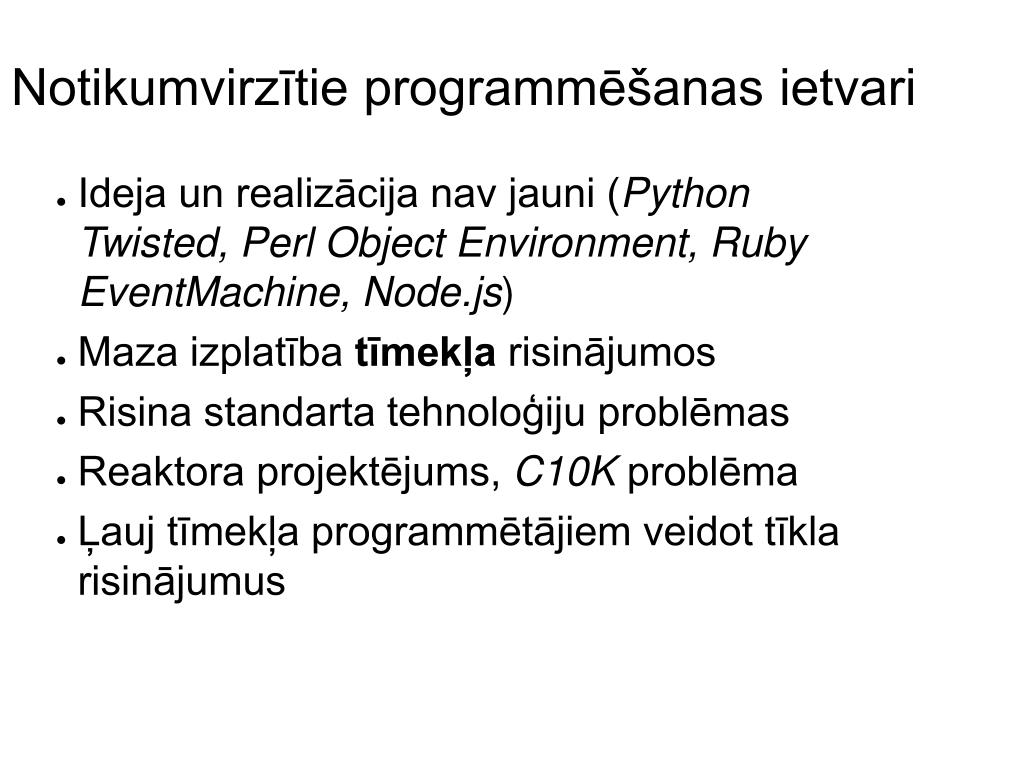

  46. Notikumvirzītie programmēšanas ietvari • Ideja un realizācija nav jauni (Python Twisted, Perl Object Environment, Ruby EventMachine, Node.js) • Maza izplatība tīmekļa risinājumos • Risina standarta tehnoloģiju problēmas • Reaktora projektējums, C10K problēma • Ļauj tīmekļa programmētājiem veidot tīkla risinājumus

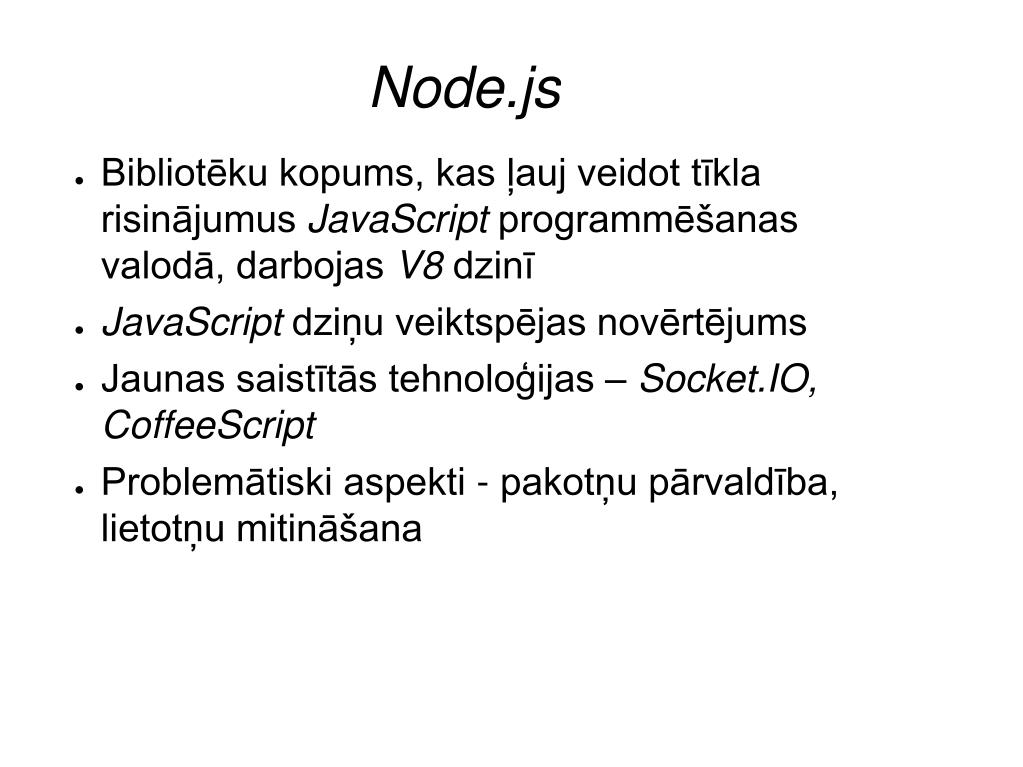

  47. Node.js • Bibliotēku kopums, kas ļauj veidot tīkla risinājumus JavaScript programmēšanas valodā, darbojas V8 dzinī • JavaScript dziņu veiktspējas novērtējums • Jaunas saistītās tehnoloģijas – Socket.IO, CoffeeScript • Problemātiski aspekti - pakotņu pārvaldība, lietotņu mitināšana
