  1. System On Package(SOP) for Wireless Communication 임근원 2005. 06. 16

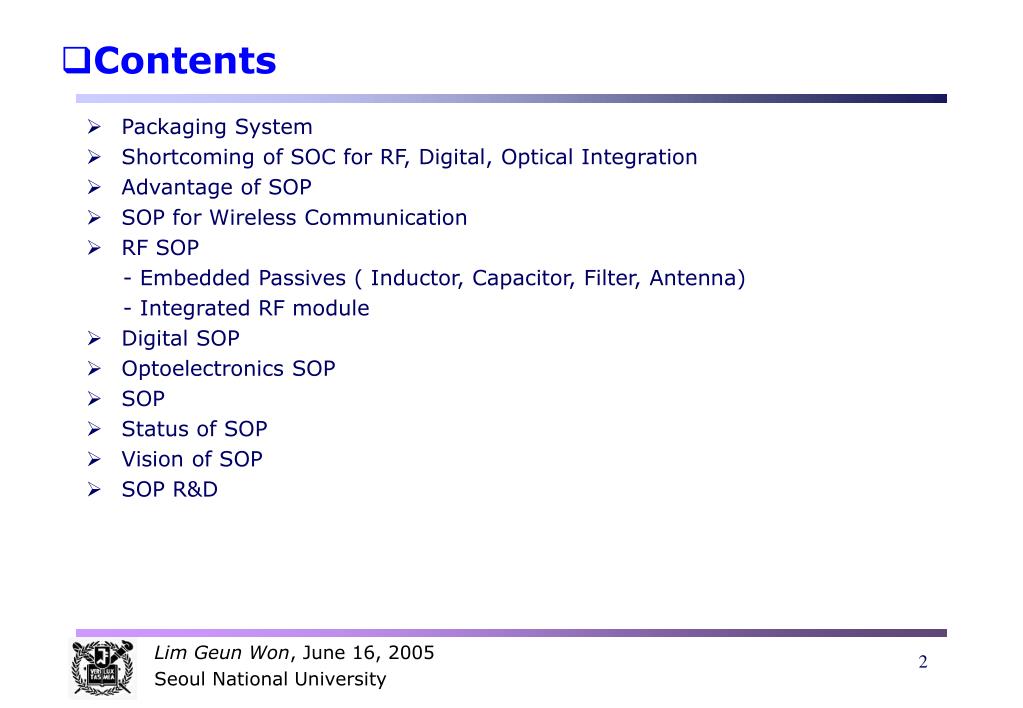

  2. Contents • Packaging System • Shortcoming of SOC for RF, Digital, Optical Integration • Advantage of SOP • SOP for Wireless Communication • RF SOP - Embedded Passives ( Inductor, Capacitor, Filter, Antenna) - Integrated RF module • Digital SOP • Optoelectronics SOP • SOP • Status of SOP • Vision of SOP • SOP R&D

  3. Package system • System-on-chip (SOC) • Multichip module (MCM) • System-in-package (SIP) • System-on-package (SOP)

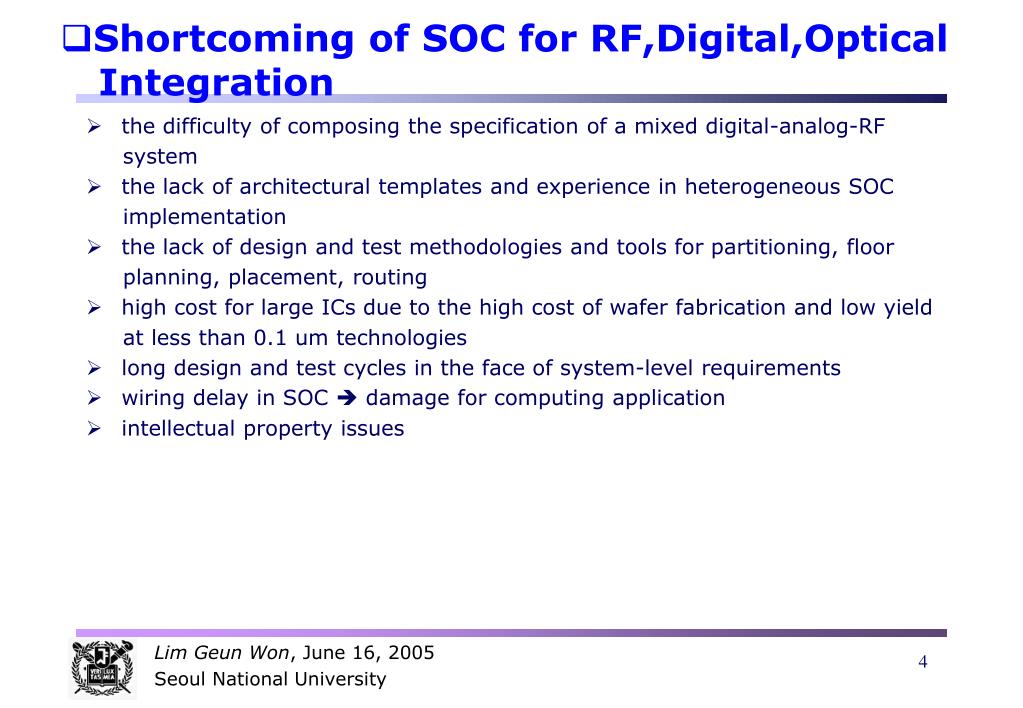

  4. Shortcoming of SOC for RF,Digital,Optical Integration • the difficulty of composing the specification of a mixed digital-analog-RF system • the lack of architectural templates and experience in heterogeneous SOC implementation • the lack of design and test methodologies and tools for partitioning, floor planning, placement, routing • high cost for large ICs due to the high cost of wafer fabrication and low yield at less than 0.1 um technologies • long design and test cycles in the face of system-level requirements • wiring delay in SOC  damage for computing application • intellectual property issues

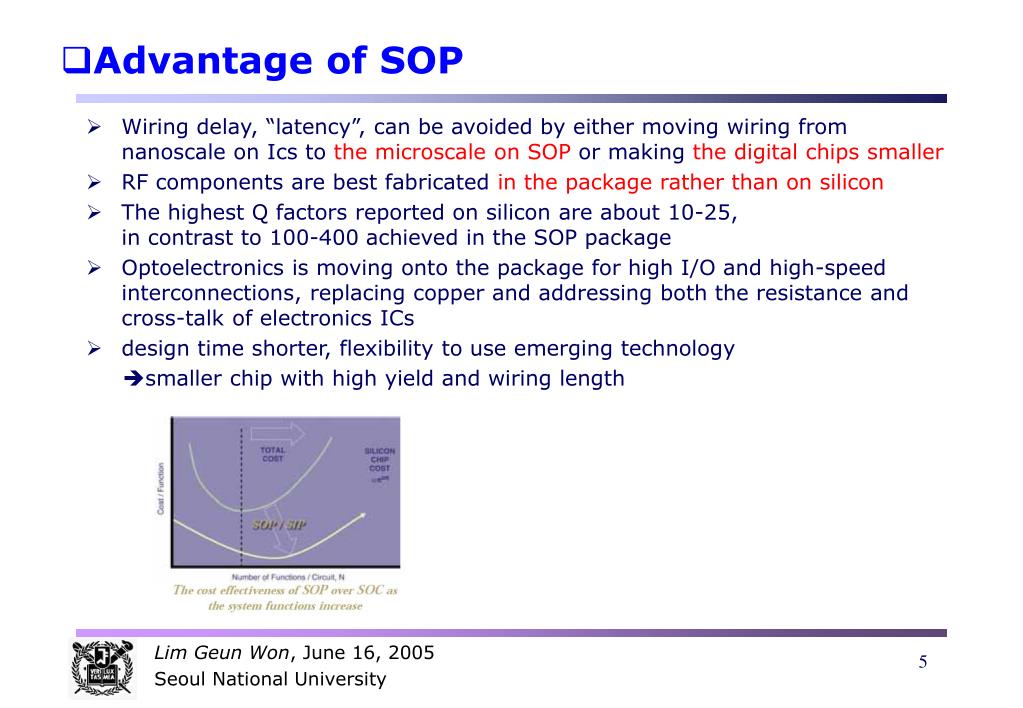

  5. Advantage of SOP • Wiring delay, “latency”, can be avoided by either moving wiring from nanoscale on Ics to the microscale on SOP or making the digital chips smaller • RF components are best fabricated in the package rather than on silicon • The highest Q factors reported on silicon are about 10-25, in contrast to 100-400 achieved in the SOP package • Optoelectronics is moving onto the package for high I/O and high-speed interconnections, replacing copper and addressing both the resistance and cross-talk of electronics ICs • design time shorter, flexibility to use emerging technology smaller chip with high yield and wiring length

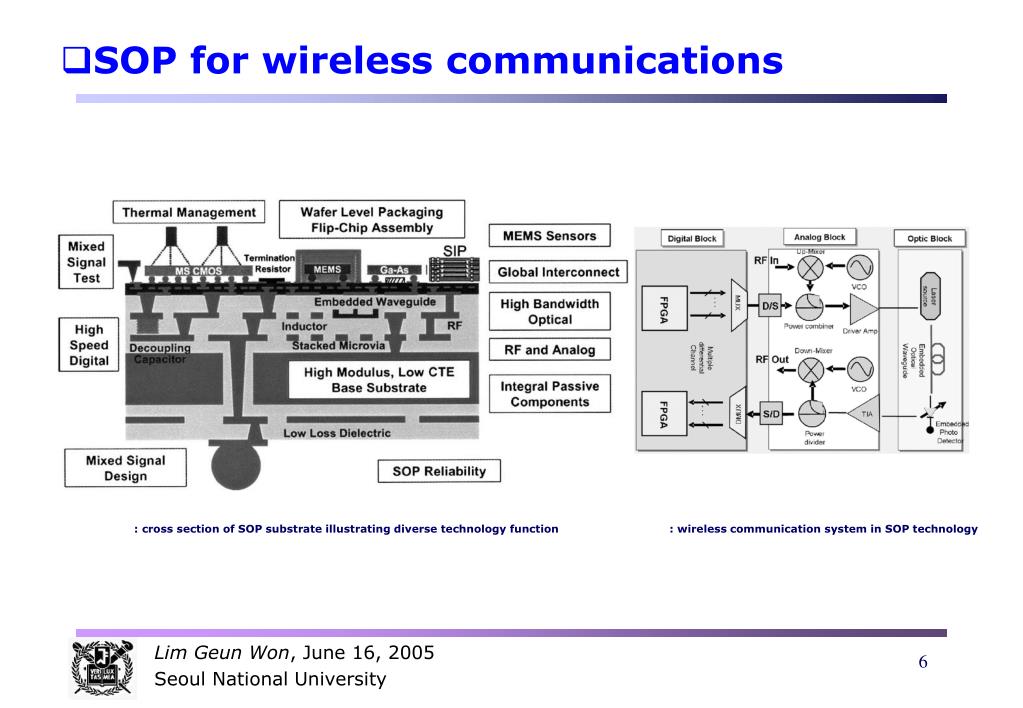

  6. SOP for wireless communications : cross section of SOP substrate illustrating diverse technology function : wireless communication system in SOP technology

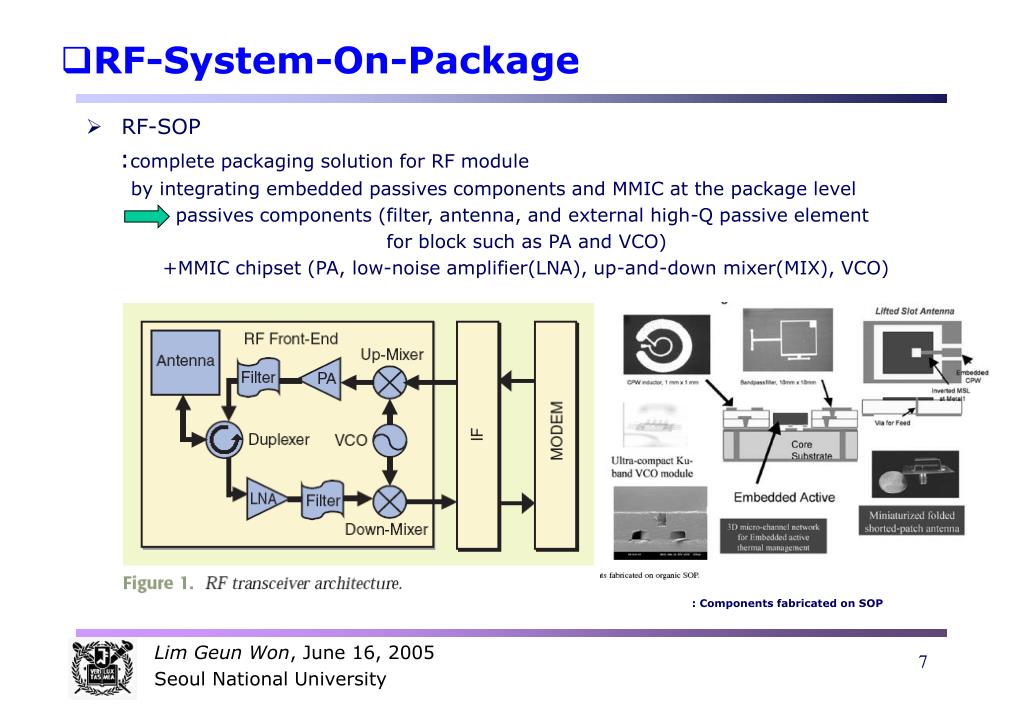

  7. RF-System-On-Package • RF-SOP :complete packaging solution for RF module by integrating embedded passives components and MMIC at the package level passives components (filter, antenna, and external high-Q passive element for block such as PA and VCO) +MMIC chipset (PA, low-noise amplifier(LNA), up-and-down mixer(MIX), VCO) : Components fabricated on SOP

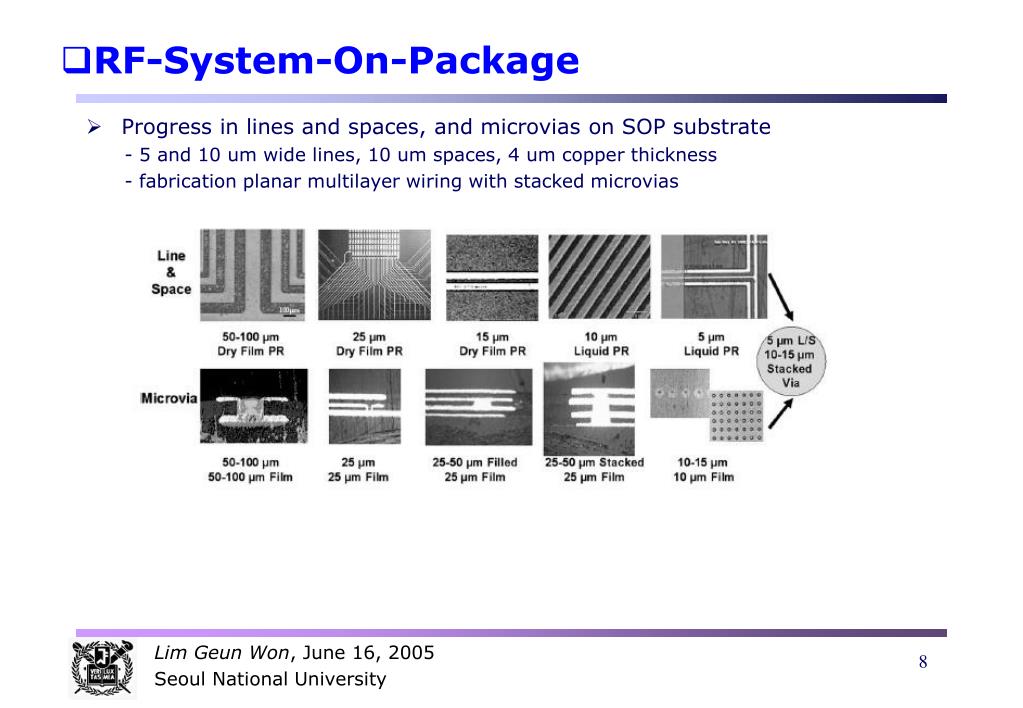

  8. RF-System-On-Package • Progress in lines and spaces, and microvias on SOP substrate - 5 and 10 um wide lines, 10 um spaces, 4 um copper thickness - fabrication planar multilayer wiring with stacked microvias

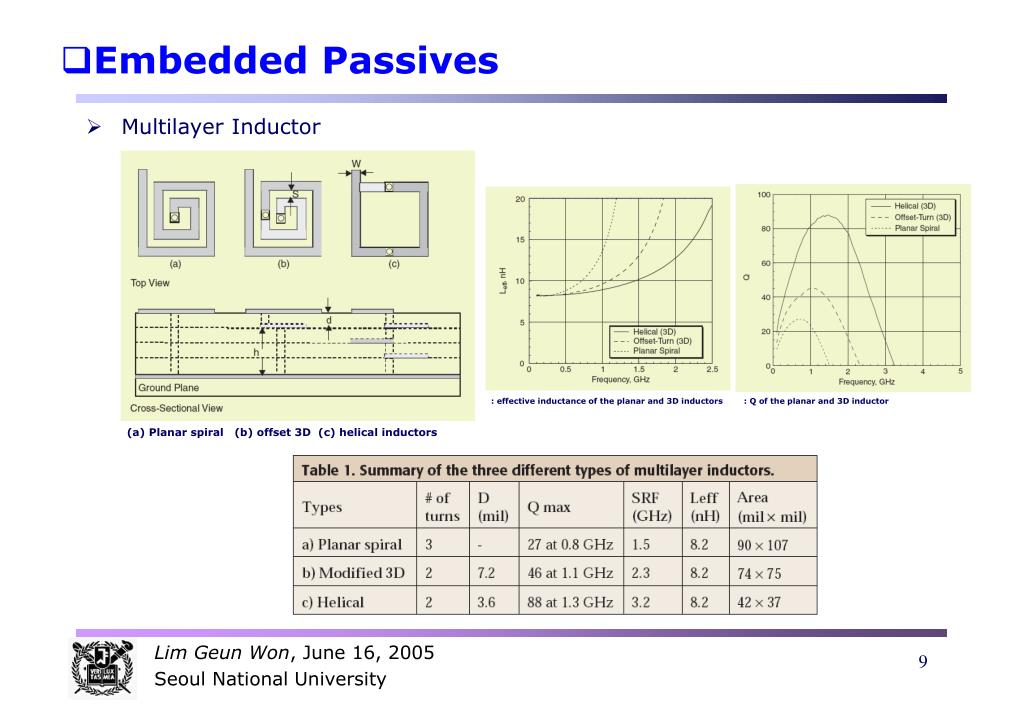

  9. Embedded Passives • Multilayer Inductor : effective inductance of the planar and 3D inductors : Q of the planar and 3D inductor (a) Planar spiral (b) offset 3D (c) helical inductors

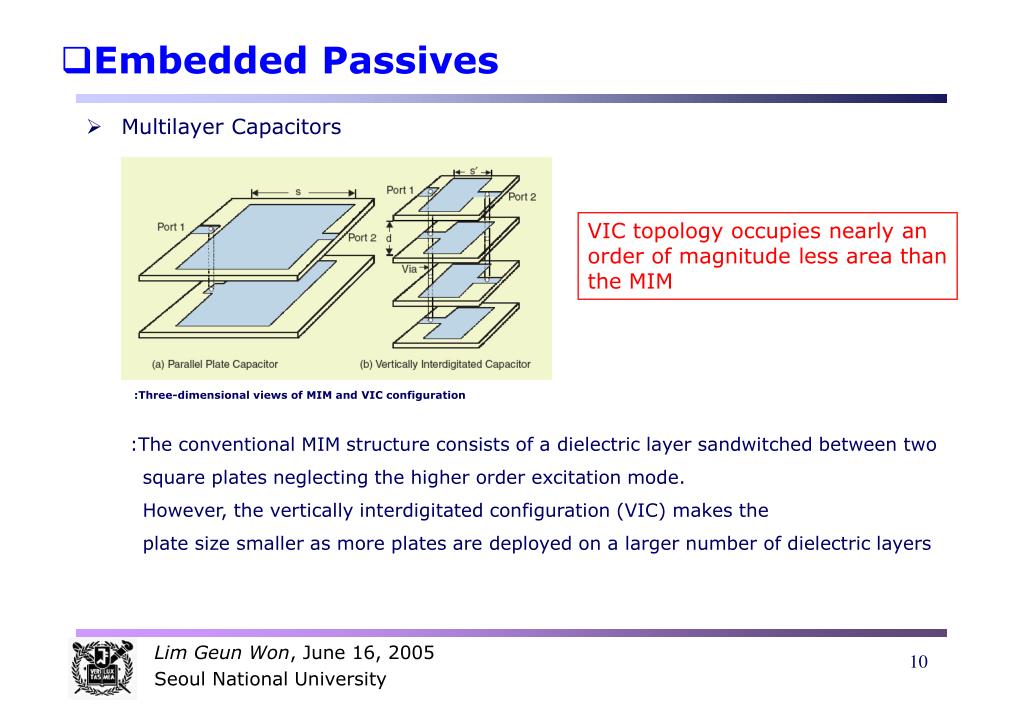

  10. Embedded Passives • Multilayer Capacitors VIC topology occupies nearly an order of magnitude less area than the MIM :Three-dimensional views of MIM and VIC configuration :The conventional MIM structure consists of a dielectric layer sandwitched between two square plates neglecting the higher order excitation mode. However, the vertically interdigitated configuration (VIC) makes the plate size smaller as more plates are deployed on a larger number of dielectric layers

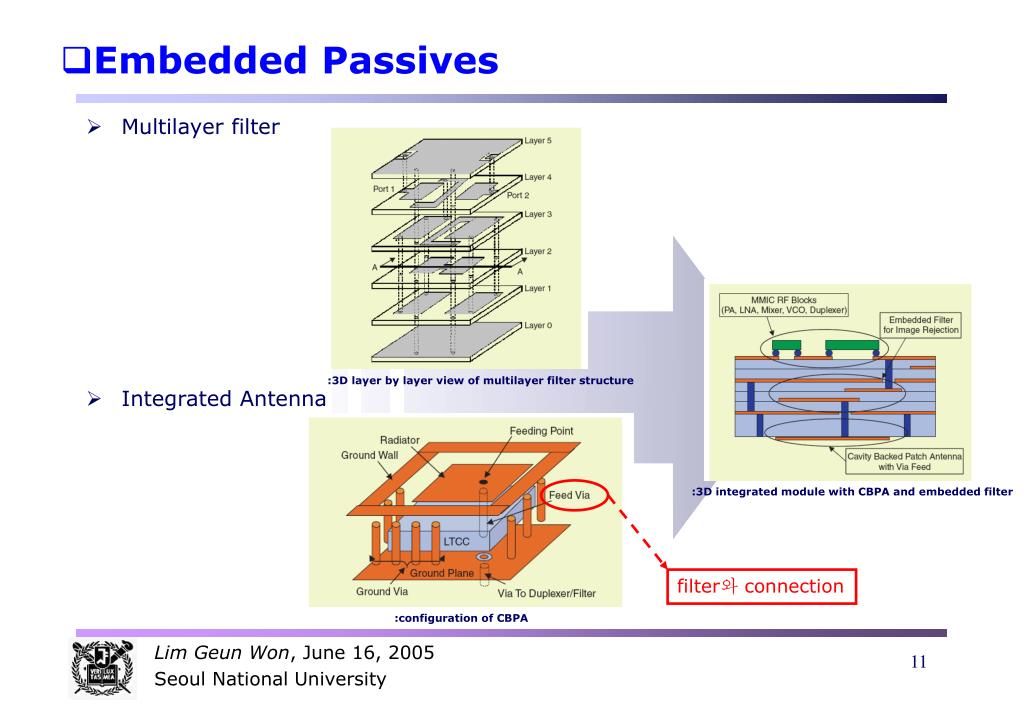

  11. Embedded Passives • Multilayer filter • Integrated Antenna :3D layer by layer view of multilayer filter structure :3D integrated module with CBPA and embedded filter filter와 connection :configuration of CBPA

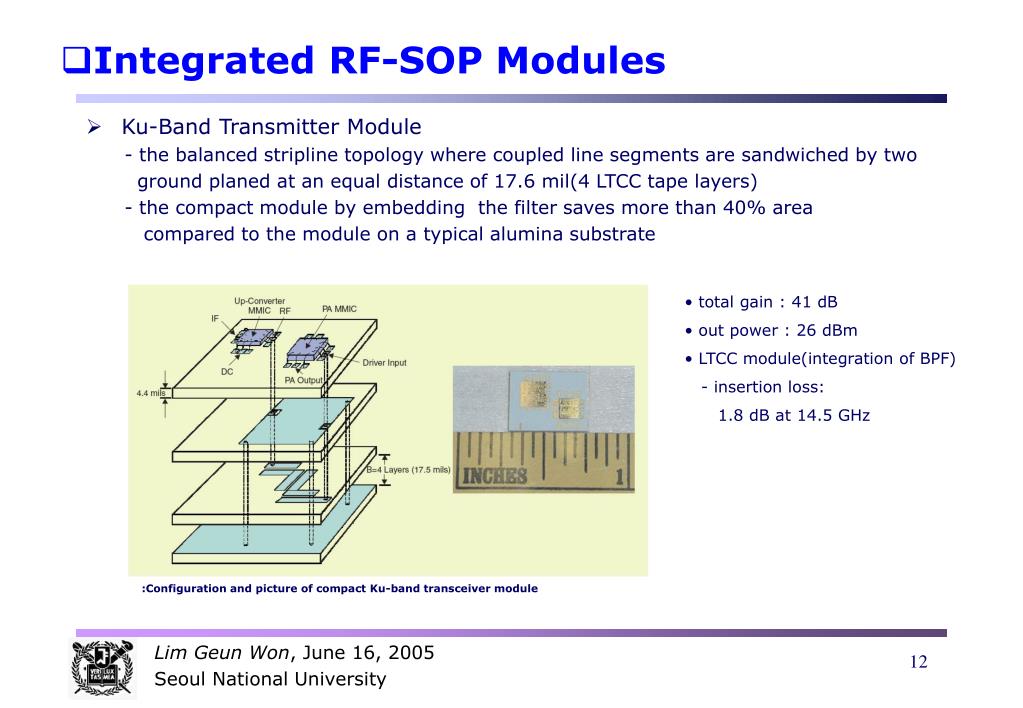

  12. Integrated RF-SOP Modules • Ku-Band Transmitter Module - the balanced stripline topology where coupled line segments are sandwiched by two ground planed at an equal distance of 17.6 mil(4 LTCC tape layers) - the compact module by embedding the filter saves more than 40% area compared to the module on a typical alumina substrate • total gain : 41 dB • out power : 26 dBm • LTCC module(integration of BPF) • - insertion loss: • 1.8 dB at 14.5 GHz :Configuration and picture of compact Ku-band transceiver module

  13. Integrated RF-SOP Modules • Integrated Power Amplifier Module - a two-stage 1.9 GHz PA with second harmonic tuning circuits using Si M-MOSFET • N-MOSFET : 0.8 um BiCMOS on the LTCC board • MIM capacitor : matching components • RF ground capacitor : VIC topology (requirement • for large capacitance value for 1.9 GHz) • Second Harmonic tuning circuit: • series inductive-capacitance resonator at 3.8 GHz • 48% PAE • out power : 26 dBm • power gain at 1.9 GHz with 3.3 drain supply voltage • : 17 dB (a) the 1.9 GHz power amplifier module with fully on-package passives (b) die photo

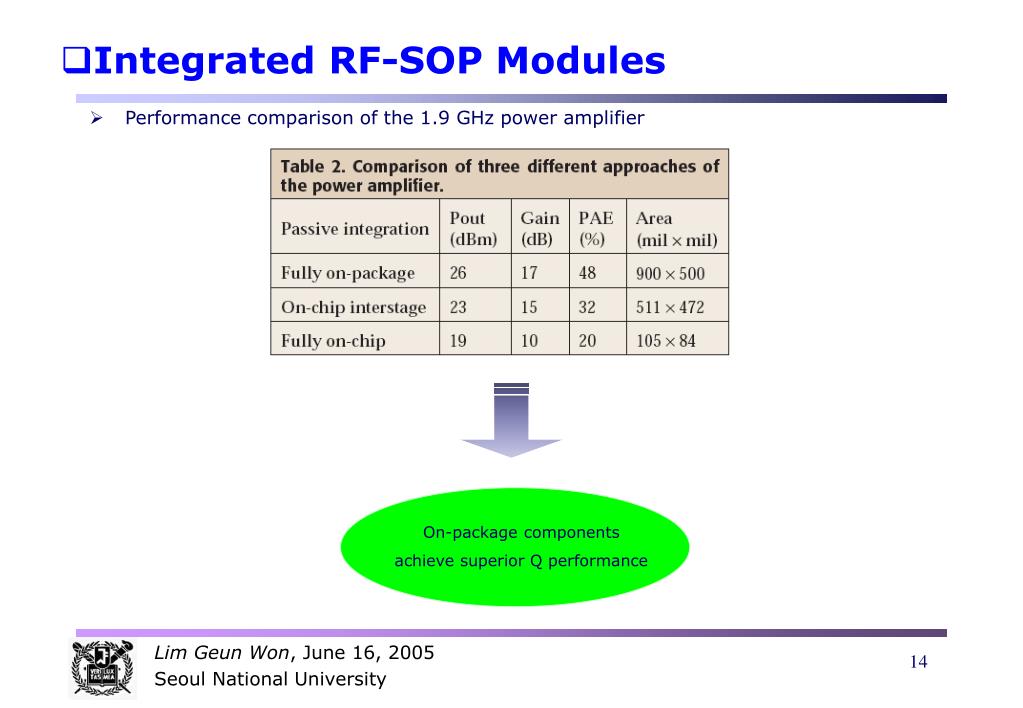

  14. Integrated RF-SOP Modules On-package components achieve superior Q performance • Performance comparison of the 1.9 GHz power amplifier

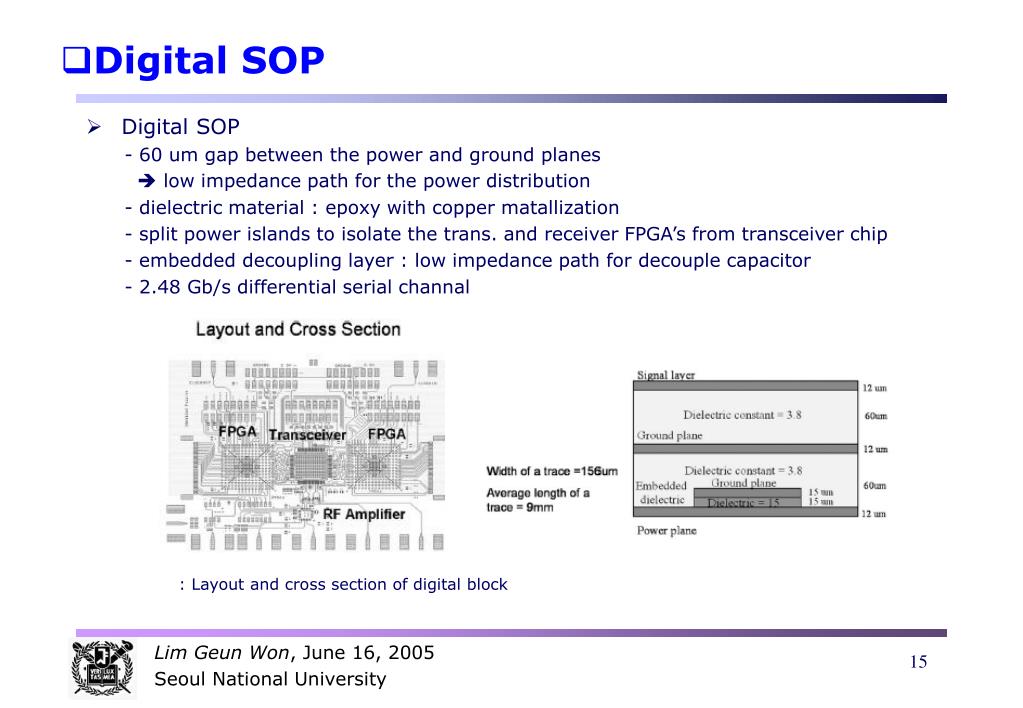

  15. Digital SOP • Digital SOP - 60 um gap between the power and ground planes  low impedance path for the power distribution - dielectric material : epoxy with copper matallization - split power islands to isolate the trans. and receiver FPGA’s from transceiver chip - embedded decoupling layer : low impedance path for decouple capacitor - 2.48 Gb/s differential serial channal : Layout and cross section of digital block

  16. Optoelectronics SOP • Optoelectronics SOP - the heterogeneous integration of optically active devices (laser, detector array, laser amplifier) and passives(waveguides, gratings, beam splitter) : optoelectronics SOP concept and design a) waveguide array embedded in FR-4 board b) embedded p-i-n detector c) polymer microlens d) embedded i-MSM e) beam splitter f) curved waveguide array g) blazed polymer grating, blaze angle 29°

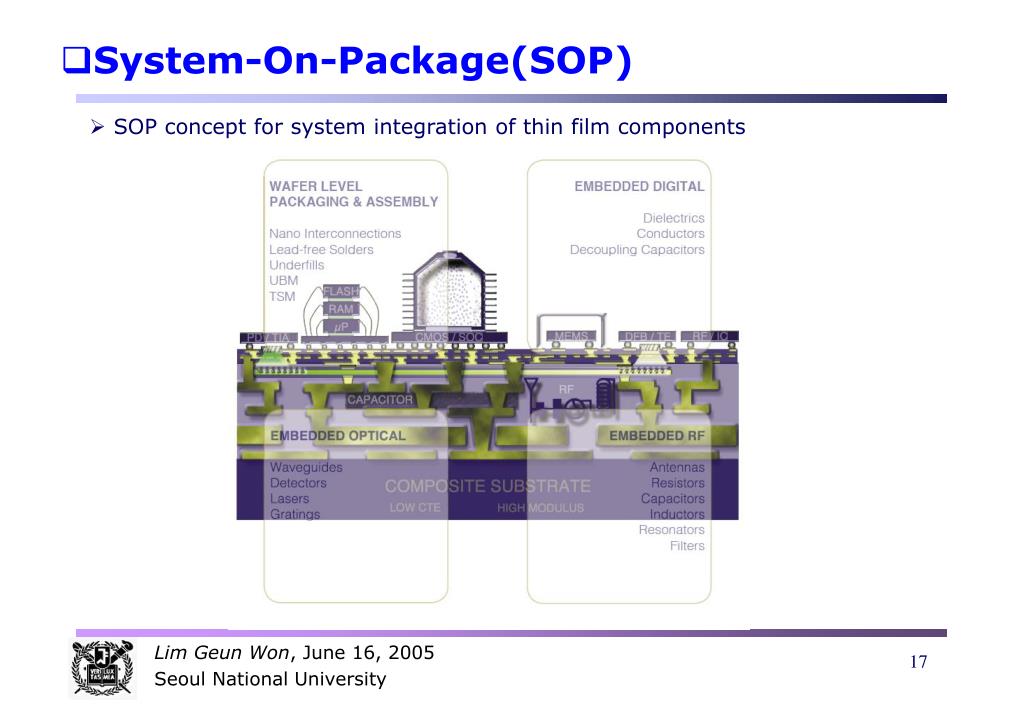

  17. System-On-Package(SOP) • SOP concept for system integration of thin film components

  18. Status of SOP • problem of SOP technology - interference between each of the block in a package :EMI/EMC - on-/off-chip power management :power supply stability, thermal problem according to power - how to test - design infrastructure :the lack of design concept to on-/off- chip packaged environment and design tool • application example - 803.11b IFE module ( Agere Co.) - CIS/CCD camera module - 15 AQ DC/DC point of load converter ( Power One Co.)

  19. Vision of SOP • SOP: Moore’s Law for ICs SOP for system integration as IC for transistors • SOP is a system level technology

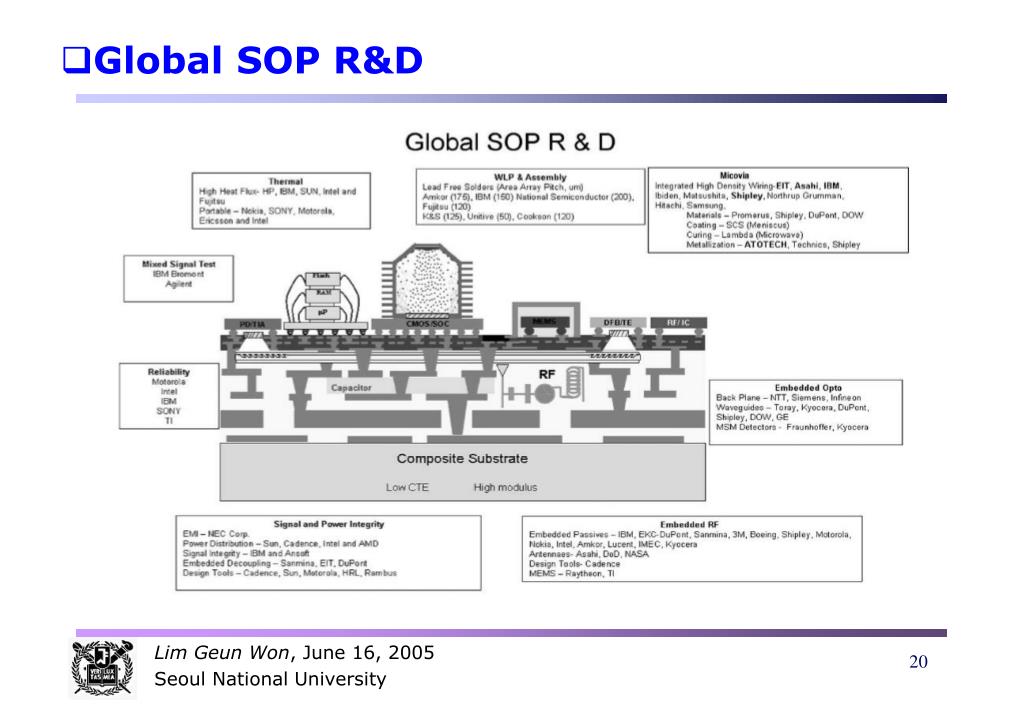

  20. Global SOP R&D

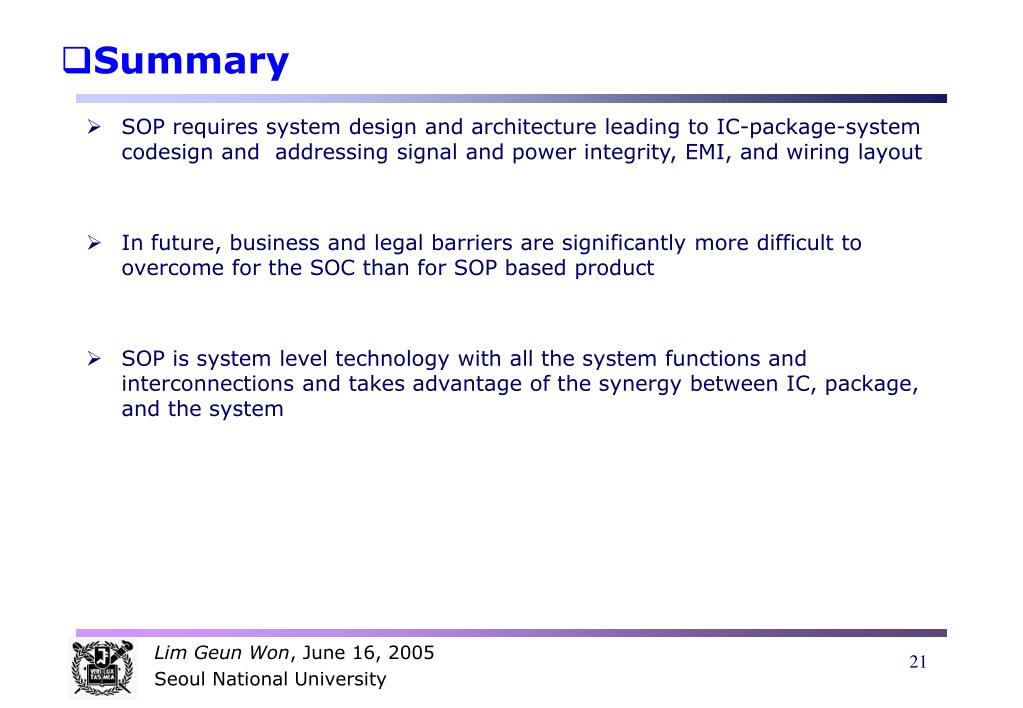

  21. Summary • SOP requires system design and architecture leading to IC-package-system codesign and addressing signal and power integrity, EMI, and wiring layout • In future, business and legal barriers are significantly more difficult to overcome for the SOC than for SOP based product • SOP is system level technology with all the system functions and interconnections and takes advantage of the synergy between IC, package, and the system

  22. Reference • R. Tummala and V. Madisetti, “System on chip or system on package,” IEEE Des. Test Comp., vol. 16, pp. 48-56, Apr.-June 1999. • R. Tummala “SOP;What Is It and Why? A New Microsystem-Integration Technology Paradigm-Moor’s Law for System Integration of Miniaturized Convergent System of the Next Decade” • Tummala, R.R.; Swaminathan, M.; Tentzeris, M.M.; Laskar, J.; Gee-Kung Chang; Sitaraman, S.; Keezer, D.; Guidotti, D.; Zhaoran Huang; Kyutae Lim; Lixi Wan; Advanced Packaging, IEEE Transactions on “The SOP for Miniaturized, Mixed-Signal Computing, Communication, and Consumer Systems of the Next Decade” Volume 27,  Issue 2,  May 2004 Page(s):250 - 267 • Kyutae Lim; Pinel, S.; Davis, M.; Sutono, A.; Chang-Ho Lee; Deukhyoun Heo; Obatoynbo, A.; Laskar, J.; Tantzeris, E.M.; Tummala, R.”RF-System-On-Package(SOP) for Wireless Communications”, Volume 3,  Issue 1,  March 2002 Page(s):88 - 99 • Pinel, S.; Lim, K.; DeJean, R.G.; Li, L.; Lee, C.-H.; Maeng, M.; Davis, M.F.; Tentzeris, M.; Laskar, J.; Microwave Conference, 2003. 33rd European, “System-On-Package (SOP) architectures for compact and low cost RF front-end module,” Volume 1,  7-9 Oct. 2003 Page(s):307 - 310 Vol.1,
