Finite Difference Schemes

Finite Difference Schemes. Dr. DAI Min. Type of finite difference scheme. Explicit scheme Advantage There is no need to solve a system of algebraic equations Easy for programming Disadvantage: conditionally convergent Implicit scheme Fully implicit scheme: first order accuracy

webb
Télécharger la présentation

Finite Difference Schemes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Finite Difference Schemes Dr. DAI Min

  2. Type of finite difference scheme Explicit scheme Advantage There is no need to solve a system of algebraic equations Easy for programming Disadvantage: conditionally convergent Implicit scheme Fully implicit scheme: first order accuracy Crank-Nicolson scheme: second order accuracy

  3. Explicit scheme European put option: Lattice:

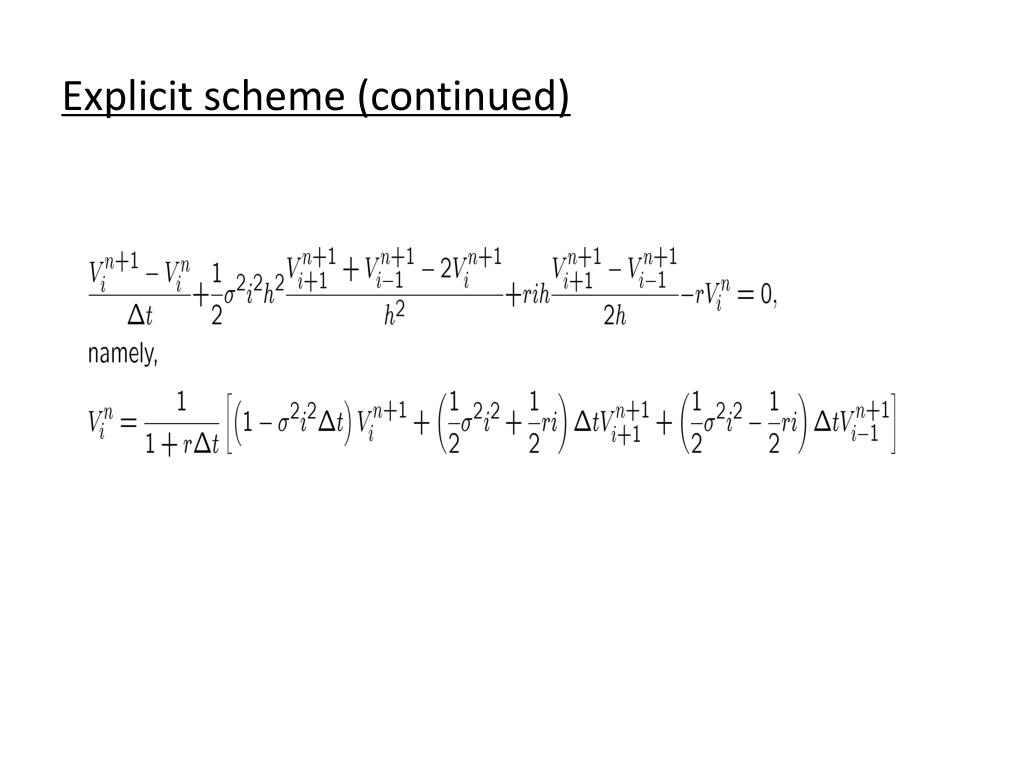

  4. Explicit scheme (continued)

  5. Explicit scheme (continued)

  6. Explicit scheme (continued)

  7. Explicit scheme (continued) Monotone scheme

  8. Explicit scheme for a transformed equation Transformed Black-Scholes equation:

  9. Explicit scheme for a transformed equation

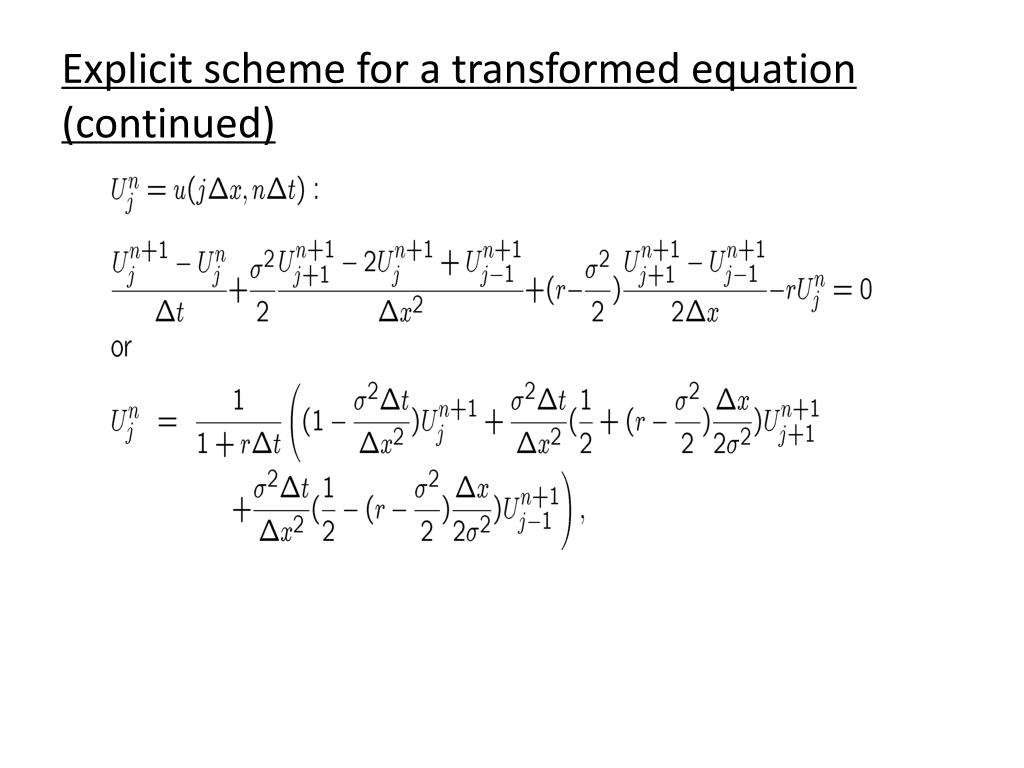

  10. Explicit scheme for a transformed equation (continued)

  11. Explicit scheme for a transformed equation (continued)

  12. Equivalence of explicit scheme and BTM

  13. Equivalence of explicit scheme and BTM (continued)

  14. Why use implicit scheme? • Explicit scheme is conditionally convergent

  15. Fully implicit scheme

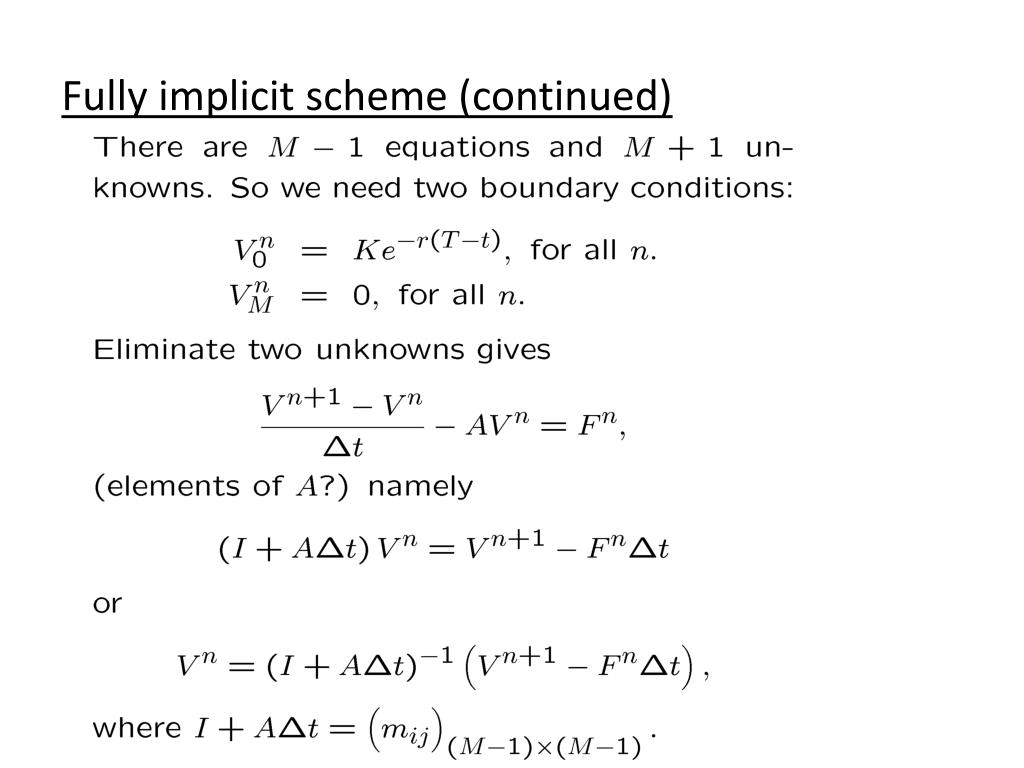

  16. Fully implicit scheme (continued)

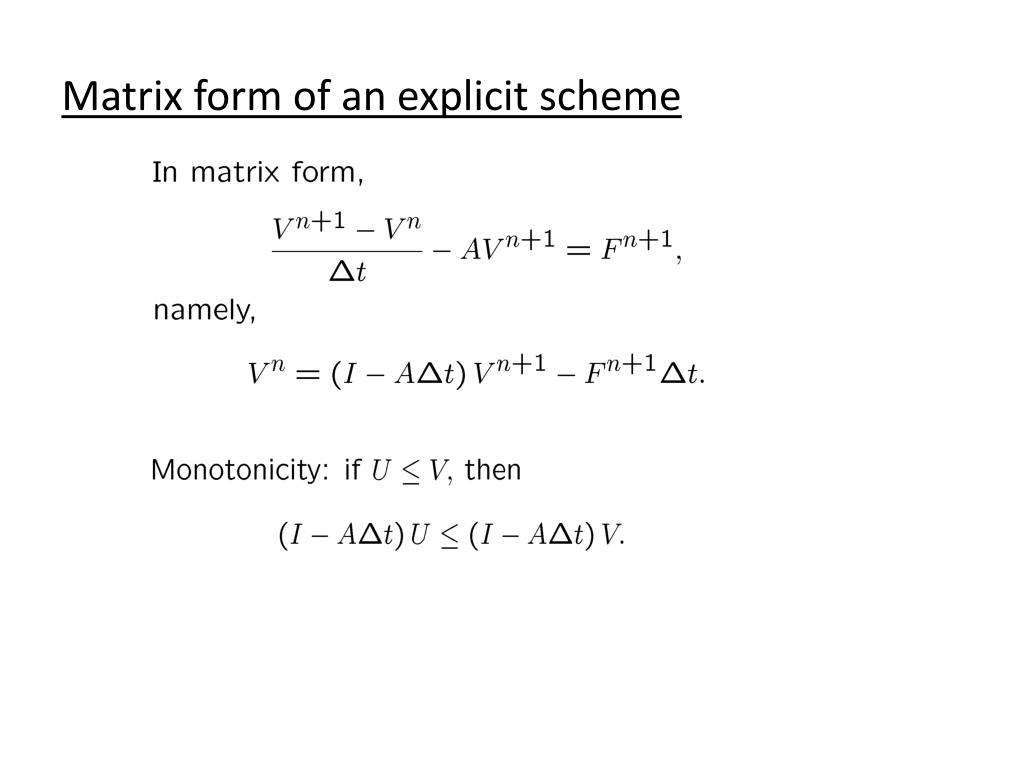

  17. Matrix form of an explicit scheme

  18. Monotonicity of the fully implicit scheme

  19. Second-order scheme: Crank-Nicolson scheme

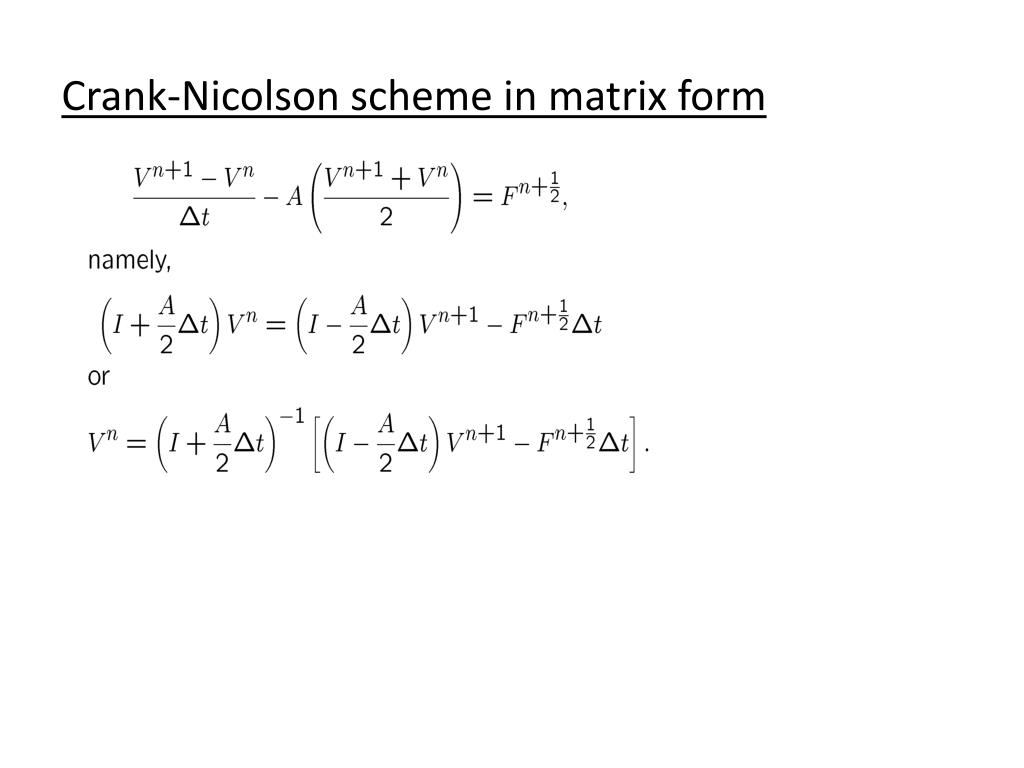

  20. Crank-Nicolson scheme in matrix form

  21. Convergence of Crank-Nicolson scheme • The C-N scheme is not monotone unless  t/h2 is small enough. • Monotonicity is sufficient but not necessary • The unconditional convergence of the C-N scheme (for linear equation) can be proved using another criterion (see Thomas (1995)). • Due to lack of monotonicity, the C-N scheme is not as stable/robust as the fully implicit scheme when dealing with tough problems.

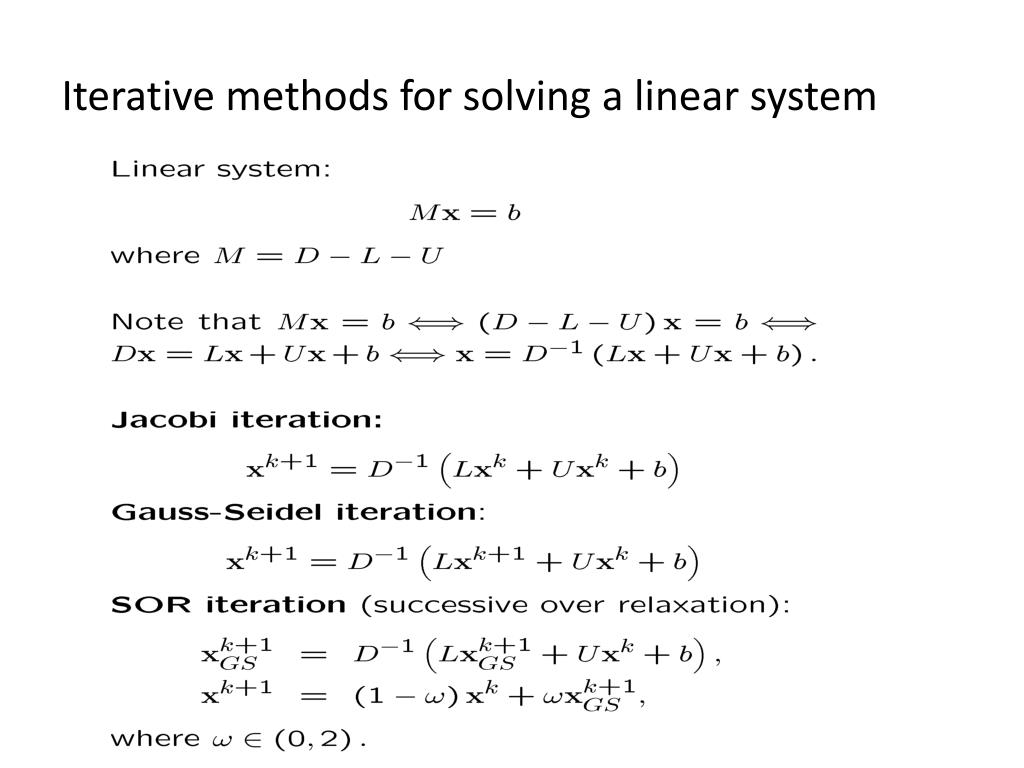

  22. Iterative methods for solving a linear system

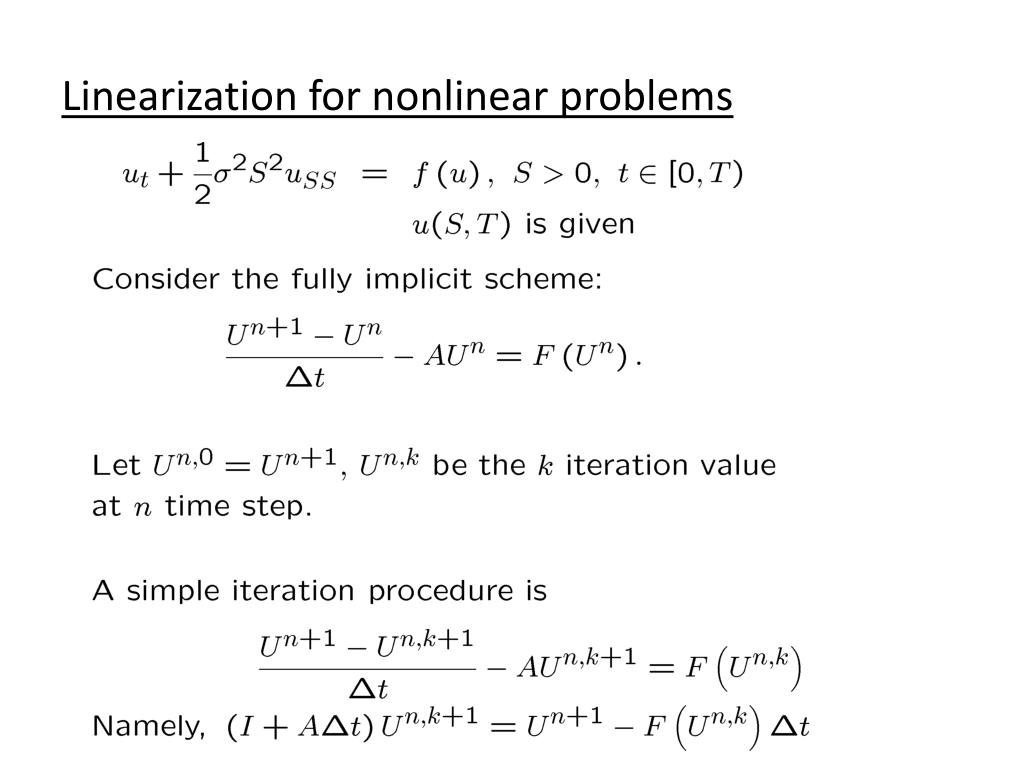

  23. Linearization for nonlinear problems

  24. Newton iteration

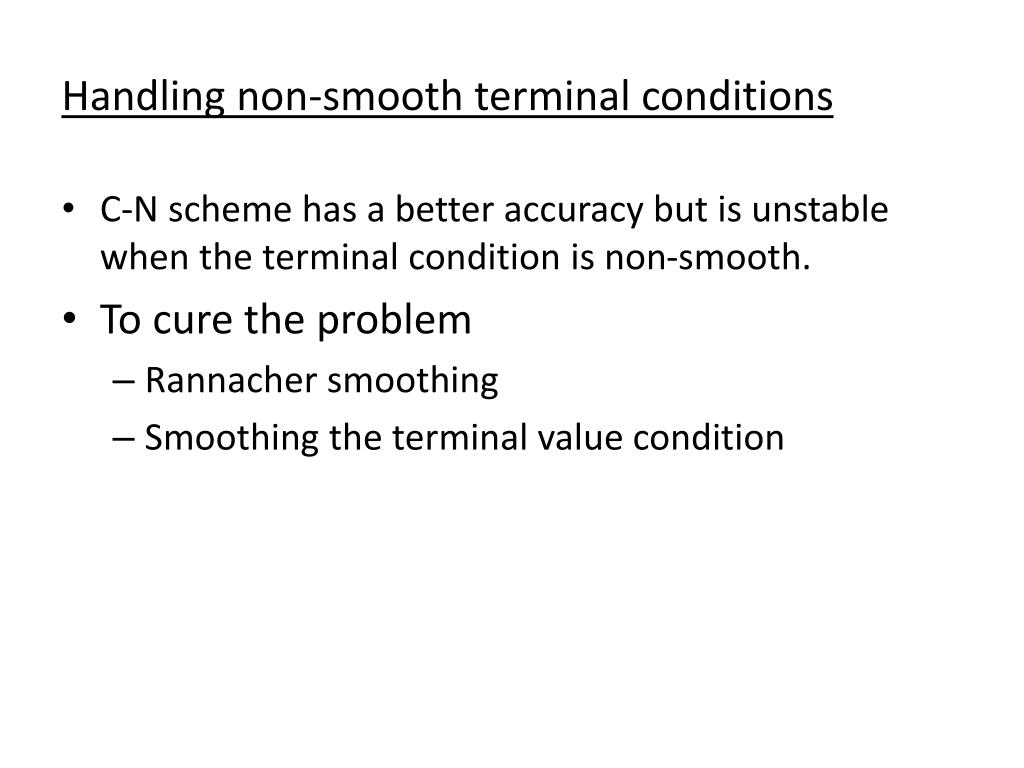

  25. Handling non-smooth terminal conditions • C-N scheme has a better accuracy but is unstable when the terminal condition is non-smooth. • To cure the problem • Rannacher smoothing • Smoothing the terminal value condition

  26. Upwind (upstream) treatment

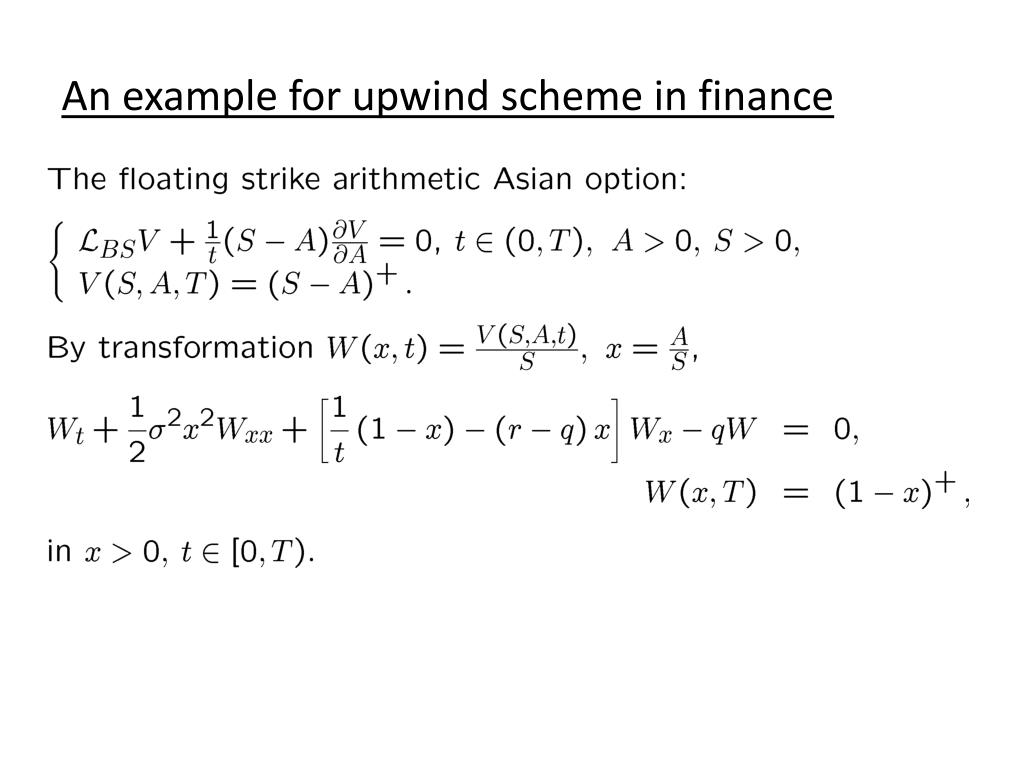

  27. An example for upwind scheme in finance

  28. Artificial boundary conditions • Solution domain is often unbounded, but implicit schemes should be restricted to a bounded domain • Truncated domain • Change of variables • Artificial boundary conditions should be given based on • Properties of solution, and/or • PDE with upwind scheme

  29. Examples • European call options • CIR model for zero coupon bond

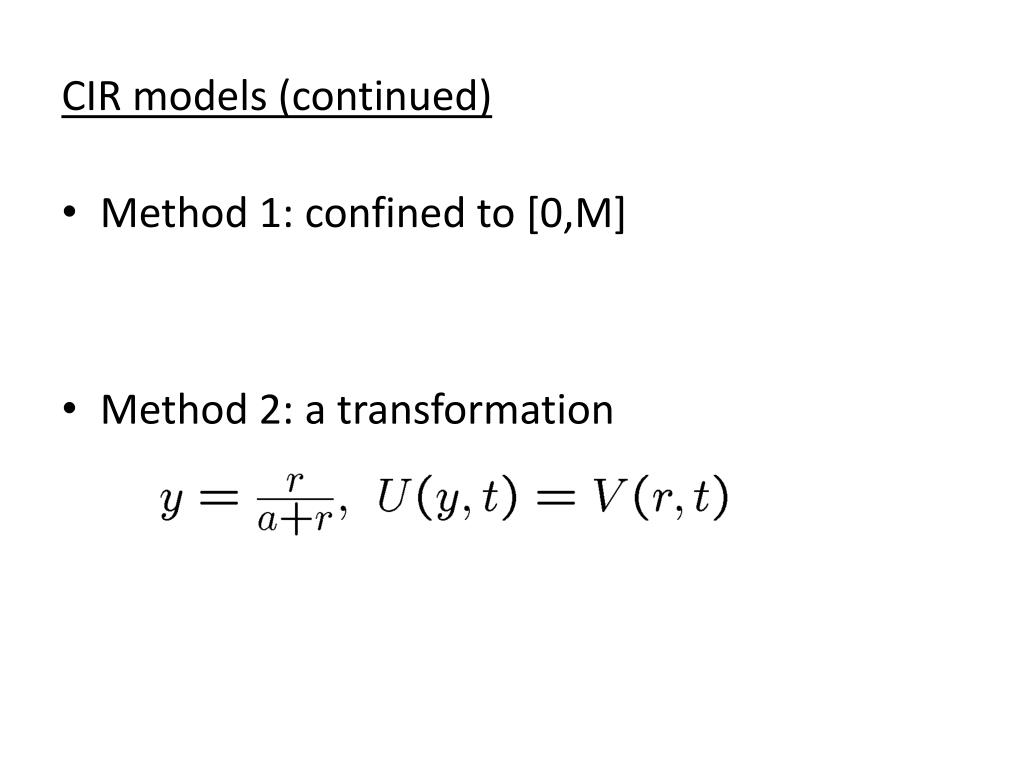

  30. CIR models (continued) • Method 1: confined to [0,M] • Method 2: a transformation

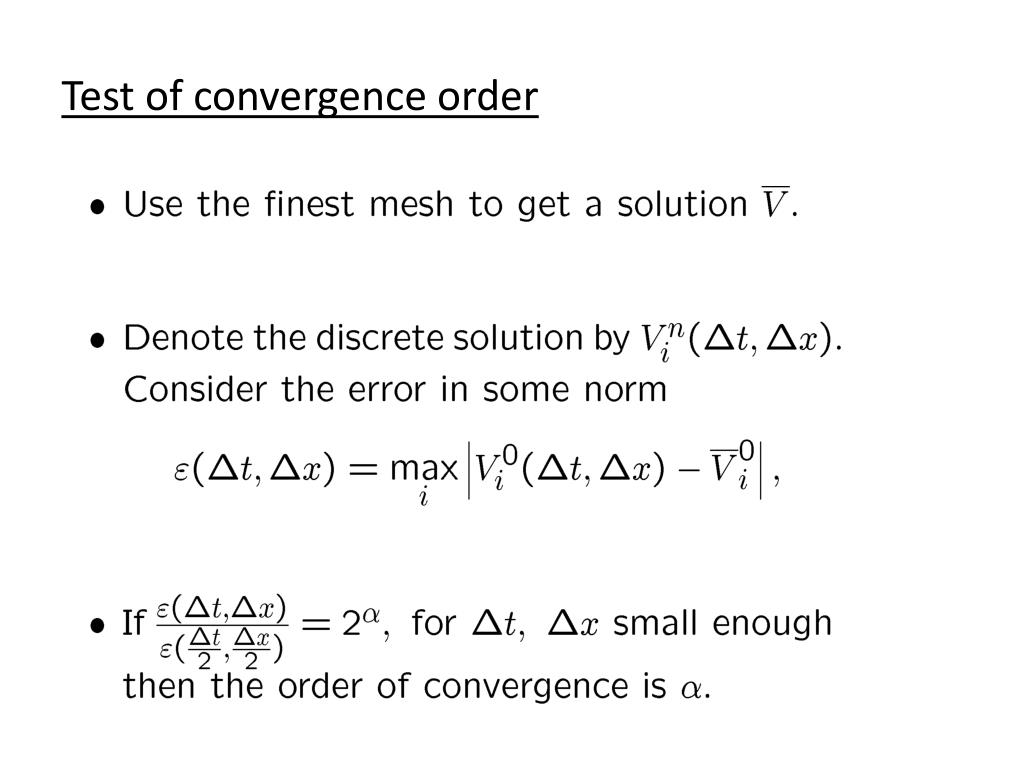

  31. Test of convergence order

  32. Test of convergence order (alternative method)

  33. An example: given benchmark values

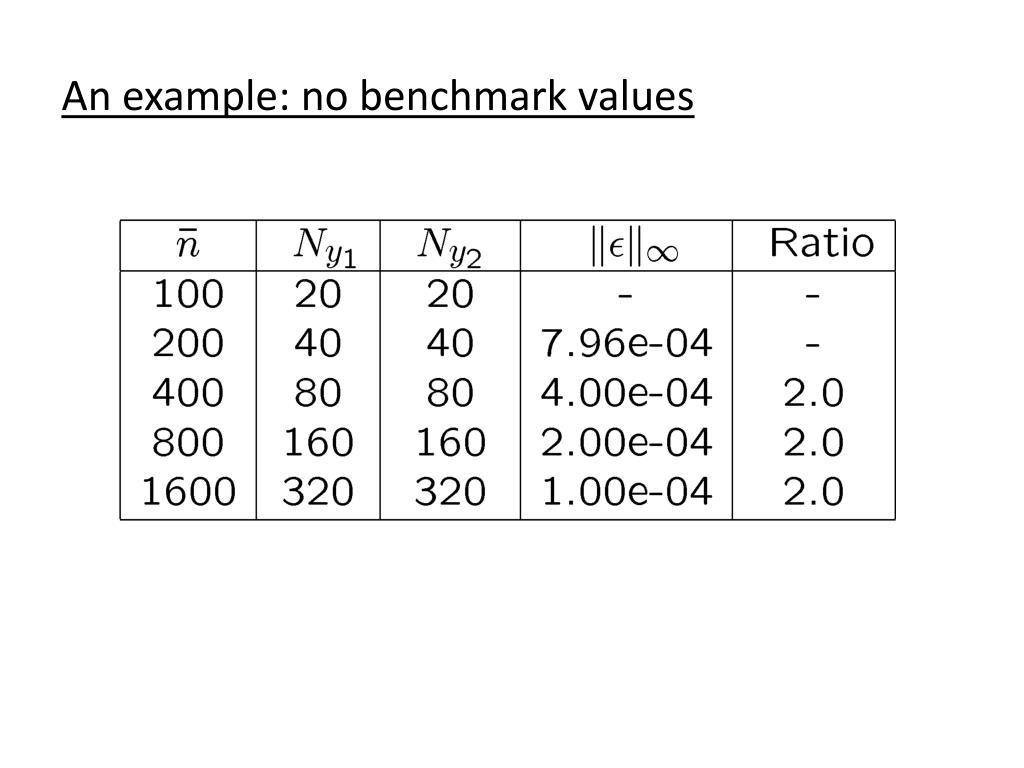

  34. An example: no benchmark values
