  1. Multiview Drawings

  2. Objectives • Identify an orthographic projection. • Select the best views to describe an object. • Identify objects from an orthographic projection drawing. • Identify the visualization rules of an orthographic projection drawing.

  3. What is an Orthographic Projection? • An orthographic projection is a multi-view drawing used to show all of the features of an object. • Different views are set up in a systematic way to mentally connect them together.

  4. Purpose of Orthographics • Shows the true size and shape of the features of an object • Provide certain information on how the object is to be made.

  5. The Projection of Views • Must be able to visualize the object as a whole and be able to mentally put the views together. • Views are projected at right angles (90 Deg) to each other. • There are 6 different views possible in an orthographic projection.

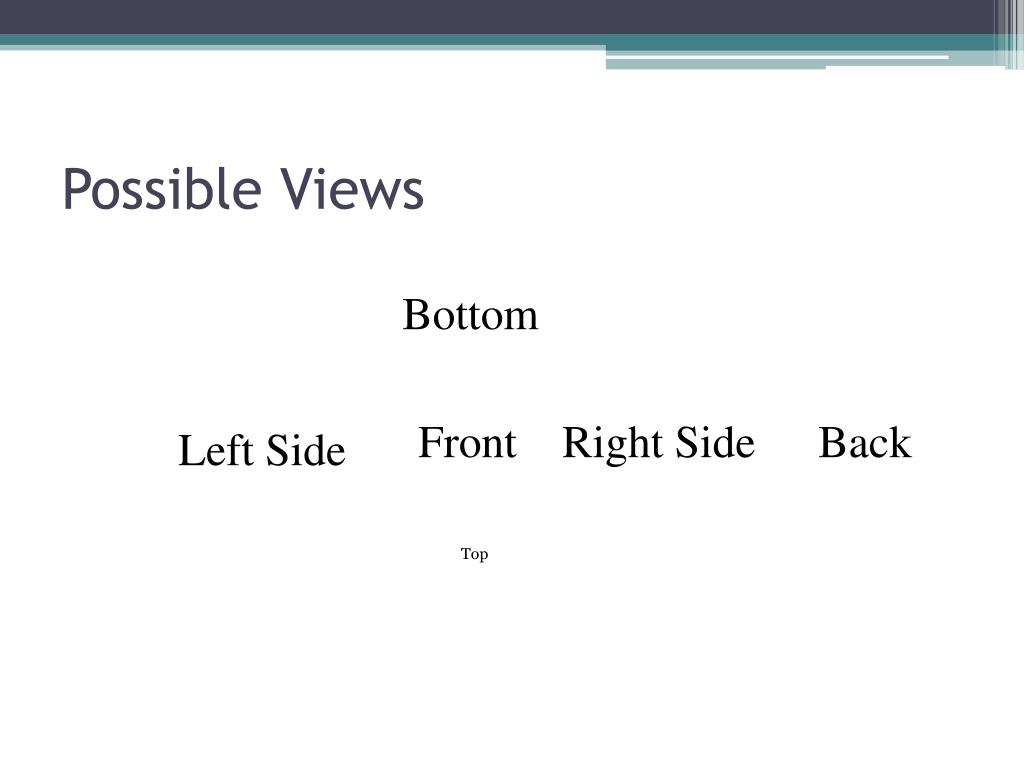

  6. Possible Views Top Bottom Front Right Side Back Left Side

  7. Selection of Views • Not all 6 views have to be shown in an orthographic projection drawing. • Details are repeated in the top and bottom, right and left, and the front and back views.

  8. Rules For Selecting Views • 1. Only views that clearly describe the object are used. • 2. Views that show the least hidden lines should be selected. • 3. The object should be shown in it’s functioning position when possible. • 4. The view that best describes the object should be selected as the front view.

  9. Visualization • Visualization is the ability to form a mental picture of what an object is going to look like when it’s completed.

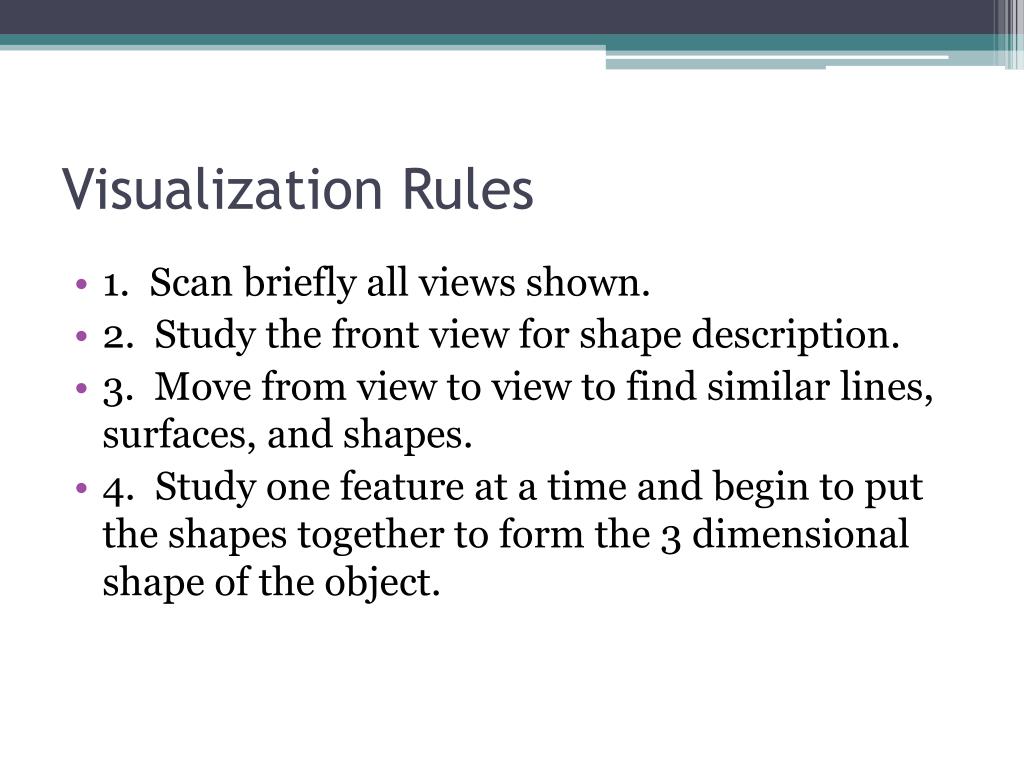

  10. Visualization Rules • 1. Scan briefly all views shown. • 2. Study the front view for shape description. • 3. Move from view to view to find similar lines, surfaces, and shapes. • 4. Study one feature at a time and begin to put the shapes together to form the 3 dimensional shape of the object.

  11. Summary • The purpose of an orthographic projection is to show an object in it’s true shape and size. • The different views in an orthographic projection are projected at 90 degrees to each other.

  12. Summary • Four rules should be considered when selecting which views to use. • Visualization involves being able to form a mental picture of what the object is to look like. • Use the 4 visualization rules to help form a mental picture of the object.

  13. Summary Questions • 1. What is an orthographic projection? • 2. What are the proper locations of all six views that can be produced in an orthographic projection? • 3. Out of the six possible views, why do we usually only select 3? • 4. What 4 rules must you follow when selecting the views for an orthographic projection?

  14. Objectives • Identify an orthographic projection. • Select the best views to describe an object. • Identify objects from an orthographic projection drawing. • Identify the visualization rules of an orthographic projection drawing.

  15. Assignment • Identify the proper orthographic layout for the 3 dimensional objects on page 45 in your book. • Complete to an accuracy of 100%.
