  1. Asymmetric Extended Route Optimization (AERO) IETF90 Distributed Mobility Management (DMM) Working Group Fred L .Templin fred.l.templin@boeing.com

  2. AERO History • Developed in the 2008 – 2014 timeframe • First Edition published as IETF RFC 6706 • Second Edition now an Internet draft (draft-templin-aerolink)

  3. AERO Overview • Tunneling of any Internet Protocol (IP) version over any IP network (e.g., IPv6 over IPv6, IPv6 over IPv4, etc) • IPv6 Neighbor Discovery (ND) messaging (control plane) • Mobile Clients; stable Servers/Relays; DHCPv6 server • Clients, Servers and Relays are “neighbors” on a virtual IP link configured over a carrier IP network • Clients get IP prefix delegation for mobile networking • Clients send initial communications through a Server • Client-initiated redirection to discover optimal routes • Relays keep track of Client/Server assignments and serve as gateways to the rest of the Internetwork

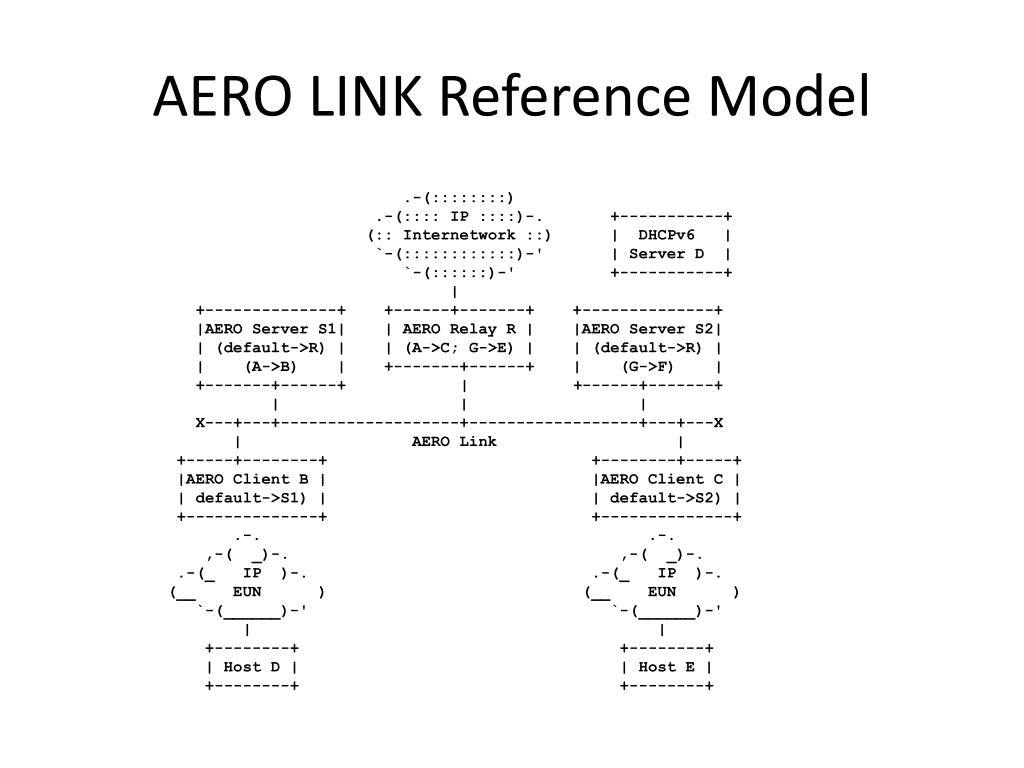

  4. AERO LINK Reference Model .-(::::::::) .-(:::: IP ::::)-. +-----------+ (:: Internetwork ::) | DHCPv6 | `-(::::::::::::)-' | Server D | `-(::::::)-' +-----------+ | +--------------+ +------+-------+ +--------------+ |AERO Server S1| | AERO Relay R | |AERO Server S2| | (default->R) | | (A->C; G->E) | | (default->R) | | (A->B) | +-------+------+ | (G->F) | +-------+------+ | +------+-------+ | | | X---+---+-------------------+------------------+---+---X | AERO Link | +-----+--------+ +--------+-----+ |AERO Client B | |AERO Client C | | default->S1) | | default->S2) | +--------------+ +--------------+ .-. .-. ,-( _)-. ,-( _)-. .-(_ IP )-. .-(_ IP )-. (__ EUN ) (__ EUN ) `-(______)-' `-(______)-' | | +--------+ +--------+ | Host D | | Host E | +--------+ +--------+

  5. AERO Innovations • New IPv6 link-local Address Format (the AERO Address) • IPv6 delegated prefix is 2001:db8:1:2::/64 • AERO link-local address is fe80::2001:db8:1:2 • Address and prefix do not change as node moves • AERO route optimization • Uses network trust anchors as intermediaries • Fully supports mobility (mobile networks and routers) • Works over any IPv4 or IPv6 access technologies (e.g., Ethernet, 3G/4G, WiFi, aeronautical links, MANET links, etc.) • AERO Routing System • Servers manage collections of mobile Clients • BGP routing between Servers and Relays • Relays connect AERO link to rest of Internetwork

  6. AERO Virtual Link With AERO Addresses • DHCPv6 server delegates prefixes • Clients configure link-local AERO address DHCPv6 Server Relays and Servers Internetwork AERO Virtual Link fe80:: ← AERO Addresses → fe80::2001:db8:0:1 fe80::2001:db8:0:2 fe80::2001:db8:0:3 ← Clients → ← Clients → 2001:db8:0:1::/64 2001:db8:0:2::/64 2001:db8:0:3::/64

  7. AERO Detailed Message Exchange (1) AERO Client AERO Server DHCPv6 Server DHCPv6 Request DHCPv6 Request DHCPv6 Reply • Create nbr cache entry • Advertise route in BGP DHCPv6 Reply • Assign AERO link-local address • Sub-delegate IPv6 prefix to EUNs Router Solicitation Router Advertisement Data Packets

  8. AERO Node Mobility • Client registers first L2 address with Server • Client moves to second L2 address; informs Server and Correspondents • Client moves to third L2 address; informs Server and Correspondents Correspondent Nodes Server Internetwork AERO Virtual Link fe80:: 192.0.2.65 192.0.2.1 192.0.2.33 fe80::2001:db8:0:1 2001:db8:0:3::/64 2001:db8:0:2::/64 fe80::2001:db8:0:3 fe80::2001:db8:0:2 2001:db8:0:1::/64 Mo b ile Node

  9. AERO Detailed Message Exchange (2) AERO Client AERO Server DHCPv6 Server DHCPv6 Renew DHCPv6 Renew DHCPv6 Reply • Change Client L2 Address DHCPv6 Reply Unsolicited NAs to Correspondents Data Packets

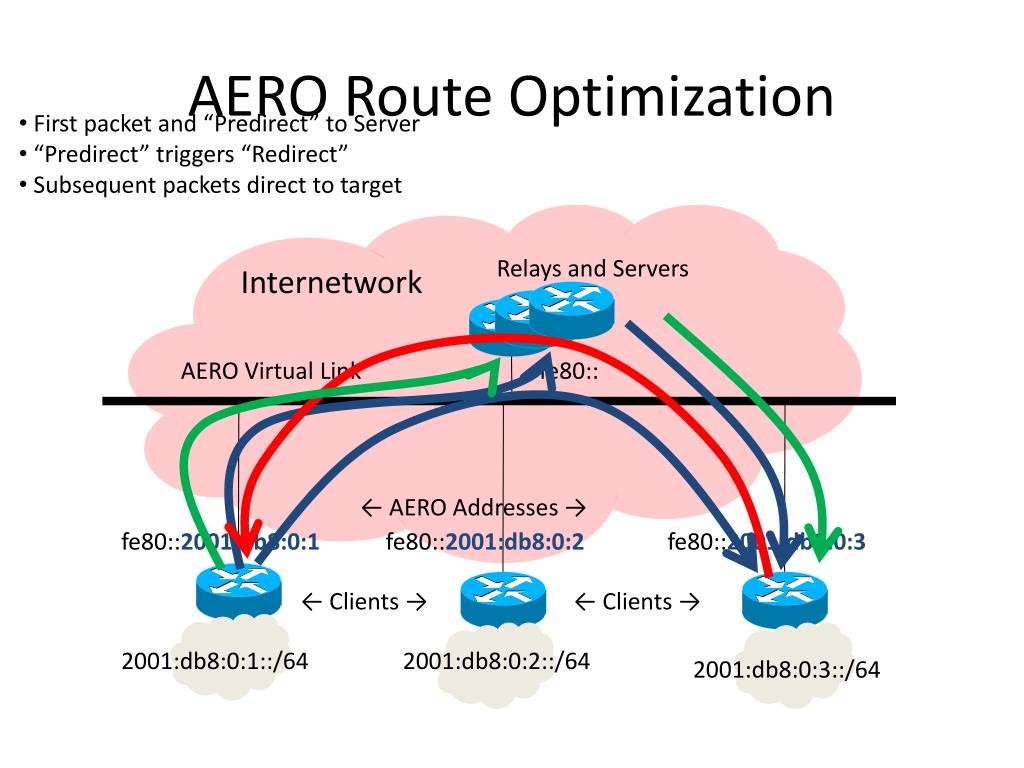

  10. AERO Route Optimization • First packet and “Predirect” to Server • “Predirect” triggers “Redirect” • Subsequent packets direct to target Relays and Servers Internetwork AERO Virtual Link fe80:: ← AERO Addresses → fe80::2001:db8:0:1 fe80::2001:db8:0:2 fe80::2001:db8:0:3 ← Clients → ← Clients → 2001:db8:0:1::/64 2001:db8:0:2::/64 2001:db8:0:3::/64

  11. AERO Detailed Message Exchange (3) AERO Client (A) AERO Server AERO Client (B) Data Packet Data Packet “Predirect” message “Predirect” message • Create nbr cache “accept” entry “Redirect” message “Redirect” message • Create nbr cache “forward” entry Neighbor Solicitation Neighbor Advertisement Data Packets

  12. AERO Routing System • AERO Servers discover Clients • Servers publish associated Clients using BGP • Relays discover all Client-Server associations To Internet Relays Internetwork BGP Servers AERO Virtual Link ← Clients →

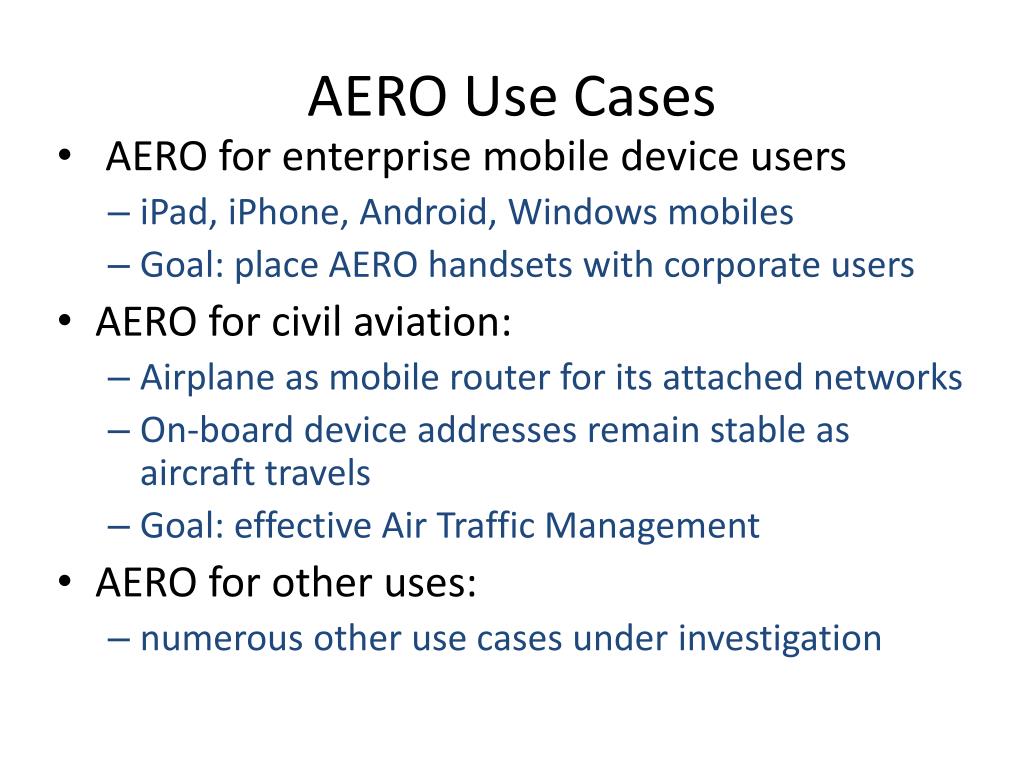

  13. AERO Use Cases • AERO for enterprise mobile device users • iPad, iPhone, Android, Windows mobiles • Goal: place AERO handsets with corporate users • AERO for civil aviation: • Airplane as mobile router for its attached networks • On-board device addresses remain stable as aircraft travels • Goal: effective Air Traffic Management • AERO for other uses: • numerous other use cases under investigation
