  1. By Zine Tshaka Supervised by prof venter Mobile application to interact with mesh billing system

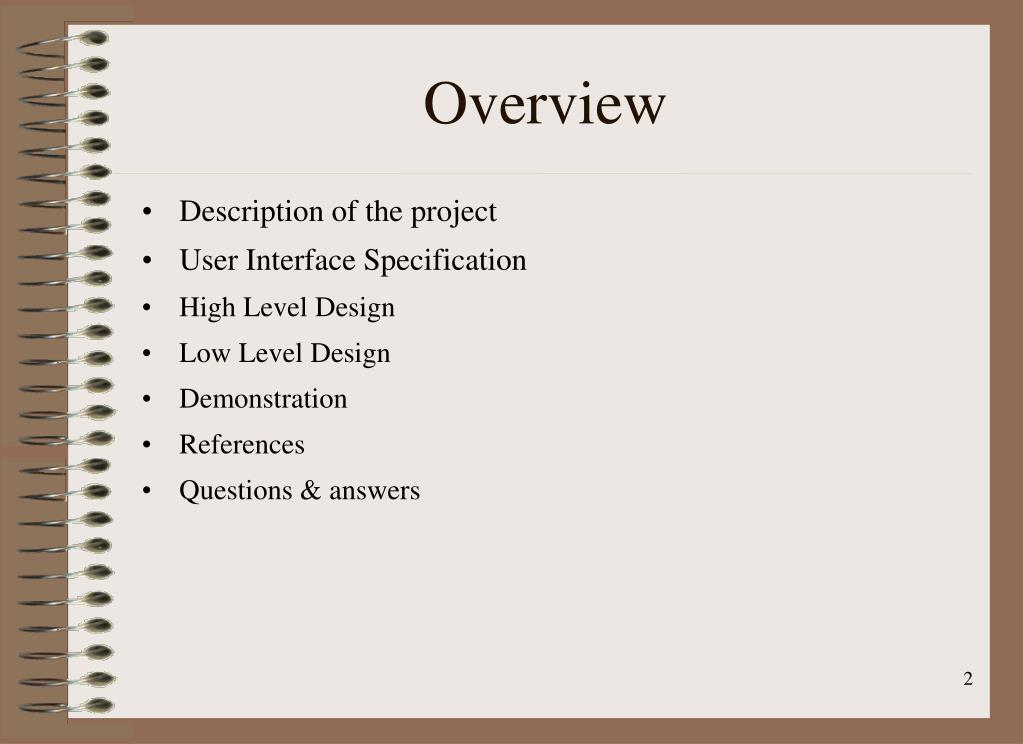

  2. Overview Description of the project User Interface Specification High Level Design Low Level Design Demonstration References Questions & answers

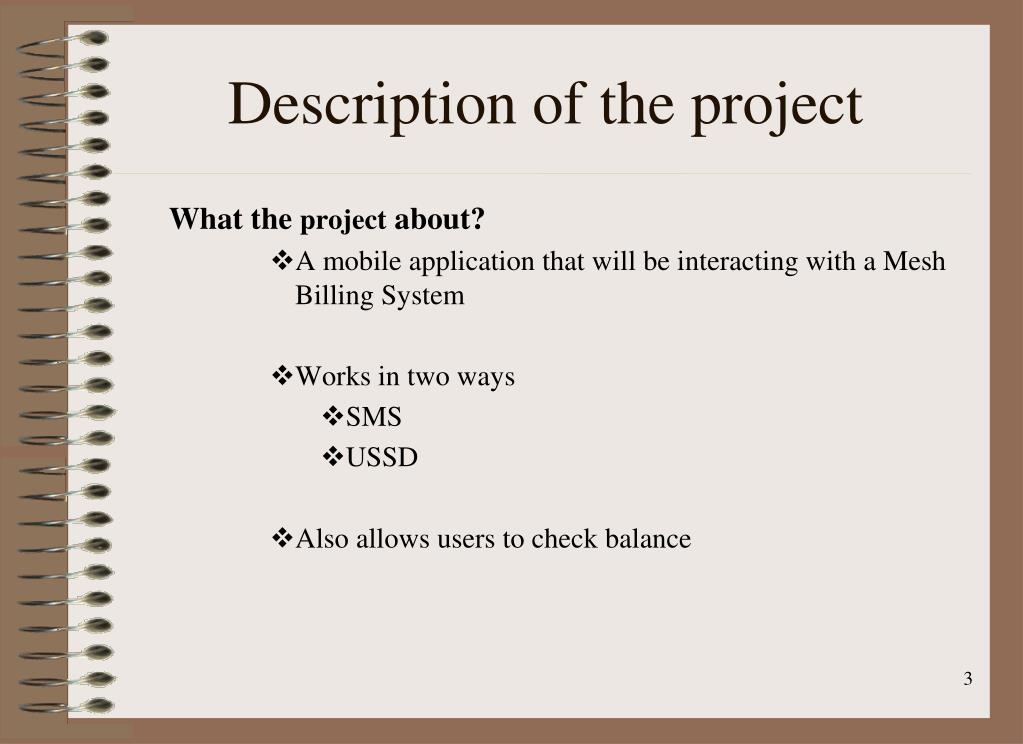

  3. Description of the project What the project about? A mobile application that will be interacting with a Mesh Billing System Works in two ways SMS USSD Also allows users to check balance

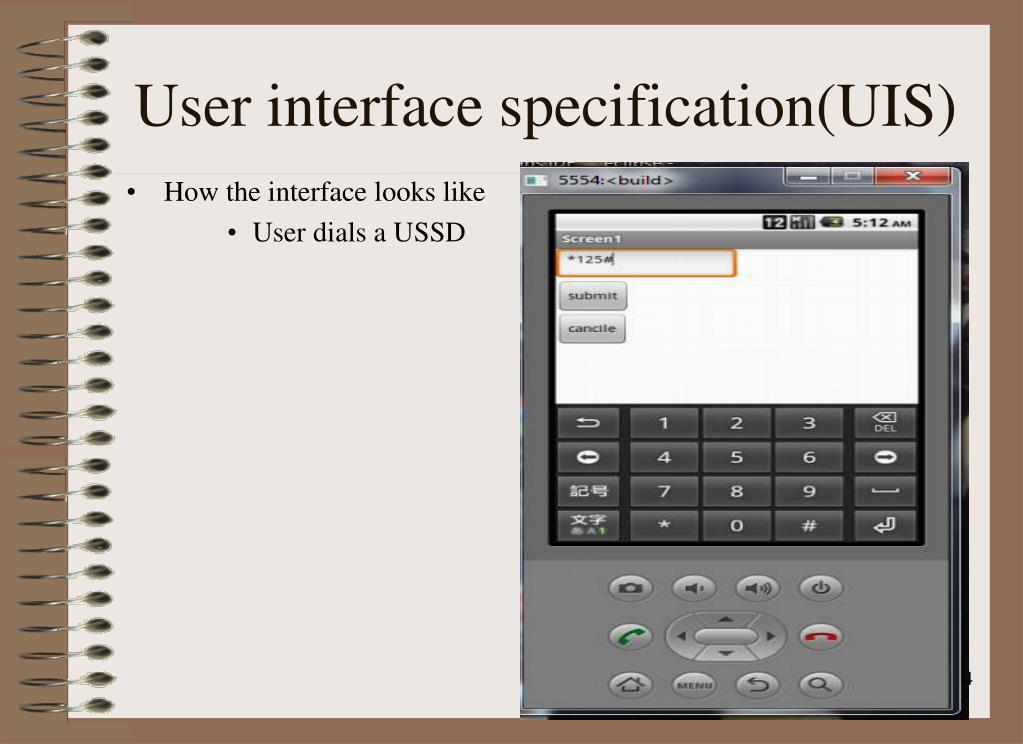

  4. User interface specification(UIS) How the interface looks like User dials a USSD

  5. User interface specification(UIS) • Showing 2 options to the user.

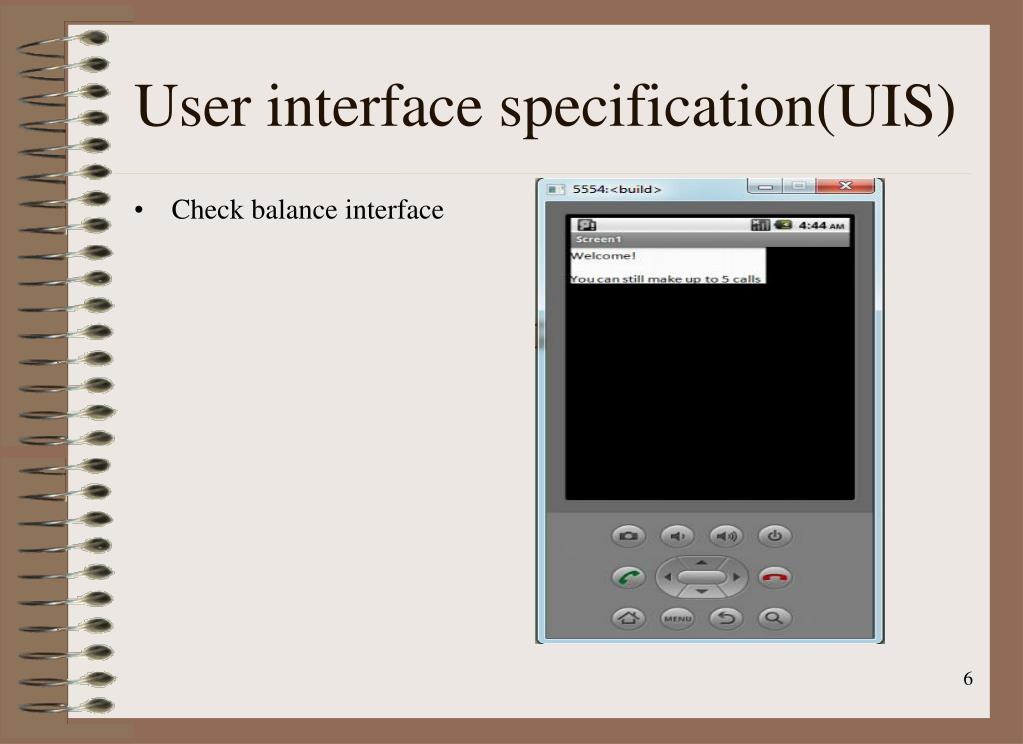

  6. User interface specification(UIS) • Check balance interface

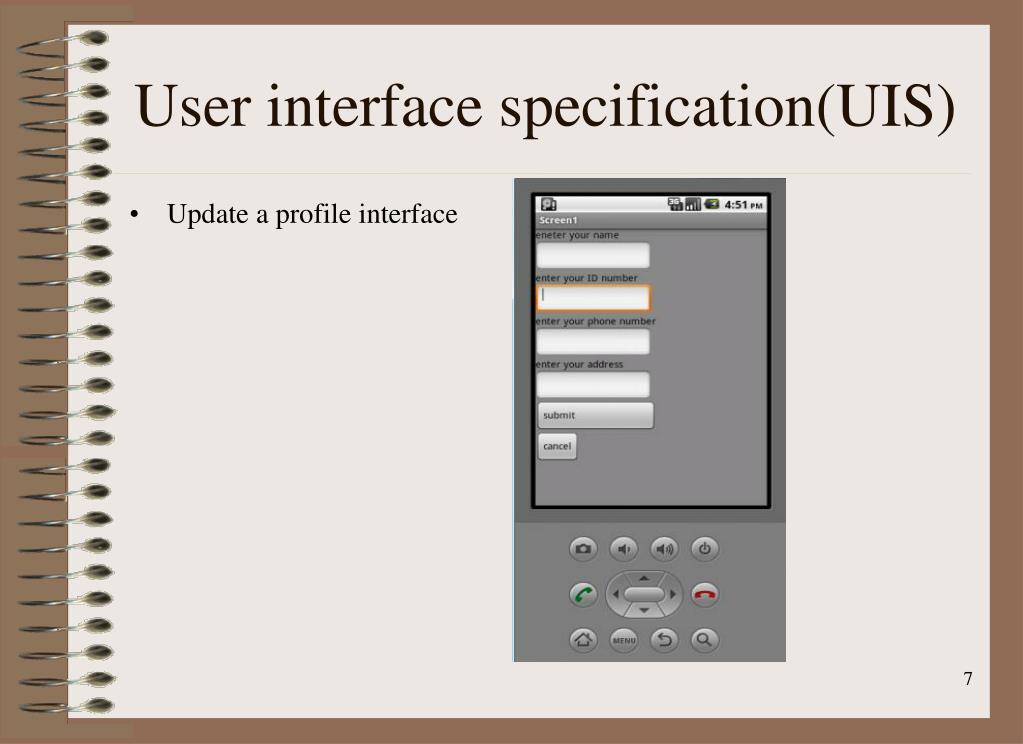

  7. User interface specification(UIS) • Update a profile interface

  8. How the user interacts with the interface

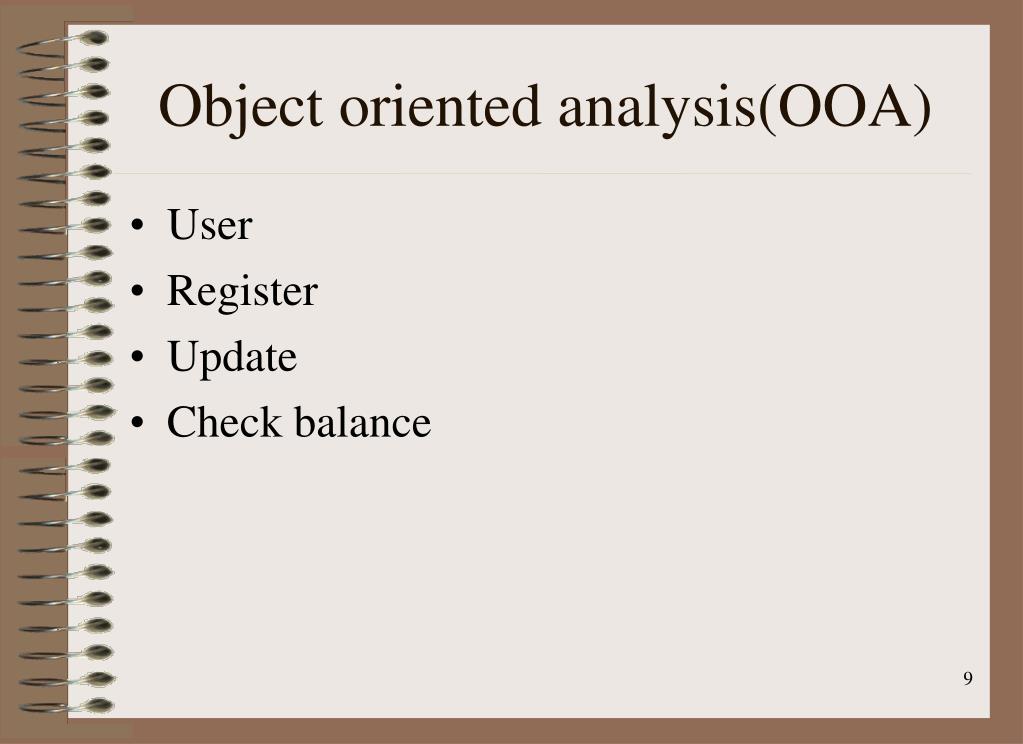

  9. Object oriented analysis(OOA) • User • Register • Update • Check balance

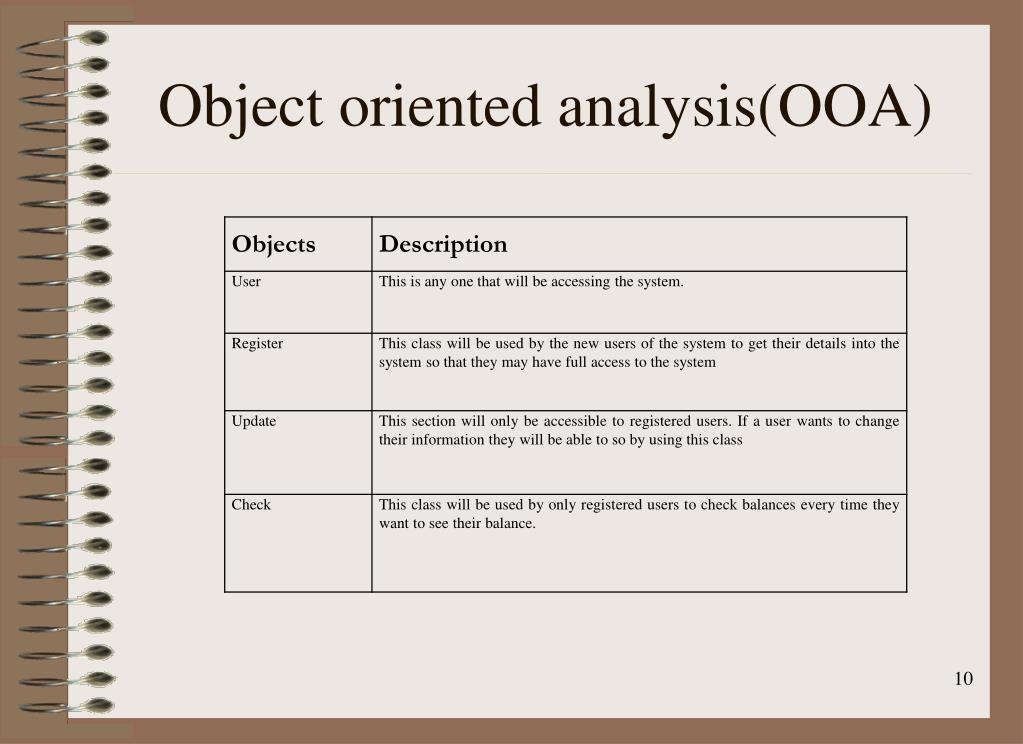

  10. Object oriented analysis(OOA)

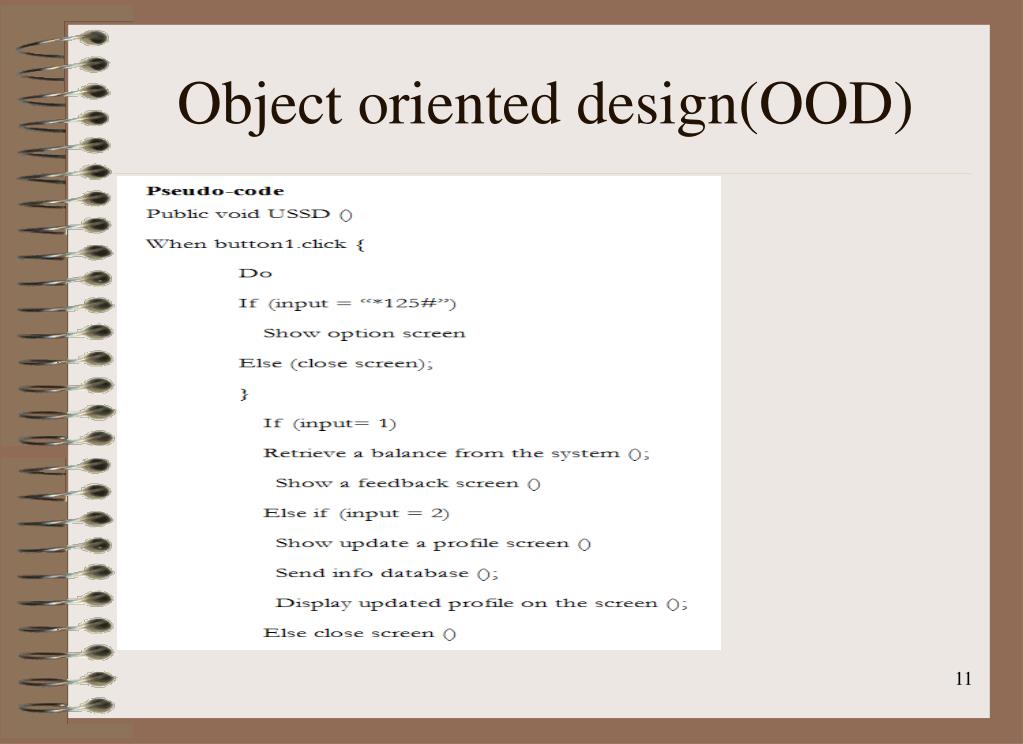

  11. Object oriented design(OOD)

  12. Project plan

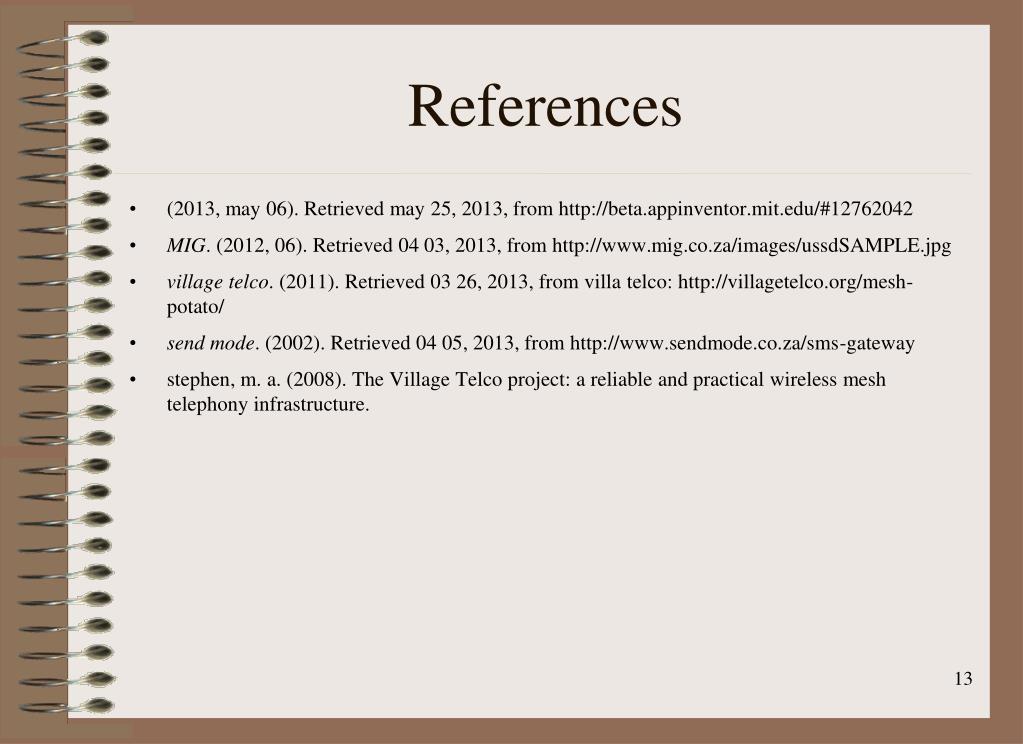

  13. References (2013, may 06). Retrieved may 25, 2013, from http://beta.appinventor.mit.edu/#12762042 MIG. (2012, 06). Retrieved 04 03, 2013, from http://www.mig.co.za/images/ussdSAMPLE.jpg village telco. (2011). Retrieved 03 26, 2013, from villa telco: http://villagetelco.org/mesh-potato/ send mode. (2002). Retrieved 04 05, 2013, from http://www.sendmode.co.za/sms-gateway stephen, m. a. (2008). The Village Telco project: a reliable and practical wireless mesh telephony infrastructure.

  14. Demo User dials a USSD code

  15. Questions & answers
