LIGHTING DESIGN LECTURE 2 – Feb 1 st Lighting Terminology

1. LIGHTING DESIGN LECTURE 2 – Feb 1stLighting Terminology Before we go on: an Introduction to basic lighting terms We quantify light as “lumens” “pieces” of light Lumens of light striking a surface = Illuminance Expressed in Foot-candles Lumens of light leaving a surface generically = Exitance Exitance is simply light leaving, with no indication of direction Lumens of light leaving a surface in a specific direction in a specific density Luminance is light leaving in a specific density as viewed from a specific vantage point Luminance is most closely related to the assessment of “brightness” These terms are all expressions of Lumens of light interacting in different ways It is helpful to get used to the proper preposition for each interaction We talk about Illuminance “onto” a surface We talk about the exitance “of” or “from” a surface We talk about the Luminance “of” or “from” a surface • Basic light interactions are always about “Lumens” of light interacting indifferent ways.

2. LIGHTING DESIGN LECTURE 2Lighting Terminology

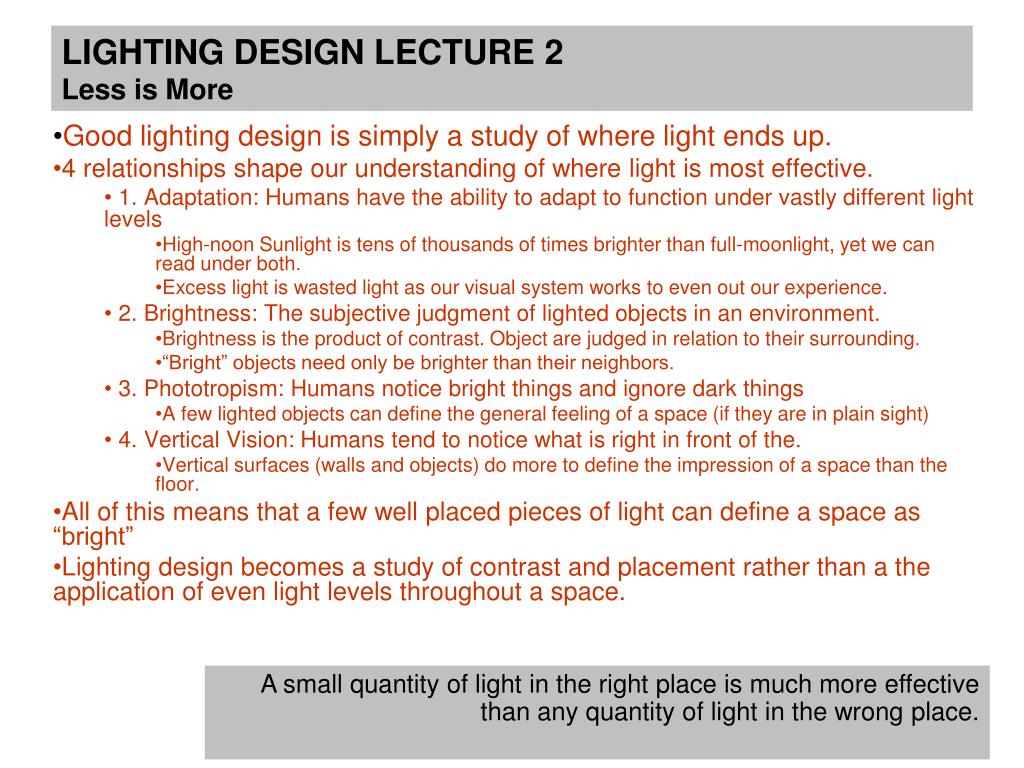

3. LIGHTING DESIGN LECTURE 2Less is More Good lighting design is simply a study of where light ends up. 4 relationships shape our understanding of where light is most effective. 1. Adaptation: Humans have the ability to adapt to function under vastly different light levels High-noon Sunlight is tens of thousands of times brighter than full-moonlight, yet we can read under both. Excess light is wasted light as our visual system works to even out our experience. 2. Brightness: The subjective judgment of lighted objects in an environment. Brightness is the product of contrast. Object are judged in relation to their surrounding. “Bright” objects need only be brighter than their neighbors. 3. Phototropism: Humans notice bright things and ignore dark things A few lighted objects can define the general feeling of a space (if they are in plain sight) 4. Vertical Vision: Humans tend to notice what is right in front of the. Vertical surfaces (walls and objects) do more to define the impression of a space than the floor. All of this means that a few well placed pieces of light can define a space as “bright” Lighting design becomes a study of contrast and placement rather than a the application of even light levels throughout a space. • A small quantity of light in the right place is much more effective than any quantity of light in the wrong place.

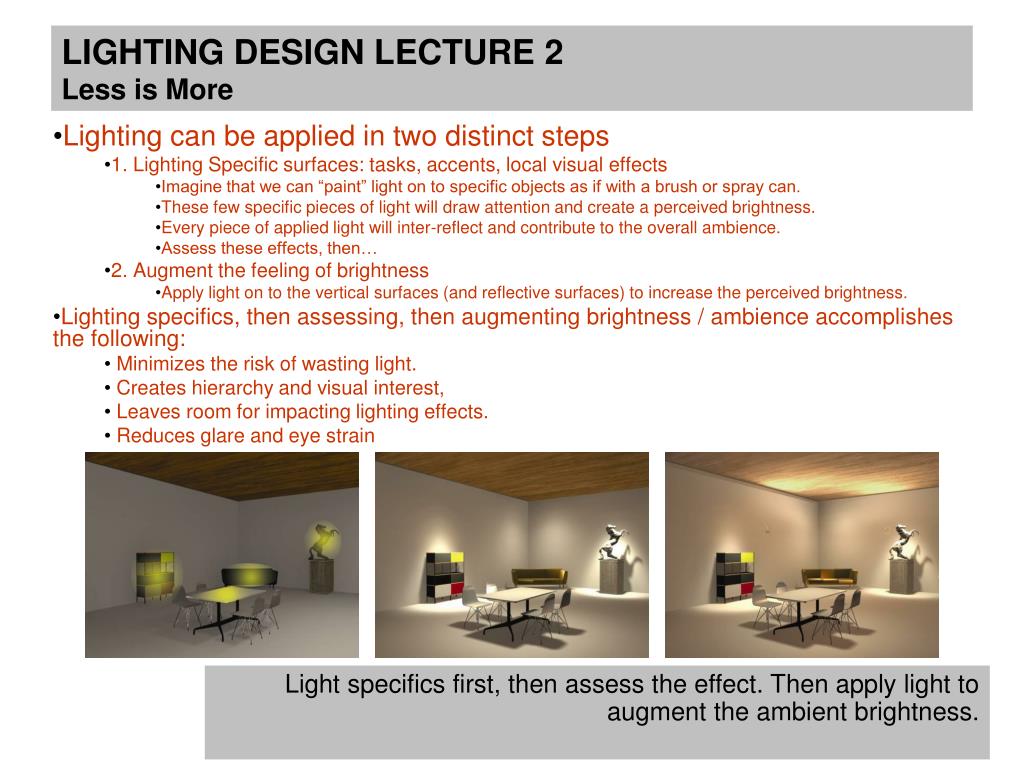

4. LIGHTING DESIGN LECTURE 2Less is More Lighting can be applied in two distinct steps 1. Lighting Specific surfaces: tasks, accents, local visual effects Imagine that we can “paint” light on to specific objects as if with a brush or spray can. These few specific pieces of light will draw attention and create a perceived brightness. Every piece of applied light will inter-reflect and contribute to the overall ambience. Assess these effects, then… 2. Augment the feeling of brightness Apply light on to the vertical surfaces (and reflective surfaces) to increase the perceived brightness. Lighting specifics, then assessing, then augmenting brightness / ambience accomplishes the following: Minimizes the risk of wasting light. Creates hierarchy and visual interest, Leaves room for impacting lighting effects. Reduces glare and eye strain • Light specifics first, then assess the effect. Then apply light to augment the ambient brightness.

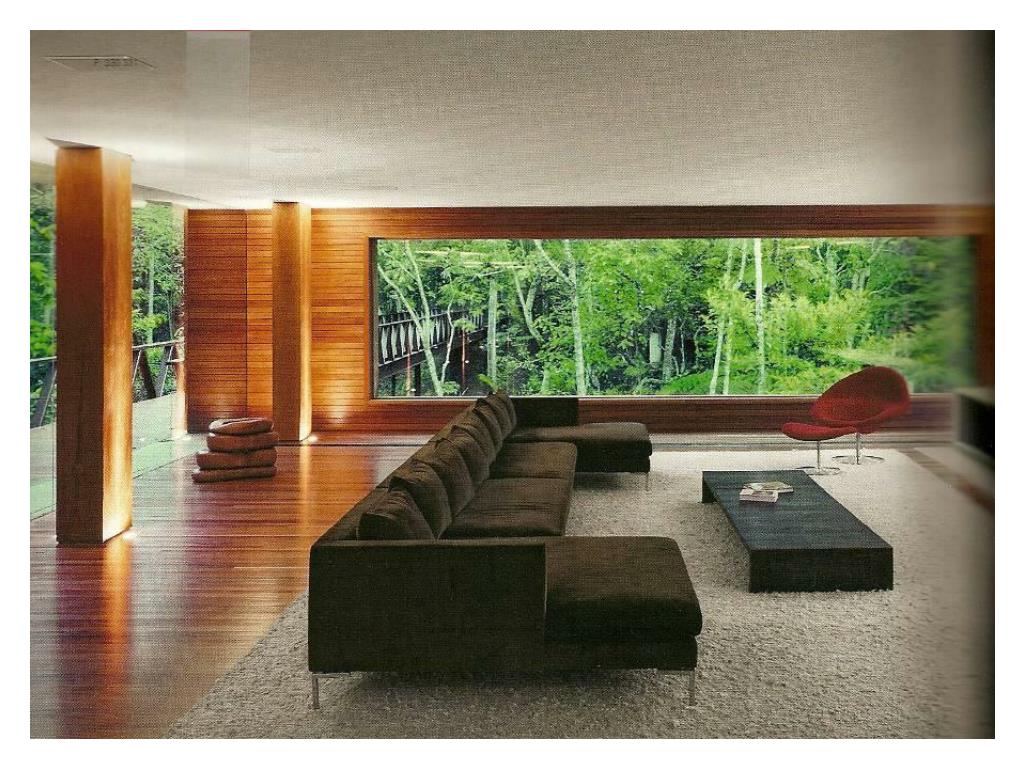

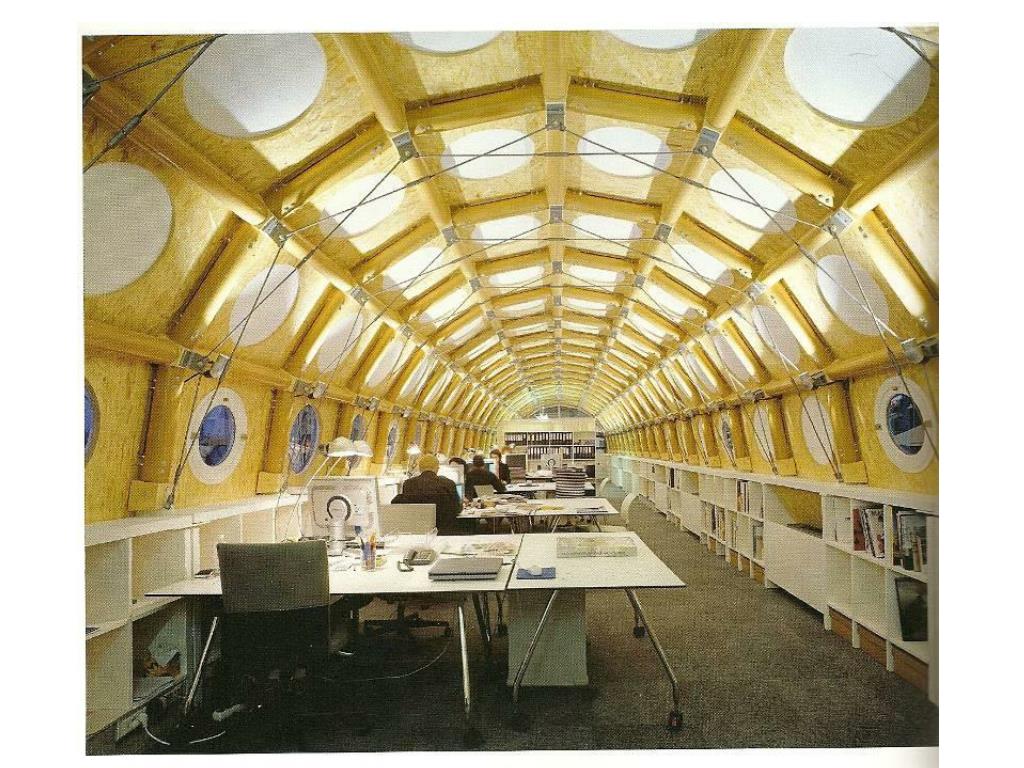

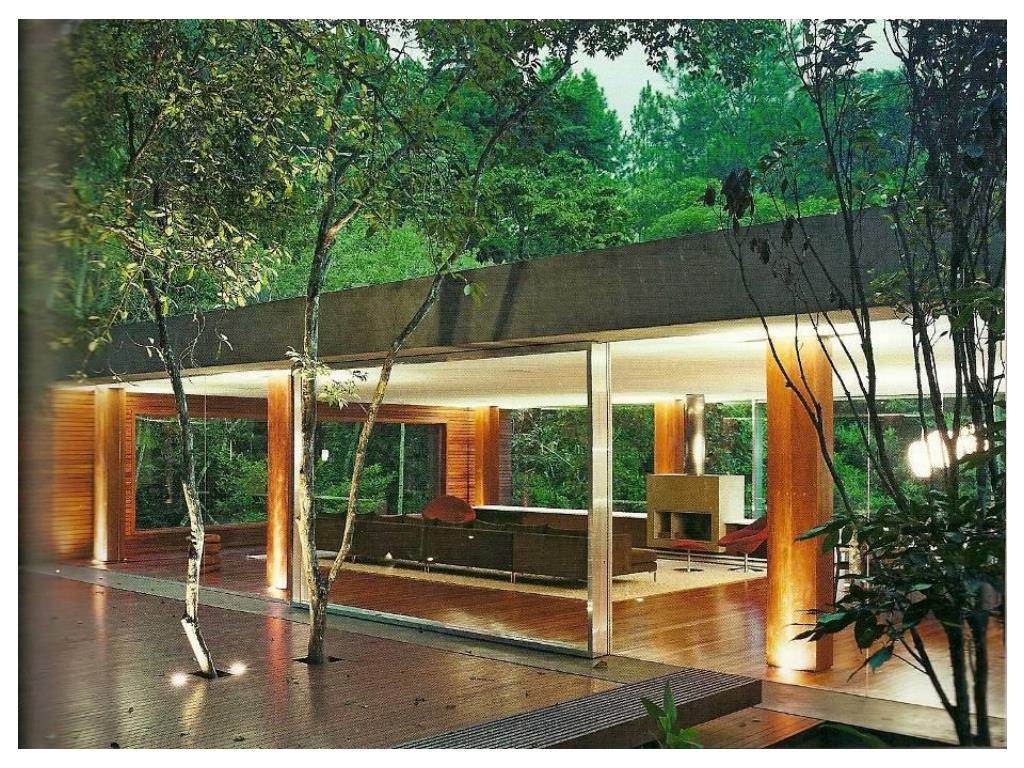

5. Less is more image

6. Less is more image

7. Less is more image

8. Less is more image

9. LIGHTING DESIGN LECTURE 2Less is More How does a typical space respond to this theory?

10. LIGHTING DESIGN LECTURE 2Less is More What is typical? Why? What if we think in these two steps? • .

11. LIGHTING DESIGN LECTURE 2The Physics of Light Light is a member of a large family of phenomena called electromagnetic radiation (EMR) EMR is raw energy Heat, light, x-rays, microwaves, U.V. are all examples of EMR (radiation) EMR has no mass, no taste, no color All EMR radiation travels at the same speed: “the speed of light” EMR varies only in wavelength Wavelength is measured in Nano-meters We can symbolize EMR as tiny squiggly lines vibrating through space • .

12. LIGHTING DESIGN LECTURE 2The Physics of Light We can diagram other types of EMR and what they do… remember: the only difference from one form of radiation to the next is… WAVELENGTH Our eyes can detect only a small portion of the spectrum: so we call this portion the “visible spectrum” Because we detect this EMR we name it. We call it light ! The visible spectrum includes radiation from about 380 Nano-meters (violet) to 770 nano-meters (red) in wavelength

13. LIGHTING DESIGN LECTURE 2The Physics of Light

14. LIGHTING DESIGN LECTURE 2The Physics of Light SO… where does radiation come from, and why do we detect only a small portion of it? The SUN has historically been our primary source of radiation The sun emits almost every wavelength of EMR. We would call this a very complete spectrum Almost all of the sun’s radiation is blocked by our atmosphere What types leak through and make it to the earths surface? The visible spectrum, some IR and some UV So we have adapted to detect and make use of these types of radiation This is also why we have no defense mechanisms against the other type of EMR

15. LIGHTING DESIGN LECTURE 2The Physics of Light We have learned to distinguish different combinations of radiation by translating the detection experience into “colors” We have also become more sensitive to colors (wavelengths) of light which are more abundant Plants are sensitive to red… why? People are sensitive to green (545 nm)… why? The fundamentals: Light is electro-magnetic radiation in specific wavelengths detected by our eyes For each specific wavelength or combination of wavelengths we have named our eye / brain response as a “color” • Color is not a property of an object… color is our brain’s translation of radiation being reflected from an object to our eyes

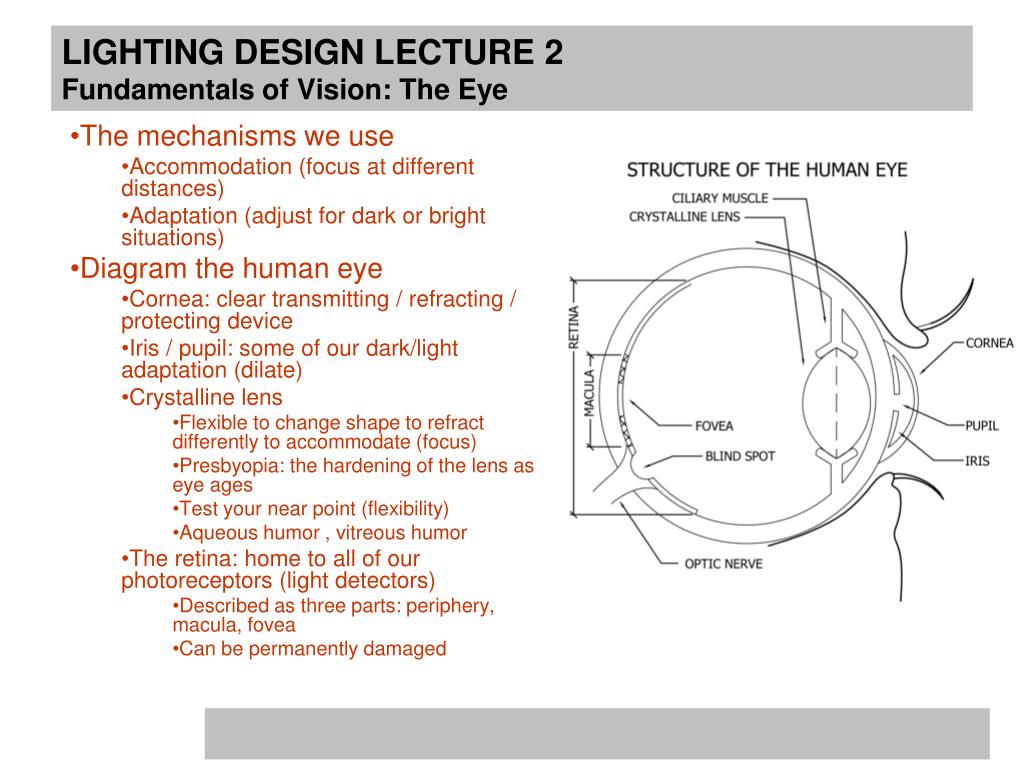

16. LIGHTING DESIGN LECTURE 2Fundamentals of Vision: The Eye The mechanisms we use Accommodation (focus at different distances) Adaptation (adjust for dark or bright situations) Diagram the human eye Cornea: clear transmitting / refracting / protecting device Iris / pupil: some of our dark/light adaptation (dilate) Crystalline lens Flexible to change shape to refract differently to accommodate (focus) Presbyopia: the hardening of the lens as eye ages Test your near point (flexibility) Aqueous humor , vitreous humor The retina: home to all of our photoreceptors (light detectors) Described as three parts: periphery, macula, fovea Can be permanently damaged

17. LIGHTING DESIGN LECTURE 2Fundamentals of Vision: The Eye Cones Populate the macula and fovea Active in high light levels (called Photopic vision) Responsible for color vision (if you perceive color, you are using cones) There are three classes of cones, each class sensitive to different wavelengths Three different classes / sensitivities of cones make color translation possible. The classes are named for the photo pigment that they contain RHO “R” cones: sensitive to “red” light (580 nm). Contain erythrolab GAMMA “G” cones: sensitive to “green” light (540 nm). Contain chlorolab BETA “B” cones: sensitive to “blue” light (450 nm). Contain cyanolab Rods Populate the periphery of the eye Active in low light situations (called Scotopic vision) Very sensitive to change and motion Only come in one class (therefore Scotopic rod vision is monochromatic) All rods are most sensitive to 545 nm. Contain the photo pigment Rhodopsin

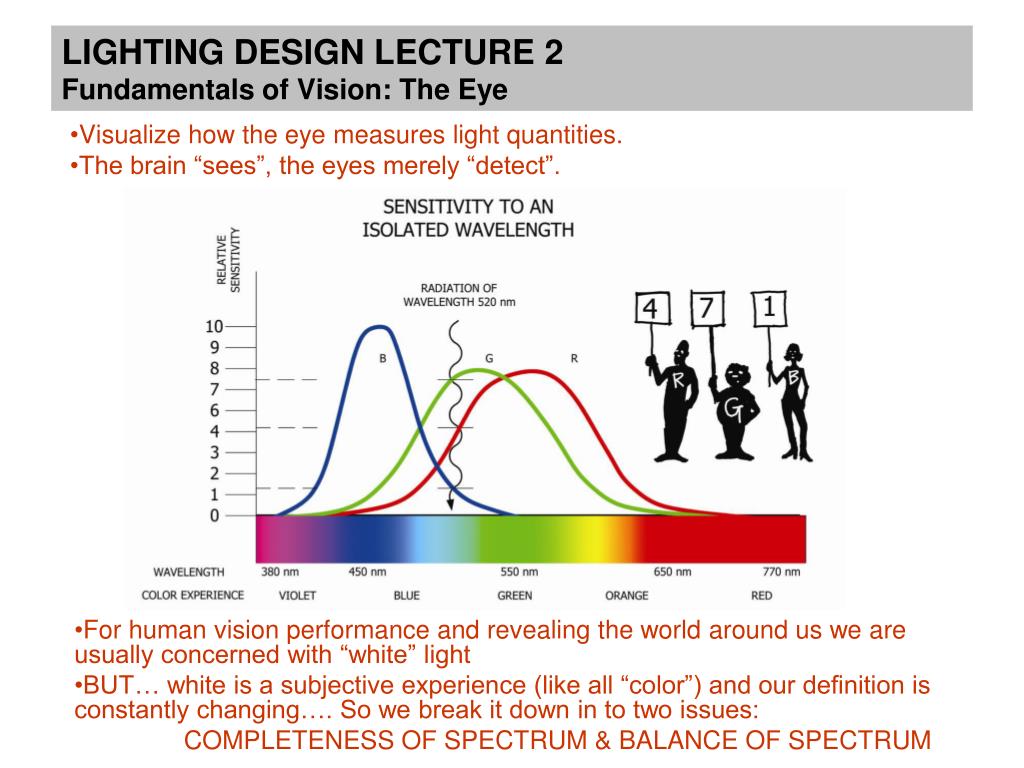

18. LIGHTING DESIGN LECTURE 2Fundamentals of Vision: The Eye Visualize how the eye measures light quantities. The brain “sees”, the eyes merely “detect”. • For human vision performance and revealing the world around us we are usually concerned with “white” light • BUT… white is a subjective experience (like all “color”) and our definition is constantly changing…. So we break it down in to two issues: • COMPLETENESS OF SPECTRUM & BALANCE OF SPECTRUM

19. LIGHTING DESIGN LECTURE 2Color Science and Light Sources Completeness of spectrum / CRI The more wavelengths that come out of a light source, the more opportunity a surfaces has to reflect light We measure the complexity / completeness of a light source. We call this the COLOR RENDERING INDEX or CRI It is a numeric value ranging from 0-100 (the higher the better) Historically the CRI is assigned by experimenting on people some sample to get used to Daylight: 100 Incandescent light: 100 Fluorescent: 75 - 95 Metal halide: 75-90 High pressure sodium: 25 Low pressure sodium: 25

20. LIGHTING DESIGN LECTURE 2Color Science and Light Sources Balance of spectrum / Color temperature If a light source gives of more of one wavelength than another, than our brains translation of the light is a slight color experience We have devised a numeric description of the color produced by the imbalance called CORELATED COLOR TEMPERATURE Expressed as a temperature in degrees Kelvin K or “Kelvins” Extracted from the behavior of black metals as they are heated up: red to orange to yellow to blue etc. This behavior follows a predictable path where green would appear we get a very pale “neutral” We use it most to help describe fluorescent sources.

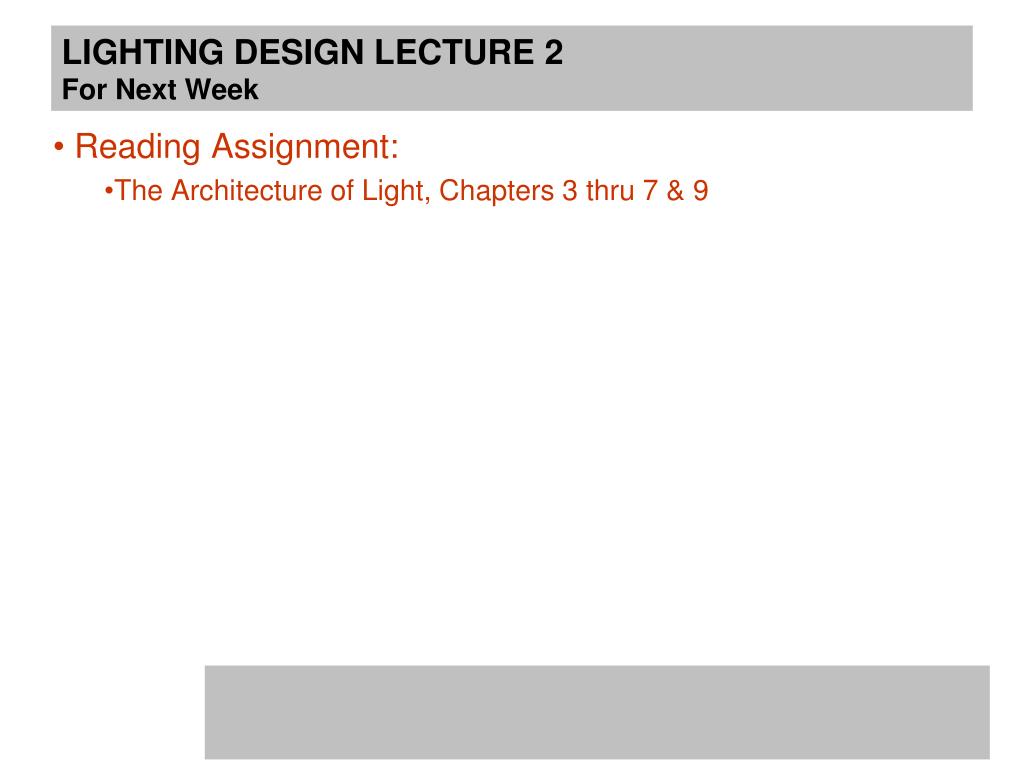

21. LIGHTING DESIGN LECTURE 2For Next Week Reading Assignment: The Architecture of Light, Chapters 3 thru 7 & 9
