Specific Aims :

PI: Yang Chai. Specific Aims : 1. To perform global and specific gene expression analysis. In parallel, we will use sophisticated imaging analysis to build a comprehensive data base of palatal development.

whorn
Télécharger la présentation

Specific Aims :

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

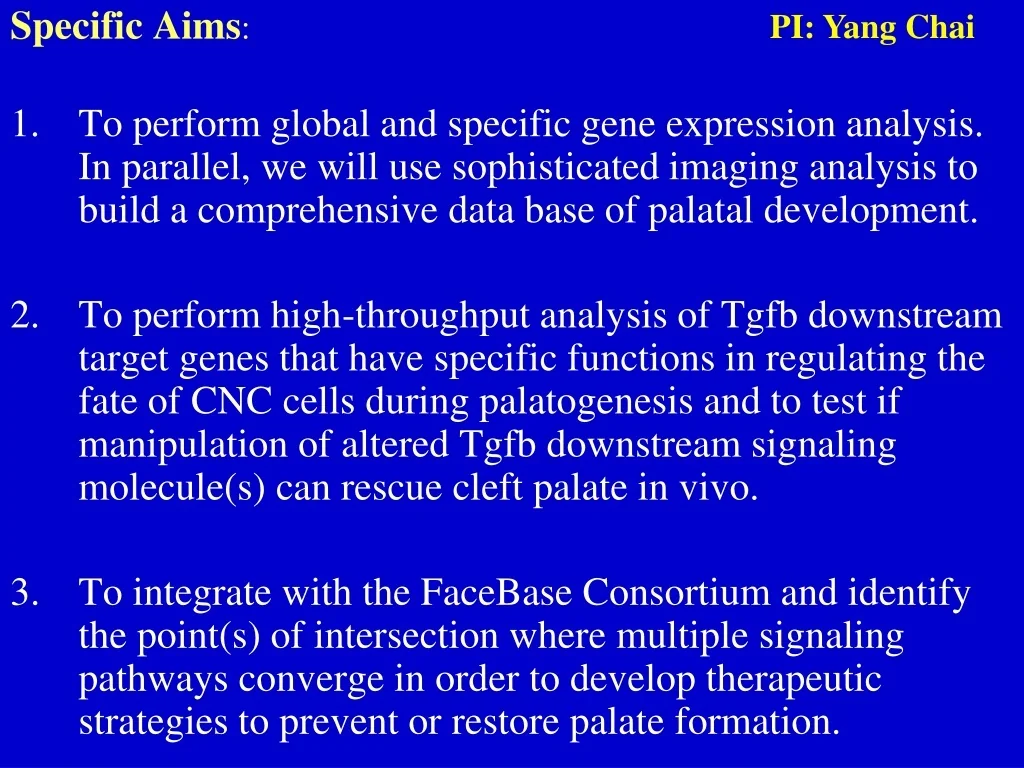

  1. PI: Yang Chai Specific Aims: 1. To perform global and specific gene expression analysis. In parallel, we will use sophisticated imaging analysis to build a comprehensive data base of palatal development. 2. To perform high-throughput analysis of Tgfb downstream target genes that have specific functions in regulating the fate of CNC cells during palatogenesis and to test if manipulation of altered Tgfb downstream signaling molecule(s) can rescue cleft palate in vivo. 3. To integrate with the FaceBase Consortium and identify the point(s) of intersection where multiple signaling pathways converge in order to develop therapeutic strategies to prevent or restore palate formation.

  2. Cleft palate in humans Animal models Complete cleft of hard and soft palate Wnt1-Cre;Tgfbr2fl/fl Partial cleft of soft palate K14-Cre;Tgfbr2fl/fl

  3. Sophisticated dynamic imaging analysis of palatogenesis microCT microMRI Scott Fraser Wnt1-Cre;Tgfbr2fl/fl Control

  4. Altered gene expression profile analysis in Wnt1-Cre;Tgfbr2 mutant palatal mesenchyme Joe Hacia, Junichi Iwata, and Yang Chai Total: 147 genes

  5. Up-regulated genes in Wnt1-Cre;Tgfbr2 CKO mice at E14.5 TGF-beta NF-KB ERK Ingenuity Pathway Analysis

  6. Design of in vivo rescue experiment Target for rescue Tgf-b2 Wnt1-Cre;Tgfbr2fl/+ Tgfbr2fl/fl;Tgfb2+/- RII RI RIII b-spectrin P p38 JNK Wt Tgfbr2fl/fl;Wnt1-Cre Tgfbr2fl/fl;Wnt1-Cre;Tgfb2+/- ? P 14-3-3 Tgf-b2 Tgf-b2 Cleft palate Cleft palate

  7. Haploinsufficiency of Tgfb2 rescues cleft palate in Wnt1-Cre;Tgfbr2fl/fl mice Wt Tgfbr2fl/fl;Wnt1-Cre Tgfbr2fl/fl;Wnt1-Cre;Tgfb2+/- A Normal: Cleft palate: 105/105 (100 %) 0/106 (0 %) 0/16 (0 %) 16/16 (100 %) 15/15 (100 %) 0/15 (0 %) B Wt Tgfbr2fl/fl;Wnt1-Cre Tgfbr2fl/fl;Wnt1-Cre;Tgfb2+/-
