  1. Global Warming: From Science to Policy

  2. Outline Science History Evidence Theory Simulations Politics Policy Choices and Options

  3. Science

  4. History Why is the Earth Warm? John Tyndall (1862) Ice Ages Modeling the Earth Most Gases are Transparent in the IR But: CO2 and Water Vapor Completely Opaque at 1 part in 10,000. Arhennius (1896) CO2- Water Feedback Manmade inputs Snowball Earths (1930s)

  5. History

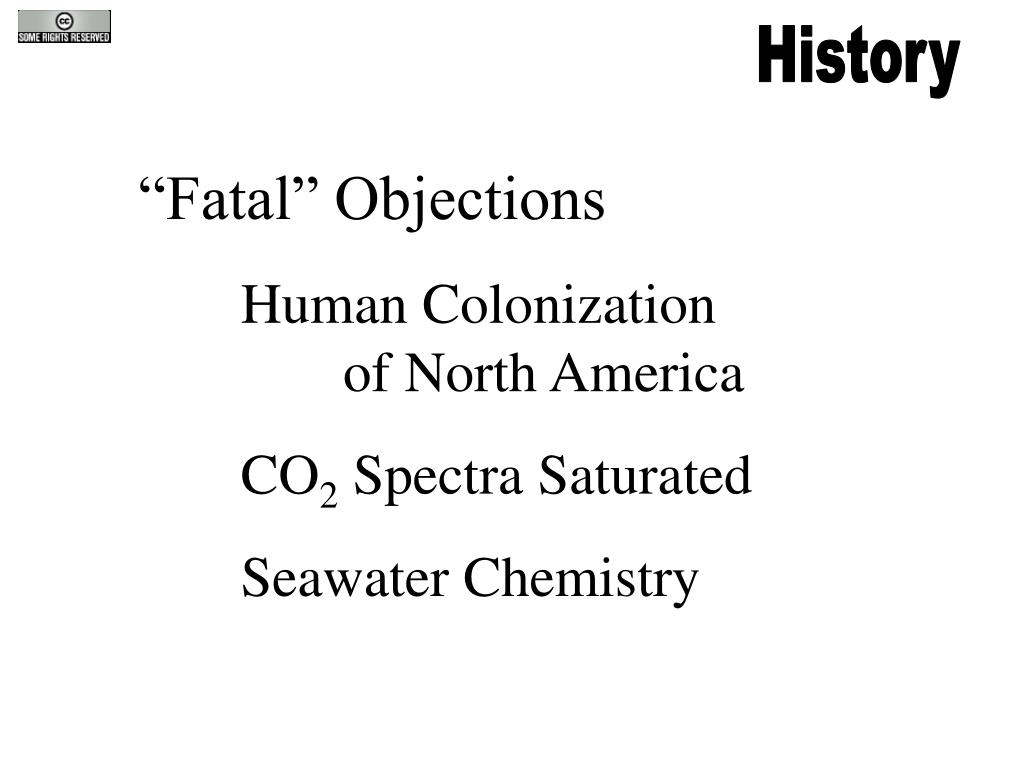

  6. History “Fatal” Objections Human Colonization of North America CO2 Spectra Saturated Seawater Chemistry

  7. History New Evidence CO2 Theory CO2 Evidence (1930s to 1960s) Roger Revelle Computer Models of the Oceans and Atmosphere (1960s)

  8. History

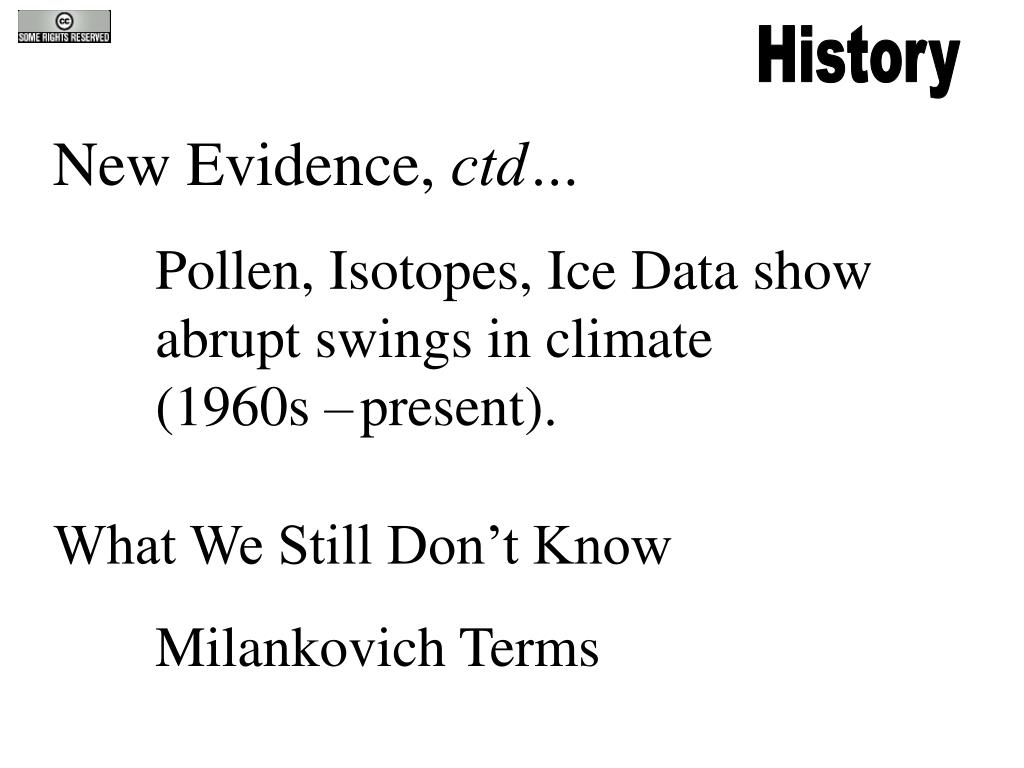

  9. History New Evidence, ctd… Pollen, Isotopes, Ice Data show abrupt swings in climate (1960s – present). What We Still Don’t Know Milankovich Terms

  10. Evidence The Principal Evidence CO2 Temperature Data

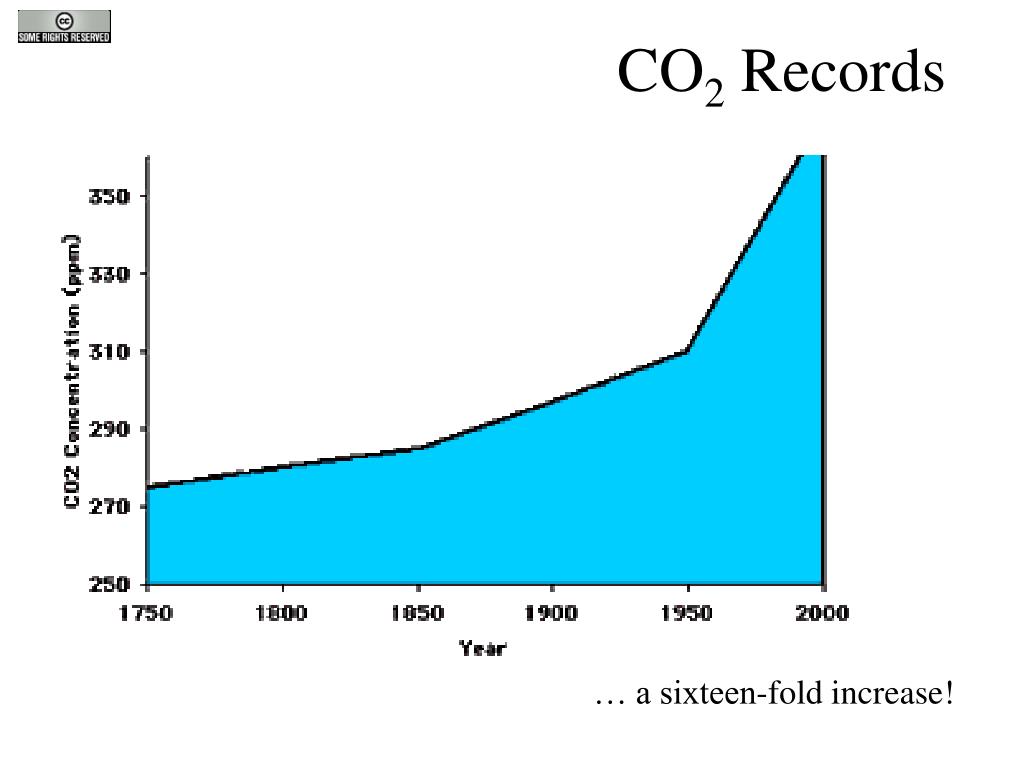

  11. CO2 Records … a sixteen-fold increase!

  12. CO2 Records

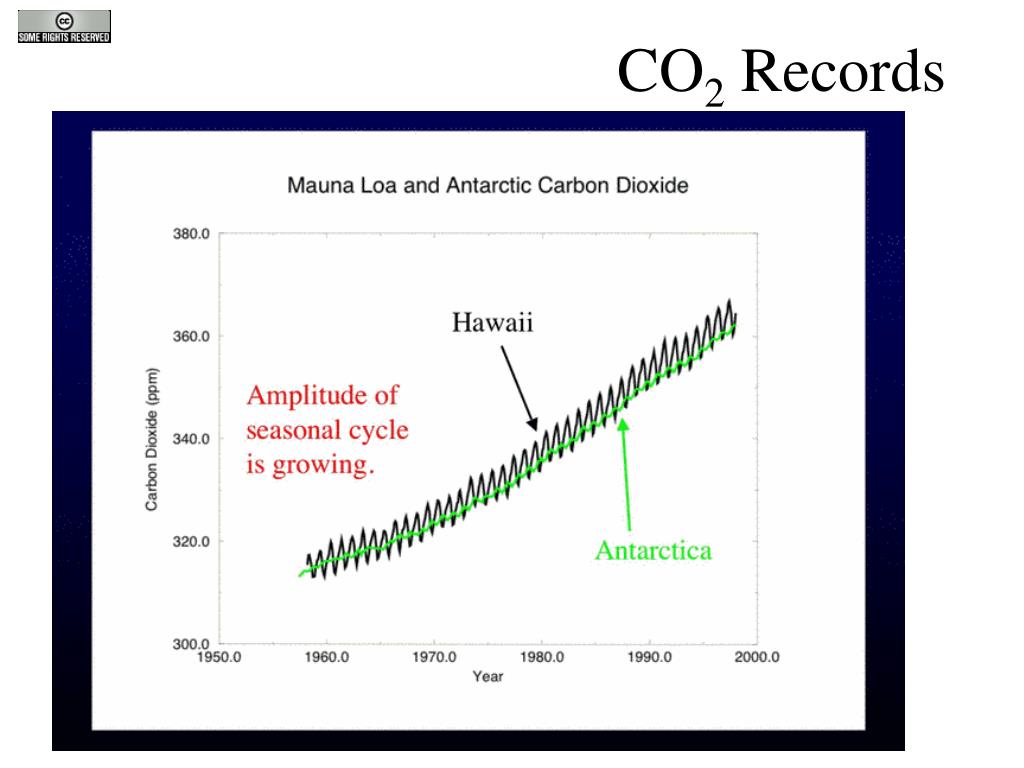

  13. CO2 Records

  14. Temperature: The (Very) Long View

  15. 3 Million Years 5o Note: Time-Reversed! Onset of Ice Ages

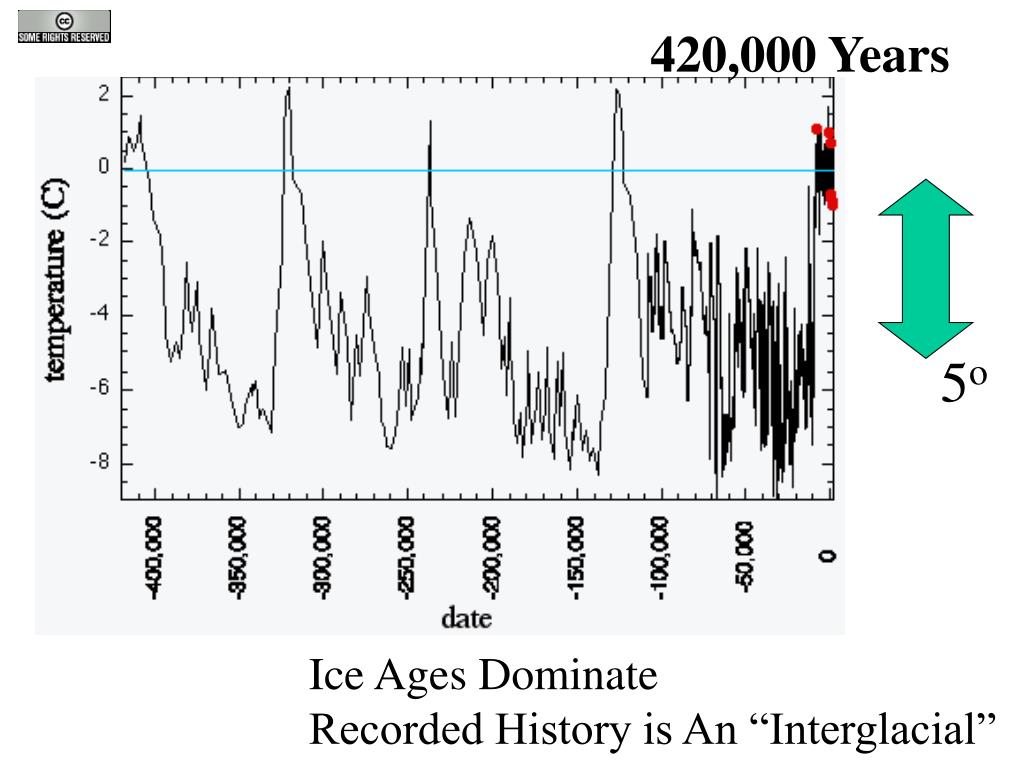

  16. 420,000 Years 5o Ice Ages Dominate Recorded History is An “Interglacial”

  17. 100,000 Years 5o Recorded History is Anomalously Warm, Stable Actual Global Warming is Small on This Plot Claim: Global Warming Could Be Comparable

  18. Sudden Swings

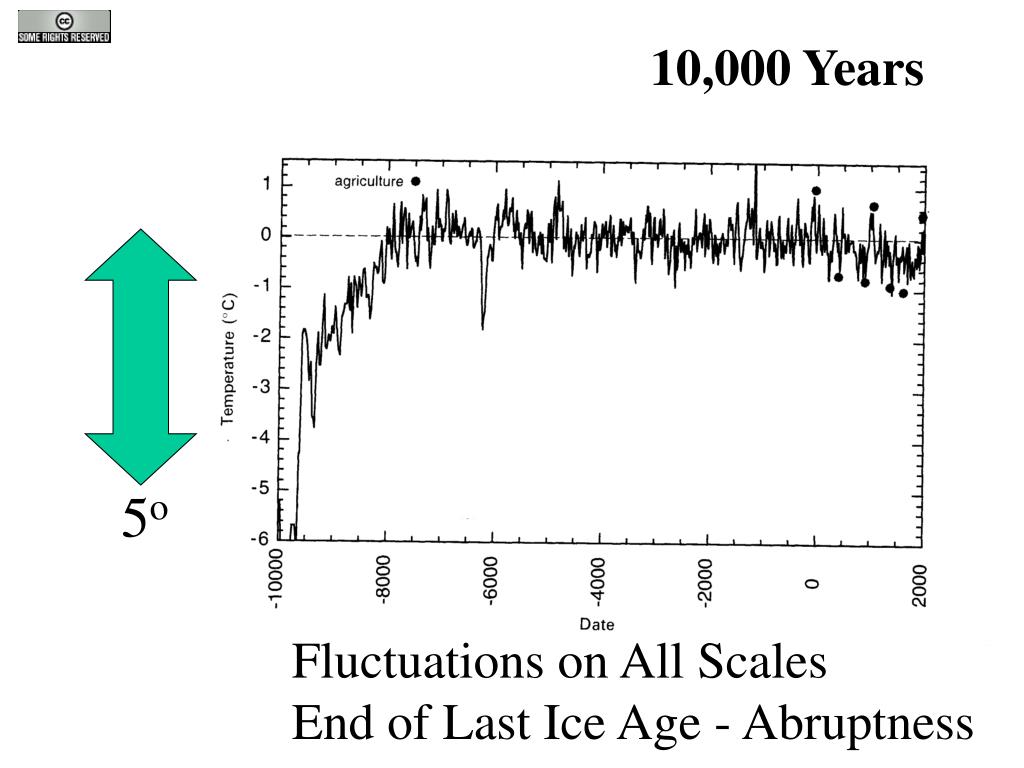

  19. 10,000 Years 5o Fluctuations on All Scales End of Last Ice Age - Abruptness

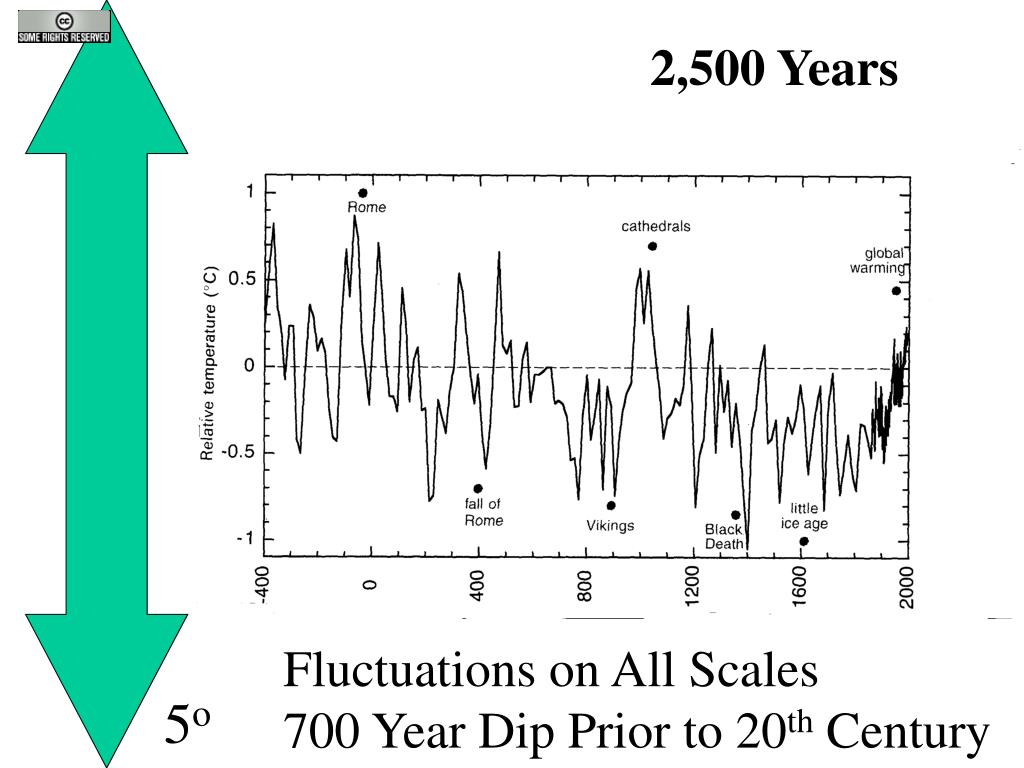

  20. 2,500 Years Fluctuations on All Scales 700 Year Dip Prior to 20th Century 5o

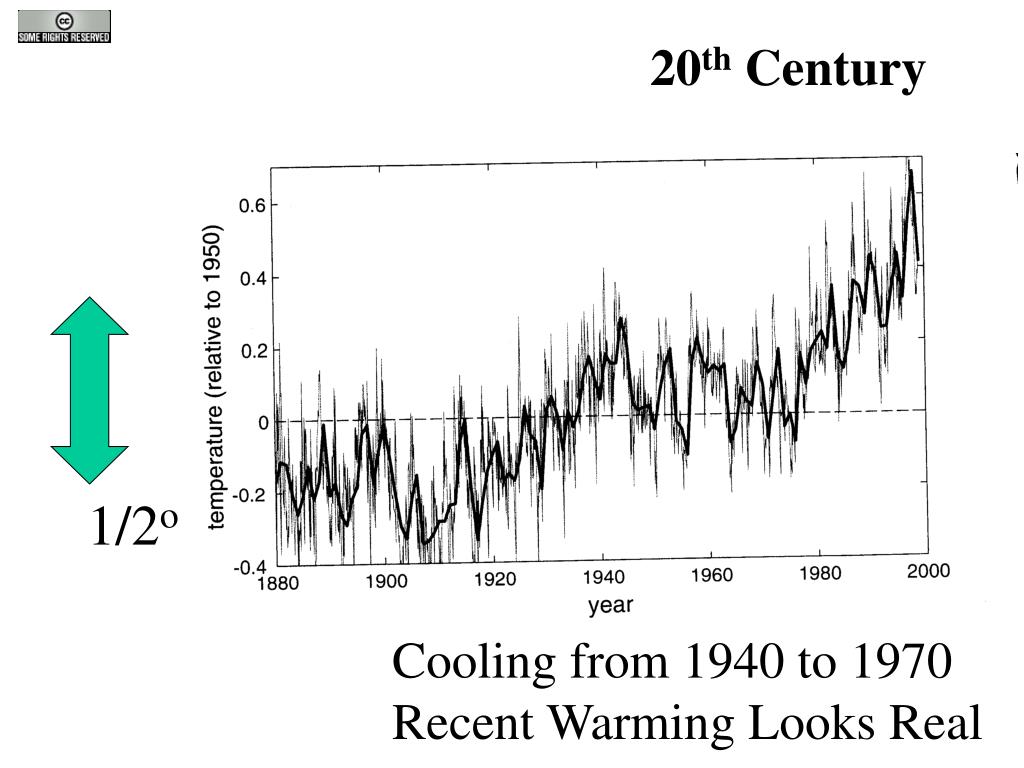

  21. 20th Century 1/2o Cooling from 1940 to 1970 Recent Warming Looks Real

  22. Intuition: Our climate is … changeable anomolous unstable getting warmer

  23. Theory Well-Behaved Theories Solvable Theories Perturbation Methods Feedback Complexity An Interdisciplinary Subject Astronomy, biology, chemistry, physics, meteorology, oceanography, etc.

  24. Theory

  25. Theory

  26. Theory

  27. Theory Feedbacks: Clouds, dust, soot, aerosols, sunspots, cosmic rays?

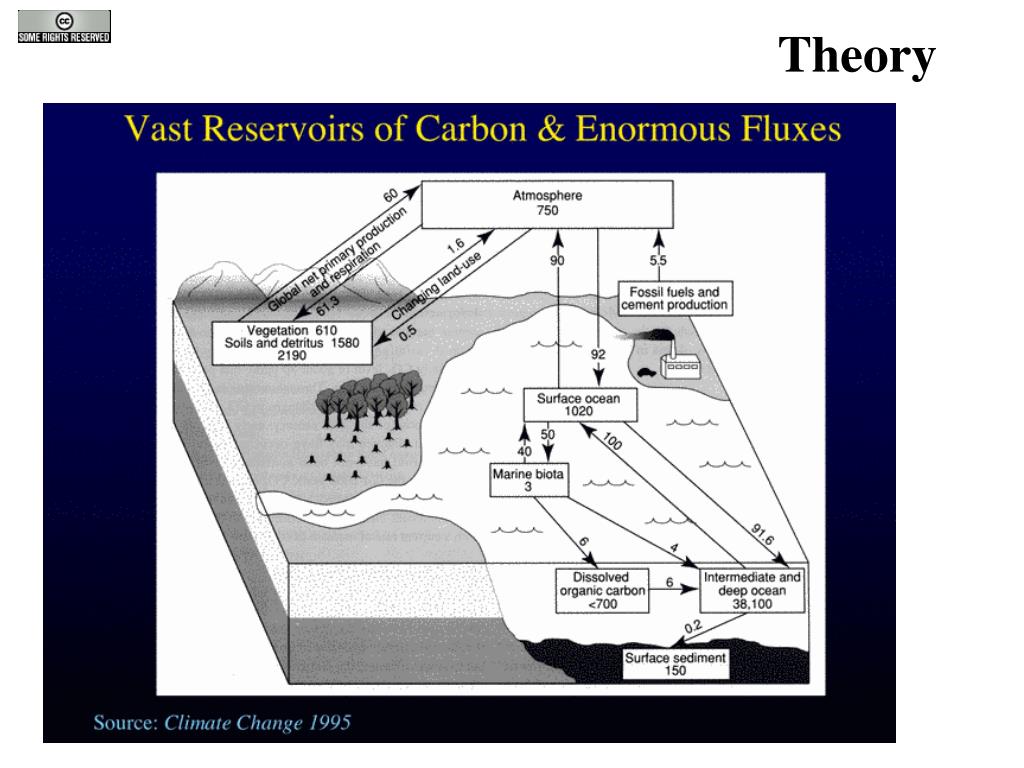

  28. Theory

  29. Simulations The Third Branch of Science The Physical Intuition Problem Predicting the Past Convergence Deciding Which Model is Right

  30. Simulations

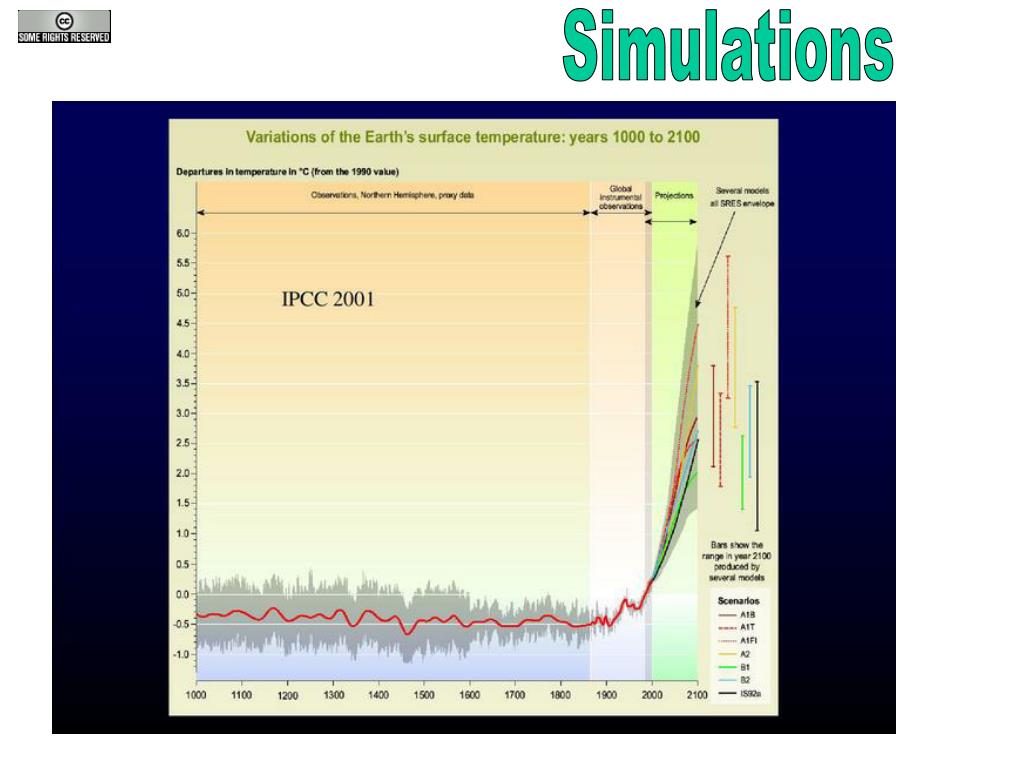

  31. Simulations

  32. Taking Stock

  33. “By the late 1980s, well-informed people understood that the climate change issue could not be handled in either of the two easiest ways. Scientists were not going to prove that there was nothing to worry about. Nor were they about to prove exactly how climate would change, and tell what should be done about it.” [160] Spencer Weart The Discovery of Global Warming (2003) http:www.aip.org/history/climate

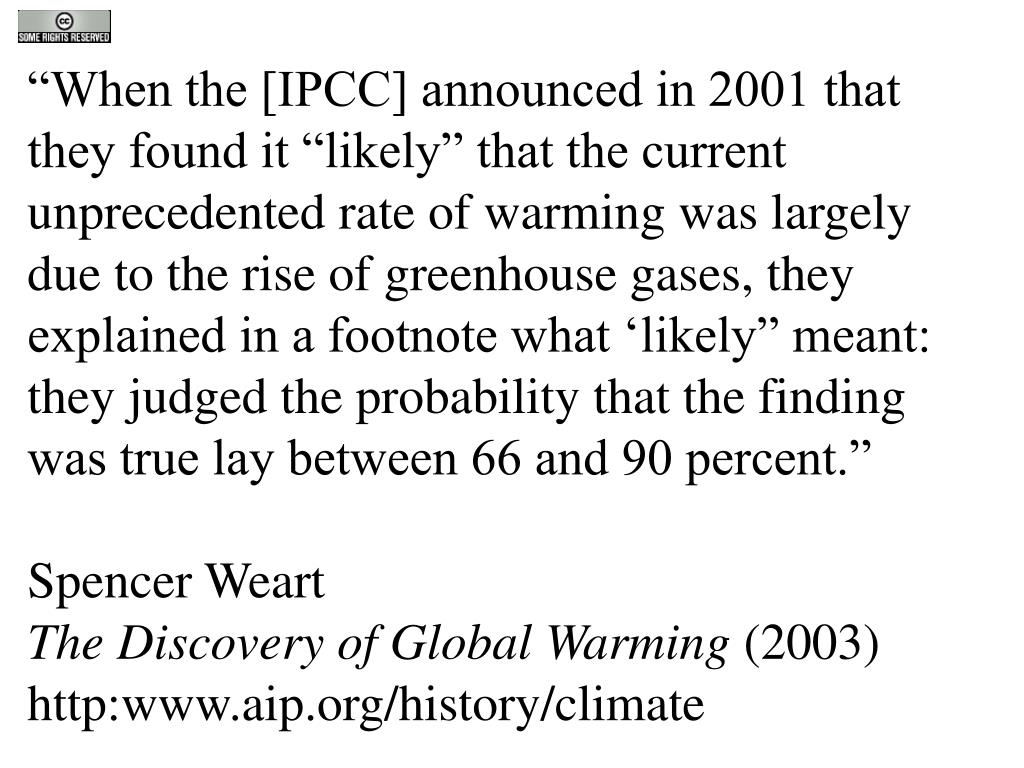

  34. “When the [IPCC] announced in 2001 that they found it “likely” that the current unprecedented rate of warming was largely due to the rise of greenhouse gases, they explained in a footnote what ‘likely” meant: they judged the probability that the finding was true lay between 66 and 90 percent.” Spencer Weart The Discovery of Global Warming (2003) http:www.aip.org/history/climate

  35. Technology Options Cutting Back Carbon Sinks USA – East Coast – 0.5 Pg/yr vs. 5.4Pg/yr worldwide emissions Tropics – Deforestation – 1.7 Pg/yr

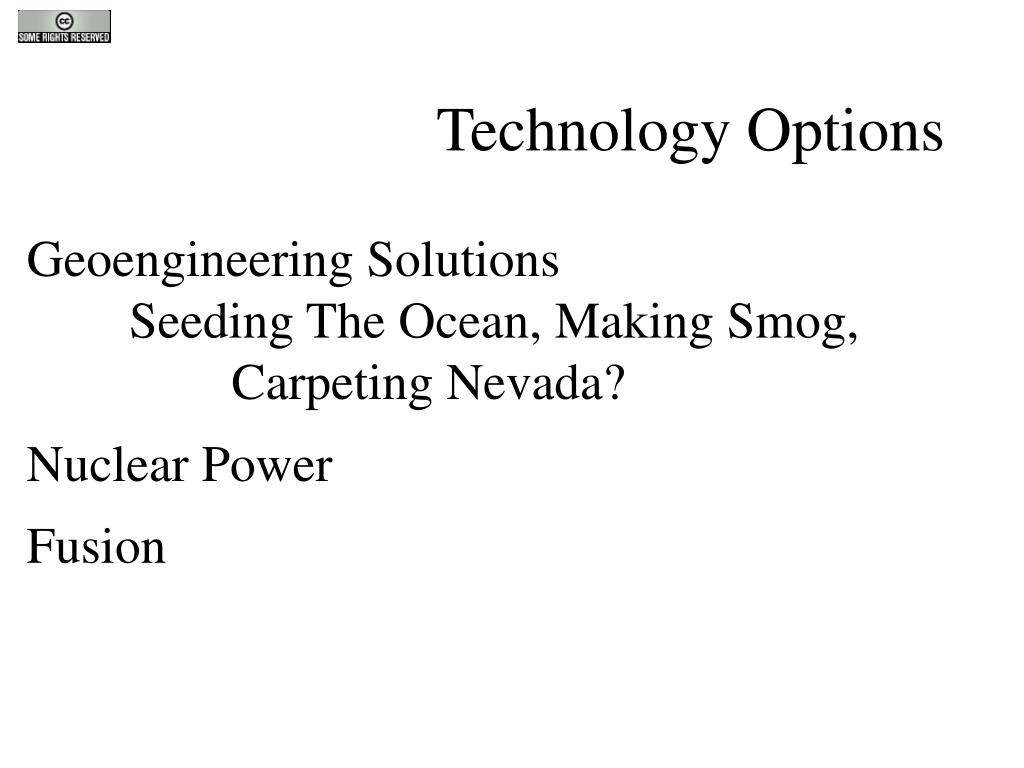

  36. Technology Options Geoengineering Solutions Seeding The Ocean, Making Smog, Carpeting Nevada? Nuclear Power Fusion

  37. Politics

  38. Politics Kyoto Rollback to 92% of 1990 Levels Not Enough! Tradable Credits Does Not Include LDCs US Senate Rejection Russia

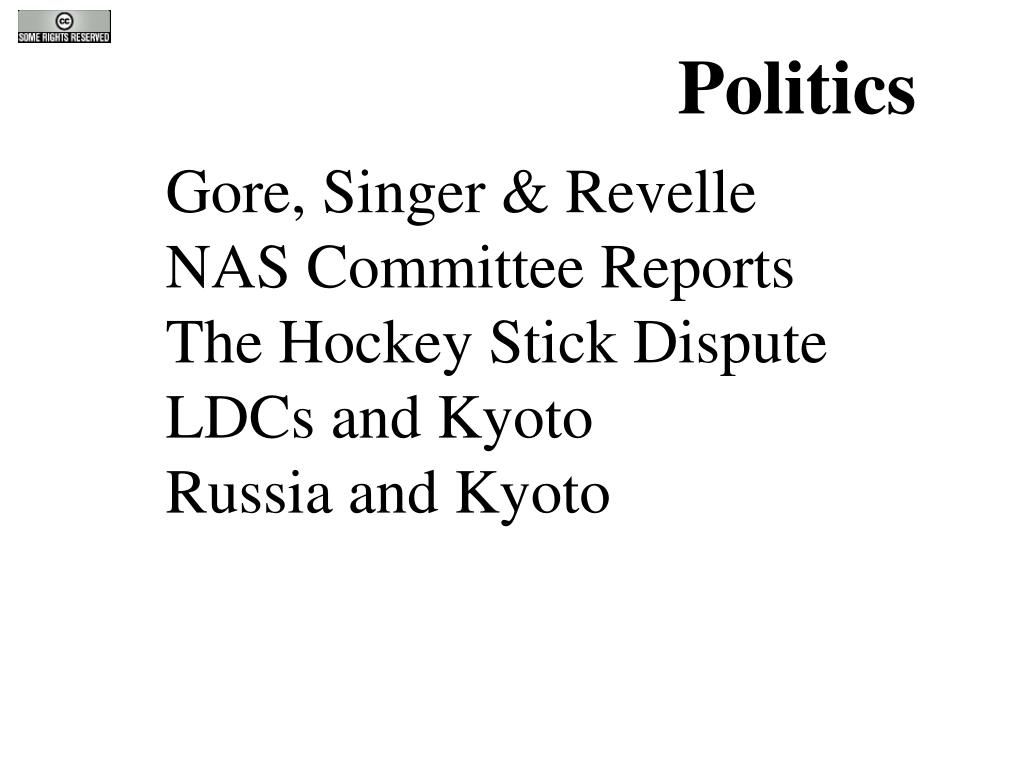

  39. Politics Gore, Singer & Revelle NAS Committee Reports The Hockey Stick Dispute LDCs and Kyoto Russia and Kyoto

  40. Policy

  41. The Cost Gradual Effects: 450 ppm 1.2 – 2.3 C increase by 2101 550 ppm 1.5 – 2.9 C increase by 2101 650 ppm 3.2 C Abrupt Effects: Antarctic Glacier Collapse Collapse of Ocean Circulation How Important? Local? Entering A New Climate Mode How Distant? One century or fifty?

  42. Distribution Issues Russia Bangladesh North-South

  43. Timing To first approximation, emissions stay in atmosphere. Paths need to approach 0 on a roughly 100 year time scale IGPCC Proposals: Go from 380 ppm to 550 in 2050 and stabilize. Caldiera et al, “Climate Sensitivity Uncertainty and the Need for Energy Without CO2 Emission,” Science299:2052 (2003)

  44. What Will It Cost? US estimates range from less than 1% to 4% of GDP.

  45. Timing Waiting for Technology Waiting for Depreciation

  46. Timing Matters Human Health and Happiness

  47. How Much Risk? Total Emissions Depends on Climate Model Caldiera et al, “Climate Sensitivity Uncertainty and the Need for Energy Without CO2 Emission,” Science299:2052 (2003)

  48. How Much Risk? Investment in new primary power sources depends on climate models Caldiera et al, “Climate Sensitivity Uncertainty and the Need for Energy Without CO2 Emission,” Science299:2052 (2003)

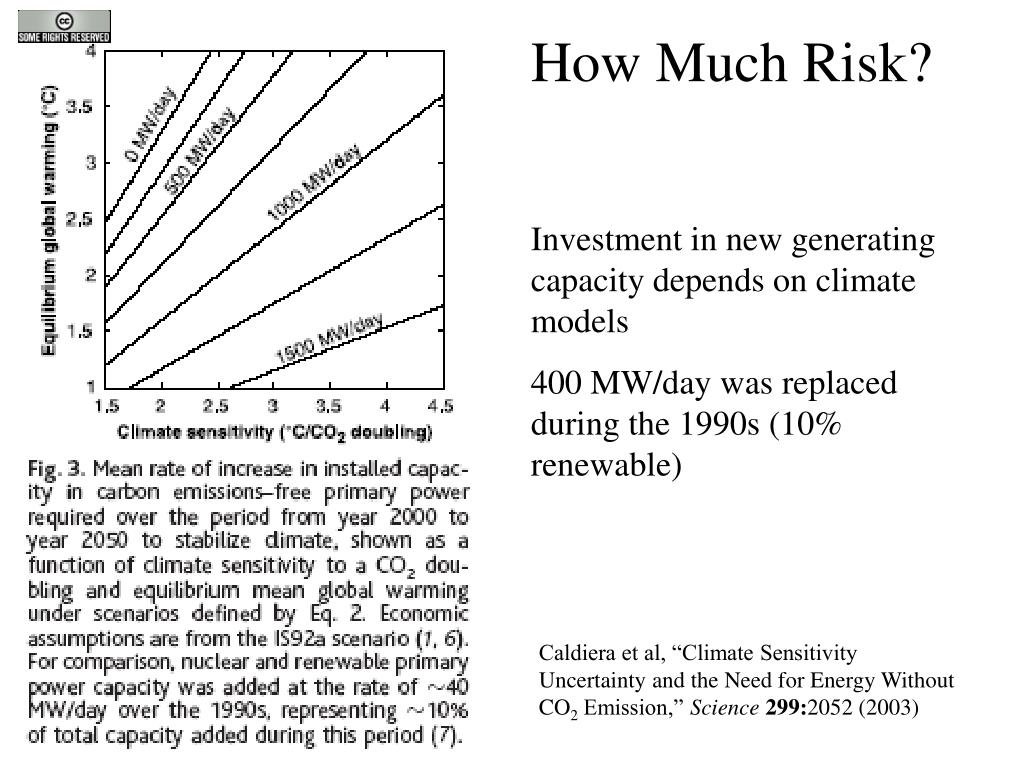

  49. How Much Risk? Investment in new generating capacity depends on climate models 400 MW/day was replaced during the 1990s (10% renewable) Caldiera et al, “Climate Sensitivity Uncertainty and the Need for Energy Without CO2 Emission,” Science299:2052 (2003)

  50. How Much Risk? Making Large Bets The Precautionary Principle Option Value Should We Wait for Better Data?
