  1. By, Head of Department Dr Khawaja Rashid Hassan Rawal college of Dentistry Islamabad DENTURE LINING MATERIALS

  2. DENTURE LINING MATERIALS • In cases where fitting surfaces of acrylic dentures needs replacement to improve the fit of the denture. • Classified into 3 main groups • Hard reline materials. • Tissue conditioners. • Soft lining materials.

  3. 1. HARD RELINE MATERIALS • Chair side relining technique is used. • Divided into 2 types. • Both types are categorized as auto polymerizable resins. • Both types polymerize easily at mouth or room temperature.

  4. 1. HARD RELINE MATERIALS Composition

  5. 1. HARD RELINE MATERIALS Composition

  6. 1. HARD RELINE MATERIALS MANIPULATION: • Grinding away some of the hard surface of acrylic base. • Powder and liquid are mixed. • Applied over the fitting surface of the acrylic base. • Seated into the patient’s mouth. • Closed mouth technique is used. • Not allowed to remain in the patient ‘s mouth throughout setting.

  7. 1. HARD RELINE MATERIALS PROPERTIES: • Direct contact with the oral tissues is a disadvantage. • Methyl methacrylate in the monomer may cause allergic reaction. • Low values of glass transition temperature (Tg) in both type 1 and type 2 materials. • May become porous due to air entrapment during mixing. • Operator has little control over the thickness of the material.

  8. 2. TISSUE CONDITIONERS • Soft denture liners. • Applied to the fitting surface of the denture. • Provides cushion to the fitting surface. • Plastic flow continues for 24-36 hours after mixing. • Several applications in denture works.

  9. 2. TISSUE CONDITIONERS • Often applied to the dentures of the patients undergone surgery. • In case of immediate dentures, • Addition of the tooth into the denture base that needs to be extracted. • Can be used as functional impression material.


  11. 2. TISSUE CONDITIONERS COMPOSITION • Amount of solvent and plasticizer is very crucial. • 7.5% - 40% of liquid contains alcohol. • Powder may be pigmented or unpigmented.

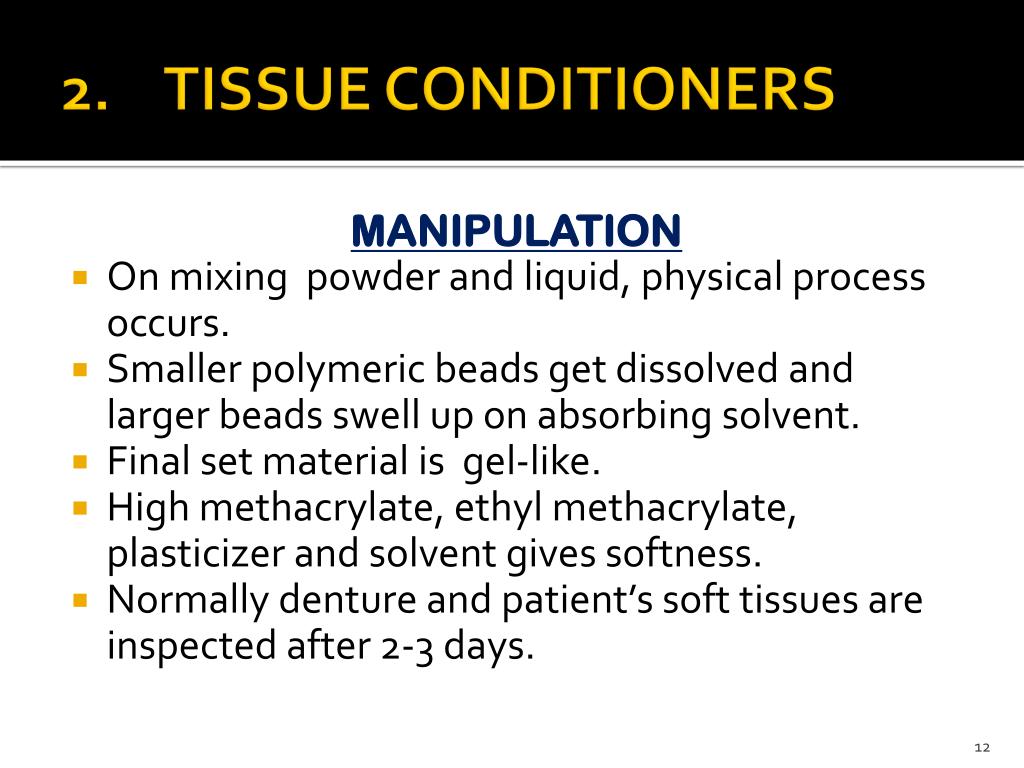

  12. 2. TISSUE CONDITIONERS MANIPULATION • On mixing powder and liquid, physical process occurs. • Smaller polymeric beads get dissolved and larger beads swell up on absorbing solvent. • Final set material is gel-like. • High methacrylate, ethyl methacrylate, plasticizer and solvent gives softness. • Normally denture and patient’s soft tissues are inspected after 2-3 days.

  13. 2. TISSUE CONDITIONERS PROPERTIES: • Initially very soft and Viscoelastic. • Undergo permanent deformation under even small load. • Material do not remain permanently soft. • Time taken for the material to become hard and loose the cushioning effect varies from days to a couple of weeks. • Conditioner should be replaced after 2- 3 days till the tissue has healed properly.

  14. 3. SOFT LINING MATERIALS • Can be sub divided into a) Temporary soft lining materials. b) Permanent soft lining materials.

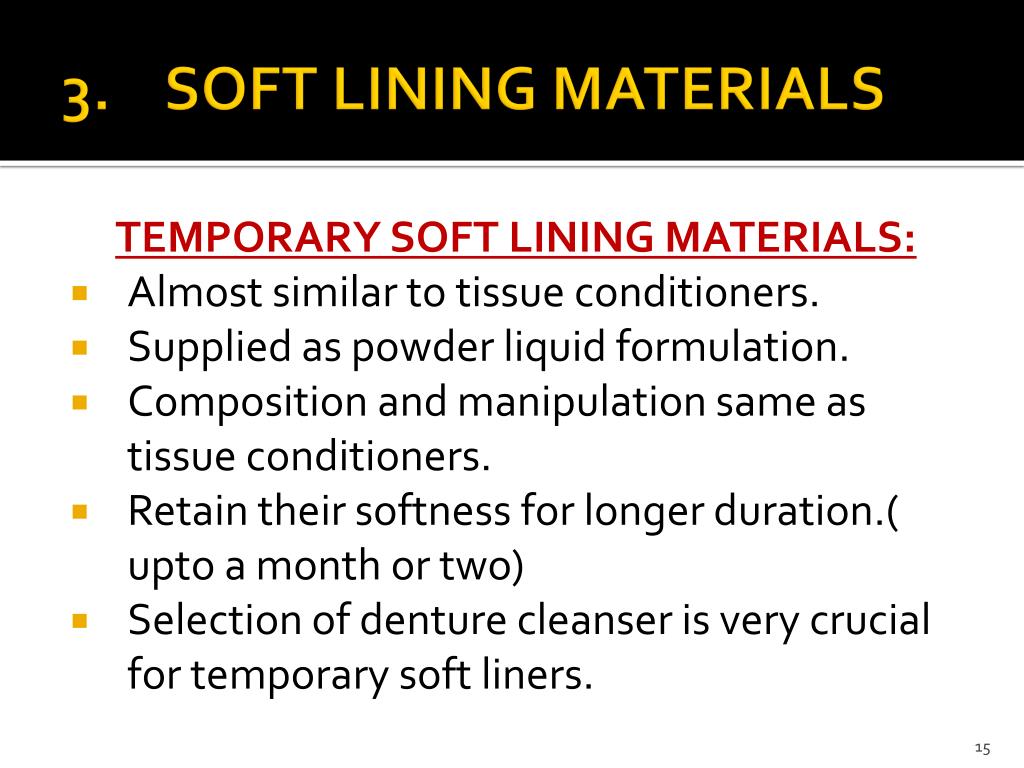

  15. 3. SOFT LINING MATERIALS TEMPORARY SOFT LINING MATERIALS: • Almost similar to tissue conditioners. • Supplied as powder liquid formulation. • Composition and manipulation same as tissue conditioners. • Retain their softness for longer duration.( upto a month or two) • Selection of denture cleanser is very crucial for temporary soft liners.

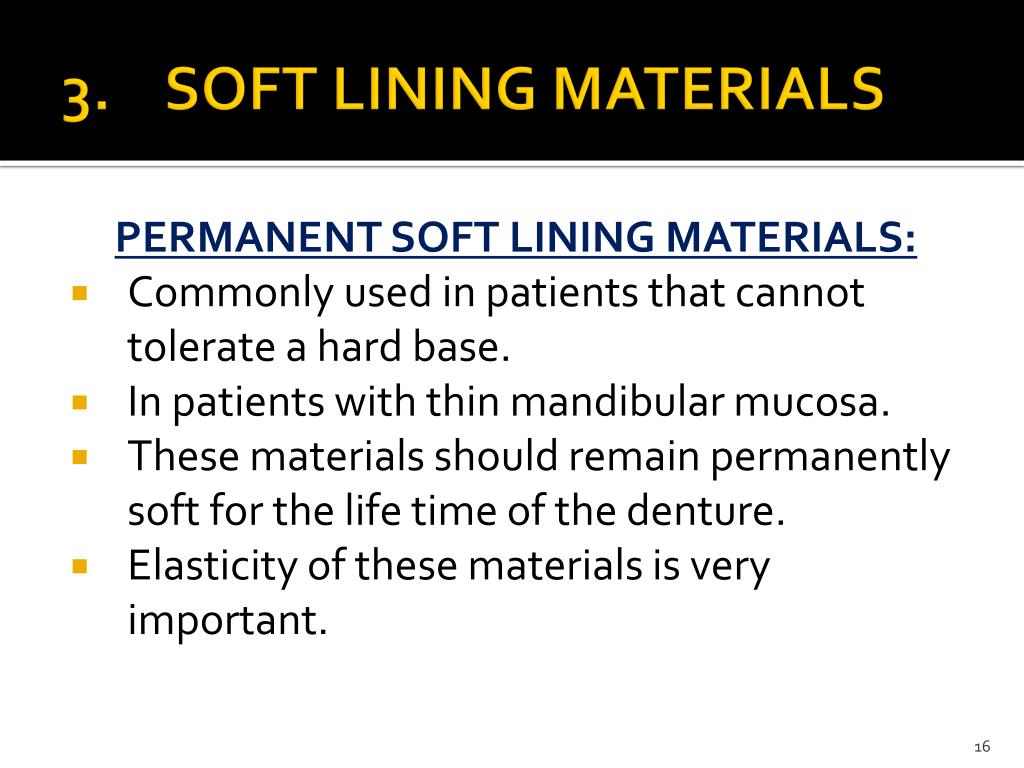

  16. 3. SOFT LINING MATERIALS PERMANENT SOFT LINING MATERIALS: • Commonly used in patients that cannot tolerate a hard base. • In patients with thin mandibular mucosa. • These materials should remain permanently soft for the life time of the denture. • Elasticity of these materials is very important.

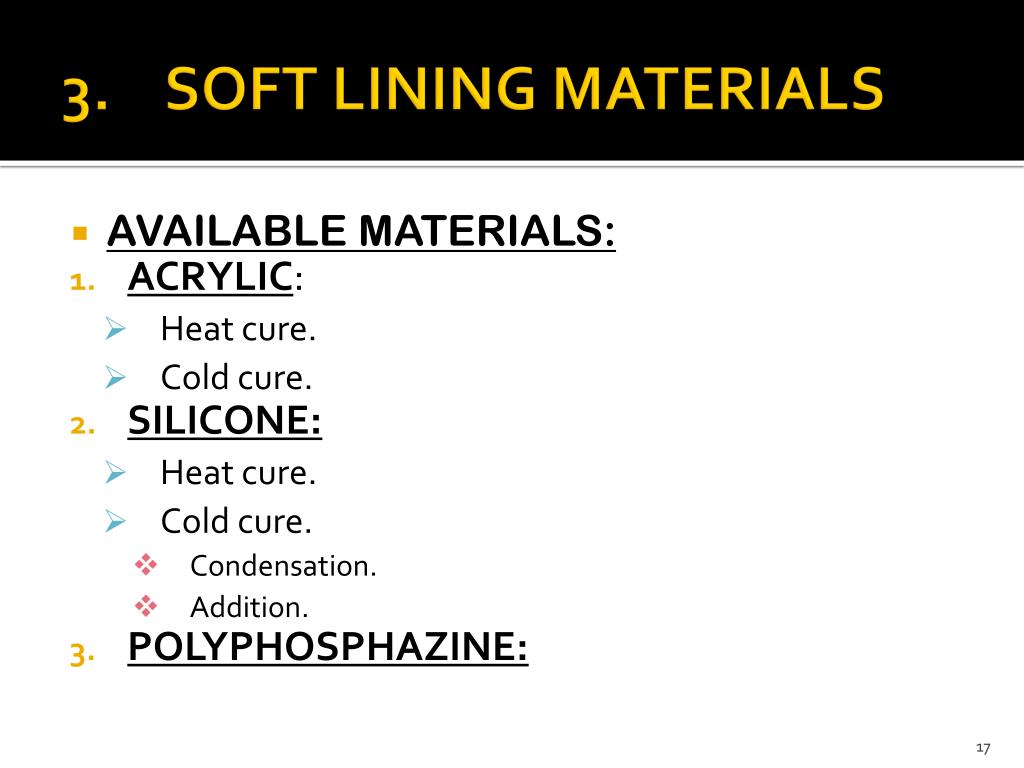

  17. 3. SOFT LINING MATERIALS • AVAILABLE MATERIALS: • ACRYLIC: • Heat cure. • Cold cure. • SILICONE: • Heat cure. • Cold cure. • Condensation. • Addition. • POLYPHOSPHAZINE:

  18. 3. SOFT LINING MATERIALS • Heat cure acrylic is in powder liquid formulation. • Powder consist of poly ethyl or poly butyl methacrylate. • Liquid consists of butyl methacrylate and plasticizer. • Dough is formed which is then heat treated.

  19. 3. SOFT LINING MATERIALS • Heat cure silicone is used in the same way as heat cue acrylic. • Presented in a single paste formulation. • Paste consist of poly dimethylsiloxane polymer. • The 2 cold cure silicone elastomers are similar to the silicone elastomers used as impression materials. • Cold curing silicones are cured at room temperature.

  20. 3. SOFT LINING MATERIALS POLYPHOSPHAZINE: • Supplied in sheet form. • Polymerize by heat cure. • Curing cycle can be, • 74°C for 8 hours. OR • 74 °C for 2½ hours followed by 100 °C for 30 minutes.

  21. 3. SOFT LINING MATERIALS PROPERTIES: • All types are soft and give an adequate cushioning effect. • Cushioning effect depends upon the thickness of material. • 2-3 mm is sufficient for adequate cushioning effect. • Harden through loss of alcohol and leaching of plasticizer. • Adequate bond with the denture base. • Denture cleansers effect the soft liners.
