  1. ECG for Interns UCI Internal Medicine Mini-Lecture

  2. Learning Objectives • Establish Consistent Approach to Interpreting ECGs • Review Essential Cases for New Interns • Provide Additional Resources for Future Learning

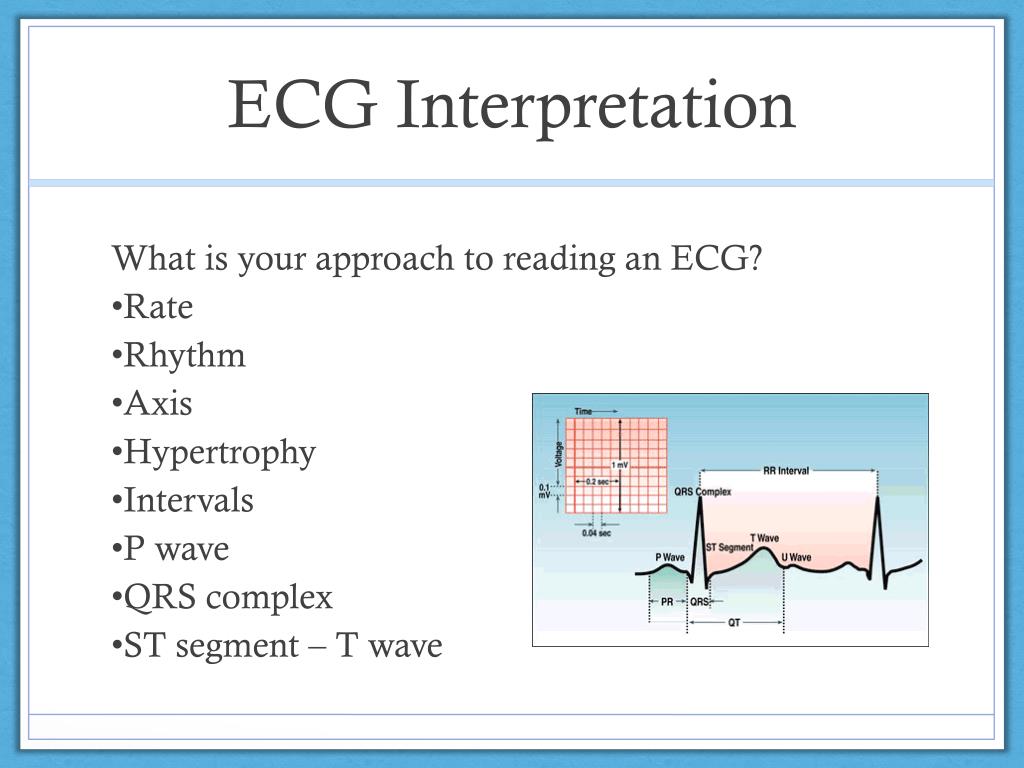

  3. ECG Interpretation What is your approach to reading an ECG? • Rate • Rhythm • Axis • Hypertrophy • Intervals • P wave • QRS complex • ST segment – T wave

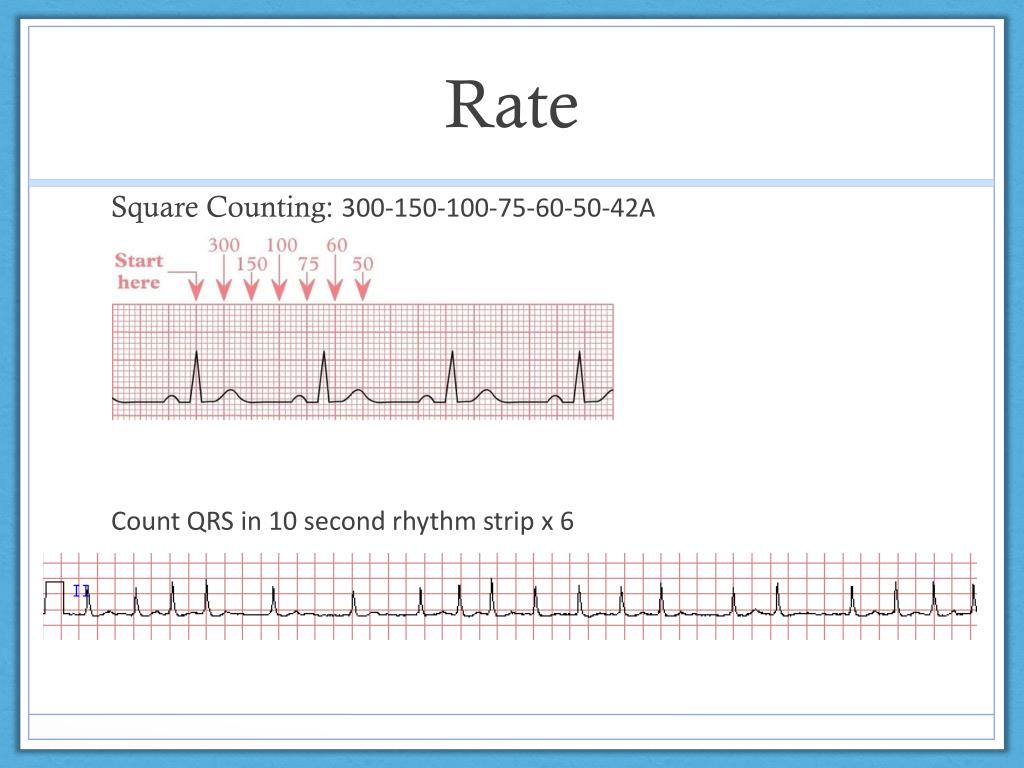

  4. Rate Square Counting: 300-150-100-75-60-50-42A Count QRS in 10 second rhythm strip x 6

  5. Rhythm • Are P waves present?  • Is there a P wave before every QRS complex and a QRS complex after every P wave? • Are the P waves and QRS complexes regular? • Is the PR interval constant?

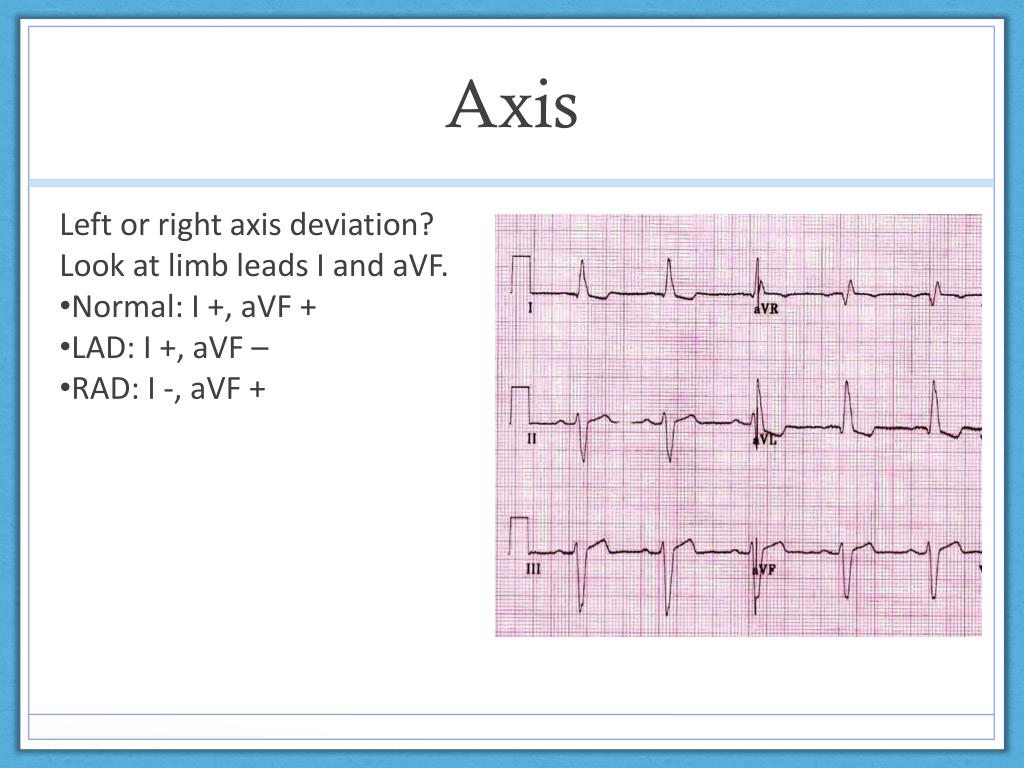

  6. Axis Left or right axis deviation? Look at limb leads I and aVF. • Normal: I +, aVF + • LAD: I +, aVF – • RAD: I -, aVF +

  7. Hypertrophy LVH: S in V1 or V2 + R in V5 or V6 ≥ 35 mm. RVH: V1 R/S ratio >1 or V6 S/R ratio >1.

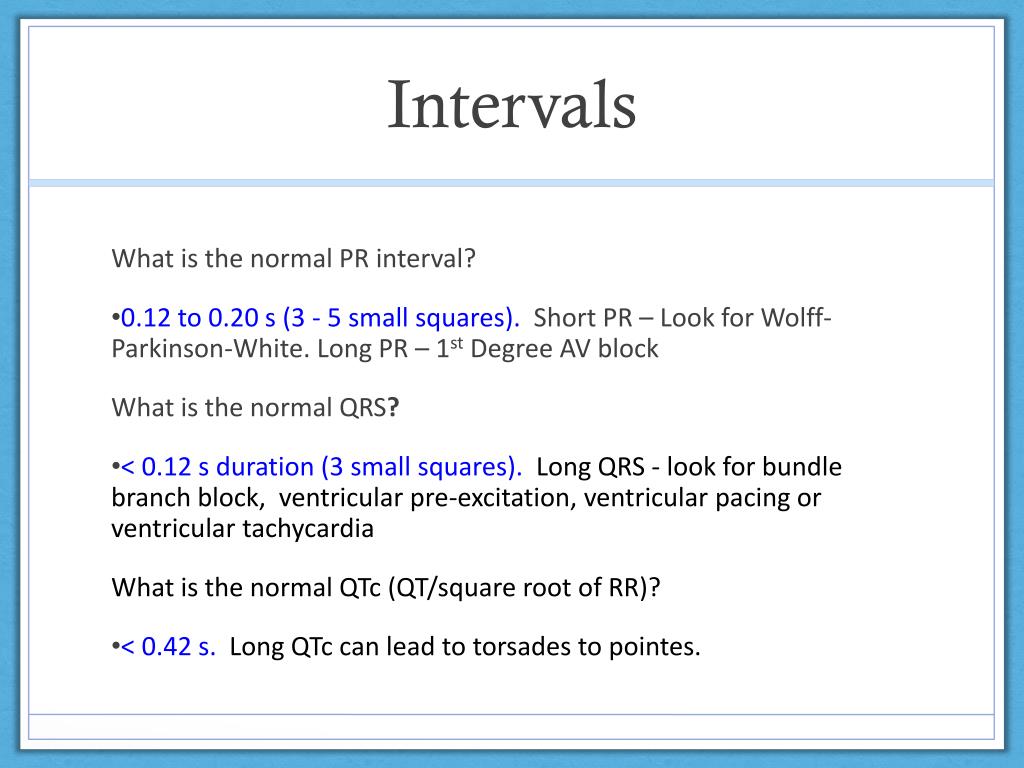

  8. Intervals What is the normal PR interval? • 0.12 to 0.20 s (3 - 5 small squares). Short PR – Look for Wolff-Parkinson-White. Long PR – 1st Degree AV block What is the normal QRS? • < 0.12 s duration (3 small squares). Long QRS - look for bundle branch block, ventricular pre-excitation, ventricular pacing or ventricular tachycardia What is the normal QTc (QT/square root of RR)? • < 0.42 s. Long QTc can lead to torsades to pointes.

  9. P Waves Evaluate the shape, height and width of P waves. • Multiple morphologies  Wandering pacemaker or Multifocal atrial tachycardia • Notched (M-shaped) P-wave in I and II, > 0.12 s  P-mitrale seen in severe left atrial enlargement

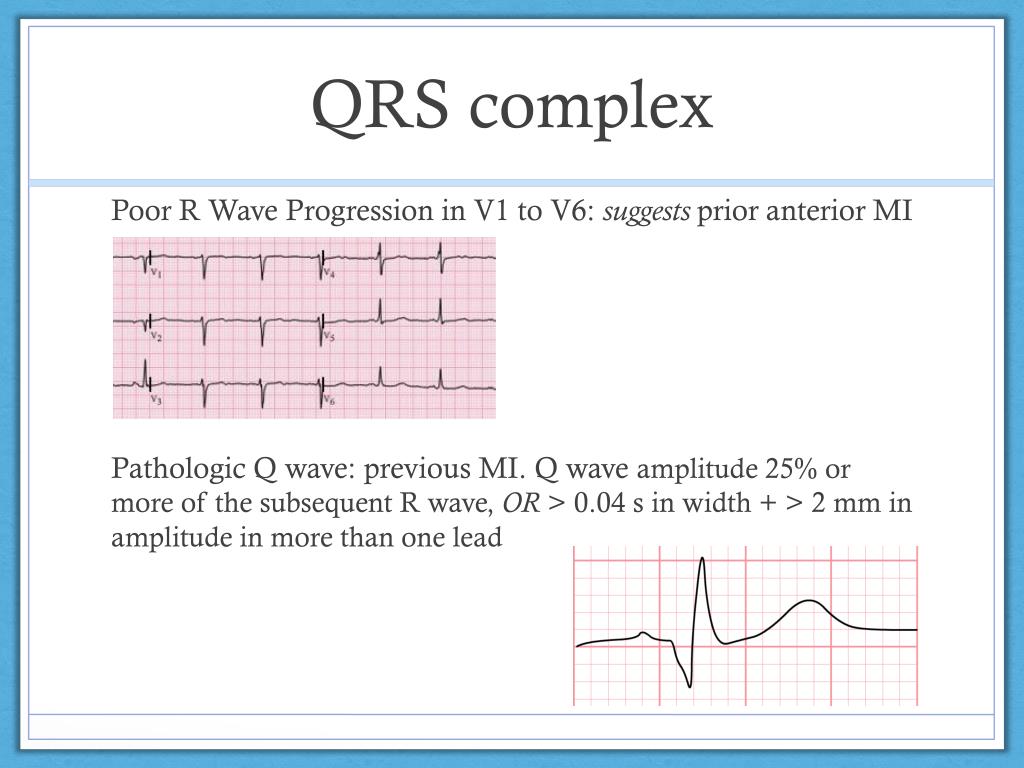

  10. QRS complex Poor R Wave Progression in V1 to V6: suggests prior anterior MI Pathologic Q wave: previous MI. Q wave amplitude 25% or more of the subsequent R wave, OR > 0.04 s in width + > 2 mm in amplitude in more than one lead

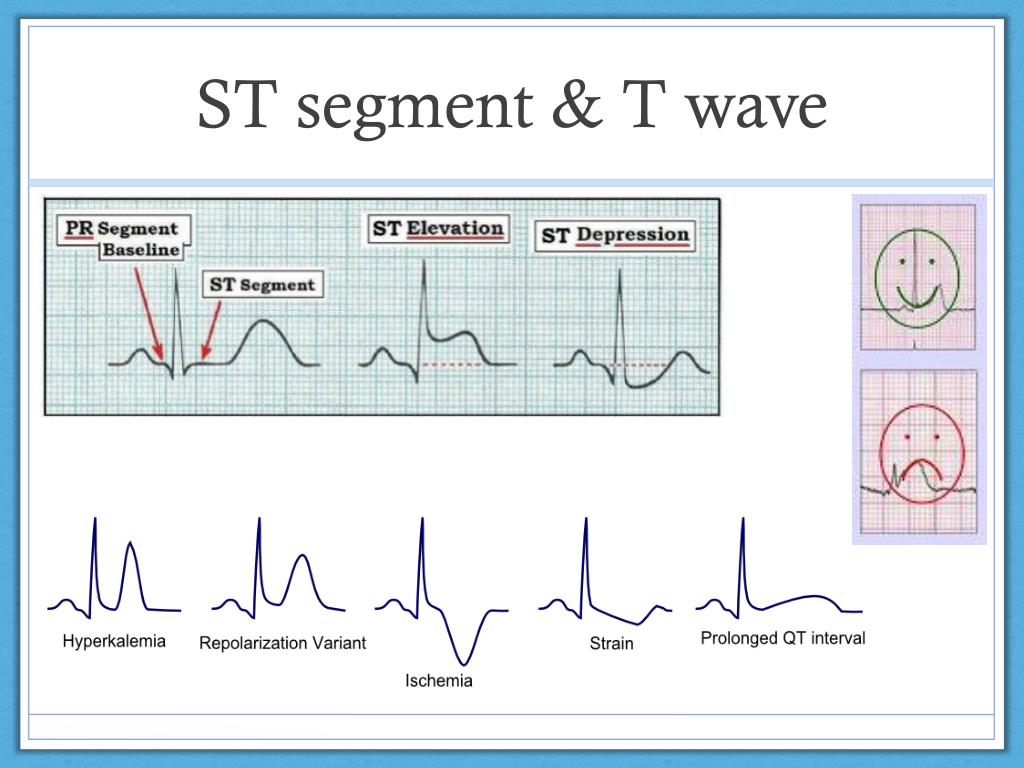

  11. ST segment & T wave

  12. Case #1 70 year old male with history of diabetes mellitus and hypertension occasionally feels lightheaded. He recently fainted while standing.

  13. Case #1 ECG

  14. Case #2 58 year old female with no significant past medical history presents with fatigue, lightheadedness and shortness of breath.

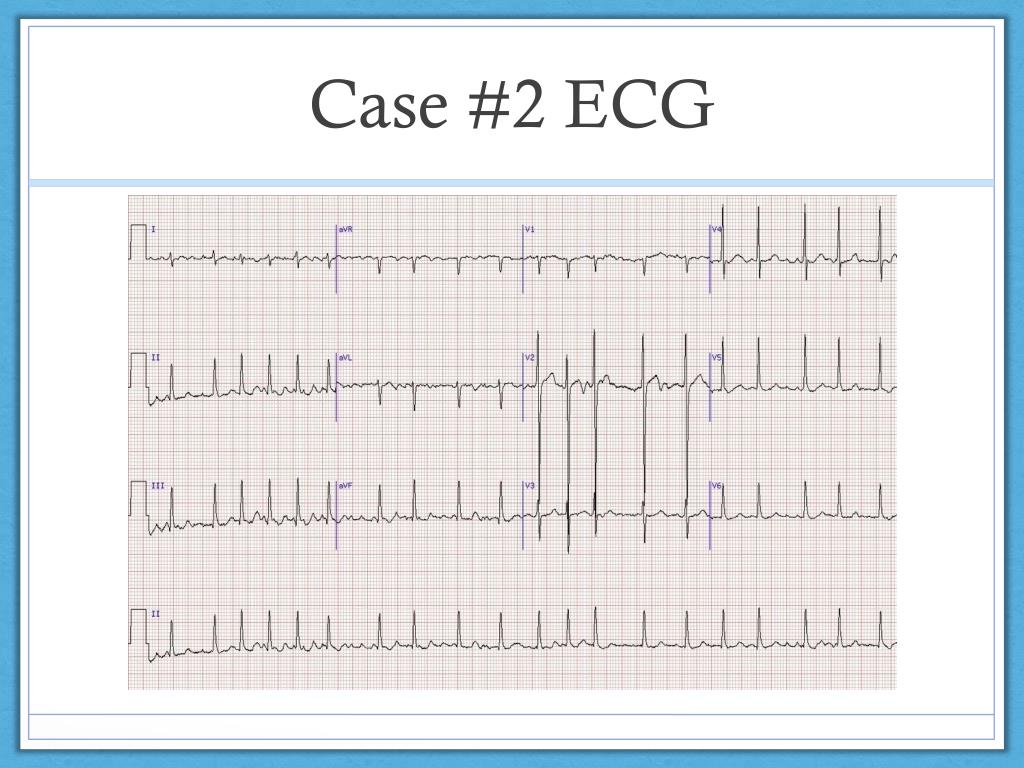

  15. Case #2 ECG

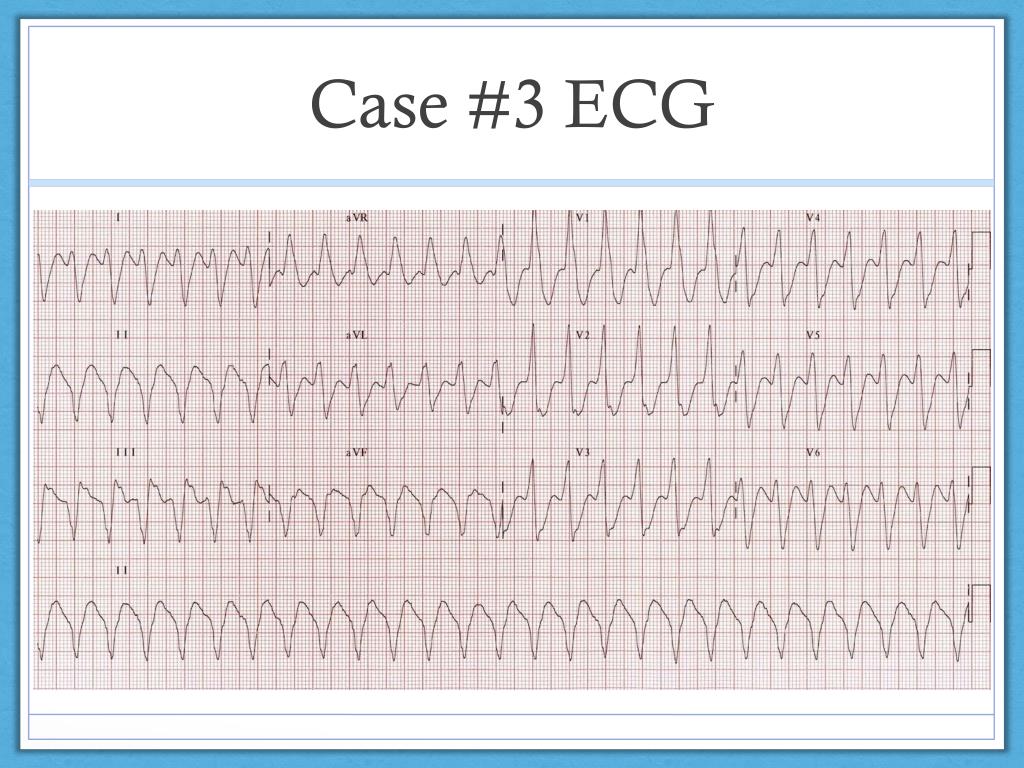

  16. Case #3 78 year old female with history of HTN, DM, HL, CAD admitted for syncope complains of palpitations and lightheadedness.

  17. Case #3 ECG

  18. Case #4 67 year old male with history of diabetes, hypertension, COPD presents with chest pain.

  19. Case #4 ECG

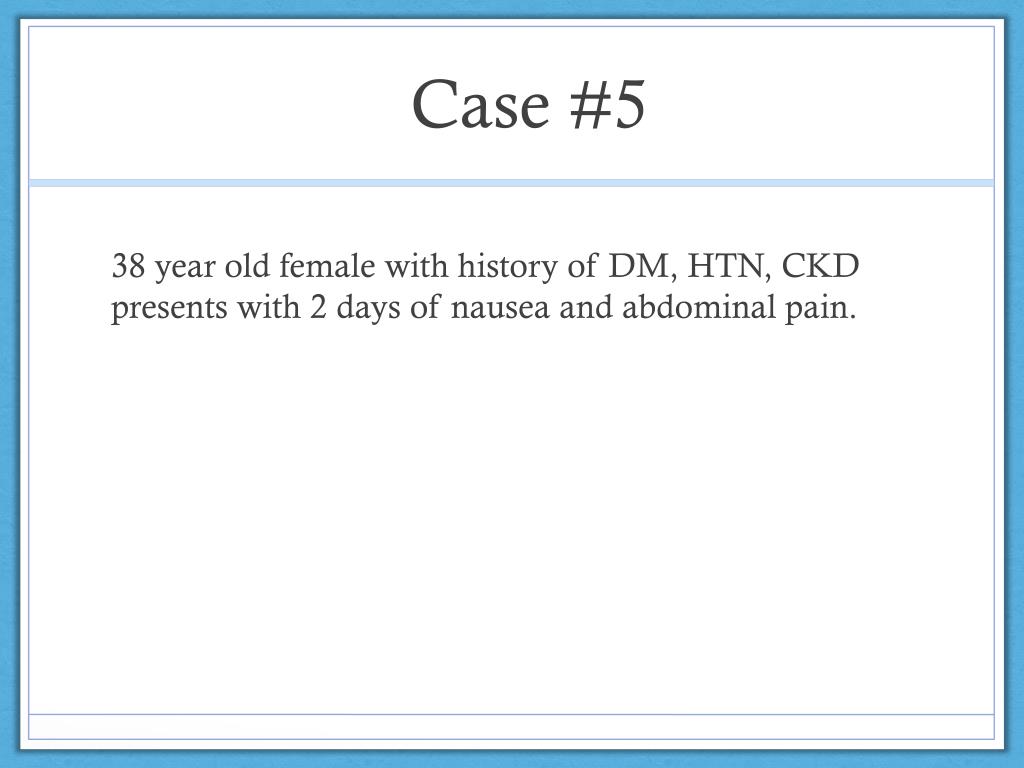

  20. Case #5 38 year old female with history of DM, HTN, CKD presents with 2 days of nausea and abdominal pain.

  21. Case #5 ECG

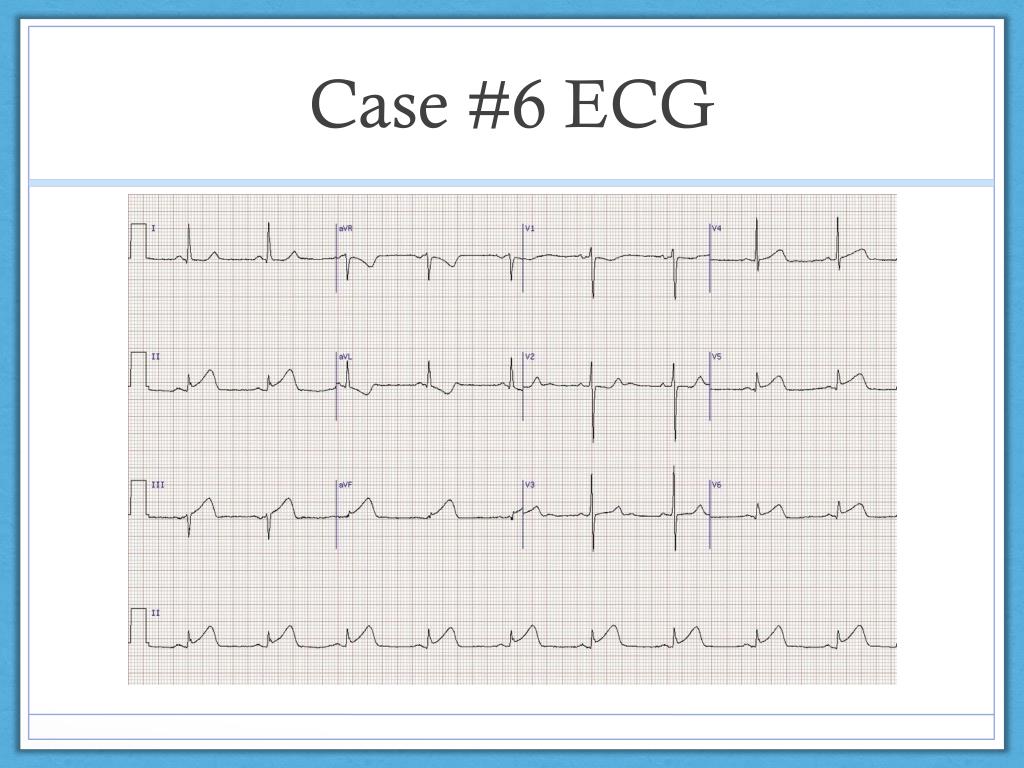

  22. Case #6 60 year-old man with history of HTN, HL, CAD presents with nausea, shortness of breath and chest pain.

  23. Case #6 ECG

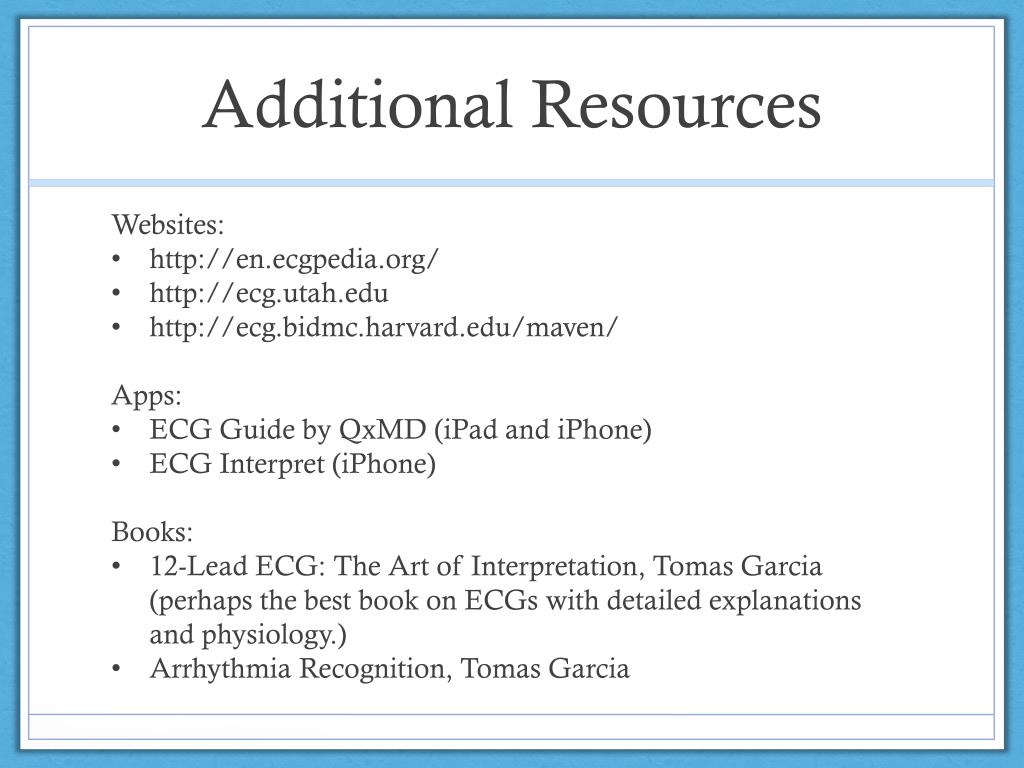

  24. Additional Resources Websites: • http://en.ecgpedia.org/ • http://ecg.utah.edu • http://ecg.bidmc.harvard.edu/maven/ Apps: • ECG Guide by QxMD (iPad and iPhone) • ECG Interpret (iPhone) Books: • 12-Lead ECG: The Art of Interpretation, Tomas Garcia (perhaps the best book on ECGs with detailed explanations and physiology.) • Arrhythmia Recognition, Tomas Garcia

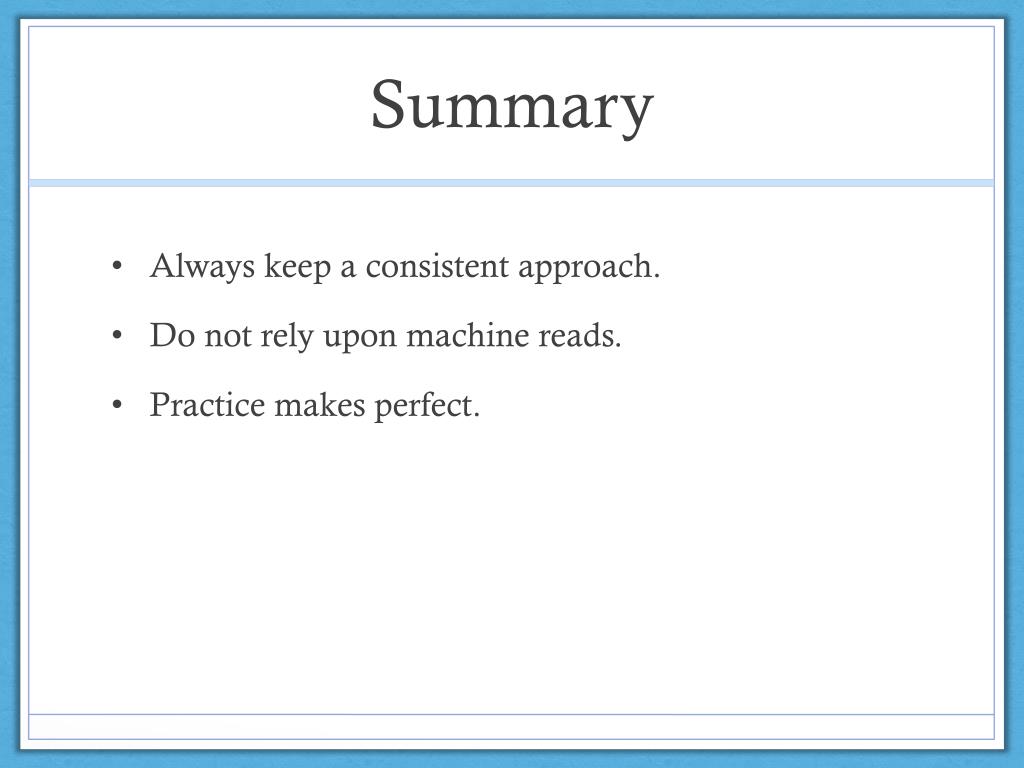

  25. Summary • Always keep a consistent approach. • Do not rely upon machine reads. • Practice makes perfect.
