  1. User Interface Toolkits and End User Programming for UIs Vishal Dwivedi Institute for Software ResearchCarnegie Mellon University vdwivedi@cs.cmu.edu Advanced User Interface Software

  2. “End-user programming enables end users to create their own programs. Today, millions of end users create numerous programs [Scaffidi et al, 2005] And they make a mess out of it  Christopher Scaffidi, Mary Shaw, Brad A. Myers: Estimating the Numbers of End Users and End User Programmers. VL/HCC 2005: 207-214

  3. Agenda • Motivation/Definitions • Examples (of EUP toolkits) • Alice, SUIT, Garnet, HANDS, SWiFT, … • Historical trends • Key techniques • VPL, PBD, Natural Programming, Application specific languages,… • Challenges

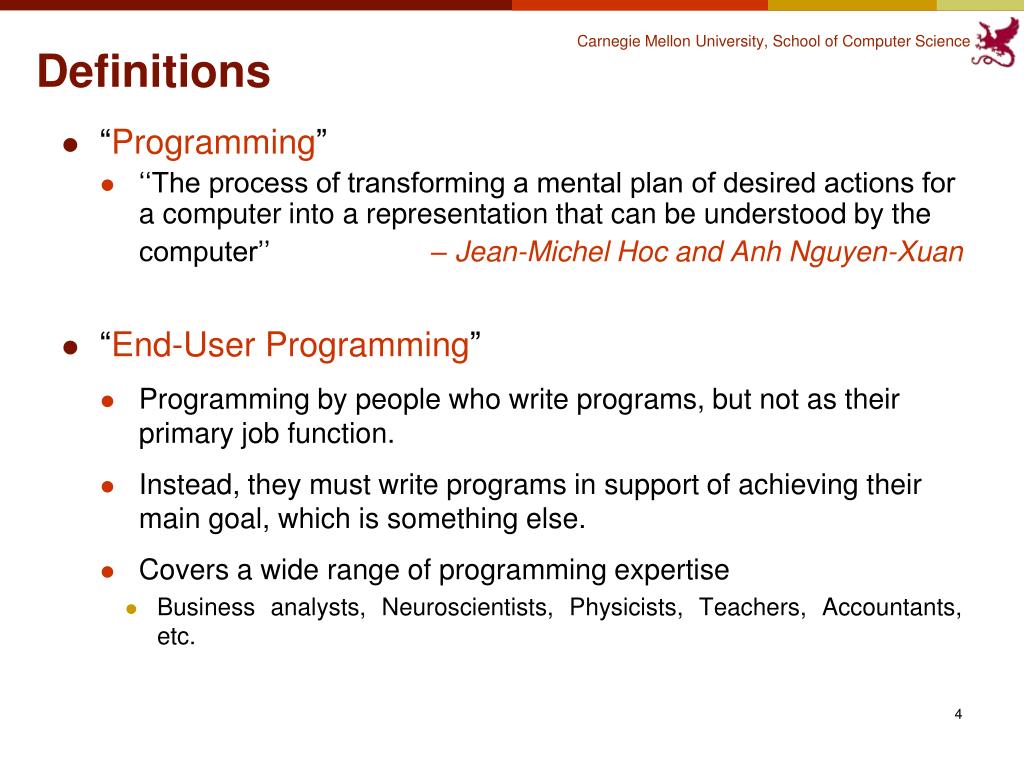

  4. Definitions • “Programming” • ‘‘The process of transforming a mental plan of desired actions for a computer into a representation that can be understood by the computer’’– Jean-Michel Hoc and Anh Nguyen-Xuan • “End-User Programming” • Programming by people who write programs, but not as their primary job function. • Instead, they must write programs in support of achieving their main goal, which is something else. • Covers a wide range of programming expertise • Business analysts, Neuroscientists, Physicists, Teachers, Accountants, etc.

  5. Definitions • “End User Programming toolkits” • An assembly of tools; set of basic building units that help end users do end user programming, mostly by manipulating or creating graphical user interfaces. • Examples: • Toolkits for: • Learning to write code • Creating web pages • Simulations • Email filtering • Other user-created functionality.

  6. Major Techniques • “Visual Programming” • “Programming in which more than one dimension* is used to convey semantics.” - Myers, 1990 • A programming language that lets users create programs by manipulating program elements graphically rather than by specifying them textually - Golin , 1990 • “Programming by Demonstration” • An end user development technique for teaching a computer or a robot new behaviors by demonstrating the task to transfer directly instead of programming it through machine commands. • Dan Halbert, 1984 • “NaturalProgramming” • Set of techniques to make making programming languages and environments easier to learn, more effective, and less error prone. - Myers, 1990- * Multi dimensional graphical objects, spatial relationships, time relationships (before/after)

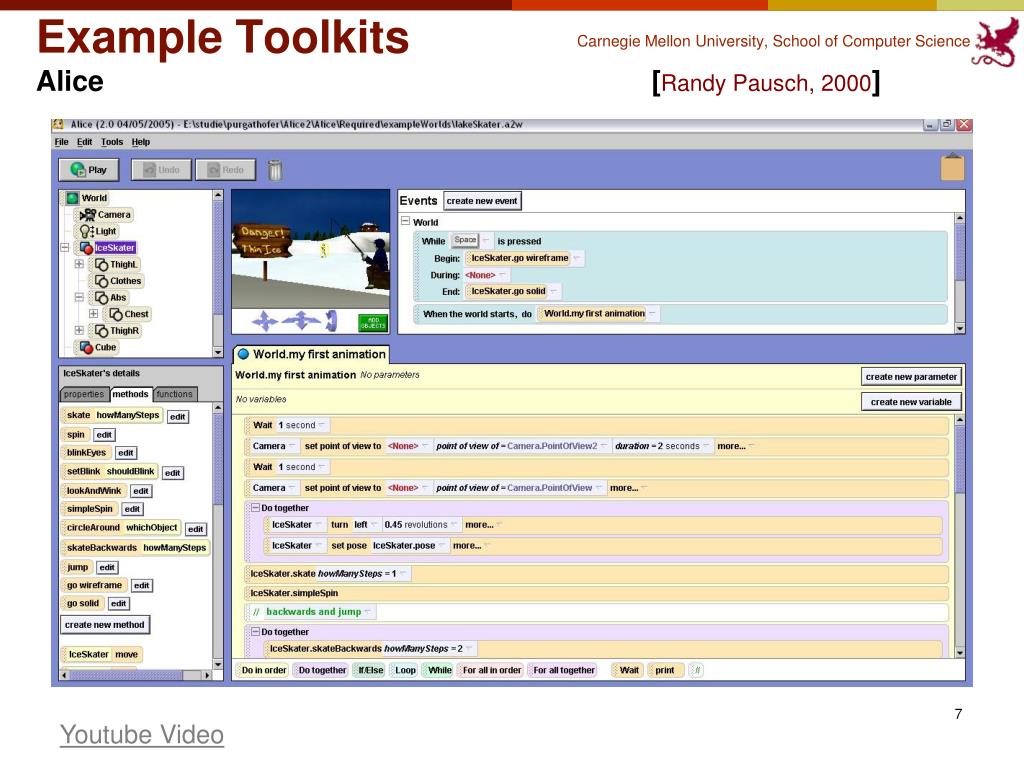

  7. Example ToolkitsAlice [Randy Pausch, 2000] Youtube Video

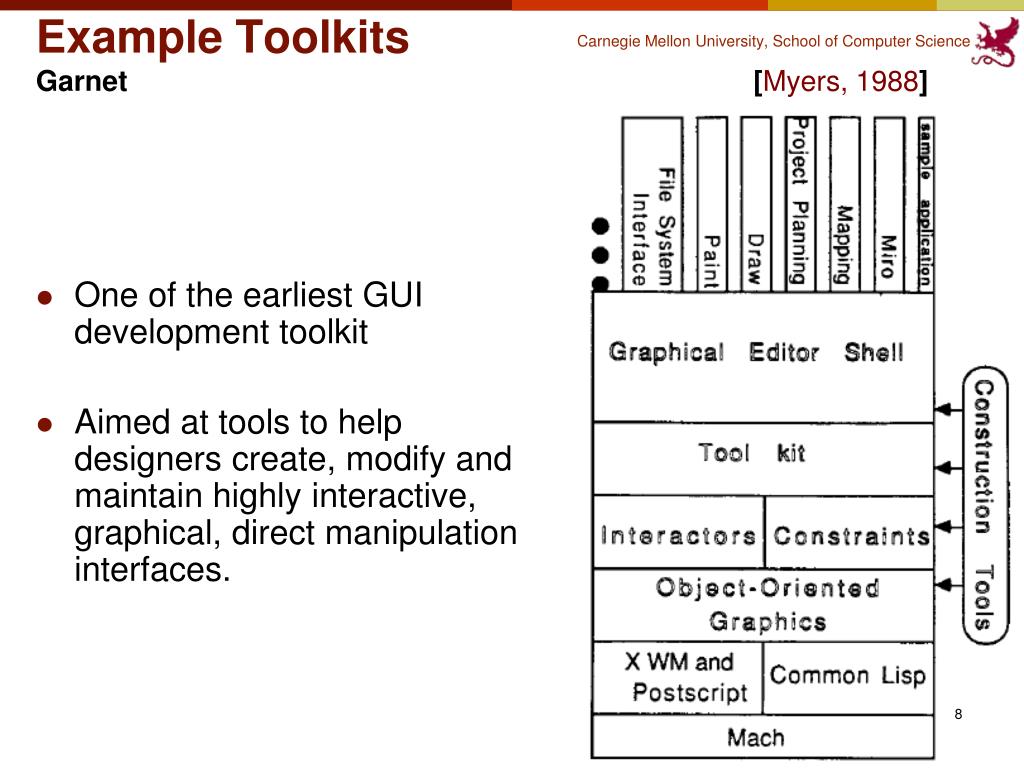

  8. Example ToolkitsGarnet [Myers, 1988] • One of the earliest GUI development toolkit • Aimed at tools to help designers create, modify and maintain highly interactive, graphical, direct manipulation interfaces.

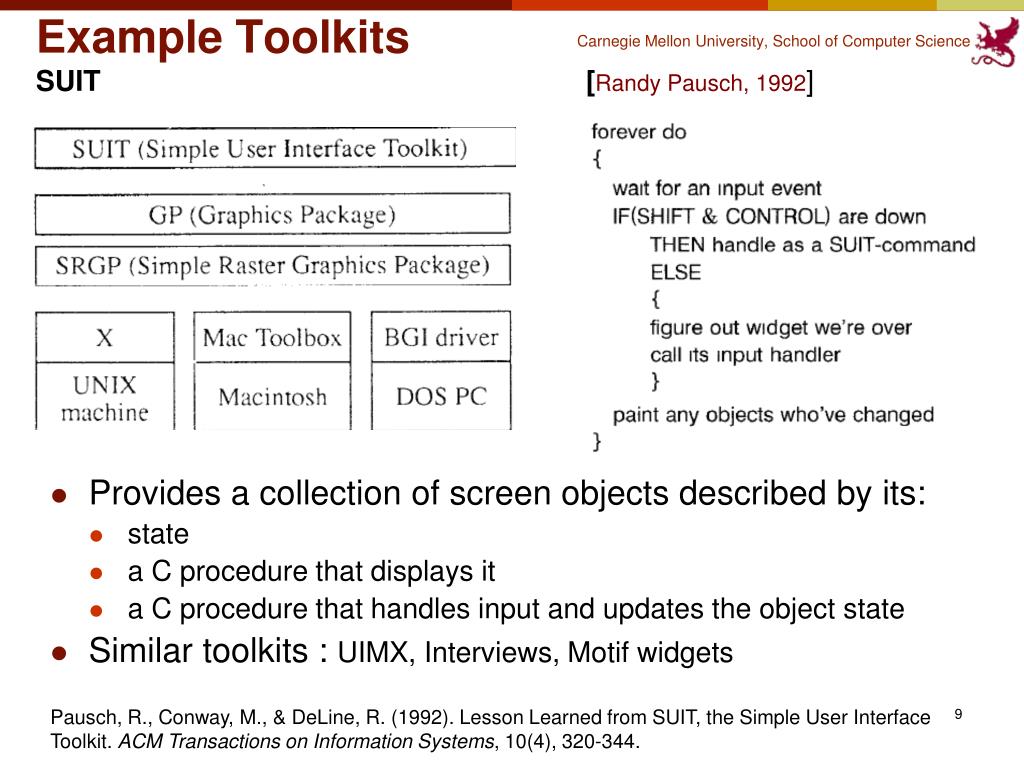

  9. Example ToolkitsSUIT [Randy Pausch, 1992] • Provides a collection of screen objects described by its: • state • a C procedure that displays it • a C procedure that handles input and updates the object state • Similar toolkits : UIMX, Interviews, Motif widgets Pausch, R., Conway, M., & DeLine, R. (1992). Lesson Learned from SUIT, the Simple User Interface Toolkit. ACM Transactions on Information Systems, 10(4), 320-344.

  10. Example ToolkitsHANDS [J.F. Pane, 2002] J.F. Pane, "A Programming System for Children that is Designed for Usability," Ph.D. Thesis, Carnegie Mellon

  11. Example ToolkitsOzone – a publish-subscribe based widget composition and creation toolkit • A popular framework that enables rapid creation, assembly and configuration of rich, lightweight widgets. • Promoted to create a common widget repository for the US military – similar to ‘Android Market’. Link

  12. Example ToolkitsRule based programming (Agent Sheet, MOSL, VISPATCH, SAM, VXT, …) • Programming Paradigm for Programming with Pictures, particularly visual Simulations and rules. • Rule based design to: • animate agents • play sounds and MIDI instruments • speak text • react to mouse and keyboard events • visualize values as colors and plots • query web pages, control web browsers Agent Sheet: http://www.agentsheets.com

  13. Example ToolkitsDataflow based (PROGRAPH, ObjectFlow, The Cube Language, SWiFT,…) • General-purpose Data-flow driven languages • Information flows through components • Data is transformed at certain points in the program Method case Operations

  14. /usr/local/fsl/bin/flirt -ref standard -in example_func -out example_func2standard -omat example_func2standard.mat -cost corratio -dof 12 -searchrx -90 90 -searchry -90 90 -searchrz -90 90 -interp trilinear Example ToolkitsSWiFT– a web-based toolkit web service composition (Neuroscience example) Align A large script file that contains program calls Spatial filtering Temporal filtering Program (a large number of binaries that perform one or more functions) Parameters (numbers range from 5 to 25)

  15. Historical trends • Action Graphics • FORMAL • ThingLab • Hi-Visual • LabView • PROGRAPH • PIGS • Pict • Rehearsal • SmallStar • Forms • Editing by Example • PICT • Lotus 1-2-3 • SIL-ICON • VisiCalc • HiGraphs • Miro • StateMaster • AMBIT/G/L • Grail • GAL • Graphical Program Editor • Query by Example • Pygmalion • I/O Pairs • Cube • Cantata • SchemePaint • CODE 2.0 • Iconicode • MViews • LOFI/HIPI • FOXQ • VMQL • GXL • Euler View • Yahoo Pipes • Popfly • AVS • Mondrian • ChemTrains • Vampire • VIPR • SPE 1980 1960 1990 2000 • Techniques/Goals • 3D Rendering • Visual Hierarchy • Procedures • Control Structures • Programmable Graphics • Animations • Video Imagery Exploitation • General purpose, declarative language • Audio, video and image processing • Graphical models from behavioral models • Learning and Cognitive abilities in vision processes • Handling Scalability, typing, and imperative design • Collaborative Software Development • Techniques/Goals • Child Learning • Xqueryby FORMS • Spreadsheet Analysis • Visual Model Query • Layouts • Specification and Interchange • Mashups • Web-based design • Programming for end-users (non-Professionals • Techniques • Graphs • Flowcharts • Flowchart derivatives • FORMS • Demonstrational • Techniques • Graphs • Flowcharts • Flowchart derivatives • FORMS • Demonstrational • Data Flows • Spreadsheets • Matrices • Jigsaw Puzzles • Petri nets • Flowchart derivatives

  16. Historical trends • Let users program in Visual Languages • (Almost) Make textual languages redundant • Make programming more accessible • Natural programming • Support domain -specific designs • Strive for improvements in programming language design • Support the cognition aspect of Programming 1960 1980 1990 2000

  17. Key TechniquesProgramming by demonstration [Dan Halbert, 1984] • “Programming by Demonstration” • An end user development technique for teaching a computer or a robot new behaviors by demonstrating the task to transfer directly instead of programming it through machine commands. • Many toolkits based on this technique: • COCOA, HyperCard, Grammax, Mail Filtering Halbert, Dan (November 1984). Programming by Example. U.C. Berkeley (PhD dissertation)

  18. Key TechniquesVisual Programming by demonstration • “Visual Programming” • “Programming in which more than one dimension* is used to convey semantics.” - Myers, 1990 • Many, many toolkits based on this technique. • Myers’ Taxonomy - Myers, 1990 • Burnett’s Taxonomy - Burnett, 1994 Brad Myers, Taxonomies of Visual Programming and Program Visualization, 1990 Margaret Burnett, A Classification System for Visual Programming Languages, 1994.

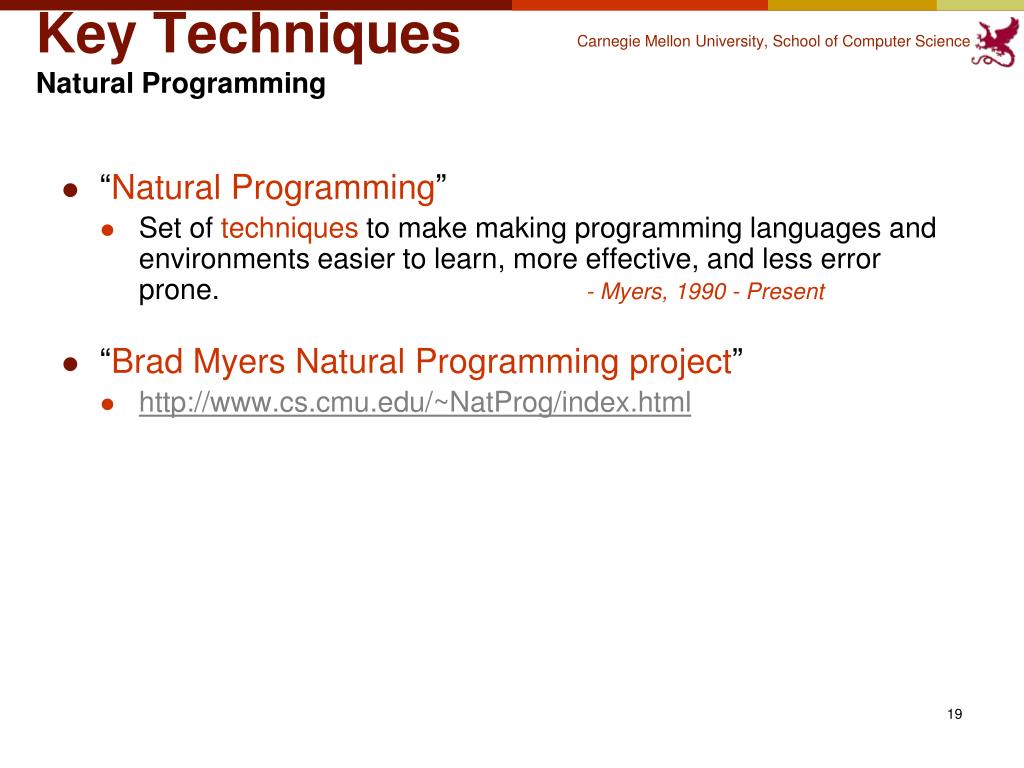

  19. Key TechniquesNatural Programming • “NaturalProgramming” • Set of techniques to make making programming languages and environments easier to learn, more effective, and less error prone. - Myers, 1990 - Present • “Brad Myers Natural Programming project” • http://www.cs.cmu.edu/~NatProg/index.html

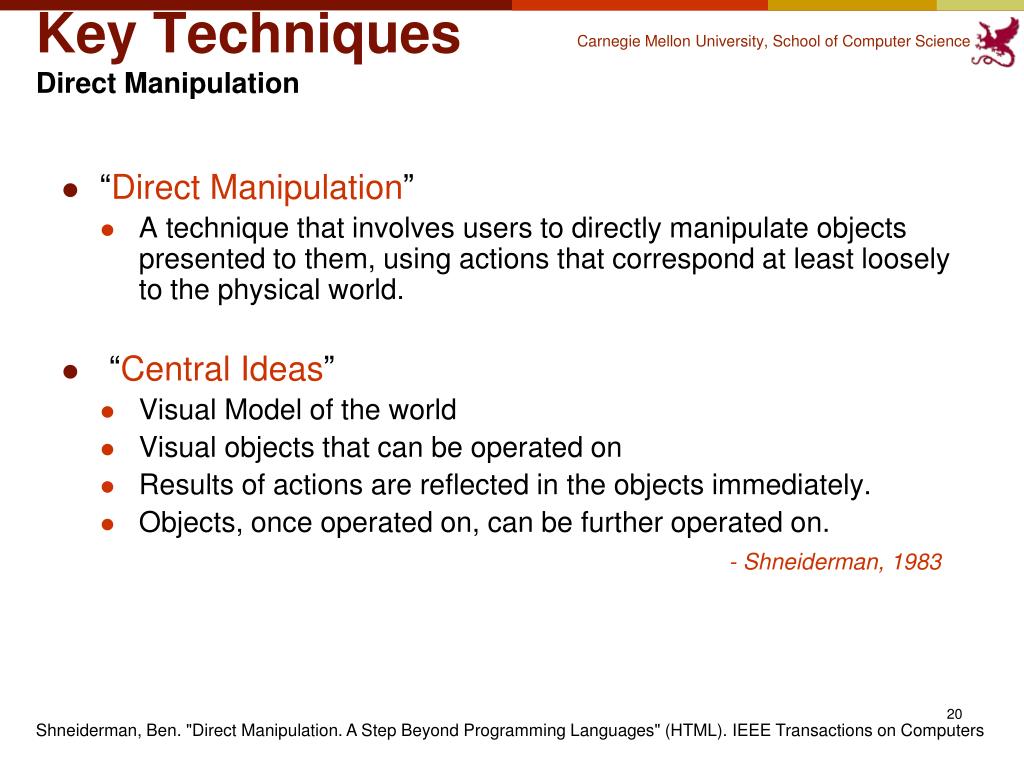

  20. Key TechniquesDirect Manipulation • “Direct Manipulation” • A technique that involves users to directly manipulate objects presented to them, using actions that correspond at least loosely to the physical world. • “Central Ideas” • Visual Model of the world • Visual objects that can be operated on • Results of actions are reflected in the objects immediately. • Objects, once operated on, can be further operated on. - Shneiderman, 1983 Shneiderman, Ben. "Direct Manipulation. A Step Beyond Programming Languages" (HTML). IEEE Transactions on Computers

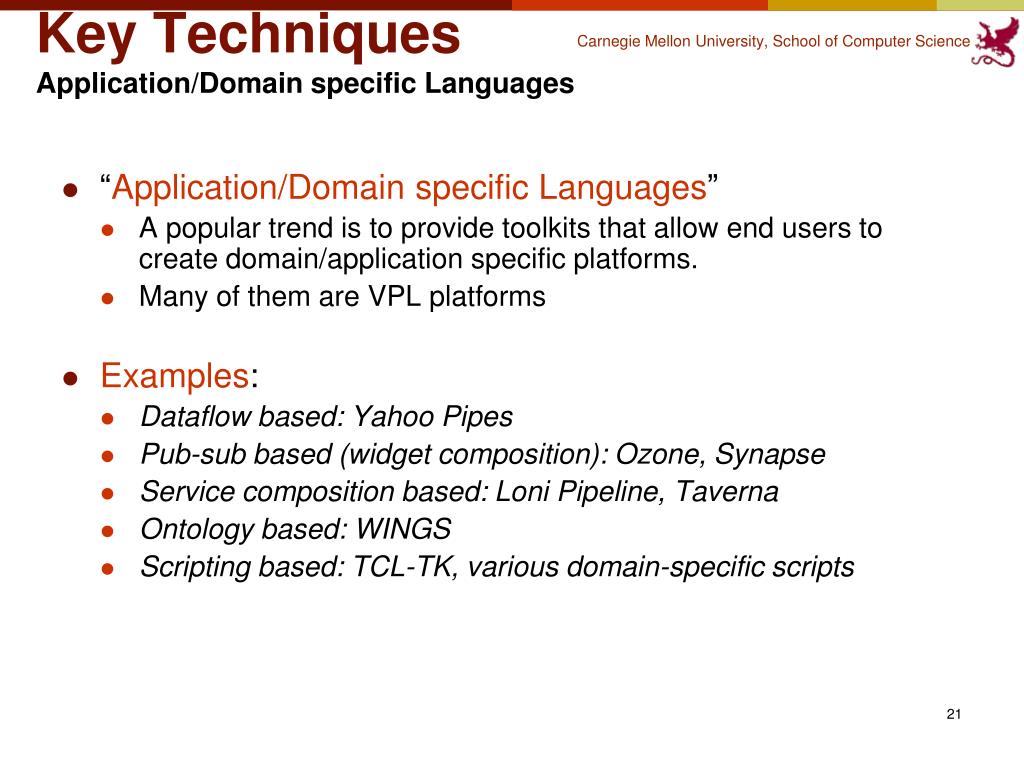

  21. Key TechniquesApplication/Domain specific Languages • “Application/Domain specific Languages” • A popular trend is to provide toolkits that allow end users to create domain/application specific platforms. • Many of them are VPL platforms • Examples: • Dataflow based: Yahoo Pipes • Pub-sub based (widget composition): Ozone, Synapse • Service composition based: Loni Pipeline, Taverna • Ontology based: WINGS • Scripting based: TCL-TK, various domain-specific scripts

  22. ChallengesUnderstanding the end user ecosystem Scientists, Physicists, Astronomists Accountants, Moms and Pops People with Professional end user software developer role [Segal, 07] People with a (technically) novice role Domains that involve writing a lot of code Domains that involve adaptations of software, and change in configurations Domains that involve using or adapting turn-key software • The goal of End user programming is to support their professional task. • But it is not always that they perform all these roles themselves.

  23. ChallengesUnderstanding the end user ecosystem… • “Multiple roles in Component based software development” • Framework builders, Component developers, Application assemblers, and end users • Additional role: end user developers – mainly involved with tailoring the applications. • Successful tools like Taverna, WINGS, LONI-pipeline are built on such ecosystems. Morch, A., Stevens, G., et al. (2004) Component-based technologies for end-user development. Communications of the ACM, 47(9), pp. 59-62

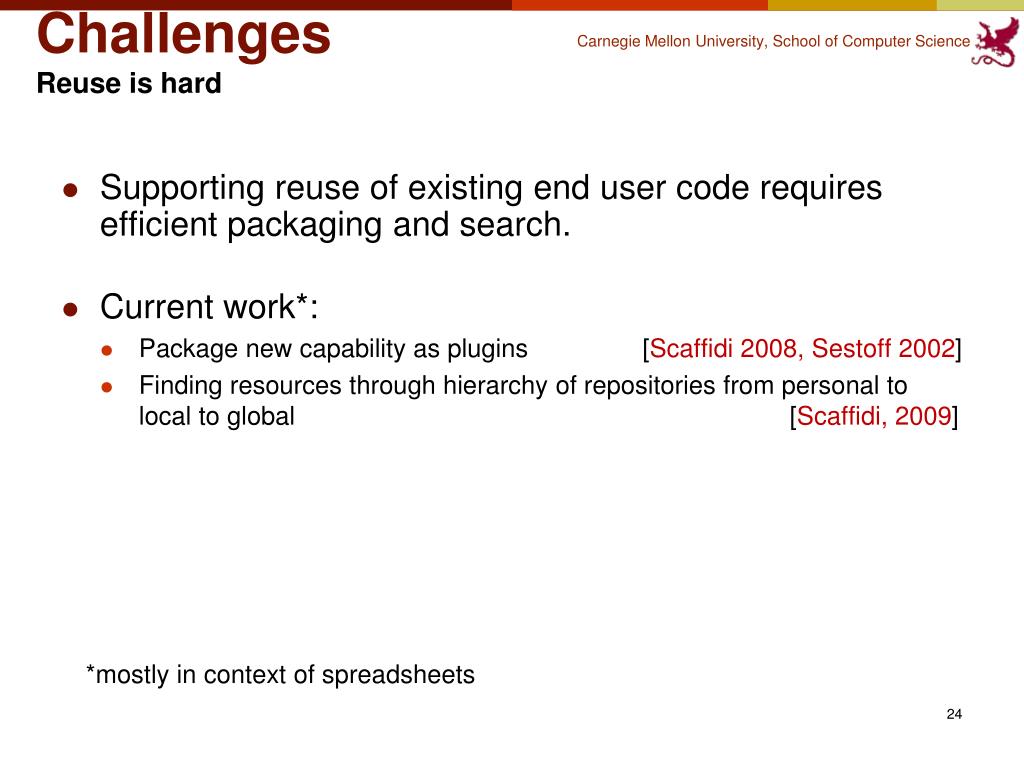

  24. ChallengesReuse is hard • Supporting reuse of existing end user code requires efficient packaging and search. • Current work*: • Package new capability as plugins [Scaffidi 2008, Sestoff 2002] • Finding resources through hierarchy of repositories from personal to local to global [Scaffidi, 2009] *mostly in context of spreadsheets

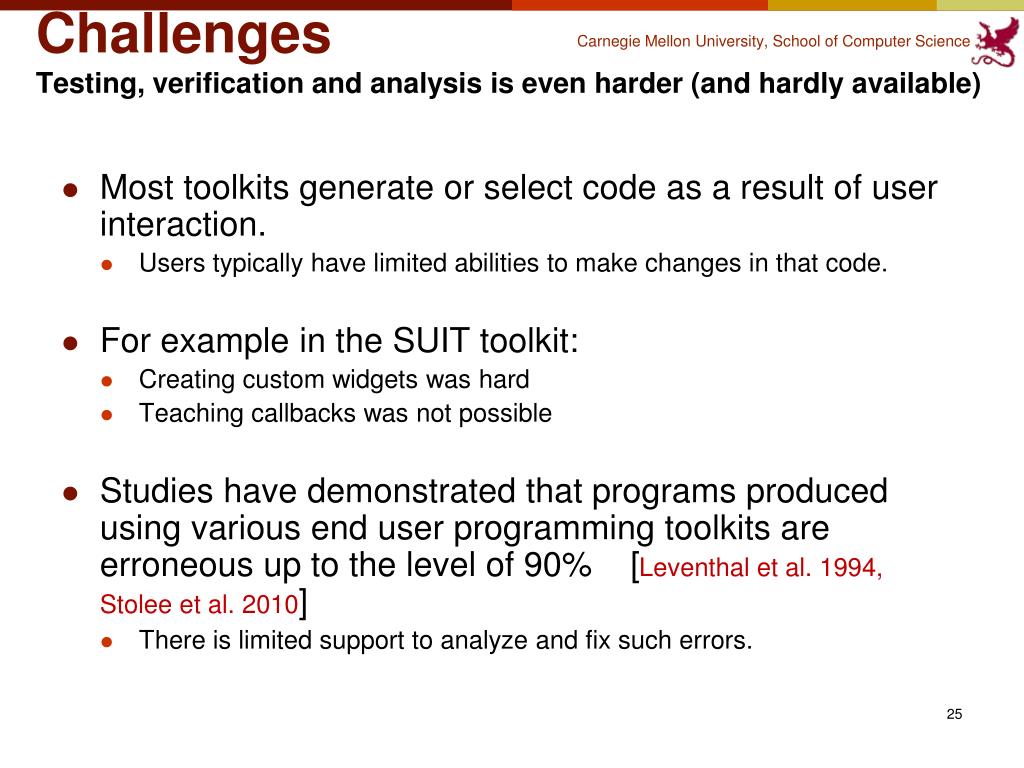

  25. ChallengesTesting, verification and analysis is even harder (and hardly available) • Most toolkits generate or select code as a result of user interaction. • Users typically have limited abilities to make changes in that code. • For example in the SUIT toolkit: • Creating custom widgets was hard • Teaching callbacks was not possible • Studies have demonstrated that programs produced using various end user programming toolkits are erroneous up to the level of 90% [Leventhal et al. 1994, Stolee et al. 2010] • There is limited support to analyze and fix such errors.

  26. ChallengesHigh Cost and low quality end user programming tools • Many end user programming tools are developed from scratch, leading to: • High cost of development, and • Low quality • Instead of many tools, what is needed is frameworks to support: • Component level reuse • Testing and analysis • Execution support, and finally • Packaging and sharing

  27. Next… We discuss an approach called End User Architecting that is aimed to address some of these challenges…

  28. References • Agent Sheet: http://www.agentsheets.com • Ben Shneiderman. "Direct Manipulation. A Step Beyond Programming Languages" (HTML). IEEE Transactions on Computers • Brad A. Myers, John F. Pane and Andy Ko, "Natural Programming Languages and Environments". Communications of the ACM. 47(9), pp. 47-52. • Brad A. Myers. "Taxonomies of Visual Programming and Program Visualization," Journal of Visual Languages and Computing. vol. 1, no. 1. March, 1990. pp. 97-123. • Christopher Scaffidi, Christopher Bogart, Margaret M. Burnett, Allen Cypher, Brad A. Myers, Mary Shaw: Predicting reuse of end-user web macro scripts. VL/HCC 2009: 93-100 • Conway, M., Audia, S., Burnette, T., Cosgrove, D., Christiansen, K., Deline, R., et al. (2000, Apr 1-6). Alice: Lessons Learned from Building a 3D System For Novices. Paper presented at the Proceedings of • CHI 2000, The Hague, The Netherlands. • David Garlan, Bradley Schmerl, Vishal Dwivedi, Aparup Banerjee, Laura Glendenning, Mai Nakayama, and Nina Patel. Swift: A tool for constructing workflows for dynamic network analysis. http://acme.able.cs.cmu.edu/pubs/show.php?id=333, 2011. • F.H. Post and W. Barth, Construction Techniques of Graphic, Direct-Manipulation User Interfaces, EUROGRAPHICS ’91 / Elsevier Science Publishers B.V. Eurographics Association, 1991.

  29. References… • Halbert, Dan (November 1984). Programming by Example. U.C. Berkeley (PhD dissertation) • J.F. Pane, "A Programming System for Children that is Designed for Usability," Ph.D. Thesis, Carnegie Mellon • Joseph Lawrance, Steven Clarke, Margaret M. Burnett, Gregg Rothermel: How Well Do Professional Developers Test with Code Coverage Visualizations? An Empirical Study. VL/HCC 2005: 53-60 • K. T. Stolee and S. Elbaum, "Refactoring Pipe-like Mashups for End User Programmers," International Conference on Software Engineering (ICSE), Honolulu, Hawaii, May 2011. to appear. • Margaret M. Burnett, “Visual Programming” In the Encyclopedia of Electrical and Electronics Engineering (John G. Webster, ed.), 1999 • Morch, A., Stevens, G., et al. (2004) Component-based technologies for end-user development. Communications of the ACM, 47(9), pp. 59-62. • Pausch, R., Conway, M., & DeLine, R. (1992). Lesson Learned from SUIT, the Simple User Interface Toolkit. ACM Transactions on Information Systems, 10(4), 320-344. ACM DL Ref • Scaffidi C., Myers B.A., AND Shaw M. 2008. Topes: Reusable abstractions for validating data. International
