  1. Decentralized Search and Epidemics in Small World Network Siddhartha Gunda SorabhHamirwasia

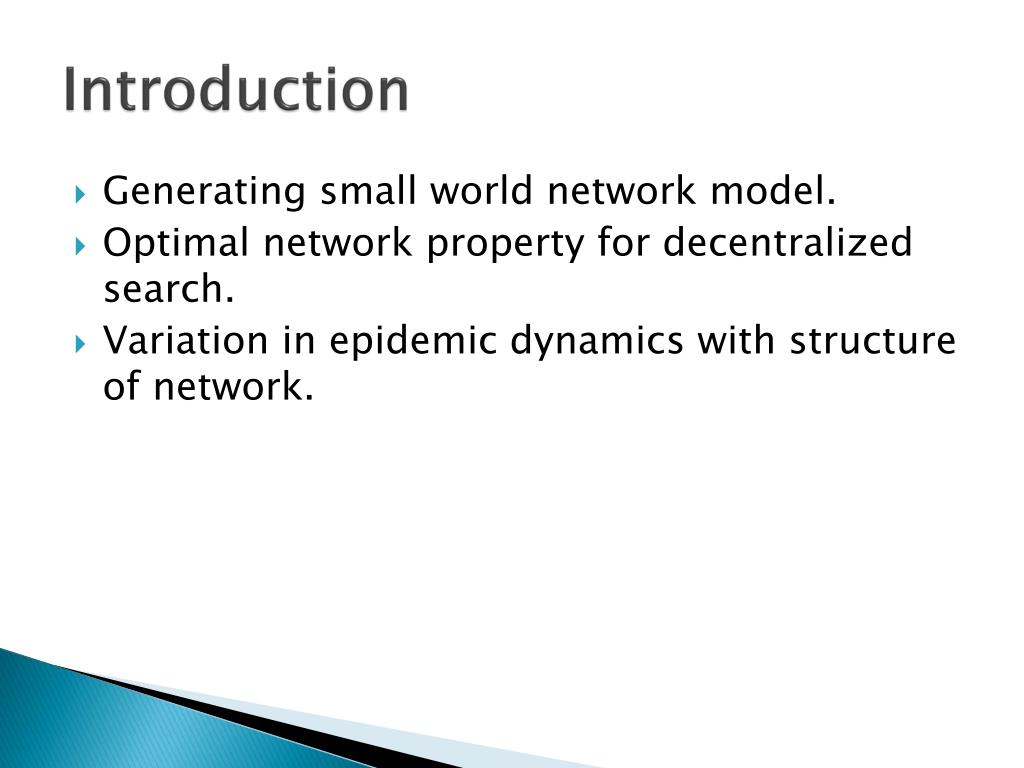

  2. Introduction • Generating small world network model. • Optimal network property for decentralized search. • Variation in epidemic dynamics with structure of network.

  3. Background • What is small world network model ? • Watts-Strogatzvs Kleinberg’s Model. • BFS vs Decentralized search.

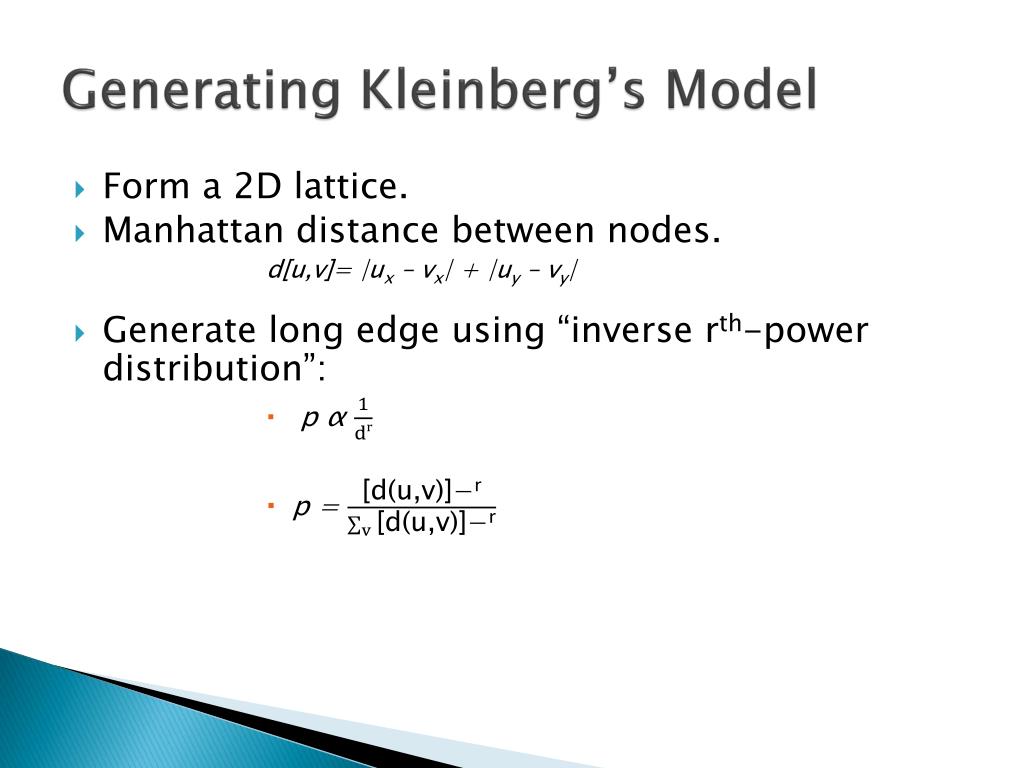

  4. Generating Kleinberg’s Model • Form a 2D lattice. • Manhattan distance between nodes. d[u,v]= |ux – vx| + |uy – vy| • Generate long edge using “inverse rth-power distribution”: • p α • p=

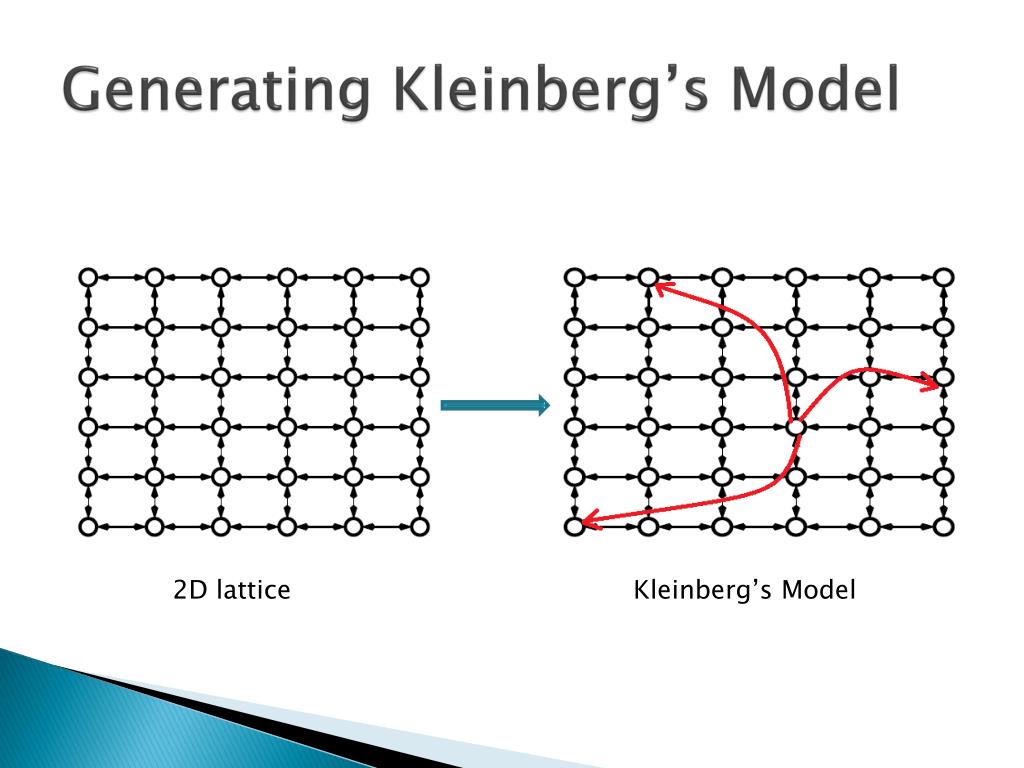

  5. Generating Kleinberg’s Model 2D lattice Kleinberg’s Model

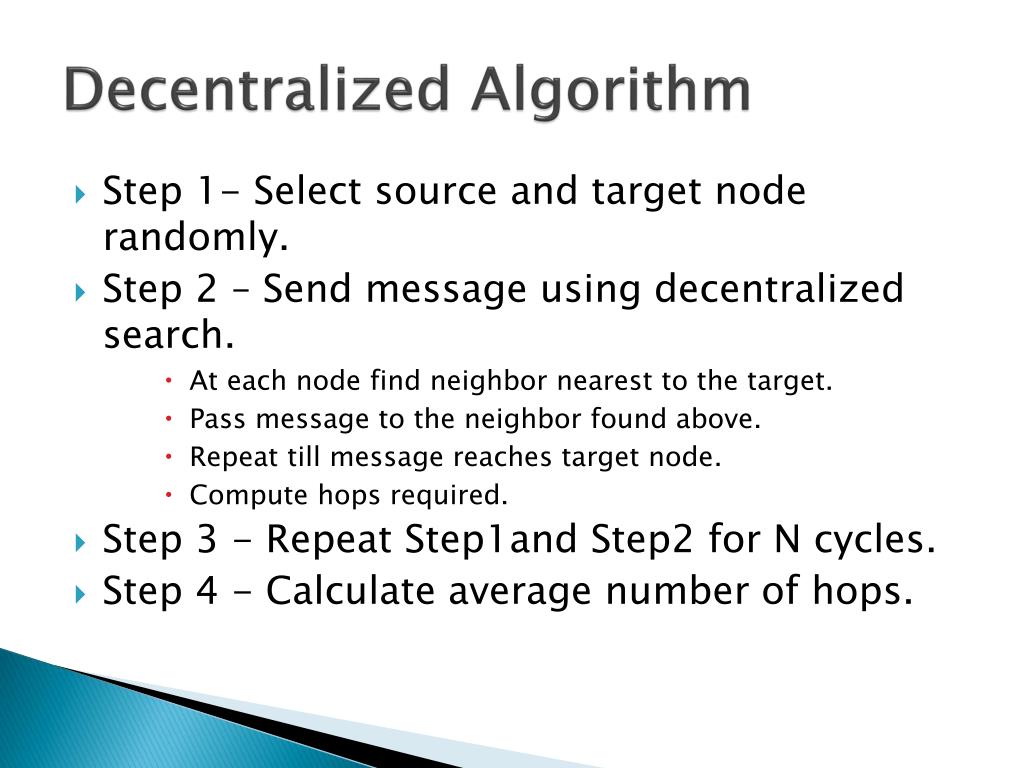

  6. Decentralized Algorithm • Step 1- Select source and target node randomly. • Step 2 – Send message using decentralized search. • At each node find neighbor nearest to the target. • Pass message to the neighbor found above. • Repeat till message reaches target node. • Compute hops required. • Step 3 - Repeat Step1and Step2 for N cycles. • Step 4 - Calculate average number of hops.

  7. Results Parameters: • Lattice dimension = 2, Number of Nodes/dimension = 100, Number of iterations = 10000 • For same value of r, decrease in q results in increase in average path length. • For different values of r, optimal average length is found at r = 2.

  8. Background • Epidemic Models. • Branching Model. • SIS Model • SIR Model • SIRS Model • SIRS over SIR

  9. Epidemic Model • Valid states of a node - {Infected, Susceptible, Recovered} • TI cycles – Infection Period. • TR cycles – Recovery Period. • Ni – Initial count of infected nodes. • q – Probability of contagion. • Model 1: Probability of getting infected pi = • Model 2: Probability of getting infected pi =

  10. Epidemic Model • Step 1 – Generate Kleinberg’s graph. • Step 2 – Simulate SIRS algorithm. • If state = Susceptible Check if node can get infection. If yes change the state to infected. • If state = Infected Check if TI expires. If yes change the state to recovery. • If state = Recovered Check if TR expires. If yes change the state to susceptible. • Step 3 – Store number of infected nodes. • Step 4 – Repeat above steps for N cycles.

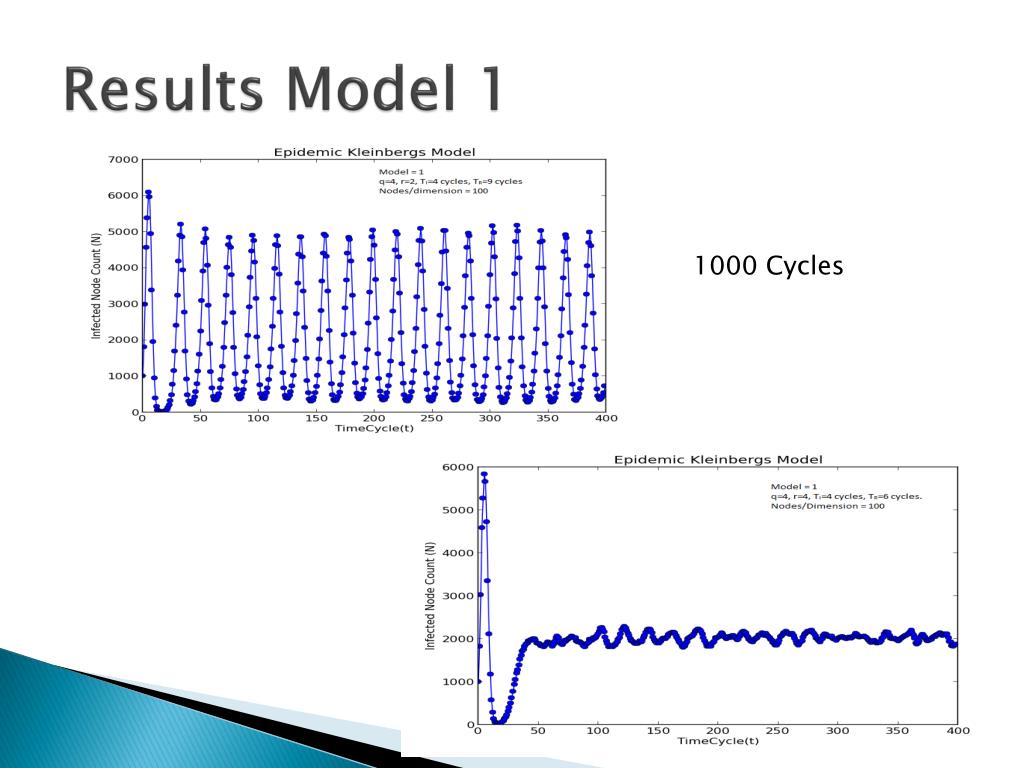

  11. Results Model 1 1000 Cycles

  12. Results Model 1 1000 Cycles

  13. Results Model 2 1000 Cycles

  14. Results Model 2 1000 Cycles

  15. Observations: • ‘r=0’ means uniform probability. Behavior same as Watts-Strogatz Model. • For constant “q”, Decrease in “r” results in increase in “p” for same distance. Hence high synchronization. • For constant “r”, Decrease in “q” results in decrease in “p”. Hence low synchronization.

  16. References • [1] Jon Kleinberg. The small-world phenomenon: an algorithmic perspective. In Proc.32nd ACM Symposium on Theory of Computing, pages 163–170, 2000. • [2] Marcelo Kuperman and Guillermo Abramson. Small world effect in an epidemiological model. Physical Review Letters, 86(13):2909–2912, March 2001.

  17. Questions ?

  18. Thank You!
