  1. ASPEN DYNAMICS EXAMPLES

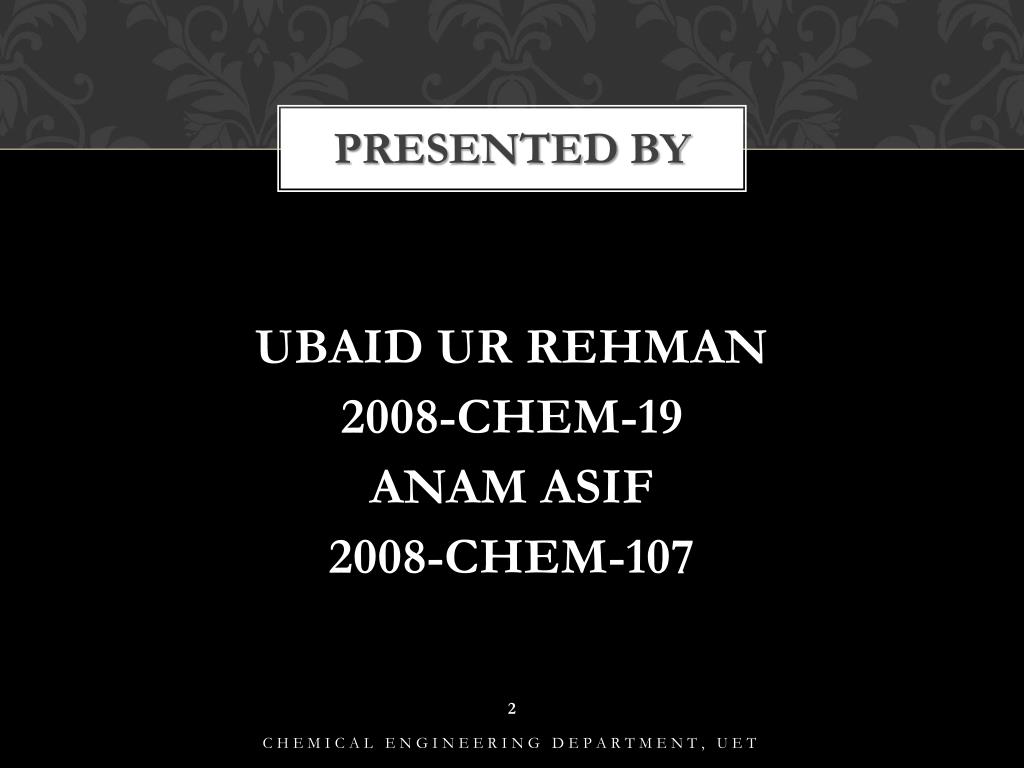

  2. PRESENTED BY • UBAID UR REHMAN • 2008-CHEM-19 • ANAM ASIF • 2008-CHEM-107 CHEMICAL ENGINEERING DEPARTMENT, UET

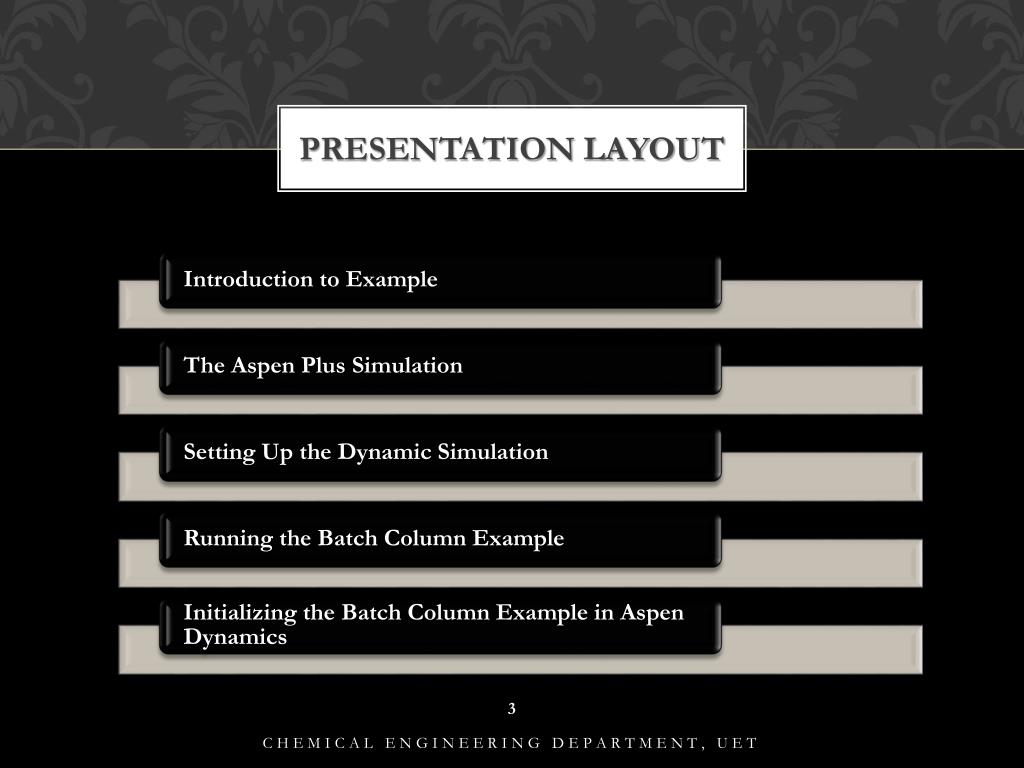

  3. PRESENTATION LAYOUT CHEMICAL ENGINEERING DEPARTMENT, UET

  4. INTRODUCTION • This is an example of a batch column simulation and illustrates these features of Aspen Dynamics: • • Use of scripts to automate initialization of an Aspen Dynamic flow sheet • • Use of tasks to start up and operate the batch reactor CHEMICAL ENGINEERING DEPARTMENT, UET

  5. CHEMICAL ENGINEERING DEPARTMENT, UET

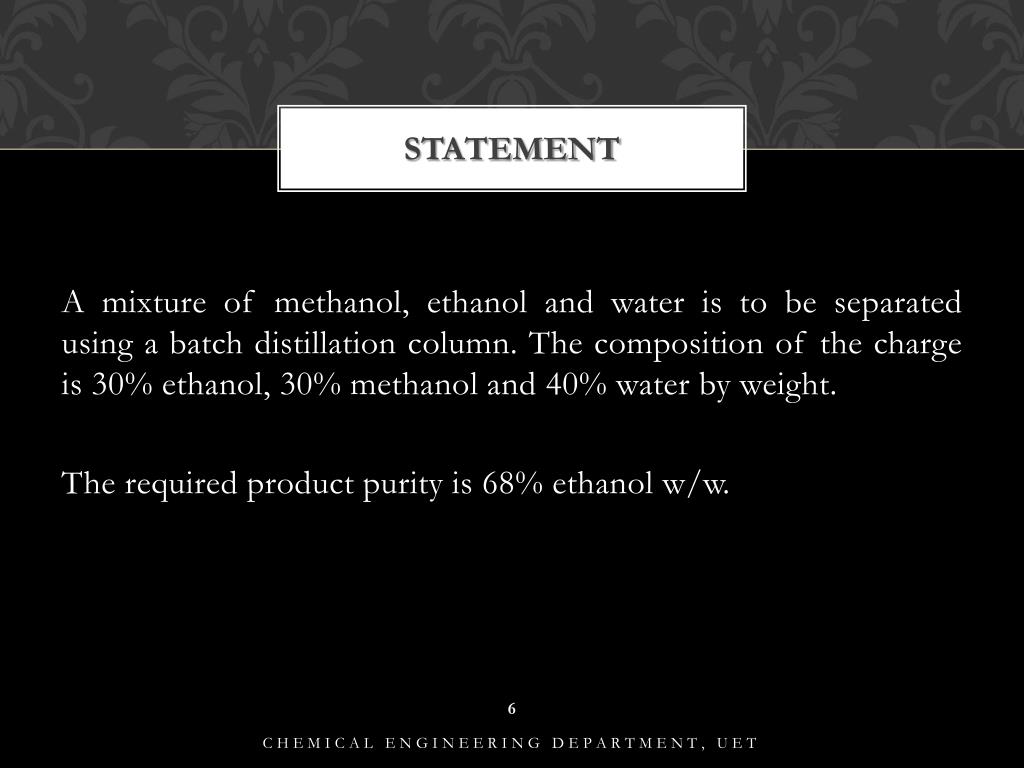

  6. STATEMENT • A mixture of methanol, ethanol and water is to be separated using a batch distillation column. The composition of the charge is 30% ethanol, 30% methanol and 40% water by weight. • The required product purity is 68% ethanol w/w. CHEMICAL ENGINEERING DEPARTMENT, UET

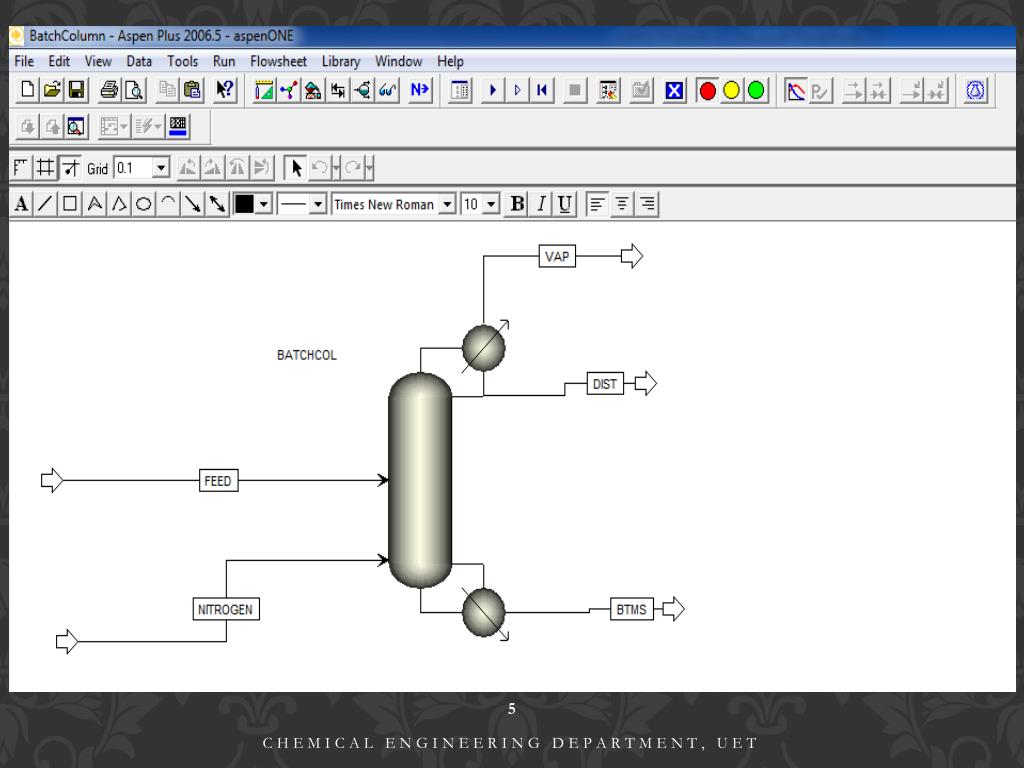

  7. The Aspen Plus Simulation • Aspen Plus has been used to set up the flow sheet for the batch column, which will be exported to Aspen Dynamics and initialized to be full of nitrogen at 20 C and 1 atmosphere • The column has been modeled using a RadFrac block. • Feed streams for the charge and nitrogen have been specified together with vapor and liquid distillate streams and a bottoms stream. • The column has been specified with 10 stages, a partial vaporliquid condenser and a kettle reboiler. CHEMICAL ENGINEERING DEPARTMENT, UET

  8. The Aspen Plus Simulation • The column dimensions have been specified on the RadFrac Dynamic form together with the sump and reflux drum size and geometry. • The LMTD heat transfer option has been selected for the condenser and the cooling medium temperature specified as 200C • The Constant temperature heat transfer option has been selected for the reboiler and the medium temperature has been specified as 120 C. CHEMICAL ENGINEERING DEPARTMENT, UET

  9. USE OF SCRIPT To set up the dynamic simulation CHEMICAL ENGINEERING DEPARTMENT, UET

  10. Setting Up the Dynamic Simulation • A flowsheet level script called Setup and a RadFrac model script called Empty. • The Flowsheet level script does the following: • 1. Adds a reflux ratio controller • 2. Sets the feed flow rates to zero • 3. Calls the RadFrac Empty script to initialize the column to be full of nitrogen at 20 C and 1 atmosphere. • 4. Performs an initialization run. • 5. Saves a snapshot CHEMICAL ENGINEERING DEPARTMENT, UET

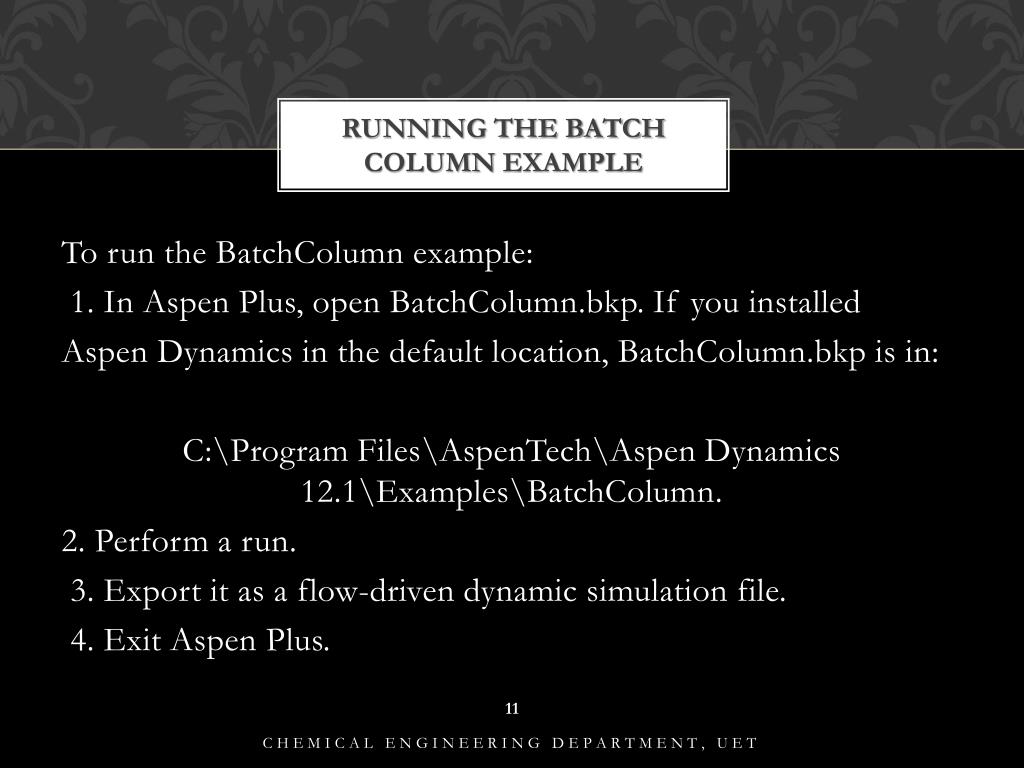

  11. Running the Batch Column Example • To run the BatchColumn example: • 1. In Aspen Plus, open BatchColumn.bkp. If you installed • Aspen Dynamics in the default location, BatchColumn.bkp is in: • C:\Program Files\AspenTech\Aspen Dynamics 12.1\Examples\BatchColumn. • 2. Perform a run. • 3. Export it as a flow-driven dynamic simulation file. • 4. Exit Aspen Plus. CHEMICAL ENGINEERING DEPARTMENT, UET

  12. CHEMICAL ENGINEERING DEPARTMENT, UET

  13. CHEMICAL ENGINEERING DEPARTMENT, UET

  14. CHEMICAL ENGINEERING DEPARTMENT, UET

  15. CHEMICAL ENGINEERING DEPARTMENT, UET

  16. CHEMICAL ENGINEERING DEPARTMENT, UET

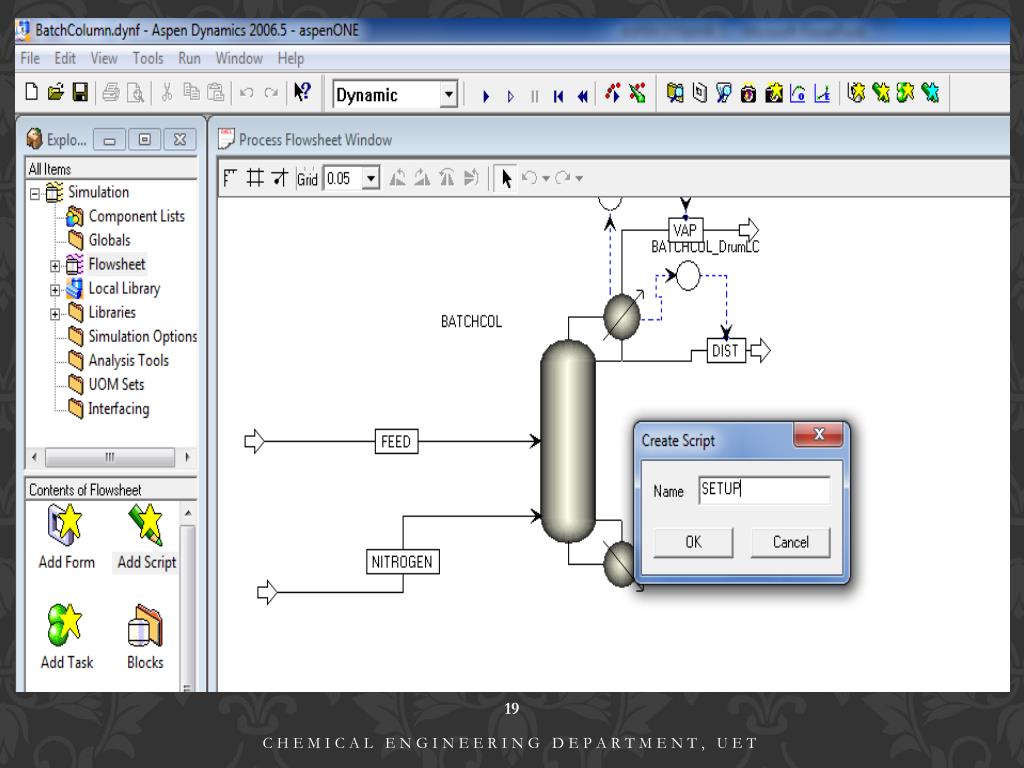

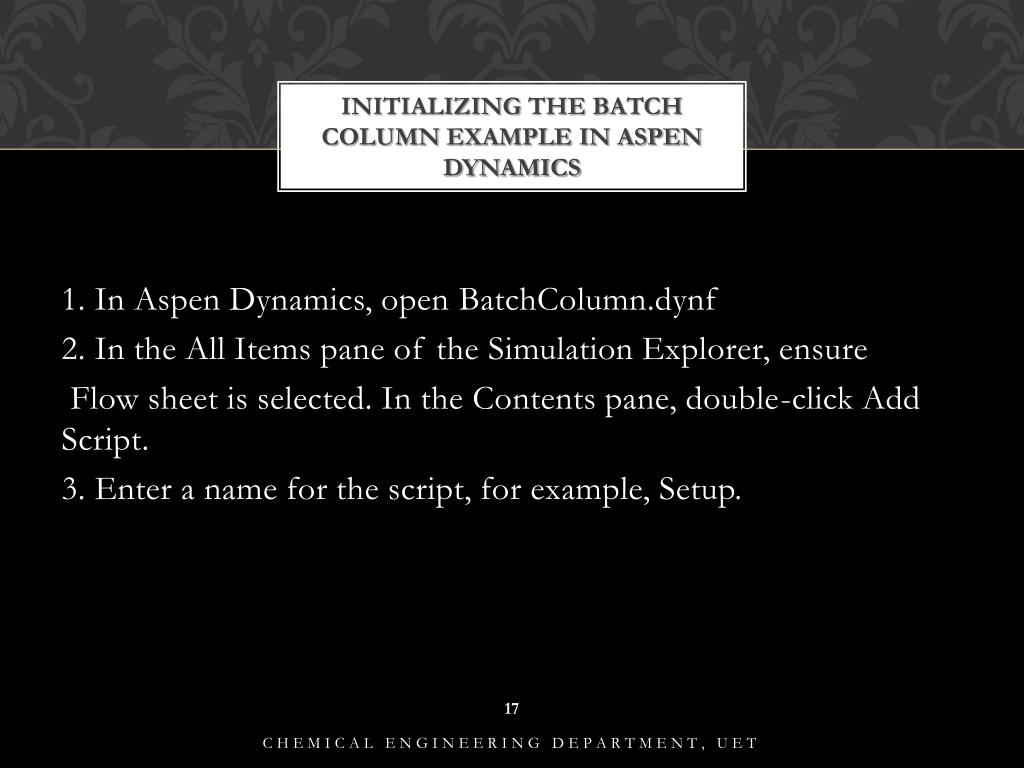

  17. Initializing the Batch Column Example in Aspen Dynamics • 1. In Aspen Dynamics, open BatchColumn.dynf • 2. In the All Items pane of the Simulation Explorer, ensure • Flow sheet is selected. In the Contents pane, double-click Add Script. • 3. Enter a name for the script, for example, Setup. CHEMICAL ENGINEERING DEPARTMENT, UET

  18. CHEMICAL ENGINEERING DEPARTMENT, UET

  19. CHEMICAL ENGINEERING DEPARTMENT, UET

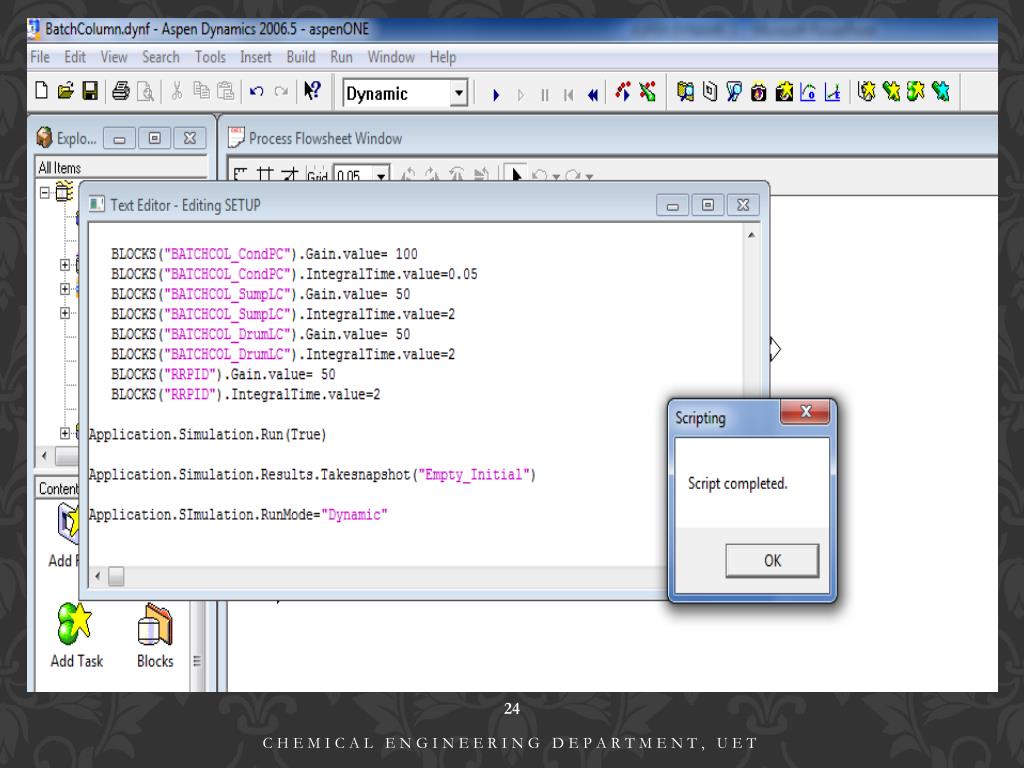

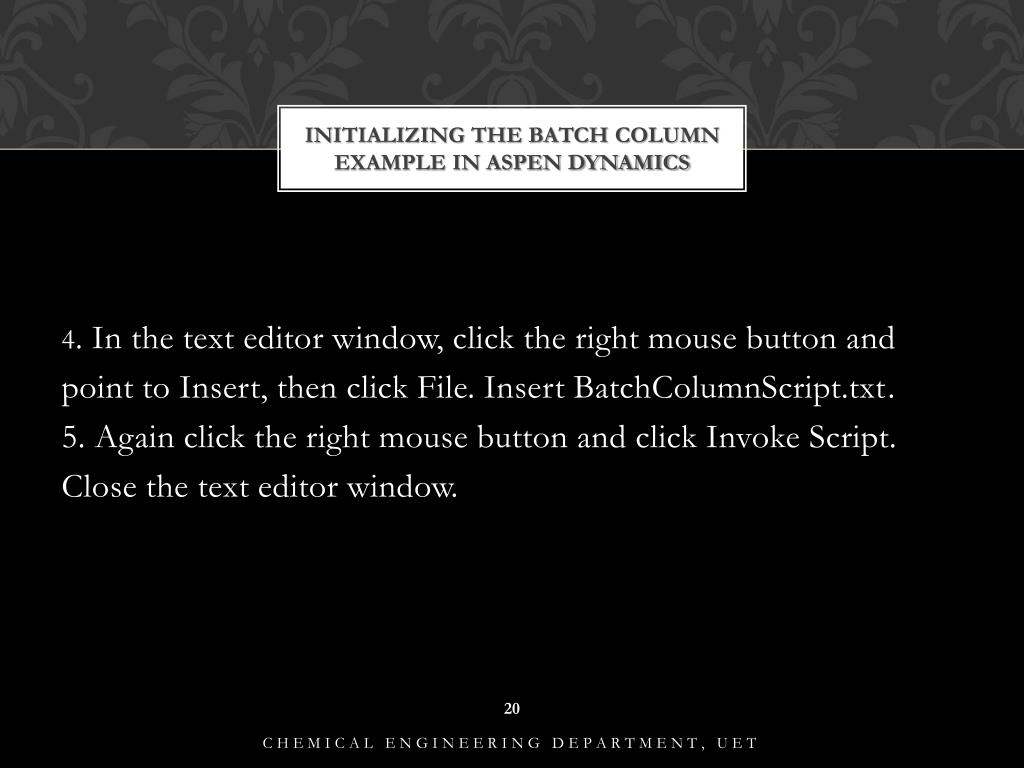

  20. Initializing the Batch Column Example in Aspen Dynamics • 4. In the text editor window, click the right mouse button and • point to Insert, then click File. Insert BatchColumnScript.txt. • 5. Again click the right mouse button and click Invoke Script. • Close the text editor window. CHEMICAL ENGINEERING DEPARTMENT, UET

  21. CHEMICAL ENGINEERING DEPARTMENT, UET

  22. CHEMICAL ENGINEERING DEPARTMENT, UET

  23. CHEMICAL ENGINEERING DEPARTMENT, UET

  24. CHEMICAL ENGINEERING DEPARTMENT, UET

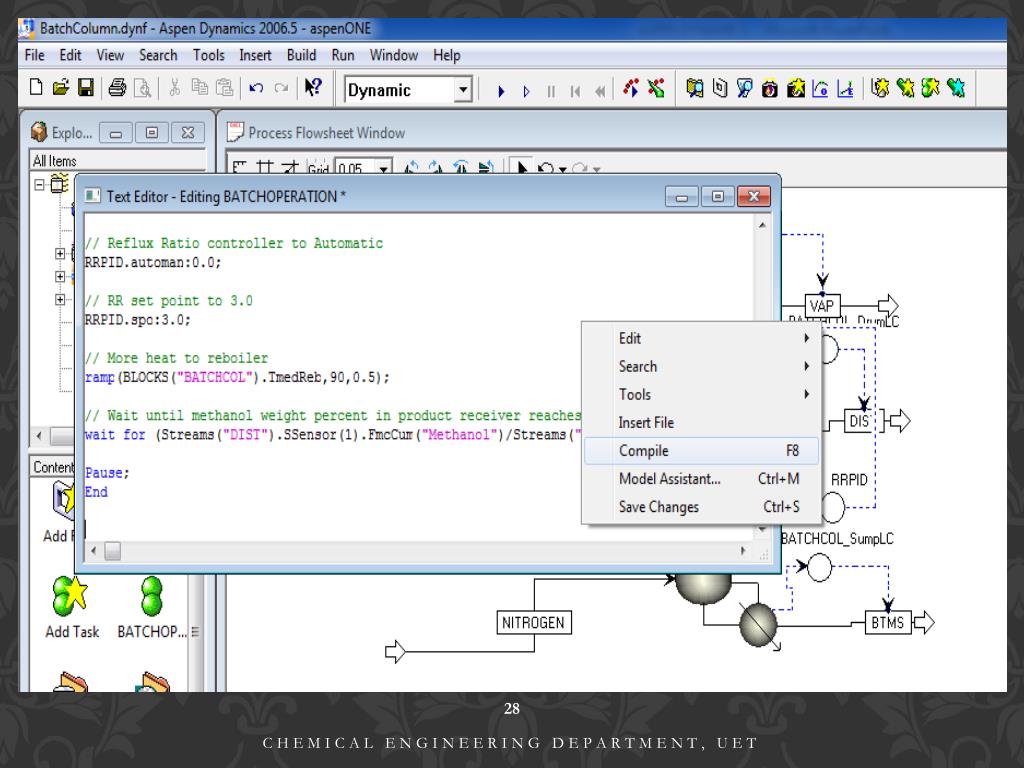

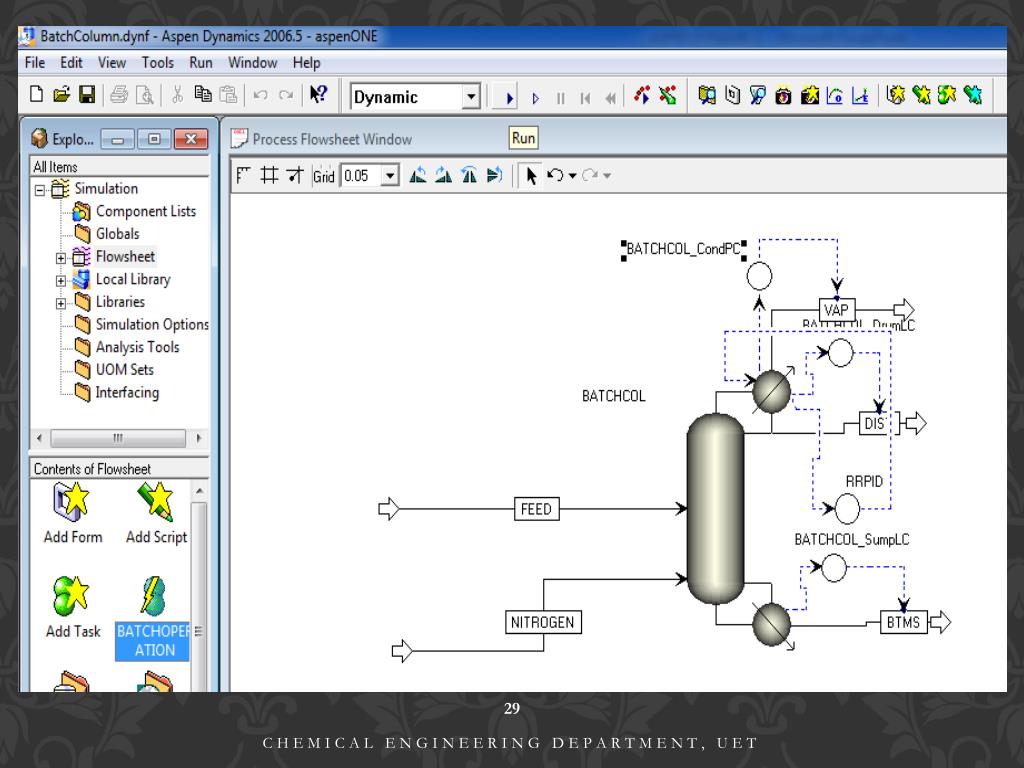

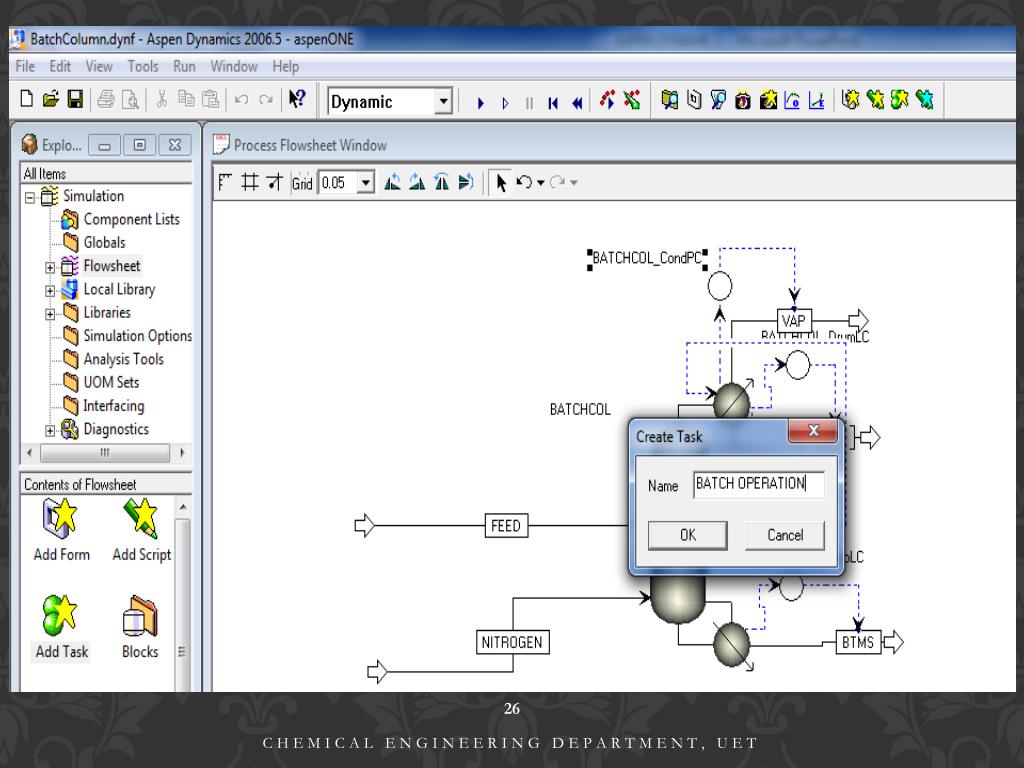

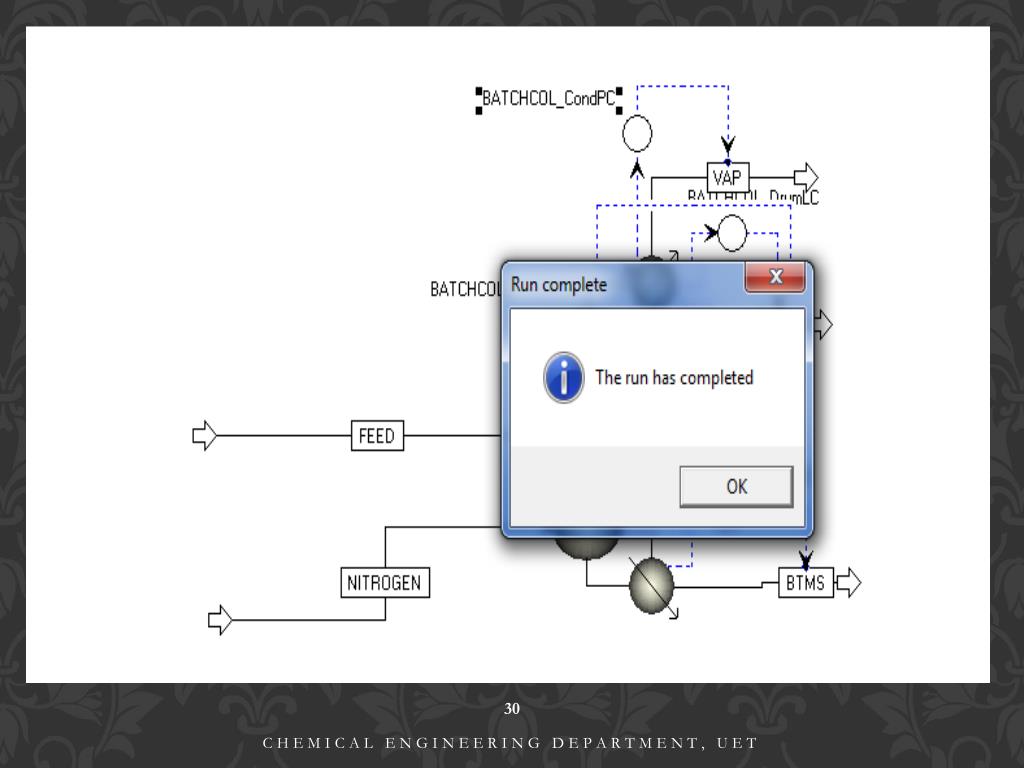

  25. Initializing the Batch Column Example in Aspen Dynamics • 6. Now create a task called BatchOperation. • To do this: • 7. In the Contents pane of the Simulation Explorer, double-click • Add Task. Enter the name BatchOperation. • 8. In the text editor window, select all of the existing text with • the mouse (or use Ctrl-A). Click the right mouse button and point to Insert, then click File. Insert BatchOperationTask.txt. • 9. Again click with the right mouse button and click Compile or press F8. Close the text editor window. • 10. In the Contents pane of the Simulation Explorer, double-click the task to activate it. • 11. Change the run mode to Dynamic and perform a dynamic run. CHEMICAL ENGINEERING DEPARTMENT, UET

  26. CHEMICAL ENGINEERING DEPARTMENT, UET

  27. CHEMICAL ENGINEERING DEPARTMENT, UET

  28. CHEMICAL ENGINEERING DEPARTMENT, UET

  29. CHEMICAL ENGINEERING DEPARTMENT, UET

  30. CHEMICAL ENGINEERING DEPARTMENT, UET

  31. USE 0F TASK To start up and operate the batch reactor CHEMICAL ENGINEERING DEPARTMENT, UET

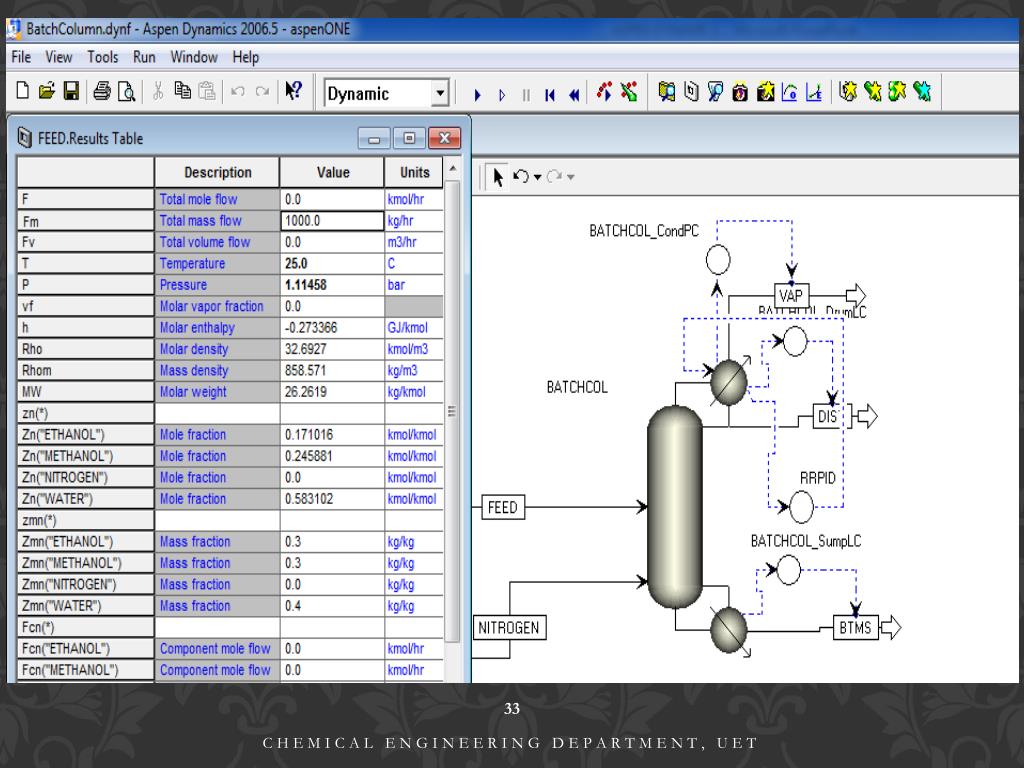

  32. Operating Sequence • The operating sequence defined by the tasks is: At time = 0.5 hours: • 1. Ramp the mass flow rate of the Feed stream to 1000 kg/hr over 0.1 hours. • 2. Wait until the cumulative mass flow of stream Feed is >= 1000 kg. CHEMICAL ENGINEERING DEPARTMENT, UET

  33. CHEMICAL ENGINEERING DEPARTMENT, UET

  34. CHEMICAL ENGINEERING DEPARTMENT, UET

  35. CHEMICAL ENGINEERING DEPARTMENT, UET

  36. Operating Sequence • 3. Step the mass flow rate of the Feed stream to 0 kg/hr. • 4. Wait for 3 minutes. CHEMICAL ENGINEERING DEPARTMENT, UET

  37. CHEMICAL ENGINEERING DEPARTMENT, UET

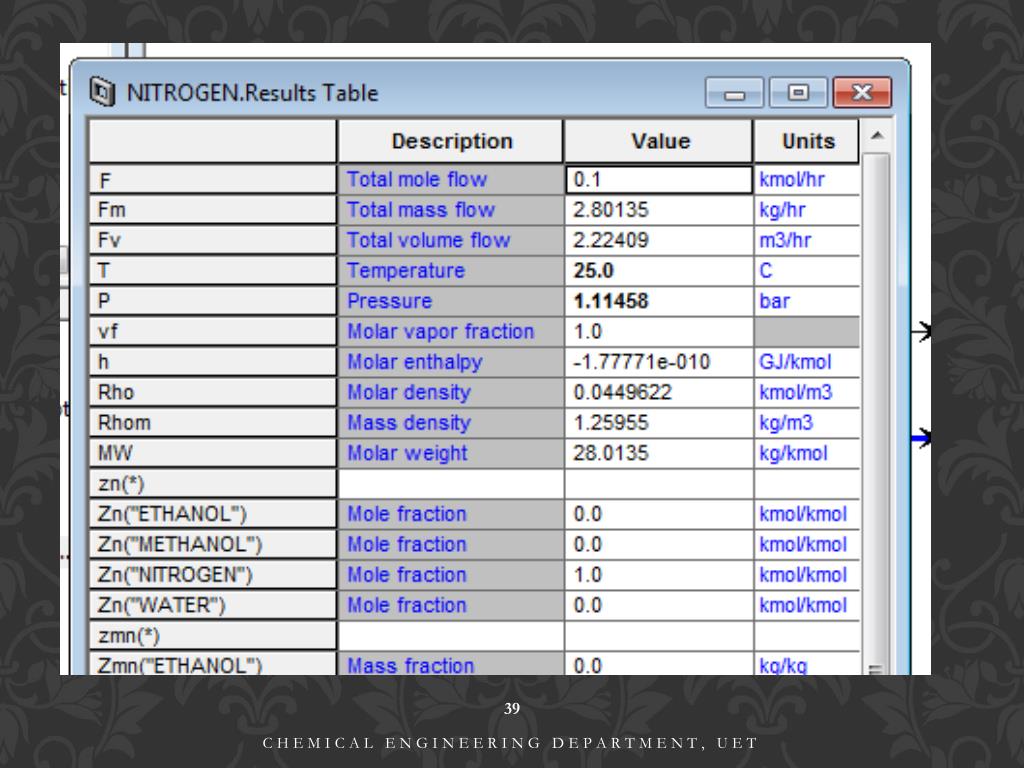

  38. Operating Sequence • 5. Increase the flow of the Nitrogen feed stream to 0.1 kmol/hr. • This is needed to maintain the pressure in the column. CHEMICAL ENGINEERING DEPARTMENT, UET

  39. CHEMICAL ENGINEERING DEPARTMENT, UET

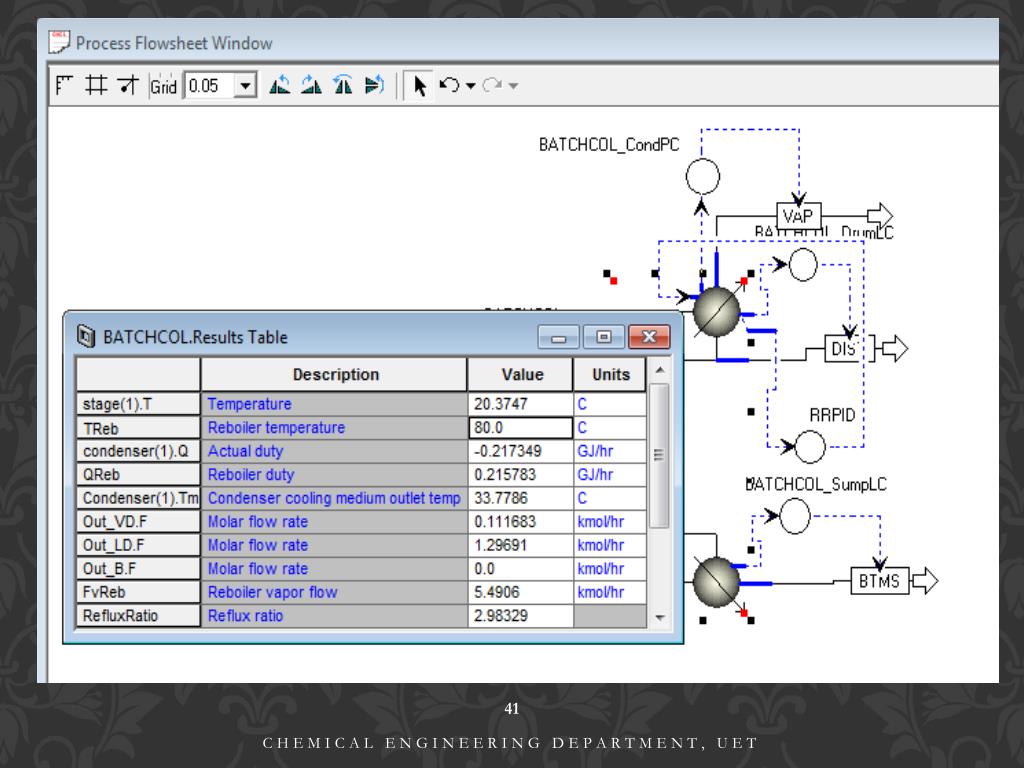

  40. Operating Sequence • 6.Ramp the reboiler medium temperature to 80 C over 30 • minutes. • 7. Wait until the reflux drum level >= 0.3 m. CHEMICAL ENGINEERING DEPARTMENT, UET

  41. CHEMICAL ENGINEERING DEPARTMENT, UET

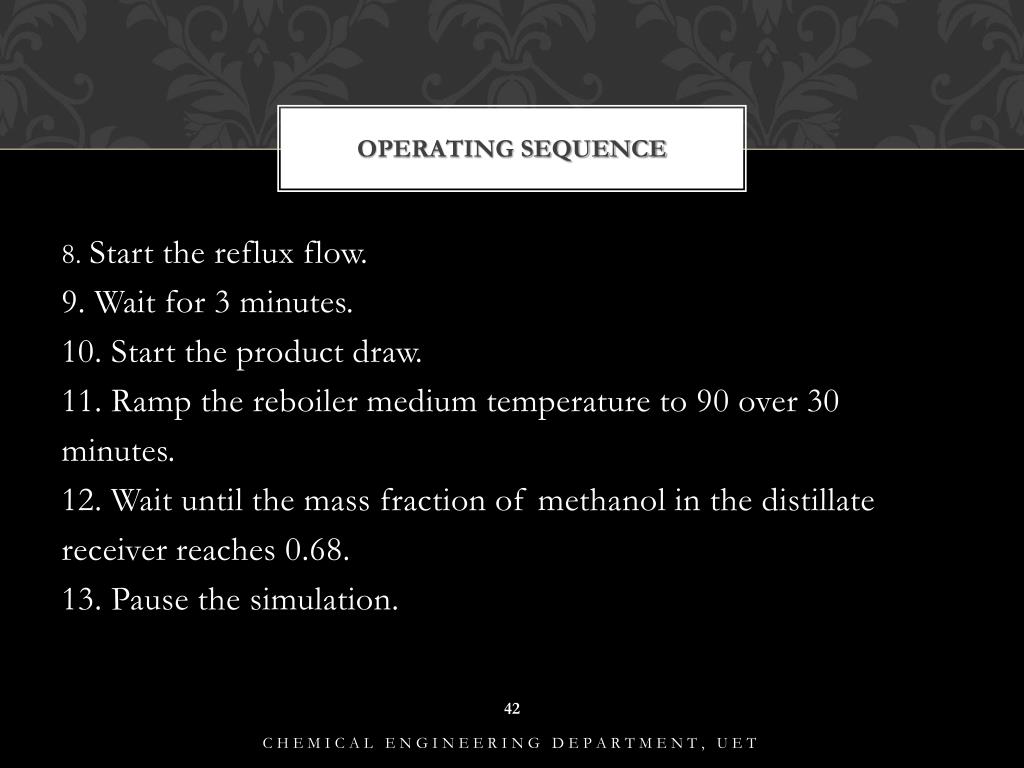

  42. Operating Sequence • 8. Start the reflux flow. • 9. Wait for 3 minutes. • 10. Start the product draw. • 11. Ramp the reboiler medium temperature to 90 over 30 • minutes. • 12. Wait until the mass fraction of methanol in the distillate • receiver reaches 0.68. • 13. Pause the simulation. CHEMICAL ENGINEERING DEPARTMENT, UET

  43. CHEMICAL ENGINEERING DEPARTMENT, UET

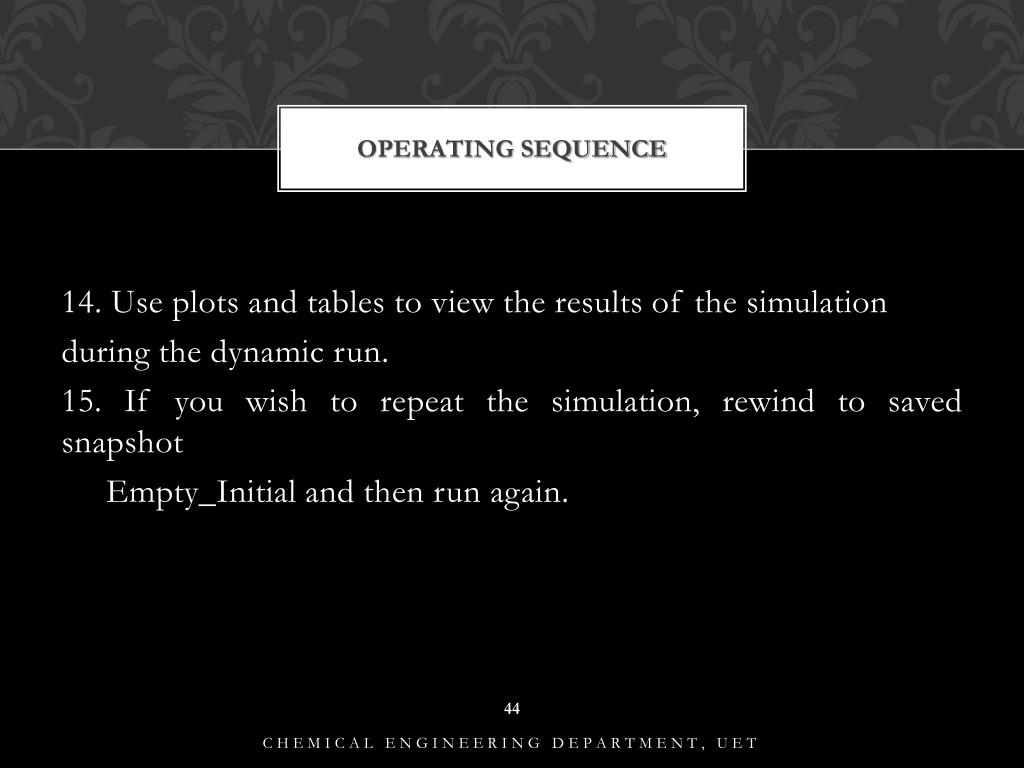

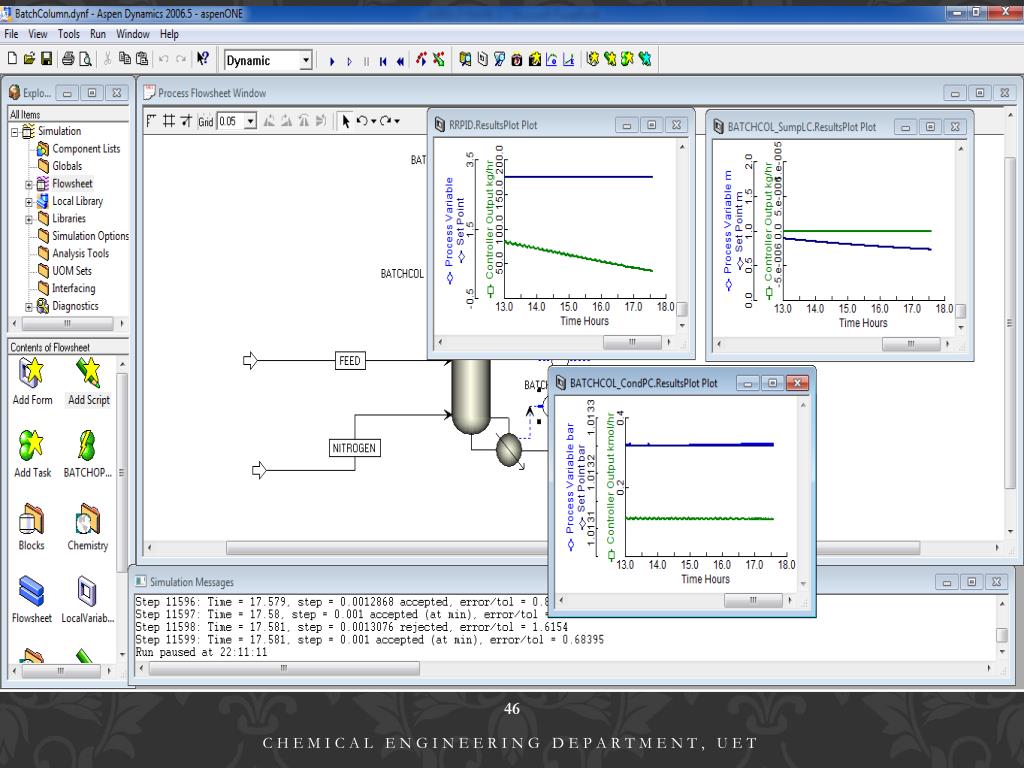

  44. Operating Sequence • 14. Use plots and tables to view the results of the simulation • during the dynamic run. • 15. If you wish to repeat the simulation, rewind to saved snapshot • Empty_Initialand then run again. CHEMICAL ENGINEERING DEPARTMENT, UET
