Real-Time Monitoring and Reporting for Shredder Operations and Mill Systems

This system provides comprehensive real-time monitoring of shredder motor performance, including trends in motor bearings and thermal capacity. It features a conveyor control panel and multiple monitoring screens for mill motors, infeed, DFRE, and mill cylinders, with updates on total hours running. The log viewer tracks all PLC activities during operation. Additionally, users can select report types through a dedicated screen report selector, generating Excel reports with network capabilities for multiple plants.

wirt
Télécharger la présentation

Real-Time Monitoring and Reporting for Shredder Operations and Mill Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Main Control Screen

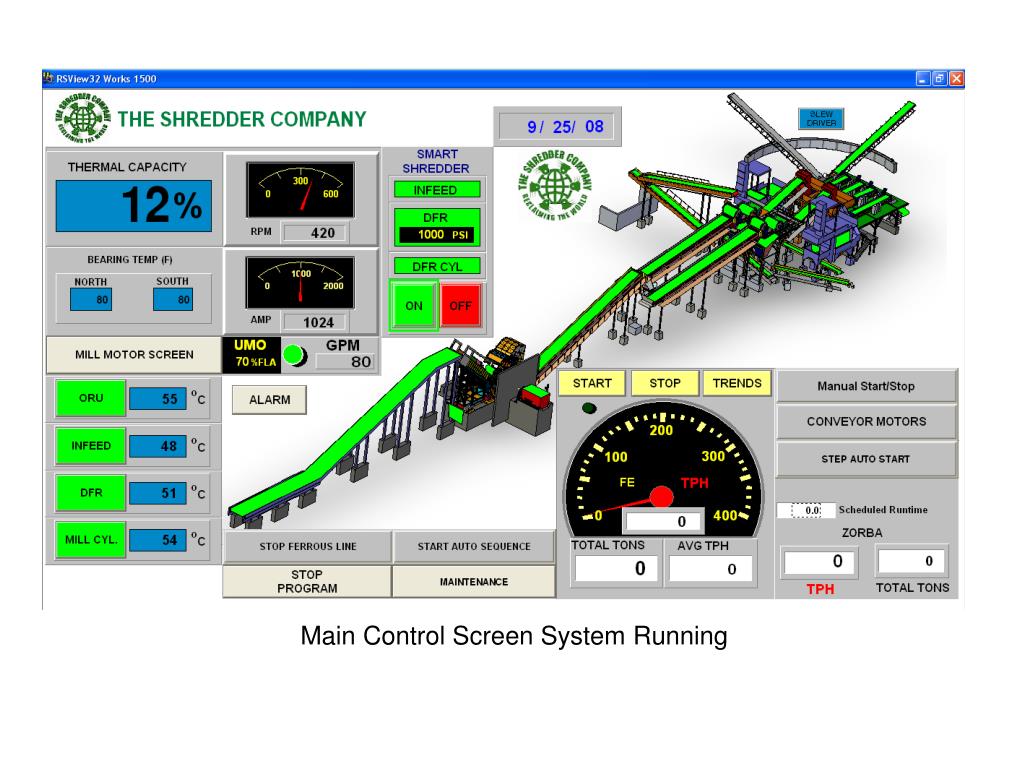

  2. Main Control Screen System Running

  3. Production Screen

  4. Real Time Scale Rates Trends

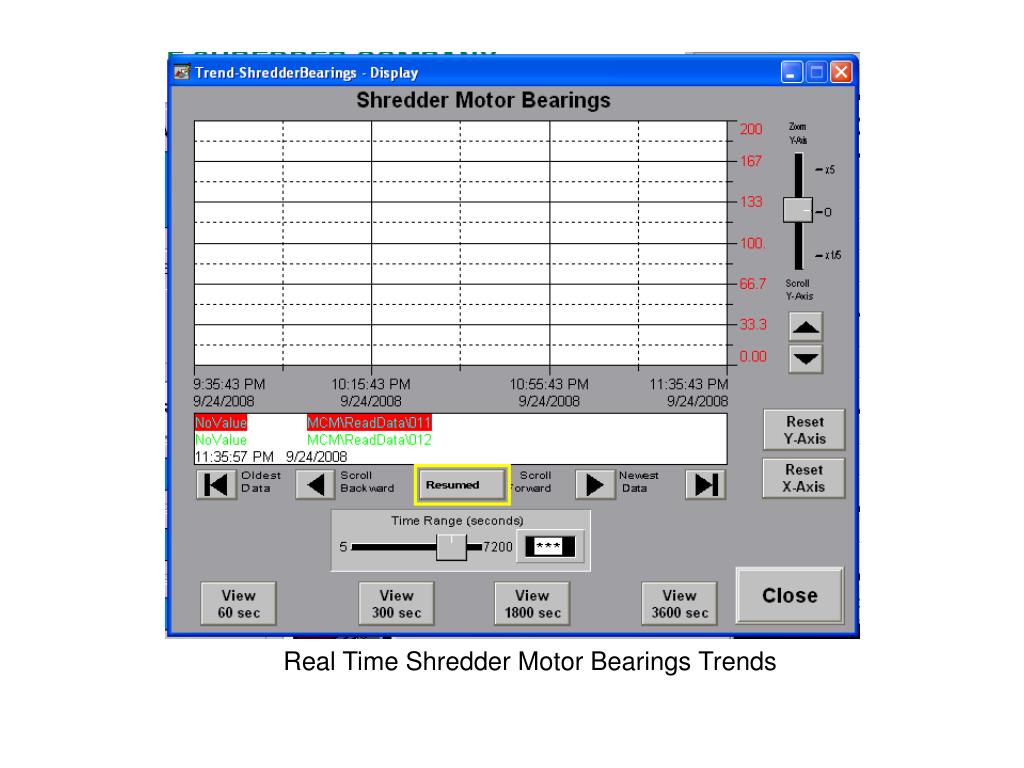

  5. Real Time Shredder Motor Bearings Trends

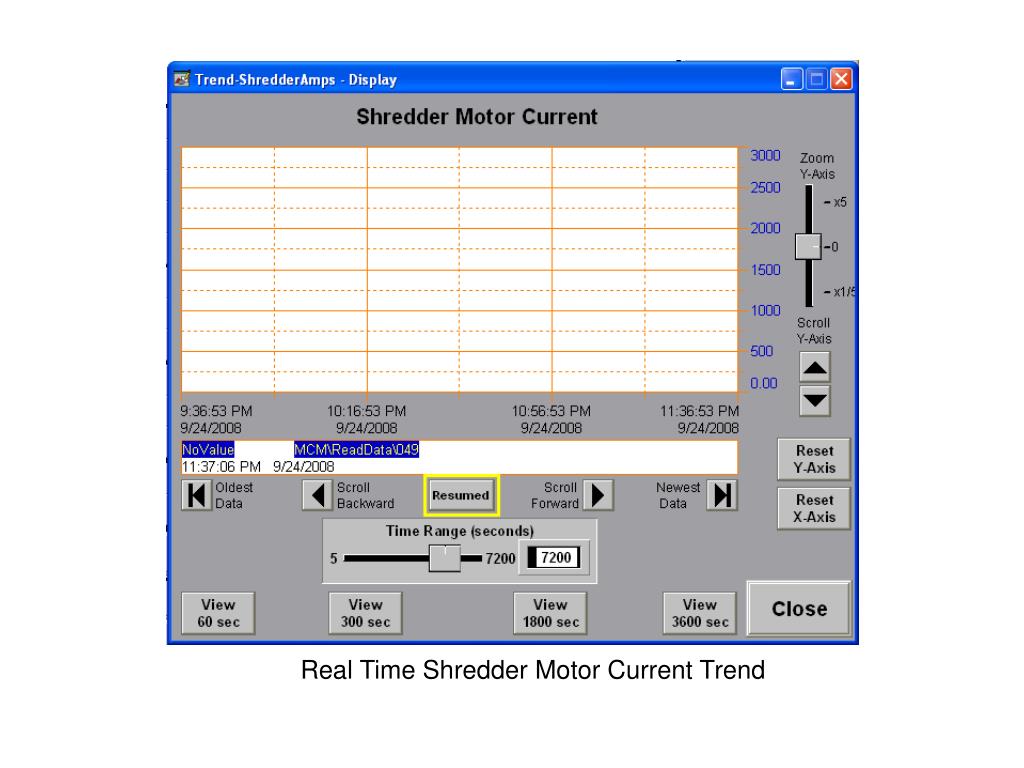

  6. Real Time Shredder Motor Current Trend

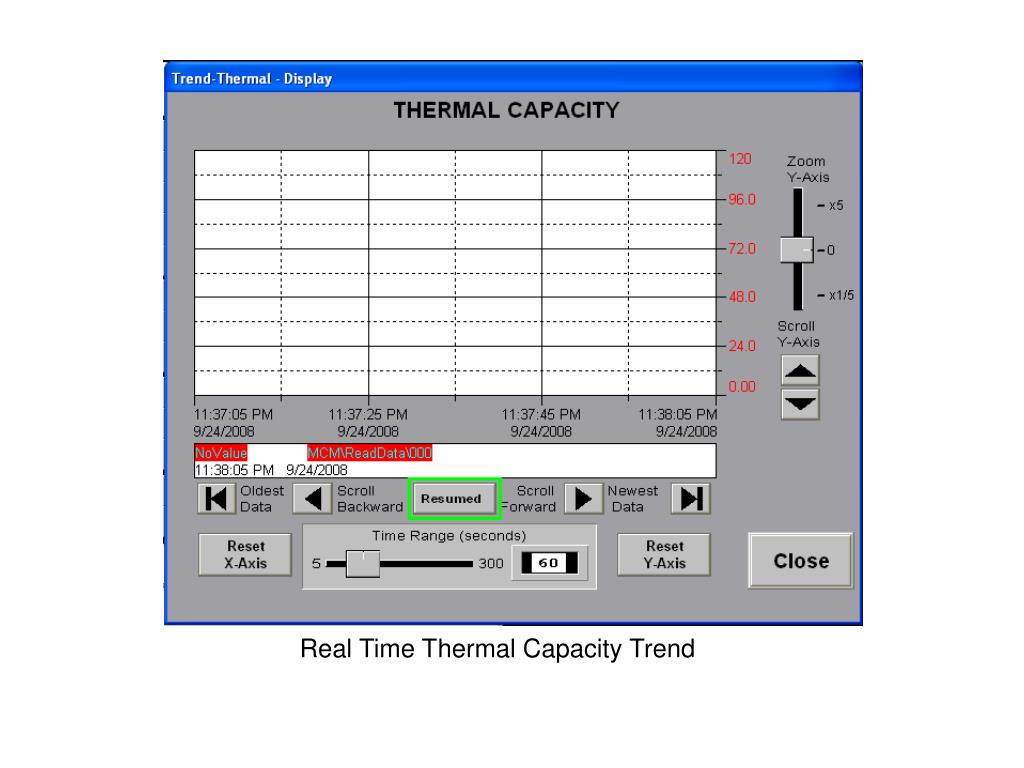

  7. Real Time Thermal Capacity Trend

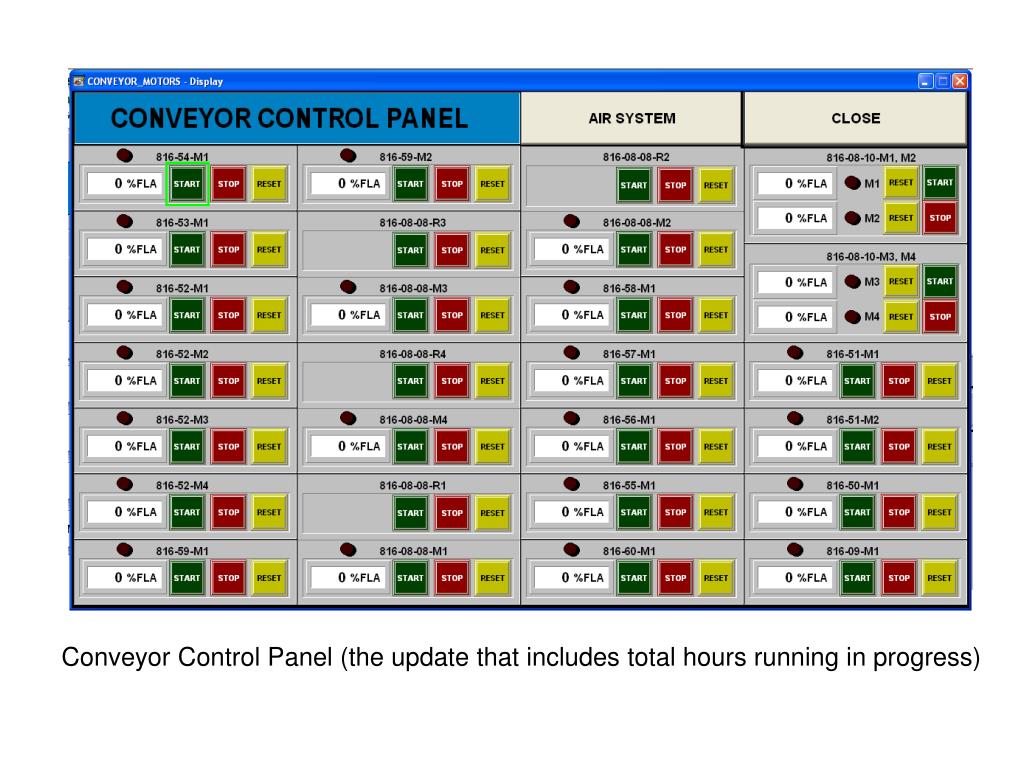

  8. Conveyor Control Panel (the update that includes total hours running in progress)

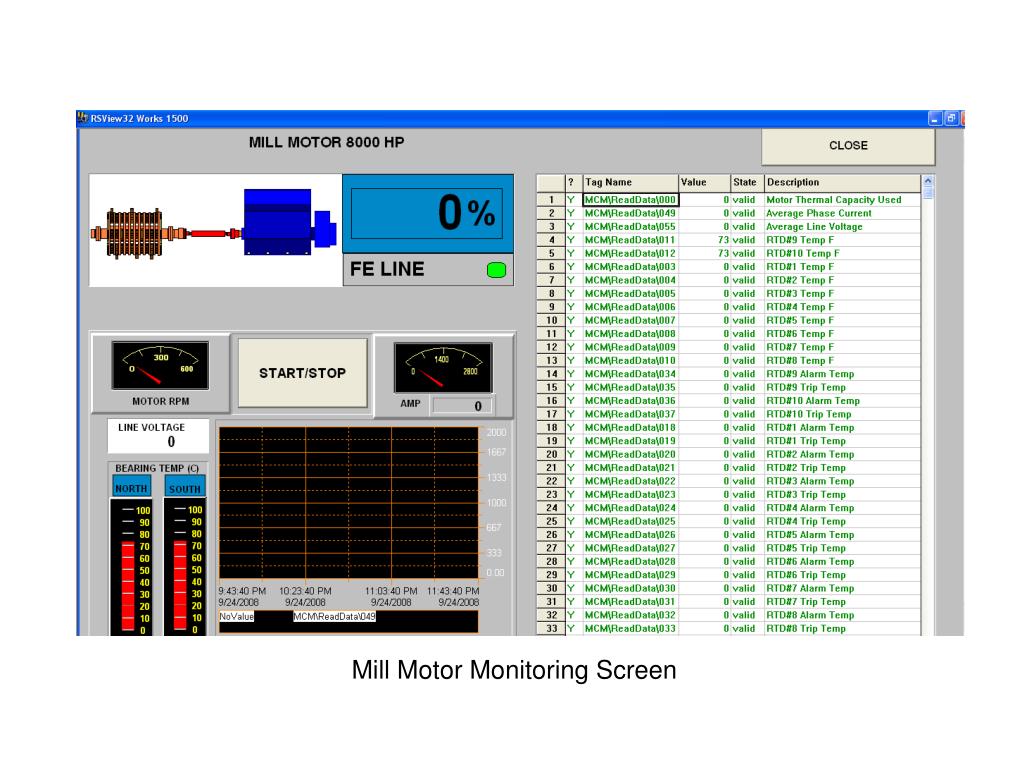

  9. Mill Motor Monitoring Screen

  10. ORU Monitoring Screen (the update that includes total hours running is in progress)

  11. INFEED Monitoring Screen (the update that includes total hours running is in progress)

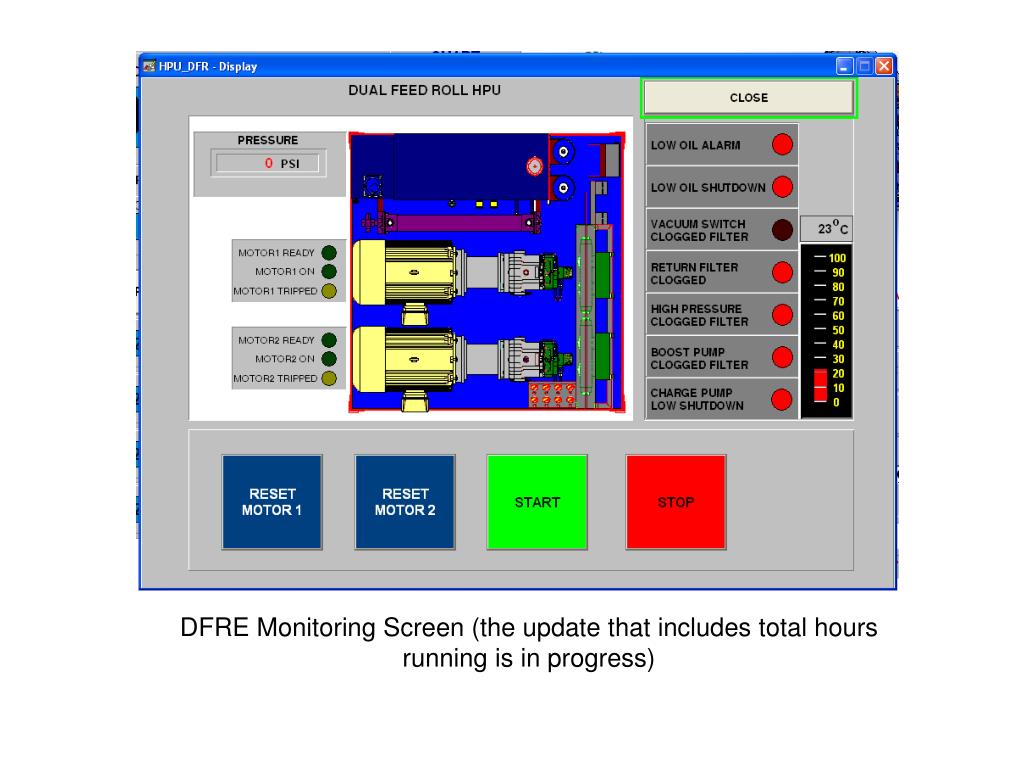

  12. DFRE Monitoring Screen (the update that includes total hours running is in progress)

  13. Mill Cylinders Monitoring Screen (the update that includes total hours running is in progress)

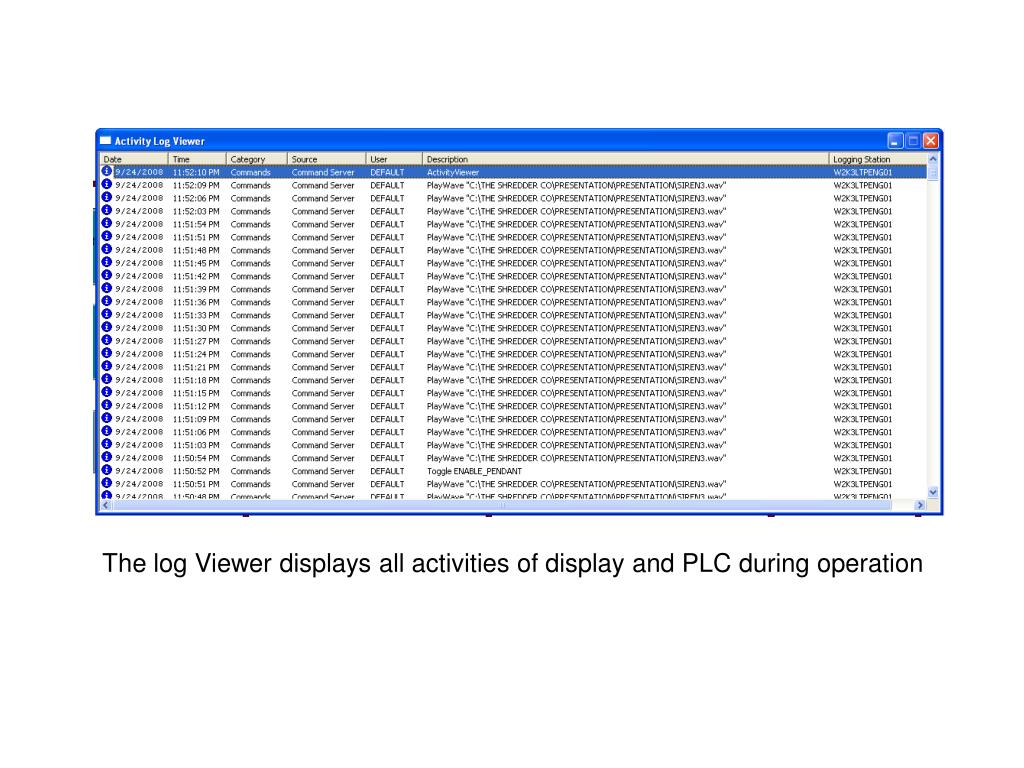

  14. The log Viewer displays all activities of display and PLC during operation

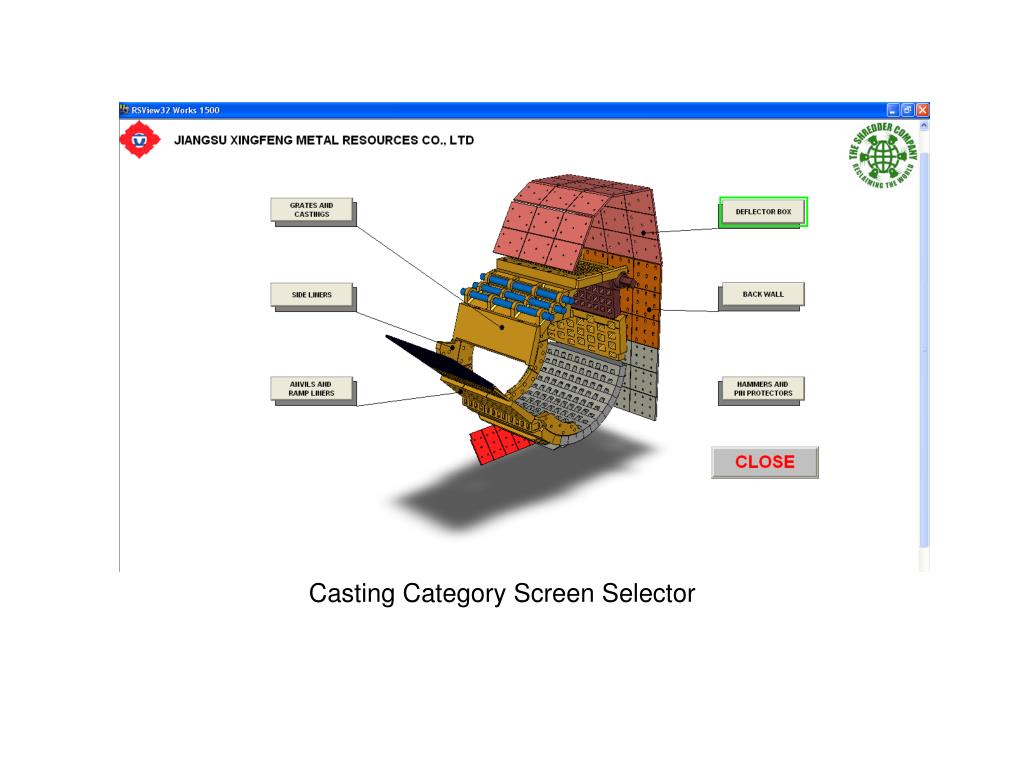

  15. Casting Category Screen Selector

  16. Screens for hammers, pin protectors and pins is under construction

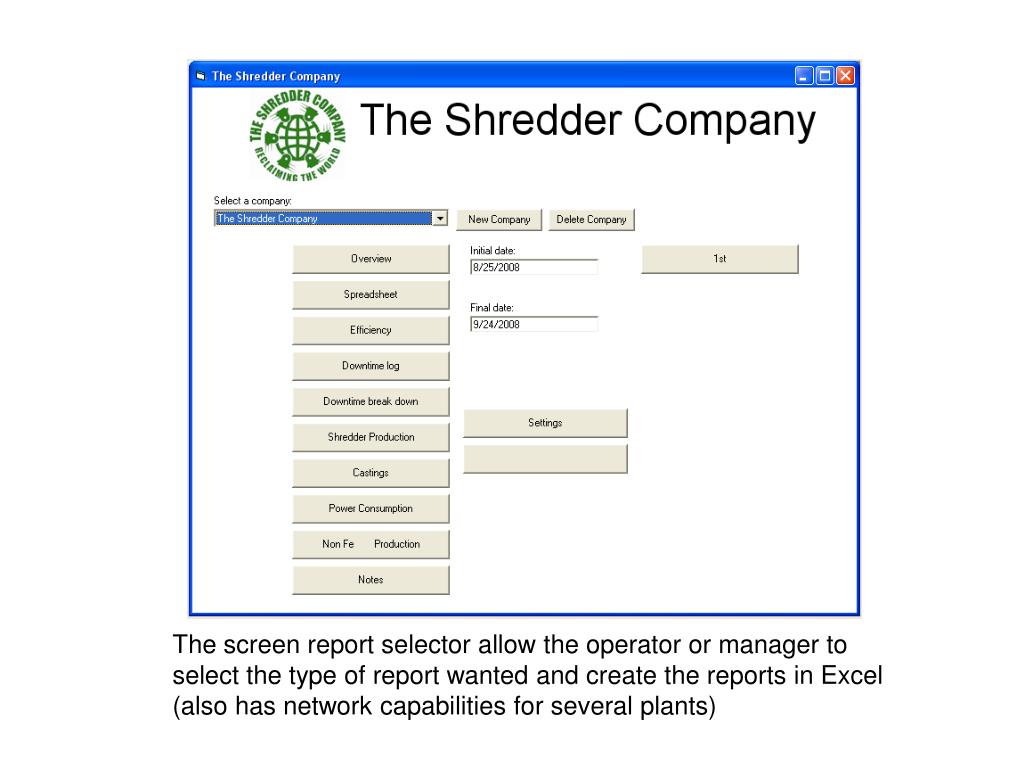

  17. The screen report selector allow the operator or manager to select the type of report wanted and create the reports in Excel (also has network capabilities for several plants)
