Presentation Transcript

  1. NUMBERING OF BEDS

  2. Criterias

  3. TranspositionofFloors Correntstate Future state 4 - 5 3 - 4 2 - 3 1 - 2 REESTRUCTE GF - 1 BF - 0

  4. 3º Floor - Distribution

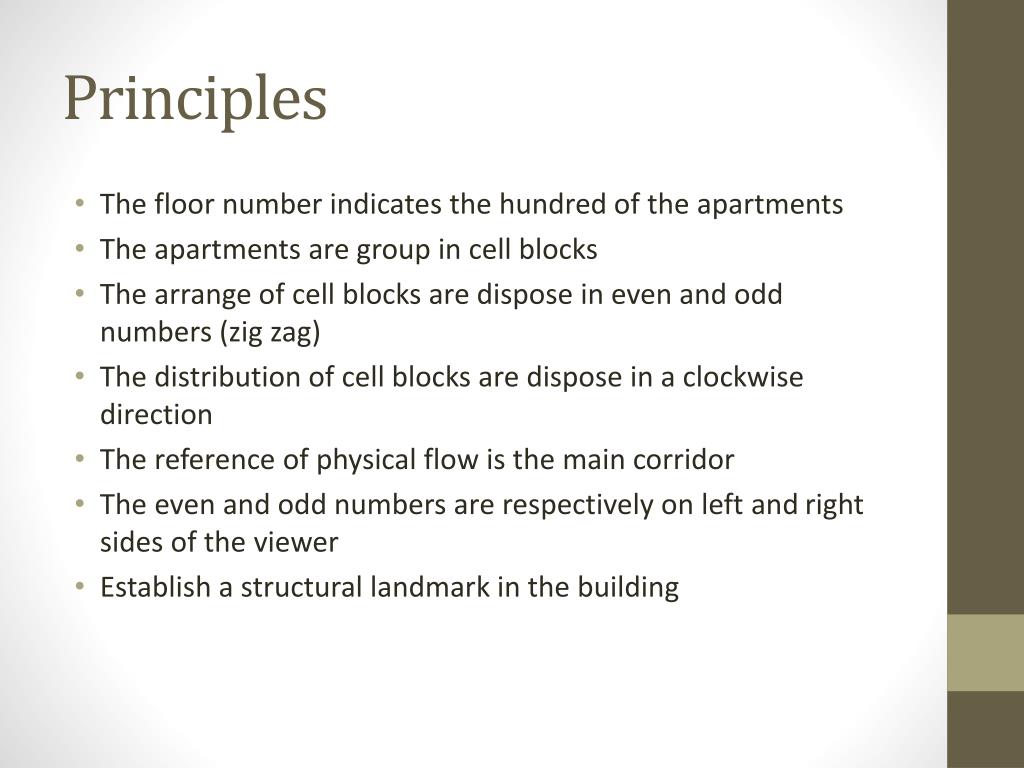

  5. Principles • The floornumberindicatesthehundredoftheapartments • The apartments are group in cellblocks • The arrangeofcellblocks are dispose in evenandoddnumbers (zigzag) • The distributionofcellblocks are dispose in a clockwisedirection • The referenceofphysicalflowisthemaincorridor • The even and odd numbers are respectively on left and right sides of the viewer • Establish a structural landmark in the building

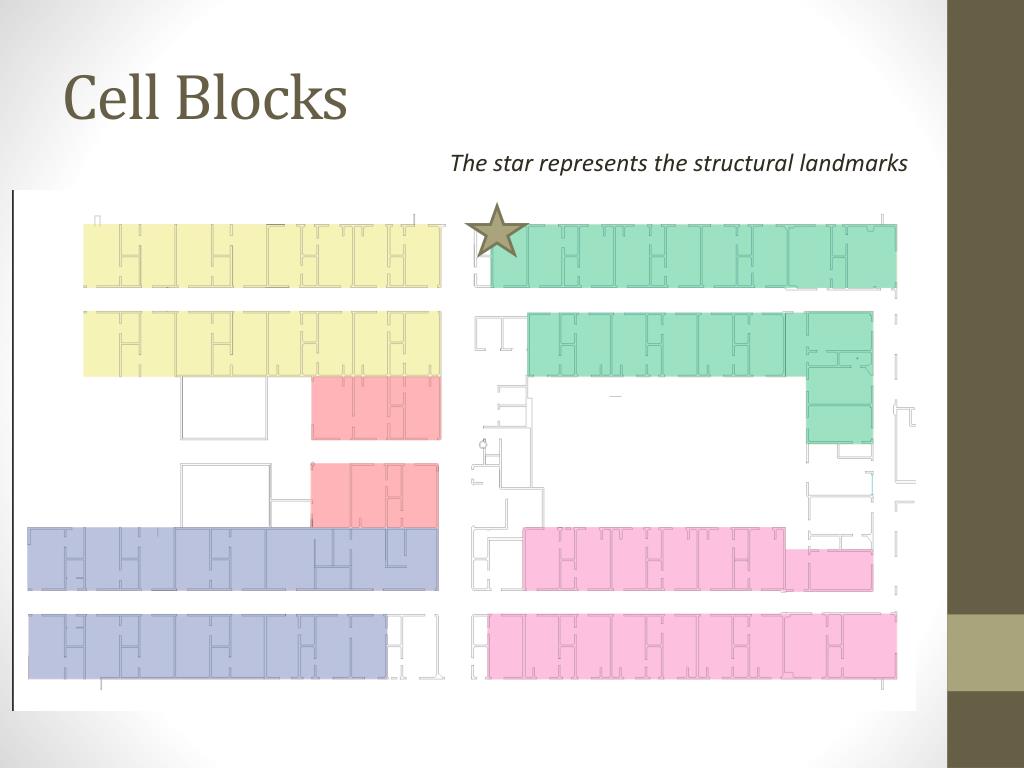

  6. CellBlocks The star representsthestructurallandmarks

  7. Evenand Odd

  8. 3º Floor – ClockwiseDirection 370 300 360 New Apartments MainCorridor 340 320

  9. Structurallandmark The choice of the structural framework considered two important points: • 1 - The invariable area of the structure. • 2 - A cross column structure as universal reference point. With that, new modifications can be done without compromise the logic proposition.
